Number of input channels

LPD64

4 SMA

Input coupling

DC

Input resistance selection

50 Ω

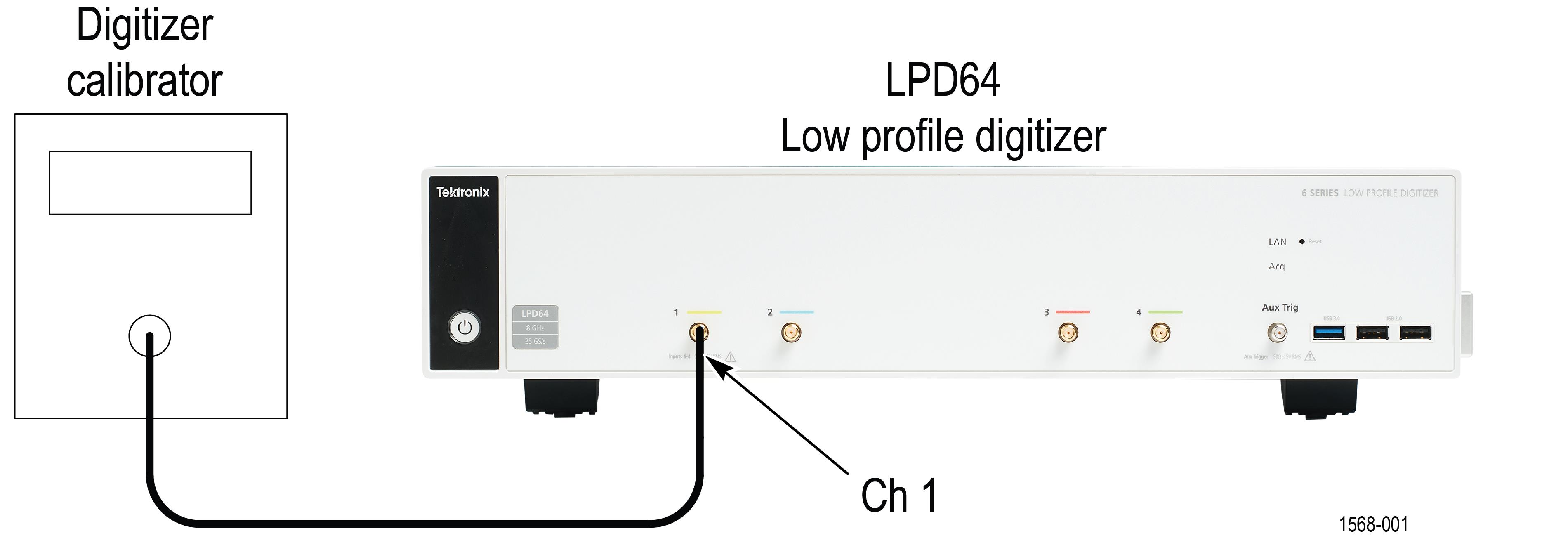

✓ Input impedance 50 Ω, DC coupled

50 Ω ±3%

Input VSWR, 50 Ω DC-coupled, typical

Input frequency	VSWR < 100 mV/div	VSWR ≥100 mV/div
<5 GHz	1.45	1.2
≤8 GHz	1.95	1.7

Maximum input voltage, 50 Ohm

2.3 V_RMS at <100 mV/division, with peaks ≤ ±20 V

5.5 V_RMS at >100 mV/division, with peaks ≤ ±20 V

DC balance

✓ 0.1 div with DC-50 Ω oscilloscope input impedance (50 Ω BNC terminated)

✓ 0.2 div at 1 mV/div with DC-50 Ω oscilloscope input impedance (50 Ω BNC terminated)

Number of digitized bits

8 bits at 25 GS/s; 8 GHz on all channels

12 bits at 12.5 GS/s; 4 GHz on all channels

13 bits at 6.25 GS/s (High Res); 2 GHz on all channels

14 bits at 3.125 GS/s (High Res); 1 GHz on all channels

15 bits at 1.25 GS/s (High Res); 500 MHz on all channels

16 bits at 625 MS/s (High Res); 500 MHz on all channels

For 12-bit mode, there are 4096 DL's (digitizing levels) in a captured waveform. For 8-bit mode, there are 256 DL's. DL is the abbreviation for digitization level. A DL is the smallest voltage level change that can be resolved by an A-D Converter. This value is also known as an LSB (least significant bit).

In an un-zoomed time-domain waveform plot, the full vertical scale of the plot (in 12-bit mode) is 4000 DLs ±48 DLs "off-screen" but are still available for measurements, analysis, and download.

In 8-bit mode, there are 250 DLs displayed. ±3 digitizing levels are "off-screen" but are still available for measurements, analysis, and download.

Sensitivity range, coarse

50 Ω

1 mV/div to 1 V/div in a 1-2-5 sequence

Sensitivity range, fine

50 Ω

Allows continuous adjustment from:

1 mV/div to 1 V/div

Sensitivity resolution, fine

≤1% of current setting

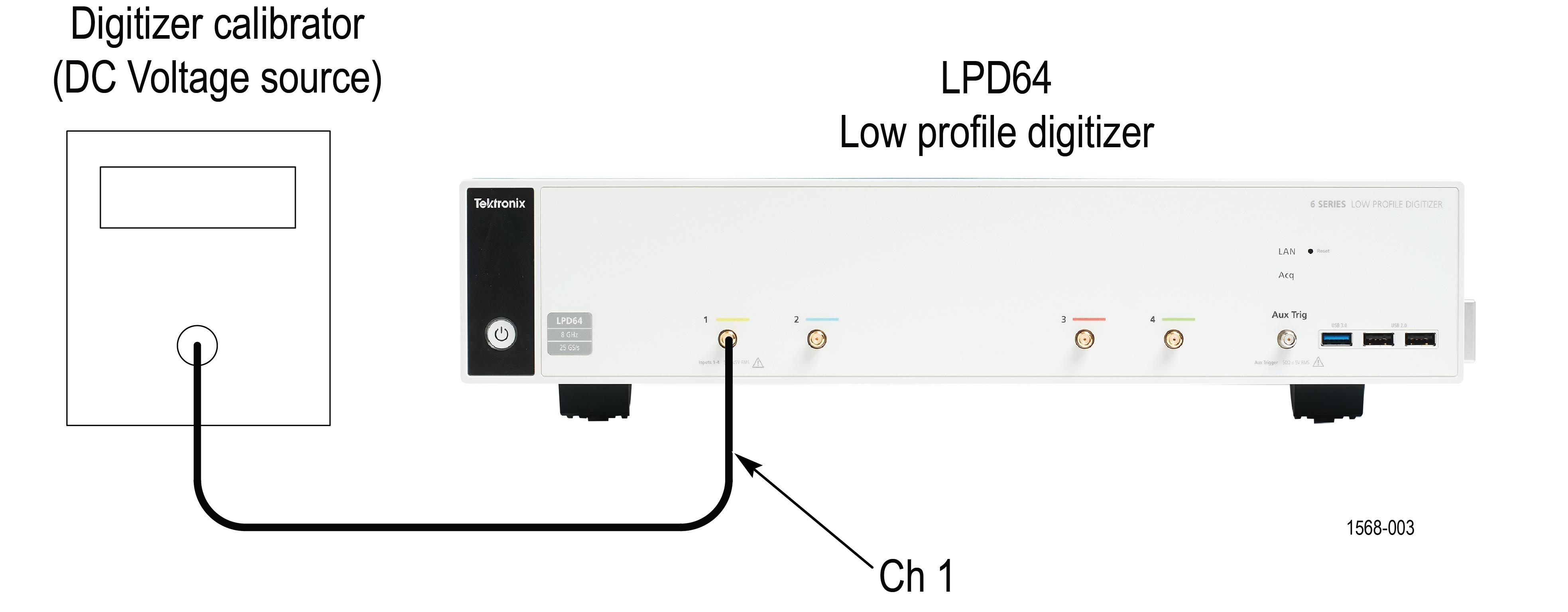

DC gain accuracy

✓50 Ohm

±2.0% (±2.0% at 2 mV/div, ±4% at 1 mV/div, typical). Immediately following SPC, add 2% for every 5 °C change in ambient.

±1.0% of full scale, (±1.0% of full scale at 2 mV/div, ± 2% at 1 mV/div, typical). Immediately following SPC, add 1% for every 5 °C change in ambient.

Offset ranges, maximum

Input signal cannot exceed maximum input voltage for the 50 Ω input path.

Volts/div Setting	Maximum offset range, 50 Ω Input
1 mV/div - 99 mV/div	±1 V
100 mV/div - 1 V/div	±10 V

Position range

±5 divisions

✓Offset accuracy

±(0.005 X | offset - position | + DC balance); Offset, position, and DC Balance in units of Volts )

Digital nonlinearity

INL @ > 2 mV/div: ±16 DL's (12-bit reference)

INL @ ≤ 2 mV/div: ±20 DL's (12-bit reference)

DNL: ±1.0 DL's (12-bit digitizing scale) when oscilloscope is in Hi-Res mode.

Number of waveforms for average acquisition mode

2 to 10,240 Waveforms, default 16 waveforms

DC voltage measurement accuracy, Average acquisition mode

Measurement Type	DC Accuracy (In Volts)
Average of ≥16 waveforms	±((DC Gain Accuracy) * |reading - (offset - position)| + Offset Accuracy + 0.05 * V/div setting)
Delta volts between any two averages of ≥16 waveforms acquired with the same oscilloscope setup and ambient conditions	±(DC Gain Accuracy * |reading| + 0.1 div)

DC voltage measurement accuracy, Sample acquisition mode, typical

Measurement Type	DC Accuracy (In Volts)
Any Sample	±(DC Gain Accuracy * |reading - (offset - position)| + Offset Accuracy + 0.15+0.6 mV)
Delta volts between any two samples acquired with the same scope setup and ambient conditions	±(DC Gain Accuracy * |reading| + 0.15 div +1.2 mV)

Bandwidth selections

8 GHz model, 50 Ohm

20 MHz, 200 MHz, 250 MHz, 350 MHz, 500 MHz, 1 GHz, 2 GHz, 2.5 GHz, 3 GHz, 4 GHz, 5 GHz, 6 GHz, 7 GHz, and 8 GHz

6 GHz model, 50 Ohm

20 MHz, 200 MHz, 250 MHz, 350 MHz, 500 MHz, 1 GHz, 2 GHz, 2.5 GHz, 3 GHz, 4 GHz, 5 GHz, and 6 GHz

4 GHz model, 50 Ohm

20 MHz, 200 MHz, 250 MHz, 350 MHz, 500 MHz, 1 GHz, 2 GHz, 2.5 GHz, 3 GHz, and 4 GHz

2.5 GHz model, 50 Ohm

20 MHz, 200 MHz, 250 MHz, 350 MHz, 500 MHz, 1 GHz, 2 GHz, and 2.5 GHz

1 GHz model, 50 Ohm

20 MHz, 200 MHz, 250 MHz, 350 MHz, 500 MHz, and 1 GHz

Frequency response tolerance/flatness, 50 Ohm, all modes, typical

±0.5 dB from DC to 80% of bandwidth setting

Not valid for bandwidth settings ≤ 250 MHz or while using peak detect or envelope modes.

Phase response

±2.5 degrees, typical out to 7 GHz.

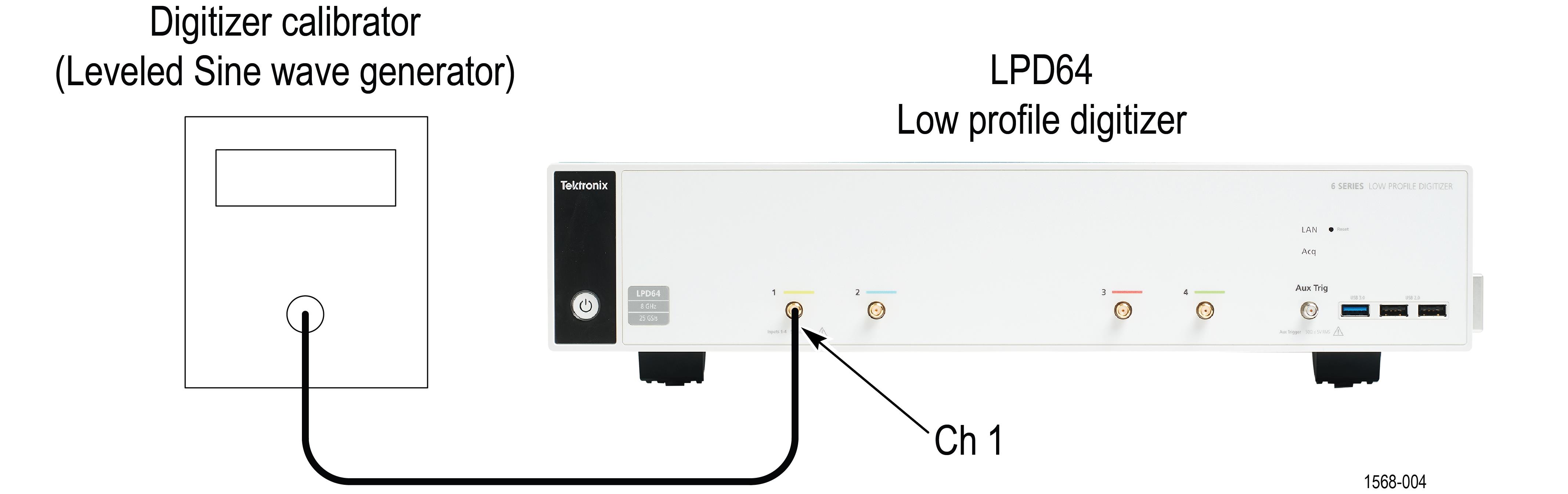

✓Analog bandwidth 50 Ω DC coupled

Model	Volts/Div Setting	Bandwidth
LPD64 BW-8000	1 mV/div - 1V/div	DC - 8 GHz
LPD64 BW-6000	1 mV/div - 1V/div	DC - 6 GHz
LPD64 BW-4000	1 mV/div - 1V/div	DC - 4 GHz
LPD64 BW-2500	1 mV/div - 1V/div	DC - 2.5 GHz
LPD64 BW-1000	1 mV/div - 1V/div	DC - 1 GHz

The limits stated above are for ambient temperature of ≤ 30 °C and the bandwidth selection set to FULL. Reduce the upper bandwidth frequency by 1% for each °C above 30 °C.

Upper frequency limit, 250 MHz bandwidth limited, typical

50 Ω, DC-coupled

250 MHz, ± 5%

Upper frequency limit, 200 MHz bandwidth limited, typical

50 Ω, DC-coupled

200 MHz, ± 5%

Upper frequency limit, 20 MHz bandwidth limited, typical

50 Ω, DC-coupled

20 MHz, ± 5%

Calculated rise time

Calculated Rise Time (10% to 90%) equals 0.4/BW

Model	50 Ω	TPP1000 Probe
	1 mV-1 V	5 mV-10 V
LPD64 BW-8000	50ps	400ps
LPD64 BW-6000	66.67ps	400ps
LPD64 BW-4000	100ps	400ps
LPD64 BW-2500	160ps	400ps
LPD64 BW-2000	200ps	400ps
LPD64 BW-1000	400ps	400ps

The formula is calculated by measuring -3 dB bandwidth of the oscilloscope. The formula accounts for the rise time contribution of the oscilloscope independent of the rise time of the signal source.

Peak Detect or Envelope mode pulse response, typical

Minimum pulse width is >160 ps (25 GS/s)

Effective bits, 50 Ω, typical

50 mV/div, 25 GS/s, Sample Mode, 50 Ohm
Frequency
Bandwidth	10 MHz	250 MHz	1 GHz	2 GHz	4 GHz	7 GHz
8 GHz	6.5	6.5	6.5	6.4	6.4	6.3
7 GHz	6.6	6.6	6.6	6.6	6.5	6.4
6 GHz	6.8	6.8	6.8	6.7	6.7	NA
5 GHz	7	7	6.9	6.9	6.8	NA

2 mV/div, 25 GS/s, Sample Mode, 50 Ohm
Frequency
Bandwidth	10 MHz	250 MHz	1 GHz	2 GHz	4 GHz	7 GHz
8 GHz	5.1	5.1	5.1	5.1	5.1	5.1
7 GHz	5.3	5.3	5.3	5.3	5.3	5.3
6 GHz	5.5	5.5	5.5	5.5	5.5	NA
5 GHz	5.65	5.65	5.65	5.65	5.65	NA

50 mV/div, 12.5 GS/s, HiRes Mode, 50 Ohm
Frequency
Bandwidth	10 MHz	250 MHz	1 GHz	2 GHz	4 GHz
4 GHz	7.25	7.25	7.25	7.1	7
3 GHz	7.5	7.5	7.5	7.35	NA
2.5 GHz	7.6	7.6	7.6	7.4	NA
2 GHz	7.8	7.8	7.65	7.5	NA
1 GHz	8.2	8.2	8	NA	NA
500 MHz	8.5	8.5	NA	NA	NA
350 MHz	8.8	8.9	NA	NA	NA
250 MHz	8.9	9	NA	NA	NA
200 MHz	9	NA	NA	NA	NA
20 MHz	9.8	NA	NA	NA	NA

2 mV/div, 12.5 GS/s, HiRes Mode, 50 Ohm
Frequency
Bandwidth	10 MHz	250 MHz	1 GHz	2 GHz	4 GHz
4 GHz	5.9	5.9	5.9	5.85	5.8
3 GHz	6.1	6.1	6.1	6.1	NA
2.5 GHz	6.2	6.2	6.2	6.2	NA
2 GHz	6.35	6.35	6.35	6.35	NA
1 GHz	6.8	6.8	6.8	NA	NA
500 MHz	7.2	7.2	NA	NA	NA
350 MHz	7.4	7.4	NA	NA	NA
250 MHz	7.5	7.5	NA	NA	NA
200 MHz	7.75	NA	NA	NA	NA
20 MHz	8.8	NA	NA	NA	NA

Effective bits, 50 Ω

50 mV/div, 25 GS/s, Sample Mode, 50 Ohm
Frequency
Bandwidth	10 MHz	250 MHz	1 GHz	2 GHz	4 GHz	7 GHz
8 GHz	6.06	6.06	6.06	5.97	5.97	5.88
7 GHz	6.15	6.15	6.15	6.15	6.06	5.97
6 GHz	6.32	6.32	6.32	6.23	6.23	NA
5 GHz	6.48	6.48	6.40	6.40	6.32	NA

2 mV/div, 25 GS/s, Sample Mode, 50 Ohm
Frequency
Bandwidth	10 MHz	250 MHz	1 GHz	2 GHz	4 GHz	7 GHz
8 GHz	4.75	4.75	4.75	4.75	4.75	4.75
7 GHz	4.95	4.95	4.95	4.95	4.95	4.95
6 GHz	5.15	5.15	5.15	5.15	5.15	NA
5 GHz	5.30	5.30	5.30	5.30	5.30	NA

50 mV/div, 12.5 GS/s, HiRes Mode, 50 Ohm
Frequency
Bandwidth	10 MHz	250 MHz	1 GHz	2 GHz	4 GHz
4 GHz	6.90	6.90	6.90	6.65	6.45
3 GHz	7.15	7.15	7.15	7.00	NA
2.5 GHz	7.25	7.25	7.25	7.05	NA
2 GHz	7.45	7.45	7.30	7.15	NA
1 GHz	7.85	7.85	7.65	NA	NA
500 MHz	8.15	8.15	NA	NA	NA
350 MHz	8.45	8.55	NA	NA	NA
250 MHz	8.55	8.65	NA	NA	NA
200 MHz	8.65	NA	NA	NA	NA
20 MHz	8.90	NA	NA	NA	NA

2 mV/div, 12.5 GS/s, HiRes Mode, 50 Ohm
Frequency
Bandwidth	10 MHz	250 MHz	1 GHz	2 GHz	4 GHz
4 GHz	5.55	5.55	5.55	5.50	5.45
3 GHz	5.75	5.75	5.75	5.75	NA
2.5 GHz	5.85	5.85	5.85	5.85	NA
2 GHz	6.00	6.00	6.00	6.00	NA
1 GHz	6.45	6.45	6.45	NA	NA
500 MHz	6.85	6.85	NA	NA	NA
350 MHz	7.05	7.05	NA	NA	NA
250 MHz	7.15	7.15	NA	NA	NA
200 MHz	7.40	NA	NA	NA	NA
20 MHz	8.45	NA	NA	NA	NA

Random noise, sample acquisition mode

✓ 50 Ω

Table 1. 25 GS/s, Sample Mode, RMS

V/div		1 mV/div	2 mV/div	5 mV/div	10 mV/div	20 mV/div	50 mV/div	100 mV/div	1 V/div
8 GHz		223 μV	224 μV	293 μV	482 μV	890 μV	2.1 mV	4.88 mV	42 mV
7 GHz		199 μV	202 μV	271 μV	440 μV	793 μV	1.85 mV	4.4 mV	37 mV
6 GHz		179 μV	180 μV	233 μV	388 μV	691 μV	1.67 mV	3.83 mV	33.4 mV
5 GHz		158 μV	160 μV	210 μV	338 μV	630 μV	1.49 mV	3.42 mV	29.7 mV

Table 2. 12.5 GS/s, HiRes Mode, RMS

V/div		1 mV/div	2 mV/div	5 mV/div	10 mV/div	20 mV/div	50 mV/div	100 mV/div	1 V/div
4 GHz		138 μV	139 μV	175 μV	271 μV	486 μV	1.15 mV	2.71 mV	23.1 mV
3 GHz		117 μV	119 μV	149 μV	226 μV	398 μV	960 μV	2.28 mV	19.2 mV
2.5 GHz		108 μV	110 μV	133 μV	203 μV	363 μV	856 μV	2.03 mV	17.1 mV
2 GHz		96.3 μV	97.6 μV	118 μV	186 μV	320 μV	745 μV	1.81 mV	14.9 mV
1 GHz		77.3 μV	72.4 μV	89.6 μV	128 μV	226 μV	534 μV	1.33 mV	10.8 mV
500 MHz		56 μV	56.2 μV	68 μV	91.9 μV	162 μV	396 μV	941 μV	7.92 mV
350 MHz		47.7 μV	47.3 μV	56.5 μV	77.3 μV	133 μV	307 μV	792 μV	6.14 mV
250 MHz		46.1 μV	46.7 μV	54 μV	74.7 μV	120 μV	280 μV	722 μV	5.6 mV
200 MHz		37.9 μV	38 μV	44.4 μV	65.8 μV	106 μV	247 μV	666 μV	4.94 mV
20 MHz		13 μV	13.3 μV	15.6 μV	22.6 μV	41.2 μV	105 μV	236 μV	2.11 mV

50 Ω, typical

Table 3. 25 GS/s, Sample Mode, RMS

V/div		1 mV/div	2 mV/div	5 mV/div	10 mV/div	20 mV/div	50 mV/div	100 mV/div	1 V/div
8 GHz		158 μV	158 μV	208 μV	342 μV	630 μV	1.49 mV	3.46 mV	29.7 mV
7 GHz		141 μV	143 μV	192 μV	311 μV	562 μV	1.31 mV	3.11 mV	26.2 mV
6 GHz		127 μV	127 μV	165 μV	274 μV	489 μV	1.18 mV	2.71 mV	23.6 mV
5 GHz		112 μV	113 μV	149 μV	239 μV	446 μV	1.05 mV	2.42 mV	21.1 mV

Table 4. 12.5 GS/s, HiRes Mode, RMS

V/div		1 mV/div	2 mV/div	5 mV/div	10 mV/div	20 mV/div	50 mV/div	100 mV/div	1 V/div
4 GHz		97.4 μV	98.7 μV	124 μV	192 μV	344 μV	817 μV	1.92 mV	16.3 mV
3 GHz		82.9 μV	84 μV	105 μV	160 μV	282 μV	680 μV	1.62 mV	13.6 mV
2.5 GHz		76.5 μV	77.5 μV	93.8 μV	144 μV	257 μV	606 μV	1.44 mV	12.1 mV
2 GHz		68.1 μV	69.1 μV	83.6 μV	131 μV	226 μV	528 μV	1.28 mV	10.6 mV
1 GHz		54.8 μV	51.2 μV	63.4 μV	90.9 μV	160 μV	378 μV	941 μV	7.65 mV
500 MHz		39.7 μV	39.8 μV	48.1 μV	65.1 μV	115 μV	280 μV	666 μV	5.6 mV
350 MHz		33.8 μV	33.5 μV	40 μV	54.8 μV	94.3 μV	217 μV	560 μV	4.35 mV
250 MHz		30.8 μV	31.2 μV	36.1 μV	49.9 μV	80.3 μV	187 μV	482 μV	3.75 mV
200 MHz		25.3 μV	25.4 μV	29.7 μV	44 μV	70.7 μV	165 μV	445 μV	3.3 mV
20 MHz		8.68 μV	8.9 μV	10.4 μV	15.1 μV	27.5 μV	70.4 μV	158 μV	1.41 mV

✓ High offset AC RMS Noise

50 Ω

Table 5. 25 GS/s, Sample Mode, RMS

V/div		1 mV/div	2 mV/div	5 mV/div	10 mV/div	20 mV/div	50 mV/div	100 mV/div	1 V/div
8 GHz		223 μV	224 μV	293 μV	482 μV	890 μV	2.1 mV	4.88 mV	42 mV
7 GHz		199 μV	202 μV	271 μV	440 μV	793 μV	1.85 mV	4.4 mV	37 mV
6 GHz		179 μV	180 μV	233 μV	388 μV	691 μV	1.67 mV	3.83 mV	33.4 mV
5 GHz		162 μV	164 μV	210 μV	338 μV	630 μV	1.49 mV	3.42 mV	29.7 mV

Table 6. 12.5 GS/s, HiRes Mode, RMS

V/div		1 mV/div	2 mV/div	5 mV/div	10 mV/div	20 mV/div	50 mV/div	100 mV/div	1 V/div
4 GHz		138 μV	139 μV	175 μV	271 μV	486 μV	1.15 mV	2.71 mV	23.1 mV
3 GHz		117 μV	119 μV	149 μV	226 μV	475 μV	975 μV	2.28 mV	21.4 mV
2 GHz		96.3 μV	97.6 μV	118 μV	212 μV	450 μV	920 μV	2.10 mV	21.0 mV
1 GHz		77.3 μV	72.4 μV	110 μV	190 μV	425 μV	900 μV	1.78 mV	19.2 mV
500 MHz		56 μV	56.2 μV	100 μV	182 μV	400 μV	840 μV	1.74 mV	16.8 mV
350 MHz		47.7 μV	47.3 μV	92.0 μV	165 μV	385 μV	770 μV	1.70 mV	16.1 mV
250 MHz		46.1 μV	46.7 μV	90.0 μV	145 μV	325 μV	675 μV	1.50 mV	15.8 mV
200 MHz		37.9 μV	38.0 μV	80.0 μV	120 μV	320 μV	660 μV	1.45 mV	15.2 mV
20 MHz		25.0 μV	25.0 μV	75.0 μV	115 μV	310 μV	560 μV	1.40 mV	13.0 mV

1 MΩ falls under the random noise specification at high offset levels.

Crosstalk (channel isolation), typical

≥80 dB up to 2 GHz

≥65 dB up to 5 GHz

≥55 dB up to 8 GHz

for any two channels set to 200 mV/div.

Overdrive recovery time, typical

500 ns pulse width:

50Ω	400% Overdrive			2000% Overdrive
Vertical scale	5%	1%	0.2%	5%	1%	0.2%
2 mV / div	< 50 ns	50 ns	300 ns	-	-	-
10 mV / div	< 50 ns	50 ns	300 ns	50 ns	50 ns	400 ns
0.1 V / div	< 50 ns	50 ns	300 ns	-	-	-

100 us pulse width

50Ω	400% Overdrive			2000% Overdrive
Vertical scale	5%	1%	0.2%	5%	1%	0.2%
2 mV / div	< 50 ns	50 ns	1 µs	-	-	-
10 mV / div	< 50 ns	50 ns	1 µs	< 50 ns	50 ns	150 µs
0.1 V / div	< 50 ns	50 ns	1 µs	-	-	-

SFDR analog channels, typical

SFDR, Single Tone
Bandwidth	50 mV/div	2 mV/div
8 GHz	-45 dB	-42 dB
4 GHz/High Res	-51 dB	-51 dB
2 GHz/High Res	-56 dB	-56 dB

Delay between analog channels, full bandwidth, typical

≤ 10 ps for any two channels with equal Volts/div or above 10 mV/div

Deskew range

-125 ns to +125 ns with a resolution of 40 ps (for Peak Detect and Envelope acquisition modes).

-125 ns to +125 ns with a resolution of 1 ps (for all other acquisition modes).

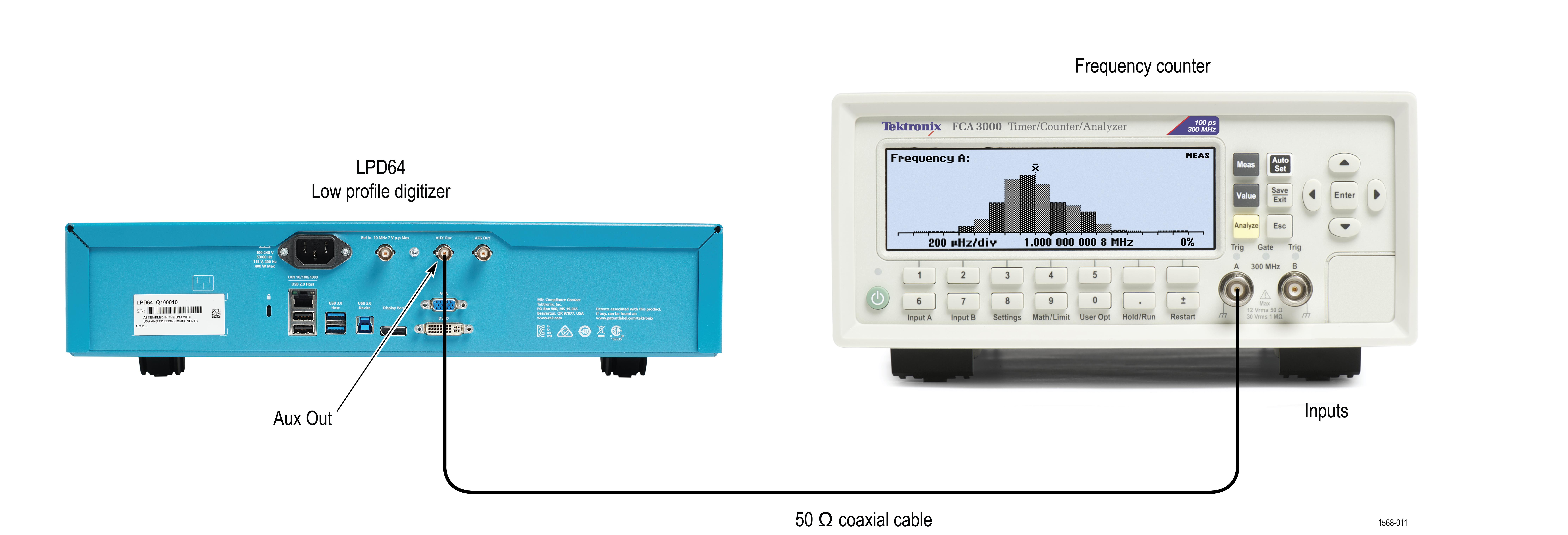

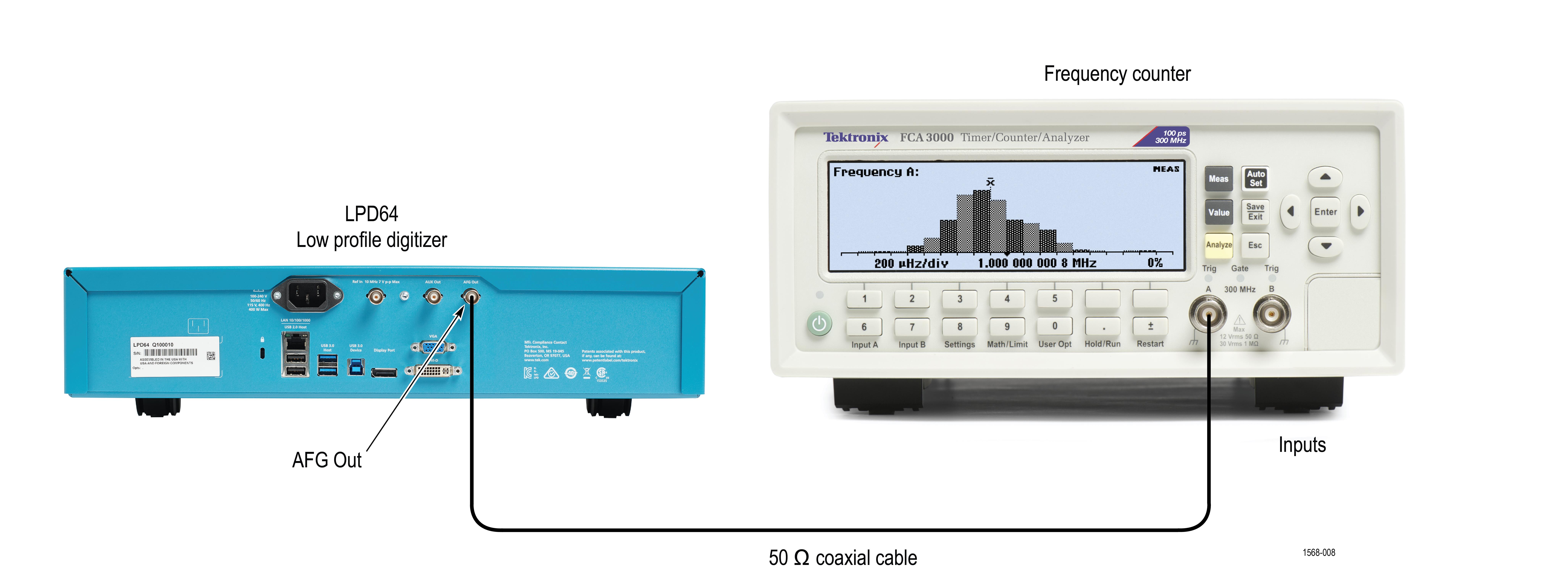

✓ Timebase accuracy

±1.0 x10^-7 over any ≥1 ms time interval

Description	Specification
Factory Tolerance	±12 ppb At calibration, 25 °C ambient, over any ≥1 ms interval
Temperature stability	±20 ppb across the full operating range of 0 °C to 50 °C, after a sufficient soak time at the temperature Tested at operating temperatures
Crystal aging	±300 PPB/Year and will not exceed ±2 PPM over 10 years without calibration. Calibration will reduce this frequency error to under ±12 PPB Frequency tolerance change at 25 °C over periods of 1 year and 10 years.

Sample rate range

Model	Number of channels in use	Maximum hardware capability
LPD64	4	6.25 S/s to 25 GS/s on all channels (real time)

Interpolated waveform rate range

2.5 TS/sec, 1 TS/sec, 500 GS/sec, 250 GS/sec, 100 GS/sec, 50 GS/sec, and 25 GS/sec (Interpolated HIRes)

Record length range

All acquisition modes are 250 M maximum record length, down to 1 k minimum record length, adjustable in 1 sample increments.

Standard: 125 Mpoints

Option 6-RL-2: 250 Mpoints

Seconds/Division range

Model	1 K	10 K	100 K	1 M	10 M	62.5 M	125 M	250 M	500 M	1 G
Standard 62.5 M	40 ps - 16 s	400 ps - 160 s	4 ns - 1000 s			2.5 μs - 1000 s	N/A	N/A	N/A	N/A
Option 6-RL-1 125 M	40 ps - 16 s	400 ps - 160 s	4 ns - 1000 s			2.5 μs - 1000 s	5 μs - 1000 s	N/A	N/A	N/A
Option 6-RL-2 250 M	40 ps - 16 s	400 ps - 160 s	4 ps - 1000 s			2.5 μs - 1000 s	5 μs - 1000 s	10 μs - 1000 s	N/A	N/A
Option 6-RL-3 500 Mpts	40 ps - 16 s	400 ps - 160 s	4 ps - 1000 s			2.5 us - 1000 s	5 us - 1000 s	10 us - 1000 s	20 us - 1000 s	N/A
Option 6-RL-4: 1 Gpts	40 ps - 16 s	400 ps - 160 s	4 ps - 1000 s			2.5 us - 1000 s	5 us - 1000 s	10 us - 1000 s	20 us - 1000 s	40 us - 1000 s

Aperture uncertainty (sample jitter)

Time duration	Typical jitter
<1 μs	80 fs
<1 ms	130 fs

Delta-time measurement accuracy, nominal

The formulas to calculate the peak-to-peak or rms nominal delta-time measurement accuracy (DTA) for a given instrument setting and input signal is as follows (assumes insignificant signal content above Nyquist frequency):

Where:

N = RSS of input-referred noise (V_RMS) and dynamic noise estimate (V_RMS)

SR ₁ = Slew Rate (1^st Edge) around 1^st point in measurement

SR ₂ = Slew Rate (2^nd Edge) around 2^nd point in measurement

Dynamic noise is noise that appears with a signal applied (such as distortion or interleave errors).

Dynamic noise estimate =

Tj = aperture uncertainty (sec rms - 80 fs for short durations)

t _p = delta-time measurement duration (sec)

TBA = timebase accuracy or Reference Frequency Error (which is 20 ppb)

(Assumes insignificant error due to aliasing or over-drive.)

The term under the square root sign is the stability and is due to TIE (Time Interval Error). The errors due to this term occur throughout a single-shot measurement. The second term is due to both the absolute center-frequency accuracy and the center-frequency stability of the timebase and varies between multiple single-shot measurements over the observation interval (the amount of time from the first single-shot measurement to the final single-shot measurement).

Note:The formulas assume negligible errors due to measurement interpolation, and apply only when the interpolated sample rate is 25 GS/s or higher.

Trigger bandwidth (edge, pulse and logic), typical

Model	Trigger type	Trigger bandwidth
LPD64 8 GHz	Edge	8 GHz
LPD64 8 GHz	Pulse, Logic	4 GHz
LPD64 6 GHz	Edge	6 GHz
LPD64 6 GHz	Pulse, Logic	4 GHz
LPD64 4 GHz, 2.5 GHz, 1 GHz:	Edge, Pulse, Logic	Product Bandwidth

Maximum triggered acquisition rate, typical

Analog channels: single channel [Analog or Digital 8-bit channel] on screen, measurements and math turned off. >40 wfm/sec

FastAcq Update Rate (analog only, peak detect or envelope mode): >460 K/second with one channel active and >100 K/second with all active.

FastAcq Update Rate (All other acquisition Modes, one analog channel): 18 k/second .

Fast Frame Rate (50-point frames): 664 K/second

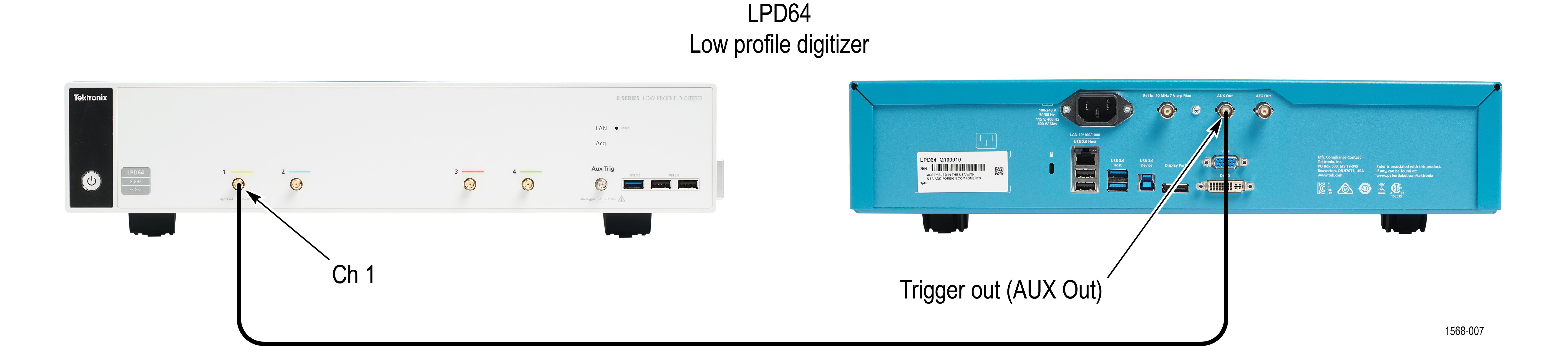

AUX Trigger skew between instruments, typical

±100 ps jitter on each instrument with up to 1.5 ns skew; ≤1.5 ns total between instruments.

Edge-type trigger sensitivity, DC coupled, typical

Path	Range	Specification
50 Ω path,	1 mV/div to 9.98 mV/div	3.0 div from DC to instrument bandwidth
	≥ 10 mV/div	< 1.0 division from DC to instrument bandwidth
Line	90 V to 264 V line voltage at 50 - 60 Hz line frequency	103.5 V to 126.5 V
AUX Trigger in		250 mVPP, DC to 400 MHz

Trigger jitter, typical

≤ 1.5 ps_RMS for sample mode and edge-type trigger

≤ 2 ps_RMS for edge-type trigger and FastAcq mode

≤ 40 ps_RMS for non edge-type trigger modes

≤ 40 ps_RMS for AUX trigger in, Sample acquisition mode, edge trigger

≤ 40 ps_RMS for AUX trigger in, FastAcq acquisition mode, edge trigger

Lowest frequency for successful operation of Set Level to 50% function, typical

45 Hz

Pulse-type runt trigger sensitivities, typical

2.0 division at vertical settings ≥5 mV/div.

Pulse-type trigger width and glitch sensitivities, typical

2.0 divisions at vertical settings ≥5 mV/div.

Logic-type, logic qualified trigger, or events-delay sensitivities, DC coupled, typical

2.0 divisions, at vertical settings ≥5 mV/div.

Logic-type triggering, minimum logic or rearm time, typical

Triggering type	Pulse width	Rearm time	Time skew needed for 100% and no triggering
Logic	40 ps + trise	40 ps + trise	>360 ps / <150 ps
Time qualified logic	80 ps + trise	80 ps + trise	>360 ps / <150 ps

t_rise is rise time of the instrument.

For Logic, time between channels refers to the length of time a logic state derived from more than one channel must exist to be recognized. For Events, the time is the minimum time between a main and delayed event that will be recognized if more than one channel is used.

Minimum clock pulse widths for setup/hold time violation trigger, typical

Minimum pulse width, clock active	Minimum pulse width, clock inactive
80 ps + trise	80 ps + trise

t_rise is rise time of the instrument.

Setup + Hold must be less than the clock period.

Active pulse width is the width of the clock pulse from its active edge (as defined in the Clock Edge menu item) to its inactive edge.

Inactive pulse width is the width of the pulse from its inactive edge to its active edge.

Setup/hold violation trigger, setup and hold time ranges, typical

Feature	Min	Max
Setup Time	0 ns	20 s
Hold Time	0 ns	20 s
Setup + Hold Time	80 ps	22 s

Input coupling on clock and data channels must be the same.

For Setup Time, positive numbers mean a data transition before the clock.

For Hold Time, positive numbers mean a data transition after the clock edge.

Setup + Hold Time is the algebraic sum of the Setup Time and the Hold Time programmed by the user.

Pulse type trigger, minimum pulse, rearm time, transition time

Pulse class	Minimum pulse width	Minimum rearm time
Runt	40 ps + trise	40 ps + trise
Time-Qualified Runt	40 ps + trise	40 ps + trise
Width	40 ps + trise	40 ps + trise

Trigger class	Minimum transition time	Minimum rearm time
Rise/Fall Time	40 ps + trise	40 ps + trise

For trigger class width, pulse width refers to the width of the pulse being measured. Rearm time refers to the time between pulses.

For trigger class runt, pulse width refers to the width of the pulse being measured. Rearm time refers to the time between pulses.

t_rise is rise time of the instrument.

Time range for glitch, pulse width, timeout, time-qualified runt, or time-qualified window triggering

40 ps to 20 s.

Time accuracy for pulse width and timeout triggering

Time Range	Accuracy
320 ps to 20 s	±(40 ps +Time Base Error * Setting).

B trigger after events, minimum pulse width and maximum event frequency, typical

Minimum pulse width: 40 ps + t_rise

Maximum event frequency: Instrument bandwidth.

t_rise is rise time of the instrument.

B trigger, minimum time between arm and trigger, typical

80 ps

For trigger after time, this is the time between the end of the time period and the B trigger event.

For trigger after events, this is the time between the last A trigger event and the first B trigger event.

B trigger after time, time range

40 ps to 20 seconds

Accuracy = ± ( 40ps + (Time-Base-Error * Setting))

B trigger after events, event range

1 to 65,471

Trigger level ranges

Source	Range
Any Channel	±5 divs from center of screen
Aux In Trigger	±5 V
Line	Fixed at about 50% of line voltage

This specification applies to logic and pulse thresholds.

Trigger level accuracy, DC coupled, typical

For signals having rise and fall times ≥10 ns:

Source	Range
Any Input Channel	±0.20 div
Line	N/A

Trigger holdoff range

0 ns to 10 seconds

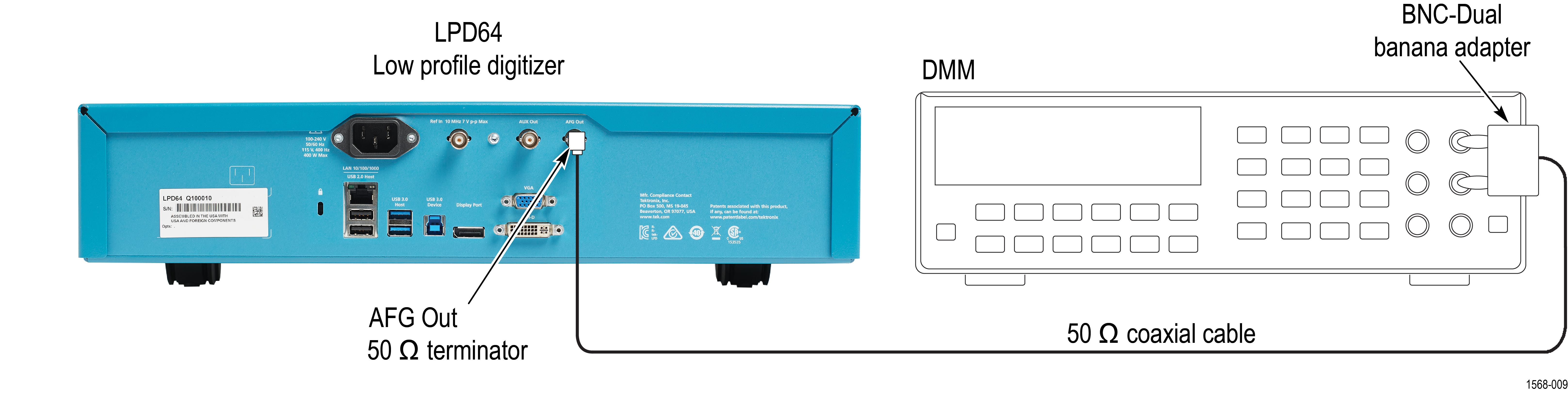

Instrument information, self test record
