2-HC Transit Case Instructions
This document describes the 2-HC transit case and instructions for packing your 2 Series MSO and accessories.
此手冊適用於:
MSO22, MSO24, 2-HC
By downloading, you agree to the terms and conditions of the Manuals Download Agreement.
Manuals Download Agreement
ATTENTION: please read the following terms and conditions carefully before downloading any documents from this website. By downloading manuals from Tektronix' website, you agree to the following terms and conditions:
Manuals for Products That Are Currently Supported:
Tektronix hereby grants permission and license to owners of Tektronix instruments to download and reproduce the manuals on this website for their own internal or personal use. Manuals for currently supported products may not be reproduced for distribution to others unless specifically authorized in writing by Tektronix, Inc.
A Tektronix manual may have been revised to reflect changes made to the product during its manufacturing life. Thus, different versions of a manual may exist for any given product. Care should be taken to ensure that one obtains the proper manual version for a specific product serial number.
Manuals for Products That Are No Longer Supported:
Tektronix cannot provide manuals for measurement products that are no longer eligible for long term support. Tektronix hereby grants permission and license for others to reproduce and distribute copies of any Tektronix measurement product manual, including user manuals, operator's manuals, service manuals, and the like, that (a) have a Tektronix Part Number and (b) are for a measurement product that is no longer supported by Tektronix.
A Tektronix manual may be revised to reflect changes made to the product during its manufacturing life. Thus, different versions of a manual may exist for any given product. Care should be taken to ensure that one obtains the proper manual version for a specific product serial number.
This permission and license does not apply to any manual or other publication that is still available from Tektronix, or to any manual or other publication for a video production product or a color printer product.
Disclaimer:
Tektronix does not warrant the accuracy or completeness of the information, text, graphics, schematics, parts lists, or other material contained within any measurement product manual or other publication that is not supplied by Tektronix or that is produced or distributed in accordance with the permission and license set forth above.
Tektronix may make changes to the content of this website or to its products at any time without notice.
Limitation of Liability:
TEKTRONIX SHALL NOT BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR FOR INFRINGEMENT OF INTELLECTUAL PROPERTY) ARISING OUT OF THE USE OF ANY MEASUREMENT PRODUCT MANUAL OR OTHER PUBLICATION PRODUCED OR DISTRIBUTED IN ACCORDANCE WITH THE PERMISSION AND LICENSE SET FORTH ABOVE.
Read Online
Case information
The 2-HC is a ruggedized, waterproof and dust tight (MIL-C-4150J) transit case specifically designed to provide travel and storage protection for the 2 Series MSO instruments.
![](/-/media/images/manuals/2-hc-transit-case-instructions/n3766001png.jpg?h=793&w=1348)
Item | Description |
---|---|
1 | Two security rings for use with locks (locks not included) |
2 | Four latches with release buttons |
3 | Automatic air pressure equalization control valve for use during air transport |
The case protects instruments from shock, vibration, and moisture. It also has room for the accessories such as; AC-DC power supply, power cord, external ground cable, probes, DUT boards, and documentation.
The case consists of a heavy duty outer shell and an inner layer of foam. The inner foam consists of a permanent ring of foam and three removable foam pieces.
Specifications
Type | Description |
---|---|
Material | High impact black polypropylene, polyurethane foam lining |
Shipping weight | 14 lbs (6.4 kg) |
Exterior dimensions | Length: 24.55 in (62.4 cm) |
Width: 20.59 in (52.3 cm) | |
Height: 10.16 in (25.8 cm) |

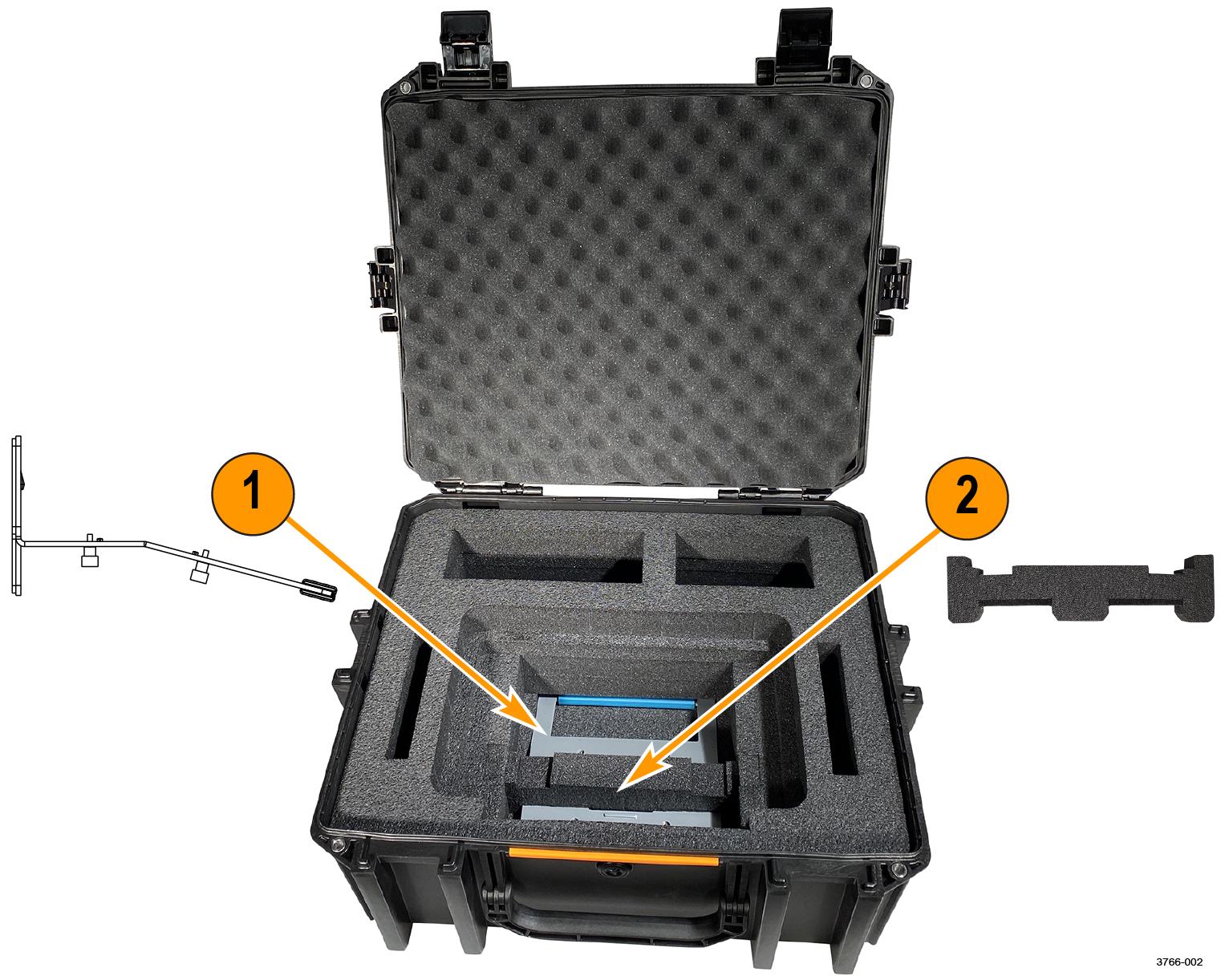

Pack the stand in the transit case
The 2 Series MSO stand fits underneath the instrument in the case with a foam insert securing it in place.
Procedure
![](/-/media/images/manuals/2-hc-transit-case-instructions/n3766002png.jpg?h=1222&w=1527)
- Place the instrument stand in the case with the screw side facing down.
- Place the foam insert in the case and position it so the bottom of the foam fits into the center hole in the stand.

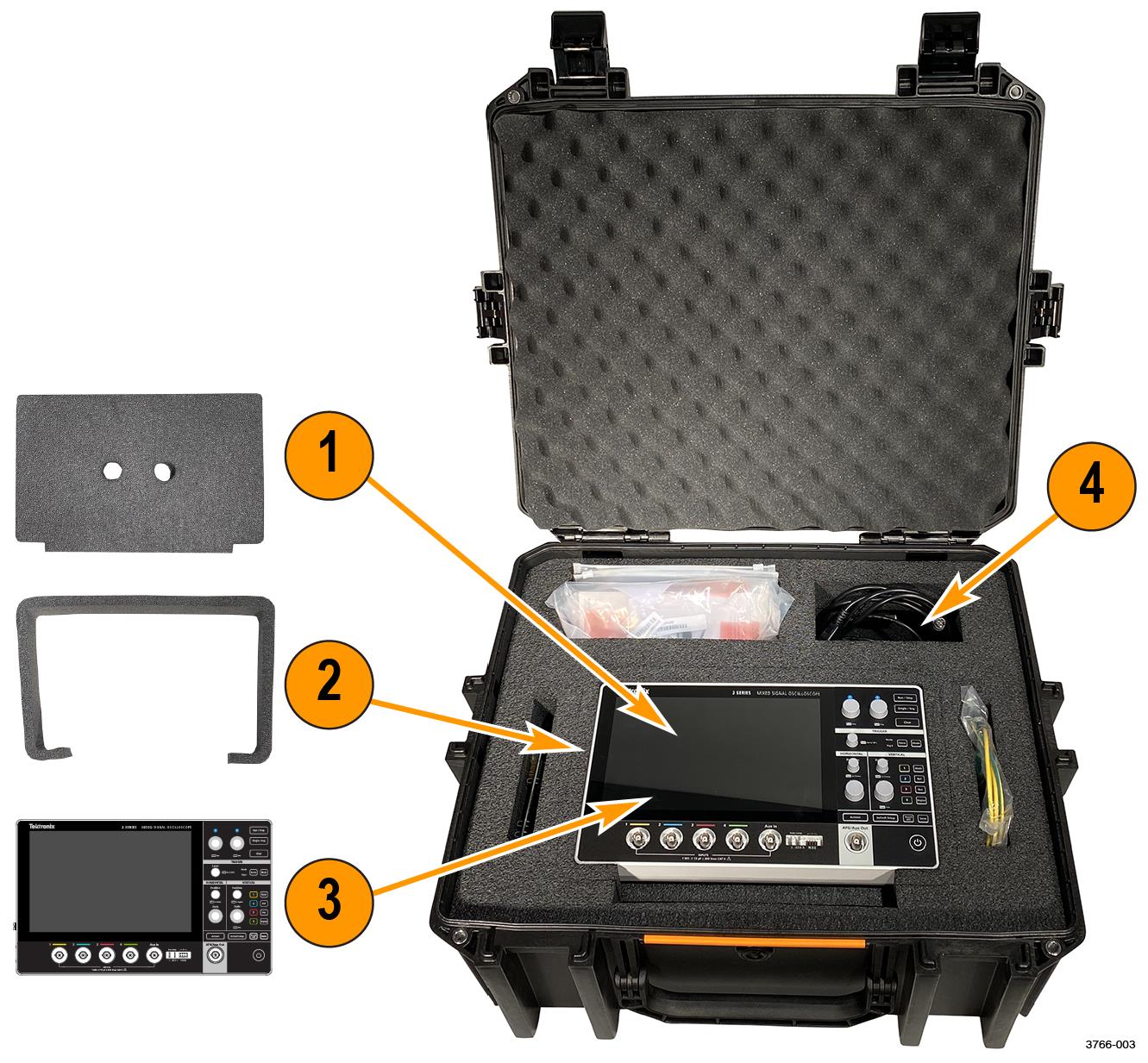

Pack the instrument in the transit case
The 2 Series MSO instrument fits above the stand in the case with two foam inserts, depending on the attached accessories.
Procedure
![](/-/media/images/manuals/2-hc-transit-case-instructions/n3766003png.jpg?h=1233&w=1331)
