6 Series B MSO Specifications and Performance Verification
This manual provides detailed specifications and procedures to verify guaranteed specifications for 6 Series B Mixed Signal Oscilloscopes (MSO64B, MSO66B, and MSO68B).
Dieses Handbuch bezieht sich auf:
MSO64B, MSO66B, MSO68B
By downloading, you agree to the terms and conditions of the Manuals Download Agreement.Manuals Download Agreement
ATTENTION: please read the following terms and conditions carefully before downloading any documents from this website. By downloading manuals from Tektronix' website, you agree to the following terms and conditions:
Manuals for Products That Are Currently Supported:
Tektronix hereby grants permission and license to owners of Tektronix instruments to download and reproduce the manuals on this website for their own internal or personal use. Manuals for currently supported products may not be reproduced for distribution to others unless specifically authorized in writing by Tektronix, Inc.
A Tektronix manual may have been revised to reflect changes made to the product during its manufacturing life. Thus, different versions of a manual may exist for any given product. Care should be taken to ensure that one obtains the proper manual version for a specific product serial number.
Manuals for Products That Are No Longer Supported:
Tektronix cannot provide manuals for measurement products that are no longer eligible for long term support. Tektronix hereby grants permission and license for others to reproduce and distribute copies of any Tektronix measurement product manual, including user manuals, operator's manuals, service manuals, and the like, that (a) have a Tektronix Part Number and (b) are for a measurement product that is no longer supported by Tektronix.
A Tektronix manual may be revised to reflect changes made to the product during its manufacturing life. Thus, different versions of a manual may exist for any given product. Care should be taken to ensure that one obtains the proper manual version for a specific product serial number.
This permission and license does not apply to any manual or other publication that is still available from Tektronix, or to any manual or other publication for a video production product or a color printer product.
Disclaimer:
Tektronix does not warrant the accuracy or completeness of the information, text, graphics, schematics, parts lists, or other material contained within any measurement product manual or other publication that is not supplied by Tektronix or that is produced or distributed in accordance with the permission and license set forth above.
Tektronix may make changes to the content of this website or to its products at any time without notice.
Limitation of Liability:
TEKTRONIX SHALL NOT BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR FOR INFRINGEMENT OF INTELLECTUAL PROPERTY) ARISING OUT OF THE USE OF ANY MEASUREMENT PRODUCT MANUAL OR OTHER PUBLICATION PRODUCED OR DISTRIBUTED IN ACCORDANCE WITH THE PERMISSION AND LICENSE SET FORTH ABOVE.
Read Online
SPECIFICATIONS
- Analog channel input and vertical
- Timebase system
- Trigger system
- Analysis
- Arbitrary function generator
- Digital volt meter (DVM)
- Processor system
- Input/Output port specifications
- Display system
- Data storage specifications
- Power supply system
- Safety characteristics
- Environmental specifications
- Dynamics
- Comparison against MIL-PRF-28800F Environmental Requirements
- Mechanical specifications
- Environmental Compliance
PERFORMANCE VERIFICATION PROCEDURES
- Test records
- Instrument information, self test record
- DC Offset Accuracy test record
- Analog Bandwidth test record
- Input impedance test record
- DC Gain Accuracy test record
- Random Noise, sample acquisition mode test record
- Random Noise, High Res mode test record
- High Offset AC RMS Noise, sample acquisition mode test record
- High Offset AC RMS Noise, High Res mode test record
- Long term sample rate through AFG DC offset accuracy test records
- Performance tests
- Prerequisites
- Self test
- Check input impedance
- Check DC gain accuracy
- Check DC offset accuracy
- Check analog bandwidth
- Check random noise, sample acquisition mode (10, 8, and 6 GHz options)
- Check random noise, High Res mode
- Check high offset AC RMS noise, sample acquisition mode (10, 8, and 6 GHz options)
- Check high offset AC RMS noise, High Res mode
- Check long term samples rate and delay time accuracy
- Check digital threshold accuracy

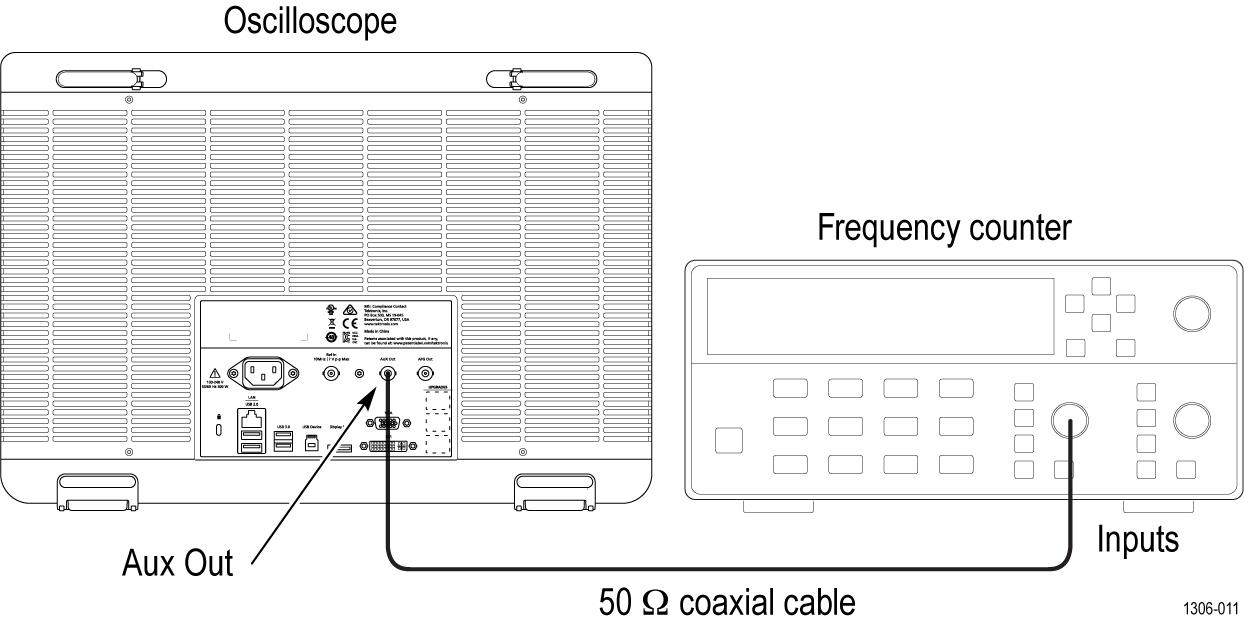

- Check AUX Out output voltage levels
- Check DVM voltage accuracy (DC)
- Check DVM voltage accuracy (AC)
- Check trigger frequency accuracy and maximum input frequency

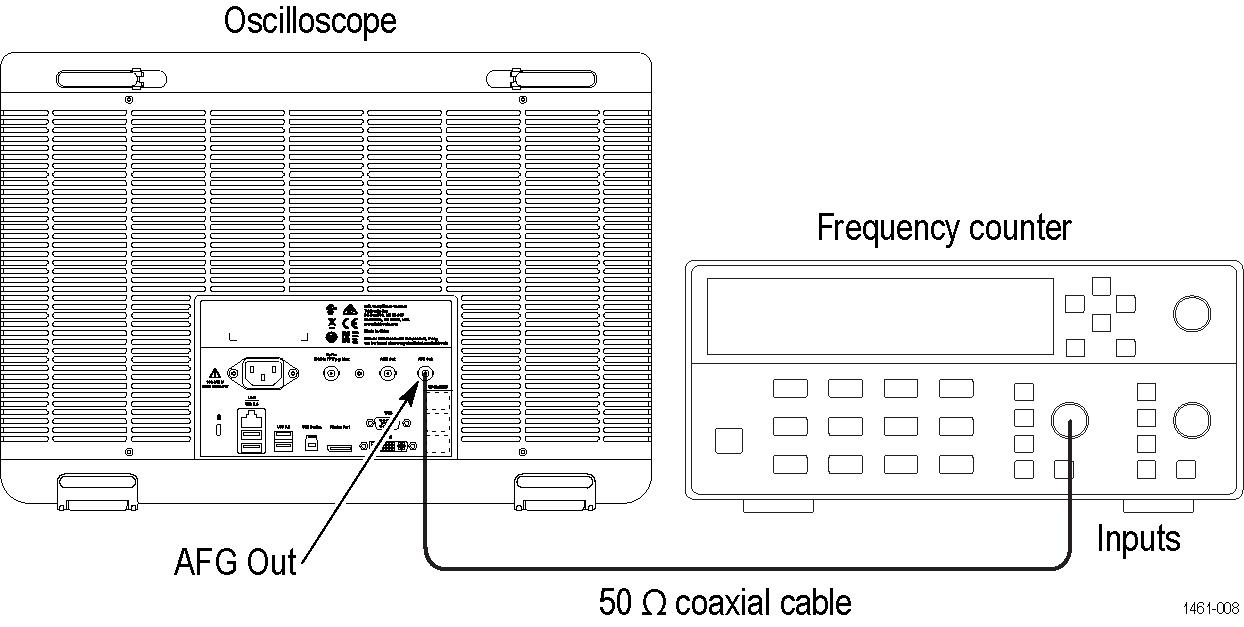

- Check AFG sine and ramp frequency accuracy
- Check AFG square and pulse frequency accuracy

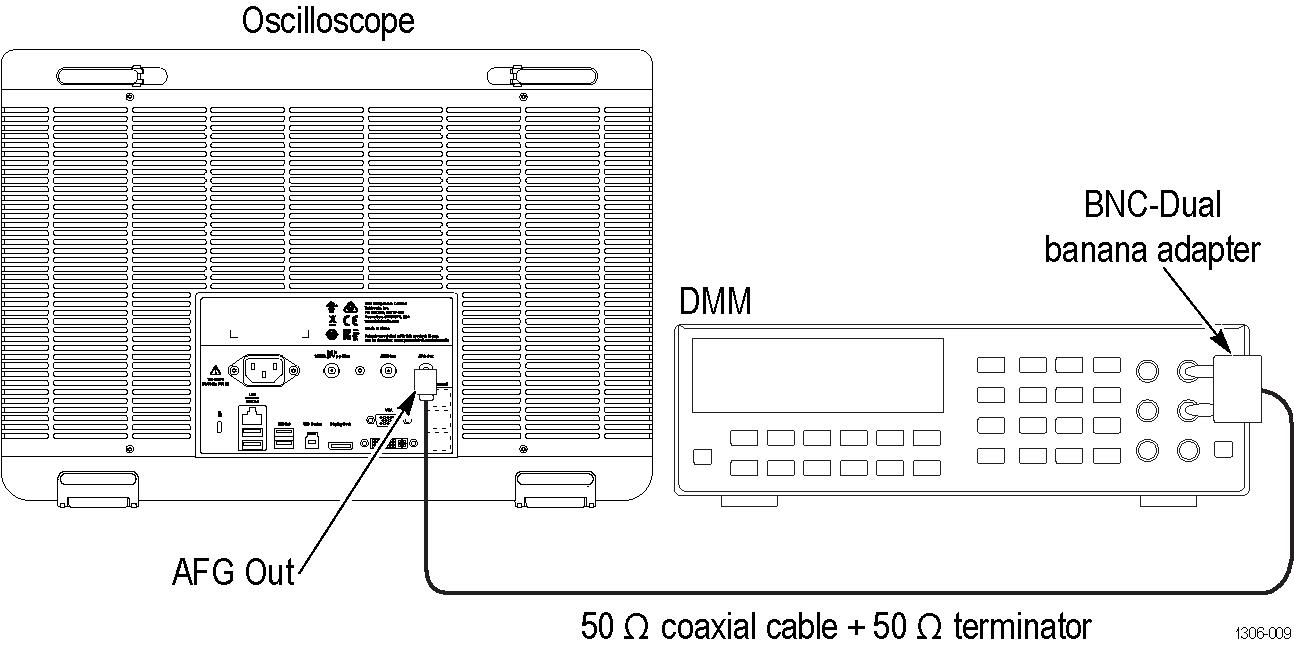

- Check AFG signal amplitude accuracy
- Check AFG DC offset accuracy
Important safety information
This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition.
To safely perform service on this product, see the Service safety summary that follows the General safety summary.
General safety summary
Use the product only as specified. Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. Carefully read all instructions. Retain these instructions for future reference.
This product shall be used in accordance with local and national codes.
For correct and safe operation of the product, it is essential that you follow generally accepted safety procedures in addition to the safety precautions specified in this manual.
The product is designed to be used by trained personnel only.
Only qualified personnel who are aware of the hazards involved should remove the cover for repair, maintenance, or adjustment.
Before use, always check the product with a known source to be sure it is operating correctly.
This product is not intended for detection of hazardous voltages.
Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
While using this product, you may need to access other parts of a larger system. Read the safety sections of the other component manuals for warnings and cautions related to operating the system.
When incorporating this equipment into a system, the safety of that system is the responsibility of the assembler of the system.
To avoid fire or personal injury
Use proper power cord.
Use only the power cord specified for this product and certified for the country of use. Do not use the provided power cord for other products.
Use proper voltage setting
Before applying power, make sure that the line selector is in the proper position for the source being used.
Ground the product.
This product is grounded through the grounding conductor of the power cord. To avoid electric shock, the grounding conductor must be connected to earth ground. Before making connections to the input or output terminals of the product, ensure that the product is properly grounded. Do not disable the power cord grounding connection.
Power disconnect.
The power cord disconnects the product from the power source. See instructions for the location. Do not position the equipment so that it is difficult to operate the power cord; it must remain accessible to the user at all times to allow for quick disconnection if needed.
Connect and disconnect properly.
Do not connect or disconnect probes or test leads while they are connected to a voltage source.
Use only insulated voltage probes, test leads, and adapters supplied with the product, or indicated by Tektronix to be suitable for the product.
Connect the probe output to the measurement instrument before connecting the probe to the circuit under test. Connect the probe reference lead to the circuit under test before connecting the probe input. Disconnect the probe input and the probe reference lead from the circuit under test before disconnecting the probe from the measurement instrument.
Observe all terminal ratings.
To avoid fire or shock hazard, observe all rating and markings on the product. Consult the product manual for further ratings information before making connections to the product.
Do not exceed the Measurement Category (CAT) rating and voltage or current rating of the lowest rated individual component of a product, probe, or accessory. Use caution when using 1:1 test leads because the probe tip voltage is directly transmitted to the product.
Do not apply a potential to any terminal, including the common terminal, that exceeds the maximum rating of that terminal.
Do not float the common terminal above the rated voltage for that terminal.
Do not connect a current probe to any wire that carries voltages above the current probe voltage rating.
Do not operate without covers
Do not operate this product with covers or panels removed, or with the case open. Hazardous voltage exposure is possible.
Avoid exposed circuitry
Do not touch exposed connections and components when power is present.
Do not operate with suspected failures.
If you suspect that there is damage to this product, have it inspected by qualified service personnel.
Disable the product if it is damaged. Do not use the product if it is damaged or operates incorrectly. If in doubt about safety of the product, turn it off and disconnect the power cord. Clearly mark the product to prevent its further operation.
Before use, inspect voltage probes, test leads, and accessories for mechanical damage and replace when damaged. Do not use probes or test leads if they are damaged, if there is exposed metal, or if a wear indicator shows.
Examine the exterior of the product before you use it. Look for cracks or missing pieces.
Use only specified replacement parts.
Replace batteries properly
Replace batteries only with the specified type and rating.
Recharge batteries for the recommended charge cycle only.
Wear eye protection
Wear eye protection if exposure to high-intensity rays or laser radiation exists.
Do not operate in wet/damp conditions
Be aware that condensation may occur if a unit is moved from a cold to a warm environment.
Do not operate in an explosive atmosphere
Keep product surfaces clean and dry
Remove the input signals before you clean the product.
Provide proper ventilation.
Refer to the installation instructions in the manual for details on installing the product so it has proper ventilation.
Slots and openings are provided for ventilation and should never be covered or otherwise obstructed. Do not push objects into any of the openings.
Provide a safe working environment
Always place the product in a location convenient for viewing the display and indicators.
Avoid improper or prolonged use of keyboards, pointers, and button pads. Improper or prolonged keyboard or pointer use may result in serious injury.
Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries.
Use care when lifting and carrying the product. This product is provided with a handle or handles for lifting and carrying.
![]() | WARNING:The product is heavy. To reduce the risk of personal injury or damage to the device get help when lifting or carrying the product. |
Use only the Tektronix rackmount hardware specified for this product.
Probes and test leads
Before connecting probes or test leads, connect the power cord from the power connector to a properly grounded power outlet.
Keep fingers behind the protective barrier, protective finger guard, or tactile indicator on the probes. Remove all probes, test leads and accessories that are not in use.
Use only correct Measurement Category (CAT), voltage, temperature, altitude, and amperage rated probes, test leads, and adapters for any measurement.
Beware of high voltages
Understand the voltage ratings for the probe you are using and do not exceed those ratings. Two ratings are important to know and understand:
- The maximum measurement voltage from the probe tip to the probe reference lead.
- The maximum floating voltage from the probe reference lead to earth ground.
These two voltage ratings depend on the probe and your application. Refer to the Specifications section of the manual for more information.
![]() | WARNING:To prevent electrical shock, do not exceed the maximum measurement or maximum floating voltage for the oscilloscope input BNC connector, probe tip, or probe reference lead. |
Connect and disconnect properly.
Connect the probe output to the measurement product before connecting the probe to the circuit under test. Connect the probe reference lead to the circuit under test before connecting the probe input. Disconnect the probe input and the probe reference lead from the circuit under test before disconnecting the probe from the measurement product.
De-energize the circuit under test before connecting or disconnecting the current probe.
Connect the probe reference lead to earth ground only.
Do not connect a current probe to any wire that carries voltages or frequencies above the current probe voltage rating.
Inspect the probe and accessories
Before each use, inspect probe and accessories for damage (cuts, tears, or defects in the probe body, accessories, or cable jacket). Do not use if damaged.
Ground-referenced oscilloscope use
Do not float the reference lead of this probe when using with ground-referenced oscilloscopes. The reference lead must be connected to earth potential (0 V).
Floating measurement use
Do not float the reference lead of this probe above the rated float voltage.
Service safety summary
The Service safety summary section contains additional information required to safely perform service on the product. Only qualified personnel should perform service procedures. Read this Service safety summary and the General safety summary before performing any service procedures.
To avoid electric shock
Do not touch exposed connections.
Do not service alone
Do not perform internal service or adjustments of this product unless another person capable of rendering first aid and resuscitation is present.
Disconnect power
To avoid electric shock, switch off the product power and disconnect the power cord from the mains power before removing any covers or panels, or opening the case for servicing.
Use care when servicing with power on
Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components.
Verify safety after repair
Always recheck ground continuity and mains dielectric strength after performing a repair.
Terms in this manual
These terms may appear in this manual:
![]() | WARNING:Warning statements identify conditions or practices that could result in injury or loss of life. |
![]() | CAUTION:Caution statements identify conditions or practices that could result in damage to this product or other property. |
Terms on the product
These terms may appear on the product:
- DANGER indicates an injury hazard immediately accessible as you read the marking.
- WARNING indicates an injury hazard not immediately accessible as you read the marking.
- CAUTION indicates a hazard to property including the product.
Symbols on the product
![]() | When this symbol is marked on the product, be sure to consult the manual to find out the nature of the potential hazards and any actions which have to be taken to avoid them. (This symbol may also be used to refer the user to ratings in the manual.) |
The following symbols(s) may appear on the product.
![]() CAUTION: Refer to Manual | ![]() Protective Ground (Earth) Terminal | ![]() Functional Earth Terminal | Chassis Ground | ![]() Standby |
Specifications
This chapter contains specifications for the instrument. All specifications are typical unless noted as guaranteed. Typical specifications are provided for your convenience but are not guaranteed. Specifications that are marked with the ✔ symbol are guaranteed and checked in Performance Verification.
- The instrument must have been calibrated in an ambient temperature between 18 °C and 28 °C (64 °F and 82 °F).
- The instrument must be operating within the environmental limits described in these specifications.
- The instrument must be powered from a source that meets the specifications.
- The instrument must have been operating continuously for at least 20 minutes within the specified operating temperature range.
- You must perform the Signal path compensation procedure after the warmup period. See the Signal path compensation procedure for how to perform signal path compensation. If the ambient temperature changes more than 5 °C (9 °F), repeat the procedure.
Warranted specifications describe guaranteed performance with tolerance limits or certain type-tested requirements.
Analog channel input and vertical
- Number of analog input channels
- MSO64B: 4
- Input coupling
- DC, AC
- Input resistance selection
- 1 MΩ or 50 Ω
- ✓ DC Input Resistance, 50 Ω, DC coupled
- 50 Ω ±3%
- ✓ DC Input Resistance, 1MΩ DC-Coupled
- 1 MΩ ±1%
- Input VSWR, 50 Ω DC-coupled, typical
-
Input Frequency VSWR <100 mV/div VSWR ≥ 100 mV/div ≤2.5 GHz 1.4 1.2 >2.5 GHz and ≤6 GHz 1.5 1.3 >6 GHz and ≤9.5 GHz 1.9 1.8 >9.5 GHz and ≤10 GHz 2.1 1.9
- Maximum input voltage, 50 Ω
- 2.3 VRMS, at <100 mV/div, with peaks ≤±20 V (Pulse Width ≤ 1 μs)
- Maximum input voltage 1 MΩ DC-coupled
- 300 VRMS, DC to 10 kHz
- Sensitivity range, coarse
-
- 1 MΩ
- 500 µV/div to 10 V/div in a 1-2-5 sequence
- 50 Ω
- 1 mV/div to 1 V/div in a 1-2-5 sequence
- Sensitivity range (Fine)
-
- 1 MΩ
- Allows continuous adjustment from 500µV/div to 10V/div
- 50 Ω
- Allows continuous adjustment from 1mV/divto 1V/div
- Sensitivity Resolution (Fine)
- ≤1% of coarse sensitivity range setting
- Input capacitance 1 MΩ DC coupled, typical
- 14.5 pF ±1.5 pF
Analog DC
- Maximum offset ranges,
- Input signal cannot exceed maximum input voltage for the 50 Ω input path.
Volts/div Setting Maximum offset range, 50 Ω Input 1 mV/div - 99 mV/div ±1 V 100 mV/div - 1 V/div ±10 V Volts/div Setting Maximum offset range, 1 MΩ Input 500 µV/div - 63 mV/div ±1 V 64 mV/div - 999 mV/div ±10 V
1 V/div - 10 V/div ±100 V Input Signal cannot exceed max input voltage for the 50 Ω input path.
- DC voltage measurement accuracy, Average acquisition mode
-
Measurement Type DC Accuracy (In Volts) Average of ≥16 waveforms ±((DC Gain Accuracy) * |reading - (offset - position)| + Offset Accuracy + 0.05 * V/div setting) Delta volts between any two averages of ≥16 waveforms acquired with the same oscilloscope setup and ambient conditions ±(DC Gain Accuracy * |reading| + 0.1 div) - DC voltage measurement accuracy, Sample acquisition mode, typical
-
Measurement Type DC Accuracy (In Volts) Any Sample ±(DC Gain Accuracy * |reading - (offset - position)| + Offset Accuracy + 0.15 div + 0.6 mV) Delta volts between any two samples acquired with the same scope setup and ambient conditions ±(DC Gain Accuracy * |reading| + 0.15 div +1.2 mV) - ✓ Offset accuracy
-
- 50 Ω DC-coupled
- ≥5 mV/div: ± (0.005 X |offset – position| + 0.087 div)
- 1 MΩ DC-coupled
- ≥5 mV/div: ± (0.005 X |offset – position| + 0.2 div)
- Position range
- ±5 divisions
- ✓ DC gain accuracy
-
- 50 Ω
-
±2.0% at >2 mV/div (±2.0% at 2 mV/div, ±4.0% at 1 mV/div, typical). Immediately following SPC, add 2% for every 5 °C change in ambient.
±1.0% of full scale at >2 mV/div, (±1.0% of full scale at 2 mV/div, ± 2.0% at 1 mV/div, typical). Immediately following SPC, add 1% for every 5 °C change in ambient.
- 1 MΩ
-
±2.0% at >2 mV/div (±2.0% at 2 mV/div, ±2.5% at 1 mV/div and 500 μV/div, typical). Immediately following SPC, add 2% for every 5 °C change in ambient.
±1.0% of full scale at >2 mV/div, (±1.0% of full scale at 2 mV/div, ±1.25% at 1 mV/div and 500 μV/div, typical). Immediately following SPC, add 1% for every 5 °C change in ambient.
- ✓ Digital nonlinearity, typical
- INL @ > 2 mV/div: ±16 DL's (12-bit reference)
Analog AC
- ✓ Analog bandwidth 50 Ω DC coupled
-
Model Volts/div Setting Bandwidth MSO6XB BW-10000 1 mV/div – 1V/div DC - 10GHz MSO6XB BW-8000 1 mV/div – 1V/div DC – 8 GHz MSO6XB BW-6000 1 mV/div – 1V/div DC – 6 GHz MSO6XB BW-4000 1 mV/div – 1V/div DC – 4 GHz MSO6XB BW-2500 1 mV/div – 1V/div DC – 2.5 GHz MSO6XB BW-1000 1 mV/div – 1V/div DC – 1 GHz
- ✓ Analog Bandwidth, 1 MΩ
- The limits are for ambient temperature of ≤30 °C and the bandwidth selection set to FULL. Reduce the upper bandwidth frequency by 1% for each °C above 30 °C.
MSO6XB, all models:
Volts/Div Setting Bandwidth 1 mV/div – 10 V/div DC – 500 MHz 500 µV/div – 995 µV/div DC – 250 MHz
- Analog bandwidth TPP1000 10X probe
- The limits are for ambient temperature of ≤30 °C and the bandwidth selection set to FULL. Reduce the upper bandwidth frequency by 1% for each °C above 30 °C.
Model Volts/Div Setting Bandwidth MSO6X, all models 5 mV/div - 100 V/div DC - 1 GHz
- Bandwidth selections
-
- 10 GHz model, 50 Ω:
- 20 MHz, 200 MHz, 250 MHz, 350 MHz, 500 MHz, 1 GHz, 2 GHz, 2.5 GHz, 3 GHz, 4 GHz, 5 GHz, 6 GHz, 7 GHz, 8GHz, 9GHz, and 10 GHz.
- 8 GHz model, 50 Ω
- 20 MHz, 200 MHz, 250 MHz, 350 MHz, 500 MHz, 1 GHz, 2 GHz, 2.5 GHz, 3 GHz,4 GHz, 5 GHz, 6 GHz, 7 GHz, and 8 GHz.
- 6 GHz model, 50 Ω
- 20 MHz, 200 MHz, 250 MHz, 350 MHz, 500 MHz, 1 GHz, 2 GHz, 2.5 GHz, 3 GHz,4 GHz, 5 GHz, and 6 GHz
- 4 GHz model, 50 Ω
- 20 MHz, 200 MHz, 250 MHz, 350 MHz, 500 MHz, 1 GHz, 2 GHz, 2.5 GHz, 3 GHz, and 4 GHz
- 2.5 GHz model, 50 Ω
- 20 MHz, 200 MHz, 250 MHz, 350 MHz, 500 MHz, 1 GHz, 2 GHz, and 2.5 GHz
- 1 GHz model, 50 Ω
- 20 MHz, 200 MHz, 250 MHz, 350 MHz, 500 MHz, and 1 GHz
- 1 MΩ
- 20 MHz (HW), 200 MHz, 250 MHz (HW), 350 MHz, and Full (500 MHz)
- Frequency response tolerance/flatness, 50 Ω
- ± 0.5 dB from DC to 80% of rated bandwidth up to 8 GHz instruments
- Combined TDP7700 and 6 Series B MSO flatness, typical
- ±0.6 dB from DC to 80% of nominal BW when used with P77C292MM (SMA Probe Tip)
- Phase accuracy
- ±2.5 degrees, typical out to 9 GHz
- Lower frequency limit, AC coupled, typical
- <10 Hz when AC 1 MΩ coupled. The AC coupled lower frequency limits are reduced by a factor of 10 (<1 Hz) when 10X passive probes are used.
- Upper frequency limit, 250 MHz bandwidth limited, typical
-
- 50 Ω, DC-coupled
-
250 MHz, ± 5%
- 1 MΩ, DC-coupled
- 250 MHz, ± 25%
- Upper frequency limit, 20 MHz bandwidth limited, typical
-
- 50 Ω, DC-coupled
-
20 MHz, ± 5%
- 1 MΩ, DC-coupled
- 20 MHz, ± 25%
- Calculated rise time
-
The formula used is 0.4/BW where BW is the measured –3 dB bandwidth of the oscilloscope. The formula accounts for the rise time contribution of the oscilloscope independent of the rise time of the signal source.
Calculated Rise Time (10% to 90%)
Below specification is independent of oscilloscope model and is dependent on bandwidth option only.
Model 50 Ω TPP1000 Probe 1 mV-1 V 5 mV-10 V MSO6X BW-10000 40 ps 400 ps MSO6X BW-8000 50 ps 400 ps MSO6X BW-6000 66.67 ps 400 ps MSO6X BW-4000 100 ps 400 ps MSO6X BW-2500 160 ps 400 ps MSO6X BW-1000 400 ps 400 ps
Effective bits (ENOB), typical
- Fastacq turned OFF
- 8 channel box: ch1, ch5
- 6 channel box: ch1, ch4
- 4 channel box: ch1, ch3
50 mV/div, 50 GS, Sample mode, 50 Ω, TYP | 50 mV/div, 25 GS, HiRes mode, 50 Ω, TYP | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Frequency | Channel bandwidth | |||||||||||||||
10 GHz | 9 GHz | 8 GHz | 7 GHz | 6 GHz | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz | |
10 MHz | 6.6 | 6.75 | 6.85 | 7 | 7.15 | 7.4 | 7.6 | 7.85 | 7.95 | 8.05 | 8.45 | 8.65 | 8.8 | 8.85 | 8.9 | 9.85 |
250 MHz | 6.6 | 6.75 | 6.85 | 7 | 7.15 | 7.35 | 7.5 | 7.75 | 7.85 | 7.95 | 8.3 | 8.65 | 8.8 | 8.85 | ||
1 GHz | 6.6 | 6.75 | 6.85 | 7 | 7.1 | 7.3 | 7.45 | 7.7 | 7.8 | 7.95 | 8.3 | |||||
2 GHz | 6.55 | 6.65 | 6.75 | 6.85 | 7 | 7.2 | 7.35 | 7.55 | 7.65 | 7.75 | ||||||
4 GHz | 6.45 | 6.65 | 6.75 | 6.95 | 7.05 | 7.2 | 7.35 | |||||||||
7 GHz | 6.55 | 6.65 | 6.75 | 6.9 |
2 mV/div, 50 GS, Sample mode, 50 Ω, TYP | 2 mV/div, 25 GS, HiRes mode, 50 Ω, TYP | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Frequency | Channel bandwidth | |||||||||||||||
10 GHz | 9 GHz | 8 GHz | 7 GHz | 6 GHz | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz | |
10 MHz | 4.95 | 5.1 | 5.2 | 5.35 | 5.55 | 5.7 | 5.9 | 6.1 | 6.2 | 6.35 | 6.8 | 7.25 | 7.5 | 7.65 | 7.85 | 9.25 |
250 MHz | 4.95 | 5.1 | 5.2 | 5.35 | 5.55 | 5.7 | 5.85 | 6.1 | 6.2 | 6.35 | 6.8 | 7.25 | 7.5 | 7.65 | ||
1 GHz | 4.95 | 5.1 | 5.2 | 5.35 | 5.55 | 5.7 | 5.85 | 6.1 | 6.2 | 6.35 | 6.8 | |||||
2 GHz | 4.95 | 5.1 | 5.2 | 5.35 | 5.55 | 5.65 | 5.85 | 6.05 | 6.2 | 6.35 | ||||||
4 GHz | 4.9 | 5.1 | 5.2 | 5.35 | 5.55 | 5.65 | 5.85 | |||||||||
7 GHz | 4.9 | 5.1 | 5.2 | 5.35 |
- 8 channel box: ch1, ch2, ch5, ch6
- 6 channel box: ch1, ch2, ch4, ch5
- 4 channel box: all channels
50 mV/div, 25 GS, Sample mode, 50 Ω, TYP | 50 mV/div, 12.5 GS, HiRes mode, 50 Ω, TYP | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Frequency | Channel bandwidth | |||||||||||||||
10 GHz | 9 GHz | 8 GHz | 7 GHz | 6 GHz | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz | |
10 MHz | 6.25 | 6.4 | 6.5 | 6.6 | 6.8 | 7.05 | 7.25 | 7.5 | 7.6 | 7.8 | 8.2 | 8.5 | 8.65 | 8.75 | 8.85 | 9.75 |
250 MHz | 6.25 | 6.4 | 6.5 | 6.6 | 6.8 | 7 | 7.2 | 7.4 | 7.55 | 7.7 | 8.1 | 8.5 | 8.9 | 9 | ||
1 GHz | 6.25 | 6.4 | 6.5 | 6.6 | 6.8 | 7 | 7.15 | 7.4 | 7.5 | 7.65 | 8 | |||||
2 GHz | 6.2 | 6.3 | 6.4 | 6.6 | 6.7 | 6.95 | 7.1 | 7.35 | 7.4 | 7.5 | ||||||
4 GHz | 6.2 | 6.3 | 6.4 | 6.5 | 6.7 | 6.95 | 7 | |||||||||
7 GHz | 6.2 | 6.2 | 6.3 | 6.4 |
2 mV/div, 25 GS, Sample mode, 50 Ω, TYP | 2 mV/div, 12.5 GS, HiRes mode, 50 Ω, TYP | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Frequency | Channel bandwidth | |||||||||||||||
10 GHz | 9 GHz | 8 GHz | 7 GHz | 6 GHz | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz | |
10 MHz | 4.8 | 5 | 5.1 | 5.3 | 5.5 | 5.65 | 5.9 | 6.1 | 6.2 | 6.35 | 6.8 | 7.2 | 7.4 | 7.5 | 7.75 | 8.8 |
250 MHz | 4.8 | 5 | 5.1 | 5.3 | 5.5 | 5.65 | 5.9 | 6.1 | 6.2 | 6.35 | 6.8 | 7.2 | 7.4 | 7.5 | ||
1 GHz | 4.8 | 5 | 5.1 | 5.3 | 5.5 | 5.65 | 5.9 | 6.1 | 6.2 | 6.35 | 6.8 | |||||
2 GHz | 4.8 | 5 | 5.1 | 5.3 | 5.5 | 5.6 | 5.85 | 6.1 | 6.2 | 6.35 | ||||||
4 GHz | 4.8 | 5 | 5.1 | 5.3 | 5.5 | 5.6 | 5.8 | |||||||||
7 GHz | 4.8 | 5 | 5.1 | 5.3 |
These limits apply to all channels
50 mV/div, 12.5 GS, Sample mode, 50 Ω, TYP | 50 mV/div, 6.25 GS, HiRes mode, 50 Ω, TYP | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Frequency | Channel bandwidth | |||||||||||||||
10 GHz | 9 GHz | 8 GHz | 7 GHz | 6 GHz | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz | |
10 MHz | 6.85 | 7.05 | 7.3 | 7.55 | 7.7 | 8.15 | 8.45 | 8.65 | 8.75 | 8.8 | 9.7 | |||||
250 MHz | 6.8 | 7.05 | 7.25 | 7.5 | 7.65 | 8.05 | 8.5 | 8.8 | 9.1 | |||||||
1 GHz | 6.8 | 7 | 7.25 | 7.45 | 7.65 | 8 | ||||||||||
2 GHz | 6.7 | 7 | 7.15 | 7.4 | 7.55 | |||||||||||
4 GHz | 6.7 | 7 | ||||||||||||||
7 GHz |
2 mV/div, 12.5 GS, Sample mode, 50 Ω, TYP | 2 mV/div, 6.25 GS, HiRes Mode, 50 Ω, TYP | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Frequency | Channel bandwidth | |||||||||||||||
10 GHz | 9 GHz | 8 GHz | 7 GHz | 6 GHz | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz | |
10 MHz | 5.6 | 5.8 | 6 | 6.15 | 6.3 | 6.75 | 7.2 | 7.4 | 7.5 | 7.75 | 8.8 | |||||
250 MHz | 5.6 | 5.75 | 6 | 6.15 | 6.3 | 6.75 | 7.2 | 7.4 | 7.5 | |||||||
1 GHz | 5.55 | 5.75 | 6 | 6.15 | 6.3 | 6.75 | ||||||||||
2 GHz | 5.55 | 5.75 | 6 | 6.1 | 6.3 | |||||||||||
4 GHz | 5.55 | 5.75 | ||||||||||||||
7 GHz |
Random Noise
50 Ω, 50 GS/s, Sample mode, RMS | 50 Ω, 25 GS/s, HiRes mode, RMS | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
V/div | 10 GHz | 9 GHz | 8 GHz | 7 GHz | 6 GHz | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz |
1 mV | 259 uV | 236 uV | 216 uV | 197 uV | 175 uV | 156 uV | 138 uV | 118 uV | 107 uV | 97.4 uV | 72.2 uV | 52.9 uV | 45 uV | 42 uV | 36.2 uV | 13 uV |
2 mV | 266 uV | 242 uV | 221 uV | 199 uV | 180 uV | 158 uV | 139 uV | 120 uV | 108 uV | 98.7 uV | 73.2 uV | 53.6 uV | 45.7 uV | 42.6 uV | 36.7 uV | 13.2 uV |
5 mV | 322 uV | 293 uV | 271 uV | 247 uV | 220 uV | 189 uV | 165 uV | 142 uV | 128 uV | 115 uV | 84.6 uV | 61.3 uV | 52.2 uV | 48.7 uV | 41.9 uV | 15 uV |
10 mV | 488 uV | 445 uV | 406 uV | 370 uV | 330 uV | 278 uV | 242 uV | 203 uV | 181 uV | 163 uV | 117 uV | 84.8 uV | 70.5 uV | 65.8 uV | 56.7 uV | 20.6 uV |
20 mV | 850 uV | 775 uV | 707 uV | 645 uV | 581 uV | 478 uV | 412 uV | 346 uV | 309 uV | 275 uV | 195 uV | 141 uV | 116 uV | 107 uV | 93.2 uV | 34.2 uV |
50 mV | 1.96 mV | 1.79 mV | 1.63 mV | 1.5 mV | 1.34 mV | 1.09 mV | 949 uV | 790 uV | 704 uV | 627 uV | 444 uV | 325 uV | 261 uV | 241 uV | 210 uV | 79 uV |
100 mV | 5.05 mV | 4.55 mV | 4.15 mV | 3.79 mV | 3.38 mV | 2.81 mV | 2.45 mV | 2.06 mV | 1.83 mV | 1.65 mV | 1.17 mV | 858 uV | 705 uV | 658 uV | 573 uV | 203 uV |
1 V | 38.8 mV | 35.4 mV | 32.6 mV | 29.7 mV | 26.8 mV | 21.8 mV | 18.8 mV | 15.8 mV | 13.9 mV | 12.4 mV | 8.78 mV | 6.51 mV | 5.11 mV | 4.77 mV | 4.15 mV | 1.56 mV |
50 Ω, 25 GS/s, Sample mode, RMS | 50 Ω, 12.5 GS/s, HiRes mode, RMS | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
V/div | 10 GHz | 9 GHz | 8 GHz | 7 GHz | 6 GHz | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz |
1 mV | 281 uV | 253 uV | 223 uV | 199 uV | 179 uV | 162 uV | 138 uV | 117 uV | 108 uV | 96.3 uV | 77.3 uV | 56 uV | 47.7 uV | 46.1 uV | 37.9 uV | 13 uV |
2 mV | 288 uV | 260 uV | 224 uV | 202 uV | 180 uV | 164 uV | 139 uV | 119 uV | 110 uV | 97.6 uV | 72.4 uV | 56.2 uV | 47.3 uV | 46.7 uV | 38 uV | 13.3 uV |
5 mV | 374 uV | 337 uV | 293 uV | 271 uV | 233 uV | 210 uV | 175 uV | 149 uV | 133 uV | 118 uV | 89.6 uV | 68 uV | 56.5 uV | 54 uV | 44.4 uV | 15.6 uV |
10 mV | 600 uV | 541 uV | 482 uV | 440 uV | 388 uV | 330 uV | 271 uV | 226 uV | 203 uV | 186 uV | 128 uV | 91.9 uV | 77.3 uV | 74.7 uV | 65.8 uV | 22.6 uV |
20 mV | 1.08 mV | 976 uV | 890 uV | 793 uV | 691 uV | 595 uV | 486 uV | 398 uV | 363 uV | 320 uV | 226 uV | 162 uV | 133 uV | 120 uV | 106 uV | 41.2 uV |
50 mV | 2.53 mV | 2.3 mV | 2.1 mV | 1.85 mV | 1.67 mV | 1.4 mV | 1.15 mV | 960 uV | 856 uV | 745 uV | 534 uV | 396 uV | 307 uV | 280 uV | 247 uV | 105 uV |
100 mV | 6.14 mV | 5.54 mV | 4.88 mV | 4.4 mV | 3.83 mV | 3.38 mV | 2.71 mV | 2.28 mV | 2.03 mV | 1.81 mV | 1.33 mV | 941 uV | 792 uV | 722 uV | 666 uV | 236 uV |
1 V | 49.9 mV | 46.1 mV | 42 mV | 37 mV | 33.4 mV | 28.1 mV | 23.1 mV | 19.2 mV | 17.1 mV | 14.9 mV | 10.8 mV | 7.92 mV | 6.14 mV | 5.6 mV | 4.94 mV | 2.11 mV |
50 Ω, 12.5 GS/s, Sample mode, RMS | 50 Ω, 6.25 GS/s, HiRes mode, RMS | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
V/div | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz |
1 mV | 162 uV | 142 uV | 123 uV | 109 uV | 99.6 uV | 73.9 uV | 54.8 uV | 46.6 uV | 43.5 uV | 38.8 uV | 14.7 uV |
2 mV | 168 uV | 148 uV | 127 uV | 112 uV | 101 uV | 74.9 uV | 55.5 uV | 47.3 uV | 44.1 uV | 39.3 uV | 14.8 uV |
5 mV | 233 uV | 203 uV | 173 uV | 142 uV | 128 uV | 92.8 uV | 68 uV | 56.5 uV | 52.8 uV | 47 uV | 17.7 uV |
10 mV | 388 uV | 334 uV | 281 uV | 221 uV | 197 uV | 134 uV | 97.4 uV | 80.1 uV | 74.7 uV | 66.6 uV | 25.6 uV |
20 mV | 715 uV | 609 uV | 518 uV | 398 uV | 350 uV | 237 uV | 174 uV | 138 uV | 129 uV | 115 uV | 44.6 uV |
50 mV | 1.71 mV | 1.47 mV | 1.25 mV | 938 uV | 836 uV | 559 uV | 410 uV | 322 uV | 300 uV | 271 uV | 105 uV |
100 mV | 3.92 mV | 3.38 mV | 2.84 mV | 2.23 mV | 1.99 mV | 1.36 mV | 985 uV | 801 uV | 747 uV | 674 uV | 256 uV |
1 V | 34.2 mV | 29.4 mV | 25 mV | 19 mV | 16.7 mV | 11.1 mV | 8.1 mV | 6.36 mV | 5.94 mV | 5.35 mV | 2.08 mV |
1 MΩ, 25 GS/s, 12.5 GS/s, Sample mode, RMS | |||||
---|---|---|---|---|---|
V/div | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz |
1 mV | 262 uV | 190 uV | 153 uV | 153 uV | 102 uV |
2 mV | 285 uV | 195 uV | 156 uV | 153 uV | 111 uV |
5 mV | 311 uV | 223 uV | 183 uV | 175 uV | 140 uV |
10 mV | 370 uV | 281 uV | 259 uV | 242 uV | 226 uV |
20 mV | 536 uV | 473 uV | 398 uV | 398 uV | 398 uV |
50 mV | 1.1 mV | 896 uV | 994 uV | 994 uV | 994 uV |
100 mV | 2.39 mV | 2.08 mV | 1.99 mV | 1.99 mV | 1.99 mV |
1 V | 25.9 mV | 22.3 mV | 22.1 mV | 21.8 mV | 19.9 mV |
1 MΩ, 12.5 GS/s, 6.25 GS/s, HiRes mode, RMS | |||||
---|---|---|---|---|---|
V/div | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz |
1 mV | 262 uV | 190 uV | 153 uV | 149 uV | 103 uV |
2 mV | 285 uV | 195 uV | 155 uV | 153 uV | 103 uV |
5 mV | 297 uV | 205 uV | 161 uV | 154 uV | 110 uV |
10 mV | 334 uV | 231 uV | 186 uV | 165 uV | 141 uV |
20 mV | 407 uV | 305 uV | 257 uV | 211 uV | 224 uV |
50 mV | 737 uV | 553 uV | 528 uV | 387 uV | 510 uV |
100 mV | 1.77 mV | 1.38 mV | 1.18 mV | 952 uV | 1.13 mV |
1 V | 19 mV | 14.9 mV | 13.6 mV | 11.3 mV | 11.7 mV |
Random Noise (Typical)
50 GS sample mode and 25 GS hires mode not available in Fastacq
TYP | 50 Ω, 50 GS/s, Sample mode, RMS | 50 Ω, 25 GS/s, HiRes mode, RMS | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
V/div | 10 GHz | 9 GHz | 8 GHz | 7 GHz | 6 GHz | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz |
1 mV | 183 uV | 167 uV | 153 uV | 139 uV | 124 uV | 111 uV | 97.4 uV | 83.8 uV | 75.6 uV | 68.9 uV | 51.1 uV | 37.5 uV | 31.9 uV | 28.1 uV | 24.2 uV | 8.68 uV |
2 mV | 188 uV | 172 uV | 156 uV | 141 uV | 127 uV | 112 uV | 98.7 uV | 85 uV | 76.6 uV | 69.9 uV | 51.8 uV | 38 uV | 32.3 uV | 28.5 uV | 24.5 uV | 8.8 uV |
5 mV | 228 uV | 208 uV | 192 uV | 175 uV | 156 uV | 134 uV | 117 uV | 101 uV | 90.7 uV | 81.7 uV | 59.9 uV | 43.4 uV | 36.9 uV | 32.5 uV | 28 uV | 10.1 uV |
10 mV | 346 uV | 315 uV | 287 uV | 262 uV | 234 uV | 197 uV | 171 uV | 144 uV | 128 uV | 116 uV | 82.9 uV | 60 uV | 49.9 uV | 44 uV | 37.9 uV | 13.8 uV |
20 mV | 602 uV | 549 uV | 501 uV | 457 uV | 412 uV | 338 uV | 291 uV | 245 uV | 219 uV | 195 uV | 138 uV | 99.9 uV | 82.1 uV | 71.5 uV | 62.3 uV | 22.9 uV |
50 mV | 1.39 mV | 1.27 mV | 1.15 mV | 1.07 mV | 949 uV | 772 uV | 672 uV | 559 uV | 498 uV | 444 uV | 314 uV | 230 uV | 185 uV | 161 uV | 140 uV | 52.8 uV |
100 mV | 3.58 mV | 3.22 mV | 2.94 mV | 2.68 mV | 2.39 mV | 1.99 mV | 1.73 mV | 1.46 mV | 1.3 mV | 1.17 mV | 829 uV | 607 uV | 499 uV | 440 uV | 383 uV | 136 uV |
1 V | 27.4 mV | 25 mV | 23.1 mV | 21.1 mV | 19 mV | 15.4 mV | 13.3 mV | 11.2 mV | 9.85 mV | 8.78 mV | 6.22 mV | 4.61 mV | 3.62 mV | 3.19 mV | 2.78 mV | 1.04 mV |
TYP | 50 Ω, 25 GS/s, Sample mode, RMS | 50 Ω, 12.5 GS/s, HiRes mode, RMS | ||||||||||||||
V/div | 10 GHz | 9 GHz | 8 GHz | 7 GHz | 6 GHz | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz |
1 mV | 199 uV | 179 uV | 158 uV | 141 uV | 127 uV | 114 uV | 97.4 uV | 82.9 uV | 76.5 uV | 68.1 uV | 54.8 uV | 39.7 uV | 33.8 uV | 30.8 uV | 25.3 uV | 8.68 uV |
2 mV | 204 uV | 184 uV | 158 uV | 143 uV | 127 uV | 116 uV | 98.7 uV | 84 uV | 77.5 uV | 69.1 uV | 51.2 uV | 39.8 uV | 33.5 uV | 31.2 uV | 25.4 uV | 8.9 uV |
5 mV | 264 uV | 238 uV | 208 uV | 192 uV | 165 uV | 149 uV | 124 uV | 105 uV | 93.8 uV | 83.6 uV | 63.4 uV | 48.1 uV | 40 uV | 36.1 uV | 29.7 uV | 10.4 uV |
10 mV | 425 uV | 383 uV | 342 uV | 311 uV | 274 uV | 234 uV | 192 uV | 160 uV | 144 uV | 131 uV | 90.9 uV | 65.1 uV | 54.8 uV | 49.9 uV | 44 uV | 15.1 uV |
20 mV | 766 uV | 691 uV | 630 uV | 562 uV | 489 uV | 421 uV | 344 uV | 282 uV | 257 uV | 226 uV | 160 uV | 115 uV | 94.3 uV | 80.3 uV | 70.7 uV | 27.5 uV |
50 mV | 1.79 mV | 1.63 mV | 1.49 mV | 1.31 mV | 1.18 mV | 994 uV | 817 uV | 680 uV | 606 uV | 528 uV | 378 uV | 280 uV | 217 uV | 187 uV | 165 uV | 70.4 uV |
100 mV | 4.35 mV | 3.92 mV | 3.46 mV | 3.11 mV | 2.71 mV | 2.39 mV | 1.92 mV | 1.62 mV | 1.44 mV | 1.28 mV | 941 uV | 666 uV | 560 uV | 482 uV | 445 uV | 158 uV |
1 V | 35.4 mV | 32.6 mV | 29.7 mV | 26.2 mV | 23.6 mV | 19.9 mV | 16.3 mV | 13.6 mV | 12.1 mV | 10.6 mV | 7.65 mV | 5.6 mV | 4.35 mV | 3.75 mV | 3.3 mV | 1.41 mV |
TYP | 50 Ω, 12.5 GS/s, Sample mode, RMS | 50 Ω, 6.25 GS/s, HiRes mode, RMS | ||||||||||||||
V/div | 5 GHz | 4 GHz | 3 GHz | 2.5 GHz | 2 GHz | 1 GHz | 500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz | |||||
1 mV | 114 uV | 101 uV | 86.8 uV | 77.3 uV | 70.5 uV | 52.3 uV | 38.8 uV | 33 uV | 29.1 uV | 25.9 uV | 9.85 uV | |||||
2 mV | 119 uV | 105 uV | 90.1 uV | 79.3 uV | 71.5 uV | 53 uV | 39.3 uV | 33.5 uV | 29.5 uV | 26.3 uV | 9.87 uV | |||||
5 mV | 165 uV | 144 uV | 122 uV | 101 uV | 90.7 uV | 65.7 uV | 48.1 uV | 40 uV | 35.3 uV | 31.4 uV | 11.8 uV | |||||
10 mV | 274 uV | 236 uV | 199 uV | 156 uV | 139 uV | 95.2 uV | 68.9 uV | 56.7 uV | 49.9 uV | 44.5 uV | 17.1 uV | |||||
20 mV | 506 uV | 431 uV | 367 uV | 282 uV | 248 uV | 168 uV | 123 uV | 97.6 uV | 86 uV | 76.6 uV | 29.8 uV | |||||
50 mV | 1.21 mV | 1.04 mV | 886 uV | 664 uV | 592 uV | 396 uV | 290 uV | 228 uV | 201 uV | 181 uV | 70.4 uV | |||||
100 mV | 2.78 mV | 2.39 mV | 2.01 mV | 1.58 mV | 1.41 mV | 963 uV | 697 uV | 567 uV | 499 uV | 450 uV | 171 uV | |||||
1 V | 24.2 mV | 20.8 mV | 17.7 mV | 13.4 mV | 11.8 mV | 7.82 mV | 5.73 mV | 4.5 mV | 3.97 mV | 3.58 mV | 1.39 mV |
V/div | 1 MΩ, 25 GS/s and 12.5 GS/s, Sample Mode, RMS | ||||
---|---|---|---|---|---|
500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz | |
1 mV | 186 uV | 134 uV | 108 uV | 108 uV | 72.2 uV |
2 mV | 202 uV | 138 uV | 111 uV | 108 uV | 78.4 uV |
5 mV | 220 uV | 158 uV | 130 uV | 124 uV | 99.4 uV |
10 mV | 262 uV | 199 uV | 183 uV | 171 uV | 160 uV |
20 mV | 380 uV | 335 uV | 282 uV | 282 uV | 282 uV |
50 mV | 781 uV | 634 uV | 704 uV | 704 uV | 704 uV |
100 mV | 1.69 mV | 1.47 mV | 1.41 mV | 1.41 mV | 1.41 mV |
1 V | 18.3 mV | 15.8 mV | 15.6 mV | 15.4 mV | 14.1 mV |
V/div | 1 MΩ, 12.5 GS/s and 6.25 GS/s, HiRes Mode, RMS | ||||
---|---|---|---|---|---|
500 MHz | 350 MHz | 250 MHz | 200 MHz | 20 MHz | |
1 mV | 186 uV | 134 uV | 108 uV | 106 uV | 73 uV |
2 mV | 202 uV | 138 uV | 110 uV | 108 uV | 73.2 uV |
5 mV | 210 uV | 145 uV | 114 uV | 109 uV | 78.1 uV |
10 mV | 236 uV | 163 uV | 131 uV | 117 uV | 99.6 uV |
20 mV | 288 uV | 216 uV | 182 uV | 149 uV | 158 uV |
50 mV | 522 uV | 391 uV | 374 uV | 274 uV | 361 uV |
100 mV | 1.25 mV | 974 uV | 838 uV | 674 uV | 801 uV |
1 V | 13.4 mV | 10.6 mV | 9.63 mV | 8.01 mV | 8.29 mV |
✓ High offset AC RMS Noise
- 50 Ω
-
Table 1. 25 GS/s, Sample Mode, RMS V/div 1 mV/div 2 mV/div 5 mV/div 10 mV/div 20 mV/div 50 mV/div 100 mV/div 1 V/div 8 GHz 223 μV 224 μV 293 μV 482 μV 890 μV 2.1 mV 4.88 mV 42 mV 7 GHz 199 μV 202 μV 271 μV 440 μV 793 μV 1.85 mV 4.4 mV 37 mV 6 GHz 179 μV 180 μV 233 μV 388 μV 691 μV 1.67 mV 3.83 mV 33.4 mV Table 2. 12.5 GS/s, HiRes Mode, RMS V/div 1 mV/div 2 mV/div 5 mV/div 10 mV/div 20 mV/div 50 mV/div 100 mV/div 1 V/div 5 GHz 162 μV 164 μV 210 μV 330 μV 595 μV 1.4 mV 3.38 mV 28.1 mV 4 GHz 138 μV 139 μV 175 μV 271 μV 486 μV 1.15 mV 2.71 mV 23.1 mV 3 GHz 117 μV 119 μV 149 μV 226 μV 475 μV 975 μV 2.28 mV 21.4 mV 2 GHz 96.3 μV 97.6 μV 118 μV 212 μV 450 μV 920 μV 2.10 mV 21.0 mV 1 GHz 77.3 μV 72.4 μV 110 μV 190 μV 425 μV 900 μV 1.78 mV 19.2 mV 500 MHz 56 μV 56.2 μV 100 μV 182 μV 400 μV 840 μV 1.74 mV 16.8 mV 350 MHz 47.7 μV 47.3 μV 92.0 μV 165 μV 385 μV 770 μV 1.70 mV 16.1 mV 250 MHz 46.1 μV 46.7 μV 90.0 μV 145 μV 325 μV 675 μV 1.50 mV 15.8 mV 200 MHz 37.9 μV 38.0 μV 80.0 μV 120 μV 320 μV 660 μV 1.45 mV 15.2 mV 20 MHz 25.0 μV 25.0 μV 75.0 μV 115 μV 310 μV 560 μV 1.40 mV 13.0 mV
Overdrive recovery time
- 500 ns pulse width
-
50 Ω 400% Overdrive 2000% Overdrive Vertical scale 5% 1% 0.2% 5% 1% 0.2% 2 mV / div < 50 ns 50 ns 300 ns — — — 10 mV / div < 50 ns 50 ns 300 ns 50 ns 50 ns 400 ns 0.1 V / div < 50 ns 50 ns 300 ns — — —
- 100 µs pulse width
-
50 Ω 400% Overdrive 2000% Overdrive Vertical scale 5% 1% 0.2% 5% 1% 0.2% 2 mV / div < 50 ns 50 ns 1 us — — — 10 mV / div < 50 ns 50 ns 1 µs <50 ns 50 ns 150 us 0.1 V / div < 50 ns 50 ns 1 us — — — - TPP1000 Probe
-
Vertical scale 500% Overdrive 5000% Overdrive 5% 1% 0.2% 5% 1% 0.2% 10 mV / div 20 µs 2.0 ms 2.0 ms 30 µs 50 µs 2.2 ms 20 mV / div 14 µs 2.0 ms 2.0 ms 30 µs 50 µs 110 µs 50 mV / div 12 µs 60 µs 2.0 ms --- --- --- 0.1 V / div 12 µs 60 µs 2.0 ms --- --- ---
- Crosstalk (Channel Isolation) - 50 Ohm
- ≥50 dB up to 2 GHz
SFDR analog channels
- SFDR analog channels, typical
- A single input tone at -1 dBFS is swept from 10 MHz to bandwidth and the largest error spur is recorded.
Bandwidth | Sample rate | Acquisition mode | Vertical scale | SFDR |
---|---|---|---|---|
10 GHz | 50 GS/s | Sample | 50 mV/div | -45 dB |
10 GHz | 25 GS/s | Sample | 50 mV/div | -45 dB |
5 GHz | 12.5 GS/s | Sample | 50 mV/div | -45 dB |
5 GHz | 25 GS/s | Hi Res | 50 mV/div | -51 dB |
5 GHz | 12.5 GS/s | Hi Res | 50 mV/div | -51 dB |
2 GHz | 6.25 GS/s | Hi Res | 50 mV/div | -52 dB |
10 GHz | 50 GS/s | Sample | 2 mV/div | -42 dB |
10 GHz | 25 GS/s | Sample | 2 mV/div | -42 dB |
5 GHz | 12.5 GS/s | Sample | 2 mV/div | -42 dB |
5 GHz | 25 GS/s | Hi Res | 2 mV/div | -51 dB |
5 GHz | 12.5 GS/s | Hi Res | 2 mV/div | -51 dB |
2 GHz | 6.25 GS/s | Hi Res | 2 mV/div | -52 dB |
RF front-end
- Two-tone third intercept point, typical
- +25 dBm <6 GHz
- SFDR, typical
- -60 dBc for a 1 GHz input in a 5 GHz span with a 3 GHz CF
- EVM (256 QAM), typical
- 0.4% rms at 20 M Symbols/s
- DANL
- -163 dBm/Hz 10 MHz to 6 GHz, 1 mV/div
- Harmonic Distortion
- 2nd harmonic distortion at -58 dBc with a 0 dBm 1 GHz signal.
- Sensitivity/Noise Density, typical
- -157 dBm/Hz (1 mV/div, -38 dBm, 1.0001 GHz CF, 500 kHz span, 3 kHz RBW)
- Phase noise at 1 GHz, typical
- -118 dBc/Hz 10 kHz offset
- Absolute amplitude accuracy, typical
- ±1 dB (0-8 GHz) for max 10 GHz BW.
- Noise figure, typical
- 1 mv/div, 11 dB 10 MHz to 6 GHz and 14 dB 6 GHz to 10 GHz
- SNR/Dynamic Range, typical
- 112 dB with a 1 GHz signal in a 100 MHz span with 1 kHz RBW ± 20 MHz from the carrier.
Skew and delay
- Digital skew, typical
-
- Digital-to-Analog skew
- 1 ns
- Digital-to-Digital skew
- ± 320 ps from bit 0 of any TekVPI + channel to bit 0 of any TekVPI+ channel.
- Digital skew within a FlexChannel
- < 200 ps within any TEKVPI + channel
- Delay between analog channels, full bandwidth, typical
- ≤ 10 ps for any two channels with input impedance set to 50 Ω, DC coupling with equal Volts/div or above 10 mV/div
- Deskew range and resolution
- -125 ns to +125 ns with a resolution of 40 ps (for Peak Detect and Envelope acquisition modes).
- Acquisition Modes
-
Sample, Peak Detect, High Res, Envelope, Average, Fast Frame
- Number of digitized bits
-
Sample Rate Acquisition Mode Digitized Bits Channel Bandwidth MSO64B channels 1 and 3 (2 and 4 off) MSO66B channels 1 and 4 (2, 3, 5, and 6 off)
MSO68B channels 1 and 5 (2, 3, 4, 6, 7, and 8 off)
50 GS/s Sample 8 10 GHz 25 GS/s Hi Res 12 5 GHz 12.5 GS/s Hi Res 12 5 GHz 6.25 GS/s Hi Res 13 2.5 GHz 3.125 GS/s Hi Res 14 1 GHz 1.5625 GS/s Hi Res 15 500 MHz 625 MS/s Hi Res 16 200 MHz MSO64B all channels MSO66B channels 1, 2, 4, and 5 (3 and 6 off)
MSO68B channels 1, 2, 5, and 6 (3, 4, 7, and 8 off)
25 GS/s Sample 8 10 GHz 12.5 GS/s Sample 12 10 GHz 12.5 GS/s Hi Res 12 5 GHz 6.25 GS/s Hi Res 13 2.5 GHz 3.125 GS/s Hi Res 14 1 GHz 1.5625 GS/s Hi Res 15 500 MHz 625 MS/s Hi Res 16 200 MHz MSO66B all channels
MSO68B all channels
12.5 GS/s Sample 8 5 GHz 6.25 GS/s Sample 12 5 GHz 3.125 GS/s Hi Res 13 1 GHz 1.5625 GS/s Hi Res 14 500 MHz 1.25 GS/s Hi Res 15 500 MHz 312.5 MS/s Hi Res 16 100 MHz
- Peak Detect or Envelope Mode Minimum Detectable Pulse, typical
-
Channels Sample Rate Minimum Pulse Width MSO64B channels 1 and 3 (2 and 4 off) MSO66B channels 1 and 4 (2, 3, 5, and 6 off)
MSO68B channels 1 and 5 (2,3, 4, 6, 7, and 8 off)
50 GS/s 160 ps MSO64B channels 2 and 4 MSO66B channels 2 and 5 (3 and 6 off)
MSO68B channels 2 and 6 (3, 4, 7 and 8 off)
25 GS/s 160 ps MSO66B channels 3 and 6 MSO68B channels 3, 4, 7, and 8
12.5 GS/s 320 ps - Number of waveforms for average acquisition mode
- 2 to 10,240 Waveforms, default 16 waveforms
TekVPI interface
- TekVPI interconnect
- All analog channel inputs on the front panel conform to the TekVPI+ specification defined in the TEKPROBE, TEKCONNECT, AND TEKVPI STANDARDS specification.
- Total Probe Power
- 80 W maximum
- Probe Power per Channel
- 5 V Supply: 300 mW (60 mA max)
- Low-C Passive Probe Support
- Supports TPP1000 and similar probes
- Digital Probe Support
- Supports TLP058 VPI+ digital probes
- Probe User Interface
- Probe setup menu
Timebase system
- ✓Timebase factory tolerance
- Frequency tolerance at factory calibration is ±12 ppb (parts per billion).
- Timebase temperature stability
- ±20 PPB across the full operating range of 0 °C to 50 °C, after a sufficient soak time at the temperature.
- ±300 PPB/Year, and will not exceed ±2 PPM over 10 years without calibration.
Sample rate
- Sample rate range
-
Channels Sample rate (real time) Sample rate (interpolated) 2 channels 6.25 S/s to 50 GS/s 100 GS/s to 2.5 TS/s 4 channels 6.25 S/s to 25 GS/s 50 GS/s to 2.5 TS/s 8 channels 6.25 S/s to 12.5 GS/s 25 GS/s to 2.5 TS/s
- High Res sample rate
-
Channels Sample rate 2 channels up to 25 GS/s 4 channels up to 12.5 GS/s 8 channels up to 6.25 GS/s - Interpolated waveform rate (Sample mode):
-
-
2.5 TS/s
-
1 TS/s
-
500 GS/s
-
250 GS/s
-
100 GS/s
-
50 GS/s (only with a 25 GS/s or12.5 GS/s channel on)
-
25 GS/s (only with a 12.5 GS/s channel on)
-
- Interpolated waveform rate (High Res mode):
-
-
2.5 TS/s
-
1 TS/s
-
500 GS/s
-
250 GS/s
-
100 GS/s
-
50 GS/s
-
25 GS/s (only with a 25 GS/s or12.5 GS/s channel on)
-
12.5 GS/sec (only with a 12.5 GS/s channel on)
-
- Record length range
-
Applies to analog and digital channels. All acquisition modes are 1 G maximum record length, down to 1 k minimum record length, adjustable in 1 sample increments.
Standard: 62.5 Mpoints
Option 6-RL-1: 125 Mpoints
Option 6-RL-2: 250 Mpoints
Option 6-RL-3: 500 Mpoints
Option 6-RL-4: 1 Gpoints
- Horizontal scale range
- 40 ps/div to 1000 s/div
- Sample jitter (Aperture uncertainty), typical
-
Time duration Typical jitter <1 μs 80 fs <1 ms 130 fs
Delta-time measurement accuracy, typical
- Delta-time measurement accuracy, typical
- Formula for DTA:
SR1 = Slew Rate (1st Edge) around 1st point in measurement
SR2 = Slew Rate (2nd Edge) around 2nd point in measurement
N = RSS of input-referred noise (volts rms) and Dynamic noise estimate (volts rms).
Dynamic noise estimate*
Note:Dynamic noise is noise that appears with a signal applied (such as distortion or interleave errors).tj = aperture uncertainty (sec rms—80fs for short durations)
TBA = timebase accuracy or reference frequency error (which is 20ppb)
tp = delta-time measurement duration (sec)
- Delta Time Measurement Accuracy (DTA), reference example
- These limits apply to:
- MSO64B: Channels 1 and 3
- MSO66B: Channels 1 and 4
- MSO68B: Channels 1 and 5 are the only ones used
Volts/div BW Sample rate Sample mode Frequency Amplitude pk-pk DTA TYP 50 mV 10 GHz 50 GHz Sample 5.65 GHz 400 mV 327.78 fs 50 mV 8 GHz 50 GHz Sample 4.52 GHz 400 mV 346.08 fs 50 mV 6 GHz 50 GHz Sample 3.39 GHz 400 mV 383.01 fs 50 mV 5 GHz 25 GHz Hi-Res 2.825 GHz 400 mV 387.37 fs 50 mV 4 GHz 25 GHz Hi-Res 2.26 GHz 400 mV 424.08 fs 50 mV 2.5 GHz 25 GHz Hi-Res 1.4125 GHz 400 mV 512.12 fs 50 mV 2 GHz 25 GHz Hi-Res 1.13 GHz 400 mV 569.94 fs 50 mV 1 GHz 25 GHz Hi-Res 565 MHz 400 mV 802.6 fs 5 mV 10 GHz 50 GHz Sample 5.65 GHz 40 mV 486.58 fs 5 mV 8 GHz 50 GHz Sample 4.52 GHz 40 mV 514.54 fs 5 mV 6 GHz 50 GHz Sample 3.39 GHz 40 mV 561 fs 5 mV 5 GHz 25 GHz Hi-Res 2.825 GHz 40 mV 583.91 fs 5 mV 4 GHz 25 GHz Hi-Res 2.26 GHz 40 mV 637.27 fs 5 mV 2.5 GHz 25 GHz Hi-Res 1.4125 GHz 40 mV 791.51 fs 5 mV 2 GHz 25 GHz Hi-Res 1.13 GHz 40 mV 889.92 fs 5 mV 1 GHz 25 GHz Hi-Res 565 MHz 40 mV 1.29 ps These limits apply to:- MSO64B: All channels
- MSO66B: Channels 1, 2, 4, and 5
- MSO68B: Channels 1, 2, 5, and 6 are the only ones used
Volts/div BW Sample rate Sample mode Frequency Amplitude pk-pk DTA TYP 50 mV 10 GHz 25 GHz Sample 5.65 GHz 400 mV 397.32 fs 50 mV 8 GHz 25 GHz Sample 4.52 GHz 400 mV 417.47 fs 50 mV 6 GHz 25 GHz Sample 3.39 GHz 400 mV 448.57 fs 50 mV 5 GHz 12.5 GHz Hi-Res 2.825 GHz 400 mV 460.86 fs 50 mV 4 GHz 12.5 GHz Hi-Res 2.26 GHz 400 mV 483.23 fs 50 mV 2.5 GHz 12.5 GHz Hi-Res 1.4125 GHz 400 mV 581.18 fs 50 mV 2 GHz 12.5 GHz Hi-Res 1.13 GHz 400 mV 636.8 fs 50 mV 1 GHz 12.5 GHz Hi-Res 565 MHz 400 mV 904.88 fs 5 mV 10 GHz 25 GHz Sample 5.65 GHz 40 mV 555.49 fs 5 mV 8 GHz 25 GHz Sample 4.52 GHz 40 mV 551.87 fs 5 mV 6 GHz 25 GHz Sample 3.39 GHz 40 mV 589.36 fs 5 mV 5 GHz 12.5 GHz Hi-Res 2.825 GHz 40 mV 637.71 fs 5 mV 4 GHz 12.5 GHz Hi-Res 2.26 GHz 40 mV 668.87 fs 5 mV 2.5 GHz 12.5 GHz Hi-Res 1.4125 GHz 40 mV 814.74 fs 5 mV 2 GHz 12.5 GHz Hi-Res 1.13 GHz 40 mV 907.3 fs 5 mV 1 GHz 12.5 GHz Hi-Res 565 MHz 40 mV 1.36 ps These limits apply to:- MSO66B: All channels
- MSO68B: All channels are used
Volts/div BW Sample rate Sample mode Frequency Amplitude pk-pk DTA TYP 50 mV 5 GHz 12.5 GHz Sample 2.825 GHz 400 mV 536.22 fs 50 mV 4 GHz 12.5 GHz Sample 2.26 GHz 400 mV 580.12 fs 50 mV 2.5 GHz 6.25 GHz Hi-Res 1.4125 GHz 400 mV 620.41 fs 50 mV 2 GHz 6.25 GHz Hi-Res 1.13 GHz 400 mV 690.69 fs 50 mV 1 GHz 6.25 GHz Hi-Res 565 MHz 400 mV 934.61 fs 5 mV 5 GHz 12.5 GHz Sample 2.825 GHz 40 mV 698.23 fs 5 mV 4 GHz 12.5 GHz Sample 2.26 GHz 40 mV 761.47 fs 5 mV 2.5 GHz 6.25 GHz Hi-Res 1.4125 GHz 40 mV 864.09 fs 5 mV 2 GHz 6.25 GHz Hi-Res 1.13 GHz 40 mV 971.89 fs 5 mV 1 GHz 6.25 GHz Hi-Res 565 MHz 40 mV 1.4 ps
Trigger system
- Trigger types
- Edge, Dual Edge, Pulse Width, Timeout, Runt, Logic, Setup & Hold, Rise / Fall Time, Window, Bus, Parallel, I2C, SPI, RS-232, CAN, LIN, FlexRay, USB LS, USB FS, USB HS, Ethernet 10/100, Audio (I2S/LJ/RJ/TDM), CAN-FD, ARINC 429, MIL-STD-1553, SPMI, SENT
- Trigger modes
- Normal and Auto
- Trigger coupling
- DC, HF Reject, LF Reject, Noise Reject
- Trigger holdoff range
- 0 ns minimum to 10 seconds maximum
- Trigger level ranges, typical
-
Source Range Analog Inputs ±5 divs from center of screen Line N/A AUX Input ±5 V
- Time Range for Glitch, Pulse Width, Timeout, Time-qualified Runt or Time-qualified Window, Transition Time Trigger
-
40 ps to 20 s
- Setup/Hold Violation Trigger, Setup and Hold Time Ranges
-
Feature Min Max Setup Time 0 ns 20 s Hold Time 0 ns 20 s Setup + Hold Time 80 ps 22 s Input coupling on clock and data channels must be the same.
For Setup Time, positive numbers mean a data transition before the clock.
For Hold Time, positive numbers mean a data transition after the clock edge.
Setup + Hold Time is the algebraic sum of the Setup Time and the Hold Time programmed by the user.
Oscilloscopes Trigger position is equal to the Hold Time value.
- Trigger jitter, typical
- Analog Inputs
- Trigger jitter ≤ 1.5 ps RMS for Sample mode, Edge-type trigger, FastAcq, and Pulse width modes
- Trigger jitter ≤ 40 ps RMS for non-Edge-type trigger modes
- Trigger Bandwidth – Edge, Pulse, Logic, typical
-
Model Instrument bandwidth Edge trigger bandwidth Pulse, Logic trigger bandwidth MSO6XB 10 GHz 10 GHz 4 GHz MSO6XB 8 GHz 8 GHz 4 GHz MSO6XB 6 GHz 6 GHz 4 GHz MSO6XB 4 GHz, 2.5 GHz, 1 GHz Instrument bandwidth Instrument bandwidth
- Trigger level accuracy, DC-coupled, typical
- For signals having rise and fall times ≥10 ns, the limits are as follows:
Source Range Any Input Channel ±0.20 div Line N/A This limit is checked by SPC at very low frequency (nearly DC).
This limit does not include frequency dependent effects, edge type trigger sensitivity not DC coupled, or trigger position error.
Set the trigger level to the desired value. Using an adjustable DC source, inject a voltage into the instrument. Adjust the voltage downward (if checking negative slope) or upward (if checking positive slope) until the scope triggers. The difference between the trigger level setting and the voltage that actually caused the trigger is the trigger level accuracy.
- Edge-type Trigger Sensitivity, DC-coupled, typical
-
Trigger Source Sensitivity Any input channel, 1 MΩ path 0.5 mv/div to 0.99 mV/div – 5 mV from DC to instrument bandwidth.
≥ 1 mV/div – The greater of 5 mV or 0.7 div from DC to the less of 500 MHz or BW.
Any input channel, 50 Ω path - 1 mV/div to 1.99 mV/div – 3.5 divisions from DC to 80% of instrument bandwidth.
- 2 mV/div to 4.99 mV/div - 2 divisions from DC to 80% of instrument bandwidth.
- ≥ 5 mV/div - 1.5 divisions from DC to 80% of instrument bandwidth.
Line, 90 V to 264 V line voltage at 50-60 Hz line frequency 103.5 V to 126.5 V AUX Trigger 250 mVpp (DC - 400 MHz)
- Edge-type trigger sensitivity, not DC-coupled, typical
-
Trigger Coupling Typical Sensitivity NOISE REJ 2.5 times the DC Coupled limits HF REJ 1.0 times the DC Coupled limits from DC to 50 kHz. Attenuates signals above 50 kHz. LF REJ 1.5 times the DC Coupled limits for frequencies above 50 kHz. Attenuates signals below 50 kHz.
- Logic-type, or Logic-qualified trigger, or Events-delay sensitivities, DC-coupled, typical
- 2.0 division, at vertical setting ≥5 mV/div
- Logic-type triggering, Minimum logic or Re-arm time, typical
- For all vertical settings, the minimums are:
Triggering Type Pulse Width Re–Arm Time Time overlap needed for 100% & No Triggering1 Logic 120 ps + trise 120 ps + trise ≥160 ps/ ≤-40 ps Time-qualified logic 240 ps + trise 240 ps + trise ≥280 ps/ ≤-40 ps trise = calculated rise time
For Logic, time between channels refers to the length of time a logic state derived from more than one channel must exist to be recognized. For Events, the time is the minimum time between a main and delayed event that will be recognized if more than one channel is used.
- Time accuracy for pulse width and timeout triggering
- The limits are as follows:
Time Range Accuracy 320 ps to 20 s ±(40 ps + (Time-Base-Accuracy * Setting)) Time-Base-Accuracy when locked to an external source is equivalent to the accuracy of the external source.
- Pulse-type Trigger, Minimum Pulse, Re-arm Time, Transition Time
- The limits are as follows:
Pulse class Minimum pulse width Minimum rearm time Runt 40 ps + trise 40 ps + trise Time–qualified runt 40 ps + trise 40 ps + trise Width 40 ps + trise 40 ps + trise trise = calculated rise time
Trigger class Minimum transition time Minimum rearm time Rise/Fall Time 40 ps + trise 40 ps + trise trise = calculated rise time
- Minimum clock pulse widths for Setup/Hold time violation trigger, typical
- For all vertical settings, the minimums are:
Minimum Pulse Width, Clock Active Minimum Pulse Width, Clock Inactive User's Hold Time 80 ps + trise 80 ps + trise Active pulse width is the width of the clock pulse from its active edge (as defined in the Clock Edge setting) to its inactive edge. Inactive pulse width is the width of the pulse from its inactive edge to its active edge.
User Hold Time is the number selected by the user in the "Setup & Hold Times" setting
trise = calculated rise time
For Setup/Hold trigger to work properly, Setup + Hold must be less than the clock period.
- B Trigger after events, minimum pulse width, and maximum event frequency, typical
- Minimum pulse width: 40 ps + trise (calculated rise time)
- Pulse-type runt trigger sensitivities, typical
- 2.0 division, at vertical setting ≥5 mV/div
- Pulse-type trigger width and glitch sensitivities, typical
- 2.0 division, at vertical setting ≥5 mV/div
- B Trigger, minimum time arm, and trigger, typical
- 80 ps
- B Trigger after time, time range
- 40 ps to 20 seconds.
- B Trigger after events, event range
- 1 to 65,471
- Video-type trigger formats
- NTSC, PAL, and SECAM
- Lowest frequency for successful operation of “Set Level to 50%” function, typical
- 45 Hz
- Maximum Triggered Acquisition Rate, typical
- Analysis/measurement mode: Analog or Digital (single channel [Analog or Digital 8-bit channel] on screen, measurements and math turned off): >40/sec
- Maximum Number of Frames in FastFrame, typical
- For system memory depths up to 250 M, and for record length ≥ 1,000 points, maximum number of frames = system memory depth / record length setting.
Optional Serial Bus Interface Triggering
- I2C Bus
- Trigger on: Start, Repeated Start, Stop, Missing Ack, Data, Address, or Address & Data
- SPI Bus
- Trigger on: SS Active, Data
- RS232 Bus
- Trigger on: Start, End of Packet, Data, Parity Error
- CAN Bus
- Trigger on: Start of Frame, Type of Frame, Identifier, Data, Identifier & Data, End of Frame, Missing Ack, or Bit Stuffing Error
- CAN-FD Bus
- Trigger on Start of Frame, Type of Frame (Data, Remote, Error, or Overload), Identifier (Standard or Extended), Data (1-8 bytes), Identifier and Data, End Of Frame, Error (Missing Ack, Bit Stuffing Error, FD Form Error, Any Error) on CAN FD buses up to 16 Mb/s
- LIN Bus
- Trigger on: Sync, Identifier, Data, Identifier & Data, Wakeup Frame, Sleep Frame, or Error.
- Flexray Bus
- Trigger on: Start of Frame, Indicator Bits, Frame ID, Cycle Count, Header Fields, Data, Frame ID & Data, End ofFrame, or Error.
- SENT Bus
- Trigger on Start of Packet, Fast Channel Status and Data, Slow Channel Message ID and Data, and CRC Errors
- SPMI Bus
- Trigger on Sequence Start Condition, Reset, Sleep, Shutdown, Wakeup, Authenticate, Master Read, Master Write, Register Read, Register Write, Extended Register Read, Extended Register Write, Extended Register Read Long, Extended Register Write Long, Device Descriptor Block Master Read, Device Descriptor Block Slave Read, Register 0 Write, Transfer Bus Ownership, and Parity Error
- Ethernet Bus
- Trigger On: Start of Frame, MAC Addresses, MAC Length/Type, IP Header, TCP Header, Client Data, End of Packet, Idle, FCS (CRC) Error, MAC Q-Tag Control Information.
- USB Bus
- Trigger On: Sync, Handshake Packet, Special Packet, Error, Token Packet, Data Packet, Reset, Suspend, Resume, End of Packet.
- Audio I2S Bus
- Trigger on: Word Select, Data
- Audio (LJ) Bus
- Trigger on Word Select, Frame Sync, or Data
- Audio (RJ) Bus
- Trigger on: Word Select, Data
- Audio (TDM) Bus
- Trigger on: Frame Sync, Data
- MIL-STD-1553 Bus
- Trigger on Sync, Command (Transmit/Receive Bit, Parity, Subaddress / Mode, Word Count / Mode Count, RT Address), Status (Parity, Message Error, Instrumentation, Service Request, Broadcast Command Received, Busy, Subsystem Flag, Dynamic Bus Control Acceptance, Terminal Flag), Data, Time (RT/IMG), and Error (Parity Error, Sync Error, Manchester Error, Non-contiguous Data) on MIL-STD-1553 buses
- ARINC 429 Bus
- Trigger on Word Start, Label, Data, Label and Data, Word End, and Error (Any Error, Parity Error, Word Error, Gap Error) on ARINC 429 buses up to 1 Mb/s
Analysis
- Supported Buses
- Parallel, I2C, SPI, RS-232, CAN, CAN-FD, LIN, FlexRay, USB LS, USB FS, USB HS, eUSB2, Ethernet 10/100, Audio (I2S/LJ/RJ/TDM), ARINC 429, MIL-STD-1553, SENT, PSI5, I3C, MDIO, SPMI, 8b/10b, NRZ, Automotive Ethernet (100Base-T1), Manchester, MIPI D-PHY, Spacewire, SVID
- Available Amplitude Measurements
- Amplitude, Peak-to-Peak, Mean, Top, Maximum, Positive Overshoot, RMS, Base, Minimum, Negative Overshoot, AC RMS, Area
- Available Time Measurements
- Period, Data Rate, Skew, Fall Time, Falling Slew Rate, Negative Duty Cycle, Hold Time, Low Time, Frequency, Positive Pulse Width, Delay, Phase, Burst Width, Time Outside Level, Duration N-Periods, Unit Interval, Negative Pulse Width, Rise Time, Rising Slew Rate Positive Duty Cycle, Setup Time, High Time
- Available Jitter Measurements
- TIE, Phase Noise
- Measurements Available with DJA
- AC Common Mode, DC Common Mode, Differential Crossover, T/nT Ratio, Bit High, Bit Low, Bit Amplitude, SSC Profile, SSC Freq Deviation, SSC Modulation Rate, Jitter Summary, RJ, RJ-sigmasigma, TJ@BER, DJ, DJ-sigmasigma, PJ, DDJ, DCD, J2, J9, Clock NPJ, SRJ, F/N, Eye Width, Eye Width@BER, Eye Height, Eye Height@BER, Eye High, Eye Low, Q-Factor
- Math Waveform Sources
- Analog Channels, Math Waveforms, Reference Waveforms, Measurements
- Math Waveform Operators
- +, - ,* , /, <, >, ≥, ≤, =, !=, AND, OR, NAND, NOR, XOR, EQV, square root, absolute value, integral, derivative, log10, ln, exponential, ceiling, floor, invert, minimum, maximum, sine, cosine, tangent, arcsin, arccos, arctan, radians, degrees, spectral magnitude, spectral phase, spectral real, spectral imaginary
- Available Cursor Types
- Waveform, V Bars, H Bars, V&H Bars
- Cursor Waveform Sources
- Analog channels, Digital channels, Math Waveforms, Reference Waveforms. Cursors can apply to the same waveform ("Same") or to different waveforms ("Split")
- Available Plot Types
- Plot menu: XY, XYZ, Eye Diagram
- Measurement Statistics
- Mean, standard deviation, maximum, minimum, waveform count
Arbitrary function generator
- Function types
- Arbitrary, sine, square, pulse, ramp, triangle, DC level, Gaussian, Lorentz, exponential rise/fall, sin(x)/x, random noise, Haversine, Cardiac
- Amplitude range
- Values are peak-to-peak voltages
Waveform 50Ω 1MΩ Arbitrary 10 mV to 2.5 V 20 mV to 5 V Sine 10 mV to 2.5 V 20 mV to 5 V Square 10 mV to 2.5 V 20 mV to 5 V Pulse 10 mV to 2.5 V 20 mV to 5 V Ramp 10 mV to 2.5 V 20 mV to 5 V Triangle 10 mV to 2.5 V 20 mV to 5 V Gaussian 10 mV to 1.25 V 20 mV to 2.5 V Lorentz 10 mV to 1.2 V 20 mV to 2.4 V Exponential Rise 10 mV to 1.25 V 20 mV to 2.5 V Exponential Fall 10 mV to 1.25 V 20 mV to 2.5 V Sine(x)/x 10 mV to 1.5 V 20 mV to 3.0 V Random Noise 10 mV to 2.5 V 20 mV to 5 V Haversine 10 mV to 1.25 V 20 mV to 2.5 V Cardiac 10 mV to 2.5 V 20 mV to 5 V
- Maximum sample rate
- 250 MS/s
- Arbitrary function length
- 128 K Samples
- Sine waveform
-
- Sine Frequency range
- 0.1 Hz to 50 MHz
- Sine Frequency setting resolution
- 0.1 Hz
- Sine and Ramp Frequency accuracy
- 130 ppm (frequency ≤ 10 kHz)
- Sine amplitude flatness, typical
- ±0.5 dB (relative to 1 kHz level) at 30 MHz
- Sine total harmonic distortion, typical
- 1% for amplitude ≥ 200 mVpp into 50 ohm load
- Sine spurious-free dynamic range, typical
- 40 dB (Vpp ≥0.1 V); 30 dB (Vpp ≥0.02 V), 50 Ohm Load
- Square and pulse waveform
-
- Frequency range
- 0.1 Hz to 25 MHz
- Frequency setting resolution
- 0.1 Hz
- Square and Pulse Frequency Accuracy
- 130 ppm (frequency ≤10 KHz)
- Duty cycle range
- 10% - 90% or 10 ns minimum pulse, whichever is larger
Minimum pulse time applies to both on and off time, so maximum duty cycle will reduce at higher frequencies to maintain 10 ns off time
- Square and Pulse Duty cycle resolution
- 0.1%
- Minimum pulse width, typical
- 10 ns. This is the minimum time for either on or off duration.
- Rise/Fall time, typical
- 5 ns, 10% - 90%
- Square and Pulse Pulse width resolution
- 100 ps
- Square and Pulse Overshoot, typical
- < 6% for signal steps greater than 100 mVpp
This applies to overshoot of the positive-going transition (+overshoot) and of the negative-going (-overshoot) transition
- Square and Pulse Asymmetry, typical
- ±1% ±5 ns, at 50% duty cycle
- Square and Pulse Jitter, typical
- < 60 ps TIERMS, ≥ 100 mVpp amplitude, 40%-60% duty cycle
- Ramp and triangle waveform
-
- Frequency range
- 0.1 Hz to 500 kHz
- Frequency setting resolution
- 0.1 Hz
- Variable symmetry
- 0% - 100%
- Symmetry resolution
- 0.1%
- DC level range
- ±2.5 V into Hi-Z
±1.25 V into 50 Ω
- Gaussian pulse, Haversine, and Lorentz pulse Maximum frequency
- 5 MHz
- Exponential rise fall maximum frequency
- 5 MHz
- Sin(x)/x maximum frequency
- 2 MHz
- Random noise amplitude range
-
20 mVpp to 5 Vpp into Hi-Z
10 mVpp to 2.5 Vpp into 50 Ω
- Signal amplitude resolution
- 1 mV (Hi-Z)
- Signal amplitude accuracy
- ±[ (1.5% of peak-to-peak amplitude setting) + (1.5% of absolute DC offset setting) + 1 mV ] (frequency = 1 kHz)
- DC offset range
- ±2.5 V into Hi-Z
- DC offset resolution
- 1 mV (Hi-Z)
- DC offset accuracy
- ±[ (1.5% of absolute offset voltage setting) + 1 mV ]
- Cardiac maximum frequency
- 500 kHz
Digital volt meter (DVM)
- Measurement types
- DC, ACRMS+DC, ACRMS, Trigger frequency Count
- Voltage resolution
- 4 digits
- Voltage accuracy
- DC: ±((1.5% * |reading - offset - position|) + (0.5% * |(offset - position)|) + (0.1 * Volts/div))
De-rated at 0.100% / °C of |reading - offset - position| above 30 °C Signal
± 5 divisions from screen center
- Resolution
-
8-digits
- Accuracy
- For Slew rates ≥ 3 mv/ns
- Trigger frequency counter source
- Any analog input channel.
- Trigger frequency counter max input frequency
- 10 Hz to maximum bandwidth of the analog channel
Processor system
- Host processor
- Intel Core i5-8400H @ 2.5 GHz (CoffeeLake 4-core), 16 GB System RAM
- Windows operating system
- Option 6-WIN: Microsoft Windows 10 Enterprise IoT 2016 LTSB (64 bit)
- Security options
- 6-SEC Option: USB and Ethernet communication ports, firmware upgrades and BIOS password protected.
- Password protected I/O ports
- 6-SEC option enables password protection of USB and Ethernet ports from oscilloscope application.
Input/Output port specifications
- Ethernet interface
- An 8-pin RJ-45 connector that supports 10/100/1000 Mb/s
- DVI connector
- A 29-pin connector; connect to show the oscilloscope display on an external monitor or projector.
Maximum supported resolution, Windows: 1920 x 1200 at 60 Hz.
Maximum supported resolution, Linux: 1920 x 1080 at 60 Hz.
Only a single TMDS link is provided by the interface.
Analog VGA signaling is not provided by the interface.
- VGA Connector
- A 15-pin, 3-row, D-sub VGA connector
- DisplayPort connector
- A 20-pin DisplayPort connector
- Simultaneous displays
- Up to 3 displays (including the internal display) with a maximum of 1 display per port.
- USB interface
- Three USB host ports on the front of the instrument: two USB 2.0 High Speed ports and one USB 3.0 SuperSpeed port.
Probe compensator
- Output Voltage and Frequency
- Output Voltage Amplitude: 2.5 V ±2% (nominally 0-2.5 V)
Auxiliary output, Trigger out, or Reference clock out
- AUX OUT Connector and Functional Modes
- A single BNC connector.
- AUX OUT Output Voltage
- Voltage thresholds are listed in the following table:
Characteristic Limits Vout (HI) ≥2.5 V open circuit; ≥1.0 V into a 50 W load to ground. Vout (LO) ≤ 0.7 V into a load of ≤4 mA; ≤0.25 V into a 50 W load to ground.
- AUX OUT Acquisition Trigger Jitter
- Acquisition Trigger Out Jitter: < 50 ps standard deviation
- AUX OUT Acquisition Trigger Polarity
- A leading edge, which is user selectable transition from HIGH to LOW or from LOW to HIGH, marks the trigger event.
- AUX OUT Reference Clock
- Reference clock output can be referenced from either the internal clock reference or the external clock reference.
- AUX OUT AFG Trigger
- The output frequency is dependent the frequency of the AFG signal using the table below:
AFG Signal Frequency AFG Trigger Frequency ≤ 4.9 MHz Signal frequency >4.9 MHz to 14.7 MHz Signal frequency / 3 >14.7 MHz to 24.5 MHz Signal frequency / 5 >24.5 MHz to 34.3 MHz Signal frequency / 7 >34.3 MHz to 44.1 MHz Signal frequency / 9 >44.1 MHz to 50 MHz Signal frequency / 11
- External reference input
- BNC interface
- External reference input
-
- Nominal input frequency
- 10 MHz
- Frequency Variation Tolerance
- Low Phase Noise Mode: 9.99999 MHz to 10.00001 MHz (±1 ppm)
- Sensitivity, typical
- Vin is 200 mVp-p up to 7 Vp-p, using an external 50 Ω termination on the input BNC.
- Maximum input signal
- 7 Vpp
- Impedance
- 745 Ω ± 20% with 18 pf ± 20% to ground at 10 MHz
- AUX IN trigger input impedance
-
- Interface
- SMA
- Input Impedance
- 50 Ω
- Maximum Input Voltage
- 5 VRMS
- Trigger Skew
- Trigger skew variation improves for pulse input voltages ≥1 Vp-p.
- Trigger Jitter
- Trigger Jitter ≤ 40 ps RMS for Sample Mode and Edge-Type Trigger
- Front panel knob
- Multipurpose Knob A, Multipurpose Knob B, Trigger Level, Vertical Position, Vertical Scale, Horizontal Position, Horizontal Scale, Wave Inspector (two-tier knob)
- Front Panel Buttons
- Run/Stop, Single/Seq, Cursors, Fast Acq, High Res, Clear, Force Trigger, Trigger Slope, Trigger Mode, Vertical Input Selection (one for each analog input), Reference Waveform, Math Waveform, Bus Waveform, Zoom, Navigate Previous, Navigate Next,Touchscreen Off, Default Setup (recessed), Save, Autoset (recessed)
- Waveform Save Options
- Analog Waveforms can be saved as: Reference Waveforms, .wfm files, .csv files, .h5 files, .mat files
- Waveform Recall Options
- Analog Waveforms can be recalled to reference waveforms from: .wfm files, .csv files, .bin (keysight format) files, .trc (LeCroy format) files, .h5 files
Display system
- Display type
- Display size: 15.6 inches diagonal
- Display resolution
- 1,920 horizontal × 1,080 vertical pixels (High Definition)
- Luminance, typical
- 500 cd/m2, (Minimum: 400 cd/m2), Display luminance is specified for a new display set at full brightness.
- Color Support
- 16.2M colors (6-bit RGB+FRC)
- Display Options
-
- Persistence
- Off, Infinite, Variable (Persistence Time is variable) or Auto
- Waveform styles
- Vectors, dots
- Graticule
- Grid, Time, Full or None
- Graticule Intensity
- variable
- Display Mode
- Overlay or Stacked
- Interpolation
- Sin(x)/x or Linear
- Waveform Intensity
- variable
Data storage specifications
- Nonvolatile memory retention time, typical
- No time limit for front panel settings, saved waveforms, setups, product licensing, and calibration constants.
- Real-time clock
- A programmable clock maintaining and reporting the current time in the units of years, months, days, hours, minutes, and seconds.
- Nonvolatile memory capacity
-
- Instrument S/N
-
A 2 kbit EEPROM on the main board that stores the instrument serial number, instrument start up count, total uptime and administration passwords.
- Companion CvP
- A pair of 16 Mbit flash memory devices that stores a portion of the Companion FPGA image data. One device serves as a backup for the other device.
- AFG S/N
- A 2 kbit EEPROM on the AFG riser card that stores a copy of the instrument serial number which is used to validate the AFG calibration.
- Front Panel ID
- A 64 kbit EEPROM on the LED board that stores the USB vendor ID and device ID for the internal front panel controller.
- Front Panel Memory
- A 4 GB EEPROM on the LED board stores licence options and calibration data
- BIOS
- A 128 Mbit flash memory device that stores the firmware image and device configuration for the host processor and chipset sub-processors. This includes the Basic Input Output System (BIOS), Management Engine (ME), Embedded Controller (EC) and Network Interface Controller (NIC). The Ethernet MAC address is stored in this device.
- CMOS Memory
- The host processor chipset includes an integrated memory device, powered by the real-time clock (RTC) battery, which stores BIOS configuration settings. A customer accessible switch disconnects the RTC battery from the chipset which clears the contents of the integrated CMOS memory device.
- Memory SPD
- Each SODIMM (memory module) contains a serial presence detect (SPD) memory device implemented using an unspecified memory technology. Each SPD device contains the parameter data specific to its memory module. All SPD devices are treated by the instrument as read only. The size of a given SPD is unspecified. The 4 channel instrument includes 4 SPD devices.
- UCD9248
- The instrument includes 3 UCD9248 power supply controllers. Each controller contains an unspecified quantity of nonvolatile memory that stores various power supply configuration settings.
- PMU
- A power management unit (PMU) microcontroller is used to manage instrument power supplies and hardware initialization. The PMU includes 32 KB of nonvolatile memory for storage of its own binary executable and redundant storage of UCD9248 device settings.
- Analog Board Controller
-
A microcontroller is used to manage analog board operation. The PMU includes 64 KB of nonvolatile memory for storage of its own binary executable.
- Carrier FPGA
-
The carrier FPGA stores its own configuration in its own internal 0.33 Mbit nonvolatile memory. The carrier FPGA implements simple "glue logic" for the instrument.
- Mass storage device capacity
-
- Linux
- ≥ 250 GB. Form factor is a 2.5 inch SSD with a SATA-3 interface. Waveforms and setups are stored on the solid state drive. Provides storage for saved customer data and the Linux operating system.
- Windows (optional)
- ≥ 500 GB. Form factor is a 2.5 inch SSD with a SATA-3 interface. This drive is customer installable and provides storage for the Windows operating system option, and saved customer data.
Power supply system
- Power consumption
- 500 Watts maximum
- Fuse rating
- 12.5 A / 250 VAC
Safety characteristics
- Safety certification
-
US NRTL Listed - UL61010-1 and UL61010-2-030.
Canadian Certification - CAN/CSA-C22.2 No. 61010-1 and CAN/CSA C22.2 No. 61010-2-030.
EU Compliance - Low Voltage Directive 2014-35-EU and EN61010-1 and EN61010-2-030.
International Compliance - IEC 61010-1 and IEC 61010-2-030.
- Pollution degree
- Pollution degree 2, indoor, dry location use only
Environmental specifications
- Temperature
-
- Operating
- +0 °C to +50 °C (32 °F to 122 °F)
- Non-operating
- -20 °C to +60 °C (-4 °F to 140 °F)
- Humidity
-
- Operating
-
5% to 90% relative humidity (% RH) at up to +40 °C
5% to 55% RH above +40 °C up to +50 °C, noncondensing
- Non-operating
- 5% to 90% relative humidity (% RH) at up to +60 °C, noncondensing and as limited by a maximum wet-bulb temperature of +39°C.
- Altitude
-
- Operating
- Up to 3,000 meters (9,843 feet)
- Non-operating
- Up to 12,000 meters (39,370 feet)
Dynamics
- Random Vibration: Operating
- 0.31 GRMS, 5-500 Hz, 10 minutes per axis, 3 axes (30 minutes total).
- Mechanical Shock: Operating
- Half-sine mechanical shocks, 40 g peak amplitude, 11 ms duration, 3 drops in each direction of each axis (18 total).
Comparison against MIL-PRF-28800F Environmental Requirements
- Comparison against MIL-PRF28800F Environmental Requirements
- YES/NO indicates whether the instrument meets the minimum requirement for each combination of Class and Environmental Condition. The spec's here are those found in the MIL-PRF-28800F. The corresponding instrument spec's (if any) are listed above. If the instrument has no corresponding spec an N/A in used. If the MIL-PRF-28800F lists the spec as "invoked by the purchase description", an IPD is used
Environmental Condition | Class | |||
---|---|---|---|---|
1 | 2 | 3 | 4 | |
Temperature Non-operating | No | No | No | No |
-51 °C/71 °C | -51 °C/71 °C | -40 °C/71 °C | -40 °C/71 °C | |
Temperature Operating | No | No | Yes | Yes |
-40 °C/55 °C | -10 °C/55 °C | 0 °C/50 °C | +10 °C/40 °C | |
Relative Humidity | No | No | No | No |
5% to 95%, 30 °C to 40 °C | 5% to 80%, 30 °C to 40 °C | 5% to 80%, 30 °C to 40 °C | 5% to 80%, 30 °C to 40 °C | |
5% to 65%, > 40 °C |
5% to 50% > 40 °C |
5% to 50%, > 40 °C |
5% to 50%, > 40 °C | |
Altitude non-operating | Yes | Yes | Yes | Yes |
4600 m | 4600 m | 4600 m | 4600 m | |
Altitude operating | No | No | No | No |
4600 m | 4600 m | 4600 m | 4600 m | |
Vibration Non-Operating | No | No | Yes | Yes |
Random | Random | Random | Random | |
10-500 Hz 0.03 g2/Hz Overall GRMS: 3.83 Time/Axis: 30 minutes |
10-500 Hz 0.03 g2/Hz Overall GRMS: 3.83 Time/Axis: 30 minutes |
5-100 Hz 0.015 g2/Hz 100-137Hz -6dB/octave 137-350 Hz 0.0075 g2/Hz 350-500 Hz -6 dB/octave 500 Hz 0.0039 g2/Hz Overall GRMS: 2.09 Time/Axis: 10 minute |
5-100 Hz 0.015 g2/Hz 100-137 Hz -6dB/octave 137-350 Hz 0.0075 g2/Hz 350-500 Hz -6 dB/octave 500 Hz 0.0039 g2/Hz Overall GRMS: 2.09 Time/Axis: 10 minutes
| |
Bounce | N/A | N/A | N/A | N/A |
IPD | IPD | IPD | IPD | |
Shock, Functional | Yes | Yes | Yes | Yes |
30 G Half-sine, 11 ms pulse duration, 3 shocks in each direction of each axis for 18 total shocks. |
30 G Half-sine, 11 ms pulse duration, 3 shocks in each direction of each axis for 18 total shocks. |
30 G Half-sine, 11ms pulse duration, 3 shocks in each direction of each axis for 18 total shocks. |
30 G Half-sine, 11ms pulse duration, 3 shocks in each direction of each axis for 18 total shocks. | |
Transit Drop | No | No | Yes | Yes |
46 cm 10 impacts 4 bottom corners and 6 faces |
30 cm 10 impacts 4 bottom corners and 6 faces |
20 cm 10 impacts 4 bottom corners and 6 faces |
20 cm 10 impacts 4 bottom corners and 6 faces | |
Bench Handling | Yes | Yes | Yes | Yes |
Lift edge of chassis 45°, 10.16 cm, or point of balance and drop | Lift edge of chassis 45°, 10.16 cm, or point of balance and drop | Lift edge of chassis 45°, 10.16 cm, or point of balance and drop | Lift edge of chassis 45°, 10.16 cm, or point of balance and drop | |
Shock High Impact | N/A | N/A | N/A | N/A |
IPD | IPD | IPD | IPD | |
Watertight | N/A | N/A | N/A | N/A |
IPD | IPD | IPD | IPD | |
Splash Proof | N/A | N/A | N/A | N/A |
IPD | IPD | IPD | IPD | |
Drip Proof | N/A | N/A | N/A | N/A |
IPD | IPD | IPD | IPD | |
Fungus Resistance | N/A | N/A | N/A | N/A |
28 days | 28 days | 28 days | 28 days | |
Salt Exposure Enclosure | N/A | N/A | N/A | N/A |
48 hours | 48 hours | 48 hours | 48 hours | |
Salt Exposure Structural | N/A | N/A | N/A | N/A |
48 hours | 48 hours | 48 hours | 48 hours | |
Explosive Atmosphere | N/A | N/A | N/A | N/A |
3000m | ||||
Dust Resistance | N/A | N/A | N/A | N/A |
10.7±7.1 g/m3 | ||||
Solar Radiation | N/A | N/A | N/A | N/A |
IPD | IPD | IPD | IPD |
Mechanical specifications
- Weight
- MSO68B 29.8 lbs
- Weight corrections of standard accessories:
- Instrument with protective front cover: + 1.8 lbs
- Dimensions
- Requirements that follow are nominal and unboxed:
- Clearance Requirements
- The clearance requirement for adequate cooling is 2.0 in (50.8 mm) on the right side (when looking at the front of the instrument) and on the rear of the instrument
- Audible Noise
- Audible noise (fan noise) produced by the instrument at ambient temperature (≤28°C): ≤ 45dB
- Kensington Lock
-
Oscilloscope includes a Kensington Lock.
Environmental Compliance
- Material Selection - RoHS Compliance
- EU Directive 2011/65/EU Less than 0.1% by mass (1000 ppm) in homogeneous material for lead, mercury, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), and less than 0.01% by mass (100 ppm) of homogeneous material for cadmium, unless used in an application that is specifically exempted by the EU RoHS Directive or its amendments.
Performance verification procedures
This chapter contains performance verification procedures for the specifications marked with the ✔ symbol. The following equipment, or a suitable equivalent, is required to complete these procedures.
Required equipment
Required equipment | Minimum requirements | Examples |
---|---|---|
DC voltage source | 3 mV to 4 V, ±0.1% accuracy | Fluke 9500B Oscilloscope Calibrator with a 9530 Output Module |
Leveled sine wave generator | 50 kHz to 10 GHz, ±4% amplitude accuracy | |
Time mark generator | 80 ms period, ±1.0 x 10-6 accuracy, rise time <50 ns | |
Logic probe | Low capacitance digital probe, 8 channels. | TLP058 probe |
BNC-to-0.1 inch pin adapter to connect the logic probe to the signal source. | BNC-to-0.1 inch pin adapter; female BNC to 2x16 .01 inch pin headers. | Tektronix adapter part number 878-1429-00; to connect the Fluke 9500B to the TLP058 probe. |
Digital multimeter (DMM) | 0.1% accuracy or better | Tektronix DMM4020 |
One 50 Ω terminator | Impedance 50 Ω; connectors: female BNC input, male BNC output | Tektronix part number 011-0049-02 |
One 50 Ω BNC cable | Male-to-male connectors | Tektronix part number 012-0057-01 |
Optical mouse | USB, PS2 | Tektronix part number 119-7054-00 |
Frequency counter | Parts per billion accuracy | Tektronix FCA3000 Timer/Counter/Analyzer |
You might need additional cables and adapters, depending on the actual test equipment you use.
These procedures cover all MSO64B, MSO66B, and MSO68B models. Disregard checks that do not apply to the specific model you are testing.
Print the test record on the following pages and use it to record the performance test results for your oscilloscope.
![]() | Note:Completion of the performance verification procedure does not update the stored time and date of the latest successful adjustment. The date and time are updated only when the adjustment procedures in the service manual are successfully completed. |
The performance verification procedures verify the performance of your instrument. They do not adjust your instrument. If your instrument fails any of the performance verification tests, you should return the instrument to Tektronix for adjustment or repair.
Test records
Instrument information, self test record
Model | Serial # | Procedure performed by | Date |
---|---|---|---|
|
|
|
|
Test | Passed | Failed |
---|---|---|
Self Test |
|
|
DC Offset Accuracy test record
Offset Accuracy | |||||
---|---|---|---|---|---|
Performance checks | Vertical scale | Vertical offset | Low limit | Test result | High limit |
All models | |||||
Channel 1 DC Offset Accuracy, 20 MHz BW, 50 Ω | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 5.0 V | 4.9663 V | 5.0337 V | ||
100 mV/div | -5.0 V | -5.0337 V | -4.9663 V | ||
Channel 1 DC Offset Accuracy, 20 MHz BW, 1 MΩ | 1 mV/div | 900 mV | 895.12 mV | 904.88 mV | |
1 mV/div | -900 mV | -904.88 mV | -895.12 mV | ||
100 mV/div | 1.0 V | 0.975 V | 1.025 V | ||
100 mV/div | - 1.0 V | -1.025 V | -0.975 V | ||
500 mV/div | 9.0 V | 8.855 V | 9.145 V | ||
500 mV/div | - 9.0 V | -9.145 V | -8.855 V | ||
1.01 V/div | 10.0 V | 9.75 V | 10.25 V | ||
1.01 V/div | -10.0 V | -10.25 V | -9.75 V | ||
5 V/div | 10.0 V | 8.95 V | 11.05 V | ||
5 V/div | -10.0 V | -11.05 V | -8.95 V | ||
Channel 2 DC Offset Accuracy, 20 MHz BW, 50 Ω | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 5.0 V | 4.965 V | 5.035 V | ||
100 mV/div | -5.0 V | -5.035 V | -4.965 V | ||
Channel 2 DC Offset Accuracy, 20 MHz BW, 1 MΩ | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 1.0 V | 0.935 V | 1.065 V | ||
100 mV/div | - 1.0 V | -1.065 V | -0.935 V | ||
500 mV/div | 9.0 V | 8.855 V | 9.145 V | ||
500 mV/div | - 9.0 V | -9.145 V | -8.855 V | ||
1.01 V/div | 10.0 V | 9.3 V | 10.7 V | ||
1.01 V/div | -10.0 V | -10.7 V | -9.3 V | ||
5 V/div | 10.0 V | 8.5 V | 11.5 V | ||
5 V/div | -10.0 V | -11.5 V | -8.5 V | ||
Channel 3 DC Offset Accuracy, 20 MHz BW, 50 Ω | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 5.0 V | 4.965 V | 5.035 V | ||
100 mV/div | -5.0 V | -5.035 V | -4.965 V | ||
Channel 3 DC Offset Accuracy, 20 MHz BW, 1 MΩ | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 1.0 V | 0.935 V | 1.065 V | ||
100 mV/div | - 1.0 V | -1.065 V | -0.935 V | ||
500 mV/div | 9.0 V | 8.855 V | 9.145 V | ||
500 mV/div | - 9.0 V | -9.145 V | -8.855 V | ||
1.01 V/div | 10.0 V | 9.3 V | 10.7 V | ||
1.01 V/div | -10.0 V | -10.7 V | -9.3 V | ||
5 V/div | 10.0 V | 8.5 V | 11.5 V | ||
5 V/div | -10.0 V | -11.5 V | -8.5 V | ||
Channel 4 DC Offset Accuracy, 20 MHz BW, 50 Ω | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 5.0 V | 4.965 V | 5.035 V | ||
100 mV/div | -5.0 V | -5.035 V | -4.965 V | ||
Channel 4 DC Offset Accuracy, 20 MHz BW, 1 MΩ | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 1.0 V | 0.935 V | 1.065 V | ||
100 mV/div | - 1.0 V | -1.065 V | -0.935 V | ||
500 mV/div | 9.0 V | 8.855 V | 9.145 V | ||
500 mV/div | - 9.0 V | -9.145 V | -8.855 V | ||
1.01 V/div | 10.0 V | 9.3 V | 10.7 V | ||
1.01 V/div | -10.0 V | -10.7 V | -9.3 V | ||
5 V/div | 10.0 V | 8.5 V | 11.5 V | ||
5 V/div | -10.0 V | -11.5 V | -8.5 V | ||
Channel 5 DC Offset Accuracy, 20 MHz BW, 50 Ω | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 5.0 V | 4.965 V | 5.035 V | ||
100 mV/div | -5.0 V | -5.035 V | -4.965 V | ||
Channel 5 DC Offset Accuracy, 20 MHz BW, 1 MΩ | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 1.0 V | 0.975 V | 1.025 V | ||
100 mV/div | - 1.0 V | -1.025 V | -0.975 V | ||
500 mV/div | 9.0 V | 8.855 V | 9.145 V | ||
500 mV/div | - 9.0 V | -9.145 V | -8.855 V | ||
1.01 V/div | 10.0 V | 9.75 V | 10.25 V | ||
1.01 V/div | -10.0 V | -10.25 V | -9.75 V | ||
5 V/div | 10.0 V | 8.95 V | 11.05 V | ||
5 V/div | -10.0 V | -11.05 V | -8.95 V | ||
Channel 6 DC Offset Accuracy, 20 MHz BW, 50 Ω | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 5.0 V | 4.965 V | 5.035 V | ||
100 mV/div | -5.0 V | -5.035 V | -4.965 V | ||
Channel 6 DC Offset Accuracy, 20 MHz BW, 1 MΩ | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 1.0 V | 0.975 V | 1.025 V | ||
100 mV/div | - 1.0 V | -1.025 V | -0.975 V | ||
500 mV/div | 9.0 V | 8.855 V | 9.145 V | ||
500 mV/div | - 9.0 V | -9.145 V | -8.855 V | ||
1.01 V/div | 10.0 V | 9.75 V | 10.25 V | ||
1.01 V/div | -10.0 V | -10.25 V | -9.75 V | ||
5 V/div | 10.0 V | 8.95 V | 11.05 V | ||
5 V/div | -10.0 V | -11.05 V | -8.95 V | ||
Channel 7 DC Offset Accuracy, 20 MHz BW, 50 Ω | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 5.0 V | 4.965 V | 5.035 V | ||
100 mV/div | -5.0 V | -5.035 V | -4.965 V | ||
Channel 7 DC Offset Accuracy, 20 MHz BW, 1 MΩ | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 1.0 V | 0.975 V | 1.025 V | ||
100 mV/div | - 1.0 V | -1.025 V | -0.975 V | ||
500 mV/div | 9.0 V | 8.855 V | 9.145 V | ||
500 mV/div | - 9.0 V | -9.145 V | -8.855 V | ||
1.01 V/div | 10.0 V | 9.75 V | 10.25 V | ||
1.01 V/div | -10.0 V | -10.25 V | -9.75 V | ||
5 V/div | 10.0 V | 8.95 V | 11.05 V | ||
5 V/div | -10.0 V | -11.05 V | -8.95 V | ||
Channel 8 DC Offset Accuracy, 20 MHz BW, 50 Ω | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 5.0 V | 4.965 V | 5.035 V | ||
100 mV/div | -5.0 V | -5.035 V | -4.965 V | ||
Channel 8 DC Offset Accuracy, 20 MHz BW, 1 MΩ | 1 mV/div | 900 mV | 895.3 mV | 904.7 mV | |
1 mV/div | -900 mV | -904.7 mV | -895.3 mV | ||
100 mV/div | 1.0 V | 0.975 V | 1.025 V | ||
100 mV/div | - 1.0 V | -1.025 V | -0.975 V | ||
500 mV/div | 9.0 V | 8.855 V | 9.145 V | ||
500 mV/div | - 9.0 V | -9.145 V | -8.855 V | ||
1.01 V/div | 10.0 V | 9.75 V | 10.25 V | ||
1.01 V/div | -10.0 V | -10.25 V | -9.75 V | ||
5 V/div | 10.0 V | 8.95 V | 11.05 V | ||
5 V/div | -10.0 V | -11.05 V | -8.95 V |
Analog Bandwidth test record
Analog Bandwidth | |||||||
---|---|---|---|---|---|---|---|
Performance checks | |||||||
Bandwidth at Channel | Impedance | Vertical scale | Horizontal scale | Vin-pp | Vbw-pp | Limit | Test result Gain = Vbw-pp/Vin-pp |
All models | |||||||
Channel 1 | 50 Ω | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 1 | 1 MΩ, typical | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 2 | 50 Ω | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 2 | 1 MΩ, typical | 1 mV/div |
1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 |
| ||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 3 | 50 Ω | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 3 | 1 MΩ, typical | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 4 | 50 Ω | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 4 | 1 MΩ, typical | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 5 | 50 Ω | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 5 | 1 MΩ, typical | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 6 | 50 Ω | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div |
1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 6 | 1 MΩ, typical | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 7 | 50 Ω | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 7 | 1 MΩ, typical | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 8 | 50 Ω | 1 mV/div | 1 ns/div | ≥ 0.707 | |||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 | |||||
Channel 8 | 1 MΩ, typical | 1 mV/div | 1 ns/div | ≥ 0.707 |
| ||
2 mV/div | 1 ns/div | ≥ 0.707 | |||||
4 mV/div | 1 ns/div | ≥ 0.707 | |||||
10 mV/div | 1 ns/div | ≥ 0.707 | |||||
25 mV/div | 1 ns/div | ≥ 0.707 | |||||
50 mV/div | 1 ns/div | ≥ 0.707 | |||||
100 mV/div | 1 ns/div | ≥ 0.707 |
Input impedance test record
Input Impedance | ||||
---|---|---|---|---|
Performance checks | Vertical scale | Low limit | Test result | High limit |
All models | ||||
Channel 1 Input Impedance, 1 MΩ | 100 mV/div | 990 kΩ | 1.01 MΩ | |
Channel 1 Input Impedance, 50 Ω | 10 mV/div | 48.5 Ω | 51.5 Ω | |
100 mV/div | 48.5 Ω | 51.5 Ω | ||
Channel 2 Input Impedance, 1 MΩ | 100 mV/div | 990 kΩ | 1.01 MΩ | |
Channel 2 Input Impedance, 50 Ω | 10 mV/div | 48.5 Ω | 51.5 Ω | |
100 mV/div | 48.5 Ω | 51.5 Ω | ||
Channel 3 Input Impedance, 1 MΩ | 100 mV/div | 990 kΩ | 1.01 MΩ | |
Channel 3 Input Impedance, 50 Ω | 10 mV/div | 48.5 Ω | 51.5 Ω | |
100 mV/div | 48.5 Ω | 51.5 Ω | ||
Channel 4 Input Impedance, 1 MΩ | 100 mV/div | 990 kΩ | 1.01 MΩ | |
Channel 4, Input Impedance, 50 Ω | 10 mV/div | 48.5 Ω | 51.5 Ω | |
100 mV/div | 48.5 Ω | 51.5 Ω |
DC Gain Accuracy test record
DC Gain Accuracy | |||||
---|---|---|---|---|---|
Performance checks | Bandwidth | Vertical scale | Low limit | Test result | High limit |
Channel 1 DC Gain Accuracy, 0 V offset, 0 V vertical position, 50 Ω | 20 MHz | 1 mV/div | -4% | 4% | |
2 mV/div | -2% | 2% | |||
5 mV/div | -2% | 2% | |||
10 mV/div | -2% | 2% | |||
20 mV/div | -2% | 2% | |||
50 mV/div | -2% | 2% | |||
100 mV/div | -2% | 2% | |||
200 mV/div | -2% | 2% | |||
500 mV/div | -2% | 2% | |||
1 V/div | -2% | 2% | |||
250 MHz | 20 mV/div | -2% | 2% | ||
FULL | 20 mV/div | -2% | 2% | ||
Channel 1 DC Gain Accuracy, 0 V offset, 0 V vertical position, 1 MΩ | 20 MHz | 1 mV/div | -2.5% | 2.5% | |
2 mV/div | -2% | 2% | |||
5 mV/div | -2% | 2% | |||
10 mV/div | -2% | 2% | |||
20 mV/div | -2% | 2% | |||
50 mV/div | -2% | 2% | |||
100 mV/div | -2% | 2% | |||
200 mV/div | -2% | 2% | |||
500 mV/div | -2% | 2% | |||
1 V/div | -2% | 2% | |||
250 MHz | 20 mV/div | -2% | 2% | ||
FULL | 20 mV/div | -2% | 2% | ||
Channel 2 DC Gain Accuracy, 0 V offset, 0 V vertical position, 50 Ω | 20 MHz | 1 mV/div | -4% | 4% | |
2 mV/div | -2% | 2% | |||
5 mV/div | -2% | 2% | |||
10 mV/div | -2% | 2% | |||
20 mV/div | -2% | 2% | |||
50 mV/div | -2% | 2% | |||
100 mV/div | -2% | 2% | |||
200 mV/div | -2% | 2% | |||
500 mV/div | -2% | 2% | |||
1 V/div | -2% | 2% | |||
250 MHz | 20 mV/div | -2% | 2% | ||
FULL | 20 mV/div | -2% | 2% | ||
Channel 2 DC Gain Accuracy, 0 V offset, 0 V vertical position, 1 MΩ | 20 MHz | 1 mV/div | -2.5% | 2.5% | |
2 mV/div | -2% | 2% | |||
5 mV/div | -2% | 2% | |||
10 mV/div | -2% | 2% | |||
20 mV/div | -2% | 2% | |||
50 mV/div | -2% | 2% | |||
100 mV/div | -2% | 2% | |||
200 mV/div | -2% | 2% | |||
500 mV/div | -2% | 2% | |||
1 V/div | -2% | 2% | |||
250 MHz | 20 mV/div | -2% | 2% | ||
FULL | 20 mV/div | -2% | 2% | ||
Channel 3 DC Gain Accuracy, 0 V offset, 0 V vertical position, 50 Ω | 20 MHz | 1 mV/div | -4% | 4% | |
2 mV/div | -2% | 2% | |||
5 mV/div | -2% | 2% | |||
10 mV/div | -2% | 2% | |||
20 mV/div | -2% | 2% | |||
50 mV/div | -2% | 2% | |||
100 mV/div | -2% | 2% | |||
200 mV/div | -2% | 2% | |||
500 mV/div | -2% | 2% | |||
1 V/div | -2% | 2% | |||
250 MHz | 20 mV/div | -2% | 2% | ||
FULL | 20 mV/div | -2% | 2% | ||
Channel 3 DC Gain Accuracy, 0 V offset, 0 V vertical position, 1 MΩ | 20 MHz | 1 mV/div | -2.5% | 2.5% | |
2 mV/div | -2% | 2% | |||
5 mV/div | -2% | 2% | |||
10 mV/div | -2% | 2% | |||
20 mV/div | -2% | 2% | |||
50 mV/div | -2% | 2% | |||
100 mV/div | -2% | 2% | |||
200 mV/div | -2% | 2% | |||
500 mV/div | -2% | 2% | |||
1 V/div | -2% | 2% | |||
250 MHz | 20 mV/div | -2% | 2% | ||
FULL | 20 mV/div | -2% | 2% | ||
Channel 4 DC Gain Accuracy, 0 V offset, 0 V vertical position, 50 Ω | 20 MHz | 1 mV/div | -4% | 4% | |
2 mV/div | -2% | 2% | |||
5 mV/div | -2% | 2% | |||
10 mV/div | -2% | 2% | |||
20 mV/div | -2% | 2% | |||
50 mV/div | -2% | 2% | |||
100 mV/div | -2% | 2% | |||
200 mV/div | -2% | 2% | |||
500 mV/div | -2% | 2% | |||
1 V/div | -2% | 2% | |||
250 MHz | 20 mV/div | -2% |
2% | ||
FULL | 20 mV/div | -2% | 2% | ||
Channel 4 DC Gain Accuracy, 0 V offset, 0 V vertical position, 1 MΩ | 20 MHz | 1 mV/div | -2.5% | 2.5% | |
2 mV/div | -2% | 2% | |||
5 mV/div | -2% | 2% | |||
10 mV/div | -2% | 2% | |||
20 mV/div | -2% | 2% | |||
50 mV/div | -2% | 2% | |||
100 mV/div | -2% | 2% | |||
200 mV/div | -2% | 2% | |||
500 mV/div | -2% | 2% | |||
1 V/div | -2% | 2% | |||
250 MHz | 20 mV/div | -2% | 2% | ||
FULL | 20 mV/div | -2% | 2% |
Random Noise, sample acquisition mode test record
Channel 1
Start with the highest bandwidth setting you can select.
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 50 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 1 | 1 mV/div | 10 GHz limit | 0.259 | |
9 GHz limit | 0.236 | |||
8 GHz limit | 0.216 | |||
7 GHz limit | 0.197 | |||
6 GHz limit | 0.175 | |||
2 mV/div | 10 GHz limit | 0.266 | ||
9 GHz limit | 0.242 | |||
8 GHz limit | 0.221 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.322 | ||
9 GHz limit | 0.293 | |||
8 GHz limit | 0.271 | |||
7 GHz limit | 0.247 | |||
6 GHz limit | 0.220 | |||
10 mV/div | 10 GHz limit | 0.488 | ||
9 GHz limit | 0.445 | |||
8 GHz limit | 0.406 | |||
7 GHz limit | 0.370 | |||
6 GHz limit | 0.330 | |||
Channel 1 | 20 mV/div | 10 GHz limit | 0.850 | |
9 GHz limit | 0.775 | |||
8 GHz limit | 0.707 | |||
7 GHz limit | 0.645 | |||
6 GHz limit | 0.581 | |||
50 mV/div | 10 GHz limit | 1.96 | ||
9 GHz limit | 1.79 | |||
8 GHz limit | 1.63 | |||
7 GHz limit | 1.5 | |||
6 GHz limit | 1.34 | |||
100 mV/div | 10 GHz limit | 5.05 | ||
9 GHz limit | 4.55 | |||
8 GHz limit | 4.15 | |||
7 GHz limit | 3.79 | |||
6 GHz limit | 3.38 | |||
1 V/div | 10 GHz limit | 38.8 | ||
9 GHz limit | 35.4 | |||
8 GHz limit | 32.6 | |||
7 GHz limit | 29.7 | |||
6 GHz limit | 26.8 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 1 | 1 mV/div | 10 GHz limit | 0.281 | |
9 GHz limit | 0.253 | |||
8 GHz limit | 0.223 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 10 GHz limit | 0.288 | ||
9 GHz limit | 0.260 | |||
8 GHz limit | 0.224 | |||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.374 | ||
9 GHz limit | 0.337 | |||
8 GHz limit | 0.293 | |||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 10 GHz limit | 0.600 | ||
9 GHz limit | 0.541 | |||
8 GHz limit | 0.482 | |||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
Channel 1 | 20 mV/div | 10 GHz limit | 1.08 | |
9 GHz limit | 0.976 | |||
8 GHz limit | 0.890 | |||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 10 GHz limit | 2.53 | ||
9 GHz limit | 2.3 | |||
8 GHz limit | 2.1 | |||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 10 GHz limit | 6.14 | ||
9 GHz limit | 5.54 | |||
8 GHz limit | 4.88 | |||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 10 GHz limit | 49.9 | ||
9 GHz limit | 46.1 | |||
8 GHz limit | 42 | |||
7 GHz limit | 37 | |||
6 GHz limit | 33.4 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 1 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz | 0.142 | |||
3 GHz | 0.123 | |||
2 mV/div | 5 GHz | 0.168 | ||
4 GHz | 0.148 | |||
3 GHz | 0.127 | |||
5 mV/div | 5 GHz | 0.233 | ||
4 GHz | 0.203 | |||
3 GHz | 0.173 | |||
10 mV/div | 5 GHz | 0.388 | ||
4 GHz | 0.334 | |||
3 GHz | 0.281 | |||
20 mV/div | 5 GHz | 0.715 | ||
4 GHz | 0.609 | |||
3 GHz | 0.518 | |||
50 mV/div | 5 GHz | 1.71 | ||
4 GHz | 1.47 | |||
3 GHz | 1.25 | |||
100 mV/div | 5 GHz | 3.92 | ||
4 GHz | 3.38 | |||
3 GHz | 2.84 | |||
1 V/div | 5 GHz | 34.2 | ||
4 GHz | 29.4 | |||
3 GHz | 25 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 1 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 1 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 1 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 1 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Channel 2
Start with the highest bandwidth setting you can select.
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 50 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 2 | 1 mV/div | 10 GHz limit | 0.259 | |
9 GHz limit | 0.236 | |||
8 GHz limit | 0.216 | |||
7 GHz limit | 0.197 | |||
6 GHz limit | 0.175 | |||
2 mV/div | 10 GHz limit | 0.266 | ||
9 GHz limit | 0.242 | |||
8 GHz limit | 0.221 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.322 | ||
9 GHz limit | 0.293 | |||
8 GHz limit | 0.271 | |||
7 GHz limit | 0.247 | |||
6 GHz limit | 0.220 | |||
10 mV/div | 10 GHz limit | 0.488 | ||
9 GHz limit | 0.445 | |||
8 GHz limit | 0.406 | |||
7 GHz limit | 0.370 | |||
6 GHz limit | 0.330 | |||
Channel 2 | 20 mV/div | 10 GHz limit | 0.850 | |
9 GHz limit | 0.775 | |||
8 GHz limit | 0.707 | |||
7 GHz limit | 0.645 | |||
6 GHz limit | 0.581 | |||
50 mV/div | 10 GHz limit | 1.96 | ||
9 GHz limit | 1.79 | |||
8 GHz limit | 1.63 | |||
7 GHz limit | 1.5 | |||
6 GHz limit | 1.34 | |||
100 mV/div | 10 GHz limit | 5.05 | ||
9 GHz limit | 4.55 | |||
8 GHz limit | 4.15 | |||
7 GHz limit | 3.79 | |||
6 GHz limit | 3.38 | |||
1 V/div | 10 GHz limit | 38.8 | ||
9 GHz limit | 35.4 | |||
8 GHz limit | 32.6 | |||
7 GHz limit | 29.7 | |||
6 GHz limit | 26.8 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 2 | 1 mV/div | 10 GHz limit | 0.281 | |
9 GHz limit | 0.253 | |||
8 GHz limit | 0.223 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 10 GHz limit | 0.288 | ||
9 GHz limit | 0.260 | |||
8 GHz limit | 0.224 | |||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.374 | ||
9 GHz limit | 0.337 | |||
8 GHz limit | 0.293 | |||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 10 GHz limit | 0.600 | ||
9 GHz limit | 0.541 | |||
8 GHz limit | 0.482 | |||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
Channel 2 | 20 mV/div | 10 GHz limit | 1.08 | |
9 GHz limit | 0.976 | |||
8 GHz limit | 0.890 | |||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 10 GHz limit | 2.53 | ||
9 GHz limit | 2.3 | |||
8 GHz limit | 2.1 | |||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 10 GHz limit | 6.14 | ||
9 GHz limit | 5.54 | |||
8 GHz limit | 4.88 | |||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 10 GHz limit | 49.9 | ||
9 GHz limit | 46.1 | |||
8 GHz limit | 42 | |||
7 GHz limit | 37 | |||
6 GHz limit | 33.4 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 2 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz | 0.142 | |||
3 GHz | 0.123 | |||
2 mV/div | 5 GHz | 0.168 | ||
4 GHz | 0.148 | |||
3 GHz | 0.127 | |||
5 mV/div | 5 GHz | 0.233 | ||
4 GHz | 0.203 | |||
3 GHz | 0.173 | |||
10 mV/div | 5 GHz | 0.388 | ||
4 GHz | 0.334 | |||
3 GHz | 0.281 | |||
20 mV/div | 5 GHz | 0.715 | ||
4 GHz | 0.609 | |||
3 GHz | 0.518 | |||
50 mV/div | 5 GHz | 1.71 | ||
4 GHz | 1.47 | |||
3 GHz | 1.25 | |||
100 mV/div | 5 GHz | 3.92 | ||
4 GHz | 3.38 | |||
3 GHz | 2.84 | |||
1 V/div | 5 GHz | 34.2 | ||
4 GHz | 29.4 | |||
3 GHz | 25 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 2 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 2 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 2 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 2 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Channel 3
Start with the highest bandwidth setting you can select.
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 50 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 3 | 1 mV/div | 10 GHz limit | 0.259 | |
9 GHz limit | 0.236 | |||
8 GHz limit | 0.216 | |||
7 GHz limit | 0.197 | |||
6 GHz limit | 0.175 | |||
2 mV/div | 10 GHz limit | 0.266 | ||
9 GHz limit | 0.242 | |||
8 GHz limit | 0.221 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.322 | ||
9 GHz limit | 0.293 | |||
8 GHz limit | 0.271 | |||
7 GHz limit | 0.247 | |||
6 GHz limit | 0.220 | |||
10 mV/div | 10 GHz limit | 0.488 | ||
9 GHz limit | 0.445 | |||
8 GHz limit | 0.406 | |||
7 GHz limit | 0.370 | |||
6 GHz limit | 0.330 | |||
Channel 3 | 20 mV/div | 10 GHz limit | 0.850 | |
9 GHz limit | 0.775 | |||
8 GHz limit | 0.707 | |||
7 GHz limit | 0.645 | |||
6 GHz limit | 0.581 | |||
50 mV/div | 10 GHz limit | 1.96 | ||
9 GHz limit | 1.79 | |||
8 GHz limit | 1.63 | |||
7 GHz limit | 1.5 | |||
6 GHz limit | 1.34 | |||
100 mV/div | 10 GHz limit | 5.05 | ||
9 GHz limit | 4.55 | |||
8 GHz limit | 4.15 | |||
7 GHz limit | 3.79 | |||
6 GHz limit | 3.38 | |||
1 V/div | 10 GHz limit | 38.8 | ||
9 GHz limit | 35.4 | |||
8 GHz limit | 32.6 | |||
7 GHz limit | 29.7 | |||
6 GHz limit | 26.8 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 3 | 1 mV/div | 10 GHz limit | 0.281 | |
9 GHz limit | 0.253 | |||
8 GHz limit | 0.223 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 10 GHz limit | 0.288 | ||
9 GHz limit | 0.260 | |||
8 GHz limit | 0.224 | |||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.374 | ||
9 GHz limit | 0.337 | |||
8 GHz limit | 0.293 | |||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 10 GHz limit | 0.600 | ||
9 GHz limit | 0.541 | |||
8 GHz limit | 0.482 | |||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
Channel 3 | 20 mV/div | 10 GHz limit | 1.08 | |
9 GHz limit | 0.976 | |||
8 GHz limit | 0.890 | |||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 10 GHz limit | 2.53 | ||
9 GHz limit | 2.3 | |||
8 GHz limit | 2.1 | |||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 10 GHz limit | 6.14 | ||
9 GHz limit | 5.54 | |||
8 GHz limit | 4.88 | |||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 10 GHz limit | 49.9 | ||
9 GHz limit | 46.1 | |||
8 GHz limit | 42 | |||
7 GHz limit | 37 | |||
6 GHz limit | 33.4 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 3 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz | 0.142 | |||
3 GHz | 0.123 | |||
2 mV/div | 5 GHz | 0.168 | ||
4 GHz | 0.148 | |||
3 GHz | 0.127 | |||
5 mV/div | 5 GHz | 0.233 | ||
4 GHz | 0.203 | |||
3 GHz | 0.173 | |||
10 mV/div | 5 GHz | 0.388 | ||
4 GHz | 0.334 | |||
3 GHz | 0.281 | |||
20 mV/div | 5 GHz | 0.715 | ||
4 GHz | 0.609 | |||
3 GHz | 0.518 | |||
50 mV/div | 5 GHz | 1.71 | ||
4 GHz | 1.47 | |||
3 GHz | 1.25 | |||
100 mV/div | 5 GHz | 3.92 | ||
4 GHz | 3.38 | |||
3 GHz | 2.84 | |||
1 V/div | 5 GHz | 34.2 | ||
4 GHz | 29.4 | |||
3 GHz | 25 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 3 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 3 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 3 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 3 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Channel 4
Start with the highest bandwidth setting you can select.
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 50 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 4 | 1 mV/div | 10 GHz limit | 0.259 | |
9 GHz limit | 0.236 | |||
8 GHz limit | 0.216 | |||
7 GHz limit | 0.197 | |||
6 GHz limit | 0.175 | |||
2 mV/div | 10 GHz limit | 0.266 | ||
9 GHz limit | 0.242 | |||
8 GHz limit | 0.221 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.322 | ||
9 GHz limit | 0.293 | |||
8 GHz limit | 0.271 | |||
7 GHz limit | 0.247 | |||
6 GHz limit | 0.220 | |||
10 mV/div | 10 GHz limit | 0.488 | ||
9 GHz limit | 0.445 | |||
8 GHz limit | 0.406 | |||
7 GHz limit | 0.370 | |||
6 GHz limit | 0.330 | |||
Channel 4 | 20 mV/div | 10 GHz limit | 0.850 | |
9 GHz limit | 0.775 | |||
8 GHz limit | 0.707 | |||
7 GHz limit | 0.645 | |||
6 GHz limit | 0.581 | |||
50 mV/div | 10 GHz limit | 1.96 | ||
9 GHz limit | 1.79 | |||
8 GHz limit | 1.63 | |||
7 GHz limit | 1.5 | |||
6 GHz limit | 1.34 | |||
100 mV/div | 10 GHz limit | 5.05 | ||
9 GHz limit | 4.55 | |||
8 GHz limit | 4.15 | |||
7 GHz limit | 3.79 | |||
6 GHz limit | 3.38 | |||
1 V/div | 10 GHz limit | 38.8 | ||
9 GHz limit | 35.4 | |||
8 GHz limit | 32.6 | |||
7 GHz limit | 29.7 | |||
6 GHz limit | 26.8 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 4 | 1 mV/div | 10 GHz limit | 0.281 | |
9 GHz limit | 0.253 | |||
8 GHz limit | 0.223 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 10 GHz limit | 0.288 | ||
9 GHz limit | 0.260 | |||
8 GHz limit | 0.224 | |||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.374 | ||
9 GHz limit | 0.337 | |||
8 GHz limit | 0.293 | |||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 10 GHz limit | 0.600 | ||
9 GHz limit | 0.541 | |||
8 GHz limit | 0.482 | |||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
Channel 4 | 20 mV/div | 10 GHz limit | 1.08 | |
9 GHz limit | 0.976 | |||
8 GHz limit | 0.890 | |||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 10 GHz limit | 2.53 | ||
9 GHz limit | 2.3 | |||
8 GHz limit | 2.1 | |||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 10 GHz limit | 6.14 | ||
9 GHz limit | 5.54 | |||
8 GHz limit | 4.88 | |||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 10 GHz limit | 49.9 | ||
9 GHz limit | 46.1 | |||
8 GHz limit | 42 | |||
7 GHz limit | 37 | |||
6 GHz limit | 33.4 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 4 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz | 0.142 | |||
3 GHz | 0.123 | |||
2 mV/div | 5 GHz | 0.168 | ||
4 GHz | 0.148 | |||
3 GHz | 0.127 | |||
5 mV/div | 5 GHz | 0.233 | ||
4 GHz | 0.203 | |||
3 GHz | 0.173 | |||
10 mV/div | 5 GHz | 0.388 | ||
4 GHz | 0.334 | |||
3 GHz | 0.281 | |||
20 mV/div | 5 GHz | 0.715 | ||
4 GHz | 0.609 | |||
3 GHz | 0.518 | |||
50 mV/div | 5 GHz | 1.71 | ||
4 GHz | 1.47 | |||
3 GHz | 1.25 | |||
100 mV/div | 5 GHz | 3.92 | ||
4 GHz | 3.38 | |||
3 GHz | 2.84 | |||
1 V/div | 5 GHz | 34.2 | ||
4 GHz | 29.4 | |||
3 GHz | 25 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 4 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 4 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Random Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 4 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 4 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Channel 5
Start with the highest bandwidth setting you can select.
Random Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 50 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 5 | 1 mV/div | 10 GHz limit | 0.259 | |
9 GHz limit | 0.236 | |||
8 GHz limit | 0.216 | |||
7 GHz limit | 0.197 | |||
6 GHz limit | 0.175 | |||
2 mV/div | 10 GHz limit | 0.266 | ||
9 GHz limit | 0.242 | |||
8 GHz limit | 0.221 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.322 | ||
9 GHz limit | 0.293 | |||
8 GHz limit | 0.271 | |||
7 GHz limit | 0.247 | |||
6 GHz limit | 0.220 | |||
10 mV/div | 10 GHz limit | 0.488 | ||
9 GHz limit | 0.445 | |||
8 GHz limit | 0.406 | |||
7 GHz limit | 0.370 | |||
6 GHz limit | 0.330 | |||
Channel 5 | 20 mV/div | 10 GHz limit | 0.850 | |
9 GHz limit | 0.775 | |||
8 GHz limit | 0.707 | |||
7 GHz limit | 0.645 | |||
6 GHz limit | 0.581 | |||
50 mV/div | 10 GHz limit | 1.96 | ||
9 GHz limit | 1.79 | |||
8 GHz limit | 1.63 | |||
7 GHz limit | 1.5 | |||
6 GHz limit | 1.34 | |||
100 mV/div | 10 GHz limit | 5.05 | ||
9 GHz limit | 4.55 | |||
8 GHz limit | 4.15 | |||
7 GHz limit | 3.79 | |||
6 GHz limit | 3.38 | |||
1 V/div | 10 GHz limit | 38.8 | ||
9 GHz limit | 35.4 | |||
8 GHz limit | 32.6 | |||
7 GHz limit | 29.7 | |||
6 GHz limit | 26.8 |
Random Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 5 | 1 mV/div | 10 GHz limit | 0.281 | |
9 GHz limit | 0.253 | |||
8 GHz limit | 0.223 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 10 GHz limit | 0.288 | ||
9 GHz limit | 0.260 | |||
8 GHz limit | 0.224 | |||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.374 | ||
9 GHz limit | 0.337 | |||
8 GHz limit | 0.293 | |||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 10 GHz limit | 0.600 | ||
9 GHz limit | 0.541 | |||
8 GHz limit | 0.482 | |||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
Channel 5 | 20 mV/div | 10 GHz limit | 1.08 | |
9 GHz limit | 0.976 | |||
8 GHz limit | 0.890 | |||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 10 GHz limit | 2.53 | ||
9 GHz limit | 2.3 | |||
8 GHz limit | 2.1 | |||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 10 GHz limit | 6.14 | ||
9 GHz limit | 5.54 | |||
8 GHz limit | 4.88 | |||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 10 GHz limit | 49.9 | ||
9 GHz limit | 46.1 | |||
8 GHz limit | 42 | |||
7 GHz limit | 37 | |||
6 GHz limit | 33.4 |
Random Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 5 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz | 0.142 | |||
3 GHz | 0.123 | |||
2 mV/div | 5 GHz | 0.168 | ||
4 GHz | 0.148 | |||
3 GHz | 0.127 | |||
5 mV/div | 5 GHz | 0.233 | ||
4 GHz | 0.203 | |||
3 GHz | 0.173 | |||
10 mV/div | 5 GHz | 0.388 | ||
4 GHz | 0.334 | |||
3 GHz | 0.281 | |||
20 mV/div | 5 GHz | 0.715 | ||
4 GHz | 0.609 | |||
3 GHz | 0.518 | |||
50 mV/div | 5 GHz | 1.71 | ||
4 GHz | 1.47 | |||
3 GHz | 1.25 | |||
100 mV/div | 5 GHz | 3.92 | ||
4 GHz | 3.38 | |||
3 GHz | 2.84 | |||
1 V/div | 5 GHz | 34.2 | ||
4 GHz | 29.4 | |||
3 GHz | 25 |
Random Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 5 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 5 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Random Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 5 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 5 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Channel 6
Start with the highest bandwidth setting you can select.
Random Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 50 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 6 | 1 mV/div | 10 GHz limit | 0.259 | |
9 GHz limit | 0.236 | |||
8 GHz limit | 0.216 | |||
7 GHz limit | 0.197 | |||
6 GHz limit | 0.175 | |||
2 mV/div | 10 GHz limit | 0.266 | ||
9 GHz limit | 0.242 | |||
8 GHz limit | 0.221 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.322 | ||
9 GHz limit | 0.293 | |||
8 GHz limit | 0.271 | |||
7 GHz limit | 0.247 | |||
6 GHz limit | 0.220 | |||
10 mV/div | 10 GHz limit | 0.488 | ||
9 GHz limit | 0.445 | |||
8 GHz limit | 0.406 | |||
7 GHz limit | 0.370 | |||
6 GHz limit | 0.330 | |||
Channel 6 | 20 mV/div | 10 GHz limit | 0.850 | |
9 GHz limit | 0.775 | |||
8 GHz limit | 0.707 | |||
7 GHz limit | 0.645 | |||
6 GHz limit | 0.581 | |||
50 mV/div | 10 GHz limit | 1.96 | ||
9 GHz limit | 1.79 | |||
8 GHz limit | 1.63 | |||
7 GHz limit | 1.5 | |||
6 GHz limit | 1.34 | |||
100 mV/div | 10 GHz limit | 5.05 | ||
9 GHz limit | 4.55 | |||
8 GHz limit | 4.15 | |||
7 GHz limit | 3.79 | |||
6 GHz limit | 3.38 | |||
1 V/div | 10 GHz limit | 38.8 | ||
9 GHz limit | 35.4 | |||
8 GHz limit | 32.6 | |||
7 GHz limit | 29.7 | |||
6 GHz limit | 26.8 |
Random Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 6 | 1 mV/div | 10 GHz limit | 0.281 | |
9 GHz limit | 0.253 | |||
8 GHz limit | 0.223 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 10 GHz limit | 0.288 | ||
9 GHz limit | 0.260 | |||
8 GHz limit | 0.224 | |||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.374 | ||
9 GHz limit | 0.337 | |||
8 GHz limit | 0.293 | |||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 10 GHz limit | 0.600 | ||
9 GHz limit | 0.541 | |||
8 GHz limit | 0.482 | |||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
Channel 6 | 20 mV/div | 10 GHz limit | 1.08 | |
9 GHz limit | 0.976 | |||
8 GHz limit | 0.890 | |||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 10 GHz limit | 2.53 | ||
9 GHz limit | 2.3 | |||
8 GHz limit | 2.1 | |||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 10 GHz limit | 6.14 | ||
9 GHz limit | 5.54 | |||
8 GHz limit | 4.88 | |||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 10 GHz limit | 49.9 | ||
9 GHz limit | 46.1 | |||
8 GHz limit | 42 | |||
7 GHz limit | 37 | |||
6 GHz limit | 33.4 |
Random Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 6 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz | 0.142 | |||
3 GHz | 0.123 | |||
2 mV/div | 5 GHz | 0.168 | ||
4 GHz | 0.148 | |||
3 GHz | 0.127 | |||
5 mV/div | 5 GHz | 0.233 | ||
4 GHz | 0.203 | |||
3 GHz | 0.173 | |||
10 mV/div | 5 GHz | 0.388 | ||
4 GHz | 0.334 | |||
3 GHz | 0.281 | |||
20 mV/div | 5 GHz | 0.715 | ||
4 GHz | 0.609 | |||
3 GHz | 0.518 | |||
50 mV/div | 5 GHz | 1.71 | ||
4 GHz | 1.47 | |||
3 GHz | 1.25 | |||
100 mV/div | 5 GHz | 3.92 | ||
4 GHz | 3.38 | |||
3 GHz | 2.84 | |||
1 V/div | 5 GHz | 34.2 | ||
4 GHz | 29.4 | |||
3 GHz | 25 |
Random Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 6 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 6 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Random Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 6 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 6 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Channel 7
Start with the highest bandwidth setting you can select.
Random Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 50 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 7 | 1 mV/div | 10 GHz limit | 0.259 | |
9 GHz limit | 0.236 | |||
8 GHz limit | 0.216 | |||
7 GHz limit | 0.197 | |||
6 GHz limit | 0.175 | |||
2 mV/div | 10 GHz limit | 0.266 | ||
9 GHz limit | 0.242 | |||
8 GHz limit | 0.221 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.322 | ||
9 GHz limit | 0.293 | |||
8 GHz limit | 0.271 | |||
7 GHz limit | 0.247 | |||
6 GHz limit | 0.220 | |||
10 mV/div | 10 GHz limit | 0.488 | ||
9 GHz limit | 0.445 | |||
8 GHz limit | 0.406 | |||
7 GHz limit | 0.370 | |||
6 GHz limit | 0.330 | |||
Channel 7 | 20 mV/div | 10 GHz limit | 0.850 | |
9 GHz limit | 0.775 | |||
8 GHz limit | 0.707 | |||
7 GHz limit | 0.645 | |||
6 GHz limit | 0.581 | |||
50 mV/div | 10 GHz limit | 1.96 | ||
9 GHz limit | 1.79 | |||
8 GHz limit | 1.63 | |||
7 GHz limit | 1.5 | |||
6 GHz limit | 1.34 | |||
100 mV/div | 10 GHz limit | 5.05 | ||
9 GHz limit | 4.55 | |||
8 GHz limit | 4.15 | |||
7 GHz limit | 3.79 | |||
6 GHz limit | 3.38 | |||
1 V/div | 10 GHz limit | 38.8 | ||
9 GHz limit | 35.4 | |||
8 GHz limit | 32.6 | |||
7 GHz limit | 29.7 | |||
6 GHz limit | 26.8 |
Random Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 7 | 1 mV/div | 10 GHz limit | 0.281 | |
9 GHz limit | 0.253 | |||
8 GHz limit | 0.223 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 10 GHz limit | 0.288 | ||
9 GHz limit | 0.260 | |||
8 GHz limit | 0.224 | |||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.374 | ||
9 GHz limit | 0.337 | |||
8 GHz limit | 0.293 | |||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 10 GHz limit | 0.600 | ||
9 GHz limit | 0.541 | |||
8 GHz limit | 0.482 | |||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
Channel 7 | 20 mV/div | 10 GHz limit | 1.08 | |
9 GHz limit | 0.976 | |||
8 GHz limit | 0.890 | |||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 10 GHz limit | 2.53 | ||
9 GHz limit | 2.3 | |||
8 GHz limit | 2.1 | |||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 10 GHz limit | 6.14 | ||
9 GHz limit | 5.54 | |||
8 GHz limit | 4.88 | |||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 10 GHz limit | 49.9 | ||
9 GHz limit | 46.1 | |||
8 GHz limit | 42 | |||
7 GHz limit | 37 | |||
6 GHz limit | 33.4 |
Random Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 7 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz | 0.142 | |||
3 GHz | 0.123 | |||
2 mV/div | 5 GHz | 0.168 | ||
4 GHz | 0.148 | |||
3 GHz | 0.127 | |||
5 mV/div | 5 GHz | 0.233 | ||
4 GHz | 0.203 | |||
3 GHz | 0.173 | |||
10 mV/div | 5 GHz | 0.388 | ||
4 GHz | 0.334 | |||
3 GHz | 0.281 | |||
20 mV/div | 5 GHz | 0.715 | ||
4 GHz | 0.609 | |||
3 GHz | 0.518 | |||
50 mV/div | 5 GHz | 1.71 | ||
4 GHz | 1.47 | |||
3 GHz | 1.25 | |||
100 mV/div | 5 GHz | 3.92 | ||
4 GHz | 3.38 | |||
3 GHz | 2.84 | |||
1 V/div | 5 GHz | 34.2 | ||
4 GHz | 29.4 | |||
3 GHz | 25 |
Random Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 7 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 7 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Random Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 7 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 7 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Channel 8
Start with the highest bandwidth setting you can select.
Random Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 50 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 8 | 1 mV/div | 10 GHz limit | 0.259 | |
9 GHz limit | 0.236 | |||
8 GHz limit | 0.216 | |||
7 GHz limit | 0.197 | |||
6 GHz limit | 0.175 | |||
2 mV/div | 10 GHz limit | 0.266 | ||
9 GHz limit | 0.242 | |||
8 GHz limit | 0.221 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.322 | ||
9 GHz limit | 0.293 | |||
8 GHz limit | 0.271 | |||
7 GHz limit | 0.247 | |||
6 GHz limit | 0.220 | |||
10 mV/div | 10 GHz limit | 0.488 | ||
9 GHz limit | 0.445 | |||
8 GHz limit | 0.406 | |||
7 GHz limit | 0.370 | |||
6 GHz limit | 0.330 | |||
Channel 8 | 20 mV/div | 10 GHz limit | 0.850 | |
9 GHz limit | 0.775 | |||
8 GHz limit | 0.707 | |||
7 GHz limit | 0.645 | |||
6 GHz limit | 0.581 | |||
50 mV/div | 10 GHz limit | 1.96 | ||
9 GHz limit | 1.79 | |||
8 GHz limit | 1.63 | |||
7 GHz limit | 1.5 | |||
6 GHz limit | 1.34 | |||
100 mV/div | 10 GHz limit | 5.05 | ||
9 GHz limit | 4.55 | |||
8 GHz limit | 4.15 | |||
7 GHz limit | 3.79 | |||
6 GHz limit | 3.38 | |||
1 V/div | 10 GHz limit | 38.8 | ||
9 GHz limit | 35.4 | |||
8 GHz limit | 32.6 | |||
7 GHz limit | 29.7 | |||
6 GHz limit | 26.8 |
Random Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 8 | 1 mV/div | 10 GHz limit | 0.281 | |
9 GHz limit | 0.253 | |||
8 GHz limit | 0.223 | |||
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 10 GHz limit | 0.288 | ||
9 GHz limit | 0.260 | |||
8 GHz limit | 0.224 | |||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 10 GHz limit | 0.374 | ||
9 GHz limit | 0.337 | |||
8 GHz limit | 0.293 | |||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 10 GHz limit | 0.600 | ||
9 GHz limit | 0.541 | |||
8 GHz limit | 0.482 | |||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
Channel 8 | 20 mV/div | 10 GHz limit | 1.08 | |
9 GHz limit | 0.976 | |||
8 GHz limit | 0.890 | |||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 10 GHz limit | 2.53 | ||
9 GHz limit | 2.3 | |||
8 GHz limit | 2.1 | |||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 10 GHz limit | 6.14 | ||
9 GHz limit | 5.54 | |||
8 GHz limit | 4.88 | |||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 10 GHz limit | 49.9 | ||
9 GHz limit | 46.1 | |||
8 GHz limit | 42 | |||
7 GHz limit | 37 | |||
6 GHz limit | 33.4 |
Random Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 8 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz | 0.142 | |||
3 GHz | 0.123 | |||
2 mV/div | 5 GHz | 0.168 | ||
4 GHz | 0.148 | |||
3 GHz | 0.127 | |||
5 mV/div | 5 GHz | 0.233 | ||
4 GHz | 0.203 | |||
3 GHz | 0.173 | |||
10 mV/div | 5 GHz | 0.388 | ||
4 GHz | 0.334 | |||
3 GHz | 0.281 | |||
20 mV/div | 5 GHz | 0.715 | ||
4 GHz | 0.609 | |||
3 GHz | 0.518 | |||
50 mV/div | 5 GHz | 1.71 | ||
4 GHz | 1.47 | |||
3 GHz | 1.25 | |||
100 mV/div | 5 GHz | 3.92 | ||
4 GHz | 3.38 | |||
3 GHz | 2.84 | |||
1 V/div | 5 GHz | 34.2 | ||
4 GHz | 29.4 | |||
3 GHz | 25 |
Random Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 25 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 8 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 8 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Random Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 1 MΩ, 12.5 GS/s | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 8 | 1 mV/div | 500 MHz limit | 0.262 | |
350 MHz limit | 0.190 | |||
250 MHz limit | 0.153 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.102 | |||
2 mV/div | 500 MHz limit | 0.285 | ||
350 MHz limit | 0.195 | |||
250 MHz limit | 0.156 | |||
200 MHz limit | 0.153 | |||
20 MHz limit | 0.111 | |||
5 mV/div | 500 MHz limit | 0.311 | ||
350 MHz limit | 0.223 | |||
250 MHz limit | 0.183 | |||
200 MHz limit | 0.175 | |||
20 MHz limit | 0.140 | |||
10 mV/div | 500 MHz limit | 0.370 | ||
350 MHz limit | 0.281 | |||
250 MHz limit | 0.259 | |||
200 MHz limit | 0.242 | |||
20 MHz limit | 0.226 | |||
Channel 8 | 20 mV/div | 500 MHz limit | 0.536 | |
350 MHz limit | 0.473 | |||
250 MHz limit | 0.398 | |||
200 MHz limit | 0.398 | |||
20 MHz limit | 0.398 | |||
50 mV/div | 500 MHz limit | 1.1 | ||
350 MHz limit | 0.896 | |||
250 MHz limit | 0.994 | |||
200 MHz limit | 0.994 | |||
20 MHz limit | 0.994 | |||
100 mV/div | 500 MHz limit | 2.39 | ||
350 MHz limit | 2.08 | |||
250 MHz limit | 1.99 | |||
200 MHz limit | 1.99 | |||
20 MHz limit | 1.99 | |||
1 V/div | 500 MHz limit | 25.9 | ||
350 MHz limit | 22.3 | |||
250 MHz limit | 22.1 | |||
200 MHz limit | 21.8 | |||
20 MHz limit | 19.9 |
Random Noise, High Res mode test record
Channel 1
Start with the highest bandwidth setting you can select.
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 1 | 1 mV/div | 5 GHz | 0.156 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.118 | |||||
2.5 GHz limit | 0.107 | |||||
2 GHz limit | 0.0974 | |||||
1 GHz limit | 0.0722 | |||||
500 MHz limit | 0.0529 | |||||
350 MHz limit | 0.045 | |||||
250 MHz limit | 0.042 | |||||
200 MHz limit | 0.0362 | |||||
20 MHz limit | 0.013 | |||||
Channel 1 | 2 mV/div | 5 GHz | 0.158 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.120 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0987 | |||||
1 GHz limit | 0.0732 | |||||
500 MHz limit | 0.0536 | |||||
350 MHz limit | 0.0457 | |||||
250 MHz limit | 0.0426 | |||||
200 MHz limit | 0.0367 | |||||
20 MHz limit | 0.0132 | |||||
Channel 1 | 5 mV/div | 5 GHz | 0.189 | |||
4 GHz limit | 0.165 | |||||
3 GHz limit | 0.142 | |||||
2.5 GHz limit | 0.128 | |||||
2 GHz limit | 0.115 | |||||
1 GHz limit | 0.0846 | |||||
500 MHz limit | 0.0613 | |||||
350 MHz limit | 0.0522 | |||||
250 MHz limit | 0.0487 | |||||
200 MHz limit | 0.0419 | |||||
20 MHz limit | 0.015 | |||||
Channel 1 | 10 mV/div | 5 GHz | 0.278 | |||
4 GHz limit | 0.242 | |||||
3 GHz limit | 0.203 | |||||
2.5 GHz limit | 0.181 | |||||
2 GHz limit | 0.163 | |||||
1 GHz limit | 0.117 | |||||
500 MHz limit | 0.0848 | |||||
350 MHz limit | 0.0705 | |||||
250 MHz limit | 0.0658 | |||||
200 MHz limit | 0.0567 | |||||
20 MHz limit | 0.0206 | |||||
Channel 1 | 20 mV/div | 5 GHz | 0.478 | |||
4 GHz limit | 0.412 | |||||
3 GHz limit | 0.346 | |||||
2.5 GHz limit | 0.309 | |||||
2 GHz limit | 0.275 | |||||
1 GHz limit | 0.195 | |||||
500 MHz limit | 0.141 | |||||
350 MHz limit | 0.116 | |||||
250 MHz limit | 0.107 | |||||
200 MHz limit | 0.0932 | |||||
20 MHz limit | 0.0342 | |||||
Channel 1 | 50 mV/div | 5 GHz | 1.09 | |||
4 GHz limit | 0.949 | |||||
3 GHz limit | 0.790 | |||||
2.5 GHz limit | 0.704 | |||||
2 GHz limit | 0.627 | |||||
1 GHz limit | 0.444 | |||||
500 MHz limit | 0.325 | |||||
350 MHz limit | 0.261 | |||||
250 MHz limit | 0.241 | |||||
200 MHz limit | 0.210 | |||||
20 MHz limit | 0.079 | |||||
Channel 1 | 100 mV/div | 5 GHz | 2.81 | |||
4 GHz limit | 2.45 | |||||
3 GHz limit | 2.06 | |||||
2.5 GHz limit | 1.83 | |||||
2 GHz limit | 1.65 | |||||
1 GHz limit | 1.17 | |||||
500 MHz limit | 0.858 | |||||
350 MHz limit | 0.705 | |||||
250 MHz limit | 0.658 | |||||
200 MHz limit | 0.573 | |||||
20 MHz limit | 0.203 | |||||
Channel 1 | 1 V/div | 5 GHz | 21.8 | |||
4 GHz limit | 18.8 | |||||
3 GHz limit | 15.8 | |||||
2.5 GHz limit | 13.9 | |||||
2 GHz limit | 12.4 | |||||
1 GHz limit | 8.78 | |||||
500 MHz limit | 6.51 | |||||
350 MHz limit | 5.11 | |||||
250 MHz limit | 4.77 | |||||
200 MHz limit | 4.15 | |||||
20 MHz limit | 1.56 |
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 12.5 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 1 | 1 mV/div | 5 GHz | 0.162 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.117 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0963 | |||||
1 GHz limit | 0.0773 | |||||
500 MHz limit | 0.262 | 0.056 | ||||
350 MHz limit | 0.190 | 0.0477 | ||||
250 MHz limit | 0.153 | 0.0461 | ||||
200 MHz limit | 0.149 | 0.0379 | ||||
20 MHz limit | 0.103 | 0.013 | ||||
Channel 1 | 2 mV/div | 5 GHz | 0.164 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.119 | |||||
2.5 GHz limit | 0.110 | |||||
2 GHz limit | 0.0976 | |||||
1 GHz limit | 0.0724 | |||||
500 MHz limit | 0.285 | 0.0562 | ||||
350 MHz limit | 0.195 | 0.0473 | ||||
250 MHz limit | 0.155 | 0.0467 | ||||
200 MHz limit | 0.153 | 0.038 | ||||
20 MHz limit | 0.103 | 0.0133 | ||||
Channel 1 | 5 mV/div | 5 GHz | 0.210 | |||
4 GHz limit | 0.175 | |||||
3 GHz limit | 0.149 | |||||
2.5 GHz limit | 0.133 | |||||
2 GHz limit | 0.118 | |||||
1 GHz limit | 0.0896 | |||||
500 MHz limit | 0.297 | 0.068 | ||||
350 MHz limit | 0.205 | 0.0565 | ||||
250 MHz limit | 0.161 | 0.054 | ||||
200 MHz limit | 0.154 | 0.0444 | ||||
20 MHz limit | 0.110 | 0.0156 | ||||
Channel 1 | 10 mV/div | 5 GHz | 0.330 | |||
4 GHz limit | 0.271 | |||||
3 GHz limit | 0.226 | |||||
2.5 GHz limit | 0.203 | |||||
2 GHz limit | 0.186 | |||||
1 GHz limit | 0.128 | |||||
500 MHz limit | 0.334 | 0.0919 | ||||
350 MHz limit | 0.231 | 0.0773 | ||||
250 MHz limit | 0.186 | 0.0747 | ||||
200 MHz limit | 0.165 | 0.0658 | ||||
20 MHz limit | 0.141 | 0.0226 | ||||
Channel 1 | 20 mV/div | 5 GHz | 0.595 | |||
4 GHz limit | 0.486 | |||||
3 GHz limit | 0.398 | |||||
2.5 GHz limit | 0.363 | |||||
2 GHz limit | 0.320 | |||||
1 GHz limit | 0.226 | |||||
500 MHz limit | 0.407 | 0.162 | ||||
350 MHz limit | 0.305 | 0.133 | ||||
250 MHz limit | 0.257 | 0.120 | ||||
200 MHz limit | 0.211 | 0.106 | ||||
20 MHz limit | 0.224 | 0.0412 | ||||
Channel 1 | 50 mV/div | 5 GHz | 1.4 | |||
4 GHz limit | 1.15 | |||||
3 GHz limit | 0.960 | |||||
2.5 GHz limit | 0.856 | |||||
2 GHz limit | 0.745 | |||||
1 GHz limit | 0.534 | |||||
500 MHz limit | 0.737 | 0.396 | ||||
350 MHz limit | 0.553 | 0.307 | ||||
250 MHz limit | 0.528 | 0.280 | ||||
200 MHz limit | 0.387 | 0.247 | ||||
20 MHz limit | 0.510 | 0.105 | ||||
Channel 1 | 100 mV/div | 5 GHz | 3.38 | |||
4 GHz limit | 2.71 | |||||
3 GHz limit | 2.28 | |||||
2.5 GHz limit | 2.03 | |||||
2 GHz limit | 1.81 | |||||
1 GHz limit | 1.33 | |||||
500 MHz limit | 1.77 | 0.941 | ||||
350 MHz limit | 1.38 | 0.792 | ||||
250 MHz limit | 1.18 | 0.722 | ||||
200 MHz limit | 0.952 | 0.666 | ||||
20 MHz limit | 1.13 | 0.236 | ||||
Channel 1 | 1 V/div | 5 GHz | 28.1 | |||
4 GHz limit | 23.1 | |||||
3 GHz limit | 19.2 | |||||
2.5 GHz limit | 17.1 | |||||
2 GHz limit | 14.9 | |||||
1 GHz limit | 10.8 | |||||
500 MHz limit | 19 | 7.92 | ||||
350 MHz limit | 14.9 | 6.14 | ||||
250 MHz limit | 13.6 | 5.6 | ||||
200 MHz limit | 11.3 | 4.94 | ||||
20 MHz limit | 11.7 | 2.11 |
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 6.25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit |
Channel 1 | 1 mV/div | 2.5 GHz limit | 0.109 | |||
2 GHz limit | 0.0996 | |||||
1 GHz limit | 0.0739 | |||||
500 MHz limit | 0.0548 | |||||
350 MHz limit | 0.0466 | |||||
250 MHz limit | 0.0435 | |||||
200 MHz limit | 0.0388 | |||||
20 MHz limit | 0.0147 | |||||
Channel 1 | 2 mV/div | 2.5 GHz limit | 0.112 | |||
2 GHz limit | 0.101 | |||||
1 GHz limit | 0.0749 | |||||
500 MHz limit | 0.0555 | |||||
350 MHz limit | 0.0473 | |||||
250 MHz limit | 0.0441 | |||||
200 MHz limit | 0.0393 | |||||
20 MHz limit | 0.0148 | |||||
Channel 1 | 5 mV/div | 2.5 GHz limit | 0.142 | |||
2 GHz limit | 0.128 | |||||
1 GHz limit | 0.0928 | |||||
500 MHz limit | 0.068 | |||||
350 MHz limit | 0.0565 | |||||
250 MHz limit | 0.0528 | |||||
200 MHz limit | 0.047 | |||||
20 MHz limit | 0.0177 | |||||
Channel 1 | 10 mV/div | 2.5 GHz limit | 0.221 | |||
2 GHz limit | 0.197 | |||||
1 GHz limit | 0.134 | |||||
500 MHz limit | 0.0974 | |||||
350 MHz limit | 0.0801 | |||||
250 MHz limit | 0.0747 | |||||
200 MHz limit | 0.0666 | |||||
20 MHz limit | 0.0256 | |||||
Channel 1 | 20 mV/div | 2.5 GHz limit | 0.398 | |||
2 GHz limit | 0.350 | |||||
1 GHz limit | 0.237 | |||||
500 MHz limit | 0.174 | |||||
350 MHz limit | 0.138 | |||||
250 MHz limit | 0.129 | |||||
200 MHz limit | 0.115 | |||||
20 MHz limit | 0.0446 | |||||
Channel 1 | 50 mV/div | 2.5 GHz limit | 0.938 | |||
2 GHz limit | 0.836 | |||||
1 GHz limit | 0.559 | |||||
500 MHz limit | 0.410 | |||||
350 MHz limit | 0.322 | |||||
250 MHz limit | 0.300 | |||||
200 MHz limit | 0.271 | |||||
20 MHz limit | 0.105 | |||||
Channel 1 | 100 mV/div | 2.5 GHz limit | 2.23 | |||
2 GHz limit | 1.99 | |||||
1 GHz limit | 1.36 | |||||
500 MHz limit | 0.985 | |||||
350 MHz limit | 0.801 | |||||
250 MHz limit | 0.747 | |||||
200 MHz limit | 0.674 | |||||
20 MHz limit | 0.256 | |||||
Channel 1 | 1 V/div | 2.5 GHz limit | 19 | |||
2 GHz limit | 16.7 | |||||
1 GHz limit | 11.1 | |||||
500 MHz limit | 8.1 | |||||
350 MHz limit | 6.36 | |||||
250 MHz limit | 5.94 | |||||
200 MHz limit | 5.35 | |||||
20 MHz limit | 2.08 |
Channel 2
Start with the highest bandwidth setting you can select.
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 2 | 1 mV/div | 5 GHz | 0.156 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.118 | |||||
2.5 GHz limit | 0.107 | |||||
2 GHz limit | 0.0974 | |||||
1 GHz limit | 0.0722 | |||||
500 MHz limit | 0.0529 | |||||
350 MHz limit | 0.045 | |||||
250 MHz limit | 0.042 | |||||
200 MHz limit | 0.0362 | |||||
20 MHz limit | 0.013 | |||||
Channel 2 | 2 mV/div | 5 GHz | 0.158 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.120 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0987 | |||||
1 GHz limit | 0.0732 | |||||
500 MHz limit | 0.0536 | |||||
350 MHz limit | 0.0457 | |||||
250 MHz limit | 0.0426 | |||||
200 MHz limit | 0.0367 | |||||
20 MHz limit | 0.0132 | |||||
Channel 2 | 5 mV/div | 5 GHz | 0.189 | |||
4 GHz limit | 0.165 | |||||
3 GHz limit | 0.142 | |||||
2.5 GHz limit | 0.128 | |||||
2 GHz limit | 0.115 | |||||
1 GHz limit | 0.0846 | |||||
500 MHz limit | 0.0613 | |||||
350 MHz limit | 0.0522 | |||||
250 MHz limit | 0.0487 | |||||
200 MHz limit | 0.0419 | |||||
20 MHz limit | 0.015 | |||||
Channel 2 | 10 mV/div | 5 GHz | 0.278 | |||
4 GHz limit | 0.242 | |||||
3 GHz limit | 0.203 | |||||
2.5 GHz limit | 0.181 | |||||
2 GHz limit | 0.163 | |||||
1 GHz limit | 0.117 | |||||
500 MHz limit | 0.0848 | |||||
350 MHz limit | 0.0705 | |||||
250 MHz limit | 0.0658 | |||||
200 MHz limit | 0.0567 | |||||
20 MHz limit | 0.0206 | |||||
Channel 2 | 20 mV/div | 5 GHz | 0.478 | |||
4 GHz limit | 0.412 | |||||
3 GHz limit | 0.346 | |||||
2.5 GHz limit | 0.309 | |||||
2 GHz limit | 0.275 | |||||
1 GHz limit | 0.195 | |||||
500 MHz limit | 0.141 | |||||
350 MHz limit | 0.116 | |||||
250 MHz limit | 0.107 | |||||
200 MHz limit | 0.0932 | |||||
20 MHz limit | 0.0342 | |||||
Channel 2 | 50 mV/div | 5 GHz | 1.09 | |||
4 GHz limit | 0.949 | |||||
3 GHz limit | 0.790 | |||||
2.5 GHz limit | 0.704 | |||||
2 GHz limit | 0.627 | |||||
1 GHz limit | 0.444 | |||||
500 MHz limit | 0.325 | |||||
350 MHz limit | 0.261 | |||||
250 MHz limit | 0.241 | |||||
200 MHz limit | 0.210 | |||||
20 MHz limit | 0.079 | |||||
Channel 2 | 100 mV/div | 5 GHz | 2.81 | |||
4 GHz limit | 2.45 | |||||
3 GHz limit | 2.06 | |||||
2.5 GHz limit | 1.83 | |||||
2 GHz limit | 1.65 | |||||
1 GHz limit | 1.17 | |||||
500 MHz limit | 0.858 | |||||
350 MHz limit | 0.705 | |||||
250 MHz limit | 0.658 | |||||
200 MHz limit | 0.573 | |||||
20 MHz limit | 0.203 | |||||
Channel 2 | 1 V/div | 5 GHz | 21.8 | |||
4 GHz limit | 18.8 | |||||
3 GHz limit | 15.8 | |||||
2.5 GHz limit | 13.9 | |||||
2 GHz limit | 12.4 | |||||
1 GHz limit | 8.78 | |||||
500 MHz limit | 6.51 | |||||
350 MHz limit | 5.11 | |||||
250 MHz limit | 4.77 | |||||
200 MHz limit | 4.15 | |||||
20 MHz limit | 1.56 |
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 12.5 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 2 | 1 mV/div | 5 GHz | 0.162 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.117 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0963 | |||||
1 GHz limit | 0.0773 | |||||
500 MHz limit | 0.262 | 0.056 | ||||
350 MHz limit | 0.190 | 0.0477 | ||||
250 MHz limit | 0.153 | 0.0461 | ||||
200 MHz limit | 0.149 | 0.0379 | ||||
20 MHz limit | 0.103 | 0.013 | ||||
Channel 2 | 2 mV/div | 5 GHz | 0.164 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.119 | |||||
2.5 GHz limit | 0.110 | |||||
2 GHz limit | 0.0976 | |||||
1 GHz limit | 0.0724 | |||||
500 MHz limit | 0.285 | 0.0562 | ||||
350 MHz limit | 0.195 | 0.0473 | ||||
250 MHz limit | 0.155 | 0.0467 | ||||
200 MHz limit | 0.153 | 0.038 | ||||
20 MHz limit | 0.103 | 0.0133 | ||||
Channel 2 | 5 mV/div | 5 GHz | 0.210 | |||
4 GHz limit | 0.175 | |||||
3 GHz limit | 0.149 | |||||
2.5 GHz limit | 0.133 | |||||
2 GHz limit | 0.118 | |||||
1 GHz limit | 0.0896 | |||||
500 MHz limit | 0.297 | 0.068 | ||||
350 MHz limit | 0.205 | 0.0565 | ||||
250 MHz limit | 0.161 | 0.054 | ||||
200 MHz limit | 0.154 | 0.0444 | ||||
20 MHz limit | 0.110 | 0.0156 | ||||
Channel 2 | 10 mV/div | 5 GHz | 0.330 | |||
4 GHz limit | 0.271 | |||||
3 GHz limit | 0.226 | |||||
2.5 GHz limit | 0.203 | |||||
2 GHz limit | 0.186 | |||||
1 GHz limit | 0.128 | |||||
500 MHz limit | 0.334 | 0.0919 | ||||
350 MHz limit | 0.231 | 0.0773 | ||||
250 MHz limit | 0.186 | 0.0747 | ||||
200 MHz limit | 0.165 | 0.0658 | ||||
20 MHz limit | 0.141 | 0.0226 | ||||
Channel 2 | 20 mV/div | 5 GHz | 0.595 | |||
4 GHz limit | 0.486 | |||||
3 GHz limit | 0.398 | |||||
2.5 GHz limit | 0.363 | |||||
2 GHz limit | 0.320 | |||||
1 GHz limit | 0.226 | |||||
500 MHz limit | 0.407 | 0.162 | ||||
350 MHz limit | 0.305 | 0.133 | ||||
250 MHz limit | 0.257 | 0.120 | ||||
200 MHz limit | 0.211 | 0.106 | ||||
20 MHz limit | 0.224 | 0.0412 | ||||
Channel 2 | 50 mV/div | 5 GHz | 1.4 | |||
4 GHz limit | 1.15 | |||||
3 GHz limit | 0.960 | |||||
2.5 GHz limit | 0.856 | |||||
2 GHz limit | 0.745 | |||||
1 GHz limit | 0.534 | |||||
500 MHz limit | 0.737 | 0.396 | ||||
350 MHz limit | 0.553 | 0.307 | ||||
250 MHz limit | 0.528 | 0.280 | ||||
200 MHz limit | 0.387 | 0.247 | ||||
20 MHz limit | 0.510 | 0.105 | ||||
Channel 2 | 100 mV/div | 5 GHz | 3.38 | |||
4 GHz limit | 2.71 | |||||
3 GHz limit | 2.28 | |||||
2.5 GHz limit | 2.03 | |||||
2 GHz limit | 1.81 | |||||
1 GHz limit | 1.33 | |||||
500 MHz limit | 1.77 | 0.941 | ||||
350 MHz limit | 1.38 | 0.792 | ||||
250 MHz limit | 1.18 | 0.722 | ||||
200 MHz limit | 0.952 | 0.666 | ||||
20 MHz limit | 1.13 | 0.236 | ||||
Channel 2 | 1 V/div | 5 GHz | 28.1 | |||
4 GHz limit | 23.1 | |||||
3 GHz limit | 19.2 | |||||
2.5 GHz limit | 17.1 | |||||
2 GHz limit | 14.9 | |||||
1 GHz limit | 10.8 | |||||
500 MHz limit | 19 | 7.92 | ||||
350 MHz limit | 14.9 | 6.14 | ||||
250 MHz limit | 13.6 | 5.6 | ||||
200 MHz limit | 11.3 | 4.94 | ||||
20 MHz limit | 11.7 | 2.11 |
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 6.25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit |
Channel 2 | 1 mV/div | 2.5 GHz limit | 0.109 | |||
2 GHz limit | 0.0996 | |||||
1 GHz limit | 0.0739 | |||||
500 MHz limit | 0.0548 | |||||
350 MHz limit | 0.0466 | |||||
250 MHz limit | 0.0435 | |||||
200 MHz limit | 0.0388 | |||||
20 MHz limit | 0.0147 | |||||
Channel 2 | 2 mV/div | 2.5 GHz limit | 0.112 | |||
2 GHz limit | 0.101 | |||||
1 GHz limit | 0.0749 | |||||
500 MHz limit | 0.0555 | |||||
350 MHz limit | 0.0473 | |||||
250 MHz limit | 0.0441 | |||||
200 MHz limit | 0.0393 | |||||
20 MHz limit | 0.0148 | |||||
Channel 2 | 5 mV/div | 2.5 GHz limit | 0.142 | |||
2 GHz limit | 0.128 | |||||
1 GHz limit | 0.0928 | |||||
500 MHz limit | 0.068 | |||||
350 MHz limit | 0.0565 | |||||
250 MHz limit | 0.0528 | |||||
200 MHz limit | 0.047 | |||||
20 MHz limit | 0.0177 | |||||
Channel 2 | 10 mV/div | 2.5 GHz limit | 0.221 | |||
2 GHz limit | 0.197 | |||||
1 GHz limit | 0.134 | |||||
500 MHz limit | 0.0974 | |||||
350 MHz limit | 0.0801 | |||||
250 MHz limit | 0.0747 | |||||
200 MHz limit | 0.0666 | |||||
20 MHz limit | 0.0256 | |||||
Channel 2 | 20 mV/div | 2.5 GHz limit | 0.398 | |||
2 GHz limit | 0.350 | |||||
1 GHz limit | 0.237 | |||||
500 MHz limit | 0.174 | |||||
350 MHz limit | 0.138 | |||||
250 MHz limit | 0.129 | |||||
200 MHz limit | 0.115 | |||||
20 MHz limit | 0.0446 | |||||
Channel 2 | 50 mV/div | 2.5 GHz limit | 0.938 | |||
2 GHz limit | 0.836 | |||||
1 GHz limit | 0.559 | |||||
500 MHz limit | 0.410 | |||||
350 MHz limit | 0.322 | |||||
250 MHz limit | 0.300 | |||||
200 MHz limit | 0.271 | |||||
20 MHz limit | 0.105 | |||||
Channel 2 | 100 mV/div | 2.5 GHz limit | 2.23 | |||
2 GHz limit | 1.99 | |||||
1 GHz limit | 1.36 | |||||
500 MHz limit | 0.985 | |||||
350 MHz limit | 0.801 | |||||
250 MHz limit | 0.747 | |||||
200 MHz limit | 0.674 | |||||
20 MHz limit | 0.256 | |||||
Channel 2 | 1 V/div | 2.5 GHz limit | 19 | |||
2 GHz limit | 16.7 | |||||
1 GHz limit | 11.1 | |||||
500 MHz limit | 8.1 | |||||
350 MHz limit | 6.36 | |||||
250 MHz limit | 5.94 | |||||
200 MHz limit | 5.35 | |||||
20 MHz limit | 2.08 |
Channel 3
Start with the highest bandwidth setting you can select.
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 3 | 1 mV/div | 5 GHz | 0.156 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.118 | |||||
2.5 GHz limit | 0.107 | |||||
2 GHz limit | 0.0974 | |||||
1 GHz limit | 0.0722 | |||||
500 MHz limit | 0.0529 | |||||
350 MHz limit | 0.045 | |||||
250 MHz limit | 0.042 | |||||
200 MHz limit | 0.0362 | |||||
20 MHz limit | 0.013 | |||||
Channel 3 | 2 mV/div | 5 GHz | 0.158 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.120 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0987 | |||||
1 GHz limit | 0.0732 | |||||
500 MHz limit | 0.0536 | |||||
350 MHz limit | 0.0457 | |||||
250 MHz limit | 0.0426 | |||||
200 MHz limit | 0.0367 | |||||
20 MHz limit | 0.0132 | |||||
Channel 3 | 5 mV/div | 5 GHz | 0.189 | |||
4 GHz limit | 0.165 | |||||
3 GHz limit | 0.142 | |||||
2.5 GHz limit | 0.128 | |||||
2 GHz limit | 0.115 | |||||
1 GHz limit | 0.0846 | |||||
500 MHz limit | 0.0613 | |||||
350 MHz limit | 0.0522 | |||||
250 MHz limit | 0.0487 | |||||
200 MHz limit | 0.0419 | |||||
20 MHz limit | 0.015 | |||||
Channel 3 | 10 mV/div | 5 GHz | 0.278 | |||
4 GHz limit | 0.242 | |||||
3 GHz limit | 0.203 | |||||
2.5 GHz limit | 0.181 | |||||
2 GHz limit | 0.163 | |||||
1 GHz limit | 0.117 | |||||
500 MHz limit | 0.0848 | |||||
350 MHz limit | 0.0705 | |||||
250 MHz limit | 0.0658 | |||||
200 MHz limit | 0.0567 | |||||
20 MHz limit | 0.0206 | |||||
Channel 3 | 20 mV/div | 5 GHz | 0.478 | |||
4 GHz limit | 0.412 | |||||
3 GHz limit | 0.346 | |||||
2.5 GHz limit | 0.309 | |||||
2 GHz limit | 0.275 | |||||
1 GHz limit | 0.195 | |||||
500 MHz limit | 0.141 | |||||
350 MHz limit | 0.116 | |||||
250 MHz limit | 0.107 | |||||
200 MHz limit | 0.0932 | |||||
20 MHz limit | 0.0342 | |||||
Channel 3 | 50 mV/div | 5 GHz | 1.09 | |||
4 GHz limit | 0.949 | |||||
3 GHz limit | 0.790 | |||||
2.5 GHz limit | 0.704 | |||||
2 GHz limit | 0.627 | |||||
1 GHz limit | 0.444 | |||||
500 MHz limit | 0.325 | |||||
350 MHz limit | 0.261 | |||||
250 MHz limit | 0.241 | |||||
200 MHz limit | 0.210 | |||||
20 MHz limit | 0.079 | |||||
Channel 3 | 100 mV/div | 5 GHz | 2.81 | |||
4 GHz limit | 2.45 | |||||
3 GHz limit | 2.06 | |||||
2.5 GHz limit | 1.83 | |||||
2 GHz limit | 1.65 | |||||
1 GHz limit | 1.17 | |||||
500 MHz limit | 0.858 | |||||
350 MHz limit | 0.705 | |||||
250 MHz limit | 0.658 | |||||
200 MHz limit | 0.573 | |||||
20 MHz limit | 0.203 | |||||
Channel 3 | 1 V/div | 5 GHz | 21.8 | |||
4 GHz limit | 18.8 | |||||
3 GHz limit | 15.8 | |||||
2.5 GHz limit | 13.9 | |||||
2 GHz limit | 12.4 | |||||
1 GHz limit | 8.78 | |||||
500 MHz limit | 6.51 | |||||
350 MHz limit | 5.11 | |||||
250 MHz limit | 4.77 | |||||
200 MHz limit | 4.15 | |||||
20 MHz limit | 1.56 |
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 12.5 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 3 | 1 mV/div | 5 GHz | 0.162 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.117 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0963 | |||||
1 GHz limit | 0.0773 | |||||
500 MHz limit | 0.262 | 0.056 | ||||
350 MHz limit | 0.190 | 0.0477 | ||||
250 MHz limit | 0.153 | 0.0461 | ||||
200 MHz limit | 0.149 | 0.0379 | ||||
20 MHz limit | 0.103 | 0.013 | ||||
Channel 3 | 2 mV/div | 5 GHz | 0.164 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.119 | |||||
2.5 GHz limit | 0.110 | |||||
2 GHz limit | 0.0976 | |||||
1 GHz limit | 0.0724 | |||||
500 MHz limit | 0.285 | 0.0562 | ||||
350 MHz limit | 0.195 | 0.0473 | ||||
250 MHz limit | 0.155 | 0.0467 | ||||
200 MHz limit | 0.153 | 0.038 | ||||
20 MHz limit | 0.103 | 0.0133 | ||||
Channel 3 | 5 mV/div | 5 GHz | 0.210 | |||
4 GHz limit | 0.175 | |||||
3 GHz limit | 0.149 | |||||
2.5 GHz limit | 0.133 | |||||
2 GHz limit | 0.118 | |||||
1 GHz limit | 0.0896 | |||||
500 MHz limit | 0.297 | 0.068 | ||||
350 MHz limit | 0.205 | 0.0565 | ||||
250 MHz limit | 0.161 | 0.054 | ||||
200 MHz limit | 0.154 | 0.0444 | ||||
20 MHz limit | 0.110 | 0.0156 | ||||
Channel 3 | 10 mV/div | 5 GHz | 0.330 | |||
4 GHz limit | 0.271 | |||||
3 GHz limit | 0.226 | |||||
2.5 GHz limit | 0.203 | |||||
2 GHz limit | 0.186 | |||||
1 GHz limit | 0.128 | |||||
500 MHz limit | 0.334 | 0.0919 | ||||
350 MHz limit | 0.231 | 0.0773 | ||||
250 MHz limit | 0.186 | 0.0747 | ||||
200 MHz limit | 0.165 | 0.0658 | ||||
20 MHz limit | 0.141 | 0.0226 | ||||
Channel 3 | 20 mV/div | 5 GHz | 0.595 | |||
4 GHz limit | 0.486 | |||||
3 GHz limit | 0.398 | |||||
2.5 GHz limit | 0.363 | |||||
2 GHz limit | 0.320 | |||||
1 GHz limit | 0.226 | |||||
500 MHz limit | 0.407 | 0.162 | ||||
350 MHz limit | 0.305 | 0.133 | ||||
250 MHz limit | 0.257 | 0.120 | ||||
200 MHz limit | 0.211 | 0.106 | ||||
20 MHz limit | 0.224 | 0.0412 | ||||
Channel 3 | 50 mV/div | 5 GHz | 1.4 | |||
4 GHz limit | 1.15 | |||||
3 GHz limit | 0.960 | |||||
2.5 GHz limit | 0.856 | |||||
2 GHz limit | 0.745 | |||||
1 GHz limit | 0.534 | |||||
500 MHz limit | 0.737 | 0.396 | ||||
350 MHz limit | 0.553 | 0.307 | ||||
250 MHz limit | 0.528 | 0.280 | ||||
200 MHz limit | 0.387 | 0.247 | ||||
20 MHz limit | 0.510 | 0.105 | ||||
Channel 3 | 100 mV/div | 5 GHz | 3.38 | |||
4 GHz limit | 2.71 | |||||
3 GHz limit | 2.28 | |||||
2.5 GHz limit | 2.03 | |||||
2 GHz limit | 1.81 | |||||
1 GHz limit | 1.33 | |||||
500 MHz limit | 1.77 | 0.941 | ||||
350 MHz limit | 1.38 | 0.792 | ||||
250 MHz limit | 1.18 | 0.722 | ||||
200 MHz limit | 0.952 | 0.666 | ||||
20 MHz limit | 1.13 | 0.236 | ||||
Channel 3 | 1 V/div | 5 GHz | 28.1 | |||
4 GHz limit | 23.1 | |||||
3 GHz limit | 19.2 | |||||
2.5 GHz limit | 17.1 | |||||
2 GHz limit | 14.9 | |||||
1 GHz limit | 10.8 | |||||
500 MHz limit | 19 | 7.92 | ||||
350 MHz limit | 14.9 | 6.14 | ||||
250 MHz limit | 13.6 | 5.6 | ||||
200 MHz limit | 11.3 | 4.94 | ||||
20 MHz limit | 11.7 | 2.11 |
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 6.25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit |
Channel 3 | 1 mV/div | 2.5 GHz limit | 0.109 | |||
2 GHz limit | 0.0996 | |||||
1 GHz limit | 0.0739 | |||||
500 MHz limit | 0.0548 | |||||
350 MHz limit | 0.0466 | |||||
250 MHz limit | 0.0435 | |||||
200 MHz limit | 0.0388 | |||||
20 MHz limit | 0.0147 | |||||
Channel 3 | 2 mV/div | 2.5 GHz limit | 0.112 | |||
2 GHz limit | 0.101 | |||||
1 GHz limit | 0.0749 | |||||
500 MHz limit | 0.0555 | |||||
350 MHz limit | 0.0473 | |||||
250 MHz limit | 0.0441 | |||||
200 MHz limit | 0.0393 | |||||
20 MHz limit | 0.0148 | |||||
Channel 3 | 5 mV/div | 2.5 GHz limit | 0.142 | |||
2 GHz limit | 0.128 | |||||
1 GHz limit | 0.0928 | |||||
500 MHz limit | 0.068 | |||||
350 MHz limit | 0.0565 | |||||
250 MHz limit | 0.0528 | |||||
200 MHz limit | 0.047 | |||||
20 MHz limit | 0.0177 | |||||
Channel 3 | 10 mV/div | 2.5 GHz limit | 0.221 | |||
2 GHz limit | 0.197 | |||||
1 GHz limit | 0.134 | |||||
500 MHz limit | 0.0974 | |||||
350 MHz limit | 0.0801 | |||||
250 MHz limit | 0.0747 | |||||
200 MHz limit | 0.0666 | |||||
20 MHz limit | 0.0256 | |||||
Channel 3 | 20 mV/div | 2.5 GHz limit | 0.398 | |||
2 GHz limit | 0.350 | |||||
1 GHz limit | 0.237 | |||||
500 MHz limit | 0.174 | |||||
350 MHz limit | 0.138 | |||||
250 MHz limit | 0.129 | |||||
200 MHz limit | 0.115 | |||||
20 MHz limit | 0.0446 | |||||
Channel 3 | 50 mV/div | 2.5 GHz limit | 0.938 | |||
2 GHz limit | 0.836 | |||||
1 GHz limit | 0.559 | |||||
500 MHz limit | 0.410 | |||||
350 MHz limit | 0.322 | |||||
250 MHz limit | 0.300 | |||||
200 MHz limit | 0.271 | |||||
20 MHz limit | 0.105 | |||||
Channel 3 | 100 mV/div | 2.5 GHz limit | 2.23 | |||
2 GHz limit | 1.99 | |||||
1 GHz limit | 1.36 | |||||
500 MHz limit | 0.985 | |||||
350 MHz limit | 0.801 | |||||
250 MHz limit | 0.747 | |||||
200 MHz limit | 0.674 | |||||
20 MHz limit | 0.256 | |||||
Channel 3 | 1 V/div | 2.5 GHz limit | 19 | |||
2 GHz limit | 16.7 | |||||
1 GHz limit | 11.1 | |||||
500 MHz limit | 8.1 | |||||
350 MHz limit | 6.36 | |||||
250 MHz limit | 5.94 | |||||
200 MHz limit | 5.35 | |||||
20 MHz limit | 2.08 |
Channel 4
Start with the highest bandwidth setting you can select.
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 4 | 1 mV/div | 5 GHz | 0.156 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.118 | |||||
2.5 GHz limit | 0.107 | |||||
2 GHz limit | 0.0974 | |||||
1 GHz limit | 0.0722 | |||||
500 MHz limit | 0.0529 | |||||
350 MHz limit | 0.045 | |||||
250 MHz limit | 0.042 | |||||
200 MHz limit | 0.0362 | |||||
20 MHz limit | 0.013 | |||||
Channel 4 | 2 mV/div | 5 GHz | 0.158 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.120 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0987 | |||||
1 GHz limit | 0.0732 | |||||
500 MHz limit | 0.0536 | |||||
350 MHz limit | 0.0457 | |||||
250 MHz limit | 0.0426 | |||||
200 MHz limit | 0.0367 | |||||
20 MHz limit | 0.0132 | |||||
Channel 4 | 5 mV/div | 5 GHz | 0.189 | |||
4 GHz limit | 0.165 | |||||
3 GHz limit | 0.142 | |||||
2.5 GHz limit | 0.128 | |||||
2 GHz limit | 0.115 | |||||
1 GHz limit | 0.0846 | |||||
500 MHz limit | 0.0613 | |||||
350 MHz limit | 0.0522 | |||||
250 MHz limit | 0.0487 | |||||
200 MHz limit | 0.0419 | |||||
20 MHz limit | 0.015 | |||||
Channel 4 | 10 mV/div | 5 GHz | 0.278 | |||
4 GHz limit | 0.242 | |||||
3 GHz limit | 0.203 | |||||
2.5 GHz limit | 0.181 | |||||
2 GHz limit | 0.163 | |||||
1 GHz limit | 0.117 | |||||
500 MHz limit | 0.0848 | |||||
350 MHz limit | 0.0705 | |||||
250 MHz limit | 0.0658 | |||||
200 MHz limit | 0.0567 | |||||
20 MHz limit | 0.0206 | |||||
Channel 4 | 20 mV/div | 5 GHz | 0.478 | |||
4 GHz limit | 0.412 | |||||
3 GHz limit | 0.346 | |||||
2.5 GHz limit | 0.309 | |||||
2 GHz limit | 0.275 | |||||
1 GHz limit | 0.195 | |||||
500 MHz limit | 0.141 | |||||
350 MHz limit | 0.116 | |||||
250 MHz limit | 0.107 | |||||
200 MHz limit | 0.0932 | |||||
20 MHz limit | 0.0342 | |||||
Channel 4 | 50 mV/div | 5 GHz | 1.09 | |||
4 GHz limit | 0.949 | |||||
3 GHz limit | 0.790 | |||||
2.5 GHz limit | 0.704 | |||||
2 GHz limit | 0.627 | |||||
1 GHz limit | 0.444 | |||||
500 MHz limit | 0.325 | |||||
350 MHz limit | 0.261 | |||||
250 MHz limit | 0.241 | |||||
200 MHz limit | 0.210 | |||||
20 MHz limit | 0.079 | |||||
Channel 4 | 100 mV/div | 5 GHz | 2.81 | |||
4 GHz limit | 2.45 | |||||
3 GHz limit | 2.06 | |||||
2.5 GHz limit | 1.83 | |||||
2 GHz limit | 1.65 | |||||
1 GHz limit | 1.17 | |||||
500 MHz limit | 0.858 | |||||
350 MHz limit | 0.705 | |||||
250 MHz limit | 0.658 | |||||
200 MHz limit | 0.573 | |||||
20 MHz limit | 0.203 | |||||
Channel 4 | 1 V/div | 5 GHz | 21.8 | |||
4 GHz limit | 18.8 | |||||
3 GHz limit | 15.8 | |||||
2.5 GHz limit | 13.9 | |||||
2 GHz limit | 12.4 | |||||
1 GHz limit | 8.78 | |||||
500 MHz limit | 6.51 | |||||
350 MHz limit | 5.11 | |||||
250 MHz limit | 4.77 | |||||
200 MHz limit | 4.15 | |||||
20 MHz limit | 1.56 |
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 12.5 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 4 | 1 mV/div | 5 GHz | 0.162 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.117 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0963 | |||||
1 GHz limit | 0.0773 | |||||
500 MHz limit | 0.262 | 0.056 | ||||
350 MHz limit | 0.190 | 0.0477 | ||||
250 MHz limit | 0.153 | 0.0461 | ||||
200 MHz limit | 0.149 | 0.0379 | ||||
20 MHz limit | 0.103 | 0.013 | ||||
Channel 4 | 2 mV/div | 5 GHz | 0.164 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.119 | |||||
2.5 GHz limit | 0.110 | |||||
2 GHz limit | 0.0976 | |||||
1 GHz limit | 0.0724 | |||||
500 MHz limit | 0.285 | 0.0562 | ||||
350 MHz limit | 0.195 | 0.0473 | ||||
250 MHz limit | 0.155 | 0.0467 | ||||
200 MHz limit | 0.153 | 0.038 | ||||
20 MHz limit | 0.103 | 0.0133 | ||||
Channel 4 | 5 mV/div | 5 GHz | 0.210 | |||
4 GHz limit | 0.175 | |||||
3 GHz limit | 0.149 | |||||
2.5 GHz limit | 0.133 | |||||
2 GHz limit | 0.118 | |||||
1 GHz limit | 0.0896 | |||||
500 MHz limit | 0.297 | 0.068 | ||||
350 MHz limit | 0.205 | 0.0565 | ||||
250 MHz limit | 0.161 | 0.054 | ||||
200 MHz limit | 0.154 | 0.0444 | ||||
20 MHz limit | 0.110 | 0.0156 | ||||
Channel 4 | 10 mV/div | 5 GHz | 0.330 | |||
4 GHz limit | 0.271 | |||||
3 GHz limit | 0.226 | |||||
2.5 GHz limit | 0.203 | |||||
2 GHz limit | 0.186 | |||||
1 GHz limit | 0.128 | |||||
500 MHz limit | 0.334 | 0.0919 | ||||
350 MHz limit | 0.231 | 0.0773 | ||||
250 MHz limit | 0.186 | 0.0747 | ||||
200 MHz limit | 0.165 | 0.0658 | ||||
20 MHz limit | 0.141 | 0.0226 | ||||
Channel 4 | 20 mV/div | 5 GHz | 0.595 | |||
4 GHz limit | 0.486 | |||||
3 GHz limit | 0.398 | |||||
2.5 GHz limit | 0.363 | |||||
2 GHz limit | 0.320 | |||||
1 GHz limit | 0.226 | |||||
500 MHz limit | 0.407 | 0.162 | ||||
350 MHz limit | 0.305 | 0.133 | ||||
250 MHz limit | 0.257 | 0.120 | ||||
200 MHz limit | 0.211 | 0.106 | ||||
20 MHz limit | 0.224 | 0.0412 | ||||
Channel 4 | 50 mV/div | 5 GHz | 1.4 | |||
4 GHz limit | 1.15 | |||||
3 GHz limit | 0.960 | |||||
2.5 GHz limit | 0.856 | |||||
2 GHz limit | 0.745 | |||||
1 GHz limit | 0.534 | |||||
500 MHz limit | 0.737 | 0.396 | ||||
350 MHz limit | 0.553 | 0.307 | ||||
250 MHz limit | 0.528 | 0.280 | ||||
200 MHz limit | 0.387 | 0.247 | ||||
20 MHz limit | 0.510 | 0.105 | ||||
Channel 4 | 100 mV/div | 5 GHz | 3.38 | |||
4 GHz limit | 2.71 | |||||
3 GHz limit | 2.28 | |||||
2.5 GHz limit | 2.03 | |||||
2 GHz limit | 1.81 | |||||
1 GHz limit | 1.33 | |||||
500 MHz limit | 1.77 | 0.941 | ||||
350 MHz limit | 1.38 | 0.792 | ||||
250 MHz limit | 1.18 | 0.722 | ||||
200 MHz limit | 0.952 | 0.666 | ||||
20 MHz limit | 1.13 | 0.236 | ||||
Channel 4 | 1 V/div | 5 GHz | 28.1 | |||
4 GHz limit | 23.1 | |||||
3 GHz limit | 19.2 | |||||
2.5 GHz limit | 17.1 | |||||
2 GHz limit | 14.9 | |||||
1 GHz limit | 10.8 | |||||
500 MHz limit | 19 | 7.92 | ||||
350 MHz limit | 14.9 | 6.14 | ||||
250 MHz limit | 13.6 | 5.6 | ||||
200 MHz limit | 11.3 | 4.94 | ||||
20 MHz limit | 11.7 | 2.11 |
Random Noise, High Res mode: All models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 6.25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit |
Channel 4 | 1 mV/div | 2.5 GHz limit | 0.109 | |||
2 GHz limit | 0.0996 | |||||
1 GHz limit | 0.0739 | |||||
500 MHz limit | 0.0548 | |||||
350 MHz limit | 0.0466 | |||||
250 MHz limit | 0.0435 | |||||
200 MHz limit | 0.0388 | |||||
20 MHz limit | 0.0147 | |||||
Channel 4 | 2 mV/div | 2.5 GHz limit | 0.112 | |||
2 GHz limit | 0.101 | |||||
1 GHz limit | 0.0749 | |||||
500 MHz limit | 0.0555 | |||||
350 MHz limit | 0.0473 | |||||
250 MHz limit | 0.0441 | |||||
200 MHz limit | 0.0393 | |||||
20 MHz limit | 0.0148 | |||||
Channel 4 | 5 mV/div | 2.5 GHz limit | 0.142 | |||
2 GHz limit | 0.128 | |||||
1 GHz limit | 0.0928 | |||||
500 MHz limit | 0.068 | |||||
350 MHz limit | 0.0565 | |||||
250 MHz limit | 0.0528 | |||||
200 MHz limit | 0.047 | |||||
20 MHz limit | 0.0177 | |||||
Channel 4 | 10 mV/div | 2.5 GHz limit | 0.221 | |||
2 GHz limit | 0.197 | |||||
1 GHz limit | 0.134 | |||||
500 MHz limit | 0.0974 | |||||
350 MHz limit | 0.0801 | |||||
250 MHz limit | 0.0747 | |||||
200 MHz limit | 0.0666 | |||||
20 MHz limit | 0.0256 | |||||
Channel 4 | 20 mV/div | 2.5 GHz limit | 0.398 | |||
2 GHz limit | 0.350 | |||||
1 GHz limit | 0.237 | |||||
500 MHz limit | 0.174 | |||||
350 MHz limit | 0.138 | |||||
250 MHz limit | 0.129 | |||||
200 MHz limit | 0.115 | |||||
20 MHz limit | 0.0446 | |||||
Channel 4 | 50 mV/div | 2.5 GHz limit | 0.938 | |||
2 GHz limit | 0.836 | |||||
1 GHz limit | 0.559 | |||||
500 MHz limit | 0.410 | |||||
350 MHz limit | 0.322 | |||||
250 MHz limit | 0.300 | |||||
200 MHz limit | 0.271 | |||||
20 MHz limit | 0.105 | |||||
Channel 4 | 100 mV/div | 2.5 GHz limit | 2.23 | |||
2 GHz limit | 1.99 | |||||
1 GHz limit | 1.36 | |||||
500 MHz limit | 0.985 | |||||
350 MHz limit | 0.801 | |||||
250 MHz limit | 0.747 | |||||
200 MHz limit | 0.674 | |||||
20 MHz limit | 0.256 | |||||
Channel 4 | 1 V/div | 2.5 GHz limit | 19 | |||
2 GHz limit | 16.7 | |||||
1 GHz limit | 11.1 | |||||
500 MHz limit | 8.1 | |||||
350 MHz limit | 6.36 | |||||
250 MHz limit | 5.94 | |||||
200 MHz limit | 5.35 | |||||
20 MHz limit | 2.08 |
Channel 5
Start with the highest bandwidth setting you can select.
Random Noise, High Res mode: 6 and 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 5 | 1 mV/div | 5 GHz | 0.156 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.118 | |||||
2.5 GHz limit | 0.107 | |||||
2 GHz limit | 0.0974 | |||||
1 GHz limit | 0.0722 | |||||
500 MHz limit | 0.0529 | |||||
350 MHz limit | 0.045 | |||||
250 MHz limit | 0.042 | |||||
200 MHz limit | 0.0362 | |||||
20 MHz limit | 0.013 | |||||
Channel 5 | 2 mV/div | 5 GHz | 0.158 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.120 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0987 | |||||
1 GHz limit | 0.0732 | |||||
500 MHz limit | 0.0536 | |||||
350 MHz limit | 0.0457 | |||||
250 MHz limit | 0.0426 | |||||
200 MHz limit | 0.0367 | |||||
20 MHz limit | 0.0132 | |||||
Channel 5 | 5 mV/div | 5 GHz | 0.189 | |||
4 GHz limit | 0.165 | |||||
3 GHz limit | 0.142 | |||||
2.5 GHz limit | 0.128 | |||||
2 GHz limit | 0.115 | |||||
1 GHz limit | 0.0846 | |||||
500 MHz limit | 0.0613 | |||||
350 MHz limit | 0.0522 | |||||
250 MHz limit | 0.0487 | |||||
200 MHz limit | 0.0419 | |||||
20 MHz limit | 0.015 | |||||
Channel 5 | 10 mV/div | 5 GHz | 0.278 | |||
4 GHz limit | 0.242 | |||||
3 GHz limit | 0.203 | |||||
2.5 GHz limit | 0.181 | |||||
2 GHz limit | 0.163 | |||||
1 GHz limit | 0.117 | |||||
500 MHz limit | 0.0848 | |||||
350 MHz limit | 0.0705 | |||||
250 MHz limit | 0.0658 | |||||
200 MHz limit | 0.0567 | |||||
20 MHz limit | 0.0206 | |||||
Channel 5 | 20 mV/div | 5 GHz | 0.478 | |||
4 GHz limit | 0.412 | |||||
3 GHz limit | 0.346 | |||||
2.5 GHz limit | 0.309 | |||||
2 GHz limit | 0.275 | |||||
1 GHz limit | 0.195 | |||||
500 MHz limit | 0.141 | |||||
350 MHz limit | 0.116 | |||||
250 MHz limit | 0.107 | |||||
200 MHz limit | 0.0932 | |||||
20 MHz limit | 0.0342 | |||||
Channel 5 | 50 mV/div | 5 GHz | 1.09 | |||
4 GHz limit | 0.949 | |||||
3 GHz limit | 0.790 | |||||
2.5 GHz limit | 0.704 | |||||
2 GHz limit | 0.627 | |||||
1 GHz limit | 0.444 | |||||
500 MHz limit | 0.325 | |||||
350 MHz limit | 0.261 | |||||
250 MHz limit | 0.241 | |||||
200 MHz limit | 0.210 | |||||
20 MHz limit | 0.079 | |||||
Channel 5 | 100 mV/div | 5 GHz | 2.81 | |||
4 GHz limit | 2.45 | |||||
3 GHz limit | 2.06 | |||||
2.5 GHz limit | 1.83 | |||||
2 GHz limit | 1.65 | |||||
1 GHz limit | 1.17 | |||||
500 MHz limit | 0.858 | |||||
350 MHz limit | 0.705 | |||||
250 MHz limit | 0.658 | |||||
200 MHz limit | 0.573 | |||||
20 MHz limit | 0.203 | |||||
Channel 5 | 1 V/div | 5 GHz | 21.8 | |||
4 GHz limit | 18.8 | |||||
3 GHz limit | 15.8 | |||||
2.5 GHz limit | 13.9 | |||||
2 GHz limit | 12.4 | |||||
1 GHz limit | 8.78 | |||||
500 MHz limit | 6.51 | |||||
350 MHz limit | 5.11 | |||||
250 MHz limit | 4.77 | |||||
200 MHz limit | 4.15 | |||||
20 MHz limit | 1.56 |
Random Noise, High Res mode: 6 and 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 12.5 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 5 | 1 mV/div | 5 GHz | 0.162 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.117 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0963 | |||||
1 GHz limit | 0.0773 | |||||
500 MHz limit | 0.262 | 0.056 | ||||
350 MHz limit | 0.190 | 0.0477 | ||||
250 MHz limit | 0.153 | 0.0461 | ||||
200 MHz limit | 0.149 | 0.0379 | ||||
20 MHz limit | 0.103 | 0.013 | ||||
Channel 5 | 2 mV/div | 5 GHz | 0.164 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.119 | |||||
2.5 GHz limit | 0.110 | |||||
2 GHz limit | 0.0976 | |||||
1 GHz limit | 0.0724 | |||||
500 MHz limit | 0.285 | 0.0562 | ||||
350 MHz limit | 0.195 | 0.0473 | ||||
250 MHz limit | 0.155 | 0.0467 | ||||
200 MHz limit | 0.153 | 0.038 | ||||
20 MHz limit | 0.103 | 0.0133 | ||||
Channel 5 | 5 mV/div | 5 GHz | 0.210 | |||
4 GHz limit | 0.175 | |||||
3 GHz limit | 0.149 | |||||
2.5 GHz limit | 0.133 | |||||
2 GHz limit | 0.118 | |||||
1 GHz limit | 0.0896 | |||||
500 MHz limit | 0.297 | 0.068 | ||||
350 MHz limit | 0.205 | 0.0565 | ||||
250 MHz limit | 0.161 | 0.054 | ||||
200 MHz limit | 0.154 | 0.0444 | ||||
20 MHz limit | 0.110 | 0.0156 | ||||
Channel 5 | 10 mV/div | 5 GHz | 0.330 | |||
4 GHz limit | 0.271 | |||||
3 GHz limit | 0.226 | |||||
2.5 GHz limit | 0.203 | |||||
2 GHz limit | 0.186 | |||||
1 GHz limit | 0.128 | |||||
500 MHz limit | 0.334 | 0.0919 | ||||
350 MHz limit | 0.231 | 0.0773 | ||||
250 MHz limit | 0.186 | 0.0747 | ||||
200 MHz limit | 0.165 | 0.0658 | ||||
20 MHz limit | 0.141 | 0.0226 | ||||
Channel 5 | 20 mV/div | 5 GHz | 0.595 | |||
4 GHz limit | 0.486 | |||||
3 GHz limit | 0.398 | |||||
2.5 GHz limit | 0.363 | |||||
2 GHz limit | 0.320 | |||||
1 GHz limit | 0.226 | |||||
500 MHz limit | 0.407 | 0.162 | ||||
350 MHz limit | 0.305 | 0.133 | ||||
250 MHz limit | 0.257 | 0.120 | ||||
200 MHz limit | 0.211 | 0.106 | ||||
20 MHz limit | 0.224 | 0.0412 | ||||
Channel 5 | 50 mV/div | 5 GHz | 1.4 | |||
4 GHz limit | 1.15 | |||||
3 GHz limit | 0.960 | |||||
2.5 GHz limit | 0.856 | |||||
2 GHz limit | 0.745 | |||||
1 GHz limit | 0.534 | |||||
500 MHz limit | 0.737 | 0.396 | ||||
350 MHz limit | 0.553 | 0.307 | ||||
250 MHz limit | 0.528 | 0.280 | ||||
200 MHz limit | 0.387 | 0.247 | ||||
20 MHz limit | 0.510 | 0.105 | ||||
Channel 5 | 100 mV/div | 5 GHz | 3.38 | |||
4 GHz limit | 2.71 | |||||
3 GHz limit | 2.28 | |||||
2.5 GHz limit | 2.03 | |||||
2 GHz limit | 1.81 | |||||
1 GHz limit | 1.33 | |||||
500 MHz limit | 1.77 | 0.941 | ||||
350 MHz limit | 1.38 | 0.792 | ||||
250 MHz limit | 1.18 | 0.722 | ||||
200 MHz limit | 0.952 | 0.666 | ||||
20 MHz limit | 1.13 | 0.236 | ||||
Channel 5 | 1 V/div | 5 GHz | 28.1 | |||
4 GHz limit | 23.1 | |||||
3 GHz limit | 19.2 | |||||
2.5 GHz limit | 17.1 | |||||
2 GHz limit | 14.9 | |||||
1 GHz limit | 10.8 | |||||
500 MHz limit | 19 | 7.92 | ||||
350 MHz limit | 14.9 | 6.14 | ||||
250 MHz limit | 13.6 | 5.6 | ||||
200 MHz limit | 11.3 | 4.94 | ||||
20 MHz limit | 11.7 | 2.11 |
Random Noise, High Res mode: 6 and 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 6.25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit |
Channel 5 | 1 mV/div | 2.5 GHz limit | 0.109 | |||
2 GHz limit | 0.0996 | |||||
1 GHz limit | 0.0739 | |||||
500 MHz limit | 0.0548 | |||||
350 MHz limit | 0.0466 | |||||
250 MHz limit | 0.0435 | |||||
200 MHz limit | 0.0388 | |||||
20 MHz limit | 0.0147 | |||||
Channel 5 | 2 mV/div | 2.5 GHz limit | 0.112 | |||
2 GHz limit | 0.101 | |||||
1 GHz limit | 0.0749 | |||||
500 MHz limit | 0.0555 | |||||
350 MHz limit | 0.0473 | |||||
250 MHz limit | 0.0441 | |||||
200 MHz limit | 0.0393 | |||||
20 MHz limit | 0.0148 | |||||
Channel 5 | 5 mV/div | 2.5 GHz limit | 0.142 | |||
2 GHz limit | 0.128 | |||||
1 GHz limit | 0.0928 | |||||
500 MHz limit | 0.068 | |||||
350 MHz limit | 0.0565 | |||||
250 MHz limit | 0.0528 | |||||
200 MHz limit | 0.047 | |||||
20 MHz limit | 0.0177 | |||||
Channel 5 | 10 mV/div | 2.5 GHz limit | 0.221 | |||
2 GHz limit | 0.197 | |||||
1 GHz limit | 0.134 | |||||
500 MHz limit | 0.0974 | |||||
350 MHz limit | 0.0801 | |||||
250 MHz limit | 0.0747 | |||||
200 MHz limit | 0.0666 | |||||
20 MHz limit | 0.0256 | |||||
Channel 5 | 20 mV/div | 2.5 GHz limit | 0.398 | |||
2 GHz limit | 0.350 | |||||
1 GHz limit | 0.237 | |||||
500 MHz limit | 0.174 | |||||
350 MHz limit | 0.138 | |||||
250 MHz limit | 0.129 | |||||
200 MHz limit | 0.115 | |||||
20 MHz limit | 0.0446 | |||||
Channel 5 | 50 mV/div | 2.5 GHz limit | 0.938 | |||
2 GHz limit | 0.836 | |||||
1 GHz limit | 0.559 | |||||
500 MHz limit | 0.410 | |||||
350 MHz limit | 0.322 | |||||
250 MHz limit | 0.300 | |||||
200 MHz limit | 0.271 | |||||
20 MHz limit | 0.105 | |||||
Channel 5 | 100 mV/div | 2.5 GHz limit | 2.23 | |||
2 GHz limit | 1.99 | |||||
1 GHz limit | 1.36 | |||||
500 MHz limit | 0.985 | |||||
350 MHz limit | 0.801 | |||||
250 MHz limit | 0.747 | |||||
200 MHz limit | 0.674 | |||||
20 MHz limit | 0.256 | |||||
Channel 5 | 1 V/div | 2.5 GHz limit | 19 | |||
2 GHz limit | 16.7 | |||||
1 GHz limit | 11.1 | |||||
500 MHz limit | 8.1 | |||||
350 MHz limit | 6.36 | |||||
250 MHz limit | 5.94 | |||||
200 MHz limit | 5.35 | |||||
20 MHz limit | 2.08 |
Channel 6
Start with the highest bandwidth setting you can select.
Random Noise, High Res mode: 6 and 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 6 | 1 mV/div | 5 GHz | 0.156 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.118 | |||||
2.5 GHz limit | 0.107 | |||||
2 GHz limit | 0.0974 | |||||
1 GHz limit | 0.0722 | |||||
500 MHz limit | 0.0529 | |||||
350 MHz limit | 0.045 | |||||
250 MHz limit | 0.042 | |||||
200 MHz limit | 0.0362 | |||||
20 MHz limit | 0.013 | |||||
Channel 6 | 2 mV/div | 5 GHz | 0.158 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.120 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0987 | |||||
1 GHz limit | 0.0732 | |||||
500 MHz limit | 0.0536 | |||||
350 MHz limit | 0.0457 | |||||
250 MHz limit | 0.0426 | |||||
200 MHz limit | 0.0367 | |||||
20 MHz limit | 0.0132 | |||||
Channel 6 | 5 mV/div | 5 GHz | 0.189 | |||
4 GHz limit | 0.165 | |||||
3 GHz limit | 0.142 | |||||
2.5 GHz limit | 0.128 | |||||
2 GHz limit | 0.115 | |||||
1 GHz limit | 0.0846 | |||||
500 MHz limit | 0.0613 | |||||
350 MHz limit | 0.0522 | |||||
250 MHz limit | 0.0487 | |||||
200 MHz limit | 0.0419 | |||||
20 MHz limit | 0.015 | |||||
Channel 6 | 10 mV/div | 5 GHz | 0.278 | |||
4 GHz limit | 0.242 | |||||
3 GHz limit | 0.203 | |||||
2.5 GHz limit | 0.181 | |||||
2 GHz limit | 0.163 | |||||
1 GHz limit | 0.117 | |||||
500 MHz limit | 0.0848 | |||||
350 MHz limit | 0.0705 | |||||
250 MHz limit | 0.0658 | |||||
200 MHz limit | 0.0567 | |||||
20 MHz limit | 0.0206 | |||||
Channel 6 | 20 mV/div | 5 GHz | 0.478 | |||
4 GHz limit | 0.412 | |||||
3 GHz limit | 0.346 | |||||
2.5 GHz limit | 0.309 | |||||
2 GHz limit | 0.275 | |||||
1 GHz limit | 0.195 | |||||
500 MHz limit | 0.141 | |||||
350 MHz limit | 0.116 | |||||
250 MHz limit | 0.107 | |||||
200 MHz limit | 0.0932 | |||||
20 MHz limit | 0.0342 | |||||
Channel 6 | 50 mV/div | 5 GHz | 1.09 | |||
4 GHz limit | 0.949 | |||||
3 GHz limit | 0.790 | |||||
2.5 GHz limit | 0.704 | |||||
2 GHz limit | 0.627 | |||||
1 GHz limit | 0.444 | |||||
500 MHz limit | 0.325 | |||||
350 MHz limit | 0.261 | |||||
250 MHz limit | 0.241 | |||||
200 MHz limit | 0.210 | |||||
20 MHz limit | 0.079 | |||||
Channel 6 | 100 mV/div | 5 GHz | 2.81 | |||
4 GHz limit | 2.45 | |||||
3 GHz limit | 2.06 | |||||
2.5 GHz limit | 1.83 | |||||
2 GHz limit | 1.65 | |||||
1 GHz limit | 1.17 | |||||
500 MHz limit | 0.858 | |||||
350 MHz limit | 0.705 | |||||
250 MHz limit | 0.658 | |||||
200 MHz limit | 0.573 | |||||
20 MHz limit | 0.203 | |||||
Channel 6 | 1 V/div | 5 GHz | 21.8 | |||
4 GHz limit | 18.8 | |||||
3 GHz limit | 15.8 | |||||
2.5 GHz limit | 13.9 | |||||
2 GHz limit | 12.4 | |||||
1 GHz limit | 8.78 | |||||
500 MHz limit | 6.51 | |||||
350 MHz limit | 5.11 | |||||
250 MHz limit | 4.77 | |||||
200 MHz limit | 4.15 | |||||
20 MHz limit | 1.56 |
Random Noise, High Res mode: 6 and 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 12.5 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 6 | 1 mV/div | 5 GHz | 0.162 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.117 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0963 | |||||
1 GHz limit | 0.0773 | |||||
500 MHz limit | 0.262 | 0.056 | ||||
350 MHz limit | 0.190 | 0.0477 | ||||
250 MHz limit | 0.153 | 0.0461 | ||||
200 MHz limit | 0.149 | 0.0379 | ||||
20 MHz limit | 0.103 | 0.013 | ||||
Channel 6 | 2 mV/div | 5 GHz | 0.164 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.119 | |||||
2.5 GHz limit | 0.110 | |||||
2 GHz limit | 0.0976 | |||||
1 GHz limit | 0.0724 | |||||
500 MHz limit | 0.285 | 0.0562 | ||||
350 MHz limit | 0.195 | 0.0473 | ||||
250 MHz limit | 0.155 | 0.0467 | ||||
200 MHz limit | 0.153 | 0.038 | ||||
20 MHz limit | 0.103 | 0.0133 | ||||
Channel 6 | 5 mV/div | 5 GHz | 0.210 | |||
4 GHz limit | 0.175 | |||||
3 GHz limit | 0.149 | |||||
2.5 GHz limit | 0.133 | |||||
2 GHz limit | 0.118 | |||||
1 GHz limit | 0.0896 | |||||
500 MHz limit | 0.297 | 0.068 | ||||
350 MHz limit | 0.205 | 0.0565 | ||||
250 MHz limit | 0.161 | 0.054 | ||||
200 MHz limit | 0.154 | 0.0444 | ||||
20 MHz limit | 0.110 | 0.0156 | ||||
Channel 6 | 10 mV/div | 5 GHz | 0.330 | |||
4 GHz limit | 0.271 | |||||
3 GHz limit | 0.226 | |||||
2.5 GHz limit | 0.203 | |||||
2 GHz limit | 0.186 | |||||
1 GHz limit | 0.128 | |||||
500 MHz limit | 0.334 | 0.0919 | ||||
350 MHz limit | 0.231 | 0.0773 | ||||
250 MHz limit | 0.186 | 0.0747 | ||||
200 MHz limit | 0.165 | 0.0658 | ||||
20 MHz limit | 0.141 | 0.0226 | ||||
Channel 6 | 20 mV/div | 5 GHz | 0.595 | |||
4 GHz limit | 0.486 | |||||
3 GHz limit | 0.398 | |||||
2.5 GHz limit | 0.363 | |||||
2 GHz limit | 0.320 | |||||
1 GHz limit | 0.226 | |||||
500 MHz limit | 0.407 | 0.162 | ||||
350 MHz limit | 0.305 | 0.133 | ||||
250 MHz limit | 0.257 | 0.120 | ||||
200 MHz limit | 0.211 | 0.106 | ||||
20 MHz limit | 0.224 | 0.0412 | ||||
Channel 6 | 50 mV/div | 5 GHz | 1.4 | |||
4 GHz limit | 1.15 | |||||
3 GHz limit | 0.960 | |||||
2.5 GHz limit | 0.856 | |||||
2 GHz limit | 0.745 | |||||
1 GHz limit | 0.534 | |||||
500 MHz limit | 0.737 | 0.396 | ||||
350 MHz limit | 0.553 | 0.307 | ||||
250 MHz limit | 0.528 | 0.280 | ||||
200 MHz limit | 0.387 | 0.247 | ||||
20 MHz limit | 0.510 | 0.105 | ||||
Channel 6 | 100 mV/div | 5 GHz | 3.38 | |||
4 GHz limit | 2.71 | |||||
3 GHz limit | 2.28 | |||||
2.5 GHz limit | 2.03 | |||||
2 GHz limit | 1.81 | |||||
1 GHz limit | 1.33 | |||||
500 MHz limit | 1.77 | 0.941 | ||||
350 MHz limit | 1.38 | 0.792 | ||||
250 MHz limit | 1.18 | 0.722 | ||||
200 MHz limit | 0.952 | 0.666 | ||||
20 MHz limit | 1.13 | 0.236 | ||||
Channel 6 | 1 V/div | 5 GHz | 28.1 | |||
4 GHz limit | 23.1 | |||||
3 GHz limit | 19.2 | |||||
2.5 GHz limit | 17.1 | |||||
2 GHz limit | 14.9 | |||||
1 GHz limit | 10.8 | |||||
500 MHz limit | 19 | 7.92 | ||||
350 MHz limit | 14.9 | 6.14 | ||||
250 MHz limit | 13.6 | 5.6 | ||||
200 MHz limit | 11.3 | 4.94 | ||||
20 MHz limit | 11.7 | 2.11 |
Random Noise, High Res mode: 6 and 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 6.25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit |
Channel 6 | 1 mV/div | 2.5 GHz limit | 0.109 | |||
2 GHz limit | 0.0996 | |||||
1 GHz limit | 0.0739 | |||||
500 MHz limit | 0.0548 | |||||
350 MHz limit | 0.0466 | |||||
250 MHz limit | 0.0435 | |||||
200 MHz limit | 0.0388 | |||||
20 MHz limit | 0.0147 | |||||
Channel 6 | 2 mV/div | 2.5 GHz limit | 0.112 | |||
2 GHz limit | 0.101 | |||||
1 GHz limit | 0.0749 | |||||
500 MHz limit | 0.0555 | |||||
350 MHz limit | 0.0473 | |||||
250 MHz limit | 0.0441 | |||||
200 MHz limit | 0.0393 | |||||
20 MHz limit | 0.0148 | |||||
Channel 6 | 5 mV/div | 2.5 GHz limit | 0.142 | |||
2 GHz limit | 0.128 | |||||
1 GHz limit | 0.0928 | |||||
500 MHz limit | 0.068 | |||||
350 MHz limit | 0.0565 | |||||
250 MHz limit | 0.0528 | |||||
200 MHz limit | 0.047 | |||||
20 MHz limit | 0.0177 | |||||
Channel 6 | 10 mV/div | 2.5 GHz limit | 0.221 | |||
2 GHz limit | 0.197 | |||||
1 GHz limit | 0.134 | |||||
500 MHz limit | 0.0974 | |||||
350 MHz limit | 0.0801 | |||||
250 MHz limit | 0.0747 | |||||
200 MHz limit | 0.0666 | |||||
20 MHz limit | 0.0256 | |||||
Channel 6 | 20 mV/div | 2.5 GHz limit | 0.398 | |||
2 GHz limit | 0.350 | |||||
1 GHz limit | 0.237 | |||||
500 MHz limit | 0.174 | |||||
350 MHz limit | 0.138 | |||||
250 MHz limit | 0.129 | |||||
200 MHz limit | 0.115 | |||||
20 MHz limit | 0.0446 | |||||
Channel 6 | 50 mV/div | 2.5 GHz limit | 0.938 | |||
2 GHz limit | 0.836 | |||||
1 GHz limit | 0.559 | |||||
500 MHz limit | 0.410 | |||||
350 MHz limit | 0.322 | |||||
250 MHz limit | 0.300 | |||||
200 MHz limit | 0.271 | |||||
20 MHz limit | 0.105 | |||||
Channel 6 | 100 mV/div | 2.5 GHz limit | 2.23 | |||
2 GHz limit | 1.99 | |||||
1 GHz limit | 1.36 | |||||
500 MHz limit | 0.985 | |||||
350 MHz limit | 0.801 | |||||
250 MHz limit | 0.747 | |||||
200 MHz limit | 0.674 | |||||
20 MHz limit | 0.256 | |||||
Channel 6 | 1 V/div | 2.5 GHz limit | 19 | |||
2 GHz limit | 16.7 | |||||
1 GHz limit | 11.1 | |||||
500 MHz limit | 8.1 | |||||
350 MHz limit | 6.36 | |||||
250 MHz limit | 5.94 | |||||
200 MHz limit | 5.35 | |||||
20 MHz limit | 2.08 |
Channel 7
Start with the highest bandwidth setting you can select.
Random Noise, High Res mode: 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 7 | 1 mV/div | 5 GHz | 0.156 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.118 | |||||
2.5 GHz limit | 0.107 | |||||
2 GHz limit | 0.0974 | |||||
1 GHz limit | 0.0722 | |||||
500 MHz limit | 0.0529 | |||||
350 MHz limit | 0.045 | |||||
250 MHz limit | 0.042 | |||||
200 MHz limit | 0.0362 | |||||
20 MHz limit | 0.013 | |||||
Channel 7 | 2 mV/div | 5 GHz | 0.158 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.120 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0987 | |||||
1 GHz limit | 0.0732 | |||||
500 MHz limit | 0.0536 | |||||
350 MHz limit | 0.0457 | |||||
250 MHz limit | 0.0426 | |||||
200 MHz limit | 0.0367 | |||||
20 MHz limit | 0.0132 | |||||
Channel 7 | 5 mV/div | 5 GHz | 0.189 | |||
4 GHz limit | 0.165 | |||||
3 GHz limit | 0.142 | |||||
2.5 GHz limit | 0.128 | |||||
2 GHz limit | 0.115 | |||||
1 GHz limit | 0.0846 | |||||
500 MHz limit | 0.0613 | |||||
350 MHz limit | 0.0522 | |||||
250 MHz limit | 0.0487 | |||||
200 MHz limit | 0.0419 | |||||
20 MHz limit | 0.015 | |||||
Channel 7 | 10 mV/div | 5 GHz | 0.278 | |||
4 GHz limit | 0.242 | |||||
3 GHz limit | 0.203 | |||||
2.5 GHz limit | 0.181 | |||||
2 GHz limit | 0.163 | |||||
1 GHz limit | 0.117 | |||||
500 MHz limit | 0.0848 | |||||
350 MHz limit | 0.0705 | |||||
250 MHz limit | 0.0658 | |||||
200 MHz limit | 0.0567 | |||||
20 MHz limit | 0.0206 | |||||
Channel 7 | 20 mV/div | 5 GHz | 0.478 | |||
4 GHz limit | 0.412 | |||||
3 GHz limit | 0.346 | |||||
2.5 GHz limit | 0.309 | |||||
2 GHz limit | 0.275 | |||||
1 GHz limit | 0.195 | |||||
500 MHz limit | 0.141 | |||||
350 MHz limit | 0.116 | |||||
250 MHz limit | 0.107 | |||||
200 MHz limit | 0.0932 | |||||
20 MHz limit | 0.0342 | |||||
Channel 7 | 50 mV/div | 5 GHz | 1.09 | |||
4 GHz limit | 0.949 | |||||
3 GHz limit | 0.790 | |||||
2.5 GHz limit | 0.704 | |||||
2 GHz limit | 0.627 | |||||
1 GHz limit | 0.444 | |||||
500 MHz limit | 0.325 | |||||
350 MHz limit | 0.261 | |||||
250 MHz limit | 0.241 | |||||
200 MHz limit | 0.210 | |||||
20 MHz limit | 0.079 | |||||
Channel 7 | 100 mV/div | 5 GHz | 2.81 | |||
4 GHz limit | 2.45 | |||||
3 GHz limit | 2.06 | |||||
2.5 GHz limit | 1.83 | |||||
2 GHz limit | 1.65 | |||||
1 GHz limit | 1.17 | |||||
500 MHz limit | 0.858 | |||||
350 MHz limit | 0.705 | |||||
250 MHz limit | 0.658 | |||||
200 MHz limit | 0.573 | |||||
20 MHz limit | 0.203 | |||||
Channel 7 | 1 V/div | 5 GHz | 21.8 | |||
4 GHz limit | 18.8 | |||||
3 GHz limit | 15.8 | |||||
2.5 GHz limit | 13.9 | |||||
2 GHz limit | 12.4 | |||||
1 GHz limit | 8.78 | |||||
500 MHz limit | 6.51 | |||||
350 MHz limit | 5.11 | |||||
250 MHz limit | 4.77 | |||||
200 MHz limit | 4.15 | |||||
20 MHz limit | 1.56 |
Random Noise, High Res mode: 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 12.5 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 7 | 1 mV/div | 5 GHz | 0.162 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.117 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0963 | |||||
1 GHz limit | 0.0773 | |||||
500 MHz limit | 0.262 | 0.056 | ||||
350 MHz limit | 0.190 | 0.0477 | ||||
250 MHz limit | 0.153 | 0.0461 | ||||
200 MHz limit | 0.149 | 0.0379 | ||||
20 MHz limit | 0.103 | 0.013 | ||||
Channel 7 | 2 mV/div | 5 GHz | 0.164 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.119 | |||||
2.5 GHz limit | 0.110 | |||||
2 GHz limit | 0.0976 | |||||
1 GHz limit | 0.0724 | |||||
500 MHz limit | 0.285 | 0.0562 | ||||
350 MHz limit | 0.195 | 0.0473 | ||||
250 MHz limit | 0.155 | 0.0467 | ||||
200 MHz limit | 0.153 | 0.038 | ||||
20 MHz limit | 0.103 | 0.0133 | ||||
Channel 7 | 5 mV/div | 5 GHz | 0.210 | |||
4 GHz limit | 0.175 | |||||
3 GHz limit | 0.149 | |||||
2.5 GHz limit | 0.133 | |||||
2 GHz limit | 0.118 | |||||
1 GHz limit | 0.0896 | |||||
500 MHz limit | 0.297 | 0.068 | ||||
350 MHz limit | 0.205 | 0.0565 | ||||
250 MHz limit | 0.161 | 0.054 | ||||
200 MHz limit | 0.154 | 0.0444 | ||||
20 MHz limit | 0.110 | 0.0156 | ||||
Channel 7 | 10 mV/div | 5 GHz | 0.330 | |||
4 GHz limit | 0.271 | |||||
3 GHz limit | 0.226 | |||||
2.5 GHz limit | 0.203 | |||||
2 GHz limit | 0.186 | |||||
1 GHz limit | 0.128 | |||||
500 MHz limit | 0.334 | 0.0919 | ||||
350 MHz limit | 0.231 | 0.0773 | ||||
250 MHz limit | 0.186 | 0.0747 | ||||
200 MHz limit | 0.165 | 0.0658 | ||||
20 MHz limit | 0.141 | 0.0226 | ||||
Channel 7 | 20 mV/div | 5 GHz | 0.595 | |||
4 GHz limit | 0.486 | |||||
3 GHz limit | 0.398 | |||||
2.5 GHz limit | 0.363 | |||||
2 GHz limit | 0.320 | |||||
1 GHz limit | 0.226 | |||||
500 MHz limit | 0.407 | 0.162 | ||||
350 MHz limit | 0.305 | 0.133 | ||||
250 MHz limit | 0.257 | 0.120 | ||||
200 MHz limit | 0.211 | 0.106 | ||||
20 MHz limit | 0.224 | 0.0412 | ||||
Channel 7 | 50 mV/div | 5 GHz | 1.4 | |||
4 GHz limit | 1.15 | |||||
3 GHz limit | 0.960 | |||||
2.5 GHz limit | 0.856 | |||||
2 GHz limit | 0.745 | |||||
1 GHz limit | 0.534 | |||||
500 MHz limit | 0.737 | 0.396 | ||||
350 MHz limit | 0.553 | 0.307 | ||||
250 MHz limit | 0.528 | 0.280 | ||||
200 MHz limit | 0.387 | 0.247 | ||||
20 MHz limit | 0.510 | 0.105 | ||||
Channel 7 | 100 mV/div | 5 GHz | 3.38 | |||
4 GHz limit | 2.71 | |||||
3 GHz limit | 2.28 | |||||
2.5 GHz limit | 2.03 | |||||
2 GHz limit | 1.81 | |||||
1 GHz limit | 1.33 | |||||
500 MHz limit | 1.77 | 0.941 | ||||
350 MHz limit | 1.38 | 0.792 | ||||
250 MHz limit | 1.18 | 0.722 | ||||
200 MHz limit | 0.952 | 0.666 | ||||
20 MHz limit | 1.13 | 0.236 | ||||
Channel 7 | 1 V/div | 5 GHz | 28.1 | |||
4 GHz limit | 23.1 | |||||
3 GHz limit | 19.2 | |||||
2.5 GHz limit | 17.1 | |||||
2 GHz limit | 14.9 | |||||
1 GHz limit | 10.8 | |||||
500 MHz limit | 19 | 7.92 | ||||
350 MHz limit | 14.9 | 6.14 | ||||
250 MHz limit | 13.6 | 5.6 | ||||
200 MHz limit | 11.3 | 4.94 | ||||
20 MHz limit | 11.7 | 2.11 |
Random Noise, High Res mode: 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 6.25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit |
Channel 7 | 1 mV/div | 2.5 GHz limit | 0.109 | |||
2 GHz limit | 0.0996 | |||||
1 GHz limit | 0.0739 | |||||
500 MHz limit | 0.0548 | |||||
350 MHz limit | 0.0466 | |||||
250 MHz limit | 0.0435 | |||||
200 MHz limit | 0.0388 | |||||
20 MHz limit | 0.0147 | |||||
Channel 7 | 2 mV/div | 2.5 GHz limit | 0.112 | |||
2 GHz limit | 0.101 | |||||
1 GHz limit | 0.0749 | |||||
500 MHz limit | 0.0555 | |||||
350 MHz limit | 0.0473 | |||||
250 MHz limit | 0.0441 | |||||
200 MHz limit | 0.0393 | |||||
20 MHz limit | 0.0148 | |||||
Channel 7 | 5 mV/div | 2.5 GHz limit | 0.142 | |||
2 GHz limit | 0.128 | |||||
1 GHz limit | 0.0928 | |||||
500 MHz limit | 0.068 | |||||
350 MHz limit | 0.0565 | |||||
250 MHz limit | 0.0528 | |||||
200 MHz limit | 0.047 | |||||
20 MHz limit | 0.0177 | |||||
Channel 7 | 10 mV/div | 2.5 GHz limit | 0.221 | |||
2 GHz limit | 0.197 | |||||
1 GHz limit | 0.134 | |||||
500 MHz limit | 0.0974 | |||||
350 MHz limit | 0.0801 | |||||
250 MHz limit | 0.0747 | |||||
200 MHz limit | 0.0666 | |||||
20 MHz limit | 0.0256 | |||||
Channel 7 | 20 mV/div | 2.5 GHz limit | 0.398 | |||
2 GHz limit | 0.350 | |||||
1 GHz limit | 0.237 | |||||
500 MHz limit | 0.174 | |||||
350 MHz limit | 0.138 | |||||
250 MHz limit | 0.129 | |||||
200 MHz limit | 0.115 | |||||
20 MHz limit | 0.0446 | |||||
Channel 7 | 50 mV/div | 2.5 GHz limit | 0.938 | |||
2 GHz limit | 0.836 | |||||
1 GHz limit | 0.559 | |||||
500 MHz limit | 0.410 | |||||
350 MHz limit | 0.322 | |||||
250 MHz limit | 0.300 | |||||
200 MHz limit | 0.271 | |||||
20 MHz limit | 0.105 | |||||
Channel 7 | 100 mV/div | 2.5 GHz limit | 2.23 | |||
2 GHz limit | 1.99 | |||||
1 GHz limit | 1.36 | |||||
500 MHz limit | 0.985 | |||||
350 MHz limit | 0.801 | |||||
250 MHz limit | 0.747 | |||||
200 MHz limit | 0.674 | |||||
20 MHz limit | 0.256 | |||||
Channel 7 | 1 V/div | 2.5 GHz limit | 19 | |||
2 GHz limit | 16.7 | |||||
1 GHz limit | 11.1 | |||||
500 MHz limit | 8.1 | |||||
350 MHz limit | 6.36 | |||||
250 MHz limit | 5.94 | |||||
200 MHz limit | 5.35 | |||||
20 MHz limit | 2.08 |
Channel 8
Start with the highest bandwidth setting you can select.
Random Noise, High Res mode: 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 8 | 1 mV/div | 5 GHz | 0.156 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.118 | |||||
2.5 GHz limit | 0.107 | |||||
2 GHz limit | 0.0974 | |||||
1 GHz limit | 0.0722 | |||||
500 MHz limit | 0.0529 | |||||
350 MHz limit | 0.045 | |||||
250 MHz limit | 0.042 | |||||
200 MHz limit | 0.0362 | |||||
20 MHz limit | 0.013 | |||||
Channel 8 | 2 mV/div | 5 GHz | 0.158 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.120 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0987 | |||||
1 GHz limit | 0.0732 | |||||
500 MHz limit | 0.0536 | |||||
350 MHz limit | 0.0457 | |||||
250 MHz limit | 0.0426 | |||||
200 MHz limit | 0.0367 | |||||
20 MHz limit | 0.0132 | |||||
Channel 8 | 5 mV/div | 5 GHz | 0.189 | |||
4 GHz limit | 0.165 | |||||
3 GHz limit | 0.142 | |||||
2.5 GHz limit | 0.128 | |||||
2 GHz limit | 0.115 | |||||
1 GHz limit | 0.0846 | |||||
500 MHz limit | 0.0613 | |||||
350 MHz limit | 0.0522 | |||||
250 MHz limit | 0.0487 | |||||
200 MHz limit | 0.0419 | |||||
20 MHz limit | 0.015 | |||||
Channel 8 | 10 mV/div | 5 GHz | 0.278 | |||
4 GHz limit | 0.242 | |||||
3 GHz limit | 0.203 | |||||
2.5 GHz limit | 0.181 | |||||
2 GHz limit | 0.163 | |||||
1 GHz limit | 0.117 | |||||
500 MHz limit | 0.0848 | |||||
350 MHz limit | 0.0705 | |||||
250 MHz limit | 0.0658 | |||||
200 MHz limit | 0.0567 | |||||
20 MHz limit | 0.0206 | |||||
Channel 8 | 20 mV/div | 5 GHz | 0.478 | |||
4 GHz limit | 0.412 | |||||
3 GHz limit | 0.346 | |||||
2.5 GHz limit | 0.309 | |||||
2 GHz limit | 0.275 | |||||
1 GHz limit | 0.195 | |||||
500 MHz limit | 0.141 | |||||
350 MHz limit | 0.116 | |||||
250 MHz limit | 0.107 | |||||
200 MHz limit | 0.0932 | |||||
20 MHz limit | 0.0342 | |||||
Channel 8 | 50 mV/div | 5 GHz | 1.09 | |||
4 GHz limit | 0.949 | |||||
3 GHz limit | 0.790 | |||||
2.5 GHz limit | 0.704 | |||||
2 GHz limit | 0.627 | |||||
1 GHz limit | 0.444 | |||||
500 MHz limit | 0.325 | |||||
350 MHz limit | 0.261 | |||||
250 MHz limit | 0.241 | |||||
200 MHz limit | 0.210 | |||||
20 MHz limit | 0.079 | |||||
Channel 8 | 100 mV/div | 5 GHz | 2.81 | |||
4 GHz limit | 2.45 | |||||
3 GHz limit | 2.06 | |||||
2.5 GHz limit | 1.83 | |||||
2 GHz limit | 1.65 | |||||
1 GHz limit | 1.17 | |||||
500 MHz limit | 0.858 | |||||
350 MHz limit | 0.705 | |||||
250 MHz limit | 0.658 | |||||
200 MHz limit | 0.573 | |||||
20 MHz limit | 0.203 | |||||
Channel 8 | 1 V/div | 5 GHz | 21.8 | |||
4 GHz limit | 18.8 | |||||
3 GHz limit | 15.8 | |||||
2.5 GHz limit | 13.9 | |||||
2 GHz limit | 12.4 | |||||
1 GHz limit | 8.78 | |||||
500 MHz limit | 6.51 | |||||
350 MHz limit | 5.11 | |||||
250 MHz limit | 4.77 | |||||
200 MHz limit | 4.15 | |||||
20 MHz limit | 1.56 |
Random Noise, High Res mode: 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 12.5 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit (mV) |
Channel 8 | 1 mV/div | 5 GHz | 0.162 | |||
4 GHz limit | 0.138 | |||||
3 GHz limit | 0.117 | |||||
2.5 GHz limit | 0.108 | |||||
2 GHz limit | 0.0963 | |||||
1 GHz limit | 0.0773 | |||||
500 MHz limit | 0.262 | 0.056 | ||||
350 MHz limit | 0.190 | 0.0477 | ||||
250 MHz limit | 0.153 | 0.0461 | ||||
200 MHz limit | 0.149 | 0.0379 | ||||
20 MHz limit | 0.103 | 0.013 | ||||
Channel 8 | 2 mV/div | 5 GHz | 0.164 | |||
4 GHz limit | 0.139 | |||||
3 GHz limit | 0.119 | |||||
2.5 GHz limit | 0.110 | |||||
2 GHz limit | 0.0976 | |||||
1 GHz limit | 0.0724 | |||||
500 MHz limit | 0.285 | 0.0562 | ||||
350 MHz limit | 0.195 | 0.0473 | ||||
250 MHz limit | 0.155 | 0.0467 | ||||
200 MHz limit | 0.153 | 0.038 | ||||
20 MHz limit | 0.103 | 0.0133 | ||||
Channel 8 | 5 mV/div | 5 GHz | 0.210 | |||
4 GHz limit | 0.175 | |||||
3 GHz limit | 0.149 | |||||
2.5 GHz limit | 0.133 | |||||
2 GHz limit | 0.118 | |||||
1 GHz limit | 0.0896 | |||||
500 MHz limit | 0.297 | 0.068 | ||||
350 MHz limit | 0.205 | 0.0565 | ||||
250 MHz limit | 0.161 | 0.054 | ||||
200 MHz limit | 0.154 | 0.0444 | ||||
20 MHz limit | 0.110 | 0.0156 | ||||
Channel 8 | 10 mV/div | 5 GHz | 0.330 | |||
4 GHz limit | 0.271 | |||||
3 GHz limit | 0.226 | |||||
2.5 GHz limit | 0.203 | |||||
2 GHz limit | 0.186 | |||||
1 GHz limit | 0.128 | |||||
500 MHz limit | 0.334 | 0.0919 | ||||
350 MHz limit | 0.231 | 0.0773 | ||||
250 MHz limit | 0.186 | 0.0747 | ||||
200 MHz limit | 0.165 | 0.0658 | ||||
20 MHz limit | 0.141 | 0.0226 | ||||
Channel 8 | 20 mV/div | 5 GHz | 0.595 | |||
4 GHz limit | 0.486 | |||||
3 GHz limit | 0.398 | |||||
2.5 GHz limit | 0.363 | |||||
2 GHz limit | 0.320 | |||||
1 GHz limit | 0.226 | |||||
500 MHz limit | 0.407 | 0.162 | ||||
350 MHz limit | 0.305 | 0.133 | ||||
250 MHz limit | 0.257 | 0.120 | ||||
200 MHz limit | 0.211 | 0.106 | ||||
20 MHz limit | 0.224 | 0.0412 | ||||
Channel 8 | 50 mV/div | 5 GHz | 1.4 | |||
4 GHz limit | 1.15 | |||||
3 GHz limit | 0.960 | |||||
2.5 GHz limit | 0.856 | |||||
2 GHz limit | 0.745 | |||||
1 GHz limit | 0.534 | |||||
500 MHz limit | 0.737 | 0.396 | ||||
350 MHz limit | 0.553 | 0.307 | ||||
250 MHz limit | 0.528 | 0.280 | ||||
200 MHz limit | 0.387 | 0.247 | ||||
20 MHz limit | 0.510 | 0.105 | ||||
Channel 8 | 100 mV/div | 5 GHz | 3.38 | |||
4 GHz limit | 2.71 | |||||
3 GHz limit | 2.28 | |||||
2.5 GHz limit | 2.03 | |||||
2 GHz limit | 1.81 | |||||
1 GHz limit | 1.33 | |||||
500 MHz limit | 1.77 | 0.941 | ||||
350 MHz limit | 1.38 | 0.792 | ||||
250 MHz limit | 1.18 | 0.722 | ||||
200 MHz limit | 0.952 | 0.666 | ||||
20 MHz limit | 1.13 | 0.236 | ||||
Channel 8 | 1 V/div | 5 GHz | 28.1 | |||
4 GHz limit | 23.1 | |||||
3 GHz limit | 19.2 | |||||
2.5 GHz limit | 17.1 | |||||
2 GHz limit | 14.9 | |||||
1 GHz limit | 10.8 | |||||
500 MHz limit | 19 | 7.92 | ||||
350 MHz limit | 14.9 | 6.14 | ||||
250 MHz limit | 13.6 | 5.6 | ||||
200 MHz limit | 11.3 | 4.94 | ||||
20 MHz limit | 11.7 | 2.11 |
Random Noise, High Res mode: 8 channel models | ||||||
---|---|---|---|---|---|---|
Performance checks | 1 MΩ | 50 Ω, 6.25 GS/s | ||||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) | Test result (mV) | High limit |
Channel 8 | 1 mV/div | 2.5 GHz limit | 0.109 | |||
2 GHz limit | 0.0996 | |||||
1 GHz limit | 0.0739 | |||||
500 MHz limit | 0.0548 | |||||
350 MHz limit | 0.0466 | |||||
250 MHz limit | 0.0435 | |||||
200 MHz limit | 0.0388 | |||||
20 MHz limit | 0.0147 | |||||
Channel 8 | 2 mV/div | 2.5 GHz limit | 0.112 | |||
2 GHz limit | 0.101 | |||||
1 GHz limit | 0.0749 | |||||
500 MHz limit | 0.0555 | |||||
350 MHz limit | 0.0473 | |||||
250 MHz limit | 0.0441 | |||||
200 MHz limit | 0.0393 | |||||
20 MHz limit | 0.0148 | |||||
Channel 8 | 5 mV/div | 2.5 GHz limit | 0.142 | |||
2 GHz limit | 0.128 | |||||
1 GHz limit | 0.0928 | |||||
500 MHz limit | 0.068 | |||||
350 MHz limit | 0.0565 | |||||
250 MHz limit | 0.0528 | |||||
200 MHz limit | 0.047 | |||||
20 MHz limit | 0.0177 | |||||
Channel 8 | 10 mV/div | 2.5 GHz limit | 0.221 | |||
2 GHz limit | 0.197 | |||||
1 GHz limit | 0.134 | |||||
500 MHz limit | 0.0974 | |||||
350 MHz limit | 0.0801 | |||||
250 MHz limit | 0.0747 | |||||
200 MHz limit | 0.0666 | |||||
20 MHz limit | 0.0256 | |||||
Channel 8 | 20 mV/div | 2.5 GHz limit | 0.398 | |||
2 GHz limit | 0.350 | |||||
1 GHz limit | 0.237 | |||||
500 MHz limit | 0.174 | |||||
350 MHz limit | 0.138 | |||||
250 MHz limit | 0.129 | |||||
200 MHz limit | 0.115 | |||||
20 MHz limit | 0.0446 | |||||
Channel 8 | 50 mV/div | 2.5 GHz limit | 0.938 | |||
2 GHz limit | 0.836 | |||||
1 GHz limit | 0.559 | |||||
500 MHz limit | 0.410 | |||||
350 MHz limit | 0.322 | |||||
250 MHz limit | 0.300 | |||||
200 MHz limit | 0.271 | |||||
20 MHz limit | 0.105 | |||||
Channel 8 | 100 mV/div | 2.5 GHz limit | 2.23 | |||
2 GHz limit | 1.99 | |||||
1 GHz limit | 1.36 | |||||
500 MHz limit | 0.985 | |||||
350 MHz limit | 0.801 | |||||
250 MHz limit | 0.747 | |||||
200 MHz limit | 0.674 | |||||
20 MHz limit | 0.256 | |||||
Channel 8 | 1 V/div | 2.5 GHz limit | 19 | |||
2 GHz limit | 16.7 | |||||
1 GHz limit | 11.1 | |||||
500 MHz limit | 8.1 | |||||
350 MHz limit | 6.36 | |||||
250 MHz limit | 5.94 | |||||
200 MHz limit | 5.35 | |||||
20 MHz limit | 2.08 |
High Offset AC RMS Noise, sample acquisition mode test record
Start with the highest bandwidth setting you can select.
High Offset AC RMS Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 1 | 1 mV/div | 8 GHz | 0.223 | |
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 8 GHz | 0.224 | ||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 8 GHz | 0.293 | ||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 8 GHz | 0.482 | ||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
20 mV/div | 8 GHz | 0.890 | ||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 8 GHz | 2.10 | ||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 8 GHz | 4.88 | ||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 8 GHz | 42.0 | ||
7 GHz limit | 37.0 | |||
6 GHz limit | 33.4 |
High Offset AC RMS Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 2 | 1 mV/div | 8 GHz | 0.223 | |
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 8 GHz | 0.224 | ||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 8 GHz | 0.293 | ||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 8 GHz | 0.482 | ||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
20 mV/div | 8 GHz | 0.890 | ||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 8 GHz | 2.10 | ||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 8 GHz | 4.88 | ||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 8 GHz | 42.0 | ||
7 GHz limit | 37.0 | |||
6 GHz limit | 33.4 |
High Offset AC RMS Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 3 | 1 mV/div | 8 GHz | 0.223 | |
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 8 GHz | 0.224 | ||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 8 GHz | 0.293 | ||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 8 GHz | 0.482 | ||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
20 mV/div | 8 GHz | 0.890 | ||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 8 GHz | 2.10 | ||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 8 GHz | 4.88 | ||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 8 GHz | 42.0 | ||
7 GHz limit | 37.0 | |||
6 GHz limit | 33.4 |
High Offset AC RMS Noise, sample acquisition mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 4 | 1 mV/div | 8 GHz | 0.223 | |
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 8 GHz | 0.224 | ||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 8 GHz | 0.293 | ||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 8 GHz | 0.482 | ||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
20 mV/div | 8 GHz | 0.890 | ||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 8 GHz | 2.10 | ||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 8 GHz | 4.88 | ||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 8 GHz | 42.0 | ||
7 GHz limit | 37.0 | |||
6 GHz limit | 33.4 |
High Offset AC RMS Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 5 | 1 mV/div | 8 GHz | 0.223 | |
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 8 GHz | 0.224 | ||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 8 GHz | 0.293 | ||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 8 GHz | 0.482 | ||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
20 mV/div | 8 GHz | 0.890 | ||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 8 GHz | 2.10 | ||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 8 GHz | 4.88 | ||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 8 GHz | 42.0 | ||
7 GHz limit | 37.0 | |||
6 GHz limit | 33.4 |
High Offset AC RMS Noise, sample acquisition mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 6 | 1 mV/div | 8 GHz | 0.223 | |
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 8 GHz | 0.224 | ||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 8 GHz | 0.293 | ||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 8 GHz | 0.482 | ||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
20 mV/div | 8 GHz | 0.890 | ||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 8 GHz | 2.10 | ||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 8 GHz | 4.88 | ||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 8 GHz | 42.0 | ||
7 GHz limit | 37.0 | |||
6 GHz limit | 33.4 |
High Offset AC RMS Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 7 | 1 mV/div | 8 GHz | 0.223 | |
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 8 GHz | 0.224 | ||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 8 GHz | 0.293 | ||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 8 GHz | 0.482 | ||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
20 mV/div | 8 GHz | 0.890 | ||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 8 GHz | 2.10 | ||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 8 GHz | 4.88 | ||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 8 GHz | 42.0 | ||
7 GHz limit | 37.0 | |||
6 GHz limit | 33.4 |
High Offset AC RMS Noise, sample acquisition mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 8 | 1 mV/div | 8 GHz | 0.223 | |
7 GHz limit | 0.199 | |||
6 GHz limit | 0.179 | |||
2 mV/div | 8 GHz | 0.224 | ||
7 GHz limit | 0.202 | |||
6 GHz limit | 0.180 | |||
5 mV/div | 8 GHz | 0.293 | ||
7 GHz limit | 0.271 | |||
6 GHz limit | 0.233 | |||
10 mV/div | 8 GHz | 0.482 | ||
7 GHz limit | 0.440 | |||
6 GHz limit | 0.388 | |||
20 mV/div | 8 GHz | 0.890 | ||
7 GHz limit | 0.793 | |||
6 GHz limit | 0.691 | |||
50 mV/div | 8 GHz | 2.10 | ||
7 GHz limit | 1.85 | |||
6 GHz limit | 1.67 | |||
100 mV/div | 8 GHz | 4.88 | ||
7 GHz limit | 4.4 | |||
6 GHz limit | 3.83 | |||
1 V/div | 8 GHz | 42.0 | ||
7 GHz limit | 37.0 | |||
6 GHz limit | 33.4 |
High Offset AC RMS Noise, High Res mode test record
Channel 1
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 1 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz limit | 0.138 | |||
3 GHz limit | 0.117 | |||
2 GHz limit | 0.0963 | |||
1 GHz limit | 0.0773 | |||
500 MHz limit | 0.056 | |||
350 MHz limit | 0.0477 | |||
250 M GHz limit | 0.0461 | |||
200 MHz limit | 0.0379 | |||
20 MHz limit | 0.025 | |||
2 mV/div | 5 GHz | 0.164 | ||
4 GHz limit | 0.139 | |||
3 GHz limit | 0.119 | |||
2 GHz limit | 0.0976 | |||
1 GHz limit | 0.0724 | |||
500 MHz limit | 0.562 | |||
350 MHz limit | 0.0473 | |||
250 M GHz limit | 0.0467 | |||
200 MHz limit | 0.038 | |||
20 MHz limit | 0.025 | |||
5 mV/div | 5 GHz | 0.210 | ||
4 GHz limit | 0.175 | |||
3 GHz limit | 0.149 | |||
2 GHz limit | 0.118 | |||
1 GHz limit | 0.110 | |||
500 MHz limit | 0.100 | |||
350 MHz limit | 0.092 | |||
250 M GHz limit | 0.090 | |||
200 MHz limit | 0.080 | |||
20 MHz limit | 0.075 |
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 1 | 10 mV/div | 5 GHz | 0.330 | |
4 GHz limit | 0.271 | |||
3 GHz limit | 0.226 | |||
2 GHz limit | 0.212 | |||
1 GHz limit | 0.190 | |||
500 MHz limit | 0.182 | |||
350 MHz limit | 0.165 | |||
250 M GHz limit | 0.145 | |||
200 MHz limit | 0.120 | |||
20 MHz limit | 0.115 | |||
20 mV/div | 5 GHz | 0.595 | ||
4 GHz limit | 0.486 | |||
3 GHz limit | 0.475 | |||
2 GHz limit | 0.450 | |||
1 GHz limit | 0.425 | |||
500 MHz limit | 0.400 | |||
350 MHz limit | 0.385 | |||
250 M GHz limit | 0.325 | |||
200 MHz limit | 0.320 | |||
20 MHz limit | 0.310 | |||
50 mV/div | 5 GHz | 1.4 | ||
4 GHz limit | 1.15 | |||
3 GHz limit | 0.975 | |||
2 GHz limit | 0.920 | |||
1 GHz limit | 0.900 | |||
500 MHz limit | 0.840 | |||
350 MHz limit | 0.770 | |||
250 M GHz limit | 0.675 | |||
200 MHz limit | 0.660 | |||
20 MHz limit | 0.560 |
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 1 | 100 mV/div | 5 GHz | 3.38 | |
4 GHz limit | 2.71 | |||
3 GHz limit | 2.28 | |||
2 GHz limit | 2.10 | |||
1 GHz limit | 1.78 | |||
500 MHz limit | 1.74 | |||
350 MHz limit | 1.70 | |||
250 M GHz limit | 1.50 | |||
200 MHz limit | 1.45 | |||
20 MHz limit | 1.40 | |||
1 V/div | 5 GHz | 28.1 | ||
4 GHz limit | 23.1 | |||
3 GHz limit | 21.4 | |||
2 GHz limit | 21.0 | |||
1 GHz limit | 19.2 | |||
500 MHz limit | 16.8 | |||
350 MHz limit | 16.1 | |||
250 M GHz limit | 15.8 | |||
200 MHz limit | 15.2 | |||
20 MHz limit | 13.0 |
Channel 2
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 2 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz limit | 0.138 | |||
3 GHz limit | 0.117 | |||
2 GHz limit | 0.0963 | |||
1 GHz limit | 0.0773 | |||
500 MHz limit | 0.056 | |||
350 MHz limit | 0.0477 | |||
250 M GHz limit | 0.0461 | |||
200 MHz limit | 0.0379 | |||
20 MHz limit | 0.025 | |||
2 mV/div | 5 GHz | 0.164 | ||
4 GHz limit | 0.139 | |||
3 GHz limit | 0.119 | |||
2 GHz limit | 0.0976 | |||
1 GHz limit | 0.0724 | |||
500 MHz limit | 0.562 | |||
350 MHz limit | 0.0473 | |||
250 M GHz limit | 0.0467 | |||
200 MHz limit | 0.038 | |||
20 MHz limit | 0.025 | |||
5 mV/div | 5 GHz | 0.210 | ||
4 GHz limit | 0.175 | |||
3 GHz limit | 0.149 | |||
2 GHz limit | 0.118 | |||
1 GHz limit | 0.110 | |||
500 MHz limit | 0.100 | |||
350 MHz limit | 0.092 | |||
250 M GHz limit | 0.090 | |||
200 MHz limit | 0.080 | |||
20 MHz limit | 0.075 |
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 2 | 10 mV/div | 5 GHz | 0.330 | |
4 GHz limit | 0.271 | |||
3 GHz limit | 0.226 | |||
2 GHz limit | 0.212 | |||
1 GHz limit | 0.190 | |||
500 MHz limit | 0.182 | |||
350 MHz limit | 0.165 | |||
250 M GHz limit | 0.145 | |||
200 MHz limit | 0.120 | |||
20 MHz limit | 0.115 | |||
20 mV/div | 5 GHz | 0.595 | ||
4 GHz limit | 0.486 | |||
3 GHz limit | 0.475 | |||
2 GHz limit | 0.450 | |||
1 GHz limit | 0.425 | |||
500 MHz limit | 0.400 | |||
350 MHz limit | 0.385 | |||
250 M GHz limit | 0.325 | |||
200 MHz limit | 0.320 | |||
20 MHz limit | 0.310 | |||
50 mV/div | 5 GHz | 1.4 | ||
4 GHz limit | 1.15 | |||
3 GHz limit | 0.975 | |||
2 GHz limit | 0.920 | |||
1 GHz limit | 0.900 | |||
500 MHz limit | 0.840 | |||
350 MHz limit | 0.770 | |||
250 M GHz limit | 0.675 | |||
200 MHz limit | 0.660 | |||
20 MHz limit | 0.560 |
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 2 | 100 mV/div | 5 GHz | 3.38 | |
4 GHz limit | 2.71 | |||
3 GHz limit | 2.28 | |||
2 GHz limit | 2.10 | |||
1 GHz limit | 1.78 | |||
500 MHz limit | 1.74 | |||
350 MHz limit | 1.70 | |||
250 M GHz limit | 1.50 | |||
200 MHz limit | 1.45 | |||
20 MHz limit | 1.40 | |||
1 V/div | 5 GHz | 28.1 | ||
4 GHz limit | 23.1 | |||
3 GHz limit | 21.4 | |||
2 GHz limit | 21.0 | |||
1 GHz limit | 19.2 | |||
500 MHz limit | 16.8 | |||
350 MHz limit | 16.1 | |||
250 M GHz limit | 15.8 | |||
200 MHz limit | 15.2 | |||
20 MHz limit | 13.0 |
Channel 3
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 3 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz limit | 0.138 | |||
3 GHz limit | 0.117 | |||
2 GHz limit | 0.0963 | |||
1 GHz limit | 0.0773 | |||
500 MHz limit | 0.056 | |||
350 MHz limit | 0.0477 | |||
250 M GHz limit | 0.0461 | |||
200 MHz limit | 0.0379 | |||
20 MHz limit | 0.025 | |||
2 mV/div | 5 GHz | 0.164 | ||
4 GHz limit | 0.139 | |||
3 GHz limit | 0.119 | |||
2 GHz limit | 0.0976 | |||
1 GHz limit | 0.0724 | |||
500 MHz limit | 0.562 | |||
350 MHz limit | 0.0473 | |||
250 M GHz limit | 0.0467 | |||
200 MHz limit | 0.038 | |||
20 MHz limit | 0.025 | |||
5 mV/div | 5 GHz | 0.210 | ||
4 GHz limit | 0.175 | |||
3 GHz limit | 0.149 | |||
2 GHz limit | 0.118 | |||
1 GHz limit | 0.110 | |||
500 MHz limit | 0.100 | |||
350 MHz limit | 0.092 | |||
250 M GHz limit | 0.090 | |||
200 MHz limit | 0.080 | |||
20 MHz limit | 0.075 |
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 3 | 10 mV/div | 5 GHz | 0.330 | |
4 GHz limit | 0.271 | |||
3 GHz limit | 0.226 | |||
2 GHz limit | 0.212 | |||
1 GHz limit | 0.190 | |||
500 MHz limit | 0.182 | |||
350 MHz limit | 0.165 | |||
250 M GHz limit | 0.145 | |||
200 MHz limit | 0.120 | |||
20 MHz limit | 0.115 | |||
20 mV/div | 5 GHz | 0.595 | ||
4 GHz limit | 0.486 | |||
3 GHz limit | 0.475 | |||
2 GHz limit | 0.450 | |||
1 GHz limit | 0.425 | |||
500 MHz limit | 0.400 | |||
350 MHz limit | 0.385 | |||
250 M GHz limit | 0.325 | |||
200 MHz limit | 0.320 | |||
20 MHz limit | 0.310 | |||
50 mV/div | 5 GHz | 1.4 | ||
4 GHz limit | 1.15 | |||
3 GHz limit | 0.975 | |||
2 GHz limit | 0.920 | |||
1 GHz limit | 0.900 | |||
500 MHz limit | 0.840 | |||
350 MHz limit | 0.770 | |||
250 M GHz limit | 0.675 | |||
200 MHz limit | 0.660 | |||
20 MHz limit | 0.560 |
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 3 | 100 mV/div | 5 GHz | 3.38 | |
4 GHz limit | 2.71 | |||
3 GHz limit | 2.28 | |||
2 GHz limit | 2.10 | |||
1 GHz limit | 1.78 | |||
500 MHz limit | 1.74 | |||
350 MHz limit | 1.70 | |||
250 M GHz limit | 1.50 | |||
200 MHz limit | 1.45 | |||
20 MHz limit | 1.40 | |||
1 V/div | 5 GHz | 28.1 | ||
4 GHz limit | 23.1 | |||
3 GHz limit | 21.4 | |||
2 GHz limit | 21.0 | |||
1 GHz limit | 19.2 | |||
500 MHz limit | 16.8 | |||
350 MHz limit | 16.1 | |||
250 M GHz limit | 15.8 | |||
200 MHz limit | 15.2 | |||
20 MHz limit | 13.0 |
Channel 4
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 4 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz limit | 0.138 | |||
3 GHz limit | 0.117 | |||
2 GHz limit | 0.0963 | |||
1 GHz limit | 0.0773 | |||
500 MHz limit | 0.056 | |||
350 MHz limit | 0.0477 | |||
250 M GHz limit | 0.0461 | |||
200 MHz limit | 0.0379 | |||
20 MHz limit | 0.025 | |||
2 mV/div | 5 GHz | 0.164 | ||
4 GHz limit | 0.139 | |||
3 GHz limit | 0.119 | |||
2 GHz limit | 0.0976 | |||
1 GHz limit | 0.0724 | |||
500 MHz limit | 0.562 | |||
350 MHz limit | 0.0473 | |||
250 M GHz limit | 0.0467 | |||
200 MHz limit | 0.038 | |||
20 MHz limit | 0.025 | |||
5 mV/div | 5 GHz | 0.210 | ||
4 GHz limit | 0.175 | |||
3 GHz limit | 0.149 | |||
2 GHz limit | 0.118 | |||
1 GHz limit | 0.110 | |||
500 MHz limit | 0.100 | |||
350 MHz limit | 0.092 | |||
250 M GHz limit | 0.090 | |||
200 MHz limit | 0.080 | |||
20 MHz limit | 0.075 |
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 4 | 10 mV/div | 5 GHz | 0.330 | |
4 GHz limit | 0.271 | |||
3 GHz limit | 0.226 | |||
2 GHz limit | 0.212 | |||
1 GHz limit | 0.190 | |||
500 MHz limit | 0.182 | |||
350 MHz limit | 0.165 | |||
250 M GHz limit | 0.145 | |||
200 MHz limit | 0.120 | |||
20 MHz limit | 0.115 | |||
20 mV/div | 5 GHz | 0.595 | ||
4 GHz limit | 0.486 | |||
3 GHz limit | 0.475 | |||
2 GHz limit | 0.450 | |||
1 GHz limit | 0.425 | |||
500 MHz limit | 0.400 | |||
350 MHz limit | 0.385 | |||
250 M GHz limit | 0.325 | |||
200 MHz limit | 0.320 | |||
20 MHz limit | 0.310 | |||
50 mV/div | 5 GHz | 1.4 | ||
4 GHz limit | 1.15 | |||
3 GHz limit | 0.975 | |||
2 GHz limit | 0.920 | |||
1 GHz limit | 0.900 | |||
500 MHz limit | 0.840 | |||
350 MHz limit | 0.770 | |||
250 M GHz limit | 0.675 | |||
200 MHz limit | 0.660 | |||
20 MHz limit | 0.560 |
Random Noise, High Res mode: All models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 4 | 100 mV/div | 5 GHz | 3.38 | |
4 GHz limit | 2.71 | |||
3 GHz limit | 2.28 | |||
2 GHz limit | 2.10 | |||
1 GHz limit | 1.78 | |||
500 MHz limit | 1.74 | |||
350 MHz limit | 1.70 | |||
250 M GHz limit | 1.50 | |||
200 MHz limit | 1.45 | |||
20 MHz limit | 1.40 | |||
1 V/div | 5 GHz | 28.1 | ||
4 GHz limit | 23.1 | |||
3 GHz limit | 21.4 | |||
2 GHz limit | 21.0 | |||
1 GHz limit | 19.2 | |||
500 MHz limit | 16.8 | |||
350 MHz limit | 16.1 | |||
250 M GHz limit | 15.8 | |||
200 MHz limit | 15.2 | |||
20 MHz limit | 13.0 |
Channel 5
Random Noise, High Res mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 5 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz limit | 0.138 | |||
3 GHz limit | 0.117 | |||
2 GHz limit | 0.0963 | |||
1 GHz limit | 0.0773 | |||
500 MHz limit | 0.056 | |||
350 MHz limit | 0.0477 | |||
250 M GHz limit | 0.0461 | |||
200 MHz limit | 0.0379 | |||
20 MHz limit | 0.025 | |||
2 mV/div | 5 GHz | 0.164 | ||
4 GHz limit | 0.139 | |||
3 GHz limit | 0.119 | |||
2 GHz limit | 0.0976 | |||
1 GHz limit | 0.0724 | |||
500 MHz limit | 0.562 | |||
350 MHz limit | 0.0473 | |||
250 M GHz limit | 0.0467 | |||
200 MHz limit | 0.038 | |||
20 MHz limit | 0.025 | |||
5 mV/div | 5 GHz | 0.210 | ||
4 GHz limit | 0.175 | |||
3 GHz limit | 0.149 | |||
2 GHz limit | 0.118 | |||
1 GHz limit | 0.110 | |||
500 MHz limit | 0.100 | |||
350 MHz limit | 0.092 | |||
250 M GHz limit | 0.090 | |||
200 MHz limit | 0.080 | |||
20 MHz limit | 0.075 |
Random Noise, High Res mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 5 | 10 mV/div | 5 GHz | 0.330 | |
4 GHz limit | 0.271 | |||
3 GHz limit | 0.226 | |||
2 GHz limit | 0.212 | |||
1 GHz limit | 0.190 | |||
500 MHz limit | 0.182 | |||
350 MHz limit | 0.165 | |||
250 M GHz limit | 0.145 | |||
200 MHz limit | 0.120 | |||
20 MHz limit | 0.115 | |||
20 mV/div | 5 GHz | 0.595 | ||
4 GHz limit | 0.486 | |||
3 GHz limit | 0.475 | |||
2 GHz limit | 0.450 | |||
1 GHz limit | 0.425 | |||
500 MHz limit | 0.400 | |||
350 MHz limit | 0.385 | |||
250 M GHz limit | 0.325 | |||
200 MHz limit | 0.320 | |||
20 MHz limit | 0.310 | |||
50 mV/div | 5 GHz | 1.4 | ||
4 GHz limit | 1.15 | |||
3 GHz limit | 0.975 | |||
2 GHz limit | 0.920 | |||
1 GHz limit | 0.900 | |||
500 MHz limit | 0.840 | |||
350 MHz limit | 0.770 | |||
250 M GHz limit | 0.675 | |||
200 MHz limit | 0.660 | |||
20 MHz limit | 0.560 |
Random Noise, High Res mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 5 | 100 mV/div | 5 GHz | 3.38 | |
4 GHz limit | 2.71 | |||
3 GHz limit | 2.28 | |||
2 GHz limit | 2.10 | |||
1 GHz limit | 1.78 | |||
500 MHz limit | 1.74 | |||
350 MHz limit | 1.70 | |||
250 M GHz limit | 1.50 | |||
200 MHz limit | 1.45 | |||
20 MHz limit | 1.40 | |||
1 V/div | 5 GHz | 28.1 | ||
4 GHz limit | 23.1 | |||
3 GHz limit | 21.4 | |||
2 GHz limit | 21.0 | |||
1 GHz limit | 19.2 | |||
500 MHz limit | 16.8 | |||
350 MHz limit | 16.1 | |||
250 M GHz limit | 15.8 | |||
200 MHz limit | 15.2 | |||
20 MHz limit | 13.0 |
Channel 6
Random Noise, High Res mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 6 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz limit | 0.138 | |||
3 GHz limit | 0.117 | |||
2 GHz limit | 0.0963 | |||
1 GHz limit | 0.0773 | |||
500 MHz limit | 0.056 | |||
350 MHz limit | 0.0477 | |||
250 M GHz limit | 0.0461 | |||
200 MHz limit | 0.0379 | |||
20 MHz limit | 0.025 | |||
2 mV/div | 5 GHz | 0.164 | ||
4 GHz limit | 0.139 | |||
3 GHz limit | 0.119 | |||
2 GHz limit | 0.0976 | |||
1 GHz limit | 0.0724 | |||
500 MHz limit | 0.562 | |||
350 MHz limit | 0.0473 | |||
250 M GHz limit | 0.0467 | |||
200 MHz limit | 0.038 | |||
20 MHz limit | 0.025 | |||
5 mV/div | 5 GHz | 0.210 | ||
4 GHz limit | 0.175 | |||
3 GHz limit | 0.149 | |||
2 GHz limit | 0.118 | |||
1 GHz limit | 0.110 | |||
500 MHz limit | 0.100 | |||
350 MHz limit | 0.092 | |||
250 M GHz limit | 0.090 | |||
200 MHz limit | 0.080 | |||
20 MHz limit | 0.075 |
Random Noise, High Res mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 6 | 10 mV/div | 5 GHz | 0.330 | |
4 GHz limit | 0.271 | |||
3 GHz limit | 0.226 | |||
2 GHz limit | 0.212 | |||
1 GHz limit | 0.190 | |||
500 MHz limit | 0.182 | |||
350 MHz limit | 0.165 | |||
250 M GHz limit | 0.145 | |||
200 MHz limit | 0.120 | |||
20 MHz limit | 0.115 | |||
20 mV/div | 5 GHz | 0.595 | ||
4 GHz limit | 0.486 | |||
3 GHz limit | 0.475 | |||
2 GHz limit | 0.450 | |||
1 GHz limit | 0.425 | |||
500 MHz limit | 0.400 | |||
350 MHz limit | 0.385 | |||
250 M GHz limit | 0.325 | |||
200 MHz limit | 0.320 | |||
20 MHz limit | 0.310 | |||
50 mV/div | 5 GHz | 1.4 | ||
4 GHz limit | 1.15 | |||
3 GHz limit | 0.975 | |||
2 GHz limit | 0.920 | |||
1 GHz limit | 0.900 | |||
500 MHz limit | 0.840 | |||
350 MHz limit | 0.770 | |||
250 M GHz limit | 0.675 | |||
200 MHz limit | 0.660 | |||
20 MHz limit | 0.560 |
Random Noise, High Res mode: 6 and 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 6 | 100 mV/div | 5 GHz | 3.38 | |
4 GHz limit | 2.71 | |||
3 GHz limit | 2.28 | |||
2 GHz limit | 2.10 | |||
1 GHz limit | 1.78 | |||
500 MHz limit | 1.74 | |||
350 MHz limit | 1.70 | |||
250 M GHz limit | 1.50 | |||
200 MHz limit | 1.45 | |||
20 MHz limit | 1.40 | |||
1 V/div | 5 GHz | 28.1 | ||
4 GHz limit | 23.1 | |||
3 GHz limit | 21.4 | |||
2 GHz limit | 21.0 | |||
1 GHz limit | 19.2 | |||
500 MHz limit | 16.8 | |||
350 MHz limit | 16.1 | |||
250 M GHz limit | 15.8 | |||
200 MHz limit | 15.2 | |||
20 MHz limit | 13.0 |
Channel 7
Random Noise, High Res mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 7 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz limit | 0.138 | |||
3 GHz limit | 0.117 | |||
2 GHz limit | 0.0963 | |||
1 GHz limit | 0.0773 | |||
500 MHz limit | 0.056 | |||
350 MHz limit | 0.0477 | |||
250 M GHz limit | 0.0461 | |||
200 MHz limit | 0.0379 | |||
20 MHz limit | 0.025 | |||
2 mV/div | 5 GHz | 0.164 | ||
4 GHz limit | 0.139 | |||
3 GHz limit | 0.119 | |||
2 GHz limit | 0.0976 | |||
1 GHz limit | 0.0724 | |||
500 MHz limit | 0.562 | |||
350 MHz limit | 0.0473 | |||
250 M GHz limit | 0.0467 | |||
200 MHz limit | 0.038 | |||
20 MHz limit | 0.025 | |||
5 mV/div | 5 GHz | 0.210 | ||
4 GHz limit | 0.175 | |||
3 GHz limit | 0.149 | |||
2 GHz limit | 0.118 | |||
1 GHz limit | 0.110 | |||
500 MHz limit | 0.100 | |||
350 MHz limit | 0.092 | |||
250 M GHz limit | 0.090 | |||
200 MHz limit | 0.080 | |||
20 MHz limit | 0.075 |
Random Noise, High Res mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 7 | 10 mV/div | 5 GHz | 0.330 | |
4 GHz limit | 0.271 | |||
3 GHz limit | 0.226 | |||
2 GHz limit | 0.212 | |||
1 GHz limit | 0.190 | |||
500 MHz limit | 0.182 | |||
350 MHz limit | 0.165 | |||
250 M GHz limit | 0.145 | |||
200 MHz limit | 0.120 | |||
20 MHz limit | 0.115 | |||
20 mV/div | 5 GHz | 0.595 | ||
4 GHz limit | 0.486 | |||
3 GHz limit | 0.475 | |||
2 GHz limit | 0.450 | |||
1 GHz limit | 0.425 | |||
500 MHz limit | 0.400 | |||
350 MHz limit | 0.385 | |||
250 M GHz limit | 0.325 | |||
200 MHz limit | 0.320 | |||
20 MHz limit | 0.310 | |||
50 mV/div | 5 GHz | 1.4 | ||
4 GHz limit | 1.15 | |||
3 GHz limit | 0.975 | |||
2 GHz limit | 0.920 | |||
1 GHz limit | 0.900 | |||
500 MHz limit | 0.840 | |||
350 MHz limit | 0.770 | |||
250 M GHz limit | 0.675 | |||
200 MHz limit | 0.660 | |||
20 MHz limit | 0.560 |
Random Noise, High Res mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 7 | 100 mV/div | 5 GHz | 3.38 | |
4 GHz limit | 2.71 | |||
3 GHz limit | 2.28 | |||
2 GHz limit | 2.10 | |||
1 GHz limit | 1.78 | |||
500 MHz limit | 1.74 | |||
350 MHz limit | 1.70 | |||
250 M GHz limit | 1.50 | |||
200 MHz limit | 1.45 | |||
20 MHz limit | 1.40 | |||
1 V/div | 5 GHz | 28.1 | ||
4 GHz limit | 23.1 | |||
3 GHz limit | 21.4 | |||
2 GHz limit | 21.0 | |||
1 GHz limit | 19.2 | |||
500 MHz limit | 16.8 | |||
350 MHz limit | 16.1 | |||
250 M GHz limit | 15.8 | |||
200 MHz limit | 15.2 | |||
20 MHz limit | 13.0 |
Channel 8
Random Noise, High Res mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 8 | 1 mV/div | 5 GHz | 0.162 | |
4 GHz limit | 0.138 | |||
3 GHz limit | 0.117 | |||
2 GHz limit | 0.0963 | |||
1 GHz limit | 0.0773 | |||
500 MHz limit | 0.056 | |||
350 MHz limit | 0.0477 | |||
250 M GHz limit | 0.0461 | |||
200 MHz limit | 0.0379 | |||
20 MHz limit | 0.025 | |||
2 mV/div | 5 GHz | 0.164 | ||
4 GHz limit | 0.139 | |||
3 GHz limit | 0.119 | |||
2 GHz limit | 0.0976 | |||
1 GHz limit | 0.0724 | |||
500 MHz limit | 0.562 | |||
350 MHz limit | 0.0473 | |||
250 M GHz limit | 0.0467 | |||
200 MHz limit | 0.038 | |||
20 MHz limit | 0.025 | |||
5 mV/div | 5 GHz | 0.210 | ||
4 GHz limit | 0.175 | |||
3 GHz limit | 0.149 | |||
2 GHz limit | 0.118 | |||
1 GHz limit | 0.110 | |||
500 MHz limit | 0.100 | |||
350 MHz limit | 0.092 | |||
250 M GHz limit | 0.090 | |||
200 MHz limit | 0.080 | |||
20 MHz limit | 0.075 |
Random Noise, High Res mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 8 | 10 mV/div | 5 GHz | 0.330 | |
4 GHz limit | 0.271 | |||
3 GHz limit | 0.226 | |||
2 GHz limit | 0.212 | |||
1 GHz limit | 0.190 | |||
500 MHz limit | 0.182 | |||
350 MHz limit | 0.165 | |||
250 M GHz limit | 0.145 | |||
200 MHz limit | 0.120 | |||
20 MHz limit | 0.115 | |||
20 mV/div | 5 GHz | 0.595 | ||
4 GHz limit | 0.486 | |||
3 GHz limit | 0.475 | |||
2 GHz limit | 0.450 | |||
1 GHz limit | 0.425 | |||
500 MHz limit | 0.400 | |||
350 MHz limit | 0.385 | |||
250 M GHz limit | 0.325 | |||
200 MHz limit | 0.320 | |||
20 MHz limit | 0.310 | |||
50 mV/div | 5 GHz | 1.4 | ||
4 GHz limit | 1.15 | |||
3 GHz limit | 0.975 | |||
2 GHz limit | 0.920 | |||
1 GHz limit | 0.900 | |||
500 MHz limit | 0.840 | |||
350 MHz limit | 0.770 | |||
250 M GHz limit | 0.675 | |||
200 MHz limit | 0.660 | |||
20 MHz limit | 0.560 |
Random Noise, High Res mode: 8 channel models | ||||
---|---|---|---|---|
Performance checks | 50 Ω | |||
Channel | V/div | Bandwidth | Test result (mV) | High limit (mV) |
Channel 8 | 100 mV/div | 5 GHz | 3.38 | |
4 GHz limit | 2.71 | |||
3 GHz limit | 2.28 | |||
2 GHz limit | 2.10 | |||
1 GHz limit | 1.78 | |||
500 MHz limit | 1.74 | |||
350 MHz limit | 1.70 | |||
250 M GHz limit | 1.50 | |||
200 MHz limit | 1.45 | |||
20 MHz limit | 1.40 | |||
1 V/div | 5 GHz | 28.1 | ||
4 GHz limit | 23.1 | |||
3 GHz limit | 21.4 | |||
2 GHz limit | 21.0 | |||
1 GHz limit | 19.2 | |||
500 MHz limit | 16.8 | |||
350 MHz limit | 16.1 | |||
250 M GHz limit | 15.8 | |||
200 MHz limit | 15.2 | |||
20 MHz limit | 13.0 |
Long term sample rate through AFG DC offset accuracy test records
Long Term Sample Rate | ||||
---|---|---|---|---|
Performance checks |
Low limit |
Test result |
High limit | |
Long Term Sample Rate |
9.999997 MHz |
|
10.000003 MHz |
AUX Out output voltage levels | ||||
---|---|---|---|---|
Performance checks |
Vout |
Low limit |
Test result |
High limit |
Output levels, 1 MΩ input impedance |
Max |
≥ 2.5 V |
|
n/a |
Min |
n/a |
|
≤ 700 mV | |
Output levels, 50 Ω Input Impedance, |
Max |
≥ 1.0 V |
|
n/a |
Min |
n/a |
|
≤ 250 mV |
DVM voltage accuracy (DC) | |||||
---|---|---|---|---|---|
Channel 1 | |||||
Vertical Scale | Input Voltage | Offset Voltage | Low limit | Test result | High limit |
1 | –5 | –5 | -5.125 | -4.875 | |
0.5 | –2 | –2 | -2.06 | -1.94 | |
0.5 | –1 | –0.5 | -1.06 | -0.94 | |
0.2 | –0.5 | –0.5 | -0.5225 | -0.4775 | |
0.01 | 0.002 | 0 | 0.00097 | 0.00303 | |
0.2 | 0.5 | 0.5 | 0.4775 | 0.5225 | |
0.5 | 1 | 0.5 | 0.94 | 1.06 | |
0.5 | 2 | 2 | 1.94 | 2.06 | |
1 | 5 | 5 | 4.875 | 5.125 | |
Channel 2 | |||||
Vertical Scale | Input Voltage | Offset Voltage | Low limit | Test result | High limit |
1 | –5 | –5 | -5.125 | -4.875 | |
0.5 | –2 | –2 | -2.06 | -1.94 | |
0.5 | –1 | –0.5 | -1.06 | -0.94 | |
0.2 | –0.5 | –0.5 | -0.5225 | -0.4775 | |
0.01 | 0.002 | 0 | 0.00097 | 0.00303 | |
0.2 | 0.5 | 0.5 | 0.4775 | 0.5225 | |
0.5 | 1 | 0.5 | 0.94 | 1.06 | |
0.5 | 2 | 2 | 1.94 | 2.06 | |
1 | 5 | 5 | 4.875 | 5.125 | |
Channel 3 | |||||
Vertical Scale | Input Voltage | Offset Voltage | Low limit | Test result | High limit |
1 | -5 | -5 | -5.125 | -4.875 | |
0.5 | -2 | -2 | -2.06 | -1.94 | |
0.5 | -1 | -0.5 | -1.06 | -0.94 | |
0.2 | -0.5 | -0.5 | -0.5225 | -0.4775 | |
0.01 | 0.002 | 0 | 0.00097 | 0.00303 | |
0.2 | 0.5 | 0.5 | 0.4775 | 0.5225 | |
0.5 | 1 | 0.5 | 0.94 | 1.06 | |
0.5 | 2 | 2 | 1.94 | 2.06 | |
1 | 5 | 5 | 4.875 | 5.125 | |
Channel 4 | |||||
Vertical Scale | Input Voltage | Offset Voltage | Low limit | Test result | High limit |
1 | -5 | -5 | -5.125 | -4.875 | |
0.5 | -2 | -2 | -2.06 | -1.94 | |
0.5 | –1 | -0.5 | -1.06 | -0.94 | |
0.2 | -0.5 | -0.5 | -0.5225 | -0.4775 | |
0.01 | 0.002 | 0 | 0.00097 | 0.00303 | |
0.2 | 0.5 | 0.5 | 0.4775 | 0.5225 | |
0.5 | 1 | 0.5 | 0.94 | 1.06 | |
0.5 | 2 | 2 | 1.94 | 2.06 | |
1 | 5 | 5 | 4.875 | 5.125 |
DVM voltage accuracy (AC) | ||||
---|---|---|---|---|
All models | ||||
Channel 1 | ||||
Vertical Scale | Input Signal | Low limit | Test result | High limit |
5 mV | 20 mVpp at 1 kHz | 9.700 mV | 10.300 mV | |
10 mV | 50 mVpp at 1 kHz | 24.25 mV | 25.750 mV | |
100 mV | 0.5 Vpp at 1 kHz | 242.500 mV | 257.500 mV | |
200 mV | 1 Vpp at 1 kHz | 485.000 mV | 515.000 mV | |
1 V | 5 Vpp at 1 kHz | 2.425 V | 2.575 V | |
Channel 2 | ||||
Vertical Scale | Input Signal | Low limit | Test result | High limit |
5 mV | 20 mVpp at 1 kHz | 9.700 mV | 10.300 mV | |
10 mV | 50 mVpp at 1 kHz | 24.25 mV | 25.750 mV | |
100 mV | 0.5 Vpp at 1 kHz | 242.500 mV | 257.500 mV | |
200 mV | 1 Vpp at 1 kHz | 485.000 mV | 515.000 mV | |
1 V | 5 Vpp at 1 kHz | 2.425 V | 2.575 V | |
Channel 3 | ||||
Vertical Scale | Input Signal | Low limit | Test result | High limit |
5 mV | 20 mVpp at 1 kHz | 9.700 mV | 10.300 mV | |
10 mV | 50 mVpp at 1 kHz | 24.25 mV | 25.750 mV | |
100 mV | 0.5 Vpp at 1 kHz | 242.500 mV | 257.500 mV | |
200 mV | 1 Vpp at 1 kHz | 485.000 mV | 515.000 mV | |
1 V | 5 Vpp at 1 kHz | 2.425 V | 2.575 V | |
Channel 4 | ||||
Vertical Scale | Input Signal | Low limit | Test result | High limit |
5 mV | 20 mVpp at 1 kHz | 9.700 mV | 10.300 mV | |
10 mV | 50 mVpp at 1 kHz | 24.25 mV | 25.750 mV | |
100 mV | 0.5 Vpp at 1 kHz | 242.500 mV | 257.500 mV | |
200 mV | 1 Vpp at 1 kHz | 485.000 mV | 515.000 mV | |
1 V | 5 Vpp at 1 kHz | 2.425 V | 2.575 V |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
All models | ||||
Channel 1 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz | |
4000 | 3999.998 | 4000.002 | MHz | |
8000 | 7999.996 | 8000.004 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
All models | ||||
Channel 2 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz | |
4000 | 3999.998 | 4000.002 | MHz | |
8000 | 7999.996 | 8000.004 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO64B | ||||
Channel 3 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz | |
4000 | 3999.998 | 4000.002 | MHz | |
8000 | 7999.996 | 8000.004 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO64B | ||||
Channel 4 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz | |
4000 | 3999.998 | 4000.002 | MHz | |
8000 | 7999.996 | 8000.004 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO66B | ||||
Channel 3 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO66B | ||||
Channel 4 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz | |
4000 | 3999.998 | 4000.002 | MHz | |
8000 | 7999.996 | 8000.004 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO66B | ||||
Channel 5 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz | |
4000 | 3999.998 | 4000.002 | MHz | |
8000 | 7999.996 | 8000.004 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO66B | ||||
Channel 6 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO68B | ||||
Channel 3 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO68B | ||||
Channel 4 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO68B | ||||
Channel 5 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz | |
4000 | 3999.998 | 4000.002 | MHz | |
8000 | 7999.996 | 8000.004 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO68B | ||||
Channel 6 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz | |
4000 | 3999.998 | 4000.002 | MHz | |
8000 | 7999.996 | 8000.004 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO68B | ||||
Channel 7 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz |
Trigger frequency accuracy and trigger frequency counter maximum input frequency | ||||
---|---|---|---|---|
MSO68B | ||||
Channel 8 | ||||
Frequency | Low limit | Test result | High limit | Unit |
100 | 99.99995 | 1000.0005 | Hz | |
1000 | 999.9995 | 10000.005 | Hz | |
10 | 9.999995 | 10.000005 | kHz | |
100 | 99.99995 | 100.00005 | kHz | |
1000 | 999.9995 | 1000.0005 | kHz | |
10 | 9.999995 | 10.000005 | MHz | |
100 | 99.99995 | 100.00005 | MHz | |
1000 | 999.9995 | 1000.0005 | MHz | |
2000 | 1999.999 | 2000.001 | MHz |
AFG sine and ramp frequency accuracy | |||||
---|---|---|---|---|---|
Performance checks | |||||
Waveform type |
Minimum |
Test result |
Maximum | ||
Sine, 1 MHz |
0.999950 MHz |
1.000050 MHz | |||
Ramp, 500 KHz |
499.975 kHz |
500.025 kHz |
AFG square and pulse frequency accuracy | |||||
---|---|---|---|---|---|
Performance checks | |||||
Waveform type |
Minimum |
Test result |
Maximum | ||
Square, 1 MHz |
0.999950 MHz |
1.000050 MHz | |||
Pulse, 1 MHz |
0.999950 MHz |
1.000050 MHz |
AFG signal amplitude accuracy | |||||
---|---|---|---|---|---|
Performance checks | |||||
Amplitude |
Minimum |
Test result |
Maximum | ||
30.0 mVPP | 28.55 mVPP | 31.45 mVPP | |||
300.0 mVPP | 294.5 mVPP | 305.5 mVPP | |||
800.0 mVPP | 787.0 mVPP | 813.0 mVPP | |||
1.500 VPP | 1.4765 VPP | 1.5235 VPP | |||
2.000 VPP | 1.9690 VPP | 2.0310 VPP | |||
2.500 VPP | 2.4615 VPP | 2.5385 VPP |
AFG DC offset accuracy | |||||
---|---|---|---|---|---|
Performance checks | |||||
Offset | Minimum | Test result | Maximum | ||
1.25 V | 1.23025 Vdc | 1.26975 Vdc | |||
0 V | - 0.001 Vdc | + 0.001 Vdc | |||
-1.25 V | - 1.26975 Vdc | - 1.23025 Vdc |
Performance tests
This section contains a collection of manual procedures for checking that the instrument performs as warranted. They check all the characteristics that are designated as checked in Specifications. (The characteristics that are checked appear with a
Prerequisites
The tests in this section comprise an extensive, valid confirmation of performance and functionality when the following requirements are met:
-
The instrument must be in its normal operating configuration (no covers removed).
-
You must have performed and passed the procedures under Self Test. (See Self test.)
-
A signal-path compensation must have been done within the recommended calibration interval and at a temperature within ±5 ºC (±9 ºF) of the present operating temperature. (If the temperature was within the limits just stated at the time you did the prerequisite Self Test, consider this prerequisite met). A signal-path compensation must have been done at an ambient humidity within 25% of the current ambient humidity and after having been at that humidity for at least 4 hours.
-
The instrument must have been last adjusted at an ambient temperature between +18 ºC and +28 ºC (+64 ºF and +82 ºF), must have been operating for a warm-up period of at least 20 minutes, and must be operating at an ambient temperature as listed in the specifications. The warm-up requirement is usually met in the course of meeting the Self Test prerequisites listed above.
- The instrument must be powered from a source maintaining voltage and frequency within the limits described in the Specifications section.
- The instrument must be in an environment with temperature, altitude, humidity, and vibration within the operating limits described in the Specifications section.
Self test
This procedure verifies that the instrument passes the internal diagnostics and performs signal path compensation. No test equipment or hookups are required.
Equipment required |
Prerequisites |
---|---|
None |
Power on the instrument and allow a 20 minute warm-up period before performing this procedure. |
-
Run the System Diagnostics (may take a few minutes):
-
Disconnect all probes and/or cables from the oscilloscope inputs.
-
Tap Utility > Self Test. This displays the Self Test configuration menu.
-
Tap the Run Self Test button.
-
The internal diagnostics perform an exhaustive verification of proper instrument function. This verification may take several minutes. When the verification is finished, the status of each self test is shown in the menu.
- Verify that the status of all tests is pass.
- Tap anywhere outside the menu to exit the menu.
-
-
Run the signal-path compensation routine (may take 5 to 15 minutes per channel):
-
Tap Utility > Calibration. This displays the Calibration configuration menu.
-
Tap the Run SPC button to start the routine.
-
Signal-path compensation may take 5 to 15 minutes to run per channel.
-
Verify that the SPC Status is Passed.
-
-
Return to regular service: Tap anywhere outside the menu to exit the Calibration menu.
The self test procedures are completed. If any of the above tests failed, run the tests again. If there are still failures, contact Tektronix Customer Support.
![]() | Note:You cannot run the remaining performance tests until the self tests pass and the SPC has successfully run.
|
Check input impedance
This test checks the input impedance on all channels.
-
Connect the output of the oscilloscope calibrator (for example, Fluke 9500) to the oscilloscope channel 1 input, as shown in the following illustration.WARNING:Be sure to set the generator to Off or 0 volts before connecting, disconnecting, and/or moving the test hookup during the performance of this procedure. The generator is capable of providing dangerous voltages.Note:Impedance measuring equipment that produces a voltage across the channel that exceeds the measurement range of the instrument may report erroneous impedance results. A measurement voltage exceeds the measurement range of the instrument when the resulting trace is not visible on the graticule.
- Set the calibrator to measure 1 MΩ impedance.
- Tap File > Default Setup.
-
Test 1 MΩ input impedance as follows:
- Tap the channel 1 button on the Settings bar.
- Double tap the Ch 1 badge to open its menu.
- Set Termination to 1 MΩ.
- Set the Vertical Scale to the value to test in the test record (first value is 10 mV/div).
- Use the calibrator to measure the input impedance of the oscilloscope and enter the value in the test record.
- Repeat steps 4.d and 5 for all vertical scale settings in the test record for the channel.
- Test 50 Ω input impedance as follows:
-
Repeat the procedures for all remaining channels as follows:
- Turn the calibrator output Off.
- Move the calibrator connection to the next channel to test.
- Double-tap the channel badge of the channel that you have finished testing and set Display to Off.
- Tap the channel button on the Settings bar of the next channel to test.
- Starting from step 2, repeat the procedures until all channels have been tested.
Check DC gain accuracy
This test checks the DC gain accuracy.
- Connect the oscilloscope to a calibrated DC voltage source. If you are using the Fluke 9500 calibrator, connect the calibrator head to the oscilloscope channel to test. WARNING:Set the generator output to Off or 0 volts before connecting, disconnecting, and/or moving the test hookup during the performance of this procedure. The generator is capable of providing dangerous voltages.
- Tap File > Default Setup.
- Double-tap the Acquisition badge and set Acquisition Mode to Average.
- Set the Number of Waveforms to 16.
- Tap outside the menu to close the menu.
- Double-tap the Trigger badge and set the trigger Source to AC line.
- Tap outside the menu to close it.
- Add the Mean measurement to the Results bar:
- Tap the Add New... Measure button to open the Add Measurements menu.
- Set the Source to Ch 1.
- In the Amplitude Measurements panel, double-tap the Mean button to add the Mean measurement badge to the Results bar.
- Tap outside the menu to close it.
- Double-tap the Mean results badge.
- Tap Show Statistics in Badge.
- Tap FILTER/LIMIT RESULTS to open the panel.
- Tap Limit Measurement Population to toggle it to On.
- Tap outside the menu to close it.
- Tap the channel button of the channel to test, to add the channel badge to the Settings bar.
- Double tap the channel to test badge to open its menu and set the channel settings:
- Set Vertical Scale to 1 mV/div.
- Set Termination to 50 Ω.
- Tap Bandwidth Limit and set to 20 MHz.
- Tap outside the menu to close it.
- Record the negative-measured and positive-measured mean readings in the Gain expected worksheet as follows:
- On the calibrator, set the DC Voltage Source to the Vnegative value as listed in the 1 mV row of the worksheet.
- Double-tap the Acquisition badge and tap Clear to reset the measurement statistics.
- Enter the Mean reading in the worksheet as Vnegative-measured.
- On the calibrator, set the DC Voltage Source to Vpositive value as listed in the 1 mV row of the worksheet.
- Double-tap the Acquisition badge (if not open) and tap Clear.
- Enter the Mean reading in the worksheet as Vpositive-measured.
Table 1. Gain expected worksheet Oscilloscope Vertical Scale Setting VdiffExpected Vnegative Vpositive Vnegative-measured Vpositive-measured Vdiff Test Result (Gain Accuracy) 1 mV/div 7 mV -3.5 mV +3.5 mV 2 mV/div 18 mV -9 mV +9 mV 5 mV/div 45 mV -22.5 mV +22.5 mV 10 mV/div 90 mV -45 mV +45 mV 20 mV/div 180 mV -90 mV +90 mV 50 mV/div 450 mV -225 mV +225 mV 100 mV/div 900 mV -450 mV +450 mV 200 mV/div 1800 mV -900 mV +900 mV 500 mV/div 4900 mV -2450 mV +2450 mV 1.0 V/div 9000 mV -4500 mV +4500 mV 20 mV/div at 250 MHz 180 mV -90 mV +90 mV 20 mV/div at Full bandwidth 180 mV -90 mV +90 mV - Calculate Gain Accuracy as follows:
- Calculate V
diff
as follows:
V diff = | V negative-measured - V positive-measured |
- Enter V diff in the worksheet.
- Calculate Gain Accuracy as follows:
Gain Accuracy = ((V diff - V diffExpected )/V diffExpected ) × 100%
- Enter the Gain Accuracy value in the worksheet and in the test record.
- Calculate V
diff
as follows:
- Repeat steps 16 through 18 for all vertical scale settings in the work sheet and the test record.
- Repeat tests at 1 MΩ impedance as follows:
-
Repeat the procedure for all remaining channels:
- Set the calibrator to 0 volts and 50 Ω output impedance.
- Move the calibrator output to the next channel input to be tested.
- Double-tap the channel badge of the channel that you have finished testing and set Display to Off.
- Double-tap the Mean measurement badge.
- Tap the Configure panel.
- Tap the Source 1 field and select the next channel to test.
-
Starting from step16, set the values from the test record for the channel under test, and repeat the above steps until all channels have been tested.
- Touch outside a menu to close the menu.
Check DC offset accuracy
This test checks the offset accuracy at 50 Ω and 1 MΩ input impedances.
- Connect the oscilloscope to a calibrated DC voltage source. If you are using the Fluke 9500B calibrator as the DC voltage source, connect the calibrator head to the oscilloscope channel 1. WARNING:Set the generator output to Off or 0 volts before connecting, disconnecting, or moving the test hookup during the performance of this procedure. The generator is capable of providing dangerous voltages.
- Tap File > Default Setup.
- Double-tap the Acquisition badge and set Acquisition Mode to Average.
- Set the Number of Waveforms to 16.
- Tap outside the menu to close the menu.
- Double-tap the Trigger badge and set the trigger Source to AC line.
- Add the Mean measurement to the Results bar:
- Tap the Add New... Measure button to open the Add Measurements menu.
- Set the Source to Ch 1.
- In the Amplitude Measurements panel, double-tap the Mean button to add the Mean measurement badge to the Results bar.
- Tap outside the menu to close it.
- Double-tap the Mean results badge.
- Tap Show Statistics in Badge.
- Tap FILTER/LIMIT RESULTS to open the panel.
- Tap Limit Measurement Population to toggle it to On.
- Tap outside the menu to close it.
- Tap the channel button on the Settings bar to add the channel under test to the Settings bar.
- Double-tap the channel under test badge to open its configuration menu and change the vertical settings:
- Set Vertical Scale to 1 mV/div.
- Set Offset to 900 mV.
- Set Position to 0 by tapping Set to 0.
- Set Termination to 50 Ω.
- Tap Bandwidth Limit and set to 20 MHz.
- Tap outside the menu to close it.
- Set the calibrator output to +900 mV, as shown in the test record, and turn the calibrator output On.
- Enter the Mean measurement value in the test record.
- Double-tap the channel under test badge to open its configuration menu and change the Offset to -900 mV.
- Set the calibrator output to -900 mV, as shown in the test record.
- Enter the Mean measurement value in the test record.
- Repeat step 15 through 20, changing the channel vertical settings and the calibrator output as listed in the test record for the channel under test.
-
Repeat the channel tests at 1 MΩ impedance as follows:
- Set the calibrator output to Off or 0 volts.
- Change the calibrator impedance to 1 MΩ and voltage to +900 mV.
- Turn the calibrator output On.
- Repeat steps 15 through 20, changing the channel Termination to 1 MΩ and the vertical Offset value and the calibrator output as listed in the 1 MΩ test record for the channel under test.
-
Repeat the procedure for all remaining channels as follows:
- Double-tap the Mean measurement badge.
- Tap the Configure panel.
- Tap the Source 1 field and select the next channel to test.
- Set the calibrator to 0 volts and 50 Ω output impedance.
- Move the calibrator output to the next channel input to test.
- Double-tap the channel badge of the channel that you have finished testing and set Display to Off.
- Tap the channel button on the oscilloscope Settings bar of the next channel to test.
- Starting from step , repeat the procedure until all channels have been tested.
Check analog bandwidth
This test checks the bandwidth at 50 Ω and 1 MΩ terminations for each channel. The typical bandwidth at 1 M Ω termination is checked on the products as a functional check.
- Connect the output of the calibrated leveled sine wave generator to the oscilloscope channel 1 input as shown in the following illustration. WARNING:Set the generator to off or 0 volts before connecting, disconnecting, and/or moving the test hookup during the performance of this procedure. The generator is capable of providing dangerous voltages.
- Tap File > Default Setup to reset the instrument and add the channel 1 badge and signal to the display.
-
Add the peak-to-peak measurement as follows:
- Tap the Add New. Measure button.
- Set the Source to the channel under test.
- In the Amplitude Measurements panel, double-tap the Peak-to-Peak measurement button to add the measurement badge to the Results bar.
- Tap outside the menu to close it.
- Double-tap the Peak-to-Peak results badge.
- Tap Show Statistics in Badge.
- Tap FILTER/LIMIT RESULTS to open the panel.
- Tap Limit Measurement Population to toggle it to On.
- Tap outside the menu to close it.
- Set the channel under test settings:
- Double-tap the badge of the channel under test to open its configuration menu.
- Set Vertical Scale to 1 mV/div.
- Set Termination to 50 Ω.
- Tap outside the menu to close it.
- Adjust the leveled sine wave signal source to display a waveform of 8 vertical divisions at the selected vertical scale with a set frequency of 10 MHz. For example, at 5 mV/div, use a ≥40 mVp-p signal; at 2 mV/div, use a ≥16 mVp-p signal. Note:At some V/div settings, the generator may not provide 8 vertical divisions of signal. Set the generator output to obtain as many vertical divisions of signal as possible.
- Double-tap the Horizontal badge in the Settings bar.
- Set the Horizontal Scale to 1 ms/division.
- Tap outside the menu to close it.
- Record the Peak-to-Peak measurement in the V in-pp entry of the test record.
- Double-tap the Horizontal badge in the Settings bar.
- Set the Horizontal Scale such that there are at least 10 cycles on screen at all frequencies.
- Adjust the signal source to the maximum bandwidth frequency for the bandwidth and model being tested.
-
Record the peak-to-peak measurement as follows:
- Record the Peak-to-Peak measurement at the new frequency in the V bw-pp entry of the test record.
- Use the values of V
bw-pp and V
in-pp recorded in the test record, and the following equation, to calculate the Gain at bandwidth:
Gain = Vbw-pp / Vin-pp.
To pass the performance measurement test, Gain should be ≥ 0.707. Enter Gain in the test record.
-
Repeat steps 4 through 14 for all combinations of Vertical Scale settings listed in the test record.
- Repeat the tests at 1 MΩ impedance as follows:
-
Repeat the test for all remaining channels as follows:
- Set the calibrator to 0 volts and 50 Ω output impedance.
- Move the calibrator output to the next channel input to be tested.
- Double-tap the channel badge of the channel that you have finished testing and set Display to Off.
- Tap the channel button on the oscilloscope Settings bar of the next channel to test.
- Double-tap the Peak-to-Peak measurement badge.
- Tap the Configure panel.
- Tap the Source 1 field and select the next channel to test.
- Starting from step 4, repeat the procedure until all channels have been tested.
Check random noise, sample acquisition mode (10, 8, and 6 GHz options)
This test checks random noise at 50 Ω for each channel in Sample acquisition mode. You do not need to connect any test equipment to the oscilloscope for this test.
- Disconnect everything from the oscilloscope inputs.
- Tap File > Default Setup.
- Add the AC RMS measurement:
- Tap the Add New... Measure button.
- Set the Source to the channel being tested.
- In the Amplitude Measurements panel, double-tap the AC RMS measurement button to add the measurement badge to the Results bar.
- Tap outside the menu to close it.
-
Double-tap the AC RMS measurement badge and tap Show Statistics in Badge to display statistics in the measurement badge.
- Tap the Filter / Limit Results panel.
- Turn on Limit Measurement Population.
- Set the limit to 100.
- Tap outside the menu to close it.
- Set up the Horizontal mode:
- Double-tap the Horizontal setting badge.
- Set Horizontal Mode to Manual.
- Set the Sample Rate to 25 GS/s or 50G/S.
- Set the Record Length to 2 Mpts.
- Tap outside the menu to close it.
- Double-tap the Channel badge of the channel being tested.
- Set the Vertical Scale value to 1 mV.
-
Check 50 Ω termination as follows:
- In the Channel badge, set Termination to 50 Ω.
- Tap the Bandwidth Limit field and select the highest frequency listed.
- Set the channel vertical Position value to 340 mdivs.
- Once the measurement count (N) in the measurement badge reaches 100, record the AC RMS Mean value (the µ readout).
- Set the channel vertical Position value to 360 mdivs.
- Once the measurement count (N) in the measurement badge reaches 100, record the AC RMS Mean value (the µ readout).
- Average the two values and record the result in the 1 mV/div row of the 50 Ω column of the Test Result record.
- Repeat step 7 for all frequencies above 4 GHz
- Repeat the 50 Ω test at all V/div settings for the current channel:
-
Repeat all tests for the remaining input channels:
- Double-tap the AC RMS measurement badge.
- Tap the Configure panel.
- Tap the Source 1 field and select the next channel to test.
- Double-tap the channel badge of the channel that you have finished testing and set Display to Off.
- Tap the channel button on the oscilloscope Settings bar of the next channel to test.
- Double-tap the channel badge for the channel being tested.
- Starting at step 6, repeat these procedures for each input channel.
Check random noise, High Res mode
This test checks random noise at 1 M Ω and 50 Ω for each channel in High Res acquisition mode. You do not need to connect any test equipment to the oscilloscope for this test.
- Disconnect everything from the oscilloscope inputs.
- Tap File > Default Setup.
- Double-tap the Acquisition badge and set Acquisition Mode to High Res.
- Add the AC RMS measurement:
- Tap the Add New... Measure button to open the Add Measurements menu.
- Set the Source to the channel being tested.
- In the Amplitude Measurements panel, double-tap the AC RMS button to add the measurement badge to the Results bar.
- Tap outside the menu to close it.
- Double-tap the AC RMS measurement badge and tap Show Statistics in Badge to display statistics in the measurement badge.
- Tap the Filter/Limit Results panel.
- Turn on Limit Measurement Population.
- Set the limit to 100.
- Tap outside the menu to close it.
- Set up the Horizontal mode:
- Double-tap the Horizontal setting badge.
- Set Horizontal Mode to Manual.
- Set the Sample rate to 25G/S, 12.5G/S, or 6.25G/S .
- Set the Record Length to 2 Mpts.
- Tap outside the menu to close it.
-
Check 1 M Ω termination as follows:
- Double-tap the Channel badge of the channel being tested.
- Set the Vertical Scale value to 1 mV.
- Set Termination to 1 M Ω.
- Tap the Bandwidth Limit field and select the highest frequency listed.
- Set the channel Position value to 340 mdivs.
- Once the measurement count (N) in the measurement badge reaches 100, record the AC RMS Mean value (the µ readout).
- Set the channel Position value to -340 mdivs.
- Once the measurement count (N) in the measurement badge reaches 100, record the AC RMS Mean value (the µ readout).
- Average the two values and record the result in the 1 mV/div row of the 1 MΩ column of the random noise, High Res mode Test Result record.
- Repeat step 6 for all frequencies below 500 MHz
-
Check 50 Ω termination as follows:
- In the Channel badge, set Termination to 50 Ω.
- Tap the Bandwidth Limit field and select 4 GHz or the highest frequency listed.
- Set the channel Position value to 340 mdivs.
- Once the measurement count (N) in the measurement badge reaches 100, record the AC RMS Mean value (the µ readout).
- Set the channel Position value to -340 mdivs.
- Once the measurement count (N) in the measurement badge reaches 100, record the AC RMS Mean value (the µ readout).
- Average the two values and record the result in the 1 mV/div row of the 50 Ω column of the random noise, High Res mode Test Result record.
- Repeat step 6 for all frequencies below 4 GHz.
- Repeat 1 MΩ and 50 Ω tests at all V/div settings for the current channel:
-
Repeat all tests for the remaining input channels:
- Double-tap the AC RMS measurement badge.
- Tap the Configure panel.
- Tap the Source 1 field and select the next channel to test.
- Double-tap the channel badge of the channel that you have finished testing and set Display to Off.
- Tap the channel button on the oscilloscope Settings bar of the next channel to test.
- Double-tap the channel badge for the channel being tested.
-
Starting at step 6, repeat these procedures for each input channel.
Check high offset AC RMS noise, sample acquisition mode (10, 8, and 6 GHz options)
This test high offset AC RMS noise at 50 Ω for each channel in Sample acquisition mode. You do not need to connect any test equipment to the oscilloscope for this test.
- Disconnect everything from the oscilloscope inputs.
- Tap File > Default Setup.
- Add the AC RMS measurement:
- Tap the Add New... Measure button.
- Set the Source to the channel being tested.
- In the Amplitude Measurements panel, double-tap the AC RMS measurement button to add the measurement badge to the Results bar.
- Tap outside the menu to close it.
-
Double-tap the AC RMS measurement badge and tap Show Statistics in Badge to display statistics in the measurement badge.
- Tap the Filter / Limit Results panel.
- Turn on Limit Measurement Population.
- Set the limit to 100.
- Tap outside the menu to close it.
- Set up the Horizontal mode:
- Double-tap the Horizontal setting badge.
- Set Horizontal Mode to Manual.
- Set the Sample Rate to 25 GS/s or 50G/S.
- Set the Record Length to 2 Mpts.
- Tap outside the menu to close it.
- Double-tap the Channel badge of the channel being tested.
- Set the Vertical Scale value to 1 mV.
-
Check 50 Ω termination as follows:
- In the Channel badge, set Termination to 50 Ω.
- Tap the Bandwidth Limit field and select the highest frequency listed.
- Set the channel vertical Position value to 4 div..
- Once the measurement count (N) in the measurement badge reaches 100, record the AC RMS Mean value (the µ readout).
- Record the value in the 1 mV/div row of the 50 Ω column of the Test Result record.
- Repeat step 7 for all frequencies above 4 GHz
- Repeat the 50 Ω test at all V/div settings for the current channel:
-
Repeat all tests for the remaining input channels:
- Double-tap the AC RMS measurement badge.
- Tap the Configure panel.
- Tap the Source 1 field and select the next channel to test.
- Double-tap the channel badge of the channel that you have finished testing and set Display to Off.
- Tap the channel button on the oscilloscope Settings bar of the next channel to test.
- Double-tap the channel badge for the channel being tested.
- Starting at step 6, repeat these procedures for each input channel.
Check high offset AC RMS noise, High Res mode
This test checks high offset AC RMS noise at 50 Ω for each channel in High Res acquisition mode. You do not need to connect any test equipment to the oscilloscope for this test.
- Disconnect everything from the oscilloscope inputs.
- Tap File > Default Setup.
- Double-tap the Acquisition badge and set Acquisition Mode to High Res.
- Add the AC RMS measurement:
- Tap the Add New... Measure button to open the Add Measurements menu.
- Set the Source to the channel being tested.
- In the Amplitude Measurements panel, double-tap the AC RMS button to add the measurement badge to the Results bar.
- Tap outside the menu to close it.
- Double-tap the AC RMS measurement badge and tap Show Statistics in Badge to display statistics in the measurement badge.
- Tap the Filter/Limit Results panel.
- Turn on Limit Measurement Population.
- Set the limit to 100.
- Tap outside the menu to close it.
- Set up the Horizontal mode:
- Double-tap the Horizontal setting badge.
- Set Horizontal Mode to Manual.
- Set the Sample rate to 25G/S, 12.5G/S, or 6.25G/S .
- Set the Record Length to 2 Mpts.
- Tap outside the menu to close it.
-
Check 50 Ω termination as follows:
- In the Channel badge, set Termination to 50 Ω.
- Tap the Bandwidth Limit field and select 4 GHz or the highest frequency listed.
- Set the channel Position value to 4 div.
- Once the measurement count (N) in the measurement badge reaches 100, record the AC RMS Mean value (the µ readout).
- Record the value in the 1 mV/div row of the 50 Ω column of the random noise, High Res mode Test Result record.
- Repeat step 6 for all frequencies below 4 GHz.
- Repeat 50 Ω tests at all V/div settings for the current channel:
-
Repeat all tests for the remaining input channels:
- Double-tap the AC RMS measurement badge.
- Tap the Configure panel.
- Tap the Source 1 field and select the next channel to test.
- Double-tap the channel badge of the channel that you have finished testing and set Display to Off.
- Tap the channel button on the oscilloscope Settings bar of the next channel to test.
- Double-tap the channel badge for the channel being tested.
-
Starting at step 6, repeat these procedures for each input channel.
Check long term samples rate and delay time accuracy
This test checks the sample rate and delay time accuracy (time base).
- Connect a 50 Ω cable from the Aux Out connector to the frequency counter input as shown in the following figure.
- Tap File > Default Setup.
- Tap Utility > I/O.
- Tap AUX OUT to open its configuration menu.
- Tap Reference Clock to send the clock to the Aux Out connector.
-
Check the reading on the frequency counter. Enter the value in the Test record.
Check digital threshold accuracy
This test checks the threshold accuracy of the logic probe digital channels D0-D7 at 0 V and 25 °C, for all oscilloscope input channels.
![]() | Note:Threshold Accuracy is a function of the logic probe only. It is a typical specification. The Threshold Accuracy test checks the typical logic probe performance, and may be considered a functional check of the oscilloscope digital input. |
-
Connect the TLP058 digital probe to channel 1.
- Connect the DC voltage source to digital channel D0. WARNING:Set the generator output to Off or 0 volts before connecting, disconnecting, or moving the test hookup during the performance of this procedure. The generator is capable of providing dangerous voltages.
If you are using the Fluke 9500 calibrator as the DC voltage source, connect the calibrator head to the digital channel D0, using the BNC-to-0.1 inch pin adapter listed in the table. Be sure to connect channel D0 to both the corresponding signal pin and to a ground pin on the adapter.
- Tap File > Default Setup. This resets the instrument and adds the channel 1 badge and signal to the display.
-
Display the digital channels and set the thresholds as follows:
- Double-tap the badge of the channel under test on the Settings bar.
- Double-tap the Threshold field at the bottom of the menu and set the value to 0 V.
- Tap Set All Thresholds. All thresholds are now set for the 0 V threshold check.
- Tap outside the menu to close it.
- Double-tap the Horizontal badge in the Settings bar.
- Set the Horizontal Scale to 10 ns/div.
- Tap outside the menu to close it.
- Set the calibrator DC voltage output (Vs) to -400 mV.
- Wait 1 second. Verify that the logic level is low on D0.
- Increment Vs by +10 mV. Wait 1 second and check the logic level of the channel D0 signal display.
If the signal level is a logic low or is alternating between high and low, continue to increment Vs by +10 mV, wait 1 second, and check the logic level until the logic state is a steady high.
- Record this Vs value as Vs- for D0 of the test record.
- Double-tap the Trigger badge and set the Slope to Falling edge.
- Set the DC voltage source (Vs) to +400 mV.
- Wait 1 second. Verify that the logic level is high.
- Decrement Vs by -10 mV. Wait 1 second and check the logic level of the channel D0 signal display.
If the signal level is a logic high or is alternating between high and low, continue to decrement Vs by -10 mV, wait 1 second, and check the logic level until the logic state is a steady low.
- Record this Vs value as Vs+ for D0 of the test record.
- Find the average using this formula: VsAvg = (Vs- + Vs+)/2.
- Record the average as the test result for D0 in the test record. The test result should be between the low and high limits.
- Repeat the procedure for all remaining digital channels as follows:
-
Repeat the procedure for all remaining input channels as follows:
- Move the TLP058 digital probe from channel 1 to channel 2.
- Set the generator output to 0 volts and Off.
- Repeat steps starting at 2 for the channel being tested (channel 2, channel 3, and so on).
Check AUX Out output voltage levels
This test checks the output voltage levels from the AUX Out connector.
-
Use a 50 Ω cable to connect the AUX Out signal from the rear of the instrument to the channel 1 input of the same instrument, as shown in the following illustration.
- Tap File > Default Setup. This resets the instrument and adds the channel 1 badge and signal to the display.
- Double-tap the badge of the channel 1 badge to open its configuration menu.
- Set the Vertical Scale to 1 V/div.
- Tap outside the menu to close it.
- Double-tap the Horizontal badge in the Settings bar.
- Set the Horizontal Scale to 400 ns/div.
- Tap outside the menu to close it.
-
Record the Maximum and Minimum measurements at 1 MΩ termination as follows:
- Tap the Add New... Measure button.
- In the Amplitude Measurements panel, set the Source to Ch 1.
- Double-tap the Maximum button to add the measurement badge to the Results bar.
- Double-tap the Minimum button to add the measurement badge to the Results bar.
- Tap outside the menu to close it.
- Double-tap the Maximum results badge.
- Tap Show Statistics in Badge.
- Tap FILTER/LIMIT RESULTS to open the panel.
- Tap Limit Measurement Population to toggle it to On.
- Tap outside the menu to close it.
- Double-tap the Minimum results badge.
- Tap Show Statistics in Badge.
- Tap FILTER/LIMIT RESULTS to open the panel.
- Tap Limit Measurement Population to toggle it to On.
- Tap outside the menu to close it.
- Enter the Maximum and Minimum measurement readings in the 1 MΩ row of the test record.
-
Record the Maximum and Minimum measurements at 50 Ω termination as follows:
- Double-tap the Ch 1 badge to open its configuration menu.
- Set Termination to 50 Ω.
- Tap outside the menu to close it.
- Enter the Maximum and Minimum measurement readings in the 50 Ω row of the test record.
Check DVM voltage accuracy (DC)
This test checks the DC voltage accuracy of the Digital Volt Meter (DVM) option. The DVM option is available for free when you register the instrument at tek.com.
Procedure
Check DVM voltage accuracy (AC)
This test checks the AC voltage accuracy of the Digital Volt Meter (DVM) option. The DVM option is available for free when you register the instrument at tek.com.
Procedure
Check trigger frequency accuracy and maximum input frequency
This test checks trigger frequency counter accuracy. The trigger frequency counter is part of the free DVM and trigger frequency option that is available when you register the instrument at tek.com.
Procedure
Check AFG sine and ramp frequency accuracy
This test verifies the frequency accuracy of the arbitrary function generator. All output frequencies are derived from a single internally generated frequency. Only one frequency point of channel 1 is required to be checked.
- Connect a 50 Ω cable from the AFG Out connector to the frequency counter input as shown in the following figure.
Figure 1. Frequency/period test - Tap File > Default Setup to set the instrument to the factory default settings.
- Tap the AFG button to open the AFG menu.
- Set the arbitrary function generator output as follows:
Select menu Setting Output On Waveform Type Sine Frequency 1.000000 MHz Amplitude 1.00 VPP - Turn on the frequency counter:
-
Double-tap the Trigger badge to open its menu.
- Set the Source field to the input channel being tested.
- Tap the Set to 50% button to obtain a stable display.
- Tap the Mode & Holdoff panel to open the Mode & Holdoff configuration menu
- In the Mode & Hold Off menu, set the Trigger Frequency Counter to On. The trigger frequency readout is at the bottom of the Trigger badge.
- Tap outside the menu to close it.
-
- Check that the reading of the frequency counter is between 0.999950 MHz and 1.000050 MHz. Enter the value in the Test record.
- Set the arbitrary function generator output as follows:
Select menu Setting Waveform Type Ramp Frequency 500 kHz - Check that reading of the frequency counter is between 499.975 kHz and 500.025 kHz. Enter the value in the Test record.
Check AFG square and pulse frequency accuracy
This test verifies the frequency accuracy of the arbitrary function generator. All output frequencies are derived from a single internally generated frequency. Only one frequency point of channel 1 is required to be checked.
- Connect the arbitrary function generator to the frequency counter as shown in the following figure.
Figure 1. Frequency/period test - Tap File > Default Setup to set the instrument to the factory default settings.
- Tap the AFG button to open the AFG menu.
- Set the arbitrary function generator as follows:
Select menu Setting Waveform Type Square Frequency 1.000000 MHz Amplitude 1.00 VPP Output On - Turn on the frequency counter:
-
Double-tap the Trigger badge to open its menu.
- Set the Source field to the input channel being tested.
- Tap the Set to 50% button to obtain a stable display.
- Tap the Mode & Holdoff panel to open the Mode & Holdoff configuration menu
- In the Mode & Hold Off menu, set the Trigger Frequency Counter to On. The trigger frequency readout is at the bottom of the Trigger badge.
- Tap outside the menu to close it.
-
- Check that the frequency counter readout is between 0.999950 MHz and 1.00005 MHz. Enter the value in the Test record.
- Set up the arbitrary function generator as follows:
Select menu Setting Waveform Type Pulse - Check that reading of the frequency counter is between 0.999950 MHz and 1.000050 MHz. Enter the value in the Test record.
Check AFG signal amplitude accuracy
This test verifies the amplitude accuracy of the arbitrary function generator. All output amplitudes are derived from a combination of attenuators and 3 dB variable gain. Some amplitude points are checked. This test uses a 50 Ω terminator. It is necessary to know the accuracy of the 50 Ω terminator in advance of this amplitude test. This accuracy is used as a calibration factor.
- Connect the 50 Ω terminator to the DMM as shown in the following figure and measure the resistance value.
Figure 1. 50 Ω terminator accuracy - Calculate the 50 Ω calibration factor (CF) from the reading value and record as follows:
Table 1. CF (Calibration Factor) = 1.414 × ((50 / Measurement Ω) + 1) Measurement (reading of the DMM) Calculated CF Examples:
For a measurement of 50.50 Ω, CF = 1.414 ( 50 / 50.50 + 1) = 2.814.
For a measurement of 49.62 Ω, CF = 1.414 ( 50 / 49.62 + 1) = 2.839.
- Connect the arbitrary function generator output to the DMM as shown in the following figure. Be sure to connect the 50 Ω terminator to the AFG Out connector.
Figure 2. Amplitude test - Tap the AFG button and set up the arbitrary function generator output as follows:
Select menu Setting Waveform Type Sine Frequency 1.000000 kHz Amplitude 30 mVPP Load Impedance 50 Ω Output On -
Measure the AC RMS voltage readout on the DMM.
- Multiply the DMM voltage by the calculated CF to get the corrected peak to peak voltage. Enter the resulting value in the Measurement field in the following table.
- Change the AFG output amplitude to the next value in the table.
-
Repeat steps 5 through 7 for each amplitude value. Check that the peak to peak voltages are within the limits in the table below. Enter the values in the test record.
Waveform Type Frequency Amplitude Measurement Range Sine 1.000 kHz 30.0 mVPP 28.55 mVPP - 31.45`mVPP Sine 1.000 kHz 300.0 mVPP 294.5 mVPP - 305.5`mVPP Sine 1.000 kHz 800.0 mVPP 787.0 mVPP - 813.0`mVPP Sine 1.000 kHz 1.500 VPP 1.4765 VPP - 1.5235`VPP Sine 1.000 kHz 2.000 VPP 1.969 VPP - 2.031`VPP Sine 1.000 kHz 2.500 VPP 2.4615 VPP - 2.5385`VPP
Check AFG DC offset accuracy
This test verifies the DC offset accuracy of the arbitrary function generator. This test uses a 50 Ω terminator. It is necessary to know the accuracy of the 50 Ω terminator in advance of this test. This accuracy is used as a calibration factor.
- Connect the 50 Ω terminator to the DMM as shown in the following figure and measure the resistance value.
Figure 1. 50 Ω terminator accuracy - Calculate the 50 Ω calibration factor (CF) from the reading value and record as follows:
Table 1. CF (Calibration Factor) = 0.5 × (( 50 / Measurement Ω) + 1) Measurement (reading of the DMM) Calculated CF
Examples:
For a measurement of 50.50 Ω, CF = 0.5 ( 50 / 50.50 + 1) = 0.9951.
For a measurement of 49.62 Ω, CF = 0.5 ( 50 / 49.62 + 1) = 1.0038.
- Connect the arbitrary function generator output to the DMM as shown in the following figure. Be sure to connect the 50 Ω terminator to the arbitrary function generator AFG Output connector.
Figure 2. DC offset tests - Tap the AFG button and set up the arbitrary function generator as follows:
Select menu Setting Waveform Type DC Offset + 1.25 V Output On - Measure the voltage readout on the DMM.
- Multiply the DMM voltage by the calculated CF to get the corrected offset voltage. Enter the resulting value in the Measurement field in the following table.
Function Offset Measurement Range DC
+ 1.25 Vdc Vdc 1.23025 Vdc to 1.26975 Vdc DC
0.000 Vdc Vdc - 0.001 Vdc to + 0.001 Vdc DC
- 1.25 Vdc Vdc -1.26975 Vdc to -1.23025 Vdc - Change the AFG output amplitude to the next value in the table, measure the voltage readout on the DMM, multiply the DMM readout by the calculated CF to get the corrected offset voltage, and enter the resulting value in the Measurement field in the table.
- Verify that the corrected offset measurements are within the range.
Help us improve our technical documentation. Provide feedback on our TekTalk documentation forum.
