Automotive Electronics - Test and Measurement Solutions

Discover the test and measurement solutions Tektronix offers for automotive electronics.

This brochure provides information for:

  • EV Powertrain
  • EV Charging
  • In-Vehicle Networks
  • EMI/EMC testing
Tektronix solutions for Automotive Electronics testing

Expanded Solutions for Automotive Technologies

Accelerating the future of mobility with innovative test and measurement solutions.

The pace of digital transformation in the automotive industry has never been faster. Advances in high-speed data communications, power electronics and battery technology are enabling higher performance resulting in safer, more efficient vehicles while creating new challenges for engineers. Tektronix exists to provide you with instrumentation solutions to address today’s automotive challenges and those to come.

With the recent acquisition of EA Elektro-Automatik (EA), a technology leader in high-power electronic test and measurement solutions, Tektronix has expanded its offerings for the automotive industry. Leveraging Tektronix’ industry-leading oscilloscopes and isolated probes, EA’s high-efficiency power supplies and electronic loads, and Keithley’s high-precision source meters and instrumentation, we provide a unique set of capabilities for your energy storage and power electronics designs from ultra-low to ultra-high power.

2001 SPECIFIED CALIBRATION INTERVALS
2001 SPECIFIED CALIBRATION INTERVALS
2001 SPECIFIED CALIBRATION INTERVALS
2001 SPECIFIED CALIBRATION INTERVALS

TRACTION INVERTER AND MOTORS

Designers are incorporating SiC MOSFETs with faster switching and lower on-resistance than silicon switches. Combined with creative topologies, tightly integrated packaging and advanced thermal management systems these wide bandgap semiconductors are enabling engineers to achieve new levels of power density and conversion efficiency.

Tektronix solutions are ready to help engineers meet these ambitious goals by enabling accurate, repeatable measurements and providing new insight into inverter system performance for validation and debugging.

Look to Tektronix and EA for

  • 3-Phase PWM inverter output measurements
  • Motor torque and speed measurements
  • Control system analysis (DQ0) measurements
  • Double pulse testing for SiC MOSFET characterization
  • Regenerative brake testing
RECOMMENDED EQUIPMENT
LIV curves

5/6 Series MSO Oscilloscopes

Up to 8 high-resolution inputs and support for advanced inverter measurements.

LIV curves

AFG31000 Arbitrary Function Generator

Generate arbitrary or standard functions, including easy double pulse gate drive signals.

LIV curves

Inverter, Motor and Drive Analysis Software

3-phase PWM, speed, torque and DQ0 measurements on the 5/6 Series MSO

LIV curves

Double Pulse Testing Software

Automates switching loss, timing and reverse recovery measurements on 5/6 Series MSO oscilloscopes.

LIV curves

EA-PSB 10000 Bidirectional Power Supply

Power the inverter while simulating a battery and sink power when the motor turns into a generator.

LIV curves

Learn about SOLN-IMDA-EV

An ideal configuration for traction inverter testing

PROBES

EV BATTERY TESTING

Building battery systems to operate without fail in grueling conditions demands thorough testing, as engineers work to create light, safe, cooler and more energy-dense battery packs.

Keithley precision DMMs, SMUs and switching systems deliver precise, accurate measurements for faster OCV, weld resistance and environmental testing for bench tops to automated test racks.

EA dedicated battery testers bring high power and high channel density for testing cells, modules, and full packs at operational voltage and current levels. Their bidirectional nature allows them to recover power used during testing and feed it back into the local grid at up to 96% efficiency.

Look to Keithley and EA for

  • Open circuit voltage (OCV) measurements
  • Weld resistance testing
  • Temperature logging
  • Charge/discharge cycling
  • DC internal resistance
  • Electrode resistance
  • Insulation resistance
  • Cell, module, or pack testing
  • State of Health (SOH) testing
  • End-of-Line (EOL) testing
RECOMMENDED EQUIPMENT
LIV curves

2400 Graphical Touchscreen Series SMU

Precisely source and measure for tests like DC internal resistance. Go beyond the charge capability of a power supply with sink capabilities for discharging. Touchscreen front panel and flexible remote communication.

LIV curves

3700A Systems Switch/Multimeter

Six configurable switch card slots, for a maximum of 576 two-wire channels. Combine an SMU with the optional 7.5 digit built-in DMM for high precision busbar weld testing. Or configure as a switch only box with high voltage, high density OCV.

LIV curves

DMM7510 Digital Multimeter

7.5 digit resolution and superior accuracy on the 10 V range enable you to see trends sooner for critical tests like self-discharge and battery grading. Accurate and reliable OCV measurements mean you spend less time collecting data and more time analyzing battery behavior. Large touchscreen front panel and several communication options for bench top testing to automated test racks.

LIV curves

EA-BT 20000 Triple 4U

Simultaneously test battery packs with up to 10kW per channel for both charging and discharging at up to 600A per channel. All while being 96% efficient.

EV Charging

EV supply equipment availability, uptime and charging rates are key factors in the adoption of electric vehicles. Demanding reliability targets and design schedules for next-generation DC fast-chargers require careful, efficient debugging and thorough validation.

Within the vehicle itself, on-board chargers and DC/DC converters also require careful bring-up and testing.

Oscilloscopes equipped with advanced power analysis software simplify measurements at every stage of EV charging - from utility connections to the battery and back again. DC power supplies and electronic loads simulate operating conditions under complete control, while bench DMMs deliver precise low-current measurements on subsystems.

Look to Tektronix and EA for

  • Power quality, power factor and harmonics measurements on AC inputs
  • Switching loss analysis
  • In-circuit, dynamic magnetics measurements
  • Double pulse testing for SiC MOSFET characterization
  • EMI troubleshooting
  • On-board charger (OBC) testing
  • DC-DC converter testing
RECOMMENDED EQUIPMENT
LIV curves

5/6 Series MSO Oscilloscope

Up to 8 high-resolution inputs and support for advanced power converter measurement.

LIV curves

DMM6500 Digital Multimeter

Get accurate testing insights fast with 6.5 digit resolution via the touchscreen front panel or the PC with a variety of remote communication options.

LIV curves

EA-PSB 10000 Bidirectional Power Supply

High power source/sink and battery simulation features allow testing of both charging station DC Supplies and vehicle-side charging hardware.

LIV curves

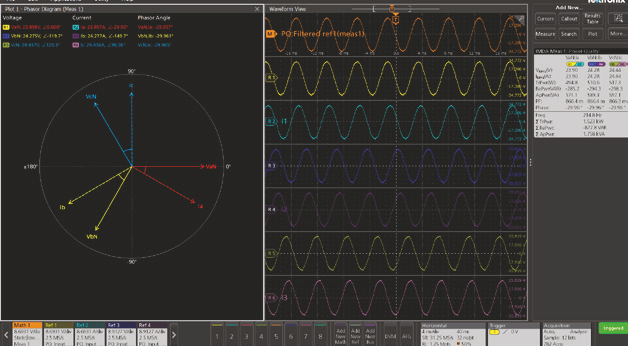

Inverter, Motor and Drive Analysis Software

Facilitates measurements on 3-phase power systems

LIV curves

Advanced Power Measurement and Analysis Software

Automated measurements for AC/DC converters from input to output.

PROBES

AUTOMOTIVE ETHERNET

As cars move towards autonomy and electrification, one thing is certain: the amount of data flowing through them will only increase. Designers are turning to automotive Ethernet, which offers fast, full-duplex communication over a single twisted-pair cable. These higher data rates drive the need for compliance testing to verify interoperability. And full duplex communication complicates signal decoding.

Tektronix oscilloscopes, equipped with analysis software, can help confirm compliance with industry standards, validate performance and observe bus traffic.

Look to Tektronix for

  • Verifying 100BASE-T1/ 1000BASE-T1 compliance
  • Characterizing automotive Ethernet performance with advanced measurements and analysis
  • Checking latency with timing measurements
  • Separating traffic between ECUs in full-duplex mode
  • Protocol decoding
RECOMMENDED EQUIPMENT
LIV curves

5/6 Series MSO Oscilloscope

Compliance testing and jitter analysis tools provide confidence in automotive Ethernet designs.

LIV curves

Automotive Ethernet Debug & Compliance

Non-intrusively verify compliance to 100BASE-T1, 1000BASE-T1, MultiGBASE-T1 and 10BASE-T1S standards.

LIV curves

Signal Separation Software

Unique approach isolates upstream and downstream traffic without cutting cables

SOFTWARE

PROBES

SERIAL BUS DECODING

Vehicle operation depends on accurate, timely data communications among ECUs, sensors, switches and actuators. Common buses like CAN, CAN FD, LIN, FlexRay, SENT and PSI5 offer proven performance.

In order to validate and debug one or more ECUs, engineers must be able to correlate bus activity with signals from ECUs and sensors.

Tektronix oscilloscopes offer easy-to-set-up automotive bus decoding with waveform displays to check signal integrity, bus traffic to see transfers and time-stamped tables for measuring system timing.

Look to Tektronix for

  • Simplify decoding for CAN, CAN FD, CAN XL, LIN, FlexRay, SENT and PSI5
  • Indicate signal quality
  • Help debug
  • Provide system visibility
RECOMMENDED EQUIPMENT
LIV curves

4/5/6 Series MSO Oscilloscopes

Wide range of bus support packages and high channel count provide best visibility.

LIV curves

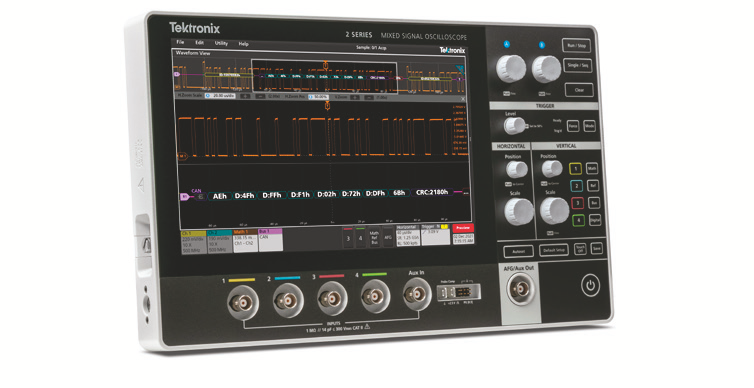

2 Series MSO Oscilloscope

Portable, battery-powered oscilloscope with CAN, LIN and SENT decoding.

LIV curves

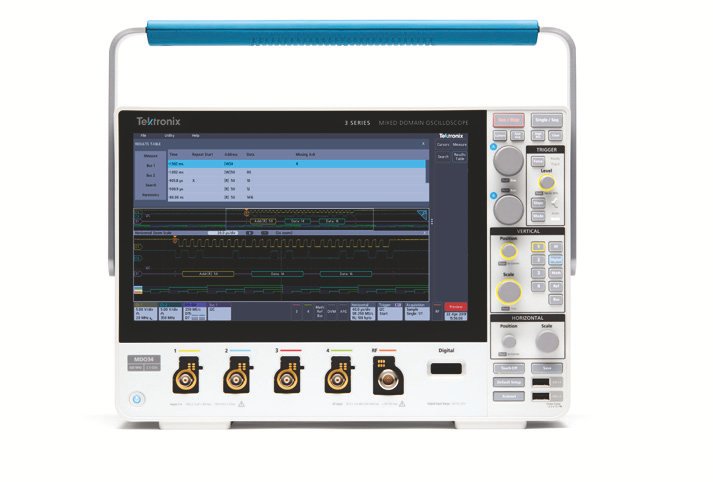

3 Series MDO Oscilloscope

Automotive bus decoding with low noise and built-in spectrum analyzer.

LIV curves

Differential Voltage Probes

Perfect for measuring buses that use differential signaling, such as CAN.

TROUBLESHOOTING AND PRE-COMPLIANCE SCANNING

Critical high-speed data flows throughout today’s vehicles over wired and wireless connections, even as EV power systems switch higher voltages and currents. EMI must be managed not only for regulatory compliance, but also to ensure signal integrity.

Pre-compliance EMI scans build confidence and help designers isolate potential problems before formal testing. For troubleshooting interference problems, seeing signals in both the time domain and frequency domain helps connect cause and effect.

Real-time spectrum analyzers are ideal for finding elusive RF anomalies and performing pre-compliance EMI scans. Oscilloscopes with synchronized spectrum analysis capabilities provide visibility of multiple signals in the time and frequency domains for faster troubleshooting of tough interference problems.

Look to Tektronix for

  • Capturing elusive RF anomalies
  • EMI pre-compliance testing
  • Interference and noise troubleshooting
RECOMMENDED EQUIPMENT
LIV curves

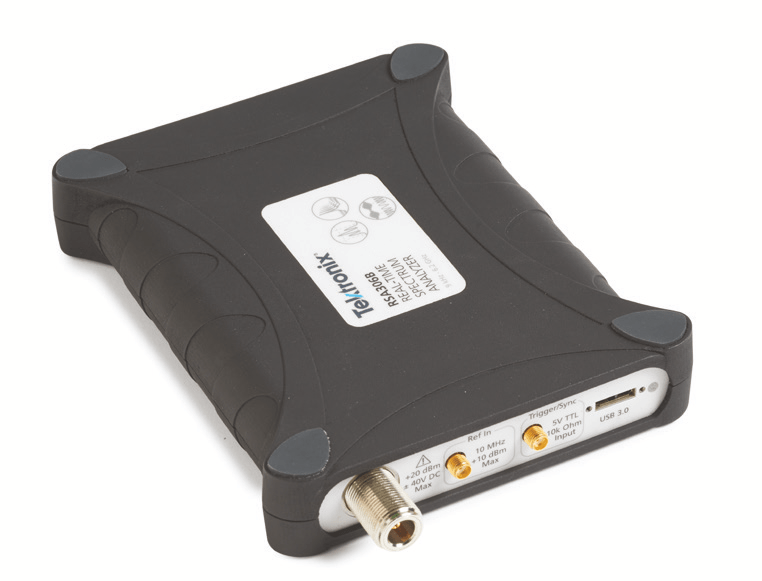

RSA306 USB Spectrum Analyzer

Compact and portable real-time spectrum analysis up to 6.2 GHz.

LIV curves

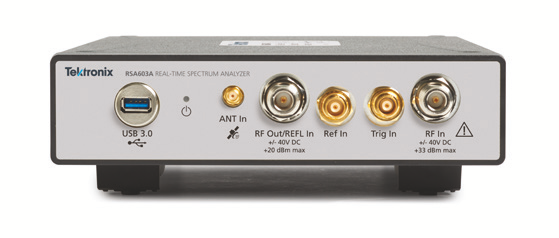

RSA600 USB Spectrum Analyzer

Compact bench-top real-time spectrum analysis.

LIV curves

RSA500 Series Real-Time Spectrum Analyzers

Portable, rugged real-time spectrum analyzer up to 18 GHz.

LIV curves

4/5/6 Series MSOOscilloscopes

Spectrum analysis synchronized with time-domain waveforms for fast debugging.

LIV curves

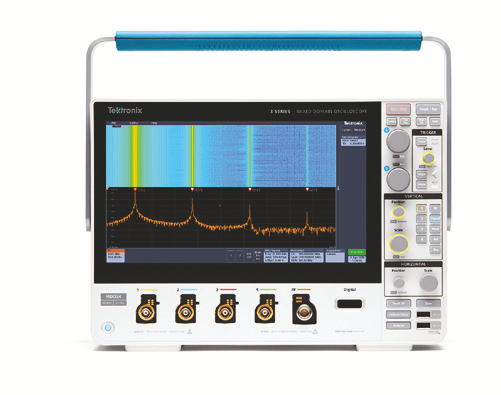

3 Series MDO

All-purpose bench oscilloscope with built-in spectrum analyzer.

Find more valuable resources at TEK.COM


Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

4/24 48W-73969-1
