TPS2000B Series Datasheet

The TPS2000B Series offers a distinctive range of capabilities in an oscilloscope with controls and menus you will find familiar and easy to use. Available in 2- or 4-channel versions, the TPS2000B Series with IsolatedChannel™ technology provides isolation from ground and isolation between channels allowing you to take measurements with less worry about damaging circuitry. Battery power comes standard, making it a natural choice for field applications. For work on power electronics, optional software integrates commonly needed power system measurements into the instrument, speeding up power analysis and troubleshooting.

Key performance specifications

100 MHz and 200 MHz bandwidths
2 or 4 fully isolated and floating channels, plus impedance isolated external trigger input
Sample rates up to 2 GS/s real time on all channels
2.5k point record length on all channels

Key features

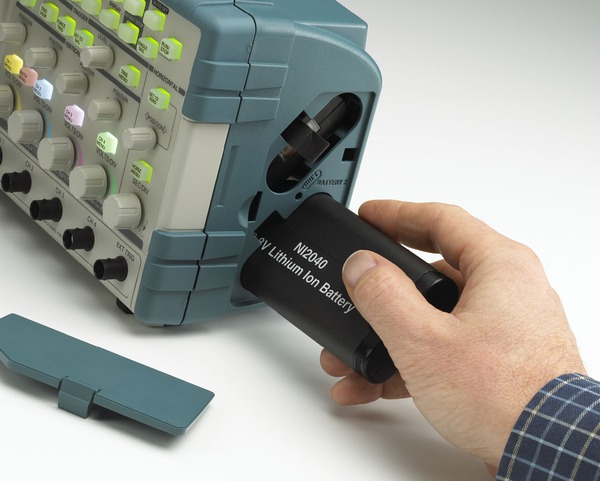

8 hours of continuous battery operation with two batteries installed, hot swappable for virtually unlimited freedom from AC line power
Optional power application software offers the broadest range of power measurements at its price point
Quickly document and analyze measurement results with OpenChoice^® software or integrated CompactFlash^® mass storage
FFT standard on all models
Advanced triggers to quickly capture the event of interest
Traditional, analog-style knobs and multi-language user interface for easy operation
Quick setup and operation with autoset menu, autorange, waveform and setup memories, and built-in, context-sensitive Help
Backlit menu buttons for high visibility
11 of the most critical automatic waveform measurements

Applications

Industrial power design, troubleshooting, installation, and maintenance
Advanced electronics design, troubleshooting, installation, and maintenance
Automotive design and test
Education

Make floating and differential measurements - quickly, accurately, affordably

Unintentionally grounding a circuit under test is a common cause of poor measurement results and circuit damage. Connecting two or more grounded probes can cause ground loops, and if the current is high enough can result in ruined components and equipment. Most importantly, taking floating measurements without the proper instruments and probes can pose a safety hazard.

Tektronix IsolatedChannel technology simplifies floating measurements. Unlike ground-referenced oscilloscopes, the TPS2000B input connector shells are isolated from each other and from earth ground. Within the specified 600 V_RMS maximum float voltage, IsolatedChannel technology keeps current from flowing between the TPS2000B input BNC shells or from any BNC shell to earth.

TPS2000B 3MW1775015 — Four IsolatedChannel™ inputs and isolated external trigger input for quick, accurate, affordable floating and differential measurements.

Selecting the right probes for the job

Different passive probes are available, depending on your application. With the included TPP0101/TPP0201 passive probes, the TPS2000B can measure up to 400 V_p-p. However, to meet the safety rating of the TPP0101/TPP0201, the reference lead of the probe must be maintained within 30 V_RMS relative to ground. Because of this, the TPP0101/TPP0201 probes are well suited for working on digital and analog circuits in which the maximum voltage never exceeds 30 V_RMS.

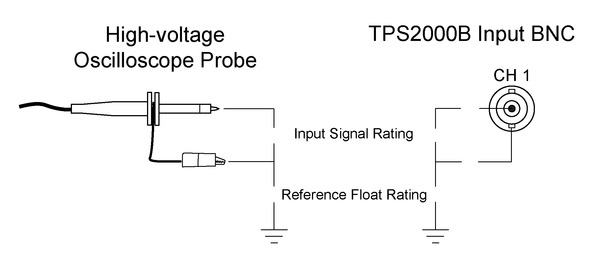

Measurements on power conversion electronics usually require probes with higher voltage ratings. Tektronix offers two passive probes with insulation systems specifically designed for making floating measurements. With their 100X attenuation, and 1000 VRMS rating, the optional P5122 probes (when coupled with the TPS2000B) are suitable for making measurements on 480 VRMS devices in Category II environments, with a maximum float voltage of up to 600 VRMS relative to earth ground. With the optional P5150 probe, the TPS2000B can measure up to 2000 V_p-p, with a maximum float voltage within 600 V_RMS of ground. The P5150 is the best choice for making AC-coupled ripple measurements on high-voltage DC power supplies.

Please see "Characteristics" for complete safety ratings and specifications.

Scope/Probe (Attenuation)	Maximum Safety Ratings		TPS2000 Viewable Signal
	Reference Float Safety Rating ¹	Input Signal Safety Rating	On-screen Peak-Peak Voltage (Sinusoid centered at 0 V)	On-screen RMS Voltage (Sinusoid centered at 0 V)
TPS2000B Input (1X)	600 V_RMSCAT II	300 V_RMSCAT II	40 V_p-p	14.1 V_RMS
TPP0101 (100 MHz)	30 V_RMS	300 V_RMSCAT II	400 V_p-p	141 V_RMS
TPP0201 (200 MHz)	30 V_RMS	300 V_RMSCAT II	400 V_p-p	141 V_RMS
P5150 (50X)	600 V_RMSCAT II	1000 V_RMSCAT II	2000 V_p-p	705 V_RMS
P5122 ² (100X)	600 V_RMSCAT II	1000 V_RMSCAT II	2828 V_p-p	1000 V_RMS

Speed the design and test of industrial power systems and circuits

From mobile phones to industrial motor drives, power conversion technology has enabled significant advances in size, performance, and energy efficiency. But even the most basic task of viewing a converter's input and output is complicated by multiple voltage references. Multiple references also make it challenging to view signals from control circuits and power circuits at the same time. Using ground-referenced oscilloscopes in these applications, without appropriate differential probes, can damage circuits and produce bad measurements. For debugging power conversion electronics, IsolatedChannel technology reduces the risk of damage and unintended circuit interactions.

For performing power system measurements, TPS2PWR1 power application software is available as an option for the TPS2000B. It provides advanced power measurements right on the oscilloscope, at an entry-level price.

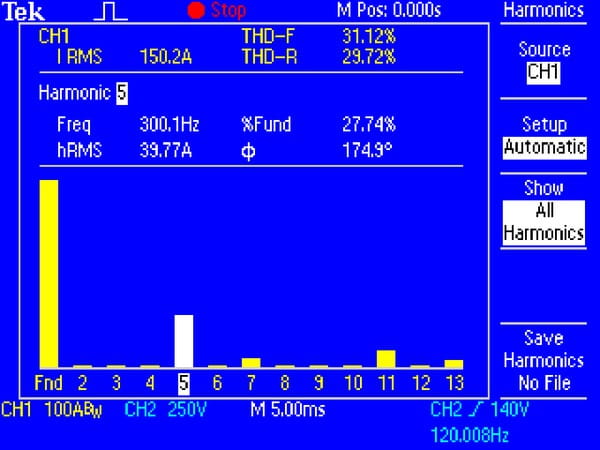

For dialing in the performance of switching components, the power application software adds important measurements to the TPS2000B, including automatic switching loss, dv/dt, and di/dt cursor measurements.

For measurements on AC line voltage and for checking the impact on the power distribution system, the power application software shows harmonic content to the 50th harmonic, and provides phase, reactive power consumption, and power factor measurements. With the four-channel TPS2014B or TPS2024B, you can view three-phase voltages or currents.

Two power "bundles" are available, combining probes and measurement software. Each package combines four probes with the TPS2PWR1 power application software, at prices that are lower than if purchased separately. The TPS2PBND2 combines four P5122 100X passive, high-voltage probes with the power application software.

Quickly debug and characterize signals with DRT sampling technology

Characterize a wide range of signal types on up to four channels simultaneously with the TPS2000B Series Digital Real-Time (DRT) sampling technology. This acquisition technology makes it possible to capture high-frequency events, such as glitches and edge anomalies, that eludes other oscilloscopes in its class, so that you can be sure to get an accurate view of your signal.

Easily analyze and document your measurement results

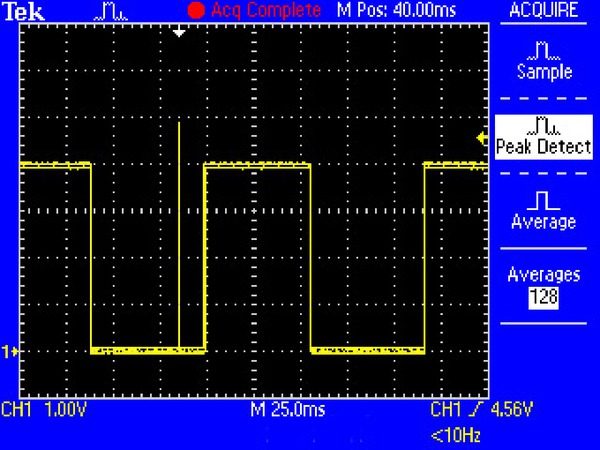

Quickly reveal signal interference, crosstalk, and the effects of vibration with frequency domain analysis using the TPS2000B Series Fast Fourier Transform (FFT) feature. Then, easily document your measurement results with the integrated CompactFlash^® mass storage.

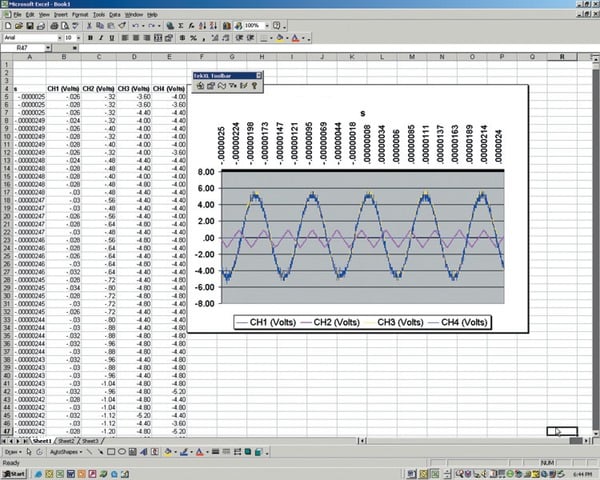

To capture, save, and analyze your measurement results on your PC, the included OpenChoice^® PC software can be used. Every TPS2000B Series also ships with a free copy of the special Tektronix Edition of the National Instrument LabVIEW SignalExpress™ software for basic instrument control, data logging, and analysis. The optional Professional Edition of SignalExpress offers over 200 built-in functions that provide additional signal processing, advanced analysis, sweeping, limit testing, and user-defined step capabilities.

SignalExpress supports the range of Tektronix bench instruments ³, enabling you to connect your entire test bench. You can then access the feature-rich tools packed into each instrument from one intuitive software interface. This allows you to automate complex measurements requiring multiple instruments, log data for an extended period of time, time-correlate data from multiple instruments, and easily capture and analyze your results, all from your PC. Only Tektronix offers a connected test bench of intelligent instruments to simplify and speed debug of your complex design.

Correlate your measurements from bench to lab to field

Use the TPS2000B Series on your bench, in the lab, or in the field, with the industry's longest continuous battery life - 8 hours and beyond - in a highly mobile package. ⁴ Enjoy virtually unlimited freedom from an AC power source with hot-swappable batteries.

Optimize your productivity

The oscilloscope has a front-panel layout that most users will find familiar. Each channel has a dedicated set of scale and position controls. Reduce your measurement time with features like autoset, autorange, automatic measurements, probe check wizard, and context-sensitive help. Backlit menu buttons help you work in a variety of challenging environments - from bright daylight to dimly lit areas.

Performance you can count on

In addition to industry-leading service and support, every TPS2000B Series oscilloscope comes backed with a three-year standard warranty.

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Model overview

	TPS2012B	TPS2014B	TPS2024B
Isolated channels	2	4	4
Bandwidth ⁵	100 MHz	100 MHz	200 MHz
Rise time	3.5 ns	3.5 ns	2.1 ns
Sample rate per channel	1.0 GS/s	1.0 GS/s	2.0 GS/s
Record length	2.5k points	2.5k points	2.5k points

Vertical system

Record length: 2.5k points

Vertical resolution: 8 bits (normal or with averaging)

Vertical sensitivity: 2 mV to 5 V/div on all models with calibrated fine adjustment

DC vertical accuracy: ±3%

Vertical zoom: Vertically expand or compress a live or stopped waveform

Maximum input voltage (1 MΩ): 300 V_RMS CAT II from BNC signal to BNC shell

Float voltage: 600 V_RMS CAT II from BNC shell to earth ground

Position range

2 mV to 200 mV/div ±1.8 V

>200 mV to 5 V/div ±45 V

Bandwidth limit: 20 MHz

Linear dynamic range: ±5 div

Input impedance: 1 MΩ ±2% in parallel with 20 pF

Input coupling: AC, DC, GND

Horizontal system

Seconds/division range

TPS2012B	TPS2014B	TPS2024B
5 ns to 50 s/div	5 ns to 50 s/div	2.5 ns to 50 s/div

Time base accuracy: 50 ppm

Horizontal zoom: Horizontally expand or compress a live or stopped waveform

Trigger system (main only)

Trigger modes: Auto, Normal, Single Sequence

Trigger types

Edge (rising or falling)

Conventional level-driven trigger. Positive or negative slope on any input.

Coupling Selections: AC, DC, Noise Reject, HF Reject, LF Reject

Video

Trigger on all lines or individual line, odd/even or all fields from composite video, or broadcast standards (NTSC, PAL, SECAM)

Pulse width (or glitch)

Trigger on a pulse width less than, greater than, equal to, or not equal to a selectable time limit ranging from 33 ns to 10 s

Trigger source

2-channel models: CH1, CH2, Ext, Ext/5, Ext/10
4-channel models: CH1, CH2, CH3, CH4, Ext, Ext/5, Ext/10

Trigger view: Displays trigger signal while trigger view button is depressed.

Trigger signal frequency readout: Provides a frequency readout of the trigger source with 6-digit resolution.

Acquisition system

Acquisition modes

Sample: Sample data only
Peak detect: High-frequency and random glitch capture. Captures glitches as narrow as 12 ns typical using acquisition hardware at all time/div settings from 5 μs/div to 50 s/div
Average: Waveform averaged, selectable: 4, 16, 64, 128
Single sequence: Use the Single Sequence button to capture a single triggered acquisition sequence at a time.
Scan/roll mode: At acquisition time-base settings of ≥100 ms/div.

Waveform measurements

Cursors

Types: Voltage, time
Measurements: ΔT, 1/ΔT (frequency), ΔV, dv/dt ⁶, di/dt1

Automatic waveform measurements: Period, Frequency, +Width, -Width, Rise Time, Fall Time, Max, Min, Peak-to-Peak, Mean, Cycle RMS.

Power measurements: Optional package that offers instantaneous power waveform analysis, waveform analysis, harmonics analysis, switching loss, phase angles, dv/dt and di/dt cursors.

Waveform processing

Operators: Add, subtract, multiply, FFT

FFT: Windows: Hanning, Flat Top, Rectangular; 2048 sample points.

Sources

2-channel models: CH1 - CH2, CH2 - CH1, CH1 + CH2, CH1 × CH2
4-channel models: CH1 - CH2, CH2 - CH1, CH3 - CH4, CH4 - CH3, CH1 + CH2, CH3 + CH4, CH1 × CH2, CH3 × CH4

Autorange: Allows the user to change test points without resetting the oscilloscope.

Autoset menu

Single-button, automatic setup of all channels for vertical, horizontal, and trigger systems, with undo autoset.

Square wave: Single cycle, multicycle, rising or falling edge

Sine wave: Single cycle, multicycle, FFT spectrum

Video (NTSC, PAL, SECAM): Field: All, Odd, or Even Line: All or Selectable Line Number

Software

OpenChoice® Desktop: Seamless connection from oscilloscope to PC through RS-232. Transfer and save settings, waveforms, measurements, and screen images. Includes a Windows desktop data transfer application in addition to convenient Word and Excel toolbar add-ins.

Display system

Display type: 1/4 VGA Active TFT Color 5.7 inch LCD display

Interpolation: Sin (x)/x

Waveform styles: Dots, vectors

Persistence: Off, 1 sec, 2 sec, 5 sec, infinite

Format: YT and XY

Horizontal zoom: Horizontally expand or compress a line or stopped waveform

Input/output ports

RS-232

Port (standard): 9-pin DTE
Programmability: Full talk/listen modes. Control of all modes, settings, and measurements. Baud rate up to 19,200.

Printer port (standard)

Graphics file formats: TIFF, PCS (PC Paint Brush), BMP (Microsoft Windows), EPS (Encapsulated Postscript), and RLE
Printer formats: Bubble Jet, DPU-411, DPU-412, DPU-3445, Thinkjet, Deskjet, Laser Jet, Epson Dot (9- or 24-pin), Epson C60, Epson C80

Parallel port: Standard Centronics-type

Mass storage CompactFlash^® memory: Accepts any Type 1 CompactFlash^® card, up to and including 2 GB (card not included).

PC connectivity: Standard

Data storage

Non-volatile storage: CompactFlash^® up to 2 GB

Reference waveform display: Two 2500 point reference waveforms

Waveform storage: 96 or more reference waveforms per 8 MB

Setups: 4000 or more front-panel setups per 8 MB

Screen images: 128 or more screen images per 8 MB (the number of images depends on file format selected).

Save All: 12 or more Save All operations per 8 MB. A single Save All operation creates 2 to 9 files (setup, image, plus one file for each displayed waveform).

Power source

Power source: AC adapter with power cord

Battery operation

Capacity for two hot-swappable battery packs

One standard battery pack offers 4 hours of battery operation

Optional second battery pack extends battery operation to 8 hours

Continuous battery operation is possible by hot-swapping charged batteries

Physical characteristics

Dimensions

	mm	inches
Width	336.0	13.24
Height	161.0	6.33
Depth	130.0	5.10

Cooling clearance: 2 in. (50 mm) required on left side and rear of instrument

Weight

	kg	lb.
Instrument only	2.7	6.0
with 1 battery	3.2	7.0
with 2 batteries	3.7	8.0

Package dimensions

	mm	inches
Width	476.2	18.75
Height	266.7	10.50
Depth	228.6	9.00

EMC, environment and safety

Temperature

Operating: 0 °C to +50 °C
Nonoperating: -40 °C to +71 °C

Humidity

TPS2000B Series oscilloscopes are not intended for use in wet or damp conditions.

Operating

High: 50 °C / 60% RH

Low: 30 °C / 90% RH

Nonoperating

High: 55 °C to 71 °C / 60% RH max wet bulb

Low: 30 °C to 0 °C / <90% RH max wet bulb

Altitude

Operating: Up to 3,000 meters
Non-operating: 15,000 meters

Pollution degree 2: Do not operate in an environment where conductive pollutants may be present (as defined in IEC61010-1:2001).

Enclosure rating

IP30: When the CompactFlash^® card and power analysis software are installed (as defined in IEC60529:2001)

Electromagnetic compatibility: Meets or Exceeds: Australian EMC Framework, demonstrated per Emission Standard AS/NZS 2064.1/2

Safety: UL61010-1: 2004. CAN/CSA22.2 No. 1010.1: 2004. EN61010-1: 2001.; Do not float the TPP0101/TPP0201 probe common lead to >30 V _RMS. Use the P5122, P5150 (floatable to 600 V _RMS CAT II) or similarly rated passive, high-voltage probe, or an appropriately rated high-voltage, differential probe when floating the common lead above 30 V _RMS.

Ordering information

Use the following information to choose accessories and options for your instrument.

TPS2000B Models

TPS2012B: 100 MHz, 1 GS/s, 2.5k points, 2-channel digital storage oscilloscope
TPS2014B: 100 MHz, 1 GS/s, 2.5k points, 4-channel digital storage oscilloscope
TPS2024B: 200 MHz, 2 GS/s, 2.5k points, 4-channel digital storage oscilloscope

Standard accessories

Probes

One probe per channel standard.

TPP0101: 100 MHz,10X passive probe for TPS2012B and TPS2014B
TPP0201: 200 MHz,10X passive probe for TPS2024B

Accessories

--: Front protective cover
--: Printed user manual (English only)
--: Installation and safety manual
--: AC adapter with power cord
--: Lithium-ion battery with fuel gauge for 4-hour battery life. Two batteries required for 8 hours of continuous battery operation.
--: USB to RS-232 cable
--: OpenChoice^® PC connectivity software
--: NI SignalExpress™ Tek Edition software
--: NIM/NIST-Traceable Certificate of Calibration

Warranty

Three-year warranty covering all labor and parts, excluding probes and accessories.

Instrument options

Power cord and plug options

Opt. A0: North America power plug (115 V, 60 Hz)
Opt. A1: Universal Euro power plug (220 V, 50 Hz)
Opt. A2: United Kingdom power plug (240 V, 50 Hz)
Opt. A3: Australia power plug (240 V, 50 Hz)
Opt. A5: Switzerland power plug (220 V, 50 Hz)
Opt. A6: Japan power plug (100 V, 50/60 Hz)
Opt. A10: China power plug (50 Hz)
Opt. A11: India power plug (50 Hz)
Opt. A12: Brazil power plug (60 Hz)
Opt. A99: No power cord

Language options

Opt. L0: English front panel overlay
Opt. L1: French front panel overlay
Opt. L2: Italian front panel overlay
Opt. L3: German front panel overlay
Opt. L4: Spanish front panel overlay
Opt. L5: Japanese front panel overlay
Opt. L6: Portuguese front panel overlay
Opt. L7: Simplified Chinese front panel overlay
Opt. L8: Traditional Chinese front panel overlay
Opt. L9: Korean front panel overlay
Opt. L10: Russian front panel overlay
Opt. L99: No manual

Language options include translated front-panel overlay for the selected language(s).

Recommended accessories

Probes

Tektronix offers over 100 different probes to meet your application needs. For a comprehensive listing of available probes, please visit www.tek.com/probes.

A621: 2000 A, 5-50 kHz AC current probe/BNC
A622: 100 A, 100 kHz AC/DC current probe/BNC
P5122: 200 MHz passive 100X high-voltage probe ⁷
P5150: 500 MHz 50X high-voltage probe
P5205A: High-voltage active differential probe (1300 V_p-p, 100 MHz) (1103 power supply required)
P5210A: High-voltage active differential probe (5600 V_p-p, 50 MHz) (1103 power supply required)
CT2: 2.5 A, 200 MHz AC current probe
TCP202A: 15 A, 50 MHz AC/DC current probe (1103 power supply required)
TCP303/TCPA300: 150 A, 15 MHz AC/DC current probe/amplifier
TCP305A/TCPA300: 50 A, 50 MHz AC/DC current probe/amplifier
TCP312A/TCPA300: 30 A, 100 MHz, DC/AC current probe/amplifier
TCP404XL/TCPA400: 500 A, 2 MHz AC/DC current probe/amplifier

Accessories

TPS2PBND2: Power bundle for TPS2000B oscilloscopes. Includes (4) P5122 passive, 100X high-voltage probes and TPS2PWR1 power measurement and analysis software.
TPS2PWR1: Power measurements application package. Instantaneous power waveform analysis, waveform analysis, harmonics analysis, switching loss, phase angles, dv/dt and di/dt cursors.
OpenChoice: The Tektronix OpenChoice Desktop free application lets you capture oscilloscope screen images, waveform data, and settings from a Microsoft Windows computer
TPSBAT: Additional battery
TPSCHG: Battery charger
AC2100: Soft case for carrying instrument
HCTEK4321: Hard case for carrying instrument (requires AC2100)
077-0447-xx: Service manual - English only
077-0444-xx: Programmer manual - English only

Cables

012-1241-xx: RS-232, 9-Pin Female to 25-Pin Male, 4.6 m (15 ft.), for modems
012-1651-xx: RS-232, 9-Pin Female to 9-Pin Female, null modem, for computers
012-1380-xx: RS-232, 9-Pin Female to 25-Pin Female, null modem, for computers
012-1651-xx: Centronics, 25-Pin Male to 36-Pin Centronics, 2.4 m (8 ft.), for parallel printer interfaces

¹ Passive probe reference leads have no attenuation so any working voltage or over-voltage transients pass straight through to the scope reference. Thus, a passive probe reference float rating can never exceed the scope reference float rating.

² The P5122 probe should not be used for AC-coupled measurements on signals with greater than 300 V DC offset. The P5120 is the recommended probe for measuring ripple on high-voltage DC supplies.

³ To see the full range of Tektronix instruments supported by the Tektronix Edition of NI LabVIEW SignalExpress, visit www.tek.com/signalexpress.

⁴ Please refer to Environmental and Safety specifications.

⁵ Bandwidth is 20 MHz at 2 mV/div, all models. For TPS2024B, 200 MHz bandwidth is typical at 5 mV/div. Bandwidth is 200 MHz at 10 mV/div and above, for operating temperatures from 0 °C to 40 °C. Bandwidth is 180 MHz for all V/div settings 10 mV/div and above, for operating temperatures from 0 °C to 50 °C.

⁶ Requires TPS2PWR1 power application package.

⁷ The P5122 probe should not be used for AC-coupled measurements on signals with greater than 300 V DC offset. The P5120 is the recommended probe for measuring ripple on high-voltage DC supplies.

	Tektronix is ISO 14001:2015 and ISO 9001:2015 certified by DEKRA.
	Product(s) complies with IEEE Standard 488.1-1987, RS-232-C, and with Tektronix Standard Codes and Formats.

3MW-17750-15

Digital Storage Oscilloscopes

TPS2000B Series Datasheet

More Information

Key performance specifications

Key features

Applications

Make floating and differential measurements - quickly, accurately, affordably

Selecting the right probes for the job

Speed the design and test of industrial power systems and circuits

Quickly debug and characterize signals with DRT sampling technology

Easily analyze and document your measurement results

Correlate your measurements from bench to lab to field

Optimize your productivity

Performance you can count on

Specifications

Model overview

Vertical system

Horizontal system

Trigger system (main only)

Acquisition system

Waveform measurements

Waveform processing

Autoset menu

Software

Display system

Input/output ports

Data storage

Power source

Physical characteristics

EMC, environment and safety

Ordering information

TPS2000B Models

Standard accessories

Probes

Accessories

Warranty

Instrument options

Power cord and plug options

Language options

Recommended accessories

Probes

Accessories

Cables
