Transient Limiter for Tektronix EMC pre-compliance
EMI-TRANS-LIMIT (Com-Power LIT-153A offered by Tektronix)
![EMI-TRANSLIMITdatasheet](/-/media/datasheets/emitranslimitdatasheetjaja1sjpg.jpg?h=130&iar=0&w=180)
The EMI-TRANS-LIMIT (Com-Power LIT-153A) protects a spectrum analyzer input from high-level transients from the line impedance stabilization networks (LISN) during EMC conducted emissions testing. The built-in band pass filter attenuates the out-band signals at more than 20 dB/decade.
Key features
- Frequency range of 150 kHz -30 MHz
- Built-in band pass filter attenuates the out-band signals at more than 20 dB/decade
- VSWR of <1.1:1
Specifications
- Transient limiter
- Frequency range
- 150 kHz to 30 MHz
- Insertion loss
- 10 dB +1.5 / -0.5 dB (This is in-band attenuation level.)
- Maximum input level
2 Watts CW (+33 dBm ) +/- 10 V DC
(This is the maximum in-band input level that will not damage the unit.)
- VSWR
- < 1.1:1
- Connectors (input and output)
- N-type (male) / N-type (female)
- Dimensions

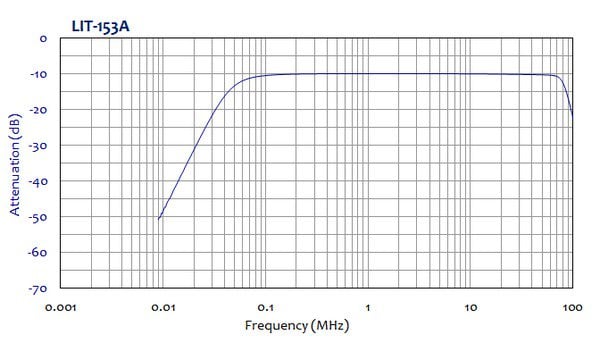

Length Width Height 4.3 in (100 mm) 2.0 in (50 mm) 1.5 in (35 mm) - Typical attenuation
Ordering information
EMI-TRANS-LIMIT transient limiter
Item | Description |
---|---|
EMI-TRANS-LIMIT | Frequency Range 150 kHz to 30 MHz, Max input +33 dBm, N type |
