THP0301 Series Passive 10x Voltage Probe

THP0301-Y, THP0301-B, THP0301-M, THP0301-G Datasheet

THP0301-Y, THP0301-B, THP0301-M, THP0301-G Datasheet

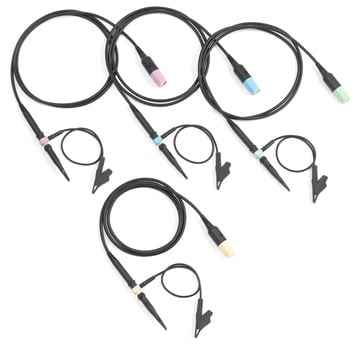

The THP0301 probes are 300 MHz, 10X passive voltage probes with 10 MΩ input resistance. These probes are for use with the THS3000 Series oscilloscopes and are color coded to match the oscilloscope's channel input connectors, front-panel channel selector buttons, and the displayed waveforms.

Key features

  • 300 MHz bandwidth for the THS3000 series handheld oscilloscopes

  • 10X attenuation
  • 1.2 m length

Applications

  • Low-frequency computer and telecom measurements
  • Power supplies
  • Low-frequency amplifiers
  • Inverter design
  • Power conversion

Safely measure from mV to kV

The THP0301 probes have a CAT III safety rating which matches the safety rating on the THS3000 Series oscilloscopes enabling you to safely measure voltage ranges from mV to kV. You'll be able to measure anything from micro-electronics to heavy-duty medium-voltage electrical applications, making it possible to obtain accurate measurements in mixed-signal environments with separate ground references.

For a complete list of compatible oscilloscopes, refer to the Tektronix Oscilloscope Probe & Accessory Selector Tool at www.tek.com/probes.

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Description
Bandwidth DC to 300 MHz
Probe length 1.2 m
Compensation range 10 pF to 22 pF
Input capacitance 11 pF
Input resistance 10 MΩ
Maximum input voltage 300 v CAT III

Ordering information

One of each probe is included as a standard accessory with the THS3000 series oscilloscopes.

THP0301-Y
(Yellow) DC to 300 MHz, 10X high-voltage probe
THP0301-B
(Blue) DC to 300 MHz, 10X high-voltage probe
THP0301-M
(Magenta) DC to 300 MHz, 10X high-voltage probe
THP0301-G
(Green) DC to 300 MHz, 10X high-voltage probe

Optional accessories

020-3085-xx
Probe accessory replacement kit
