Frequency settling time, an essential measurement in the design and evaluation of programmable oscillators, phase locked loop circuits, RF synthesizers and more, becomes much easier when the Settling Time option for the Tektronix Realtime Spectrum Analyzers and the SignalVu-PC software (for analyzers and oscilloscopes) is used.

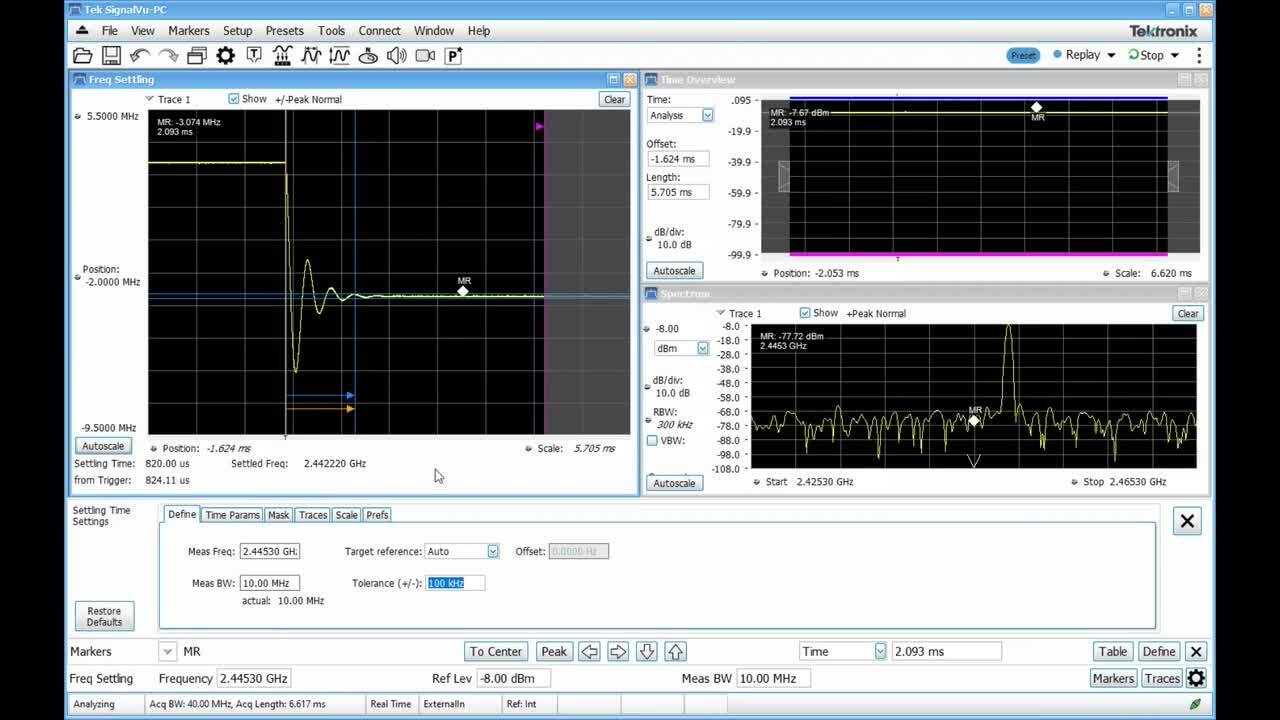

Watch as we demonstrate the steps taken to reduce the noise/variation on a demodulated frequency vs time trace to narrow the tolerance band and make it possible to measure the settled frequency.
Duration 14:12
