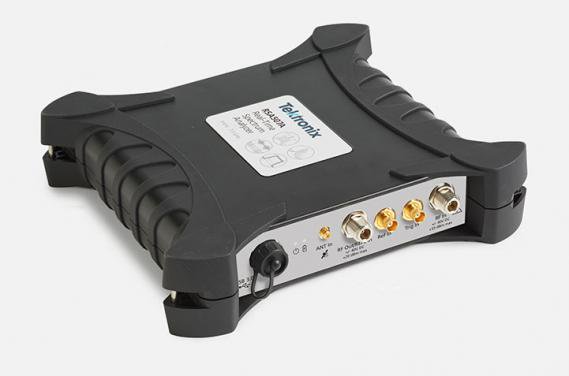

RSA500 Series Real Time Spectrum Analyzers

Find signals of interest and take the necessary actions to resolve issues with industries best ruggedized, portable USB Real-time Spectrum Analyzer, packed with features for your most common tasks out in the field.
See all spectrum / signal analyzers »

Highlights:

Enable precise, real-time measurements with the RSA500 spectrum analyzer packaged in a portable, rugged form factor with advanced spectrum analysis capabilities.
Quickly capture VLF to Ku signals of interest from 9 kHz to 18.0 GHz with 40 MHz bandwidth capture.

Base Price

US $10,600 +

Select Model to Configure/Quote

Datasheet Downloads

Maximum Frequency Range

9 kHz to 18 GHz

Capture Bandwidth

40 MHz

Dynamic Range

-160 dBm to +20 dBm

RSA500 Series

Performance with no compromises.

The RSA500 provides performance to match conventional mid-range spectrum analyzers on the market. With real-time sweeps and a 4x faster scanning capability compared to other spectrum analyzers, you won’t miss signals you need to see and complete tasks faster. No compromises for even your toughest challenges.

RSA500A Series vs. Keysight FieldFox

RSA500A Series vs. R&S FSH

RSA500A Series vs. Anritsu Spectrum Master

RSA507A vs. R&S FSH

Powerful and intuitive. Measurement insight at your fingertips.

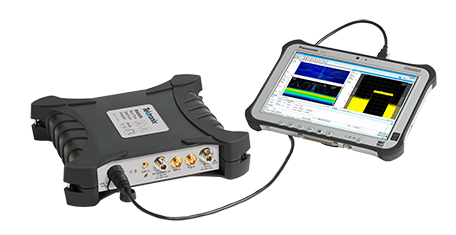

RSA500 Spectrum Analyzer plugged into a tablet PC running SignalVu-PC and displaying a DPX density trigger

The RSA500 is powered by SignalVu-PC software – the same software that powers the benchtop line of Tektronix Real-time Spectrum Analyzers. SignalVu-PC provides advanced measurement and analysis capabilities – including advanced triggering that enables the capture of selective pulses from pulsed transmitters, as well as fast and elusive or unexpected transients during device troubleshooting. Choose from more than 20 add-on packages that cover general purpose modulation analysis, pulsed signal analysis, Bluetooth 5, and commercial wireless signal analysis.

Watch the advanced triggers demo

Simplify your time in the field

With a built-in tracking generator for RF component test and GPS to geo-locate and map signals, the RSA500 makes field test a lot easier. Application-optimized software options for vector signal analysis, pulsed measurements, EMI/EMC pre-compliance testing, RADHAZ detection and more, make signal analysis a breeze.

Emission Control, Radiation Hazards, and the Value of Intelligent RF Sensing for These Applications

See more with proprietary DPX® technology.

Discover the most difficult, hard-to-find problems with the powerful real-time architecture of the RSA Series. With the advanced DPX® technology, you can see RF characteristics that are practically invisible to a conventional spectrum analyzer.

Accidents happen. Make sure you're protected.

We have the only plan in the industry to offer coverage for accidental damage. Yes, this includes screen damage, spills, broken mounts, and electrostatic discharge or electronic overstress events. Reduce unplanned repair or replacement costs with our Total Protection Plan. Watch the video or click below to learn more.

Learn More

Model	Frequency Range	Real-Time Bandwidth	Minimum Event Duration for 100% POI	Weight	SFDR (typical)	List Price	Configure And Quote
RSA503A	9 kHz-3.0 GHz	40 MHz	15 μs	2.99 kg (6.6 lb) with battery	70 dBc	US $10,600	Configure & Quote
RSA507A	9 kHz-7.5 GHz	40 MHz	15 μs	2.99 kg (6.6 lb) with battery	70 dBc	US $17,300	Configure & Quote
RSA513A	9 kHz-13.6 GHz	40 MHz	15 μs	3.85 kg (8.5 pounds) with battery	70 dBc	US $28,000	Configure & Quote
RSA518A	9 kHz-18.0 GHz	40 MHz	15 μs	3.85 kg (8.5 pounds) with battery	70 dBc	US $32,900	Configure & Quote

RF Sensing

The ability to sense important signals of interest (SOIs) in a crowded spectrum has become more challenging for military and government personnel. As spectrum density grows, understanding what is in your environment at any given time has become increasingly complex. RF monitoring with the RSA500 provides real-time situational awareness in the field to quickly identify and monitor spectrum violations, such as unauthorized transmission, LPI threats, hazardous power or emissions control conditions.

Intelligent RF sensor applications

Detecting Drones Using a Real-Time Spectrum Analyzer

Radar

Advancements in radar technology have led to adoption in mobile applications ranging from defense systems to autonomous vehicles. With applications operating across a large spectrum range, it’s important to have spectrum analysis solutions that provide the ability to quickly and accurately identify sources of interference and noise. The Tektronix RSA500 series provides unparalleled performance for analyzing radar signals from the UHF to Ku bands. In a compact form factor, the RSA500 is the perfect choice for on the range, in the field or in the lab.

Radar test applications

Understanding Radar Signals Using Real-Time Spectrum Analyzers AppNote

Electronic Warfare

Operating in today’s battlefield has been amplified by advancements in electronic warfare (EW). The proliferation of high-end electronics and the evolution of commercial technologies have given adversaries unprecedented capabilities. Tektronix Real-time Spectrum Analyzers provide real-time, robust visibility into signals emitted into the electromagnetic spectrum to provide Signal Intelligence (SIGINT) and identify potential threats before they occur.

EW - countermeasures, threat analysis, and environment generation

Spectrum Monitoring and Interference hunting

Mobile communications are creating a complex and crowded signal environment with unprecedented spectrum capacity pressure. Tektronix’ Real-time Spectrum Analyzers help you discover and examine sources of interference quickly, so you can locate and identify unwanted activity. Ensure your signal integrity and compliance to standards using the RSA500 for real-time spectrum insights.

Interference Hunting Application Note

Signal Hunters Article

EMI/EMC pre-compliance Testing

Save cost and precious time by performing pre-compliance testing in your lab with our Real-Time Spectrum Analyzers. You can use peak detection with a free version of SignalVu-PC. You also get more accurate results with quasi-peak and average detection by purchasing the additional option EMCVu.

Low Cost EMI Pre-compliance Testing using a Spectrum Analyzer

Practical EMI Troubleshooting appnote

Model	Frequency Range	Real-Time Bandwidth	Minimum Event Duration for 100% POI	Weight	SFDR (typical)	List Price	Configure And Quote
RSA503A	9 kHz-3.0 GHz	40 MHz	15 μs	2.99 kg (6.6 lb) with battery	70 dBc	US $10,600	Configure & Quote
RSA507A	9 kHz-7.5 GHz	40 MHz	15 μs	2.99 kg (6.6 lb) with battery	70 dBc	US $17,300	Configure & Quote
RSA513A	9 kHz-13.6 GHz	40 MHz	15 μs	3.85 kg (8.5 pounds) with battery	70 dBc	US $28,000	Configure & Quote
RSA518A	9 kHz-18.0 GHz	40 MHz	15 μs	3.85 kg (8.5 pounds) with battery	70 dBc	US $32,900	Configure & Quote

	Tektronix RSA500	Keysight N99xxA	R&S FSH/FPH	Anritsu Spectrum Master	Tektronix RSA306B
Maximum Frequency Ranges	9 kHz to 18 GHz	N9915A: 100 kHz to 9 GHz (other models to 50 GHz)	FSH: 9 kHz to 20 GHz FPH: 5 kHz to 5 GHz	9 kHz to 43 GHz	9 kHz - 6.2 GHz
Capture Bandwidth	40 MHz	10 MHz	20 MHz	15 MHz	40 MHz
Dynamic Range (DANL to Max Imput)	-161 dBm to +33 dBm	-153 dBm to +27 dBm	-163 dBm to +30 dBm	-164 dBm to +33 dBm	-160 dBm to +23 dBm
Phase Noise (1 GHz CF, 10 kHz offset)	-94 dBc/Hz	-106 dBc/Hz	-105 dBc/Hz at 30 kHz Offset	-108 dBc/Hz	-84 dBc/Hz
Real Time Capabilities	Yes	Yes	No	No	Yes
Sweep Times for finding low level signals (-120 dBm)	9 sec (1 kHz RBW, 7.5 GHz Sweep)	11.4 min (1 kHz RBW, 7.5 GHz Sweep)	FSH: 36 sec (1 kHz RBW, 7.5 GHz Sweep)	3 min (1 kHz RBW, 6 GHz Sweep, Fast Mode) >1 hour (1 kHz RBW, 7.5 GHz Sweep, Performance Mode)	9 sec (1 kHz RBW, 7.5 GHz Sweep)
Cable/Antenna Testing: VSWR, DTF, Return Loss measurements	Yes	Yes	Yes	Yes, up to 20 GHz	No
Wideband Vector Signal Analysis Capabilities	Yes – 40 MHz	No	FSH: No – 10 MHz FPH: No	No	Yes – 40 MHz
Signal Capture and Playback	Spectrum, Spectrogram, and IQ signals for full analysis	Spectrum and Spectrogram Only	Spectrum and Spectrogram Only	Spectrum and Spectrogram Only	Spectrum, Spectrogram, and IQ signals for full analysis
Ruggedized	MIL-PRF-28800F Class 2	MIL-PRF-28800F Class 2	MIL-PRF-28800F Class 2	MIL-PRF-28800F Class 2	MIL-PRF-28800F Class 2
Battery Life	5 hours – Instrument Up to 8 hours - Toughpad	3.5 hours	FSH: 4 hours FPH: 8 hours	3 hours	USB 3.0
Weight	1.1 kg; 2.4 lbs – Toughpad 3.2 kg; 7 lbs – Instrument	N9952A: 3.2 kg; 7.1 lbs N9918A: 3.0 kg; 6.6 lbs	FFSH: 3 kg; 6.6 lbs FPH: 2.5 kg; 5.5 lbs	3.7 kg; 8.5 lbs	1.1 kg; 2.4 lbs – Toughpad 0.73 kg; 1.3 lbs – Instrument
Size	2.65'" x 11.78" x 10.68"	292 x 188 x 72 mm (11.5 in x 7.4 in x 2.8 in	7.6 in × 11.8 in × 2.7 in (5.7 in)	315 mm x 211 mm x 77 mm, (12.4 in x 8.3 in x 3.0 in)	1.2" x 7.5" x 5"

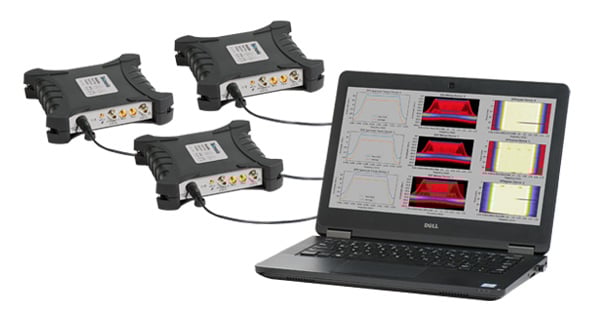

SignalVu-PC software brings benchtop and field features to the RSA500A
