USB 2.0 Application Software

USB 2.0 Decoding, Triggering, and Compliance Testing Software

USB 2.0 Decoding, Triggering, and Compliance Testing Software

These applications provide comprehensive, integrated tools for engineers designing USB-based embedded systems and validating the physical-layer compliance to the USB 2.0 standards. The applications are supported on the DPO/DSA/MSO70000C/D/DX/SX, DPO7000C, 5 and 6 Series MSO, MSO/DPO5000, MDO4000, and MDO3000 Series oscilloscopes.

Key features

  • USB 2.0 Compliance Testing
    • Automated Compliance Testing for USB 2.0 Verification
    • Designed for use with MSO/DPO5000, DPO7000C,
and DPO/DSA/MSO70000C/D/DX/SX Series Oscilloscopes
  • SR-USB USB Triggering and Analysis
    • Automated Trigger and Decode for USB 2.0 and 3.0
    • Designed for use with MSO/DPO5000, DPO7000C,
and DPO/DSA/MSO70000C/D/DX Series Oscilloscopes
  • 5-SRUSB2 USB Triggering and Analysis
    • Automated Trigger and Decode for USB 2.0
    • Designed for use with 5 Series MSO
  • DPO4USB USB 2.0 Triggering and Analysis
    • Automated Trigger, Decode, and Search for USB 2.0
    • Designed for use with MDO4000 Series Oscilloscopes
  • MDO3USB USB 2.0 Triggering and Analysis
    • Automated Trigger, Decode, and Search for USB 2.0
    • Designed for use with MDO3000 Series Oscilloscopes



Applications

  • Low-speed USB 2.0
  • Full-speed USB 2.0
  • High-speed USB 2.0
  • SuperSpeed USB 3.0 (trigger and analysis)

Product description

The Tektronix USB 2.0 compliance test application (Opt. USB2) and selected Tektronix oscilloscopes provide one-button compliance testing for USB 2.0 devices as specified by the USB-IF. The USB software automates the compliance testing and allows engineers to perform the required tests efficiently and reliably right on their bench.

The Tektronix MDO4000 Series oscilloscopes with the DPO4USB Serial Application Module, MDO3000 Series oscilloscopes with the MDO3USB Serial Application Module, 5 Series MSO with the 5-SRUSB2 application, and MSO/DPO5000, DPO7000C, and DPO/DSA/MSO70000C/D/DX Series oscilloscopes with the SR-USB application simplify analysis of USB 2.0 and 3.0 waveforms when validating and debugging USB-based embedded systems by providing trigger, decode, and search for low-speed, full-speed, high-speed, and SuperSpeed USB buses. MDO3USB offers automated decode and search for low-speed, full-speed, and high-speed USB buses, as well as triggering on low-speed and full-speed buses. DPO4USB offers automated trigger, decode, and search for low-speed, full-speed, and high-speed USB buses, enabling fast and efficient validation and debug.

USB2 – Automated USB 2.0 Physical Layer compliance testing

USB compliance testing has some unique measurement challenges:

  • Designers must quickly and accurately perform all compliance tests recommended by the USB Implementers Forum, Inc. (USB-IF) before they can use the “certified” USB-IF logo on their packaging
  • Characterization of these electrical signals includes mask testing and parametric testing, for low-speed, full-speed, and high-speed hosts, devices, and hubs
  • Signal speeds range from 1.5 Mb/s (low-speed) to 480 Mb/s (high-speed)

USB2 Terminator EN US 61W 26136 13

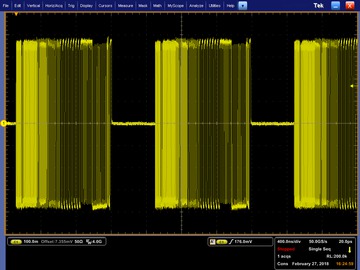

USB compliance test results

The USB2 application software provides automated compliance testing for USB 2.0 serial bus verification, including:

  • Fully compliant with USB-IF tests for USB 2.0 compliance testing
  • Automated eye diagram analysis verifies signal quality against standard USB-IF eye masks or custom masks
  • Automated oscilloscope setups for various tests eliminate time-consuming manual setups
  • Comprehensive test fixture enables quick setup and signal access for a wide range of tests
  • High-speed tests: Signal Quality, Receiver Sensitivity, Chirp, Reset, Reset from High Speed, Reset from Suspend, Resume, Suspend, Packet Parameter, and Monotonicity tests
  • Automatic signal generator control for receiver sensitivity simplifies testing
  • Online help fully documents test procedures
  • User-configurable measurement limits for tolerance testing
  • Supported on Windows 7 (64-bit) and Windows 10 (64-bit) operating systems

USB2 Terminator EN US 61W 26136 13
Measurement Select menu for the Signal Quality test suite

Quick Pass/Fail tests substantiated with results make the USB2 application the preferred solution for USB 2.0 physical-layer validation. In-depth analysis is possible with the statistical information about the tests performed. The user-defined measurement limits and custom mask testing also help to perform tolerance testing on a design.

USB2 Terminator EN US 61W 26136 13
Custom Mask Selection for High Speed Signal Quality
USB2 Terminator EN US 61W 26136 13
Custom Mask (red) with standard USB-IF mask (black) as reference

USB2 compliance test fixtures

The Tektronix TDSUSBF test fixture set provides a probing solution for the Low- and Full-speed Signal Quality, Inrush Current, Drop and Droop, Receiver Sensitivity, and Impedance Measurement test. The TDSUSBF test fixture set is ordered separately.

The High-speed signal quality fixture set (USB2SIGQUAL) provides the necessary SMA-based connection for performing Eye Diagram and other signal quality measurements. The USB 2.0 / 3.0 Drop-Droop fixture (USB2/3_DD) from www.fixturesolutions.com provides sufficient loads for testing voltage drop and droop levels while testing Host or Hubs (downstream ports supplying VBUS).

USB2 Terminator EN US 61W 26136 13
TDSUSBF USB 2.0 test fixture set
USB2 Terminator EN US 61W 26136 13
USB2SIGQUAL High-speed Signal Quality test fixture set (available from Allion)
USB2 Terminator EN US 61W 26136 13
Droop-Drop fixture (available from www.fixturesolutions.com)

SR-USB USB 2.0 and 3.0 triggering and analysis

Debugging USB-based embedded systems designs provides some complex measurement and analysis challenges:

  • Capturing specific USB addresses and data
  • Displaying the elements of the USB message in an understandable format, in a variety of formats, for a wide variety of engineers and technicians
  • Time-correlating USB messages with analog and digital signals in the embedded system
  • Capture long time windows of USB traffic and then find specific events within the acquired data

The optional SR-USB application software, installed in an MSO/DPO5000, DPO7000C, or DPO/DSA/MSO70000C/D/DX Series oscilloscope, provides a robust set of tools for debugging embedded systems with USB 2.0 and 3.0 serial buses, including:

  • Automated serial triggering and decode for low-speed, full-speed, and high-speed USB 2.0 signals
  • Serial triggering and decode for SuperSpeed USB 3.0 signals (8b/10b)
  • Trigger on all the critical elements of a USB bus such as address, data, etc.
  • Decode all the critical elements of each USB message. No more counting 1s and 0s!
  • Search through long acquisitions using user-defined criteria to find specific messages
  • Event table shows decoded serial bus activity in a tabular, time-stamped format for quick summary of system activity

USB serial triggering

Trigger on packet content such as sync, reset, suspend/resume, token (address) packets with specific address and endpoint, specific data content, handshake packets, special packets, and errors.

USB2 Terminator EN US 61W 26136 13
Triggering on a specific PID on a USB full-speed bus. A complete set of triggers, including triggers for specific token (address) and data packet content, ensures you quickly capture your event of interest.

USB serial decode

The SR-USB application provides a higher-level, combined view of the individual signals that make up the USB bus, making it easy to identify where packets begin and end and identify subpacket components such as sync, PID, data, CRC, errors, etc.

USB2 Terminator EN US 61W 26136 13
Color-coded decoded display of low-speed USB bus, showing Sync, PID, CRC, and Stop components of the serial signal
USB2 Terminator EN US 61W 26136 13
High-speed USB decoded display, automatically displaying bus content in any of several digital formats
USB2 Terminator EN US 61W 26136 13
USB 3.0 bus display showing multiple layers simultaneously

Are you wasting time manually decoding the waveform? Tired of having to visually inspect the waveform to count clocks, determine if each bit is a 1 or a 0, combine bits into bytes, and determine the hex value? Let the oscilloscope with the SR-USB application do it for you! Once you've set up a USB bus, the MSO/DPO5000, DPO7000C, or DPO/DSA/MSO70000C/D/DX Series will decode each packet on the bus, and display the value in Hex, Binary, or ASCII in the bus waveform.

USB 2.0 Event table

In addition to seeing decoded packet data on the bus waveform itself, you can view all captured packets in a tabular view much like you would see in a software listing. Packets are time stamped and listed consecutively with columns for each component (Time, PID, Address, Payload, and Errors).

USB2 Terminator EN US 61W 26136 13
USB decoded Event table showing all packet information with time-stamp information

USB 2.0 search

USB packet content triggering is very useful for isolating the event of interest, but once you’ve captured it and need to analyze the surrounding data, what do you do? In the past, users had to manually scroll through the waveform counting and converting bits and looking for what caused the event. With the SR-USB application installed, you can enable the oscilloscope to automatically search through the acquired data for user-defined criteria including serial packet content. Each occurrence is highlighted by a search mark. Rapid navigation between marks is as simple as pressing the Previous (←) and Next (→) buttons on the oscilloscope front panel.

5-SRUSB2 USB 2.0 triggering and analysis

Debugging USB-based embedded systems designs provides some complex measurement and analysis challenges:

  • Capturing specific USB addresses and data
  • Displaying the elements of the USB message in an understandable format, in a variety of formats, for a wide variety of engineers and technicians
  • Time-correlating USB messages with analog and digital signals in the embedded system
  • Capture long time windows of USB traffic and then find specific events within the acquired data

The optional 5-SRUSB2 application software, installed in a 5 Series MSO, provides a robust set of tools for debugging embedded systems with USB 2.0 serial buses, including:

  • Automated serial triggering and decode for low-speed, full-speed, and high-speed USB 2.0 signals
  • Trigger on all the critical elements of a USB bus such as address, data, etc.
  • Decode all the critical elements of each USB message. No more counting 1s and 0s!
  • Search through long acquisitions using user-defined criteria to find specific messages
  • Results table shows decoded serial bus activity in a tabular, time-stamped format for quick summary of system activity

USB serial triggering

Trigger on packet content such as sync, reset, suspend/resume, token (address) packets with specific address and endpoint, specific data content, handshake packets, special packets, and errors.

USB2 Terminator EN US 61W 26136 13
Trigger setup to capture a specific token (address) on a USB high-speed bus. A complete set of triggers, including triggers for specific token (address) and data packet content, ensures you quickly capture your event of interest.

USB 2.0 serial decode

The 5-SRUSB2 application provides a higher-level, combined view of the individual signals that make up the USB bus, making it easy to identify where packets begin and end and identify sub-packet components such as sync, PID, data, CRC, errors, etc.

Tired of manually decoding the waveform? Let the oscilloscope with the 5-SRUSB2 application do it for you! Once you've set up a USB bus, the 5 Series MSO will decode each packet on the bus, and display the value in Hex, Binary, or ASCII in the bus waveform.

USB 2.0 Results Table

In addition to seeing decoded packet data on the bus waveform itself, you can view all captured packets in a tabular view much like you would see in a software listing. Packets are time stamped and listed consecutively with columns for each component (Time, PID, Address, Payload, and Errors).

USB2 Terminator EN US 61W 26136 13
Results table showing all USB HS packet information with time-stamp information

USB 2.0 search

USB packet content triggering is very useful for isolating the event of interest, but once you’ve captured it and need to analyze the surrounding data, what do you do? In the past, users had to manually scroll through the waveform counting and converting bits and looking for what caused the event. With the 5-SRUSB2 application installed, you can enable the oscilloscope to automatically search through the acquired data for user- defined criteria including serial packet content. Each occurrence is highlighted by a search mark. Rapid navigation between marks is as simple as pressing the Previous (←) and Next (→) buttons on the oscilloscope front panel.

USB2 Terminator EN US 61W 26136 13
Wave Inspector automated search finds all specified bus elements (in this case, NAK)

DPO4USB/MDO3USB - USB 2.0 triggering and analysis

Debugging USB-based embedded system designs provides some complex measurement and analysis challenges:

  • Capturing specific USB addresses and data
  • Displaying the elements of the USB message in an understandable format, in a variety of formats, for a wide variety of engineers and technicians
  • Time-correlating USB messages with analog and digital signals in the embedded system
  • Capture long time windows of USB traffic and then find specific events within the acquired data

The optional DPO4USB application module, installed in an MDO4000 Series oscilloscope, or the optional MDO3USB application module, installed in an MDO3000 Series oscilloscope, provides a robust set of tools for debugging embedded systems with USB 2.0 serial buses, including:

  • Automated serial triggering for low-speed, full-speed, and high-speed (DPO4USB only) USB 2.0 signals
  • Automated serial decode and search for low-speed, full-speed, and high-speed USB 2.0 signals
  • Trigger on all the critical elements of a USB bus such as address, data, etc.
  • Decode all the critical elements of each USB message. No more counting 1s and 0s!
  • Search through long acquisitions using user-defined criteria to find specific messages
  • Event table shows decoded serial bus activity in a tabular, time-stamped format for quick summary of system activity

USB 2.0 serial triggering

Trigger on packet content such as sync, reset, suspend/resume, token (address) packets with specific address and endpoint, specific data content, handshake packets, special packets, and errors.

USB 2.0 decode

The DPO4USB/MDO3USB USB Serial Application Module provides a higher-level, combined view of the individual signals that make up the USB bus, making it easy to identify where packets begin and end and identifying subpacket components such as sync, PID, data, CRC, errors, etc.

USB2 Terminator EN US 61W 26136 13
Triggering on a specific PID on an USB FS bus. A complete set of triggers, including triggers for specific Token (address) and data packet content, ensures you quickly capture your event of interest.
USB2 Terminator EN US 61W 26136 13
High-speed USB decoded display, automatically displaying bus content in any of several digital formats

Are you wasting time manually decoding the waveform? Tired of having to visually inspect the waveform to count clocks, determine if each bit is a 1 or a 0, combine bits into bytes, and determine the hex value? Let the oscilloscope with a USB Triggering and Analysis Application module do it for you! Once you've set up a USB bus, the MDO4000 or MDO3000 Series will decode each packet on the bus, and display the value in Hex, Binary, or ASCII in the bus waveform.

USB 2.0 Event table

In addition to seeing decoded packet data on the bus waveform itself, you can view all captured packets in a tabular view much like you would see in a software listing. Packets are time stamped and listed consecutively with columns for each component (Time, PID, Address, Payload, and Errors).

USB2 Terminator EN US 61W 26136 13
USB decoded Event table showing all packet information with time-stamp information

USB 2.0 search

USB packet content triggering is very useful for isolating the event of interest, but once you've captured it and need to analyze the surrounding data, what do you do? In the past, users had to manually scroll through the waveform counting and converting bits and looking for what caused the event. With a USB Serial Application Module, you can enable the oscilloscope to automatically search through the acquired data for user-defined criteria including serial packet content. Each occurrence is highlighted by a search mark. Rapid navigation between marks is as simple as pressing the Previous (←) and Next (→) buttons on the oscilloscope front panel. Search results can also be displayed in a time-stamped Search Mark Table and the search results can be exported to a .CSV file.

Specifications

USB2

Instrument compatibility
Oscilloscope Description

MSO5034/B

DPO5034/B

MSO5054/B

DPO5054/B

MSO5104/B

DPO5104/B

DPO7054C

DPO7104C

USB 2.0 Compliance: Low-speed and Full-speed USB

MSO5204/B

DPO5204/B

DPO7254C

DPO7354C

All DPO/DSA/MSO70000C/D/DX/SX models

USB 2.0 Compliance: Low-speed, Full-speed, and High-speed USB

Testing options

USB tests
Host, Hub, and Device
Signal Quality tests
Eye Diagram Test, Jitter (JK, KJ, and Consecutive), Crossover Voltage Range, Signal Rate, End-of-Packet Width, Rising Edge Rate, and Falling Edge Rate
High-speed tests
Receiver Sensitivity, Chirp, Reset, Resume, Reset from High Speed, Reset from Suspend, Packet Parameter, and Edge Monotonicity
Inrush Current check
Data-sufficiency readout. Coulombs and Capacitance listed across inrush regions
Droop test
Volts readout
Speed selection
Low-speed (LS), Full-speed (FS), and High-speed (HS)
Signal direction
Upstream and Downstream
Test Point selection
Near End and Far End
Report Generation format
MHTML, PDF, and CSV formats

SR-USB

Instrument compatibility
Oscilloscope Description

MSO5034/B

DPO5034/B

MSO5054/B

DPO5054/B

DPO7054C

Trigger and Decode: Low-speed and Full-speed USB

MSO5104/B

DPO5104/B

MSO5204/B

DPO5204/B

Trigger and Decode: Low-speed, Full-speed, and High-speed USB

DPO7104C

DPO7254C

DPO7354C

Decode: Low-speed, Full-speed, and High-speed USB

Trigger: Low-speed and Full-speed USB

All DPO/DSA/MSO70000C/D/DX models

Decode: Low-speed, Full-speed, and High-speed, and SuperSpeed (8b/10b) USB

Trigger: Low-speed and Full-speed USB

Bus Setup options

USB compatibility
Low-speed and Full-speed: All MSO/DPO5000, DPO7000C, and DPO/DSA/MSO70000C/D/DX Series models

High-speed: MSO/DPO5204/B, MSO/DPO5104/B, DPO7354C, DPO7254C, DPO7104C, and DPO/DSA/MSO70000C/D/DX models only

SuperSpeed: DPO/DSA/MSO70000C/D/DX models only

Sources
Single-ended
Analog channels 1-4

Math channels 1-4

Digital channels D0-D15 (MSO5000 and MSO70000C/DX Series only)

Differential
Analog channels 1-4

Math channels 1-4

Recommended probing
Low-speed and Full-speed: Single-ended or differential

High-speed/SuperSpeed: Differential

Address/Data formats available
Hex, Binary, Decimal

Decimal: Frame and Address

Hex or ASCII: Data

Display modes
Bus
Bus only
Bus and waveforms
Simultaneous display of bus and digital waveforms
Event table
Decoded packet data in a tabular view

Bus Trigger options

Trigger and/or search on
Low-speed
Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range
Handshake packet Any handshake type, ACK, NAK, STALL
Special packet Any special type, Reserved
Error PID Check, CRC5, CRC16, Bit Stuffing
Full-speed
Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range
Handshake packet Any handshake type, ACK, NAK, STALL
Special packet Any special type, PRE, Reserved.
Error PID Check, CRC5, CRC16, Bit Stuffing
High-speed
Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1, DATA2, MDATA; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake packet Any handshake type, ACK, NAK, STALL, NYET
Special packet Any special type, ERR, SPLIT, PING, Reserved. SPLIT packet components that can be specified include:

Hub Address

Start/Complete – Don't Care, Start (SSPLIT), Complete (CSPLIT)

Port Address

Start and End bits – Don't Care, Control/Bulk/Interrupt (Full-speed Device, Low-speed Device), Isochronous (Data is Middle, Data is End, Data is Start, Data is All)

Endpoint Type – Don't Care, Control, Isochronous, Bulk, Interrupt

Error PID Check, CRC5, CRC16, Any
SuperSpeed
Trigger/Search on Ordered Set, Character, Symbol, Error
Packet type Description
Ordered Set SKP, DPPSTART, DPPEND, DPPABORT
Character K28.1 (SKP), K28.5 (COM) or other user-defined (8b/10b)
Symbol User-defined with positive, negative, or either disparity
Error Character or Disparity

Bus decode

USB Data rates
Low-speed: 1.5 Mb/s

Full-speed: 12 Mb/s

High-speed: 480 Mb/s

SuperSpeed: 5 Gb/s

Decode display
Start (green bar)

PID (yellow packet)

Data (cyan packet)

CRC (purple packet)

Stop (red bar)

5-SRUSB2

Instrument compatibility
Oscilloscope Description

MSO54 opt. 5-BW-350

MSO54 opt. 5-BW-500

MSO56 opt. 5-BW-350

MSO56 opt. 5-BW-500

MSO58 opt. 5-BW-350

MSO58 opt. 5-BW-500

Trigger and Decode: Low-speed and Full-speed USB

MSO54 opt. 5-BW-1000

MSO54 opt. 5-BW-2000

MSO56 opt. 5-BW-1000

MSO56 opt. 5-BW-2000

MSO58 opt. 5-BW-1000

MSO58 opt. 5-BW-2000

Trigger and Decode: Low-speed, Full-speed, and High-speed USB

Bus Setup options

USB compatibility
Low-speed and Full-speed: All 5 Series MSO models with 350 MHz or 500 MHz bandwidth

High-speed: All 5 Series MSO models with 1 GHz or 2 GHz bandwidth

Sources
Single-ended
Analog channels

Digital channels

Active Math channels

Active Reference waveforms

Differential
Analog channels

Active Math channels

Active Reference waveforms

Recommended probing
Low-speed and Full-speed: Single-ended or differential

High-speed: Differential

Address/Data formats available
Hex, Binary, Decimal

Decimal: Frame and Address

Hex or ASCII: Data

Display modes
Bus
Bus only
Bus and waveforms
Simultaneous display of bus and digital waveforms
Results table
Decoded packet data in a tabular view

Bus Trigger options

Trigger and/or search on
Low-speed
Trigger/Search on Sync, Handshake Packet, Special Packet, Error. Token (Address) Packet, Data Packet, Reset, Suspend, Resume, End of Packet.
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1; 1 – 16 bytes of Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake packet Any handshake type, ACK, NAK, STALL
Special packet Any special type, PRE, Reserved
Error PID Check bits, Token CRC5, Data CRC16, Bit Stuffing
Full-speed
Trigger/Search on Sync, Handshake Packet, Special Packet, Error, Token (Address) Packet, Data Packet, Reset, Suspend, Resume, End of Packet
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1; 1 – 16 bytes of Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake packet Any handshake type, ACK, NAK, STALL
Special packet Any special type, PRE, Reserved.
Error PID Check bits, Token CRC5, Data CRC16, Bit Stuffing
High-speed
Trigger/Search on Sync, Handshake Packet, Special Packet, Error, Token (Address) Packet, Data Packet, Reset, Suspend, Resume, End of Packet
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1, DATA2, MDATA; 1 – 16 bytes of Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake packet Any handshake type, ACK, NAK, STALL, NYET
Special packet Any special type, ERR, SPLIT, PING, Reserved.

SPLIT packet components that can be specified include:

Hub Address

Start/Complete – Don't Care, Start (SSPLIT), Complete (CSPLIT)

Port Address

Start and End bits – Don't Care, Control/Bulk/Interrupt (Full-speed Device, Low-speed Device), Isochronous (Data is Middle, Data is End, Data is Start, Data is All)

Endpoint Type – Don't Care, Control, Isochronous, Bulk, Interrupt

Error PID Check, CRC5, CRC16, Any
Decode display
Start (green bar)

PID (yellow packet)

Data (cyan packet)

CRC (purple packet)

Stop (red bar)

DPO4USB

Instrument compatibility
Oscilloscope Description
All 100 MHz, 200 MHz, 350 MHz, 500 MHz MDO4000/B, MSO4000/B, and DPO40001/B/C Series Trigger and Decode: Low-speed and Full-speed

MSO4104

DPO41041

Trigger: Low-speed and Full-speed

Decode: Low-speed, Full-speed, and High-speed

All 1 GHz models of MSO/DPO4000B and MDO4000/B/C Series Trigger and Decode: Low Speed, Full Speed, and High Speed

Bus Setup options

USB 2.0 compatibility
Low-speed and Full-speed: All MDO/MSO/DPO4000 Series models

High-speed: Models with 1 GHz analog channel bandwidth

Sources
Single-ended
Analog channels 1-4

Digital channels D0-D15 (MDO and MSO Series only)

Differential
Analog channels 1-4

Math channel

Reference channels 1-4

Recommended probing
Low-speed and Full-speed: Single-ended or differential

High-speed: Differential

Threshold presets
Low-speed and Full-speed: Single-ended (D+: 1.4 V; D-: -1.4 V), Differential (High: 1.4 V; Low: -1.4 V)

High-speed: Differential (High: 100 mV; Low: -100 mV)

Address/Data formats available
Hex, Binary, Decimal

Decimal: Frame and Address

Hex or ASCII: Data

Display modes
Bus
Bus only
Bus and waveforms
Simultaneous display of bus and digital waveforms
Event table
Decoded packet data in a tabular view

Bus Trigger options

Trigger and/or search on
Low-speed
Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake packet Any handshake type, ACK, NAK, STALL
Special packet Any special type, Reserved
Error PID Check, CRC5, CRC16, Bit Stuffing
Full-speed
Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake packet Any handshake type, ACK, NAK, STALL
Special packet Any special type, PRE, Reserved.
Error PID Check, CRC5, CRC16, Bit Stuffing
High-speed
Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1, DATA2, MDATA; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake packet Any handshake type, ACK, NAK, STALL, NYET
Special packet Any special type, ERR, SPLIT, PING, Reserved. SPLIT packet components that can be specified include:

Hub Address

Start/Complete – Don't Care, Start (SSPLIT), Complete (CSPLIT)

Port Address

Start and End bits – Don't Care, Control/Bulk/Interrupt (Full-speed Device, Low-speed Device), Isochronous (Data is Middle, Data is End, Data is Start, Data is All)

Endpoint Type – Don't Care, Control, Isochronous, Bulk, Interrupt

Error PID Check, CRC5, CRC16
.

Bus decode

USB Data rates
Low-speed: 1.5 Mb/s

Full-speed: 12 Mb/s

High-speed: 480 Mb/s

Decode display
Start (green bar)

PID (yellow packet)

Data (cyan packet)

CRC (purple packet)

Stop (red bar)

MDO3USB

Instrument compatibility
Oscilloscope Description
All 100 MHz, 200 MHz, 350 MHz, 500 MHz MDO3000 Series Trigger and Decode: Low-speed and Full-speed
All 1 GHz MDO3000 Series

Trigger: Low-speed and Full-speed

Decode: Low-speed, Full-speed, and High-speed

Bus Setup options

USB 2.0 compatibility
Low-speed and Full-speed: All MDO3000 Series models

High-speed: Models with 1 GHz analog channel bandwidth

Sources
Single-ended
Analog channels 1-4

Digital channels D0-D15 (models with MSO options only)

Differential
Analog channels 1-4

Math channel

Reference channels 1-4

Recommended probing
Low-speed and Full-speed: Single-ended or differential

High-speed: Differential

Threshold presets
Low-speed and Full-speed: Single-ended (D+: 1.4 V; D-: -1.4 V), Differential (High: 1.4 V; Low: -1.4 V)

High-speed: Differential (High: 100 mV; Low: -100 mV)

Address/Data formats available
Hex, Binary, Decimal

Decimal: Frame and Address

Hex or ASCII: Data

Display modes
Bus
Bus only
Bus and waveforms
Simultaneous display of bus and digital waveforms
Event table
Decoded packet data in a tabular view

Bus Trigger options

Trigger and/or search on
Low-speed
Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake packet Any handshake type, ACK, NAK, STALL
Special packet Any special type, Reserved
Error PID Check, CRC5, CRC16, Bit Stuffing
Full-speed
Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake packet Any handshake type, ACK, NAK, STALL
Special packet Any special type, PRE, Reserved.
Error PID Check, CRC5, CRC16, Bit Stuffing
High-speed
Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error
Packet type Description
Token packet Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data packet Any data type, DATA0, DATA1, DATA2, MDATA; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake packet Any handshake type, ACK, NAK, STALL, NYET
Special packet Any special type, ERR, SPLIT, PING, Reserved. SPLIT packet components that can be specified include:

Hub Address

Start/Complete – Don't Care, Start (SSPLIT), Complete (CSPLIT)

Port Address

Start and End bits – Don't Care, Control/Bulk/Interrupt (Full-speed Device, Low-speed Device), Isochronous (Data is Middle, Data is End, Data is Start, Data is All)

Endpoint Type – Don't Care, Control, Isochronous, Bulk, Interrupt

Error PID Check, CRC5, CRC16
.

Bus decode

USB Data rates
Low-speed: 1.5 Mb/s

Full-speed: 12 Mb/s

High-speed: 480 Mb/s

Decode display
Start (green bar)

PID (yellow packet)

Data (cyan packet)

CRC (purple packet)

Stop (red bar)

1For DPO4000 (non-B) Series products with serial numbers lower than C020000 and no serial triggering hardware update installed, USB triggering is not supported.

Ordering information

USB2

USB 2.0 Physical-layer Compliance Test Application
Model New instrument orders Product upgrades Floating licenses
MSO/DPO5000 Series Opt. USB2 DPO-UP, Opt. USB2 DPOFL-USB2
DPO7000C Series Opt. USB2 DPO-UP, Opt. USB2 DPOFL-USB2
DPO/DSA/MSO70000C/D/DX/SX Series Opt. USB2 DPO-UP, Opt. USB2 DPOFL-USB2

SR-USB

USB Triggering and Analysis Application
Model New instrument orders Product upgrades Floating licenses
MSO/DPO5000 Series Opt. SR-USB DPO-UP Opt. SR-USB DPOFL-SR-USB
DPO7000C Series Opt. SR-USB DPO-UP Opt. SR-USB DPOFL-SR-USB
DPO/DSA/MSO70000C/D/DX Series Opt. SR-USB DPO-UP Opt. SR-USB DPOFL-SR-USB

5-SRUSB2

USB 2.0 Triggering and Analysis Application
Model New instrument orders Product upgrades Floating licenses
5 Series MSO Opt. 5-SRUSB2 SUP5-SRUSB2 -

DPO4USB

USB 2.0 Triggering and Analysis Application
Model New instrument orders Product upgrades Floating licenses
MDO4000 Series DPO4USB DPO4USB -

MDO3USB

USB 2.0 Triggering and Analysis Application
Model New instrument orders Product upgrades Floating licenses
MDO3000 Series MDO3USB MDO3USB -

Recommended accessories

The P6248, P6330, TDP1500, and TDP3500 differential probes and P6245, TAP1500, and TAP2500 single-ended probes are approved for compliance testing.

Higher-performance active or differential probes may be used for design applications. It is recommended to use a probe with 1X attenuation for best results.

Please refer to www.tektronix.com/probes for further information on the recommended models of probes and any necessary probe adapters.

Accessories

TDSUSBF
USB 2.0 test fixture set
AWG5202 or AWG5204 or AWG5208 or AWG5000C or AWG7000C or AWG70000A series
Arbitrary waveform generator, signal source for receiver sensitivity tests. 5X attenuators are required
USB2SIGQUAL
High-speed Signal Quality test fixture (sold through Allion, go to: https://www.allion.com/test-fixture/usb-tf-hs-device-and-host/)
USB2/3_DD
Droop-Drop fixture (sold through www.fixturesolutions.com)

SR-USB

Refer to www.tektronix.com/probes for further information on the recommended probes and any necessary probe adapters.

5-SRUSB2

Refer to www.tektronix.com/probes for further information on the recommended probes and any necessary probe adapters.

DPO4USB

Refer to www.tektronix.com/probes for further information on the recommended probes and any necessary probe adapters.

MDO3USB

Refer to www.tektronix.com/probes for further information on the recommended probes and any necessary probe adapters.

Additional information

Tektronix offers a range of solutions for USB testing, including HSIC (High Speed Inter Connect) and USB 3.1. To see a comprehensive listing, and download the latest resources, visit www.tektronix.com/USB.

USB solution updates and up-to-date instrument software upgrades are available at www.tektronix.com/downloads.
