MPEG Test System

AD952-IIR • AD952-IIM

このデータ・シートの製品は、テクトロニクスでは販売終了となっています。
Tektronix Encoreプレミアム再生品を見るbr/>
上記製品のサポートと保証のステータスをチェックする

AD952-IIR • AD952-IIM

Features & Benefits

Recording and Seamless Playback Combined With In-depth Deferred Time Analysis You Can Use to Fully Characterize Your Product or System Design (AD952-IIR)
Real Time and Deferred Analysis for Monitoring and Design Performance Problem Diagnosis (AD952-IIM)
In-depth Deferred Analysis of Transport Stream, Packetized Elementary Stream and Buffer Performance
Comprehensive Checking of MPEG-2, DVB, ATSC and ISDB Transport Streams

Applications

The AD952-II family of stream analyzers provides in-depth deferred analysis and comprehensive checking of MPEG-2, DVB, ATSC and ISDB transport streams. The analyzers fully support Tektronix scripting system, which enables the user to specify additional analysis functionality for use with proprietary systems.

The AD952-IIR Stream Analyzer/Recorder combines deferred time analysis with the recorder/player application to provide recording and seamless playback of streams at data rates up to 90 Mb/s.

The AD952-IIM Stream Analyzer/Monitor offers both real time and deferred time analysis combined with triggered or manual recording of streams.

Stream Monitor Plus
TS Analyzer
PES Analyzer
Buffer Analyzer
TS Editor, Maker, Cutter

Characteristics

Record

Maximum Record Time at the Rate of 60 Mb/s with Standard Hard Disk - 18 minutes.

Maximum Data Rate - 90 Mb/s.

(Trig Rec/Monitor - 60 Mb/s.)

Minimum Data Rate - 250 kb/s.

Playout

Maximum Playout Time at 60 Mb/s - 18 minutes.

Maximum Data Rate - 90 Mb/s.

Minimum Data Rate - Using internal clock: 2.5 Mb/s.

Using external clock: 250 kb/s.

Bit Rate Resolution - 1 b/s.

Frequency Resolution - 0.03 Hz.

Clock Accuracy - ±1 ppm.

Aging & Drift - <1 ppm per year.

Packet Handling

Input Format	Storage Format
	188 byte	204 byte
188 byte	Y
204 byte	Y	Y
208 byte (GPSI)	Y

Playout

Storage Format	Output Format
	188 byte	204 byte	208 byte (GPSI)
188 byte	Y	Y(Dummy RS)	Y(Zero RS)
204 byte	Y	Y(Dummy RS)

Electrical

External Triggering - Input and output.

Triggering on Input - Edge sensitive.

Connector Format - 15 Way D type.

Specification - TTL.

External Clock

Signal Input - AC coupled.

Min. Signal Level - 200 mV.

Input Impedance - 50 Ω.

Connector Format - BNC.

Hardware Configuration - 9 GB SCSI disk for stream storage.

DVD/ROM (tower only).

Ultra wide SCSI port for external storage.

Display

Display AD952-IIR/AD952-IIM - 17" 1280x1024.

SVGA color monitor.

Power Requirement

Voltage Range - 100 to 260 V_RMS switchable.

Frequency Range - 45 to 65 Hz.

Power Consumption (Max) - 200 VA.

Environmental Specification

Operating temperature	10°C minimum 30°C maximum
Storage temperature	-20°C minimum 70°C maximum
Humidity	70% noncondensing

Electrical Interfaces - Transport stream.

Parallel input and output port.

Connector Format Input - 25 way D type.

Connector Format Output - 25 way D type.

Electrical Specification - LVDS (differential).

Input Impedance - 100 Ω.

Output Impedance - 100 Ω.

Physical Characteristics

Dimensions	cm	in.
Weight (system unit)	kg	lb.
Width	23.5	9.3
Height	44	17.3
Depth	43	16.9
Net	16.9	37.3

Ordering Information

AD952-IIR

Stream Analyzer/Recorder

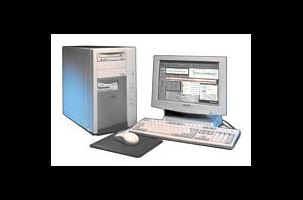

Includes: AD952 Tower PC platform, DVB Synchronous Parallel Interface, DVB Synchronous Parallel Cable, Player/recorder Application, Seamless Application, Transport Stream Analyzer, Packetized Elementary Stream Analyzer, Buffer Analyzer, Transport Stream Cutter, Editor and Maker, Software Security Dongle, Manual, Installation CD, Test Streams CD, Recovery CD.

AD952-IIM

Stream Analyzer/Monitor

Includes: AD952 Tower PC Platform, DVB Synchronous Parallel Interface, DVB Synchronous Parallel Cable, Transport Stream Monitor Plus Application, Transport Stream Analyzer, Packetized Elementary Stream Analyzer, Buffer Analyzer, Transport Stream Cutter, Editor and Maker, Software Security Dongle, Manual, Installation CD, Test Streams CD, Recovery CD.

Options

MICS - MIC 1.1S ( with accurate clock circuit) Only for applications mentioned below.

ASPT - ASI/M2S Interface with time stamping capability.

LBPC - L-Band + card.

GPPC - GPSI II card (SMPTE 310M, RS422 Serial, DVB SSI, DHEI).

DB - MPEG/DVB Carousel Analyzer.

MX - DVB/ATSC/ARIB Multiplexer including make seamless.

MS - Make Seamless Application (AD952-IIM only).

MPLUS - DVB/ATSC/ARIB Monitor Plus (AD952-IIR only).

DU - Duplex Operation Player/Monitor or Player/Recorder - Excluding portables.

IN - ES Analyzer with AAC Player and 608 CC and 708 CC (V6.3 Minimum).

AA - AAC Player stand alone - no ES Analyzer.

CC - Closed Caption Analysis, stand alone - no ES Analyzer.

SM/ZM - DVB/ATSC Recorder/Monitor (AD952-IIR only).

IX - BS Digital Multiplexer (Japan).

VI - Viaccess Analysis for TS analyzer. Approved customers only.

OP - Open TV Analysis for TS analyzer. Approved customers only.

XS - XSI Analysis software.

951SW - Player Software including make seamless (AD952-IIM only).

9GB - Internal 9 GB disk drive (in addition to standard drive).

18GB - Internal 18 GB disk drive (replace current drive).

18GBA - Internal 18 GB disk drive (in addition to standard drive).

36GB - Internal 36 GB disk drive (replace current drive).

36GBA - Internal 36 GB disk drive (in addition to standard drive).

CDW - Internal CD ROM Writer plus Adaptec Easy CD Creator software.

FCT - Flight Case for AD952-IIM or AD952-IIR.
