Can the P6316, P6516, or P6616 logic probes be used interchangeably?

Can the P6316, P6516, or P6616 logic probes be used interchangeably?

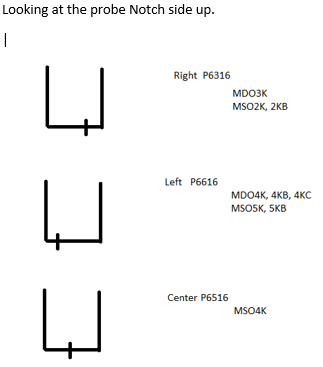

The simple answer is no they can't be used interchangeably. The front end of the logic channels are different so different logic probes are needed between the scopes.


For MSO2000/B, MSO3000, and MDO3000 Series oscilloscopes, only the P6316 logic probe can be used.

For MSO4000 Series oscilloscope, only the P6516 logic probe can be used.

For MSO4000B, MDO4000/B/C and MSO5000/B Series oscilloscopes, only the P6616 logic probe can be used.

If you have further questions, please reach out to the Tektronix Support Center and someone can help you out. Start by pressing the "Contact Us" button on the right of the screen.
