Digital Multimeters (DMM) Selector Guide

STANDARD PERFORMANCE FOR THE MOST ESSENTIAL NEEDS

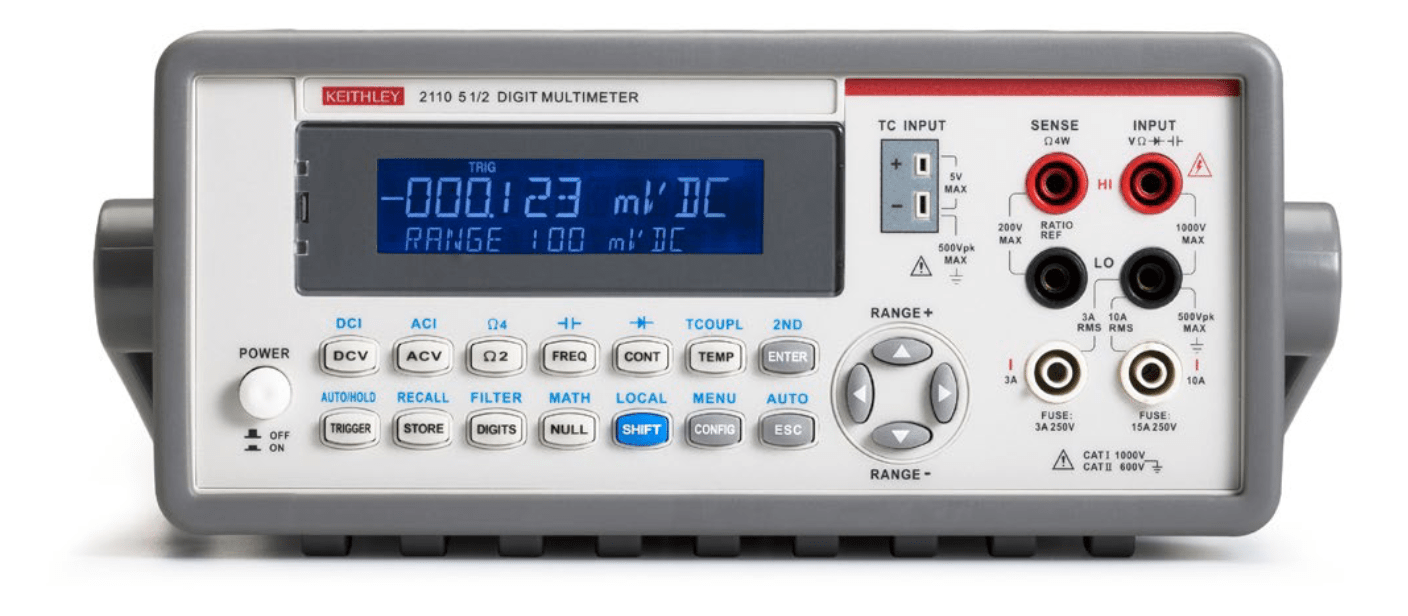

2110 : 5½-Digit Dual-Display Digital Multimeter

• Measure and display two parameters concurrently
• Sample a signal at 50,000 readings/s
• Measure temperature and capacitance
• Interface to a PC or a system with the USB interface or the optional GPIB interface

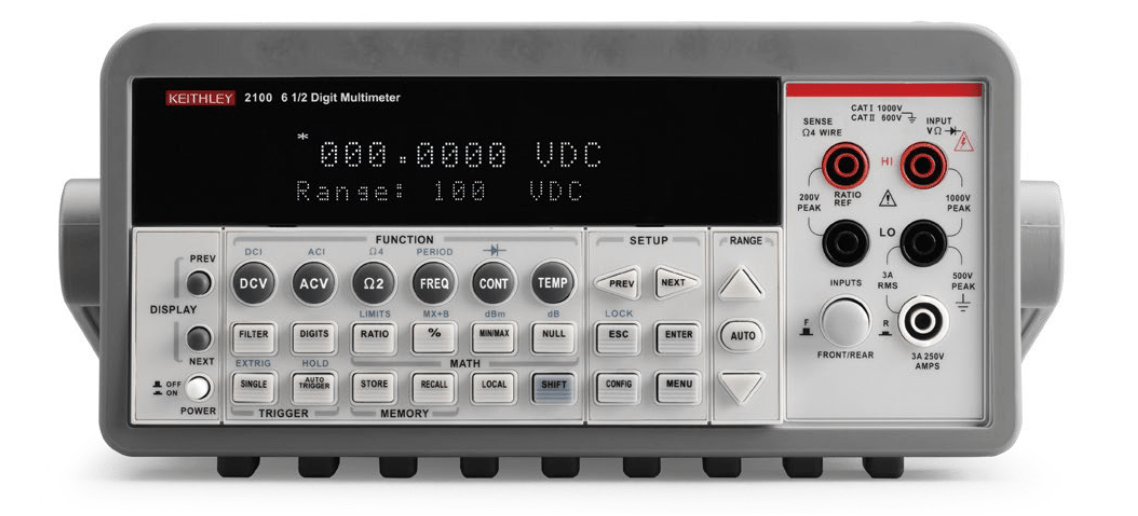

2100 6½-Digit USB Multimeter

• Connect to either the front terminals or the rear terminals
• Measure any parameter with fully-specified accuracies
• Interface to a PC with the USB-TMC compliant protocol

ENHANCED PERFORMANCE WITH A TOUCHSCREEN GRAPHICAL USER INTERFACE

DMM6500 6½-Digit Bench/System Digital Multimeter

• Capture complex signals and transients with up to 1 Msample/s 16-bit digitizing
• Make low level measurements with 100 nV, 10 pA, and 1 µΩ sensitivities
• Measure with superior 0.0025% basic, 1-year, DC Volt accuracy and 0.0075% basic, 1-year resistance accuracy

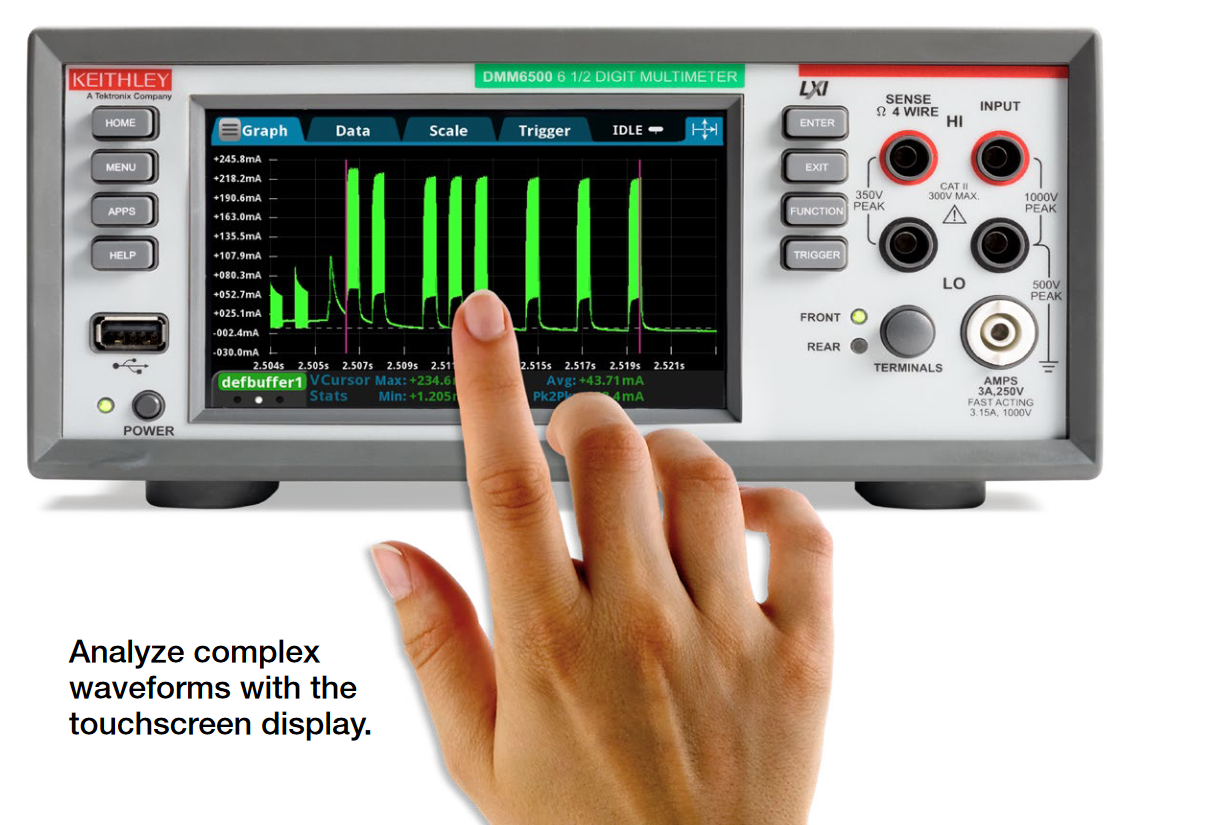

• Analyze data and display waveform plots on the 5 inch (12.7 cm) touchscreen display
• Measure power circuit current up to 10 A
• Interface to a PC with LAN/LXI and USB-TMC interfaces or optional GPIB or RS-232 interfaces

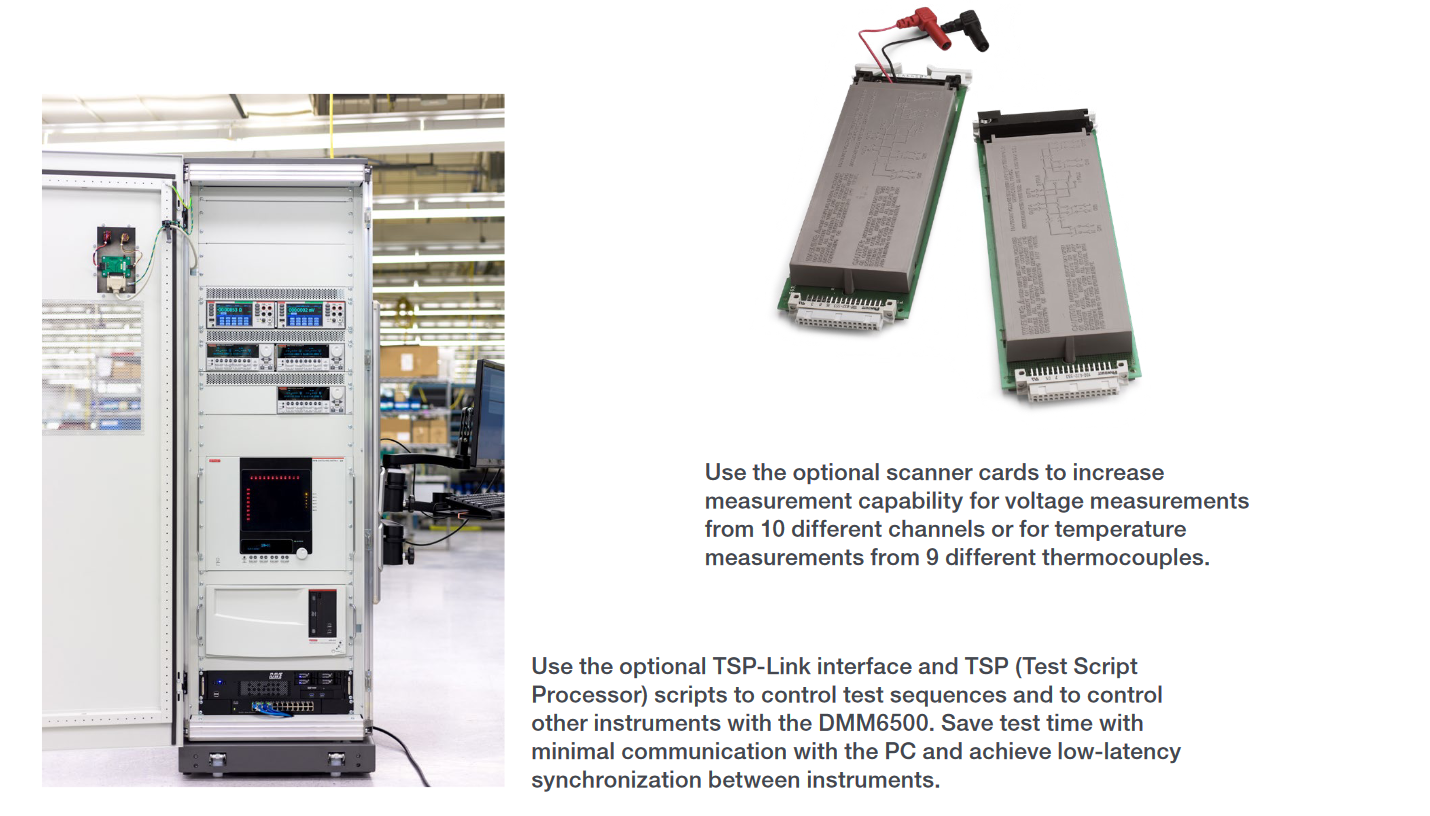

• Test up to 10 DUTs in one test setup with the optional plug-in scanner cards

NO COMPROMISE: HIGH SPEED AND HIGH ACCURACY

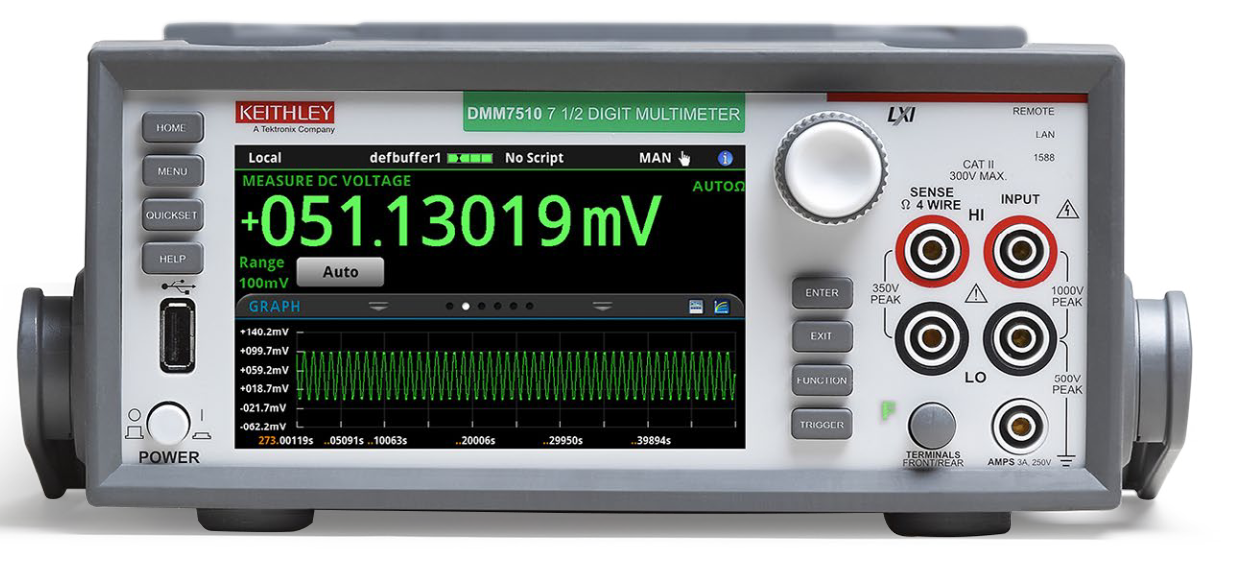

DMM7510 7½-Digit Graphical Sampling Multimeter

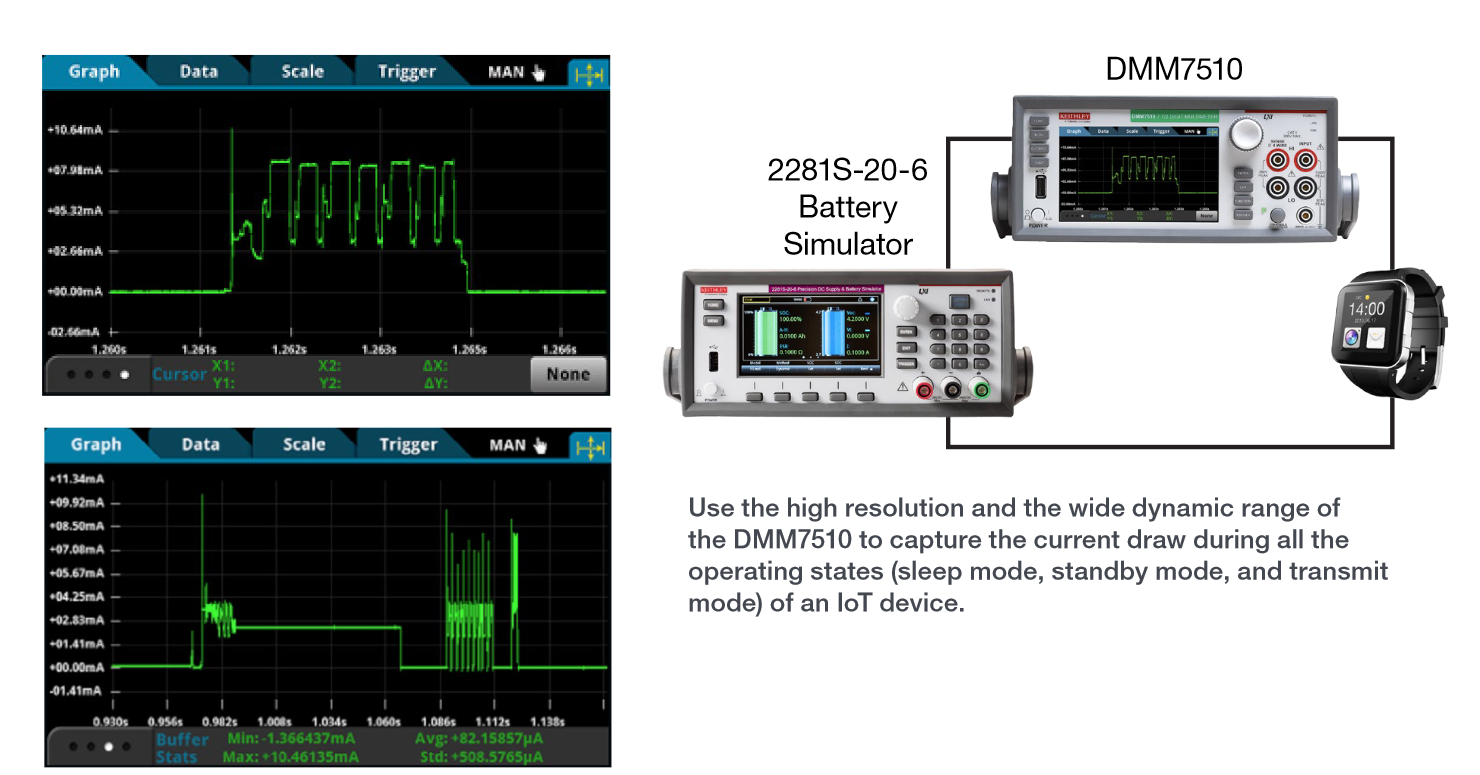

• Capture IoT wireless device load current transmit bursts wit 18-bit, 1Msample/s digitizing
• Measure ultra-low sleep mode currents on processors and products with 1 pA current sensitivity
• Hold DUTs to tight test tolerances using voltage measurements with accuracies as low as 14 ppm
• Store up to 27.5 million readings for profiling load current waveforms and transient waveforms
• Take measurements as fast as 26,000 readings/s for high throughput testing
• Get fast insight into waveform characteristics with the 5 inch (12.7 cm) touchscreen display
• Execute custom test scripts and control other instruments with the built-in test script processing language
• Interface to a PC with either LXI LAN, USB, or GPIB interfaces

SAVE RACK SPACE AND DOUBLE TEST CAPACITY IN MANUFACTURING

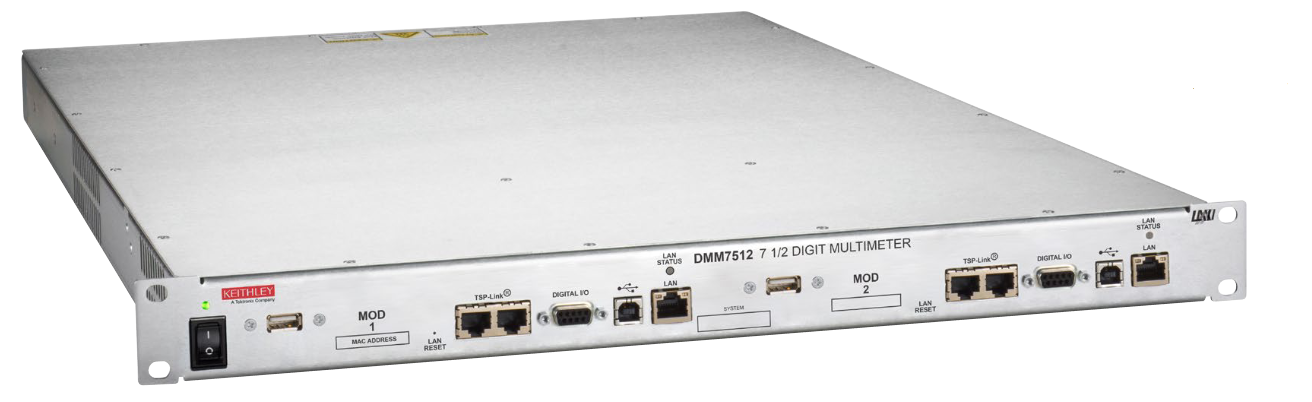

• Double measurement performance with two independent, identical 3½- to 7½-digit DMMs similar to the DMM7510 in a 1U high, full rack width chassis
• Capture waveforms such as battery drain currents with up to 1 Msample/s, 18-bit digitizing and 0.1 nA and 1 µV sensitivities
• Simultaneously capture voltage and current waveforms to determine a device’s instantaneous peak and average power
• Evaluate low power components including quiescent or sleep mode states with 10 nV, 0.1 µΩ, and 1 pA sensitivities
• Make high accuracy, low resistance measurements with offset compensated Ohms, four-wire measurement, and dry circuit voltage control
• Maximize test uncertainty ratios based on 1-year DV volts accuracies as good a 14 ppm.
• Reduce test time by executing test scripts with the Embedded Test Script Processor, which saves PC command communication overhead.
• Obtain tight synchronization between the two DMMs using TSP-Link^® communication

HIGH ACCURACY WITH HIGH RESOLUTION

• Resolve low voltages with the 100 nVrms noise floor
• Make automatic ratio measurements on two voltages with the front and rear inputs
• Minimize device self-heating with low power resistance measurements
• Avoid breaking down oxides or films on relay contacts and connectors with the dry circuit test function
• Test up to 10 DUTs with an optional voltage or temperature plug-in scan card
• Interface to a PC with the RS-232 or the GPIB interface

• Capture spikes as narrow as 1µs with the peak detector function
• Perform in-circuit current measurements without breaking the circuit
• Automatically separate components based on measurement limits using the Binning function
• Measure up to 10 channels of voltage or 9 channels of temperature with the optional plug-in scanner cards
• Make high accuracy, 2 MHz bandwidth AC voltage measurements for control system analysis
• Connect to a PC with the GPIB interface

• Make the most accurate voltage measurements with tolerances as narrow as 10 ppm
• Capture spikes as narrow as 1 µs with the peak detector function
• Perform in-circuit current measurements without breaking the circuit
• Automatically separate components based on measurement limits using the Binning function
• Measure up to 10 channels of voltage or 9 channels of temperature with the optional plug-in scanner cards
• Make high accuracy, 2 MHz bandwidth AC voltage measurements for control system analysis
• Connect to a PC with the GPIB interface

PRECISION MULTI-CHANNEL MEASUREMENTS FOR DATA ACQUISITION

• Build a test system as large as 200 differential input channels

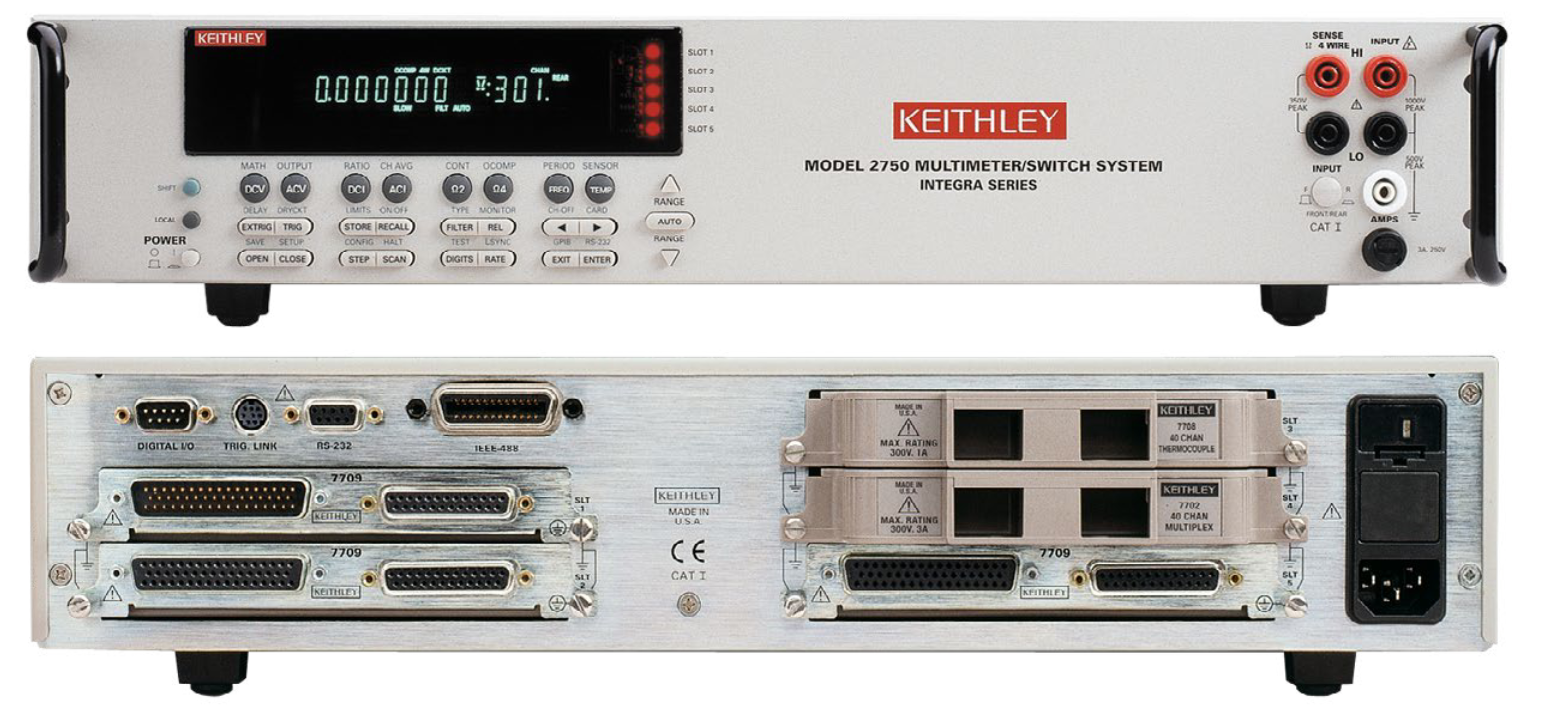

• Design a versatile system using up to 5 different models of the 7700-series plug-in switch modules in a 2750
• Measure low resistive components with 1 µΩ sensitivity
• Use the dry circuit function to protect sensitive devices from damage and to minimize self-heating errors during testing
• Make measurements with the high performance 6½-digit DMM
• Interface to a PC with the GPIB or RS-232 interface

PRECISION MULTI-CHANNEL MEASUREMENTS WITH BOTH MORE PERFORMANCE AND WITH THE MOST SIMPLIFIED SETUP PROCEDURE

• Set up a test in minutes with the 5-inch (12.7 cm) touchscreen display and graphical user interface
• Test low power devices with current sensitivity down to 10 pA
• Save upgrade costs by using the same plug-in switch modules as the 2750
• Monitor up to 80 channels of thermocouple, RTD, or thermistor temperature measurements
• Monitor fast-changing signals with the 1 Msample/s, 16-bit digitizer
• Make high precision measurements with the high performance 6½-digit DMM
• Interface to a PC with either LAN LXI or USB or add an RS-232 or a GPIB option
• Control other instruments and execute a test with the built-in scripting code and the Test Script Processor (TSP^®), TSP-Link^® I/O option

HIGH CHANNEL COUNT AND PRECISION MEASUREMENT DATA ACQUISITION SYSTEMS

• Build a test system with as many as 576 two-wire or 720 one-wire multiplexed channels or with up to 2,688 matrix crosspoints
• Fill up to 6 slots with 10 different 3700 Series plug-in switch modules
• Make the most accurate measurements with the 7½-digit DMM and 13 measurement functions
• Maximize throughput with measurement speeds up to 14,100 readings/s
• Minimize time-consuming interaction with a PC by using the 3706A as a master system controller using Keithley’s internal Test Script Processor (TSP^™) software
• Control other LAN-based instruments with the TSP-Link interface
• Interface to a PC with LAN/LXI, USB, or GPIB interfaces
