Passive 1x/10x Voltage Probe
P2220 P2221 Datasheet
Plus d’informations
- Sélection de sonde passive de Tektronix
- Assistance produit
- Découvrez d'autres modèles Les modèles de sonde d’oscilloscope et leurs accessoires
Lire en ligne :
![P2220 P2221 51W 17984 4](/-/media/images/datasheets/p2220_p2221_51w_17984_4/p2220p2221ljpg.jpg?iar=0)

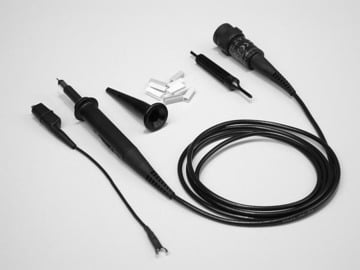

Tektronix passive probe solutions provide high reliability and testing accuracy for basic oscilloscope measurements. The P2220 and P2221 are compact passive probes with selectable 1X/10X attenuation designed for use with selected Tektronix oscilloscopes.
Key features
- 1x/10x attenuation
- 200 MHz bandwidth
- 1.5 m length
- UL3111-1, CSA1010.1, EN61010-1, EN61010-2-031, and IEC61010-2-031
Applications
- Relative low-frequency measurements
- Low-frequency computer and telecom measurements
- Power supplies
- Low-frequency amplifiers
P2220 P2221 passive voltage probes
The P2220 and P2221, 200 MHz passive voltage probes permit selection of 1x or 10x attenuation, using a switch located on the probe head.
The P2220 probe is compatible with TDS200, TDS1000, TDS1000B, TDS2000, TDS2000B, and TPS2000 Series oscilloscopes. The P2220 probe also provides floating measurement capability up to 30 VRMS with TPS2000 Series oscilloscopes only. (Note: Do not float with TDS2000, TDS2000B, TDS1000, TDS1000B, or TDS200 Series oscilloscopes.)
The P2221 is compatible with MSO2000 and DPO2000 Series oscilloscopes.
Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
10X | 1x | ||
---|---|---|---|
Bandwidth | DC to 200 MHz | DC to 6 MHz | |
Probe length | 1.5 m | 1.5 m | |
Attentuation ratio | 10:1 | 1:1 | |
Compensation range | All oscilloscopes with 1 MΩ input | ||
P2220 | 15 to 25 pF | ||
P2221 | 10 to 25 pF | ||
Input capacitance | 17.0 pF | 110 pF | |
Input resistance | 10 MΩ | 1 MΩ | |
Maximum input voltage | 300 V Cat II | 150 V Cat II | |
Maximum voltage between reference lead and earth ground | 30 VRMS1 | 30 VRMS1 |
Ordering Information
- P2220
Passive Probe, 1x/10x, 200 MHz Passive Voltage Probe
Includes retractable hook tip (013-0107-xx), 6-inch ground lead (196-3466-xx), adjustment tool (003-1433-xx), marker band set (016-1315-xx), instruction manual (071-1464-xx). 2
- P2221
Passive Probe, 1x/10x, 200 MHz Passive Voltage Probe for MSO/DPO2000 Series oscilloscopes
Includes retractable hook tip (013-0107-xx), 6-inch ground lead (196-3466-xx), adjustment tool (003-1433-xx), marker band set (016-1315-xx), instruction manual (071-2335-xx).2
