Question :

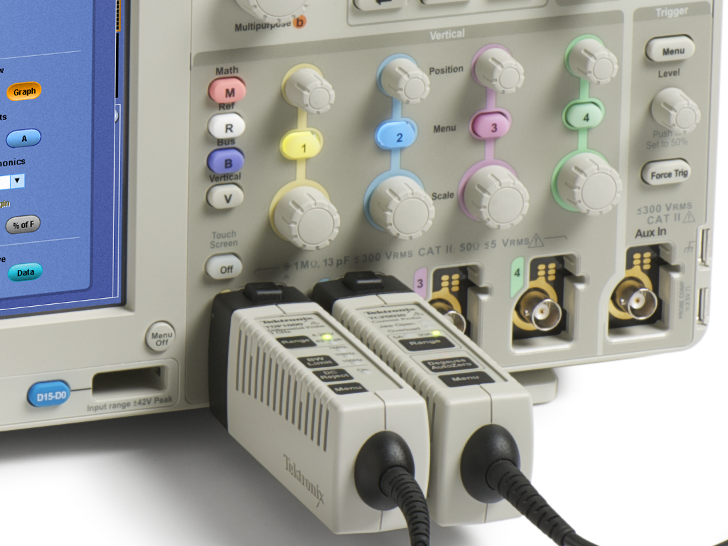

What are the maximum power draw ratings for the DPO3000/MSO3000 TEKVPI probes?
Answer :
The MSO/DPO3000 Series scope can handle up to 20 Watts of attached probes. With an external adapter (Part #119-7465-xx) these scopes can reach up to 50 wattage requirement depending on probe requirements. Please see the download link below with a full list of details.
If you have further questions please reach out to our Tektronix support center. They can be reached by phone, email or chat by first clicking on the 'contact us' button on the right side of the screen.
FAQ ID 61131
