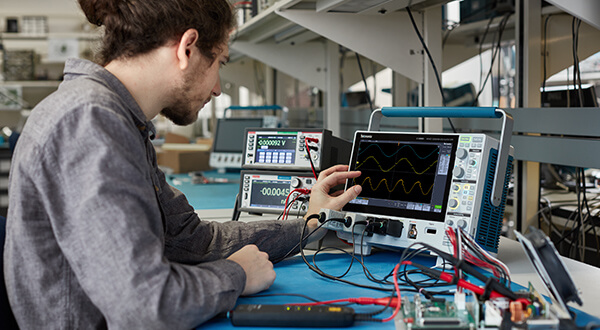

Next-Generation RF / Wireless Bench

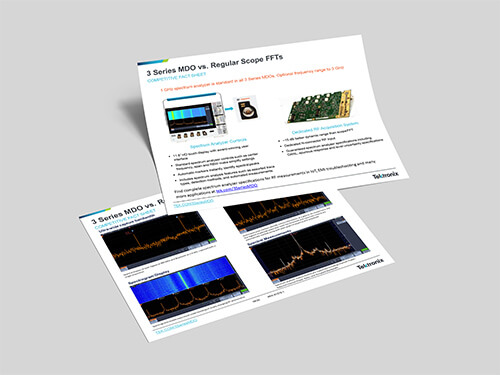

With the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes

• Nanostructured Materials Research
• Power Semiconductor GaN, SiC
• Biosensor Development
• Semiconductor Device Design
• Automotive Sensor Design

• 192W with up to 6A
• 6 ½-digit, 10nA current measurement resolution
• Displays plots of voltage and current
• Programmable power supply
• Designed for benchtop and automated testing of power conversion devices and IoT devices
• TFT LCD display to monitor current and voltages



The AFG31000 Series with InstaView™ technology is a high-performance function generatorwith built-in waveform generation applications, patented real-time waveform monitoring, and a modern user interface

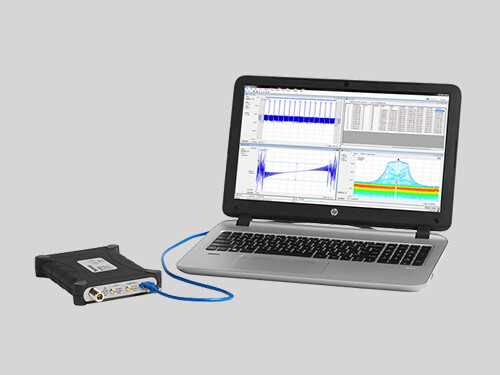

Benchtop performance meets definitive portability with the industry’s highest fidelity, lowest noise real time spectrum analyzer, at an amazingly low price.

• Up to 6.2 GHz frequency coverage
• 40 MHz real-time signal acquisition bandwidth
• Powered by USB3.0
• 0.73 kg (1.6 lbs.)

Start measuring in minutes without complex programming. Perform I-V characterization and more with this instrument control software for bench instruments and Tektronix oscilloscopes.

Get a comprehensive suite of tools to capture, isolate, and analyze hard-to-find transient RF signals of interest with confidence.
