Correlate, Visualize, and Analyze Multi-domain Behavior

Spectrum View

Finding Problems in RF Systems Requires Understanding the Interplay of RF, Digital, Power, and Other Time Domain Signals.

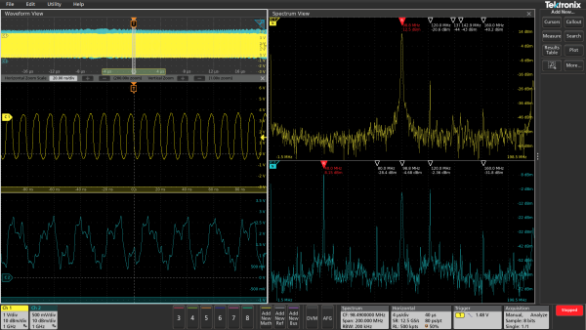

The Spectrum View feature found on Series 4, 5, and 6 MSO oscilloscopes enables you to correlate, visualize, and analyze multi-domain behavior across your broader system design. For insight into multi-channel radar or EW systems combine SignalVu-PC software together with a 5 or 6 Series B MSO oscilloscope and apply up to 31 automated pulse parameter measurements. And Tektronix Real-time Spectrum Analyzers feature industry-leading low Probability of Intercept (POI) and DPX Display technology to allow you to never miss a signal, however brief. Frequency mask triggering allows you to isolate small signals that exist underneath dominant signals.

How can we help?




Find Your Signal, Wherever It Lies.

4 Series MSO Mixed Signal oscilloscope

4 Series B MSO Mixed Signal Oscilloscope

4 Series B MSO is a mixed signal oscilloscope with up to 1.5 GHz bandwidth, HD touch display, serial decoding, digital inputs, frequency and power analysis

5 series B MSO - MSO58B

5 Series B MSO Mixed Signal Oscilloscope

5 Series MSO is a mixed signal oscilloscope with a high definition display with a touchscreen, up to 8 inputs, 12-bit analog-to-digital converters and bandwidth up to 2 GHz.

6 Series B MSO Mixed Signal oscilloscope

6 Series B MSO Mixed Signal Oscilloscope

Troubleshoot and validate high-speed designs with bandwidth that starts at 1 GHz and goes up to 10 GHz.

A screenshot from Tektronix spectrum analyzer software overlayed with a Tektronix RSA signal analyzer.

Spectrum Analyzer Software for RF & Vector Signals

Get a comprehensive suite of tools to capture, isolate, and analyze hard-to-find transient RF signals of interest with confidence.

AWG5200 arbitrary waveform generator

AWG5200 Arbitrary Waveform Generator

Meet the most demanding signal generation needs at an affordable price with the high-fidelity AWG5200 Arbitrary Waveform Generator. With multi-unit synchronization, you can scale up to 32 channels. The AWG5200 is ideal for advanced research, electronic test and radar, and electronic warfare system design and test.

  • Output frequency: up to 4GHz
  • Sample rate: 298 S/s - 5 GS/s
  • Memory: 2 GS/channel
  • Channels: Up to 8
  • Vertical resolution: 16 bits
  • ·-70 dBc spurious free dynamic range

RSA7100B: Ultra-Wide Bandwidth Analysis and Recording

Scan RF signals faster with flexibility to record, stream and analyze data in real time, at full bandwidth.

  • Up to 26.5 GHz frequency coverage
  • Up to 800 MHz real-time signal acquisition bandwidth
  • IQFlowTM streaming to RAID, LVDS, 40 GbE and an API provides the speed and flexibility needed to perform real-time DSP algorithms, and record/analyze long event sequences
A screenshot from Tektronix Source Express software showing PAM 4 Signals.

SourceXpress

Set up a PC-based software environment for AWG instrument control, instrument emulation and waveform creation.

DPO70000SZX ATI performance oscilloscope

DPO70000SX ATI Performance Oscilloscope

Bandwidth of 70 GHz.
Sample rate of 200 GS/s: Lowest Noise.
Highest Fidelity. Maximum Performance.

A screenshot from Tektronix spectrum analyzer software overlayed with a Tektronix RSA signal analyzer.

Spectrum Analyzer Software for RF & Vector Signals

Get a comprehensive suite of tools to capture, isolate, and analyze hard-to-find transient RF signals of interest with confidence.

AWG70000 arbitrary waveform generator

AWG70000B Arbitrary Waveform Generator

The AWG70000B Series Arbitrary Waveform Generator makes it easy to customize, generate, and sequence an infinite variety of high-precision signals for design, testing, and operation of complex components, systems, and experiments.

  • Output frequency: up to 20GHz
  • Sample rate: 50 GS/s
  • Memory: 2 GS/channel, 32 GS (Optional)
  • Resolution: 10 bits
  • -80 dBc spurious free dynamic range

Resources

Spectrum View: A New Approach to Frequency Domain Analysis on Oscilloscopes
Application Note

Spectrum View: A New Approach to Frequency Domain Analysis on Oscilloscopes

Learn about the Tektronix-exclusive Spectrum View technology and how it allows deeper insights into RF systems.

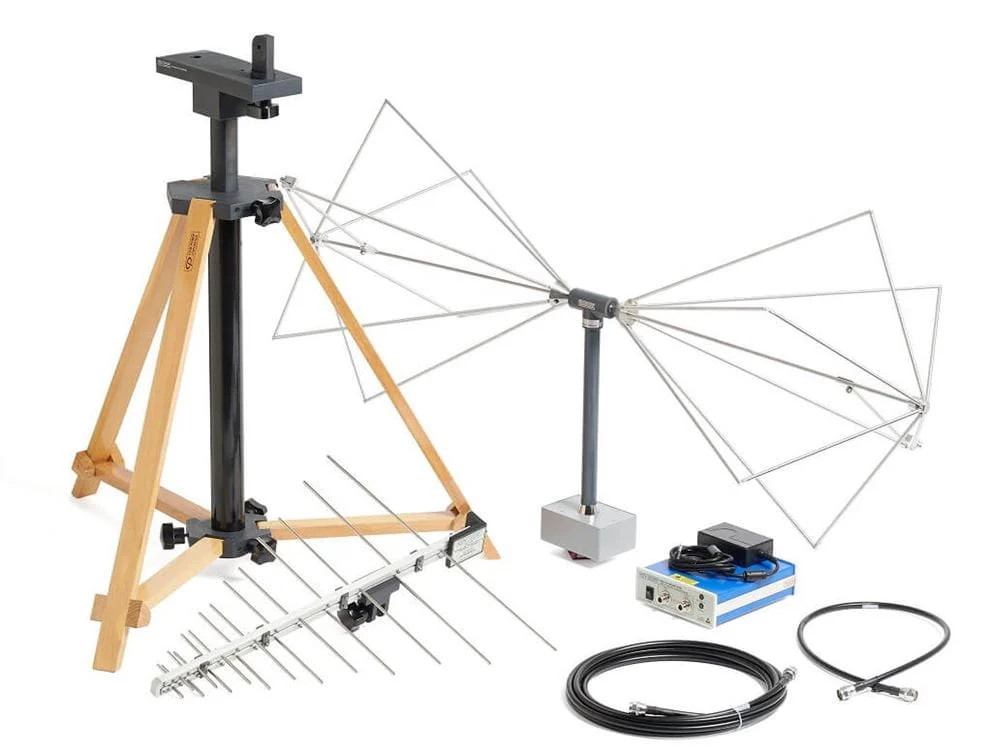

Antennas for EMI/EMC
Blog

A 3-Step Process to Identify Electromagnetic Interference (EMI)

Read our blog about identifying sources of EMI, and how to diagnose them.

Application Note

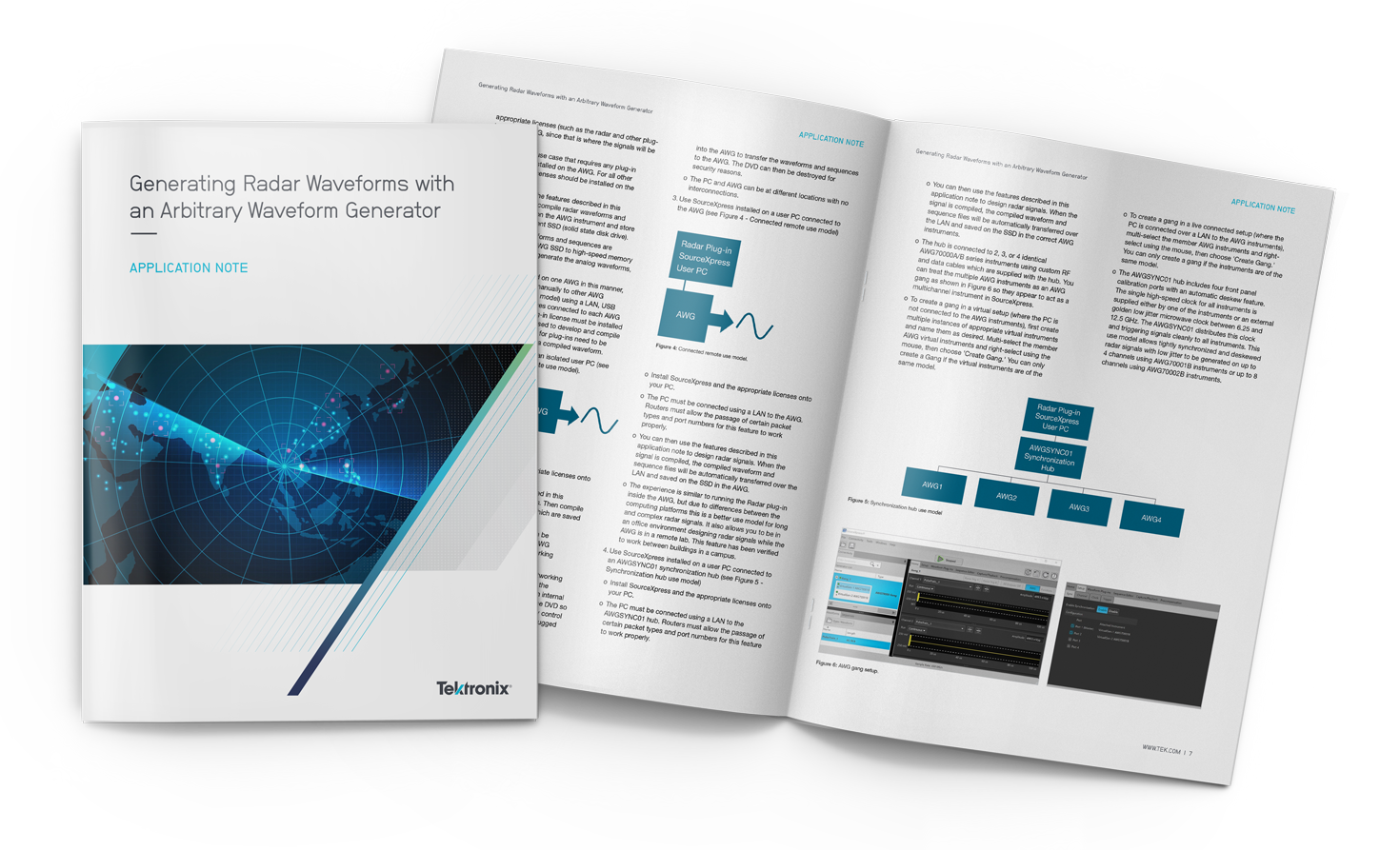

Generating Radar Signals with Tektronix AWGs

Learn why Arbitrary Waveform Generators are ideal for replicating radar and environmental signals, and how you can easily generate these signals with Tektronix AWGs.
