Keithley 2400 Standard Series SMU
60 W DC
100 nV to 1100 V,
1 pA to 5 A
0.012%
6.5 digits
2000 rdgs/s to buffer
A precision instrument for I-V characterization
The tightly-coupled nature of a SourceMeter instrument provides many advantages over separate instruments. The ability to fit a source and a meter in a single half-rack enclosure saves valuable rack space and simplifies the remote programming interface.
Highlights
- A precision instrument used for I-V characterization on a wide variety of devices and materials
- An SMU can source current or source voltage
- An SMU can measure both current and voltage
Choosing the Optimal Source Measurement Unit Instrument for Your Test and Measurement Application
There’s an Unsung Hero on Your Workbench: The SourceMeter® Source Measure Unit (SMU) Instrument
Greatly accelerate throughput with built-in voltage/current sweep capabilities
SourceMeter instruments provide sweep solutions that greatly accelerate testing with automation hooks for additional throughput improvement. This is true whether you are performing sweeps on transistors, simply verifying connector integrity, characterizing device performance, or virtually any DC volt-amp characteristic with high precision.
Highlights
- Linear staircase sweeps
- Logarithmic staircase sweeps
- Custom Sweeps
Integrate with switching systems for fast, multipoint testing
The instruments in the SourceMeter family offer wide versatility, so they make great solutions for a variety of applications in many industries. For seamless integration in fast multipoint testing applications, combine a SourceMeter instrument with a Keithley switch system.
Highlights
- Test semiconductor devices
- Test circuit Protection devices
- Test optoelectronic components
- Use for accelerated stress testing
Diode Production Testing with Series 2400 SourceMeter® Instruments
Preparing engineering students to turn ideas into reality
Keithley SourceMeter SMUs are excellent tools to teach students the concepts of Ohms Law and I-V characterization for lab exercises to better understand how electronic devices behave and are used. SMUs give students the experience they need so they are prepared to meet the industry standards.
Highlights
- Combines the power of 5 instruments in one
- Simplifies the teaching lab bench
- Useful in graduate research
Designing a Semiconductor Characterization System for an Undergraduate Fabrication Lab
| Model | Touchscreen | Channels | Max Current Source/Measure Range | Max Voltage Source/Measure Range | Measurement Resolution (Current / Voltage) | Power | List Price | Configure And Quote |
|---|---|---|---|---|---|---|---|---|
| 2401. | No | 1 | 1A | 20V | 1pA / 100nV | 20 W | US $5,390 | Configure & Quote |
| 2400 | No | 1 | 1A | 200V | 1pA / 100nV | 20 W | US $8,490 | Configure & Quote |
| 2410. | No | 1 | 1A | 1100V | 1pA / 100nV | 20 W | US $15,300 | Configure & Quote |
2400 SourceMeter® SMU Instrument
For over 25 years , the Model 2400 has been used in research and development labs and on production lines around the world. This industry workhorse offers 200V @ 1A, 20 watt performance for so many applications.
Legacy Product. Consider using the newer Model 2450 Graphical SourceMeter in your application or design for a longer return on your investment.
- Up to 200V / 1A perfomance at 20 Watts
- 0.012% basic measure accuracy with 6½-digit resolution
- 2-, 4-, and 6-wire remote V-source and measure sensing
- Use with KickStart Software
Production Testing of Thermistors Using the Model 2400 SourceMeter® Instrument
2401 Low Cost SourceMeter® SMU Instrument
The Model 2401 is a great basic / etnry level SMU for student education labs, research labs, and simple production test applications. It makes for a great solution for a variety of applications in many industries.
- Up to 20V / 1A perfomance at 20 Watts
- 0.012% basic measure accuracy with 6½-digit resolution
- Front / Rear banana input/output jacks
- Use with KickStart Software

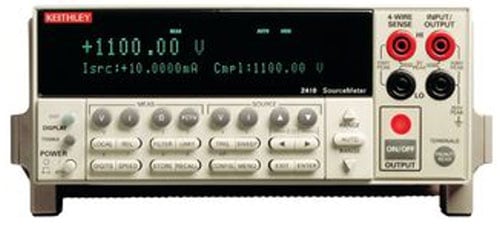

2410 High Voltage SourceMeter® SMU Instrument
The Keithley 2410 is a 1000 volt, 20W instrument, a good choice for resistors and voltage coefficient testing, varistors, and high voltage diodes, including switching, zener, RF diodes, and rectifiers.
Legacy Product. Consider using the newer Model 2470 Graphical 1100V SourceMeter in your application or design for a longer return on your investment.
- Up to 1100V / 1A perfomance at 20 Watts
- 0.012% basic measure accuracy with 6½-digit resolution
- 1pA / 100nV measurement resolution
- Use with KickStart Software
Five Reasons to Switch to the 2470 SMU for High Voltage I-V Characterization
| Model | Touchscreen | Channels | Max Current Source/Measure Range | Max Voltage Source/Measure Range | Measurement Resolution (Current / Voltage) | Power | List Price | Configure And Quote |
|---|---|---|---|---|---|---|---|---|
| 2401. | No | 1 | 1A | 20V | 1pA / 100nV | 20 W | US $5,390 | Configure & Quote |
| 2400 | No | 1 | 1A | 200V | 1pA / 100nV | 20 W | US $8,490 | Configure & Quote |
| 2410. | No | 1 | 1A | 1100V | 1pA / 100nV | 20 W | US $15,300 | Configure & Quote |
Keithley KickStart Instrument Control Software.
No Programming Required.
Making measurements is easy with KickStart. Characterize your devices and materials quickly and easily without programming. Visualize real-time results in graphical and tabular format. Export data tables or graphs for quick reporting or additional analysis in Excel.
- Create single or sweep pulse tests quickly
- Generate linear, log, list, and dual sweeps of voltage and current source with simultaneous measurement
- I-V characterization application to support up to four SMU instruments
- GPIB, USB, Ethernet connectivity on Windows OS
Automated Control from Lab to Fab
Keithley's Automated Characterization Suite (ACS) offers complete control of your equipment. Whether you need to control a few instruments on your bench, or automate an entire test rack for production, ACS offers a flexible, interactive environment for device characterization, parametric test, reliability test, and simple functional test.
- Perform simple 1-off tests or build complex project trees
- Code with Python inside ACS for unlimited flexibility and control
- Manual or automated wafer prober control
- Data management and statistical analysis capabilities
| Datasheet | Accessory | Description |
|---|---|---|
| View Datasheet | 1754 | SAFETY UNIVERSAL TEST LEAD KIT |
| View Datasheet | 4288-1 | SINGLE FIXED RACK MOUNTING KIT |
| View Datasheet | 4288-2 | DUAL FIXED RACK MOUNTING KIT |
| View Datasheet | 4299-3 | SINGLE UNIT UNIVERSAL RACK MOUNT KIT |
| View Datasheet | 5804 | 4 TERMINAL TEST LEAD SET |
| View Datasheet | 5805 | KELVIN PROBES, 0.9M (3FT) |
| View Datasheet | 5806 | KELVIN CLIP LEADS |
| View Datasheet | 5808 | LOW COST SINGLE PIN KELVIN PROBE SET |
| 7007-05 | SHIELDED GPIB CAB, 0.5M 1.6 FT | |
| 7007-1 | SHIELDED GPIB CABLE,1M (3.2FT) | |
| View Datasheet | 7078-TRX-1 | 3 SLOT TRIAX CABLE, 1 FT |
| View Datasheet | 7078-TRX-10 | 3 SLOT TRIAX CABLE, 10FT |
| View Datasheet | 7078-TRX-12 | 3 LUG TRIAX CABLE, 12FT |
| View Datasheet | 7078-TRX-20 | 3 SLOT TRIAX CABLE, 20FT |
| View Datasheet | 7078-TRX-3 | 3 SLOT TRIAX CABLE, 3FT |
| View Datasheet | 7078-TRX-5 | 3 SLOT TRIAX CABLE |
| View Datasheet | 7078-TRX-GND | 3-SLOT MALE TRIAX TO BNC ADAPTER (GUARD REMOVED) |
| View Datasheet | 8101-PIV | PIV DEMO FIXTURE |
| View Datasheet | 8501-1 | TRIGGER LINK CABLES W/DIN CON |
| View Datasheet | 8503. | 8-Pin DIN-TO-BNC TRIGGER CABLE |
| View Datasheet | 8620 | SHORTING PLUG |
| KPCI-488LP | IEEE-488 INTERFACE FOR PCI BUS | |
| View Datasheet | KUSB-488B | IEEE-488.2 USB-TO-GPIB INTERFACE ADAPTER |
| TRX-1100V-BAN | 3-SLOT TRIAX TO BANANA ADAPTER CABLE (FOR 2470 SMU ONLY) | |
| View Datasheet | TRX-1100V-CONN | 3-SLOT MALE HIGH VOLTAGE TRIAX CABLE CONNECTOR |
| View Datasheet | TRX-1100V-PCBCONN | 3-SLOT FEMALE HIGH VOLTAGE PC BOARD MOUNT CONNECTOR |
