Model 2651A High Power System SourceMeter Instrument Specifications

Document number SPEC-2651AG

Specifications are subject to change without notice.

SPECIFICATION CONDITIONS

This document contains specifications and supplemental information for the Model 2651A High Power System SourceMeter^™ instrument. Specifications are the standards against which the 2651A is tested. Upon leaving the factory, the 2651A meets these specifications. Supplemental and typical values are nonwarranted, apply at 23 °C, and are provided solely as useful information.

Accuracy specifications are applicable for both normal and high-capacitance modes.

Source and measurement accuracies are specified at the 2651A terminals under these conditions:

18 °C to 23 °C, < 70 percent relative humidity
After two-hour warm-up
Speed normal (1 NPLC)
A/D autozero enabled
Remote sense operation or properly zeroed local operation
Calibration period: One year

DC POWER SPECIFICATIONS

Voltage

Current

Maximum output power and source/sink limits¹

202 W maximum

±10.1 V at ± 20.0 A
±20.2 V at ± 10.0 A
±40.4 V at ± 5.0 A²
Four-quadrant source or sink operation

202 W maximum

± 5.05 A at ± 40 V²
± 10.1 A at ± 20 V
± 20.2 A at ± 10 V
Four-quadrant source or sink operation

Refer to Pulse characteristics for pulsing details, such as duty cycle and pulse width.

¹ Full power source operation regardless of load to 30 °C ambient. Above 30 °C or power sink operation, refer to “Operating boundaries” in the Model 2651A Reference Manual for additional power derating information and guaranteed thermal cutoffs. Typical thermal cutoffs are shown in the following table.

Maximum output power	Voltage	Current
Quadrant II	–10 V at 13 A –20 V at 7.7 A –40 V at 3.3 A	4.3 A at –20 V 10 A at –10 V 20 A at –1.3 V
Quadrant IV	10 V at –13 A 20 V at –7.7 A 40 V at –3.3 A	–4.3 A at 20 V –10 A at 10 V –20 A at 1.3 V

² Quadrants 2 and 4 in the power envelope are trimmed at 36 V and 4.5 A.

VOLTAGE ACCURACY SPECIFICATIONS^{3, 4}

Range	Source		Current
Range	Programming resolution	Accuracy ± (% reading + volts)	Display resolution	Integrating ADC accuracy⁵ ± (% reading + volts)	High speed ADC accuracy⁶ ± (% reading + volts)
100 mV	5 µV	0.02% + 500 µV	100 nV	0.02% + 300 µV	0.05% + 600 µV
1 V	50 µV	0.02% + 500 µV	1 µV	0.02% + 300 µV	0.05% + 600 µV
10 V	500 µV	0.02% + 5 mV	10 µV	0.02% + 3 mV	0.05% + 8 mV
20 V	500 µV	0.02% + 5 mV	10 µV	0.02% + 5 mV	0.05% + 8 mV
40 V	500 µV	0.02% + 12 mV	10 µV	0.02% + 12 mV	0.05% + 15 mV

CURRENT ACCURACY SPECIFICATIONS⁷

Range	Source		Current
Range	Programming resolution	Accuracy ± (% reading + volts)	Display resolution	Integrating ADC accuracy⁵ ± (% reading + amperes)	High speed ADC accuracy⁶ ± (% reading + amperes)
100 nA	2 pA	0.1% + 500 pA	100 fA	0.08% + 500 pA	0.08% + 800 pA
1 µA	20 pA	0.1% + 2 nA	1 pA	0.08% + 2 nA	0.08% + 4 nA
10 µA	200 pA	0.1% +10 nA	10 pA	0.08% + 8 nA	0.08% +10 nA
100 µA	2 nA	0.03% + 60 nA	100 pA	0.02% + 25 nA	0.05% + 60 nA
1 mA	20 nA	0.03% +300 nA	1 nA	0.02% +200 nA	0.05% + 500 nA
10 mA	200 nA	0.03% + 8 µA	10 nA	0.02% + 2.5 µA	0.05% + 10 µA
100 mA	2 µA	0.03% + 30 µA	100 nA	0.02% + 20 µA	0.05% + 50 µA
1 A	200 µA	0.08% + 3.5 mA	1 µA	0.05% + 3 mA	0.05% + 5 mA
5 A	200 µA	0.08% + 3.5 mA	1 µA	0.05% + 3 mA	0.05% + 5 mA
10 A	500 µA	0.15% + 6 mA	10 µA	0.12% + 6 mA	0.12% + 12 mA
20 A	500 µA	0.15% + 8 mA	10 µA	0.08% + 8 mA	0.08% + 15 mA
50 A⁸	2 mA	0.15% + 80 mA	10 µA	0.05% + 50 mA⁹	0.05% + 90 mA¹⁰

³ Add 50 µV to source accuracy specifications per volt of HI lead drop.
⁴ For temperatures 0 °C to 18 °C and 28 °C to 50 °C, accuracy is degraded by ± (0.15 × accuracy specification)/°C. High-capacitance mode accuracy is applicable at 23 °C ± 5 °C only.
⁵ Derate accuracy specification for NPLC setting < 1 by increasing error term. Add appropriate typical percent of range term for resistive loads using the table below.

NPLC Settings	100 mV range	1 V to 40 V ranges	100 nA range	1 µA to 100 mA ranges	1 A to 20 A ranges
0.1	0.01%	0.01%	0.01%	0.01%	0.01%
0.01	0.08%	0.07%	0.1%	0.05%	0.1%
0.001	0.8%	0.6%	1%	0.5%	1.8%

⁶ 18-bit ADC. Average of 1000 samples taken at 100 µs intervals.
⁷ At temperatures 0 °C to 18 °C and 28 °C to 50 °C; 100 nA to 10 µA accuracy is degraded by ± (0.35 × accuracy specification)/°C. 100 µA to 50 A accuracy is degraded by ± (0.15 × accuracy specification)/°C. High-capacitance mode accuracy is applicable at 23 °C ± 5 °C only
⁸ 8 50 A range accessible only in pulse mode.
⁹ 50 A range accuracy measurements are taken at 0.008 NPLC.
¹⁰ Average of 100 samples taken at 1 µs intervals.

SUPPLEMENTAL CHARACTERISTICS

The following specifications are supplemental characteristics that provide additional information about instrument functions and performance. These characteristics are not guaranteed specifications; they describe the typical performance of the 2651A.

PULSE CHARACTERISTICS

Pulse region characteristics	Pulse region characteristics
	Region	Region maximums	Maximum pulse width¹¹	Maximum duty cycle¹²
	1	5 A at 40 V	DC, no limit	100%
	1	10 A at 20 V	DC, no limit	100%
	1	20 A at 10 V	DC, no limit	100%
	2	30 A at 10 V	1 ms	50%
	3	20 A at 20 V	1.5 ms	40%
	4	10 A at 40 V	1.5 ms	40%
	5	50 A at 10 V	1 ms	35%
	6	50 A at 20 V	330 µs	10%
	7	50 A at 40 V	300 µs	1%

¹¹ Times measured from the start of pulse to the start off-time; see figure below.

¹² Thermally limited in sink mode (quadrants 2 and 4) and ambient temperatures above 30 °C. See power equations in the Model 2651A Reference Manual for more information.

CAUTION Carefully consider and configure the appropriate output-off state and source and compliance levels before connecting the 2651A to a device that can deliver energy. Failure to consider the output-off state and source and compliance levels may result in damage to the instrument or to the device under test.

Current and voltage range expansion	Two 2651A instruments can be combined in series or parallel to expand the operating ranges and power performance for some applications. Refer to tek.com/keithley for the necessary application notes.
Minimum programmable pulse width¹³	100 µs Note: Minimum pulse width for settled source at a given I/V output and load can be longer than 100 µs
Pulse width programming resolution	1 µs
Pulse width programming accuracy¹³	± 5 µs
Pulse width jitter	2 µs
Pulse rise time	Current range	R_LOAD	Rise time
	50 A	0.05 Ω	26 µs
	50 A	0.2 Ω	57 µs
	50 A	0.4 Ω	85 µs
	20 A	0.5 Ω	95 µs
	50 A	0.8 Ω	130 µs
	20 A	1 Ω	180 µs
	10 A	2 Ω	330 µs
	5 A	8.2 Ω	400 µs

¹³ Times measured from the start of pulse to the start off-time; see figure below.

ADDITIONAL SOURCE CHARACTERISTICS

Noise 10 Hz to 20 MHz	< 100 mV peak-peak, < 30 mV_RMS 10 V range with a 20 A limit
Noise 0.1 Hz to 10 Hz	Voltage: 0.1% of range for 100 mV range 0.05% of range for ranges > 100 mV range Current: 0.05% of range
Overshoot	Voltage: < ± (0.1% + 10 mV) Step size = 10% to 90% of range, resistive load, maximum current limit/compliance Current: < ± (0.1% + 10 mV) Step size = 10% to 90% of range, resistive load See Current source output settling time for additional test conditions
Transient response time	10 V and 20 V ranges: < 70 µs for the output to recover to within 0.1% for a 10% to 90% step change in load 40 V range: <110 µs for the output to recover to within 0.1% for a 10% to 90% step change in load
Range change overshoot	Voltage: < 300 mV + 0.1% of larger range (for < 20 V ranges) < 400 mV + 0.1% of larger range (for ≥ 20 V ranges) Overshoot into a 100 kΩ load, 20 MHz bandwidth Current: < 5% of larger range + 360 mV/RLOAD (for > 10 µA ranges) I_OUT × R_LOAD = 1 V
Current source output settling time	Time required to reach within 0.1% of final value after source level command is processed on a fixed range Values below for I_OUT × R_LOAD
	Current range	R_LOAD		Settling time
	20 A	0.5 Ω		< 195 µs
	10 A	1.5 Ω		< 540 µs
	5 A	5 Ω		< 560 µs
	1 A	1 Ω		< 80 µs
	100 mA	10 Ω		< 80 µs
	10 mA	100 Ω		< 210 µs
	1 mA	1 kΩ		< 300 µs
	100 µA	10 kΩ		< 500 µs
	10 µA	100 kΩ		< 15 ms
	1 µA	1 MΩ		< 35 ms
	100 nA	10 MΩ		< 110 ms
Voltage source output settling time	Time required to reach within 0.1% of final value after source level command is processed on a fixed range¹⁴
	Range		Settling time
	1 V		< 70 µs
	10 V		< 160 µs
	20 V		< 190 µs
	40 V		< 175 µs
Guard offset voltage	< 4 mV Current < 10 mA
Remote sense operating range¹⁵	Maximum voltage between HI and SENSE HI = 3 V Maximum voltage between LO and SENSE LO = 3 V
Maximum impedance per source lead	Maximum impedance limited by 3 V drop by remote sense operating range Maximum resistance = 3 V/source current value (amperes) (maximum of 1 Ω per source lead) 3 V = L di/dt
Voltage output headroom	5 A range Maximum output voltage = 48.5 V – (total voltage drop across source leads) 10 A range Maximum output voltage = 24.5 V – (total voltage drop across source leads) 20 A range Maximum output voltage = 15.9 V – (total voltage drop across source leads)
Overtemperature protection	Internally sensed temperature overload puts unit in standby mode
Limit/compliance	Bipolar limit (compliance) set with single value Voltage:¹⁶ Minimum value is 10 mV; accuracy is the same as voltage source Current:¹⁷ Minimum value is 10 nA; accuracy is the same as current source

ADDITIONAL METER CHARACTERISTICS

Contact check characteristics¹⁸	Speed	Maximum measurement time to memory for 60 Hz (50 Hz)	Accuracy (1 year) 23 °C ± 5 °C ± (% reading + ohms)
	Fast	1.1 ms (1.2 ms)	5% + 15 Ω
	Medium	4.1 ms (5 ms)	5% + 5 Ω
	Slow	36 ms (42 ms)	5% + 3 Ω

¹⁴ With measure and compliance set to the maximum current for the specified voltage range.
¹⁵ Add 50 µV to source accuracy specifications per volt of HI lead drop.
¹⁶ For sink mode operation (quadrants II and IV), add 0.6 percent of limit range to the corresponding voltage source accuracy specifications. For 100 mV range add an additional 60 mV of uncertainty. Specifications apply with sink mode enabled.
¹⁷ For sink mode operation (quadrants II and IV), add 0.6 percent of limit range to the corresponding current limit accuracy specifications. Specifications apply with sink mode enabled.
¹⁸ Includes measurement of SENSE HI to HI and SENSE LO to LO contact resistances.

Maximum load impedance	Normal mode 10 nF 3 µH	High capacitance mode 50 µF 3 µH
Common mode voltage	250 V dc
Common mode isolation	> 1 GΩ < 4500 pF
Measure input impedance	> 10 GΩ
Sense high input impedance	> 10 GΩ
Maximum sense lead resistance	1 kΩ for rated accuracy
Overrange	101% of source range 102% of measure range

HIGH-CAPACITANCE MODE CHARACTERISTICS^{19, 20}

Accuracy characteristics²¹	Accuracy characteristics are applicable in both normal and high capacitance modes
Voltage source output settling time	Time required to reach within 0.1% of final value after source level command is processed on a fixed range²²
	Voltage source range	Settling time with C_LOAD = 4.7 µF
	1 V	75 µs
	10 V	170 µs
	20 V	200 µs
	40 V	180 µs
Mode change delay	Current ranges of 100 µA and above: 11 ms delay for both in and out of high-capacitance mode Current ranges below 100 µA: 250 ms delay into high-capacitance mode 11 ms delay out of high‑capacitance mode
Measure input impedance	> 10 GΩ in parallel with 25 nF
Voltage source range change overshoot	< 400 mV + 0.1% of larger range Overshoot into a 100 kΩ load, 20 MHz bandwidth

¹⁹ High-capacitance mode specifications are for dc measurements only and use locked ranges. Autorange is disabled.
²⁰ 100 nA range is not available in high-capacitance mode.
²¹ Add an additional 2 nA to the source current accuracy and measure current accuracy offset for the 1 µA range.
²² With measure and compliance set to the maximum current for the specified voltage range.

MEASUREMENT SPEED CHARACTERISTICS^{23, 24}

Maximum sweep operation rates (operations per second) for 60 Hz (50 Hz):

A/D converter speed	Trigger origin	Measure to memory using user scripts	Measure to GPIB using user scripts	Source measure to memory using user scripts	Source measure to GPIB using user scripts	Source measure to memory using sweep API	Source measure to GPIB using sweep API
0.001 NPLC	Internal	20000 (20000)	9800 (9800)	7000 (7000)	6200 (6200)	12000 (12000)	5900 (5900)
0.001 NPLC	Digital I/O	8100 (8100)	7100 (7100)	5500 (5500)	5100 (5100)	11200 (11200)	5700 (5700)
0.01 NPLC	Internal	4900 (4000)	3900 (3400)	3400 (3000)	3200 (2900)	4200 (3700)	4000 (3500)
0.01 NPLC	Digital I/O	3500 (3100)	3400 (3000)	3000 (2700)	2900 (2600)	4150 (3650)	3800 (3400)
0.1 NPLC	Internal	580 (480)	560 (470)	550 (465)	550 (460)	560 (470)	545 (460)
0.1 NPLC	Digital I/O	550 (460)	550 (460)	540 (450)	540 (450)	560 (470)	545 (460)
1.0 NPLC	Internal	59 (49)	59 (49)	59 (49)	59 (49)	59 (49)	59 (49)
1.0 NPLC	Digital I/O	58 (48)	58 (49)	59 (49)	59 (49)	59 (49)	59 (49)
High-speed ADC	Internal	38500 (38500)	18000 (18000)	10000 (10000)	9500 (9500)	14300 (14300)	6300 (6300)
High-speed ADC	Digital I/O	12500 (12500)	11500 (11500)	7500 (7500)	7000 (7000)	13200 (13200)	6000 (6000)

High-speed ADC burst measurement rates:²⁵

Burst length (readings)	Readings per second	Bursts per second
100	1,000,000	400
500	1,000,000	80
1000	1,000,000	40
2500	1,000,000	16
5000	1,000,000	8

²³ Tests performed with a 2651A on channel A using the following equipment: Computer hardware (Intel^® Pentium^® 4 2.4 GHz, 2 GB RAM, National Instruments^™ PCI-GPIB); driver (NI-488.2 Version 2.2 PCI-GPIB); software (Microsoft^® Windows^® XP, Microsoft^® Visual Studio^® 2010, NI-VISA^™ version 4.1).
²⁴ Exclude current measurement ranges less than 1 mA.
²⁵ smua.measure.adc must be enabled and the smua.measure.count set to the burst length.

Maximum single measurement rates (operations per second) for 60 Hz (50 Hz):

A/D converter speed	Trigger origin	Measure to GPIB	Source measure to GPIB	Source measure pass/fail to GPIB
0.001 NPLC	Internal	1900 (1800)	1400 (1400)	1400 (1400)
0.01 NPLC	Internal	1450 (1400)	1200 (1100)	1100 (1100)
0.1 NPLC	Internal	450 (390)	425 (370)	425 (375)
1.0 NPLC	Internal	58 (48)	57 (48)	57 (48)

Maximum measurement range change rate	> 4000 per second for > 10 µA
Maximum source range change rate	10 ms for ranges > 100 μA and < 5 A 30 ms for ranges ≥ 5 A
Command processing time	Maximum time required for the output to begin to change following the receipt of the smua.source.levelv or smua.source.leveli command; < 1 ms

TRIGGERING AND SYNCHRONIZATION CHARACTERISTICS

Triggering

Trigger in to trigger out	0.5 μs
Trigger in to source change²⁶	10 μs
Trigger timer accuracy	± 2 μs
Source change²⁶ after LXI trigger	280 μs

Synchronization

Single-node synchronized source change²⁶	< 0.5 μs
Multi-node synchronized source change²⁶	< 0.5 μs

²⁶ Fixed source range with no polarity change.

SUPPLEMENTAL INFORMATION

Front-panel interface	Two-line vacuum fluorescent display (VFD) with keypad and navigation wheel
Display	Show error messages and user-defined messages Display source and limit settings Show current and voltage measurements View measurements stored in dedicated reading buffers
Keypad operations	Change host interface settings Save and restore instrument setups Load and run factory and user-defined test scripts that prompt for input and send results to the display Store measurements into dedicated reading buffers
Programming	Embedded Test Script Processor (TSP™) accessible from any host interface; responds to high-speed test scripts comprised of remote commands and statements (for example, branching, looping, and math); able to execute test scripts stored in memory without host intervention
Minimum user memory available	16 MB (approximately 250,000 lines of TSP code)
Reading buffers	Nonvolatile memory uses dedicated storage areas reserved for measurement data; reading buffers are arrays of measurement elements; each element can hold the following items: Measurement Source setting (at the time the measurement was made) Measurement status Range information Timestamp Two reading buffers are reserved for each 2651A channel; reading buffers can be filled using the front-panel STORE key and retrieved using the RECALL key or host interface
Buffer size, with timestamp and source setting	> 60,000 samples
Buffer size, without timestamp and source setting	> 140,000 samples

Timing

Timer	Free-running 47-bit counter with 1 MHz clock input; reset each time instrument power is turned on; if the instrument is not turned off, the timer is reset to zero (0) every four years
Timestamp	TIMER value is automatically saved when each measurement is triggered
Resolution	1 μs
Timestamp accuracy	± 100 ppm

GENERAL SPECIFICATIONS

IEEE-488	IEEE Std 488.1 compliant. Supports IEEE Std 488.2 common commands and status model topology
RS-232	Baud rates from 300 bps to 115200 bps Programmable number of data bits, parity type, and flow control (RTS/CTS hardware or none) When not programmed as the active host interface, the 2651A can use the RS-232 interface to control other instrumentation
Ethernet	RJ-45 connector, LXI Class C, 10/100BT, Auto MDIX
LXI compliance	LXI version 1.4 Core 2011
Expansion interface	The TSP-Link™ expansion interface allows TSP-enabled instruments to trigger and communicate with each other Cable type: Category 5e or higher LAN crossover cable Three meter (9.84 ft) maximum between each TSP-enabled instrument A maximum of 32 TSP-Link nodes can be interconnected Each source-measure instrument uses one TSP‑Link node
USB File System	USB 2.0 Host: Mass storage class device
Power supply	100 V ac to 240 V ac, 50 Hz to 60 Hz (autosensing), 550 VA maximum
Cooling	Forced air; side and top intake and rear exhaust
Warranty	1 year
EMC	Conforms to European Union EMC Directive
Safety	UL listed to UL61010-1:2004 Conforms to European Union Low Voltage Directive
Environment	For indoor use only Altitude: Maximum 2000 m (6562 ft) above sea level Operating: 0 °C to 50 °C, 70% relative humidity up to 35 °C; derate 3% relative humidity/°C, 35 °C to 50 °C Storage: −25 °C to 65 °C
Dimensions	Rack mount: 89 mm high × 435 mm wide × 549 mm deep (3.5 in. × 17.1 in. × 21.6 in.) Bench configuration (with handle and feet): 104 mm high × 483 mm wide × 620 mm deep (4.1 in. × 19 in. × 24.4 in.)
Weight	10.2 kg (22.5 lb)

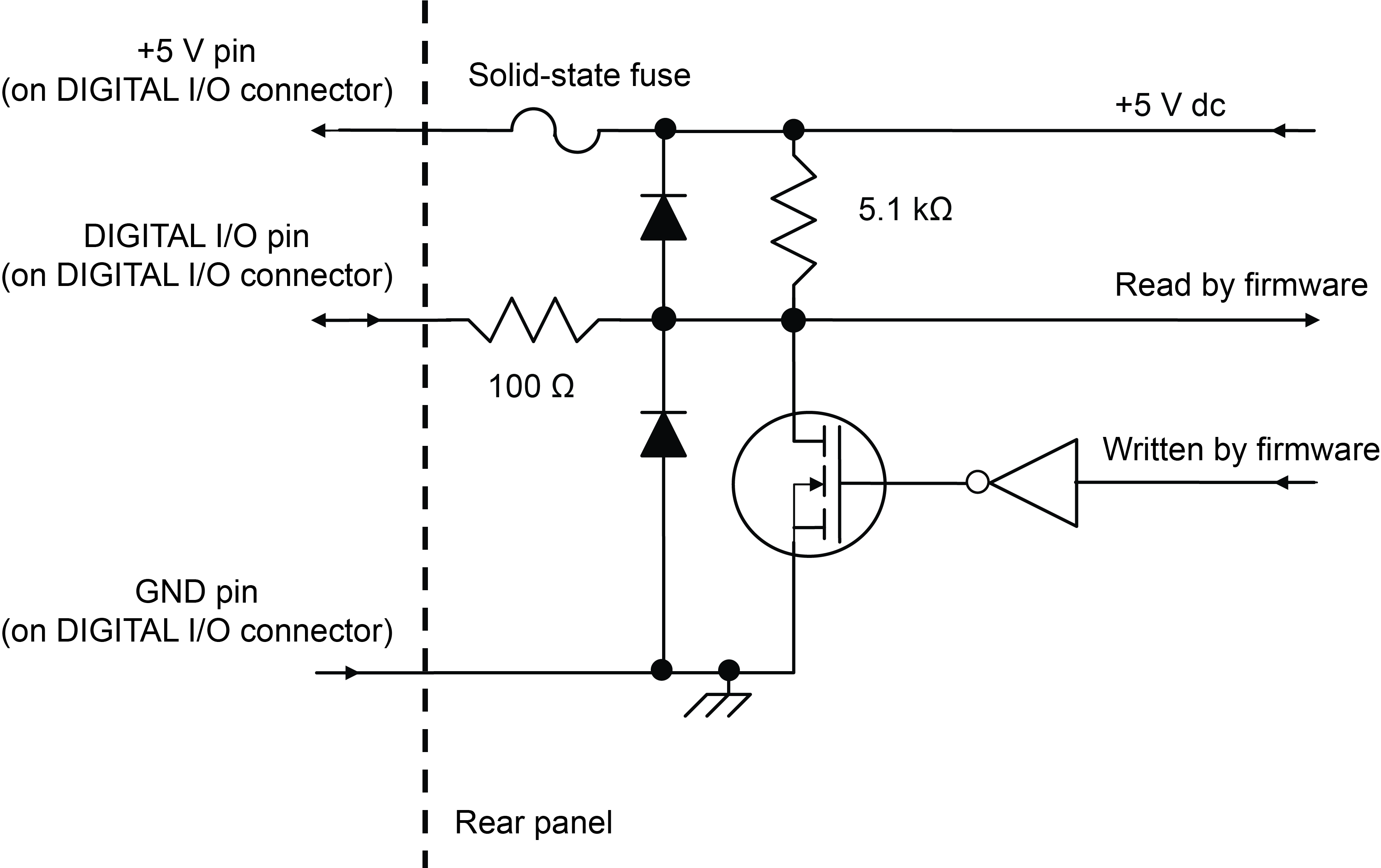

Digital I/O interface

Connector: 25-pin female D
Input/output pins: 14 open drain I/O bits
Absolute maximum input voltage: 5.25 V
Absolute minimum input voltage: –0.25 V
Maximum logic low input voltage: 0.7 V, +850 µA maximum
Minimum logic high input voltage: 2.1 V, +570 µA
Maximum source current (flowing out of digital I/O bit): +960 µA
Maximum sink current at maximum logic low voltage (0.7 ): –5.0 mA
Absolute maximum sink current (flowing into digital I/O pin): –11 mA
5 V power supply pin: Limited to 250 mA, solid-state fuse protected
Output enable pin: Active high input pulled down internally to ground with a 10 kΩ resistor; when the output enable input function has been activated, the 2651A channel will not turn on unless the output enable pin is driven to > 2.1 V (nominal current = 2.1 V/10 kΩ = 210 µA)

Find more valuable resources at TEK.COM

Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

SPEC-2651A April 2022
