MDO4000C Series vs. Rohde & Schwarz FSL Spectrum Analyzer Comparison

Mixed Domain Oscilloscope

Key Specifications

MDO4000C Capabilities Not Available on Keysight N9322C

4 analog channels and 16 digital channels
Function generator and DVM
Serial / Parallel bus decode
Capture bandwidth wide enough for modern RF signals
Time-correlated views of analog, digital, serial / parallel buses and RF signals for complete system visibility. RF signals include:

Spectrum shown in Frequency Domain
Amplitude, Frequency, and Phase vs. Time traces shown in Time Domain

Key Specifications — Correlating RF to other system signals
The most common application is making timing measurements from control logic (often serial or parallel bus commands) to when the RF output changes take effect.

Key Specifications — Exceptionally Wide Capture Bandwidth With 3 GHz of capture bandwidth and long RF acquisition times, the MDO is the ultimate product for debugging modern wideband, time varying RF signals.

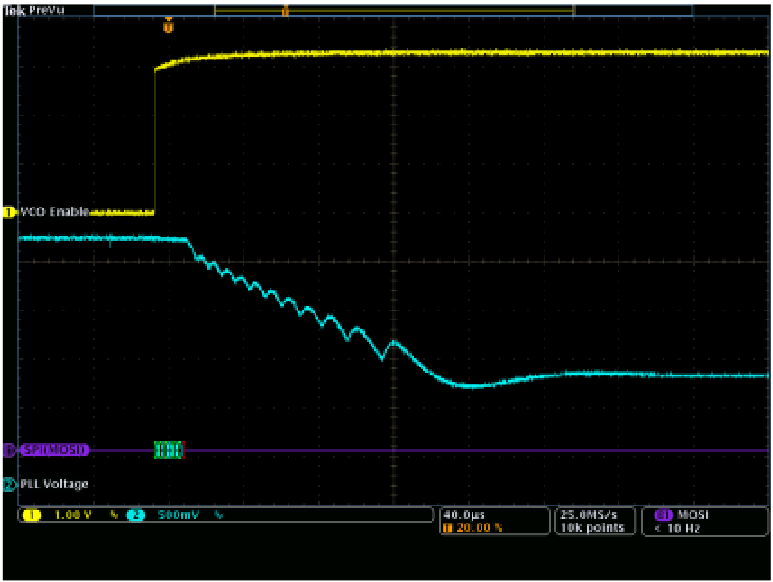

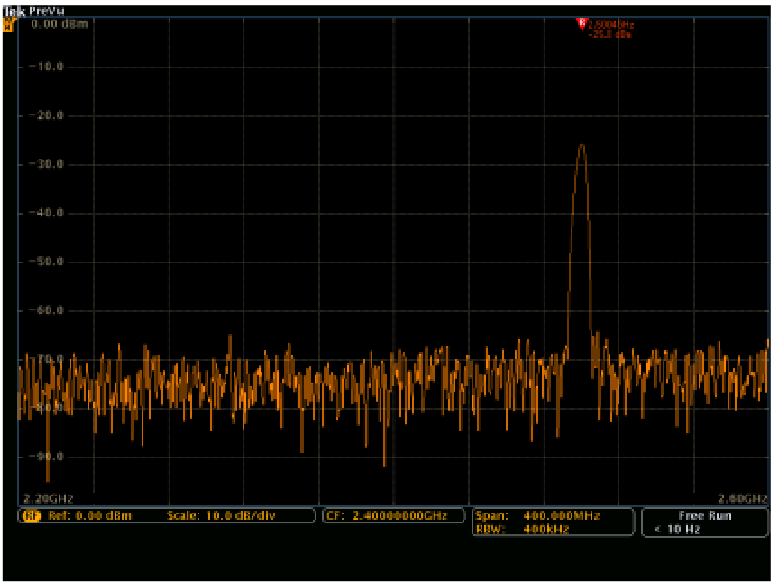

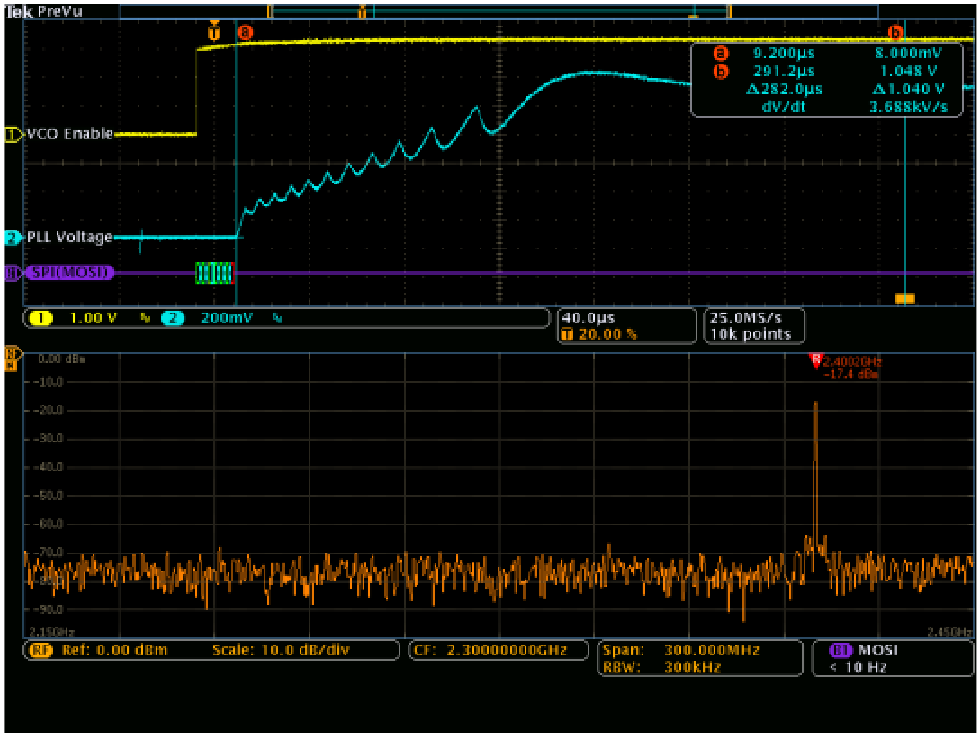

Key Specifications — Time Domain OnlyFrequency Domain OnlyBoth Domains at Once

Key Specifications — Time Domain OnlyFrequency Domain OnlyBoth Domains at Once
