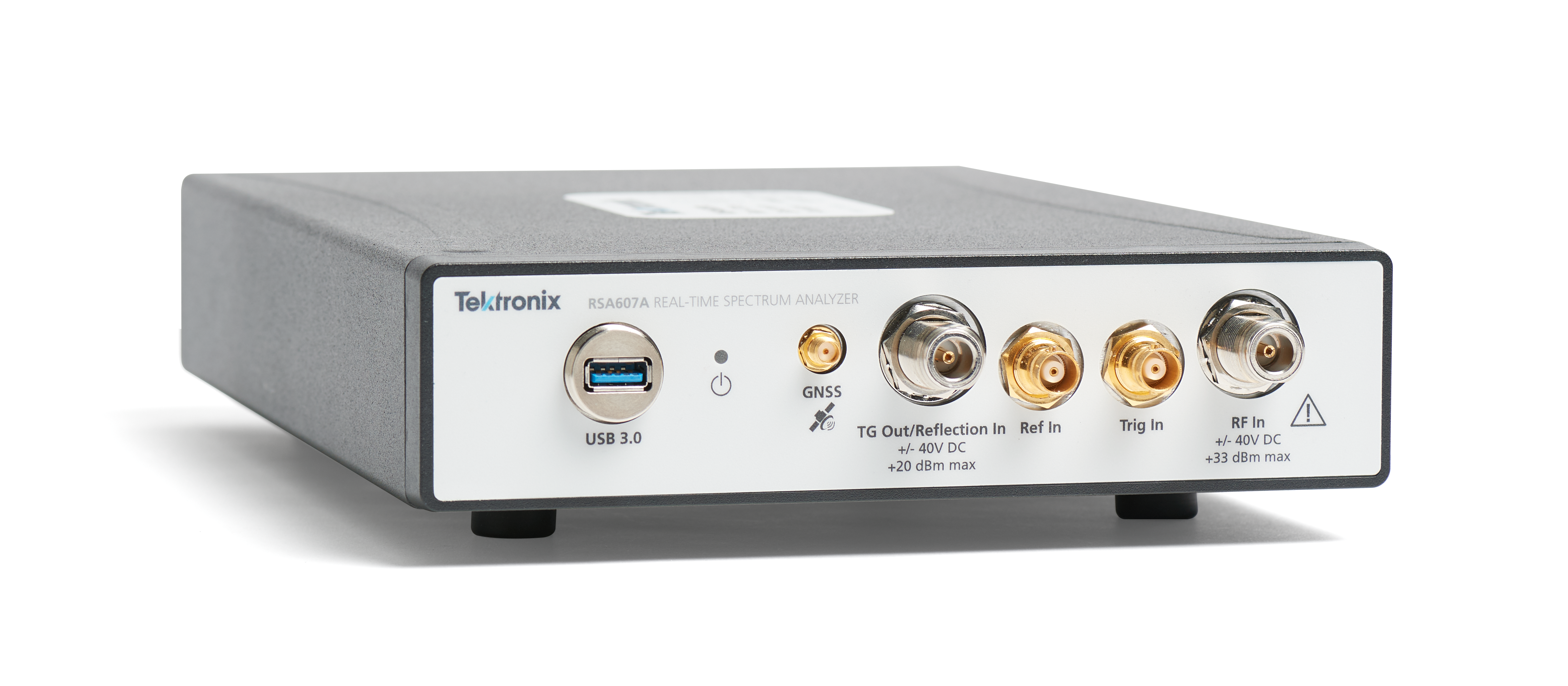

Spectrum Analyzer

Frequency range

RSA603A

9 kHz to 3 GHz

RSA607A

9 kHz to 7.5 GHz

Frequency marker readout accuracy

±(RE × MF + 0.001 × Span) Hz

RE: Reference Frequency Error

MF: Marker Frequency [Hz]

Reference frequency accuracy

Initial accuracy at Cal (30 min warm-up)

±1 x 10^-6

First year aging, typical

±1 x 10^-6 (One year)

Cumulative error (Initial accuracy + temperature + aging), typical

3 x 10^-6 (One year)

Temperature drift

±0.9 x 10^-6 (-10 to 60 °C)

External reference input

BNC connector, 50 Ω nominal

External reference input frequency

Every 1 MHz from 1 to 20 MHz plus the following: 1.2288 MHz, 2.048 MHz, 2.4576 MHz, 4.8 MHz, 4.9152 MHz, 9.8304 MHz, 13 MHz, and 19.6608 MHz.

The spurious level on the input signal must be less than -80 dBc within 100 kHz offset to avoid on-screen spurious.

External reference input range

± 5 ppm

External reference input level

-10 to +10 dBm

Accuracy, when locked to GNSS²

±0.025 ppm³

GNSS Trained Accuracy, when GNSS antenna is disconnected ², ⁴

±0.025 ppm⁵

±0.08 ppm⁶

RF input impedance

50 Ω

RF VSWR (RF Attn = 20 dB), typical

< 1.2 (10 MHz to 3 GHz)

< 1.5 (>3 GHz to 7.5 GHz)

RF VSWR preamp ON, RSA603A and RSA607A, typical

< 1.5 (10 MHz to 6 GHz, RF ATT=10 dB, preamp on)

< 1.7 (> 6 GHz to 7.5 GHz, RF ATT=10 dB, preamp on)

Maximum RF input level

Maximum DC voltage

±40 V (RF input)

Maximum safe input power

+33 dBm (RF input, 10 MHz to 7.5 GHz, RF Attn ≥ 20 dB)

+13 dBm (RF input, 9 kHz to 10 MHz, RF Attn ≥ 20 dB)

+20 dBm (RF input, RF Attn < 20 dB)

Maximum safe input power (Preamp On)

+33 dBm (RF input, 10 MHz to 7.5 GHz, RF Attn ≥ 20 dB)

+13 dBm (RF input, 9 kHz to 10 MHz, RF Attn ≥ 20 dB)

Maximum measurable input power

+30 dBm (RF input, ≥ 10 MHz to Fmax, RF ATT Auto)

+20 dBm (RF input, < 10 MHz, RF ATT Auto)

Input RF attenuator

0 dB to 51 dB (1 dB step)

Sweep speed

Full span sweep speed, typical mean ⁷

25.0 GHz/sec (RBW = 1 MHz)

24.7 GHz/sec (RBW = 100 kHz)

15.7 GHz/sec (RBW = 10 kHz)

2.0 GHz/sec (RBW = 1 kHz)

Tuning step time via API

2.5 ms

Amplitude and RF flatness

Reference level setting range

-170 dBm to +40 dBm, 0.1 dB step, (Standard RF input)

Amplitude accuracy at all center frequencies

Center frequency range	18 ⁰C to 28 ⁰C
9 kHz ≤3.0 GHz	±0.8 dB
>3 to 7.5 GHz	±1.5 dB

Amplitude Accuracy at all center frequencies - Preamp on (18 ℃ to 28 ℃ , 10 dB RF Attenuator)

Center frequency range	18 ⁰C to 28 ⁰C
100 kHz to ≤3.0 GHz	±1.0 dB
>3 to 7.5 GHz	±3.0 dB

Preamp gain

27 dB at 2 GHz

21 dB at 6 GHz (RSA607A)

Channel response (amplitude and phase deviation), typical

For these specifications, use a flat top window for maximum CW amplitude verification accuracy with the RF attenuator setting at 10 dB.

Characteristic		Description
Measurement center frequency	Span	Amplitude flatness, typical	Amplitude flatness, RMS, typical	Phase linearity, RMS, typical
9 kHz to 40 MHz	≤40 MHz 8	±1.0 dB	0.60 dB
>40 MHz to 4.0 GHz	≤20 MHz	±0.10 dB	0.08 dB	0.3°
>4 GHz to 7.5 GHz	≤20 MHz	±0.35 dB	0.20 dB	0.7°
>40 MHz to 4 GHz	≤40 MHz	±0.15 dB	0.08 dB	0.6°
>4 GHz to 7.5 GHz	≤40 MHz	±0.40 dB	0.20 dB	1.0°

Channel response (Amplitude flatness)

For these specifications, use a flat top window for maximum CW amplitude verification accuracy with the RF attenuator setting at 10 dB. The specifications are valid for the test center frequencies listed at the end of the table.

Characteristic		Description
Amplitude flatness
	Span
	≤20 MHz	±0.5 dB
	≤40 MHz	±0.5 dB
Test center frequencies (in MHz)		21, 30, 500, 1000, 1500, 2000, 2500, 3000, 3500, 3950, 4050, 4500, 4850, 4950, 5500, 5750, 5850, 6200, 6650, 6750, 7000, 7450

Trigger/Sync input, typical

Voltage range: TTL, 0.0 V to 5.0 V

Trigger level (Schmitt trigger):

Positive-going threshold voltage: 1.6 V min, 2.1 V max

Negative-going threshold voltage: 1.0 V min., 1.35 V max

Impedance: 10 k ohms with schottky clamps to 0 V, +3.4 V

Trigger events

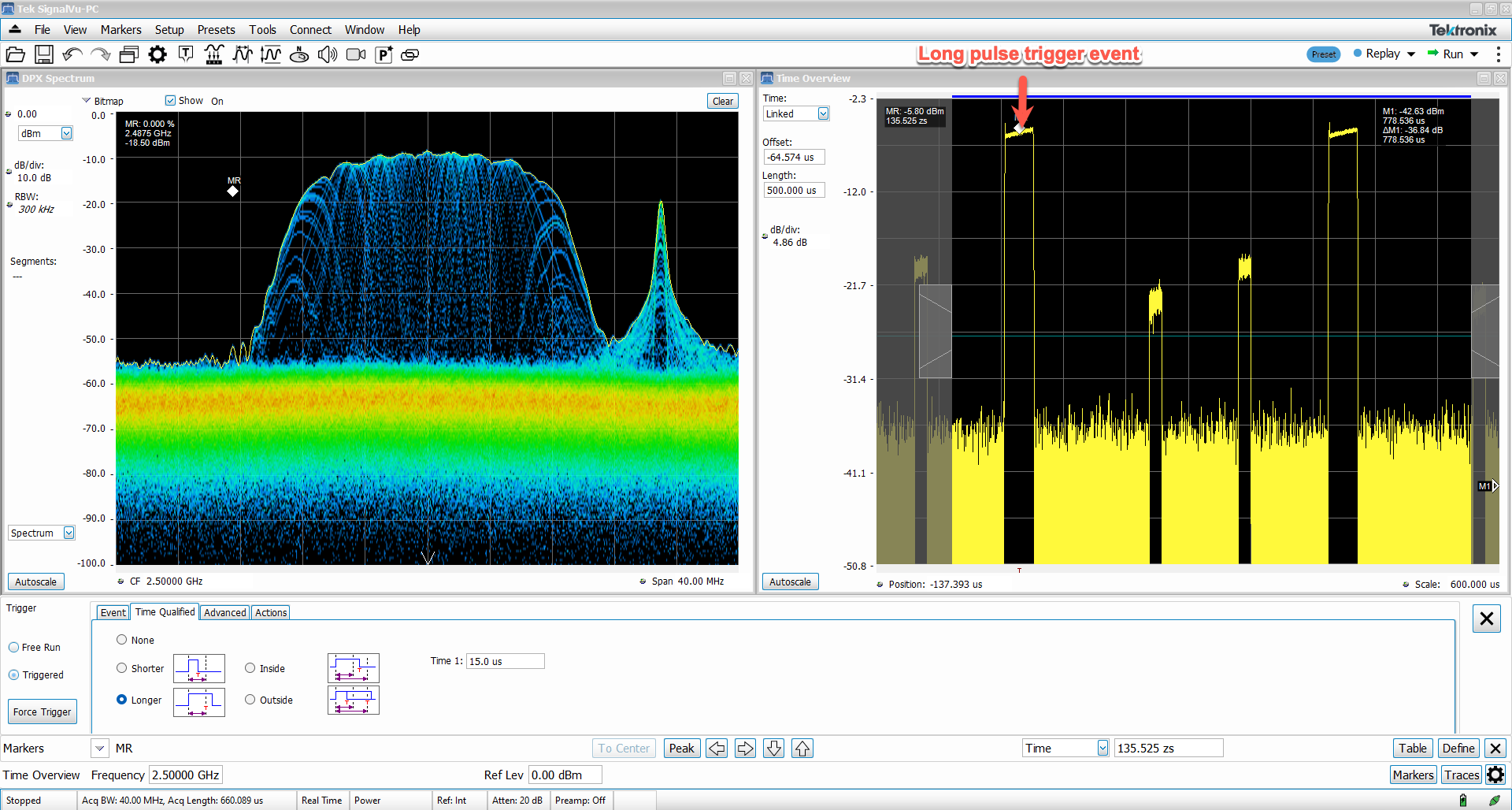

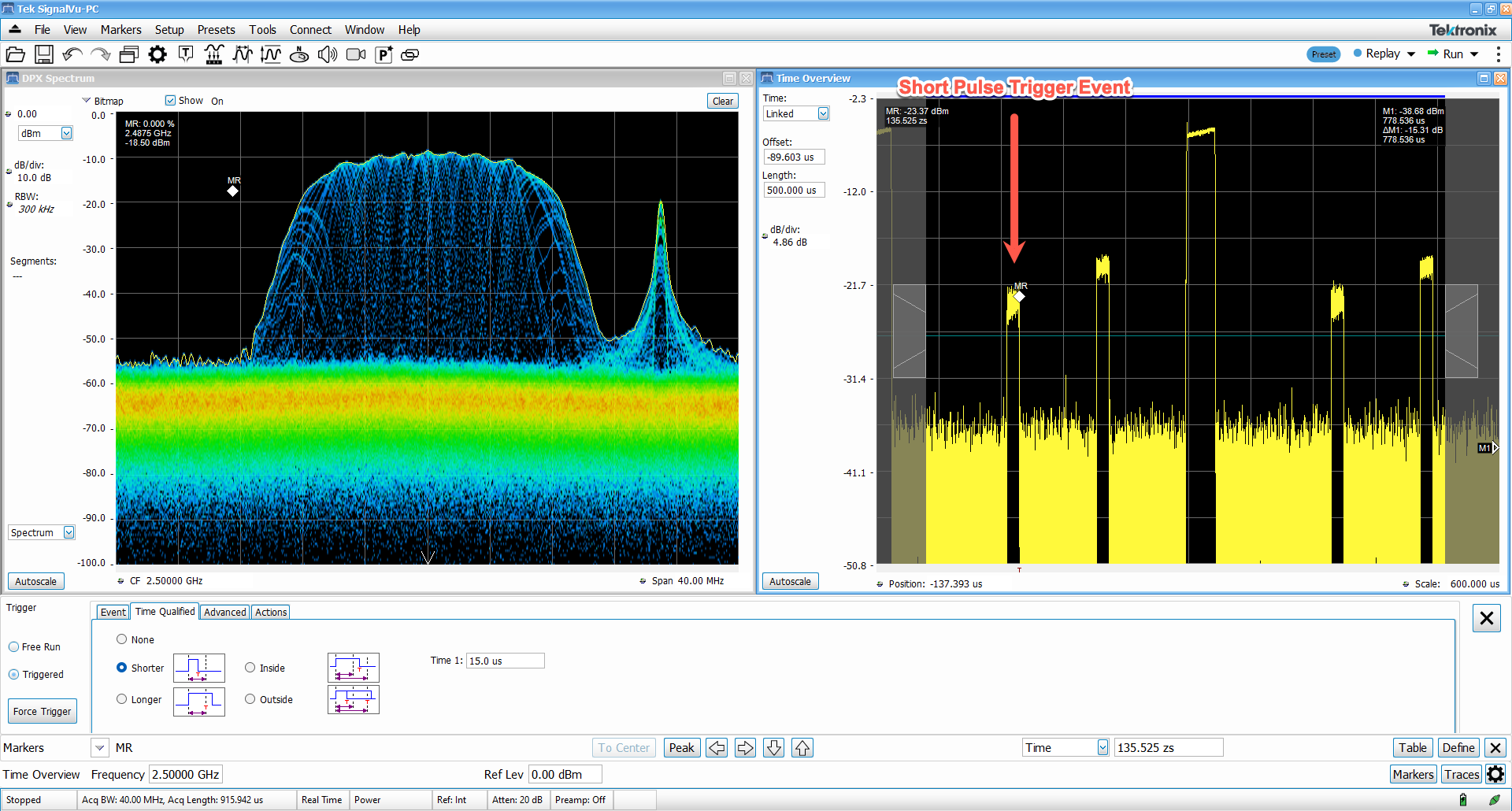

Power Level within Span (RF power trigger)

Frequency mask (Host)

Time-qualified level (Host)

DPX density (Host)

External trigger timing uncertainty

>20 MHz to 40 MHz acquisition bandwidth: ±250 ns

Uncertainty increases as acquisition bandwidth is decreased.

Power trigger

Power trigger, typical

Range: 0 dB to -50 dB from reference level, for trigger levels >30 dB above the noise floor.

Type: Rising or falling edge

Trigger re-arm time: ≤100 μsec

Power trigger position timing uncertainty

>20 MHz to 40 MHz acquisition bandwidth: ±250 ns

Uncertainty increases as acquisition bandwidth is decreased.

Power trigger level accuracy

±1.5 dB for CW signal at tuned center frequency for trigger levels >30 dB above the noise floor.

This specification is in addition to the overall amplitude accuracy uncertainty for SA mode.

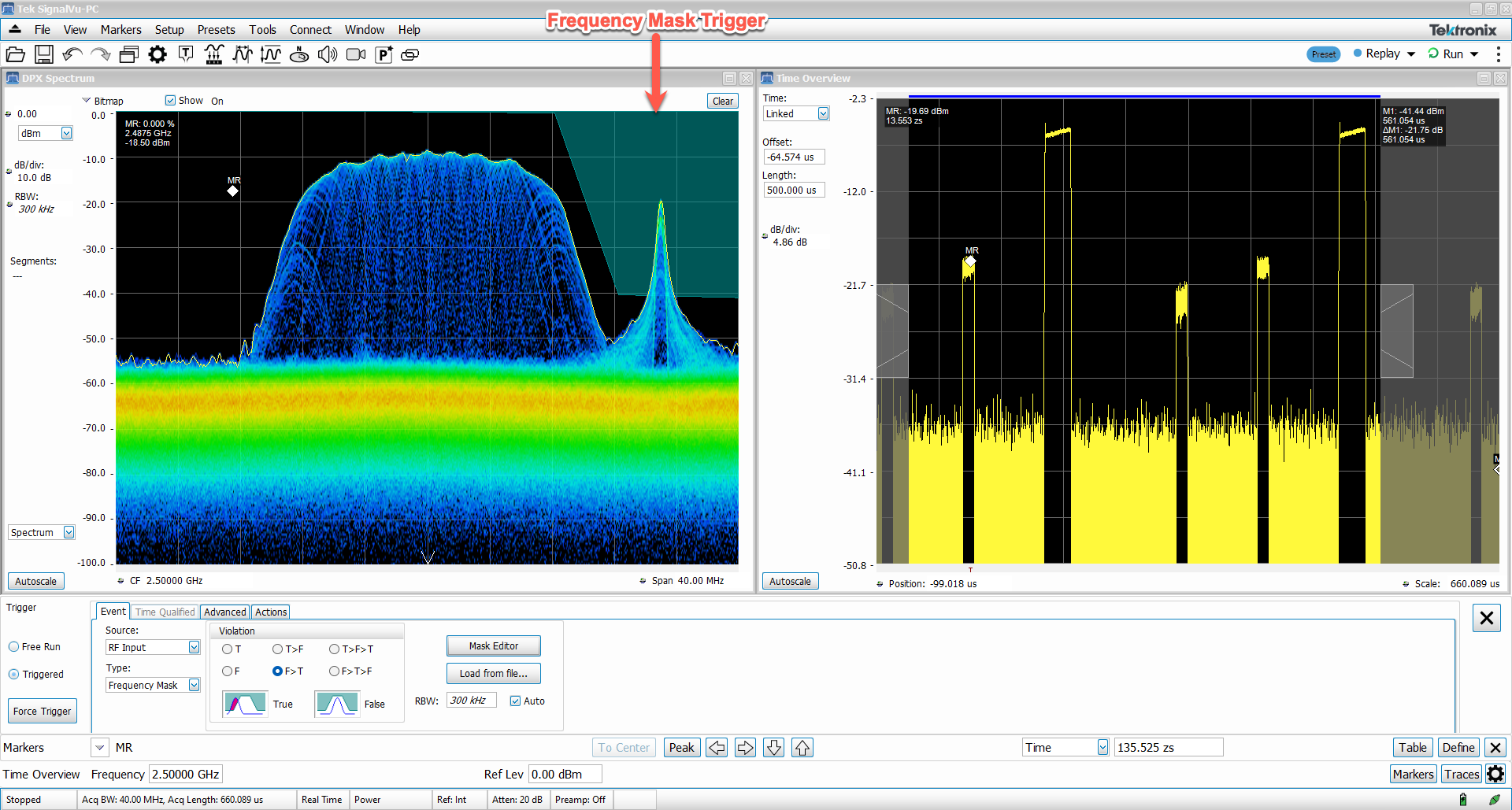

Frequency mask and DPX density trigger

Frequency mask trigger mask point horizontal resolution: < 0.13 % of span

Frequency mask trigger level range

0 to -80 dB from reference level

Frequency mask trigger level resolution

0.1 dB

Frequency mask trigger level accuracy (with respect to reference level)

± (Channel Response Flatness + 2.5 dB) for mask levels ≥ -50 dB from reference level and >30 dB above the noise floor

Frequency mask trigger timing uncertainty

± (0.5 * Spectrum time)

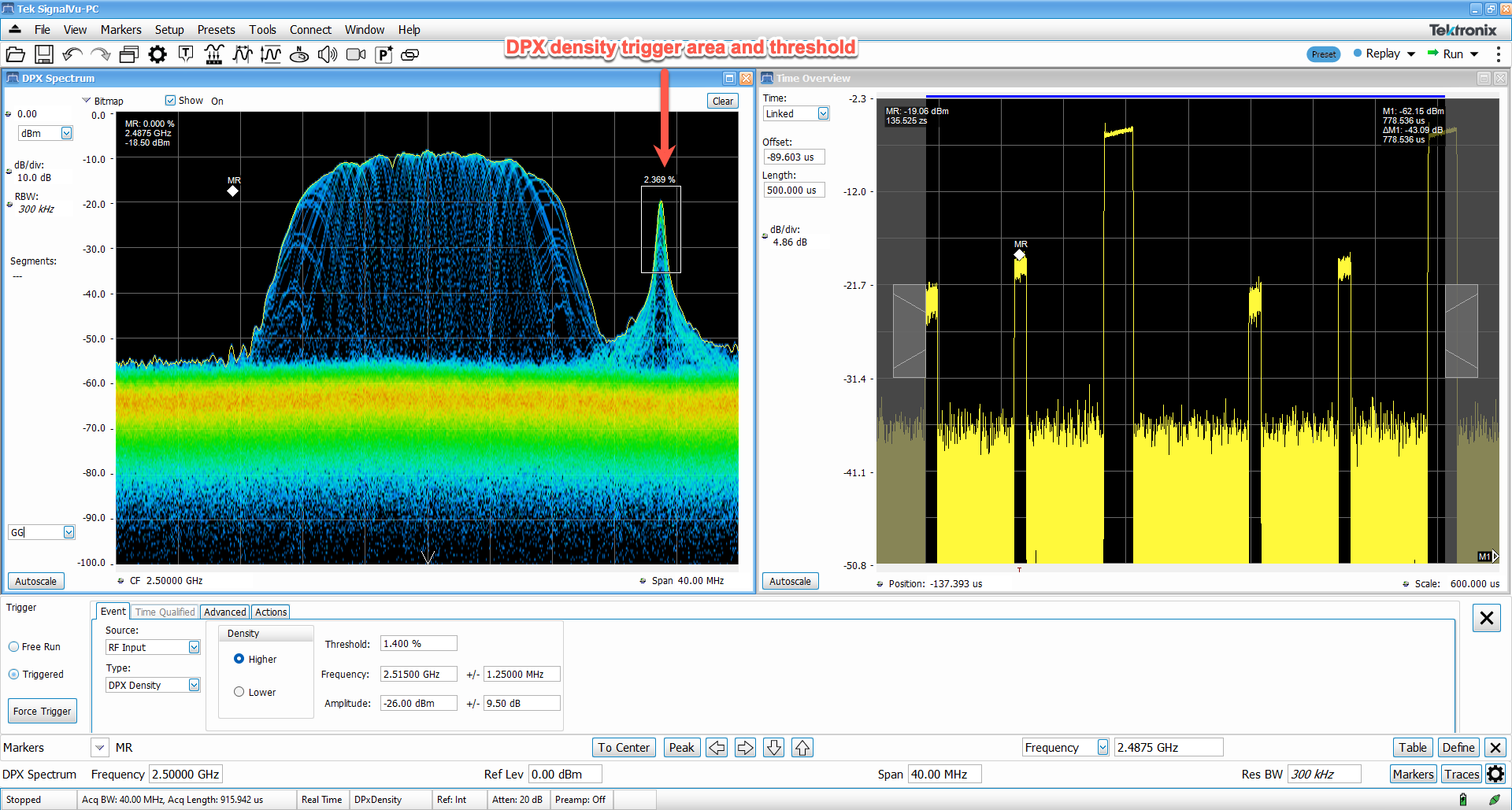

DPX density trigger area of interest range

2 to 801 pixels (horizontal) x 2 to 201 pixels (vertical)

3rd Order IM intercept (TOI)

+14 dBm at 2.130 GHz (RSA503A/RSA507A)

3rd Order IM intercept (TOI),

Preamp off, typical

+10 dBm (9 kHz to 25 MHz)

+15 dBm (25 MHz to 3 GHz)

+15 dBm (3 GHz to 4 GHz, RSA607A )

+10 dBm (4 GHz to 7.5 GHz, RSA607A)

Preamp on, typical

-20 dBm (9 kHz to 25 MHz)

-15 dBm (25 MHz to 3 GHz)

-15 dBm (3 GHz to 4 GHz)

-20 dBm (4 GHz to 7.5 GHz, RSA607A)

3rd Order Inter-modulation distortion

-78 dBc at 2.130 GHz (RSA513A/518A)

Each signal level -25 dBm at the RF input. 2 MHz tone separation. Attenuator = 0, Reference level = -20 dBm.

3rd Order inter-modulation distortion

Preamp off, typical

< -70 dBc (10 kHz to 25 MHz)

< -80 dBc (25 MHz to 3 GHz)

< -80 dBc (3 GHz to 4 GHz)

< -70 dBc (4 GHz to 6 GHz, RSA607A)

< -70 dBc (6 GHz to 7.5 GHz, RSA607A)

Each signal level -25 dBm at the RF input. 2 MHz tone separation. Attenuator = 0, Reference level = -20 dBm.

Preamp on, typical

< -70 dBc (9 kHz to 25 MHz)

< -80 dBc (25 MHz to 3 GHz)

< -80 dBc (3 GHz to 4 GHz)

< -70 dBc (4 GHz to 6 GHz, RSA607A)

< -70 dBc (6 GHz to 7.5 GHz, RSA607A)

Each signal level -55 dBm at the RF input. 2 MHz tone separation. Attenuator = 0, Reference level = -50 dBm.

2nd Harmonic distortion, typical

2nd Harmonic distortion

< -75 dBc (40 MHz to 1.5 GHz)

< -75 dBc (1.5 GHz to 3.75 GHz, RSA607A)

2nd Harmonic distortion, Preamp on

< - 60 dBc (40 MHz to 3.75 GHz), input frequency

2nd Harmonic distortion intercept (SHI)

+35 dBm (40 MHz to 1.5 GHz), input frequency

+35 dBm (1.5 GHz to 3.75 GHz), input frequency

2nd Harmonic distortion intercept (SHI), Preamp on

+15 dBm (40 MHz to 3.75 GHz), input frequency

Displayed average noise level (DANL)

(Normalized to 1 Hz RBW, with log-average detector)

For the RSA603A and RSA607A:

Frequency range	Preamp on	Preamp on, typical	Preamp off, typical
500 kHz to 1 MHz	-138 dBm/Hz	-145 dBm/Hz	-130 dBm/Hz
1 MHz to 25 MHz	-153 dBm/Hz	-158 dBm/Hz	-130 dBm/Hz
>25 MHz to 1 GHz	-161 dBm/Hz	-164 dBm/Hz	-141 dBm/Hz
>1 GHz to 2 GHz	-159 dBm/Hz	-162 dBm/Hz	-141 dBm/Hz
>2 GHz to 3 GHz	-156 dBm/Hz	-159 dBm/Hz	-138 dBm/Hz
>3 GHz to 4 GHz, RSA607A	- dBm/Hz	- dBm/Hz	-138 dBm/Hz
>4 GHz to 6 GHz, RSA607A	-159 dBm/Hz	-162 dBm/Hz	-147 dBm/Hz
>6 GHz to 7.5 GHz, RSA607A	-155 dBm/Hz	-158 dBm/Hz	-145 dBm/Hz

Phase noise

Offset	1 GHz CF	1 GHz CF (typical)	2 GHz CF (typical)	6 GHz CF, (RSA607A) (typical)	10 MHz (typical)
10 kHz	-94 dBc/Hz	-97 dBc/Hz	-96 dBc/Hz	-94 dBc/Hz	-120 dBc/Hz
100 kHz	-94 dBc/Hz	-98 dBc/Hz	-97 dBc/Hz	-96 dBc/Hz	-124 dBc/Hz
1 MHz	-116 dBc/Hz	-121 dBc/Hz	-120 dBc/Hz	-120 dBc/Hz	-124 dBc/Hz

Integrated Phase (RMS), typical

7.45 x 10^-3 radians @ 1 GHz

8.24 x 10^-3 radians @ 2 GHz

9.34 x 10^-3 radians @ 6 GHz

Integrated from 10 kHz to 10 MHz

Residual spurious response (Reference = -30 dBm, RBW = 1 kHz)

<-75 dBm (500 kHz to 60 MHz), typical

< -85 dBm (>60 MHz to 80 MHz), typical

<-100 dBm (>80 MHz to 7.5 GHz), typical

Spurious response with signal (Image suppression)

< -65 dBc (10 kHz to < 3 GHz, Ref= -30 dBm, Atten = 10 dB, RF input Level = -30 dBm, RBW = 10 Hz)

< -65 dBc (3 GHz to 7.5 GHz, Ref= -30dBm, Atten = 10 dB, RF input Level = -30 dBm, RBW = 10 Hz)

Spurious response with signal at CF

Offset ≥ 1 MHz

Frequency	Span ≤40 MHz, swept spans >40 MHz
1 MHz - 100 MHz		-75 dBc
100 MHz - 3 GHz	-72 dBc	-75 dBc
3 GHz - 7.5 GHz (RSA607A)	-72 dBc	-75 dBc

Spurious response with signal at CF

(100 kHz ≤ offset <1 MHz, Span=2 MHz ):

Frequency	Typical
1 MHz - 100 MHz	-76 dBc
100 MHz - 3 GHz	-76 dBc
3 GHz - 7.5 GHz (RSA607A)	-74 dBc 9

Spurious response with signal at other than CF, typical

Frequency	Span ≤40 MHz, swept spans >40 MHz
1 MHz – 25 MHz (LF Band)	-73 dBc
25 MHz – 3 GHz	-73 dBc
3 GHz – 7.5 GHz (RSA607A)	-73 dBc

Spurious response with signal at half-IF ¹⁰

RSA603A, RSA607A

< -75 dBc, (CF: 30 MHz to 3 GHz, Ref = -30 dBm, Atten = 10 dB, RBW = 10 Hz, Span = 10 kHz)

Signal frequency = 2310 MHz, RF input level = -30 dBm

RSA607A

< 77 dBc, (CF 3 G Hz to 7.5 GHz, Ref= -30 dBm, Atten = 10 dB, RBW=10 Hz, Span=10 kHz)

RF input Level = -30 dBm

Local oscillator feed-through to input connector, typical

< -70 dBm, preamp off.

< -90 dBm, preamp on.

Attenuator = 10 dB.

IF bandwidth

40 MHz.

A/D converter

14 bits, 112 Ms/s.

Real-Time IF Acquisition Data

112 Ms/s, 16-bit integer samples.

ACLR for 3GPP Down Link, 1 DPCH (2130 MHz)

-57 dB (Adjacent Channel)

-68 dB w/Noise Correction (Adjacent Channel)

-57 dB (First Alternate Channel)

-69 dB w/Noise Correction (First Adjacent Channel)

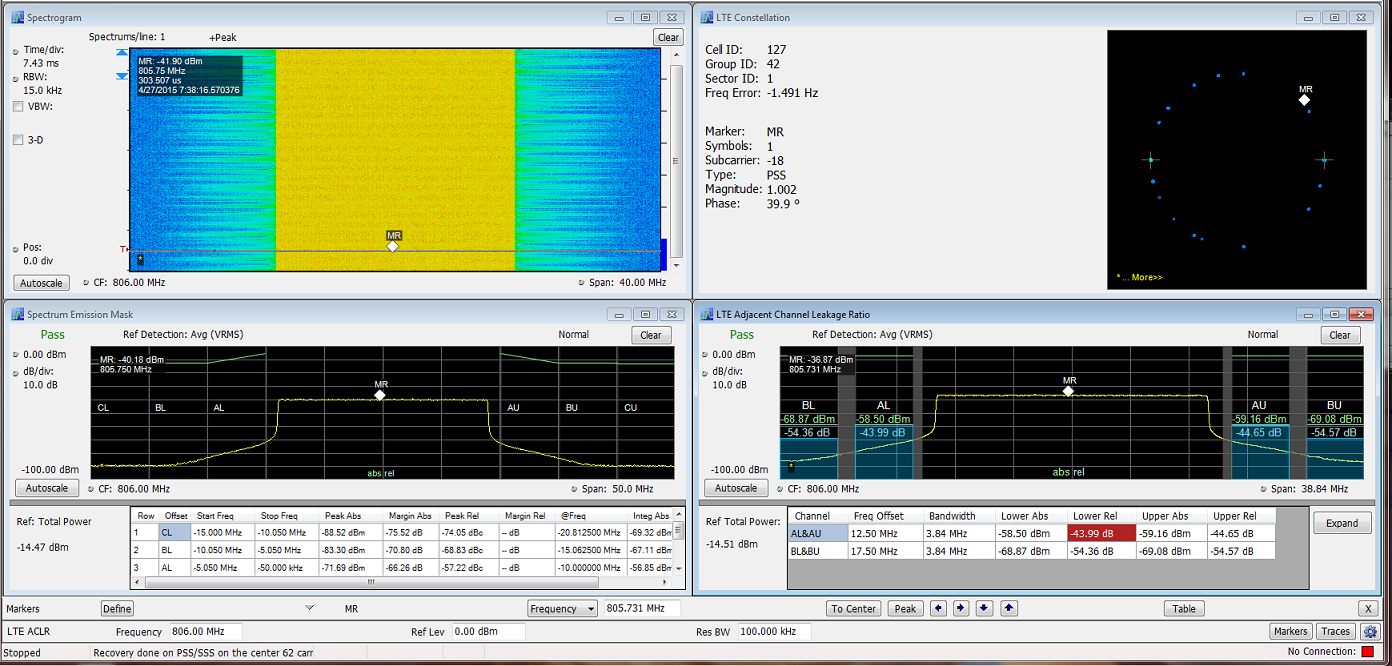

ACLR LTE

-58 dB (Adjacent Channel)

-61 dB w/Noise Correction (Adjacent Channel)

-61 dB (First Alternate Channel)

-63 dB w/Noise Correction (First Adjacent Channel)

Format

GPS/GLONASS/BeiDou

GPS antenna power

3 V, 100 mA maximum

Time to first fix, maximum

Lock time ranges from 2 sec (hot) to 46 sec (cold start).

-130 dBm input signal power.

Horizontal position accuracy

GPS: 2.6 m

Glonass: 2.6 m

BeiDou: 10.2 m

GPS + Glonass: 2.6 m

GPS + BeiDou: 2.6 m

Test conditions: 24 hr. static, -130 dBm, full power

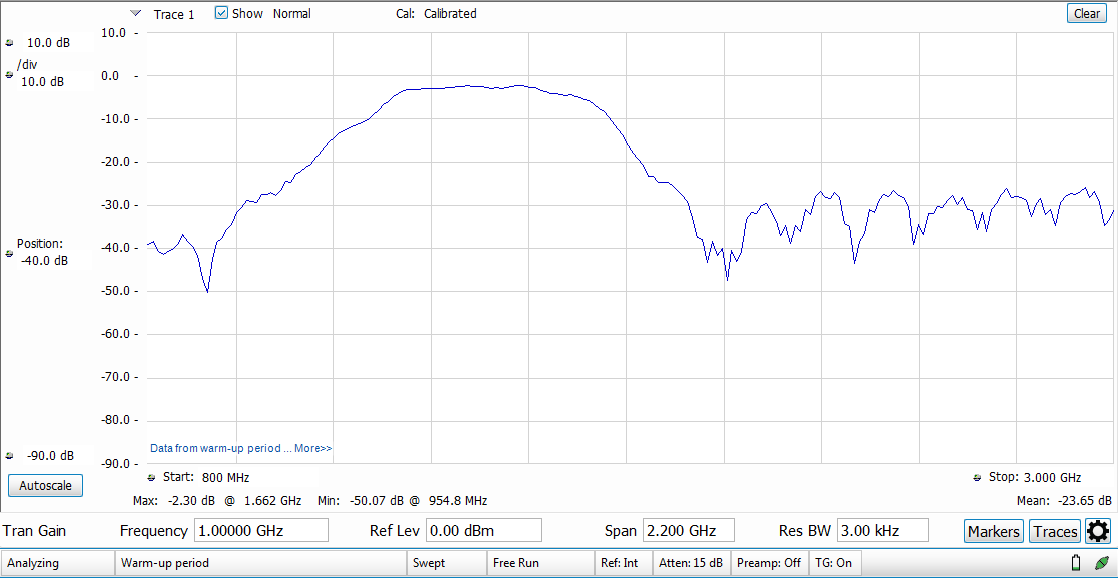

Tracking Generator (Option 04)

Frequency range

Reflection	9 kHz - 3.0 GHz (RSA603A) 9 kHz - 7.5 GHz (RSA607A)
Transmission	10 MHz to 3 GHz (RSA603) 10 MHz to 7.5 GHz (RSA607A)

Sweep speed, typical mean

0.192 sec/sweep, 101 points, 50 kHz RBW, 980 to 1020 MHz sweep (1.9 mS per point)

Measured using a Panasonic Toughpad FZ-G1, Intel^® Core™ i5-5300U 2.3 GHz Processor, 8 GB RAM, 256 GB SSD, Windows^®7 Pro, power management set to "High Performance". Transmission Gain display is only measurement on screen.

Frequency resolution

100 Hz

TG output connector

N type

VSWR

< 1.9:1, 10 MHz to 7.5 GHz, -20 dBm output level

Maximum output power

-3 dBm,10 MHz to 7.5 GHz

Output power level setting range

40 dB, 10 MHz to 7.5 GHz

Output power level step size

1 dB, 10 MHz to 7.5 GHz

Output power level step size accuracy

± 0.5 dB

Output level accuracy

± 1.5 dB, 10 MHz to 7.5 GHz, -20 dBm output level

Harmonics

< -22 dBc, ≥20 MHz

Non-harmonic spurious

< -30 dBc; spurious < 2 GHz from TG output frequency

< -25 dBc; spurious ≥ 2 GHz from TG output frequency

Reverse power without damage

40 Vdc, +20 dBm RF

Maximum span

40 MHz real-time

9 kHz - 3 GHz swept

9 kHz - 7.5 GHz swept

Maximum acquisition time

2.0 s

Minimum IQ resolution

17.9 ns (acquisition BW = 40 MHz)

Tuning Tables

Tables that present frequency selection in the form of standards-based channels are available for the following.

Cellular standards families: AMPS, NADC, NMT-450, PDC, GSM, CDMA, CDMA-2000, 1xEV-DO WCDMA, TD-SCDMA, LTE, WiMax

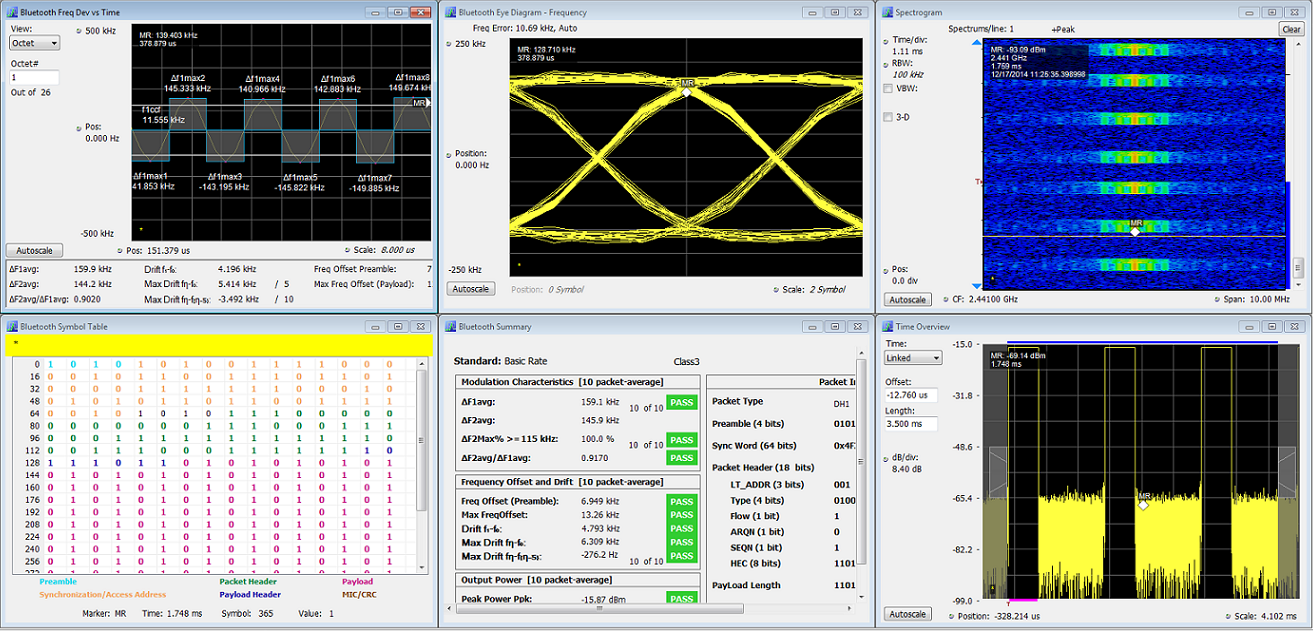

Unlicensed short range: 802.11a/b/j/g/p/n/ac, Bluetooth

Cordless phone: DECT, PHS

Broadcast: AM, FM, ATSC, DVBT/H, NTSC

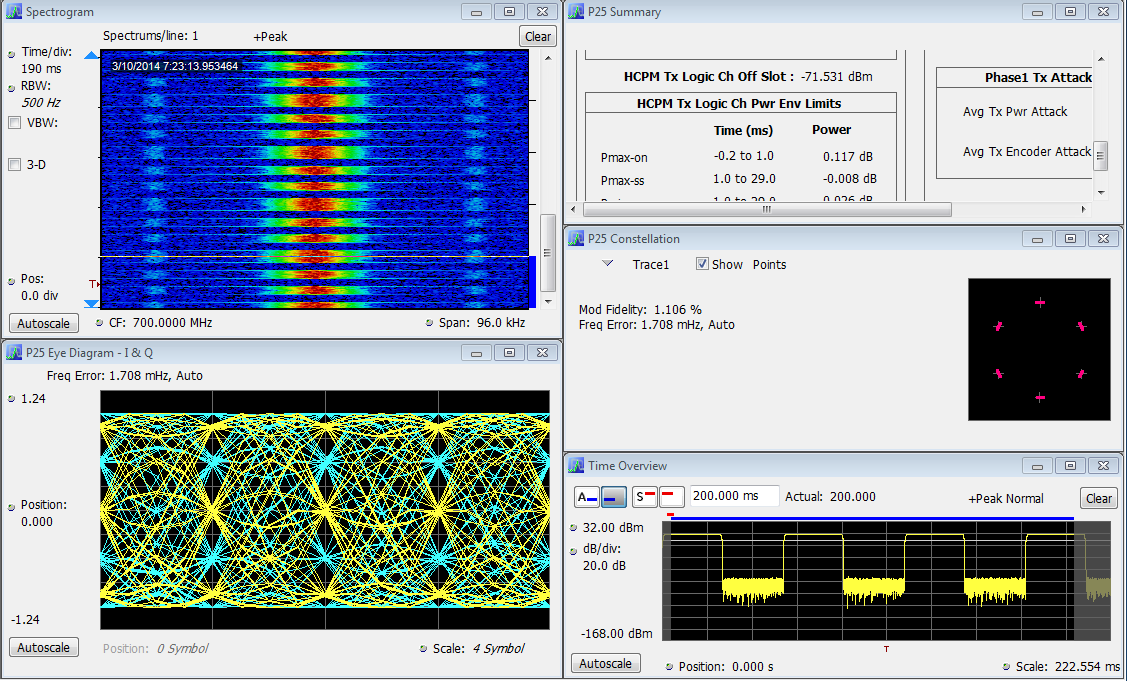

Mobile radio, pagers, other: GMRS/FRS, iDEN, FLEX, P25, PWT, SMR, WiMax

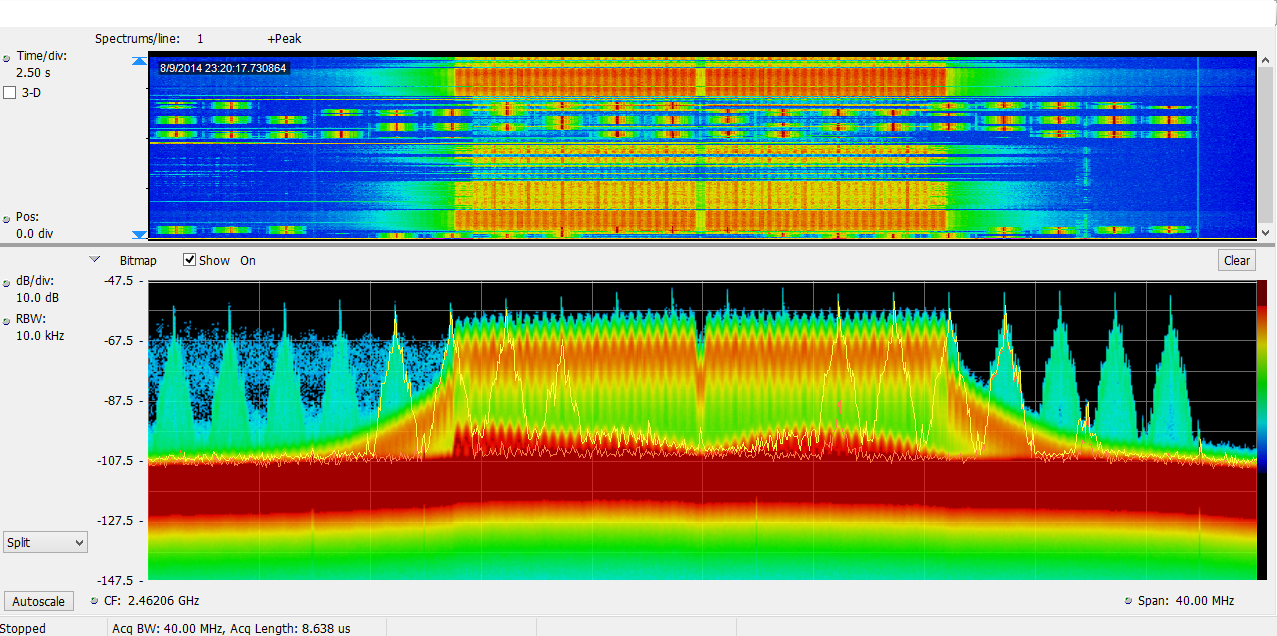

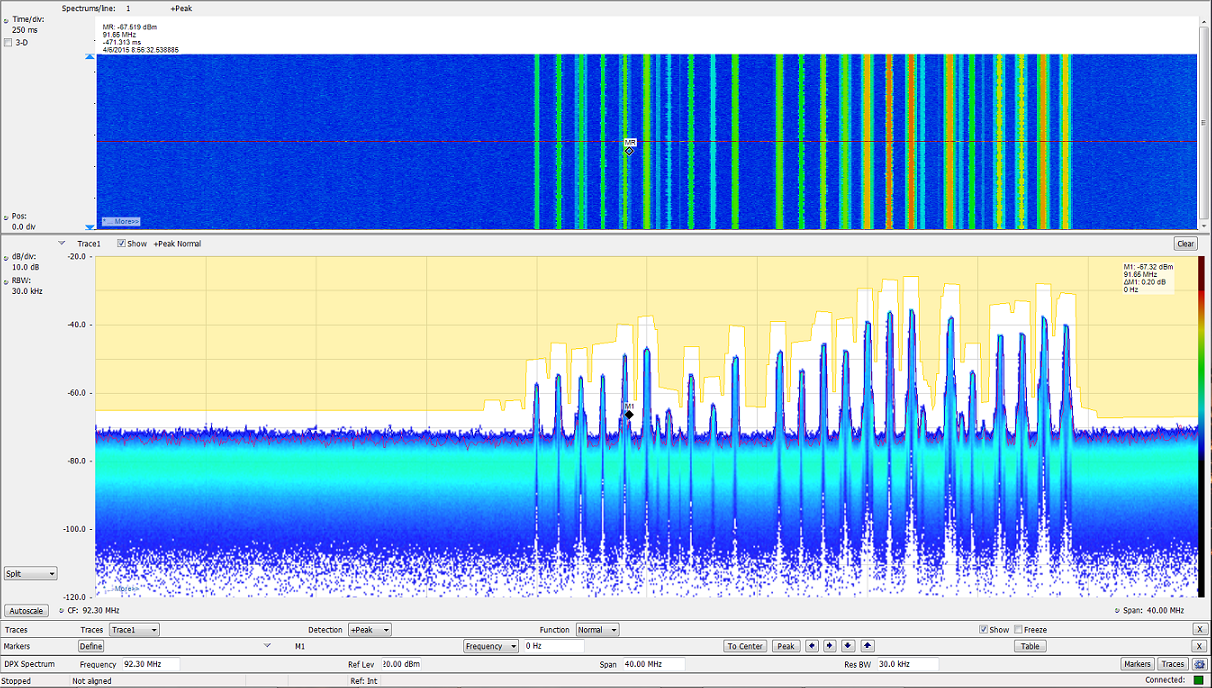

DPX spectrum display

Spectrum processing rate (RBW = auto, trace length 801)

≤10,000 spectrums per second

DPX bitmap resolution

201 pixels vertical x 801 pixels horizontal

DPX Spectrogram minimum time resolution ¹¹

1 ms

≤10,000 per second (span independent)

Marker information

Amplitude, frequency, signal density

Minimum signal duration for 100% probability of intercept (POI), typical ¹¹

Minimum signal duration for 100% POI	Test controller
27	Dell Desktop (Windows® 10 Enterprise, Intel® Core™ i7-4790 CPU, 3.6GHz, 8GB RAM, 256GB SSD)
34	Dell Desktop (Windows® 7 Enterprise, Intel® Core™ i7-2600 CPU, 3.4GHz, 8GB RAM, 256GB SSD)
36	Dell Desktop Latitude E6430 (Windows® 10 Enterprise, Intel® Core™ i7-3520M CPU, 2.9GHz, 8GB RAM, 750GB HD)
35	Dell Laptop Precision M4700 (Windows® 8 Enterprise, Intel® Core™ i7-3520M CPU, 2.9GHz, 8GB RAM, 750GB HD)
37	Panasonic ToughPad SAPL-TP-04 (Windows® 7 Pro, Intel® Core™ i5-5300U CPU, 2.3GHz, 8GB RAM, 256GB SSD)

DPX settings: Span=40 MHz, RBW=300 kHz (Auto)

Span range (continuos processing)

1 kHz to 40 MHz

Span range (swept)

Up to maximum frequency range of instrument

Dwell time per step

5 ms to 100 s

Trace processing

Color-graded bitmap, +Peak, -Peak, average

Trace length

801, 2401, 4001, 10401

RBW range

1 kHz to 4.99 MHz

DPX spectrogram display

Trace detection

+Peak, -Peak, Average(V_RMS)

Trace length, memory depth

801 (60,000 traces)

2401 (20,000 traces)

4001 (12,000 traces)

Time resolution per line

1 ms to 6400 s, user selectable

Spectrum and Spurious display

Traces

Three traces + 1 math trace + 1 trace from spectrogram for Spectrum display; four traces for Spurious display

Trace functions

Normal, Average (VRMS), Max Hold, Min Hold, Average of Logs

Detector

Average (VRMS), Average (of logs), CISPR peak, +Peak, Sample for Spectrum only -Peak; when Option SVQP is enabled, CISPR Quasi Peak and Average

Spectrum trace length

801, 2401, 4001, 8001,10401, 16001, 32001, and 64001 points

RBW range

1.18 Hz to 8 MHz for Spectrum display

Analog modulation analysis (standard)

AM demodulation accuracy typical

±2%

0 dBm input at center, carrier frequency 1 GHz, 1 kHz/5 kHz input/modulated frequency, 10% to 60% modulation depth

0 dBm input power level, reference level = 10 dBm, Atten=Auto

FM demodulation accuracy, typical

±1% of span

0 dBm input at center, carrier frequency 1 GHz, 400 Hz/1 kHz input/modulated frequency

0 dBm input power level, reference level = 10 dBm, Atten=Auto

PM demodulation accuracy, typical

±3% of measurement bandwidth

0 dBm input at center, carrier frequency 1 GHz, 1 kHz/5 kHz input/modulated frequency

0 dBm input power level, reference level = 10 dBm, Atten=Auto

Signal Strength display

Signal strength indicator

Located at right side of display

Measurement bandwidth

Up to 40 MHz, dependent on span and RBW setting

Tone type

Variable frequency based on received signal strength

Full-span sweep speed

Full span sweep speed, typical

5500 MHz/sec (RBW = 1 MHz)

5300 MHz/sec (RBW = 100 kHz)

3700 MHz/sec (RBW = 10 kHz)

950 MHz/sec (RBW = 1 kHz)

Measured using a Panasonic Toughpad FZ-G1, Intel^® Core™ i5-5300U 2.3 GHz Processor, 8 GB RAM, 256 GB SSD, Windows^®7 Pro.

Spectrum display is only measurement on screen

Tuning step time via API

1 ms

AM/FM/PM and direct audio measurement (SVAxx-SVPC)

Carrier frequency range (for modulation and audio measurements)

(1/2 × audio analysis bandwidth) to maximum input frequency

Maximum audio frequency span

10 MHz

FM measurements (Mod. index >0.1)

Carrier Power, Carrier Frequency Error, Audio Frequency, Deviation (+Peak, -Peak, Peak-Peak/2, RMS), SINAD, Modulation Distortion, S/N, Total Harmonic Distortion, Total Non-harmonic Distortion, Hum and Noise

AM measurements

Carrier Power, Audio Frequency, Modulation Depth (+Peak, -Peak, Peak-Peak/2, RMS), SINAD, Modulation Distortion, S/N, Total Harmonic Distortion, Total Non-harmonic Distortion, Hum and Noise

PM measurements

Carrier Power, Carrier Frequency Error, Audio Frequency, Deviation (+Peak, -Peak, Peak-Peak/2, RMS), SINAD, Modulation Distortion, S/N, Total Harmonic Distortion, Total Non-harmonic Distortion, Hum and Noise

Audio filters

Low pass, kHz: 0.3, 3, 15, 30, 80, 300, and user-entered up to 0.9 × audio bandwidth

High pass, Hz: 20, 50, 300, 400, and user-entered up to 0.9 × audio bandwidth

Standard: CCITT, C-Message

De-emphasis (μs): 25, 50, 75, 750, and user-entered

File: User-supplied .TXT or .CSV file of amplitude/frequency pairs. Maximum 1000 pairs

Performance characteristics, typical	Conditions: Unless otherwise stated, performance is given for: Modulation rate = 5 kHz AM depth: 50% PM deviation 0.628 Radians
	FM	AM	PM	Conditions
Carrier Power accuracy	Refer to instrument amplitude accuracy
Carrier Frequency accuracy	± 0.5 Hz + (transmitter frequency × ref. freq. error)	Refer to instrument frequency accuracy	± 0.2 Hz + (transmitter frequency × ref. freq. error)	FM deviation: 1 kHz /10 kHz
Depth of Modulation accuracy	NA	± 0.2%+(0.01 * measured value)	NA	Rate: 1 kHz to 100kHz Depth: 10% to 90%
Deviation accuracy	± (1% × (rate + deviation)+50 Hz)	NA	± 100% * (0.01 +(measured rate/1 MHz))	FM Rate: 1 kHz to 1 MHz
Rate accuracy	± 0.2 Hz	± 0.2 Hz	± 0.2 Hz	FM deviation: 1 kHz to 100 kHz
Residual THD	0.10%	0.13%	0.1%	FM Deviation: 5 kHz Rate:1 kHz to 10 kHz Depth: 50%
Residual SINAD	43 dB	58 dB	40 dB	FM Deviation 5 kHz Rate: 1 kHz to 10 kHz Depth: 50%

APCO P25 Measurements Application (SV26xx-SVPC)

Measurements

RF output power, operating frequency accuracy, modulation emission spectrum, unwanted emissions spurious, adjacent channel power ratio, frequency deviation, modulation fidelity, frequency error, eye diagram, symbol table, symbol rate accuracy, transmitter power and encoder attack time, transmitter throughput delay, frequency deviation vs. time, power vs. time, transient frequency behavior, HCPM transmitter logical channel peak adjacent channel power ratio, HCPM transmitter logical channel off slot power, HCPM transmitter logical channel power envelope, HCPM transmitter logical channel time alignment, cross-correlated markers

Modulation fidelity, typical

CF = 460 MHz, 815 MHz

C4FM ≤ 1.0%

HCPM ≤ 0.5%

HDQPSK ≤ 0.25%

Input signal level is optimized for best modulation fidelity.

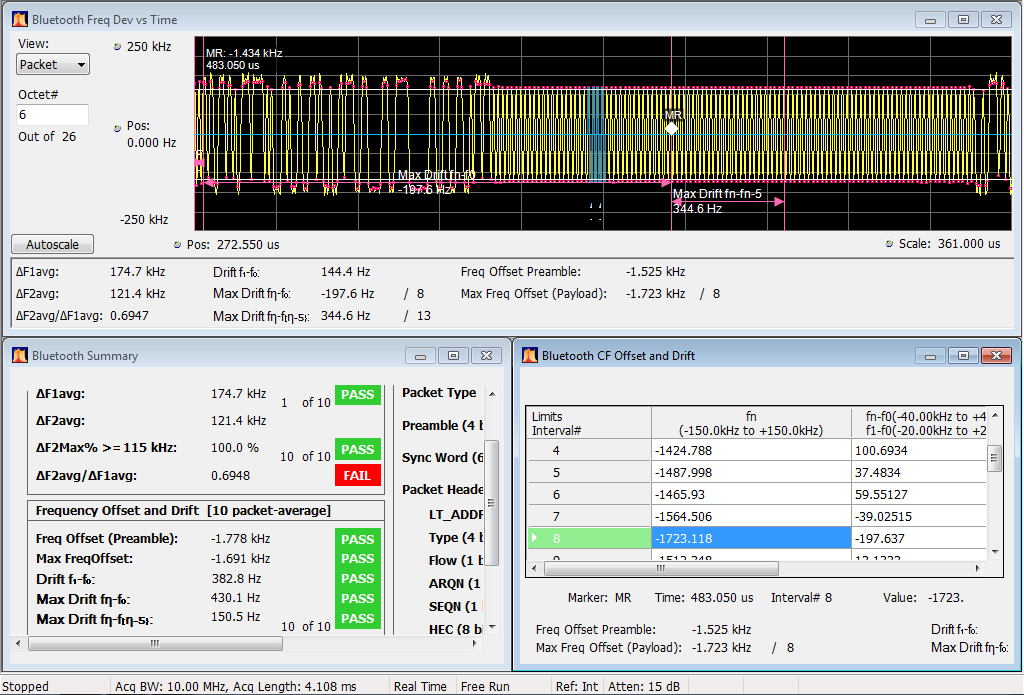

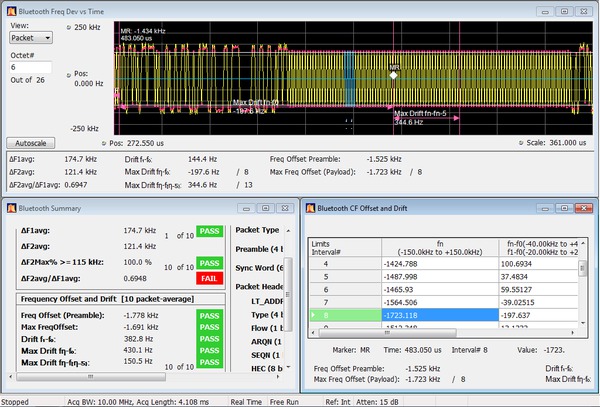

Bluetooth Measurements Application (SV27xx-SVPC and SV31xx-SVPC)

Supported standards

Bluetooth^® 4.2 Basic Rate, Bluetooth^® 4.2 Low Energy, Bluetooth^® 4.2 Enhanced Data Rate. Bluetooth^® 5 when SV31 is enabled.

Measurements

Peak Power, Average Power, Adjacent Channel Power or InBand Emission mask, -20 dB Bandwidth, Frequency Error, Modulation Characteristics including ΔF₁avg (11110000), ΔF₂avg (10101010), ΔF₂ > 115 kHz, ΔF₂/ΔF₁ ratio, frequency deviation vs. time with packet and octet level measurement information, Carrier Frequency f₀, Frequency Offset (Preamble and Payload), Max Frequency Offset, Frequency Drift f₁-f₀, Max Drift Rate f_n-f₀ and f_n-f_n-5, Center Frequency Offset Table and Frequency Drift table, color-coded Symbol table, Packet header decoding information, eye diagram, constellation diagram

Output power (BR and LE), typical mean

Supported measurements: Average power, peak power

Level uncertainty: refer to instrument amplitude and flatness specification

Measurement range: signal level > –70 dBm

Modulation characteristics, typical mean

Supported measurements: ΔF₁avg, ΔF₂avg, ΔF₂avg/ ΔF₁avg, ΔF₂max%>=115 kHz (basic rate), ΔF₂max%>=115kHz (low energy)

Deviation range: ±280 kHz

Deviation uncertainty (at 0 dBm):

<2 kHz ¹² + instrument frequency uncertainty (basic rate)

<3 kHz ¹² + instrument frequency uncertainty (low energy)

Measurement range: Nominal channel frequency ±100 kHz

Initial Carrier Frequency Tolerance (ICFT) (BR and LE), typical mean

Measurement uncertainty (at 0 dBm): <1 kHz ¹² + instrument frequency uncertainty

Measurement range: Nominal channel frequency ±100 kHz

Carrier Frequency Drift (BR and LE), typical mean

Supported measurements: Max freq. offset, drift f₁- f₀, max drift f_n-f₀, max drift f_n-f_n-5 (BR and LE 50 μs)

Measurement uncertainty: <1 kHz + instrument frequency uncertainty

Measurement range: Nominal channel frequency ±100 kHz

In-band emissions (ACPR) (BR and LE)

Level uncertainty: refer to instrument amplitude and flatness specification

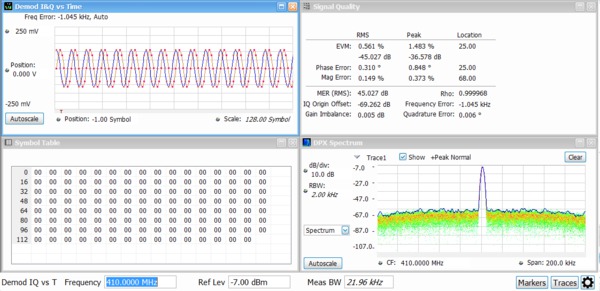

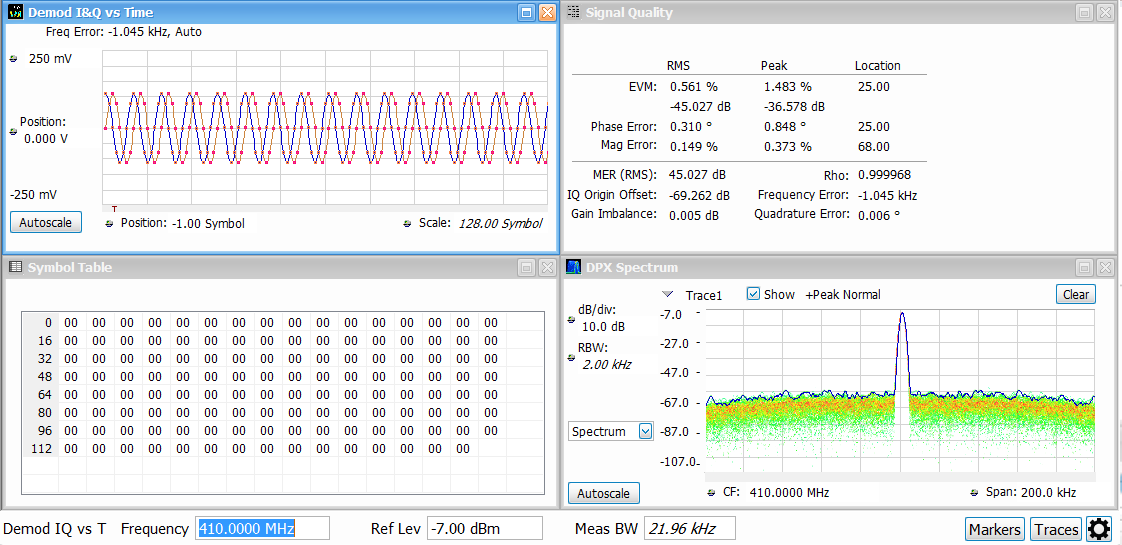

General-purpose digital modulation analysis (SVMxx-SVPC)

Modulation formats

BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 1024QAM, π/2DBPSK, DQPSK, π/4DQPSK, D8PSK, D16PSK, SBPSK, OQPSK, SOQPSK, 16-APSK, 32-APSK, MSK, CPM, 2FSK, 4FSK, 8FSK, 16FSK, C4FM

Analysis period

Up to 163,500 samples

Filter rolloff factor

α：0.001 to 1, in 0.001 steps

Vector diagram display format

Symbol/locus display, Frequency Error measurement, Origin Offset measurement

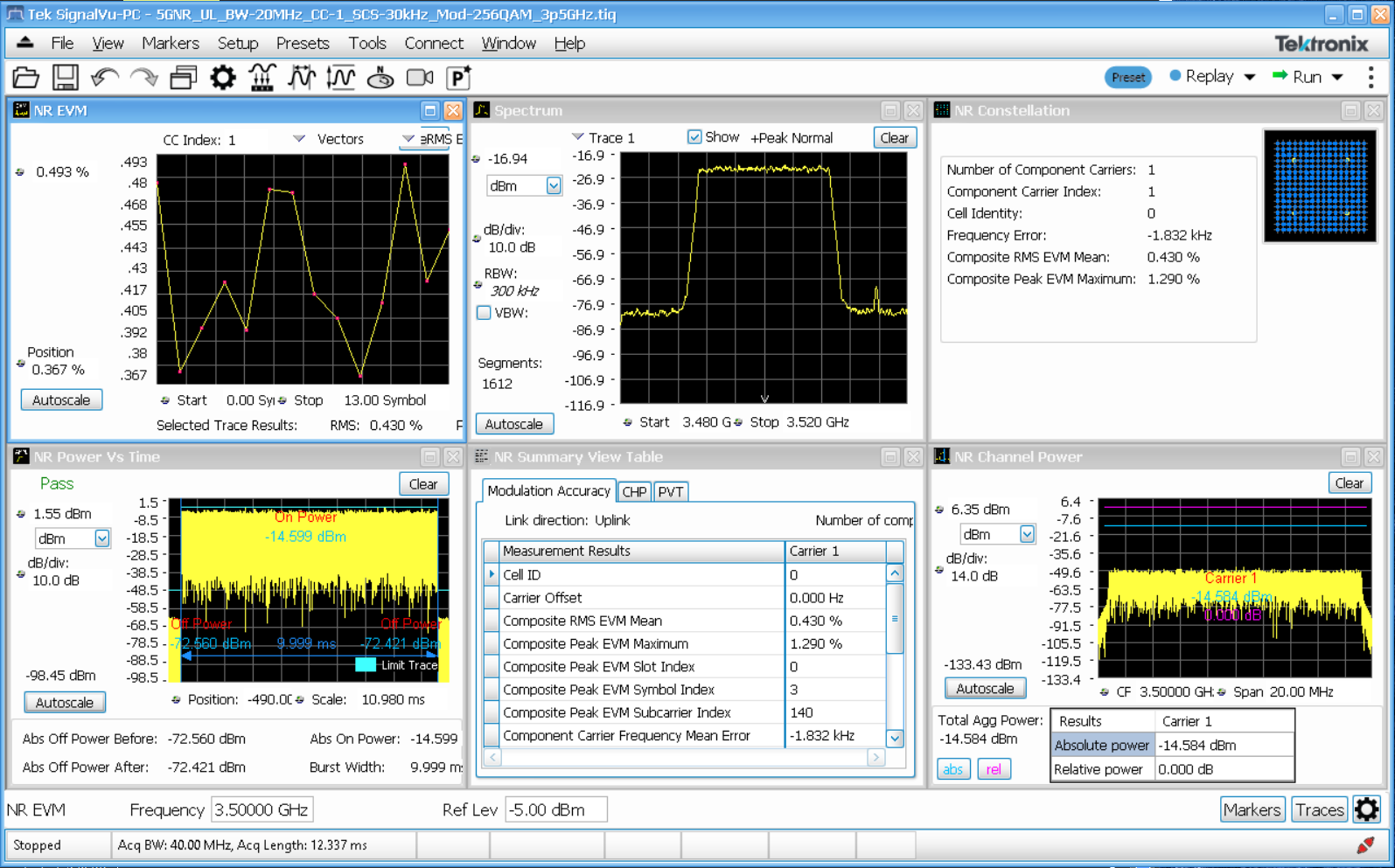

LTE Downlink RF measurements (SV28xx-SVPC)

Standard supported

3GPP TS 36.141 Version 12.5

Frame format supported

FDD and TDD

Measurements and displays supported

Adjacent Channel Leakage Ratio (ACLR), Spectrum Emission Mask (SEM), Channel Power, Occupied Bandwidth, Power versus. Time showing Transmitter OFF power for TDD signals and LTE constellation diagram for Primary Synchronization Signal and Secondary Synchronization Signal with Cell ID, Group ID, Sector ID, RS (Reference Signal) Power and Frequency Error.

Mapping (MAPxx-SVPC)

Supported map types

Pitney Bowes MapInfo (*.mif), Bitmap (*.bmp), Open Street Maps (.osm)

Saved measurement results

Measurement data files (exported results)

Map file used for the measurements

Google Earth KMZ file

Recallable results files (trace and setup files)

MapInfo-compatible MIF/MID files

Measurements (nominal)

Pulse-Ogram™ waterfall display of multiple segmented captures, with amplitude vs time and spectrum of each pulse. Pulse frequency, Delta Frequency, Average on power, Peak power, Average transmitted power, Pulse width, Rise time, Fall time, Repetition interval (seconds), Repetition interval (Hz), Duty factor (%), Duty factor (ratio), Ripple (dB), Ripple (%), Droop (dB), Droop (%), Overshoot (dB), Overshoot (%), Pulse- Ref Pulse frequency difference, Pulse- Ref Pulse phase difference, Pulse- Pulse frequency difference, Pulse- Pulse phase difference, RMS frequency error, Max frequency error, RMS phase error, Max phase error, Frequency deviation, Phase deviation, Impulse response (dB), Impulse response (time), Time stamp.

Minimum pulse width for detection, typical

150 ns

Average on power at 18 °C to 28 °C, typical

±0.4 dB + absolute amplitude accuracy

For pulses of 300 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥30 dB

Duty factor, typical

±0.2% of reading

For pulses of 450 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥30 dB

Average transmitted power, typical

±0.5 dB + absolute amplitude accuracy

For pulses of 300 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥30 dB

Peak pulse power, typical

±1.2 dB + absolute amplitude accuracy

For pulses of 300 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥30 dB

Pulse width, typical

±0.25% of reading

For pulses of 450 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥30 dB

Playback of recorded signals (SV56)

Playback file type

R3F recorded by RSA306, RSA500, or RSA600

Recorded file bandwidth

40 MHz

File playback controls

General: Play, stop, exit playback

Location: Begin/end points of playback settable from 0-100%

Skip: Defined skip size from 73 μs up to 99% of file size

Live rate: Plays back at 1:1 rate to recording time

Loop control: Play once, or loop continuously

Memory requirement

Recording of signals requires storage with write rates of 300 MB/sec. Playback of recorded files at live rates requires storage with read rates of 300 MB/sec.

WLAN Measurements, 802.11a/b/g/j/p (SV23xx-SVPC)

Measurements

WLAN power vs. time; WLAN symbol table; WLAN constellation; spectrum emission mask; error vector magnitude (EVM) vs. symbol (or time), vs subcarrier (or frequency); mag error vs symbol (or time), vs. subcarrier (or frequency); phase error vs symbol (or time), vs. subcarrier (or frequency); channel frequency response vs. symbol (or time), vs. subcarrier (or frequency); spectralflatness vs. symbol (or time), vs. subcarrier (or frequency)

Residual EVM - 802.11a/g/j /p (OFDM), 64-QAM, typical

2.4 GHz, 20 MHz BW: -39 dB

5.8 GHz, 20 MHz BW: -38 dB

Input signal level optimized for best EVM, average of 20 bursts, ≥16 symbols each

Residual EVM - 802.11b, CCK-11, typical

2.4 GHz, 11 Mbps: 1.3 %

Input signal level optimized for best EVM, average of 1,000 chips, BT = .61

WLAN Measurements 802.11n (SV24xx-SVPC)

Measurements

WLAN power vs. time; WLAN symbol table; WLAN constellation; spectrum emission mask; error vector magnitude (EVM) vs. symbol (or time), vs subcarrier (or frequency); mag error vs symbol (or time), vs. subcarrier (or frequency); phase error vs symbol (or time), vs. subcarrier (or frequency); channel frequency response vs. symbol (or time), vs. subcarrier (or frequency); spectralflatness vs. symbol (or time), vs. subcarrier (or frequency)

EVM performance - 802.11n, 64-QAM, typical

2.4 GHz, 40 MHz BW: -39 dB

5.8 GHz, 40 MHz BW: -38 dB

Input signal level optimized for best EVM, average of 20 bursts, ≥16 symbols each

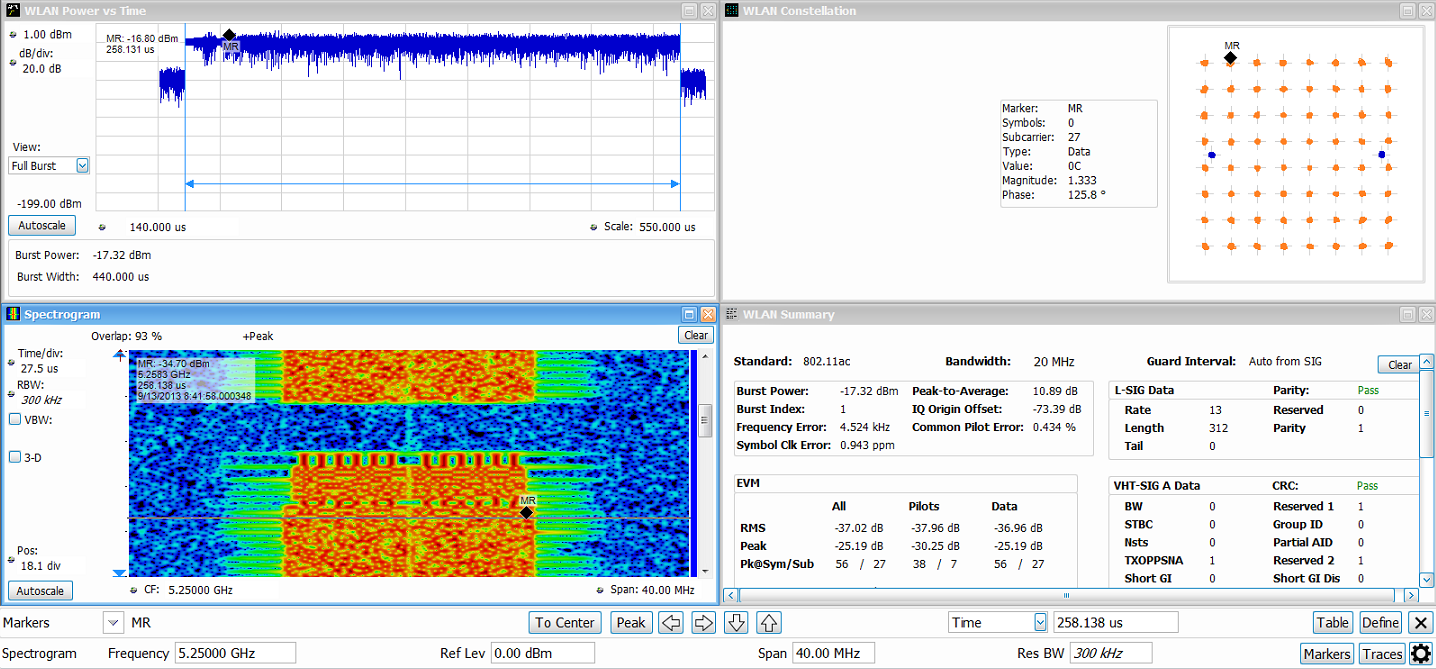

WLAN Measurements 802.11ac (SV25xx-SVPC)

Measurements

WLAN power vs. time; WLAN symbol table; WLAN constellation; spectrum emission mask; error vector magnitude (EVM) vs. symbol (or time), vs subcarrier (or frequency); mag error vs symbol (or time), vs. subcarrier (or frequency); phase error vs symbol (or time), vs. subcarrier (or frequency); channel frequency response vs. symbol (or time), vs. subcarrier (or frequency); spectralflatness vs. symbol (or time), vs. subcarrier (or frequency)

EVM performance - 802.11ac, 256-QAM, typical

5.8 GHz, 40 MHz BW: -38 dB

Input signal level optimized for best EVM, average of 20 bursts, ≥16 symbols each

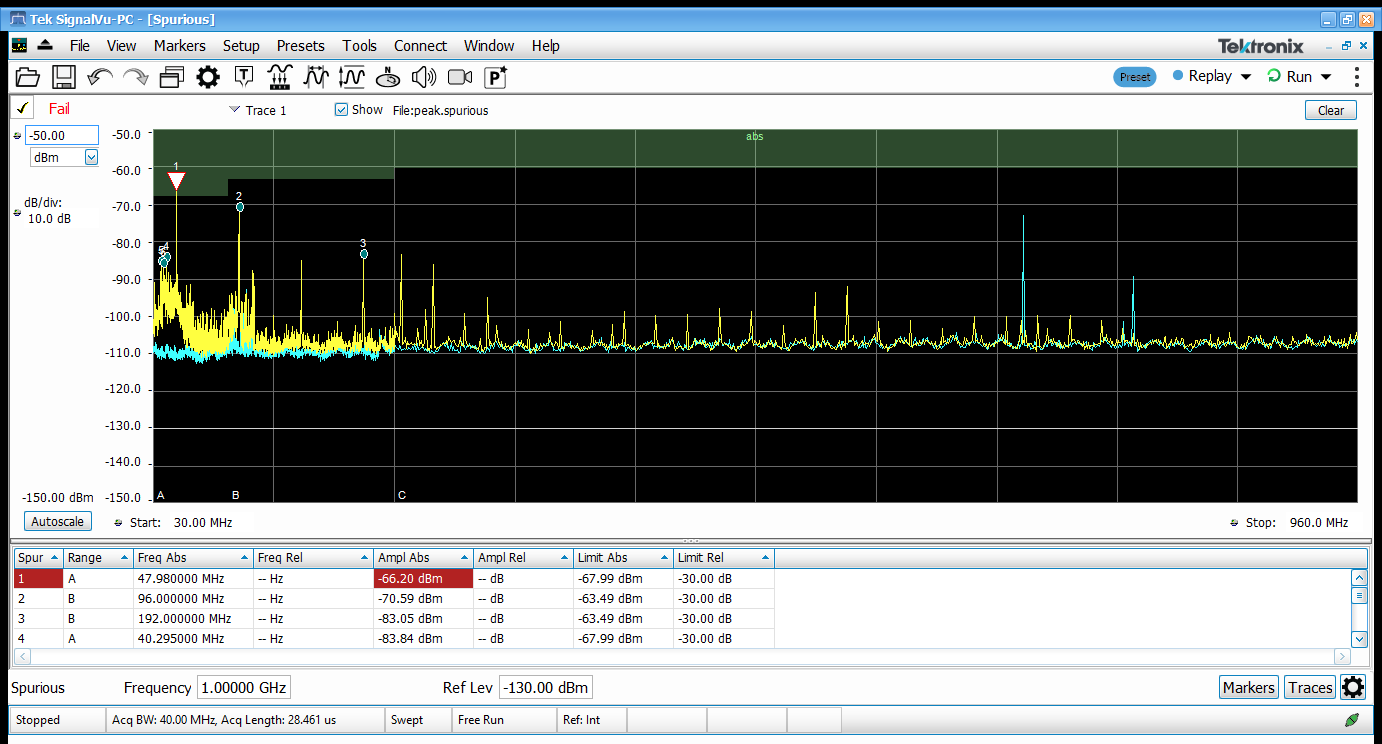

EMC pre-compliance and troubleshooting (EMCVUxx-SVPC)

Standards

EN55011, EN55012, EN55013, EN55014, EN55015, EN55025, EN55032, EN60601, DEF STAN, FCC Part 15, FCC Part18, MIL-STD 461G

Features

EMC-EMI display, Wizard to setup accessories and limit lines, Inspect, Harmonic Markers, Level Target, Compare Traces, Measure Ambient, Report generation, Re-measure Spot

Detectors

+Peak, Avg, Avg (of logs), Avg (VRMS), CISPR QuasiPeak, CISPR Peak, CISPR Average, CISPR Average of Logs, MIL +Peak, DEF STAN Avg, DEF STAN Peak

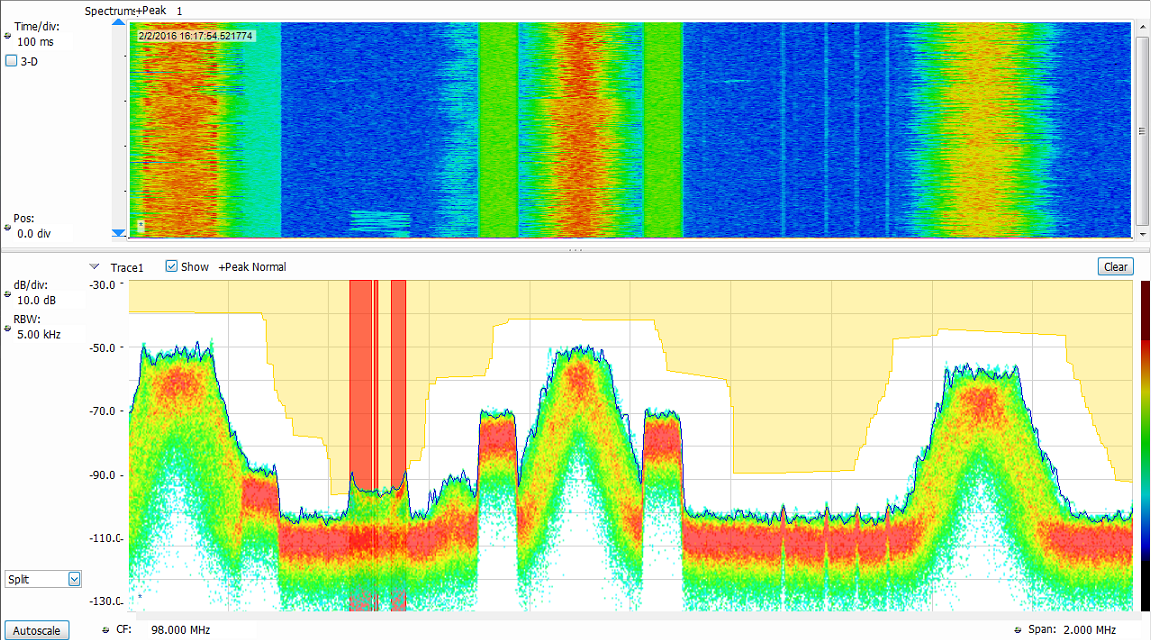

Limit lines

Up to 3 Limit Lines with corresponding margins

Resolution BW

Set per standard or user definable

Dwell time

Set per standard or user definable

Report format

PDF, HTML, MHT,RTF, XLSX, Image File format

Accessory type

Antenna, Near Field Probe, Cable, Amplifier, Limiter, Attenuator, Filter, Other

Correction format

Gain/Loss Constant, Gain/loss table, Antenna Factor

Traces

Save/recall up to 5 traces, Math trace (trace1 minus trace2), Ambient trace

Return Loss, Distance-to-Fault, and Cable Loss measurements

Measurements

Return Loss, Cable Loss, Distance-to-Fault (DTF)

Frequency range

10 MHz to 3 GHz (RSA603A)

10 MHz to 7.5 GHz (RSA607A)

Sweep speed¹³

5 ms/point, Return Loss measurement

5 ms/point, Distance-to-Fault measurement

5 ms/point, Cable Loss measurement

Frequency resolution

500 Hz

Return Loss measurement error

Return Loss of 0 to 15 dB: ±0.5 dB

Return Loss of 15 to 25 dB: ±1.5 dB

Return Loss of 25 to 35 dB: ±4.0 dB

Return Loss measurement error at 14 dB Return Loss

±1.5 dB from 10 MHz to 6.8 GHz

±3.0 dB from 6.8 GHz to 7.5 GHz

Return Loss measurement range

50 dB

Interference immunity

Return Loss Measurement Error within specifications for the following conditions:

+5 dBm interferer power within 800 kHz of measurement point

+5 dBm interferer power more than 800 kHz away from measurement point

(High power test level. Interferer not included in accuracy assessment.)

Distance-to-Fault range

1500 m or 15 dB one-way cable loss capable, user defined

Maximum range is a function of the cable velocity factor and the frequency step size as follows:

Where:

V_p = Cable velocity factor relative to the speed of light

c = Speed of light (m/s)

F_start = Sweep start frequency (Hz)

F_stop = Sweep stop frequency (Hz)

N = number of sweep points

Distance-to-Fault resolution

RSA603A, (RG-58Vp=0.66): 0.03 m (User Definable)

RSA607A, (RG-58Vp=0.66): 0.01 m (User Definable)

Minimum resolution is a function of the cable velocity factor and the frequency step size as follows:

or

28 Volt noise source drive output

Output Level

28 VDC @ 140 mA

Output voltage turn ON/OFF time

Turn on: 100 µS

Turn off: 500 µS

Inputs, outputs, and inferfaces

RF input

N type, female

External frequency reference input

BNC, female

Trigger/Sync input

BNC, female

Tracking Generator Source Output

N type, female

GPS Antenna

SMA, female

USB Device Port

USB 3.0 – Type A

USB Status LED

LED, dual color red/green

LED states:

Steady Red: USB power applied, or resetting

Steady Green: Initialized, ready for use

Blinking Green: Transferring data to host

Maximum power dissipation (fully loaded)

RSA600A: 45 W maximum.

Surge current

2 A peak maximum, at 25 °C (77 °F) for ≤ 5 line cycles, after the product has been turned off for at least 30 seconds.

Cooling clearance

Bottom, top

0 mm (0 in.) with feet installed

6.3 mm (0.25 in.) without feet installed

Sides

0 mm (0 in.)

Rear: 38.1 mm (1.5 in.)

Physical characteristics

Height

75.0 mm (2.95 in)

Width

222.3 mm (8.75 in)

Depth

358.6 mm (14.12 in)

Net weight

2.79 kg (6.15 pounds)

Temperature

Operating

-10 °C to +55 °C (+14 °F to +131 °F)

Non-operating

-51 °C to +71 °C (-60 °F to +160 °F)

Humidity

MIL-PRF-28800F Class 2

Operating:

5% to 95±5%RH (relative humidity) in the temperature range of +10 °C to 30 °C (+50 °F to 86 °F)

5% to 75±5% RH above +30 °C to 40 °C (+86 °F to 104 °F)

5% to 45±5% RH above +40 °C up to +55 °C (+86 °F to +131 °F)

<10 °C (+50 °F) humidity is uncontrolled; non-condensing

Altitude

Operating

Up to 3000 m (9,842 ft.)

Non-operating

Up to 12000 m (39,370 ft.)

Vibration

Operating

Tektronix Class 3 Random Vibration Test at 0.31 GRMS: 5-500 Hz, 3 Axes at 10 min/axis

Non-Operating

MIL-PRF-28800F Class 3

2.06 GRMS, 5 500 Hz, 10 minutes per axis, 3 axes (30 minutes total)

Shock

Operating

Test method per Military Standard MIL-PRF-28800F 1-4

Non-Operating

Exceeds the requirements of Military Standard MIL-PRF-28800F

Handling and transit

Bench handling, operating

MIL-PRF-28800F Class 3

Transit drop, non-operating

MIL-PRF-28800F Class 2

RSA603A: USB real time spectrum analyzer, 9 kHz - 3.0 GHz, 40 MHz acquisition bandwidth

RSA607A: USB real time spectrum analyzer, 9 kHz - 7.5 GHz, 40 MHz acquisition bandwidth

The RSA600 Series instruments require a PC with Windows 7, Windows 8/8.1, Windows 10 or Windows 11, 64-bit operating system and a USB 3.0 connection. 8 GB RAM and 20 GB free drive space is required for installation of SignalVu-PC. For full performance of the real time features of the RSA600, an Intel Core i7 4th generation processor or greater is required. Processors of lower performance can be used, with reduced real-time performance. Storage of streaming data requires that the PC be equipped with a drive capable of streaming storage rates of 300 MB/sec.

Includes: USB 3.0 cable (2 M), A-A connection, screw lock, quick-start manual (printed), connector covers, power cord, (see power plug options), API and documentation files. A GPS antenna is not included with the instrument. See Accessories for available GPS antennas.

Opt. A0

North America power plug (115 V, 60 Hz)

Opt. A1

Universal Euro power plug (220 V, 50 Hz)

Opt. A2

United Kingdom power plug (240 V, 50 Hz)

Opt. A3

Australia power plug (240 V, 50 Hz)

Opt. A4

North America power plug (240 V, 50 Hz)

Opt. A5

Switzerland power plug (220 V, 50 Hz)

Opt. A6

Japan power plug (100 V, 50/60 Hz)

Opt. A10

China power plug (50 Hz)

Opt. A11

India power plug (50 Hz)

Opt. A12

Brazil power plug (60 Hz)

Opt. A99

No power cord

Opt. L0

English manual

Opt. L1

French manual

Opt. L2

Spanish manual

Opt. L3

Japanese manual

Opt. L4

Portuguese manual

Opt. L5

Simplified Chinese manual

Opt. L6

Korean manual

Opt. L7

Russian manual

Opt. L99

No manual

Opt. C3

Calibration Service 3 Years

Opt. C5

Calibration Service 5 Years

Opt. D1

Calibration Data Report

Opt. D3

Calibration Data Report 3 Years (with Opt. C3)

Opt. D5

Calibration Data Report 5 Years (with Opt. C5)

Opt. R5

Repair Service 5 Years (including warranty)

RSA600 Series warranty: Three years.

A variety of optional, licensed applications are available for purchase for SignalVu-PC. These licenses can be associated with and stored on either your PC or any RSA300 Series, RSA500 Series, RSA600 Series, and RSA7100A spectrum analyzers. Licenses can be purchased as an option to your hardware or separately as a Node-locked or a Floating license.

Contact your local Tektronix Account Manager to purchase a license. If your purchased license is not ordered as an option to your instrument, you will receive an email with a list of the applications purchased and the URL to the Tektronix Product License Web page, where you will create an account and can then manage your licenses using the Tektronix Asset Management System (AMS):http://www.tek.com/products/product-license.

AMS provides an inventory of the license(s) in your account. It enables you to check out or check in a license and view the history of licenses.

Optional applications are enabled by one of the following license types.

The following SignalVu-PC license options are available.

Tektronix offers a wide variety of adapters, attenuators, cables, impedance converters, antennas and other accessories for the RSA600A Series.

General-purpose RF cables

012-1738-00

Cable,50 Ω, 40 inch,type-N(m) to type-N(M)

012-0482-00

Cable, 50 Ω, BNC (m) 3 foot (91 cm)

Adapters

103-0045-00

Adapter, coaxial, 50 Ω type-N(m) to type-BNC(f)

013-0410-00

Adapter, coaxial, 50 Ω type-N (f) to type-N (f)

013-0411-00

Adapter, coaxial, 50 Ω type-N (m) to type-N (f)

013-0412-00

Adapter, coaxial, 50 Ω, type-N(m) to type-N(m)

013-0402-00

Adapter, coaxial, 50 Ω type-N (m) to type-N 7/16(m)

013-0404-00

Adapter, coaxial, 50 Ω type-N(m) to type-7/16 (f)

013-0403-00

Adapter, coaxial, 50 Ω type-N(m) to type DIN 9.5(m)

013-0405-00

Adapter, coaxial, 50 Ω type-N(m) to type-DIN 9.5(f)

013-0406-00

Adapter, coaxial, 50 Ω type-N(m) to type-SMA(f)

013-0407-00

Adapter, coaxial, 50 Ω type-N(m) to type-SMA(m)

013-0408-00

Adapter, coaxial, 50 Ω type-N(m) to type-TNC(f)

013-0409-00

Adapter, coaxial, 50 Ω type-N(m) to type-TNC(m)

Attenuators and 50/75 Ω pads

013-0422-00

Pad, 50/75 Ω, minimum loss, type-N(m) 50 Ω to type-BNC(f) 75 Ω

013-0413-00

Pad, 50/75 Ω, minimum loss, type-N(m) 50 Ω to type-BNC(m) 75 Ω

013-0415-00

Pad, 50/75 Ω, minimum loss, type-N(m) 50 Ω to type-F(m) 75 Ω

015-0787-00

Pad, 50/75 Ω, minimum loss, type-N(m) 50 Ω to type-F(f) 75 Ω

015-0788-00

Pad, 50/75 Ω, minimum loss, type-N(m) 50 Ω to type-N(f) 75 Ω

011-0222-00

Attenuator, fixed, 10 dB, 2 W, DC-8 GHz, type-N(f) to type-N(f)

011-0223-00

Attenuator, fixed, 10 dB, 2 W, DC-8 GHz, type-N(m) to type-N(f)

011-0224-00

Attenuator, fixed, 10 dB, 2 W, DC-8 GHz, type-N(m) to type-N(m)

011-0228-00

Attenuator, fixed, 3 dB, 2 W, DC-18 GHz, type-N(m) to type-N(f)

011-0225-00

Attenuator, fixed, 40 dB, 100 W, DC-3 GHz, type-N(m) to type-N(f)

011-0226-00

Attenuator, fixed, 40 dB, 50 W, DC-8.5 GHz, type-N(m) to type-N(f)

Antennas

119-8733-00

Antenna, Active. GPS & GLONASS, magnetic mount, 5M cable, 3V, 8ma SMA connector, RG-174 Cable

119-8734-00

Antenna, Active, GPS and Beidou, magnetic mount, 5M cable, 3V, 8ma SMA connector, RG-174 Cable

Filters, probes, demonstration board

119-7246-00

Pre-filter, general purpose, 824 MHz to 2500 MHz, type-N (f) connector

119-7426

Pre-filter, general purpose, 2400 MHz to 6200 MHz, type-N (f) connector

119-4146-00

EMCO E/H-field probes

E/H field probes, lower cost alternative

Available from Beehive http://beehive-electronics.com/

011-0227-00

Bias-T, type N(m) RF, type N(f) RF+DC, BNC(f) Bias, 1 W, 0.5 A, 2.5 MHz-6 GHz

EMI-NF-PROBE

Near Field Probe set (Tebox TBPS01)

174-6810-00

Additional USB 3.0 cable (2 M), A-A connection, screw lock

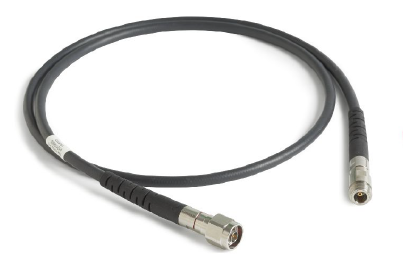

A variety of phase-stabilized cables are available for the RSA600 tracking generator when used with the optional cable and antenna measurements software.

Calibration kits can be used to improve the factory calibration of the tracking generator when equipped with application SV60-Return loss, VSWR, cable loss, and distance to fault.

These phase-stabilized cables are high performance cables that are phase-stable to +- 2 degrees at 7.5 GHz, with return loss less than -20 dB. Velocity constant is 0.78. Loss at 7.5 GHz specified to be less than -1.05 dB (0.6 m), -1.61 dB (1.0 m), -2.30 dB (1.5m) (all values nominal).

Calibration kits

Recommended calibration kits available from Spinner at https://products.spinner-group.com/rf/test-measurement/vna-test-measurement

Phase-stabilized cables

012-1745-00

Type-N (m) to type-N (f), 5 ft or 1.5 m

012-1746-00

Type-N(m) to type-N(m), 5 ft or 1.5 m

012-1747-00

Type-N(m) to 7/16(f), 60 cm (23.6 in.)

012-1748-00

Type-N(m) to 7/16(f), 3.28 ft or 1 m

012-1749-00

Type-N(m) to 7/16(f), 5 ft or 1.5 m

012-1750-00

Type-N(m) to 7/16(m), 3.28 ft or 1 m

012-1751-00

Type-N(m) to 7/16(m), 5 ft or 1.5 m

012-1752-00

Type-N(m) to 7/16(m), 60 cm (23.6 in.)

012-1753-00

Type-N(m) to DIN 9.5(f), 60 cm (23.6 in.)

012-1754-00

Type-N(m) to DIN 9.5(f), 3.28 ft or 1 m

012-1755-00

Type-N(m) to DIN 9.5(f), 5 ft or 1.5 m

012-1756-00

Type-N(m) to DIN 9.5(m), 3.28 ft or 1 m

012-1757-00

Type-N(m) to DIN 9.5(m), 5 ft or 1.5 m

012-1758-00

Type-N(m) to DIN 9.5(m), 60 cm (23.6 in.)

012-1759-00

Type-N(m) to TNC(f), 3.28 ft or 1 m

012-1760-00

Type-N(m) to TNC(f), 5 ft or 1.5 m

012-1761-00

Type-N(m) to TNC(f), 60 cm (23.6 in.)

012-1762-00

Type-N(m) to TNC(m), 60 cm (23.6 in.)

012-1763-00

Type-N(m) to TNC(m), 3.28 ft or 1 m

012-1764-00

Type-N(m) to TNC(m), 5 ft or 1.5 m

012-1765-00

Type-N(m) to type-N(f), 60 cm (23.6 in.)

012-1766-00

Type-N(m) to type-N(f), 3.28 ft or 1 m

012-1767-00

Type-N(m) to type-N(m), 3.28 ft or 1 m

012-1768-00

Type-N(m) to type-N(m), 60 cm (23.6 in.)

012-1769-00

Type-N(m) to type-SMA(f), 60 cm (23.6 in.)

012-1770-00

Type-N(m) to type-SMA(f), 3.28 ft or 1 m

012-1771-00

Type-N(m) to type-SMA(f), 5 ft or 1.5 m

012-1772-00

Type-N(m) to type-SMA(m) 60 cm (23.6 in.)

012-1773-00

Type-N(m) to type-SMA(m), 3.28 ft or 1 m

012-1774-00

Type-N(m) to type-SMA(m), 5 ft or 1.5 m
