PSPL5340 10 dB Pick-off Tee Datasheet
PSPL5340 Datasheet
The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.
PSPL5340 Datasheet
The PSPL5340 is a broadband, resistive, Pick-Off, Power Divider Tee. The pick-off port 3 output is a small replica of the signal passing through the tee. The PSPL5340 is an impedance-matched tee consisting of three precision, 1% tolerance resistors. The PSPL5340 input/output impedance seen either on port 1 or port 2 is precisely 50 Ω.
Key performance specifications
- 10 dB
- 50 ps, 8 GHz
- Z-matched

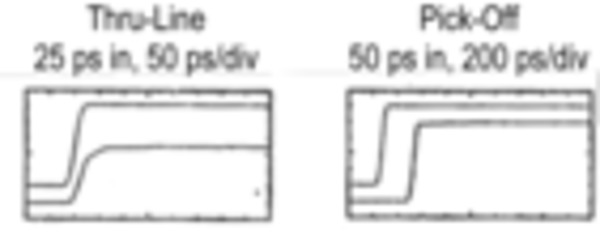

Typical performance

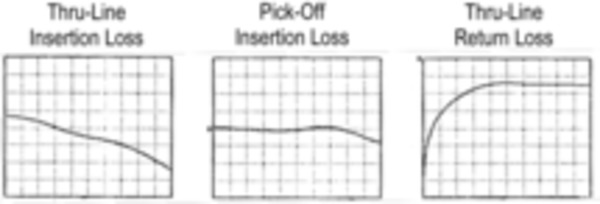

Frequency Domain Responses from 40 MHz to 10 GHz 1 GHz/div Insertion Loss plots = 1 dB/div, Return Loss plot = 6 dB/div
Specifications
| Parameter 1 | Value |
|---|---|
| Pick-Off Insertion Loss DC
(port 1 or 2 to port 3) |
10 dB
±0.1 dB |
| Pick-Off Voltage Ratio | 3.16 x |
| Thru Line Insertion Loss
at DC S21 (port 1 to port 2) |
3.3 dB
±0.05 dB |
| Thru Line Rise time | 50 ps |
| Pick-Off Rise time | Not specified; see notes for details |
| Minimum Signal Rise time | 80 ps |
| Thru Line Bandwidth (-3 dB) | 8 GHz |
| Pick-Off Bandwidth (1 dB) | 10 GHz |
| Pick-Off Bandwidth (3 dB) | 13 GHz |
| Temperature Range | -55 to +70 °C operating at full power, derate to 0 W at 125 °C |
| In / Out Impedance at DC
(port 1 or port 2) |
50.0 Ω
±0.3 Ω |
| S11 or S22 Return Loss, DC | 50 dB |
| S11 or S22 Return Loss, AC | (See Typical performance) |
| Thru Line Resistors, Ra | 9.38 Ω |
| Pick-Off Resistor, Rb | 78.4 Ω |
| Maximum Power Input, average | 0.6 W |
| Connectors | SMA jacks (f) |
| Warranty | One Year |

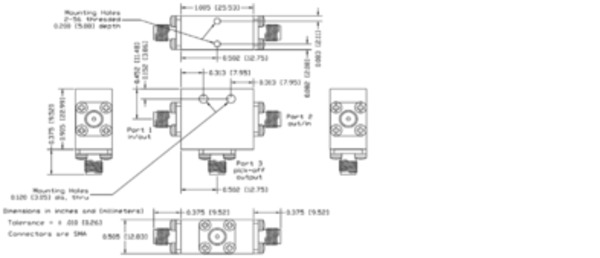

- Mechanical dimensions
1 All parameters listed are typical unless max/min guaranteed limits are provided. Using the pick-off tee for input signals with rise times faster than 80 ps is not recommended. This tee can be used with faster rise times, but there will be waveform distortions. With faster rise times, either the thru-line bandwidth is insufficient and/or the pick-off output will no longer be a faithful representation of the input signal. The pick-off output rise time will be too fast and there will be some overshoot and ringing.
Ordering information
Models
- PSPL5340
- Pick-Off Tee, 10 dB
