P6245 • P6243
![A000_0660-N.gif A000_0660-N](/-/media/sites/default/files/media/image/a000_0660-n.gif)

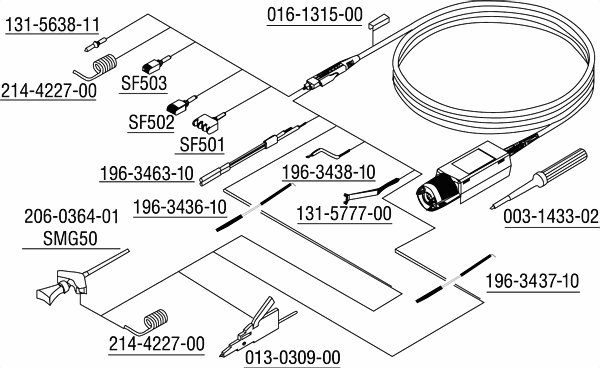

P6245/P6243
Part Number |
Description |
---|---|
003-1433-02 |
Adjustment Tool. |
016-1315-00 |
Two each - Five Colors of Cable Markers. |
131-5638-11 |
10 each - Solderable Probe Tips. |
131-5777-00 |
100 mil Square Pin Ground Adapter. |
196-3410-00 |
Ground Lead Set Includes: 2 each - 1 in., 3 in., 6 in. Ground Leads w/Square Pin Receptacle; 2 each - Y Lead Adapters. |
196-3436-10 |
6 in. Ground Lead (Pkg. Of 2) |
196-3437-10 |
3 in. Ground Lead (Pkg. Of 2) |
196-3438-10 |
1 in. Ground Lead (Pkg. Of 2) |
196-3463-10 |
Y Lead Adapter (Pkg. Of 2) |
206-0364-01 |
SMT KlipChip™ Adapter, 1 each. |
214-4227-00 |
Right Angle Square Pin Adapter. |
SF501 |
SureFoot® Probe Tip Adapter, pkg. of 12, Yellow, 50 mil Pitch. |
SF502 |
SureFoot Probe Tip Adapter, pkg. of 12, Blue, 25 mil/0.65 mm Pitch. |
SF503 |
SureFoot Probe Tip Adapter, pkg. of 12, Red, O.5 mm pitch. |
SMG50 |
SMT KlipChip Adapter, 20 each. |
013-0309-00 |
IC Grabber (2 each). |
