Instrument Carts/Workstation
K4000 • K475 • K420
The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.
K4000 • K475 • K420
Features & Benefits
K4000
- Compact Design for Use Anywhere
- Extended Workspace for Keyboard and Mouse Use
- Stable/Sturdy Platform
- Easy Assembly
- 3 Height-adjustable Shelves
K475
- Rugged Workstation Tower Offering Sturdy, Mobile Instrument Platform
- Oversized Shelf for Larger Oscilloscopes or Fixed Keyboard Platform
- 4 Instrument Restraining Straps
- Steel and Aluminum Design Ensures Solid Support
- Shipped Ready to Assemble to Give Maximum Configurability
K420
- Stable/Mobile Platform
- Tiltable Shelf for Optimum Viewing
- Workbench Height
- Heavy-duty Nylon Instrument Straps
- Surge and Noise Suppression
- Surge-protected Four Outlet Power Strip Accessory
- Shipped Ready to Assemble
Applications
- Instrument Transportation
- Mobile Work Bench
- Instrument Sharing Tool

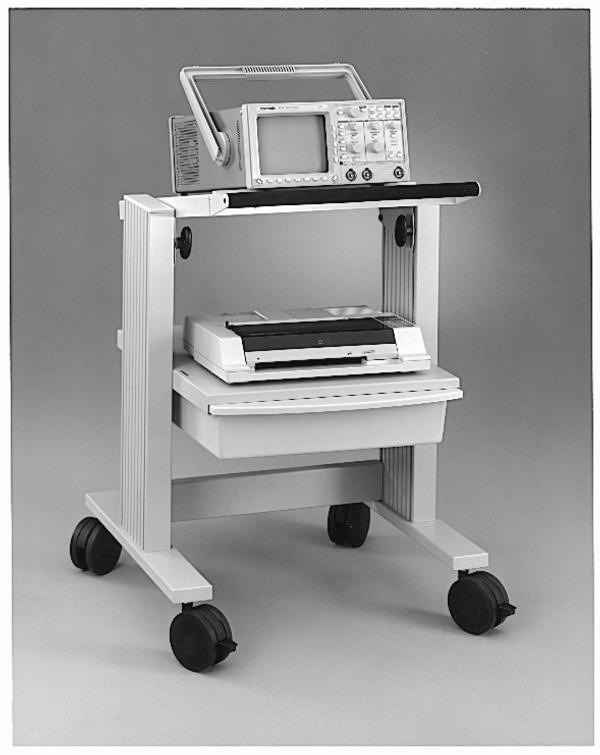

K420
K475
K4000 Designed for Today's Environment
The K4000 Mobile Workstation provides convenient instrument transportation while adding valuable workspace for those crowded labs. This compact three-shelf cart is based on the sturdy K400 Series architecture, able to support a varied combination of instruments, PC, printers, and/or display monitors up to 21 in. Key enhancements feature an extended middle shelf for comfort and space when using a keyboard and mouse with Window-based instrumentation. Bonus items include a skyhook for probe cable management, monitor clips, and instrument brackets for stability and a storage drawer.
K475 Portability For Larger Oscilloscopes
The rugged K475 Workstation Tower is designed for rackmount applications required in digital design, research and development, and manufacturing environments. This cart holds Tektronix' larger oscilloscopes, like the DSA Series, providing stable transportation. It includes an extra-long shelf (26.6 inches) with ample workspace in front of the scope and three three-quarter shelves with loading capacity of 75 lb. per shelf.
K420 Durable Work Bench
These sturdy, portable carts are specifically designed for the Tektronix TDS Series Oscilloscopes used in digital design, telecommunications service and installation and manufacturing environments. The tiltable shelf is rack-width to accommodate your instruments. The cart handle can serve double duty as a probe drape.
In addition, the spacious accessory drawer provides convenient storage for power cords, probes, manuals, and small parts.
Characteristics
K4000
Physical Characteristics
|
Dimensions |
K4000 |
mm |
in. |
|---|---|---|---|
|
Width |
Overall Cart |
635 |
25 |
|
Top/Bottom |
508 |
20 |
|
|
Middle |
609.6 |
24 |
|
|
Height |
Overall Cart |
1,422.40 |
56 |
|
Depth |
Overall Cart |
876.3 |
34.5 |
|
Top/Bottom |
533 |
21 |
|
|
Middle Shelf |
730.25 |
28.75 |
|
|
Weight |
K4000 |
kg |
lb. |
|
Net |
|
36.29 |
80 |
Shelf Loading -
100 lb. (45.4 kg) per shelf.
250 lb. (114.6 kg) maximum.
Drawer Dimensions -
19.5 in. x 22 in. x 4 in.
(496 mm x 559 mm x 102 mm)
K475
Physical Characteristics
|
Dimensions |
K475 |
mm |
in. |
|---|---|---|---|
|
Width |
Overall Cart |
635 |
25 |
|
All Shelves |
508 |
20 |
|
|
Height |
Overall Cart |
1418 |
55.7 |
|
Middle Shelf |
676 |
26.6 |
|
|
All Other Shelves |
370 |
16.5 |
|
|
Weight |
K475 |
kg |
lb. |
|
Net |
|
38 |
83 |
Shelf Loading -
Top shelf: 35 lb. (16 kg).
Other shelves: 75 lb. (34 kg).
Drawer Dimensions - 19.5 in. x 22 in. x 4 in. (496 mm x 559 mm x 102 mm).
K420
Physical Characteristics
|
Dimensions |
K420 |
mm |
in. |
|---|---|---|---|
|
Width |
Overall Cart |
635 |
25 |
|
Top Shelf |
502 |
19.75 |
|
|
Bottom Shelf |
508 |
20 |
|
|
Height |
Overall Cart |
780 |
30.7 |
|
Depth |
Overall Cart |
620 |
24.4 |
|
Top Shelf |
533 |
21 |
|
|
Bottom Shelf |
533 |
21 |
|
|
Weight |
K420 |
kg |
lb. |
|
Net |
|
26 |
57 |
Shelf Tilt - 0° to 26°.
Shelf Loading - 82 lb. (37 kg) per shelf.
Drawer Dimensions - 19.5 in. x 22 in. x 4 in. (496 mm x 559 mm x 102 mm).
Ordering Information
K4000
Mobile Workstation.
Includes: Skyhook, instrument brackets, monitor clips, nylon safety straps, hex wrench, instruction manual.
K475
Workstation Tower.
Includes: Two probe holders, four nylon instrument straps, hex wrench, level, instrument manual.
Recommended Accessories
U.S. Power Strip - UL listed four outlet, 15 ft., noise/surge suppression. Order 131-5342-01.
Skyhook - Order 384-1800-00.
Mouse Pad - Order 436-0317-00.
K420
Work Bench Cart.
Includes: Probe holders, two heavy-duty nylon instrument straps, instrument manual, retainer bar, hex wrench, level.
