Digital Storage Oscilloscope

TBS2000B Series Datasheet

TBS2000B Series Datasheet

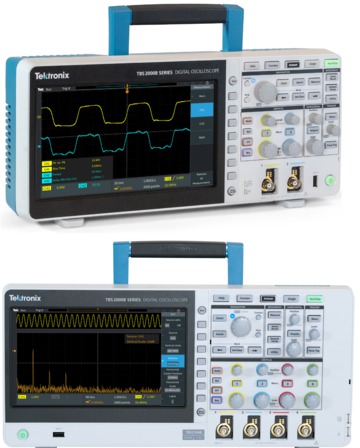

The TBS2000B Series of Oscilloscopes with a 9-inch WVGA display, 5 million point record length and 2 GS/s sample rate, capture and display significantly more signal to help you debug and validate the designs faster. Easily and confidently analyze your signals with new on-waveform cursor readouts and 32 automated measurements, each with informative tips. The TekVPI® probe interface supports traditional passive BNC probes, but also enables wide application coverage with the latest active voltage probes and current probes.

Key performance specifications

  • 2 and 4 analog channel models
  • 200 MHz, 100 MHz, and 70 MHz bandwidth models up to 2 GS/s sampling rate
  • 5 M record length on all channels
  • 5 year warranty

Key features

  • 9-inch WVGA color display with 15 horizontal grids shows 50% more signal
  • TekVPI probe interface supports active, differential, and current probes with automatic scaling and units
  • New front-end design enables more accurate measurements
  • 32 automated measurements, and FFT function for quick waveform analysis
  • Search and Mark features for easy identification of events that occur in the acquired waveform
  • HelpEverywhere® provides helpful on-screen tips for new users
  • Built-in Scope Intro handbook provides operating instructions and oscilloscope fundamentals
  • The instrument user interface and the front panel overlay is translated into 10 languages

Connectivity

  • USB 2.0 host port on the front panel for quick and easy data storage
  • USB 2.0 device port on rear panel for easy connection to a PC
  • 10/100BASE-T Ethernet port for remote control over LAN
  • Wi-Fi interface provides wireless communications capability support

Education

  • Courseware function presents lab exercise guidance on the display
  • Autoset, Cursors, and Automated measurements can be disabled to help educators to teach basic concepts to students
TBS2000B_3GW615098

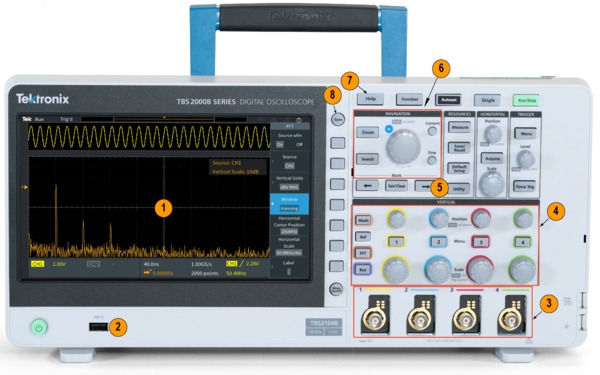

TBS2000B front panel
Image reference Description
1 Large 9" Display
2USB port for save / recall
3 TekVPI Probe Interface, for use with passive and active probes
4 Dedicated control knobs per channel

Image reference Description
5 Search for event for interest
6 Multi purpose knob for navigation, zoom and cursors
7Help everywhere
8One-button save
TBS2000B_3GW615098
TBS2000B rear panel

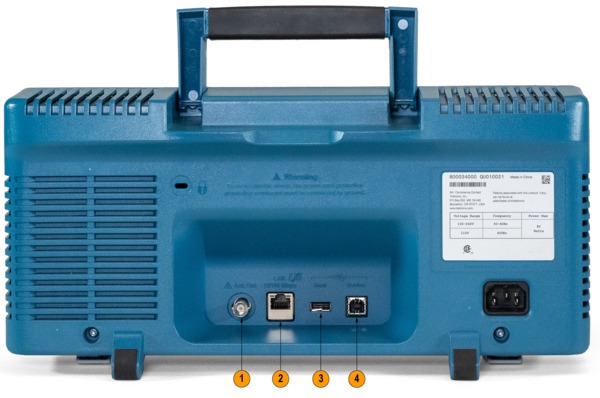

Image reference Description
1Aux Out signal
2Ethernet for remote connectivity
3USB port for WiFI connectivity
4USB TMC for remote connectivity

Designed to make your work easier

The TBS2000B Series is designed for easy operation and quick hands-on learning. Dedicated controls provide quick access to important settings, so you can evaluate signals faster. With the TBS2000B you get 10 vertical divisions and 15 horizontal divisions, so you can see more of your signal. The large display also offers more room for measurement results and menu information.

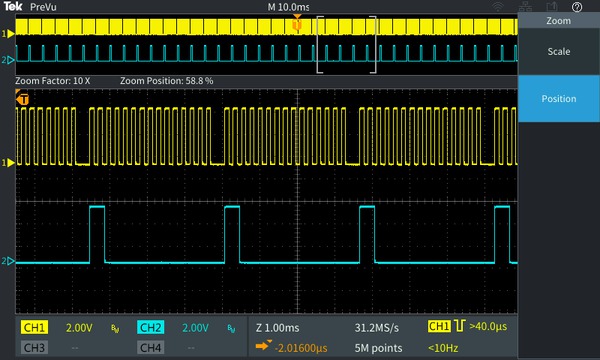

The Zoom function lets you quickly pan through the record and zoom in to see signal details. The new on screen cursors overlay the cursor measurements on the screen making them intuitive to read and understand.

TBS2000B_3GW615098
In Zoom mode, an overview of the entire record is shown in the upper part of the display and the lower part displays the detailed Zoomed view.
TBS2000B_3GW615098

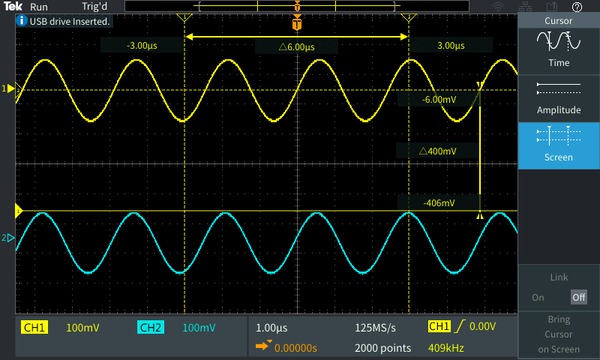

The cursor readouts are presented on the waveform display. Cursors can be used to measure time and amplitude.

Versatile triggering and acquisition modes

The trigger system is designed for troubleshooting today's mixed signal designs. Beyond a basic edge trigger, it also includes pulse width and runt triggering, which are especially useful for troubleshooting digital sections of your designs. Pulse width triggering is perfect for hunting narrow glitches or timeout conditions. Runt trigger is designed to capture signals that are shorter in amplitude than expected.

The Instrument offers several acquisition modes. The default acquisition mode is Sample Mode which works well for most applications. The Peak Detect Mode is useful for hunting spikes, and Average Mode can help reduce noise on repetitive signals.

Quickly search for events of interest

The search button enables you to quickly setup a search criteria based on trigger settings. All occurrences of the event of interest with the acquisition are highlighted with search marks. Easily navigate to each instance of occurrence with dedicated navigation buttons for closer inspection and analysis.

TBS2000B_3GW615098
Search and mark

Search through events of interest and mark then through the entire acquisition.

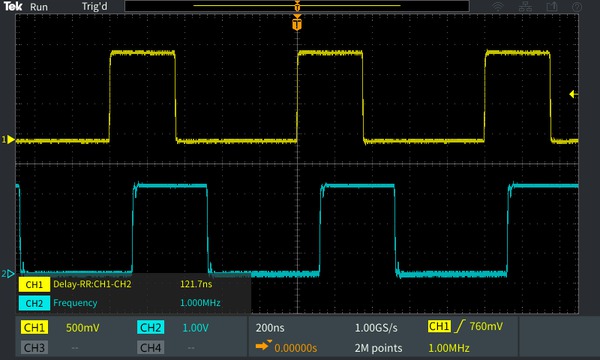

Automated measurements are easier than ever

A comprehensive set of automated measurements enable fast and convenient testing of a wide variety of signal conditions for different applications.

TBS2000B_3GW615098

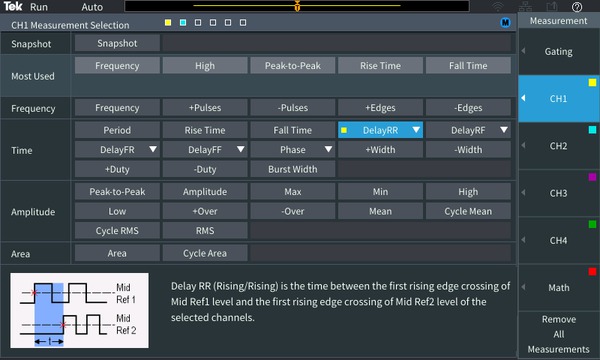

Measurements are all listed and selected on a single screen.

The measurements are grouped into four categories: Frequency, time, amplitude, and area. All the measurements are displayed on a single measurement selection screen making it easy to choose from 32 automated measurements, no more hunting through various menus. Measurements are color coded by the source, and are presented on a transparent background, so waveforms are not obscured by the readouts. The HelpEverywhere® system provides help texts with graphics to explain how a measurement is performed, making it easier for new users to know which measurement to use and to interpret the results.

TBS2000B_3GW615098
Measurements are transparent so waveforms are not obscured.

FFT function

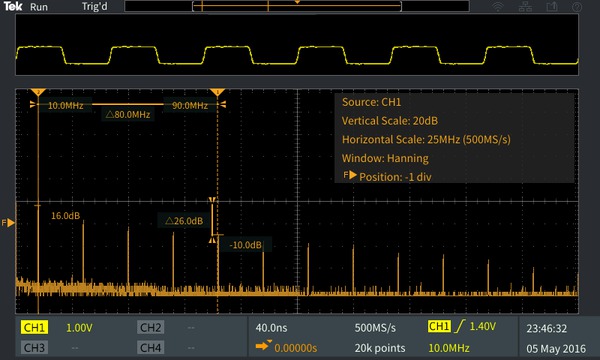

You can understand the frequency content of your signals with the FFT function by pressing the dedicated front-panel FFT button. Display only the FFT, or turn on the source waveform display to see both the frequency and the time domain waveform. A transparent readout shows important settings without blocking the FFT display.

TBS2000B_3GW615098

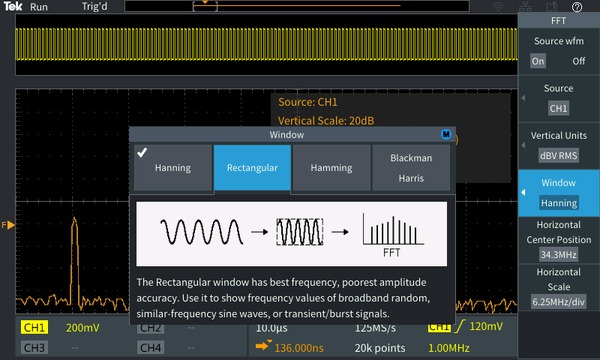

The time domain source waveform can be displayed above the FFT frequency spectrum.

TekVPI® Interface and active probe support

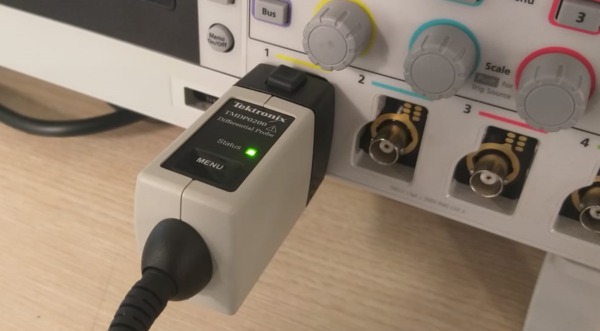

The TekVPI probe interface sets the standard for ease of use in probing. With this interface the TBS2000B Series Oscilloscope supports a wide range of the latest voltage and current probes, providing coverage for many applications. These probes are powered by and communicate with the TBS2000B through the VPI interface. Scale factors and status information, such as error conditions, are sent to the instrument for processing and display. This saves you from having to manually set scale factors, calculate offsets, or the need to degauss your current probes.

The new front end design with higher 2GS/s sample rate offers lower noise and higher effective bits enabling more accurate measurements.

TBS2000B_3GW615098
TekVPI probes communicate scale settings, ranges, and status to the TBS2000B.

First in its class with wireless communications

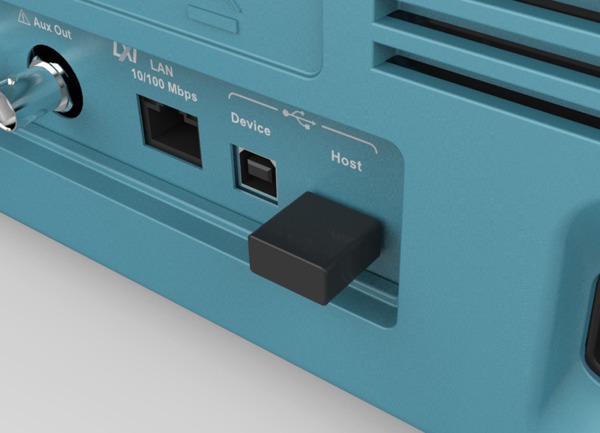

On the rear of the instrument, you will find several communications ports. The USB device port or LAN port can be used to control the instrument using the fully-documented command set.

TBS2000B_3GW615098
Wi-Fi adapters are configured through integrated setup menus and support seamless wireless communications

The TBS2000B is the first oscilloscope in its class to support wireless communication. Plug a compatible Wi-Fi dongle into the USB host port and setup the interface for Wi-Fi from the front panel.

Built-in tips for faster setup

HelpEverywhere® is a unique feature on the TBS2000B. It shows instant help information as you navigate through key menus. The tips include measurement information, application tips, and general guidance in the form of text and graphics. You can selectively turn tips on and off from the HelpEverywhere® menu.

TBS2000B_3GW615098
HelpEverywhere® tips explain important settings.

Innovative new education solutions

The TBS2000B offers new ways to enable educators to devote more time to teaching circuit concepts instead of lab setup and management.

TBS2000B_3GW615098
Education features

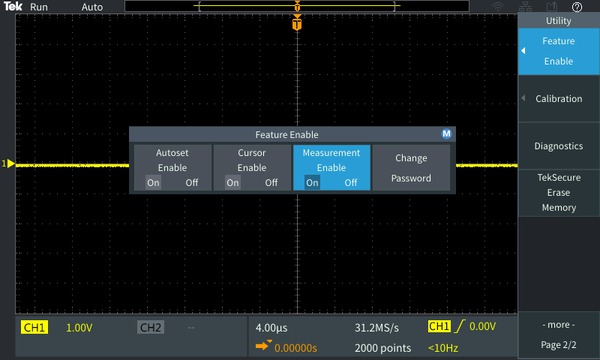

Educators can disable Autoset, Cursors, and automated measurements on the instruments so that they can teach the students on the basic concepts and help them understand how to use the instrument horizontal and vertical controls to get the waveform display, use the graticule to measure time and voltage and manually plot / calculate the signal characteristics.

TBS2000B_3GW615098

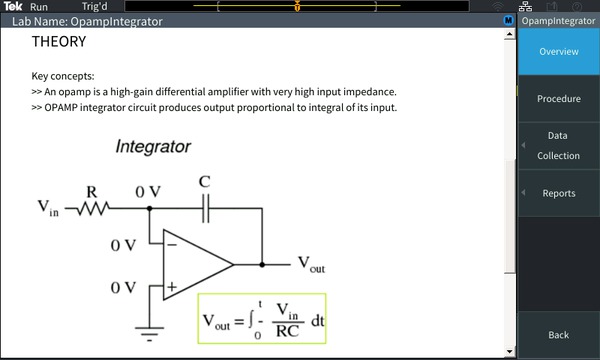

The Courseware function allows students to see lab information on the instrument display.

The integrated Courseware function allows professors to load lab exercises on the instrument to give students guidance at each station and provides a structured framework into which students can capture data to incorporate into their reports. Over 100 sample lab exercises are available for download from the https://www.tek.com/courseware.

TBS2000B_3GW615098

On-screen scope fundamentals

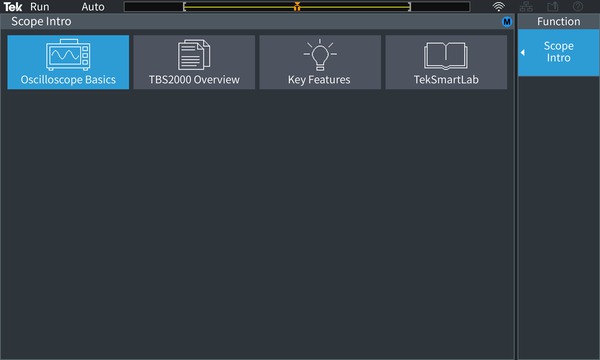

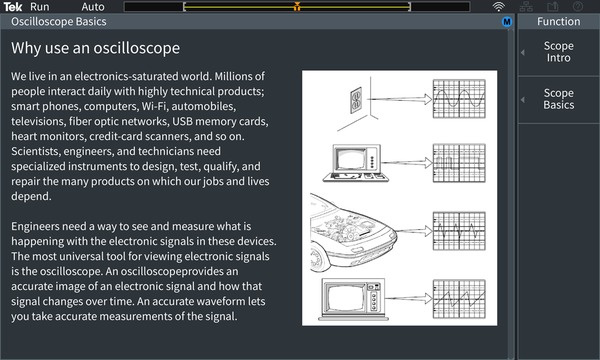

Scope Intro handbook is embedded into the TBS2000B help system. Pressing the front panel Function button gives you access to information on oscilloscope basic operations, as well as an overview of the TBS2000B.

TBS2000B_3GW615098
TBS2000B_3GW615098
Scope Intro covers basic oscilloscope and TBS2000B usage

TekScope

TekScope software expands the capabilities of your instrument by enabling you to easily transfer data directly from your oscilloscope to your PC for offline analysis. With the remote analysis for bench oscilloscopes package, you can run protocol decode on the most common buses (I2C, SPI, CAN, CAN-FD, LIN, and UART), advanced analysis capabilities with unlimited measurement, trends, histograms, search and mark as well as offline waveform analysis all in a user environment that is very similar to our high performance instruments.

TBS2000B_3GW615098
Waveform analysis using TekScope on a PC

PC connectivity

Easily capture, save, and analyze measurement results by connecting to your PC to the USB device port on the rear of the instrument and using the OpenChoice® PC Communications Software available on the Tektronix website. Simply pull screen images and waveform data into the stand-alone desktop application or directly into Microsoft Word and Excel.

TBS2000B_3GW615098
OpenChoice desktop

Kickstart

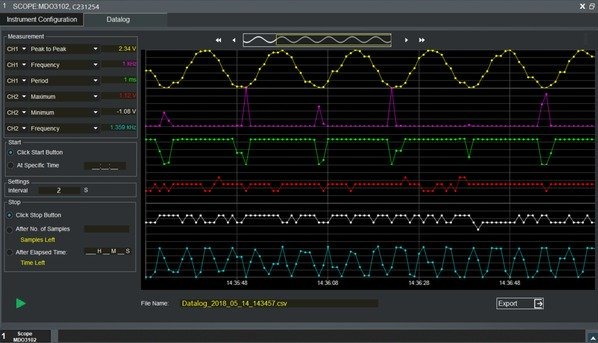

Kickstart software offers bench instrument control, automated data, and measurement logging capability of multiple instruments on a bench. The collected data can be charted to get further insights or exported in multiple formats for further analysis. It supports Oscilloscopes, Digital Multi Meters (DMM), Power supplies, and Source Measure Units (SMU).

TBS2000B_3GW615098
Control multiple instruments and perform data logging with Kickstart

Performance you can count on

Tektronix has industry-leading service and support, and every TBS2000B Series Oscilloscope is backed with a standard 5-year warranty.

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Model overview

Models TBS2072B TBS2074B TBS2102B TBS2104B TBS2202B TBS2204B
Analog Channels 2 4 2 4 2 4
Bandwidth 70 MHz 70 MHz 100 MHz 100 MHz 200 MHz 200 MHz
Max Sample Rate

2 GS/s - Half Channel

1 GS/s - All Channels

2 GS/s - Half Channel

1 GS/s - All Channels

2 GS/s - Half Channel

1 GS/s - All Channels

2 GS/s - Half Channel

1 GS/s - All Channels

2 GS/s - Half Channel

1 GS/s - All Channels

2 GS/s - Half Channel

1 GS/s - All Channels

Record length 5 M points 5 M points 5 M points 5 M points 5 M points 5 M points

Vertical system analog channels

Hardware bandwidth limits
20 MHz
Input coupling
DC or AC
Input impedance
1 MΩ ± 1 %, 13 pF ± 1.5 pF
Input sensitivity range
1mV/div to 10 V/div
Vertical resolution
8 bits
Maximum input voltage, 1 MΩ
300 VRMS, Installation Category II; with peaks ≤ ±450 V
Acquisition modes
Sample
Acquire sampled values.
Peak Detect
Captures glitches as narrow as 3.5 ns at all sweep speeds.
Average
From 2 to 512 waveforms included in average.
Hi-Res
Averages multiple sample of one acquisition interval into one waveform point.
Roll
Scrolls waveforms right to left across the screen at sweep speeds slower than or equal to 40 ms/div.
Math modes
All units:
Ch 1 - Ch 2
Ch 2 - Ch 1
Ch 1 + Ch 2
Ch 1 X Ch 2
FFT
4 channel units:
Ch 3 - Ch 4
Ch 3 + Ch 4
Ch 4 - Ch 3
Ch 3 X Ch 4
DC balance
± (1 mV +0.1 div)
DC gain accuracy, typical
± 2% 10 V/div through 5 mV/div
± 3% 1 mV/div and 2 mV/div
DC voltage measurement accuracy average mode
Average of > 16 waveforms
±((DC Gain Accuracy) X |reading - (offset - position)| + Offset Accuracy + 0.11 div + 1 mV)

Delta Volts between any two averages of ≥16 waveforms acquired with the same oscilloscope setup and ambient conditions
±(DC Gain Accuracy X |reading| + 0.08 div + 1.4 mV)
Vertical position range
± 5 divisions
Vertical offset ranges, typical
Volts/Div setting 1 MΩ, Input
1 mV/div to 63 mV/div ±1 V
64 mV/div to 999 mV/div ± 10 V
1 V/div to 10 V/div± 100 V
Analog bandwidth, DC coupled
200 MHz models:

DC to >200 MHz

100 MHz models:

DC to ≥100 MHz

70 MHz models:

DC to ≥70 MHz

Common mode rejection ratio (CMRR), typical
100:1 at 60 Hz, reducing to 10:1 with 50 MHz sine wave with equal Volts/div and coupling settings on each channel.
Channel-to-channel isolation
TBS2072B, TBS2074B TBS2102B, TBS2104B TBS2202B, TBS2204B
≥100:1 at ≤70 MHz ≥100:1 at ≤100 MHz ≥100:1 at ≤200 MHz

Horizontal system analog channels

Maximum duration of time captured at highest sample rate (all channels)
5 ms
Time base range
TBS220xB, TBS207xB, TBS210xB: 1 ns/div to 100 sec/div
Seconds division range
TBS207xB, TBS210xB, TBS220xB: 1 ns/div to 100 sec/div in a 1-2-4 sequence
Time-base delay time range
-15 divisions to 5000 s
Deskew range
±100 ns
Time base accuracy
±25 ppm over any ≥1 ms interval

Trigger system

Trigger modes
Auto, Normal, and Single
Trigger holdoff range
20 ns to 8 s
Trigger types
Edge
Positive or negative slope on any channel. Coupling includes DC, HF reject, LF reject, and noise reject.
Pulse width
Trigger on width of positive or negative pulses that are >, <, =, or ≠ a specified period of time.
Runt
Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again.
Trigger coupling analog channels
DC, Noise Reject, High Freq Reject, Low Freq Reject.
Sensitivity, edge–type trigger, DC coupled

Trigger Source Sensitivity
Analog inputs

0.4 division from DC to 50 MHz

0.6 divisions >50 MHz to 100 MHz

0.8 divisions >100 MHz to 200 MHz

Trigger level ranges
Input channels: ± 4.90 divisions from center screen

Data storage

Nonvolatile memory retention time, typical
No time limit for Front Panel Settings, saved waveforms, setups, and calibration constants.
Real-Time clock
A programmable clock providing time in years, months, days, hours, minutes, and seconds.

Waveform measurements

Cursors
Time, amplitude, and screen.
Automated measurements
32, of which up to six can be displayed on-screen at any one time. Measurements include: Period, Frequency, Rise Time, Fall Time, Positive Duty Cycle, Negative Duty Cycle, Positive Pulse Width, Negative Pulse Width, Burst Width, Phase, Positive Overshoot, Negative Overshoot, Peak to Peak, Amplitude, High, Low, Max, Min, Mean, Cycle Mean, RMS, Cycle RMS, Positive Pulse Count, Negative Pulse Count, Rising Edge Count, Falling Edge Count, Area, Cycle Area, Delay FR, Delay FF, Delay FR, and Delay RR.
Gating
Isolate the specific occurrence within an acquisition to take measurements on, using either the screen, between waveform cursors or full record length.

Waveform math

Arithmetic
Add, subtract, and multiply waveforms.
FFT
Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman-Harris.

Remote control software

Web page
Built-in web page enables remote control of horizontal and vertical scale, trigger settings, and measurements. Allows waveform and image save to USB flash drive.

Display system

Display type
9 inch (228 mm) wide format liquid crystal TFT color display.
Display resolution
800 horizontal by 480 vertical displayed pixels (WVGA).
Waveform styles
Vectors, Variable Persistence, and Infinite Persistence.
Graticules
Grid, None.
Format
YT and XY.

Input output ports

USB 2.0 high-speed host port
Supports USB mass storage devices, Wi-Fi dongle, One port available on rear panel and one on front panel.
USB 2.0 high-speed device port
Device port
Rear-panel connector allows for communication/control of oscilloscope through USBTMC.
LAN port (Ethernet)
RJ-45 connector, supports 10/100BASE-T
Probe compensator
Amplitude
5 V
Frequency
1 kHz
Kensington-style lock
Rear-panel security slot connects to standard Kensington-style lock.

Power source

Power source voltage
100 to 240 VAC RMS ±10%
Power source frequency
47 Hz to 63 Hz (100 to 240 V)
360 Hz to 440 Hz (100 to 132 V)
Power consumption
80 W maximum

Physical characteristics

Dimensions
TBS2xx2B:
Height: 174.9 mm (6.89 in)
Width: 372.4 mm (14.66 in)
Depth: 103.3 mm (4.07 in)
TBS2xx4B:
Height: 201.5mm (7.93 in)
Width: 412.8 mm (16.25 in)
Depth: 128.1 mm (5.04 in)
Weight
TBS2xx2B:
2.62 kg (5.8 lbs.), stand-alone instrument.
5.1 kg (11.2 lbs.), when packaged for domestic shipment.
TBS2xx4B:
4.17 kg (9.2 lbs.), stand-alone instrument.
7 kg (15.4 lbs.), when packaged for domestic shipment.
Cooling clearance
50 mm (2 in) required on left side and rear of instrument.

EMC, Environment, and Safety

Temperature
Operating
0 °C to +50 °C (+32 ºF to 122 ºF)
Nonoperating
-40 °C to +71 °C, (-40 ºF to 160 ºF)
Humidity
Operating
5% to 95% relative humidity (% RH) at up to +30° C
5% to 60% RH above +30° C up to +50° C non-condensing
Nonoperating
5% to 95% RH (Relative Humidity) at up to +30° C
5% to 60% RH above +30° C up to +60° C non-condensing
Altitude
Operating
Up to 3,000 meters (9,842 feet).
Non-Operating
Up to 12,000 meters (39,370 feet).
Altitude is limited by possible damage to LCD at higher altitudes. This damage is independent of operation.
Regulatory
Electromagnetic compatibility
EC Council Directive 2014/30/EU
Safety
UL61010-1, UL61010-2-030, CAN/CSA-C22.2 No. 61010.1, CAN/CSA-C22.2 No. 61010-2:030; complies with the Low Voltage Directive 2014/35/EU for Product Safety

Ordering information

Product Supported instruments
TBS2072B 70 MHz bandwidth, 2 GS/s sample rate, 2-channel digital storage oscilloscope, 5 Mpts record length, 5 year warranty. Certificate of Calibration Standard.
TBS2074B 70 MHz bandwidth, 2 GS/s sample rate, 4-channel digital storage oscilloscope, 5 Mpts record length, 5 year warranty. Certificate of Calibration Standard.
TBS2102B 100 MHz bandwidth, 2 GS/s sample rate, 2-channel digital storage oscilloscope, 5 Mpts record length, 5 year warranty. Certificate of Calibration Standard.
TBS2104B 100 MHz bandwidth, 2 GS/s sample rate, 4-channel digital storage oscilloscope, 5 Mpts record length, 5 year warranty. Certificate of Calibration Standard.
TBS2202B 200 MHz bandwidth, 2 GS/s sample rate, 2-channel digital storage oscilloscope, 5 Mpts record length, 5 year warranty. Certificate of Calibration Standard.
TBS2204B 200 MHz bandwidth, 2 GS/s sample rate, 4-channel digital storage oscilloscope, 5 Mpts record length, 5 year warranty. Certificate of Calibration Standard.

Bandwidth upgrade options

You can upgrade the analog bandwidth of the product after your initial purchase. All models can be upgraded to any bandwidth in the field. For instructions on installing an upgrade license, please refer to the user manual.

Options Supported instruments
SUP2-BW7T102 Upgrade 70 MHz to 100 MHz on 2-channel models of TBS2000B Series oscilloscopes
SUP2-BW7T104 Upgrade 70 MHz to 100 MHz on 4-channel models of TBS2000B Series oscilloscopes
SUP2-BW7T202 Upgrade 70 MHz to 200 MHz on 2-channel models of TBS2000B Series oscilloscopes
SUP2-BW7T204 Upgrade 70 MHz to 200 MHz on 4-channel models of TBS2000B Series oscilloscopes
SUP2-BW10T202 Upgrade 100 MHz to 200 MHz on 2-channel models of TBS2000B Series oscilloscopes
SUP2-BW10T204 Upgrade 100 MHz to 200 MHz on 4-channel models of TBS2000B Series oscilloscopes

Standard accessories

Probes
TPP0200
200 MHz, 10x passive probe (one per analog channel) 100 MHz and 200 MHz models
TPP0100
100 MHz, 10x passive probe (one per analog channel) 70 MHz model
Accessories
071-3635-xx
Compliance and Safety Instructions
077-1149-xx
Programmer manual, available in tek.com
Power cord
-
Calibration certificate
Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001 quality system registration
Warranty
Five-year warranty covering all parts and labor, excluding probes.

Recommended Probes

Tektronix offers over 100 different probes to meet your application needs. For a comprehensive listing of available probes, please visit tek.com/probe-selector.

AccessoryDescription
P5100A2.5 kV, 500 MHz, 100X high-voltage passive probe
TDP0500500 MHz TekVPI ® differential voltage probe with ±42 V differential input voltage
THDP0200±1.5 kV 200 MHz high-voltage differential probe
THDP0100±6 kV 100 MHz high-voltage differential probe
TMDP0200 ±750 V, 200 MHz TekVPI ® high-voltage differential probe
TAP15001.5 GHz TekVPI ® active voltage probe
TCP002050 MHz TekVPI ® 20 Ampere AC/DC current probe
TCP0030A120 MHz TekVPI ® 30 Ampere AC/DC current probe
TCP015020 MHz TekVPI ® 150 Ampere AC/DC current probe
TCP202050 MHz BNC 20 Ampere AC/DC current probe
P5200A50 MHz, 50X/500X high-voltage differential probe
P5202A1100 MHz, 640 V High Voltage differential probe
P5205A1100 MHz, 1.3 kV High Voltage differential probe
P5210A150 MHz, 5.6 kV High Voltage differential probe
P6015A20 kV, 75 MHz high-voltage passive probe

Recommended Accessories

ACD2000
Soft transit case for TBS2000B 2-channel instrument
ACD4000B
Soft transit case, for TBS2000B 4-channel instrument
TPA-BNC
TekVPI ® to TekProbe ® BNC adapter
TEK-DPG
TekVPI ® Deskew pulse generator signal source
067-1686-XX
Power measurement deskew and calibration fixture

Instrument options

Power plug options

Opt. A0
North America power plug (115 V, 60 Hz)
Opt. A1
Universal Euro power plug (220 V, 50 Hz)
Opt. A2
United Kingdom power plug (240 V, 50 Hz)
Opt. A3
Australia power plug (240 V, 50 Hz)
Opt. A4
North America power plug (240 V, 50 Hz)
Opt. A5
Switzerland power plug (220 V, 50 Hz)
Opt. A6
Japan power plug (100 V, 50/60 Hz)
Opt. A10
China power plug (50 Hz)
Opt. A11
India power plug (50 Hz)
Opt. A12
Brazil power plug (60 Hz)
Opt. A99
No power cord
Opt E1
Universal EURO, United Kingdom, and Switzerland

Language options

Opt. L0
English front panel overlay
Opt. L1
French front panel overlay
Opt. L2
Italian front panel overlay
Opt. L3
German front panel overlay
Opt. L4
Spanish front panel overlay
Opt. L5
Japanese front panel overlay
Opt. L7
Simplified Chinese front panel overlay
Opt. L8
Traditional Chinese front panel overlay
Opt. L9
Korean front panel overlay
Opt. L10
Russian front panel overlay
Opt. L99
No manual

Language options include translated front-panel overlay for the selected language(s).

Service options

Opt. C3
Calibration Service 3 years. Includes traceable calibration or functional verification applicable, for recommended calibrations. Coverage includes the initial calibration plus 2 years calibration coverage.
Opt. C5
Calibration Service 5 years. Includes traceable calibration or functional verification applicable, for recommended calibrations. Coverage includes the initial calibration plus 4 years calibration coverage.
Opt. D1
Calibration Data Report.
Opt. D3
Calibration Data Report 3 years (with Option C3).
Opt. D5
Calibration Data Report 5 years (with Option C5).
Opt. T3
Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support.
Opt. T5
Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support.

Probes and accessories are not covered by the oscilloscope warranty and Service Offerings. Refer to the datasheet of each probe and accessory model for its unique warranty and calibration terms.
