PSPL5828A 14 GHz Ultra-Broadband Amplifier Datasheet
PSPL5828A Datasheet
The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.
PSPL5828A Datasheet
This Ultra-Broadband Amplifier is an excellent choice for either pulse or RF applications. It offers a very attractive price/performance ratio. It is AC coupled and is extremely broadband, covering 5 ½ decades from 50 kHz to 14 GHz. It has clean transient response and smooth gain vs. frequency response. This is a stable 50 Ω amplifier, and several can be connected in cascade for higher gains. The PSPL5828A is ideal for 10 Gb/s systems.
Key performance specifications
- Linear amplifier with 10 dB gain
- 50 kHz to 14 GHz bandwidth
- +12 dBm output
- Single 12 V power supply
Typical performance
Step Response, input is 15 ps rise time.

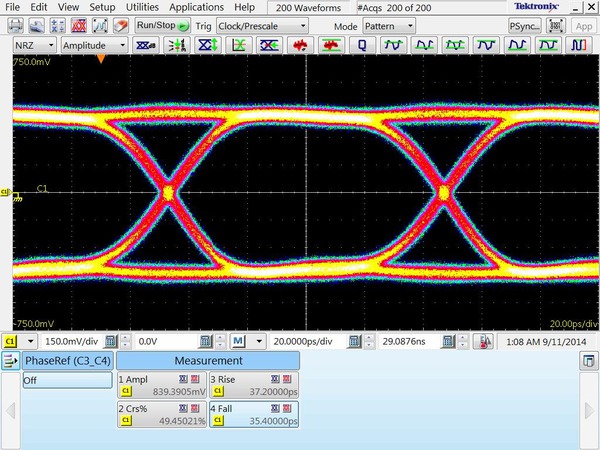

Eye diagram, 10.66 Gb/s PRBS=223–1, 250 mV input
Specifications
| Parameter | Symbol | Units | Minimum 1 | Typical | Maximum | Comments |
|---|---|---|---|---|---|---|
| Impedance | Z | Ohms | 50 | |||
| Upper 3 dB freq. | fc,h | GHz | 12 | 14.4 | ||
| Lower 3 dB freq. | fc,I | kHz | 50 | |||
| Small signal gain | S21 | dB | 9 | 10.6 | Meas. at 100 MHz | |
| Return Loss, Input Output |
S11 S22 |
dB | 15 18 |
Meas. at 100 MHz | ||
| Isolation | S12 | dB | 19 | Meas. at 100 MHz | ||
| Rise Time Fall Time |
tr tf |
ps | 23 23 |
30 30 |
10-90%, 25 ps input | |
| Overshoot | % | 5 | 8 | 25 ps rise time input | ||
| Gain Flatness | dB | +/- 0.5 | f | |||
| Eff. Input RMS Noise Voltage | μV rms | 112 | ||||
| Noise Figure | dB | 6 | 8 | Meas. at 100 MHz | ||
| TDR Refl. Input Output |
% | +25 -10 |
||||
| Max Power Out (-1 dB gain comp) |
dBm | +12 dBm +14 dBm +11 dBm |
100 MHz 5 GHz 10 GHz |
|||
| Max RF In (cw) or peak pulse |
dBm V |
10 1 |
Damage threshold | |||
| Supply Voltage | VDC | V | 11.5 | 12.5 | ||
| Supply Current | IDC | mA | 53 | |||
| Temperature | TCASE Tstor |
Deg C | -25 -25 |
+75 +90 |
Operating (case) Storage |
|
| Temp Coeff - Gain | dB/Deg C | -0.002 | ||||
| Temp Coeff - BW | %/Deg C | -0.16 | ||||
| Polarity | Inverting | |||||
| Coupling | AC, input and output | |||||
| RF Connectors | SMA jacks (f) | |||||
| DC Connector | Solder pin | |||||
| Warranty | One Year | |||||
1 Guaranteed at +12 V and 23 C when max/min limits are given.
- Mechanical dimensions
Ordering information
Models
- PSPL5828A
- AMPLIFIER, 14 GHz, 10 dB GAIN
