20X Low Capacitance Probe
P6158 Datasheet
The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.
P6158 Datasheet
P6158
Notice to EU customers
This product is not updated to comply with the RoHS 2 Directive 2011/65/EU and will not be shipped to the EU. Customers may be able to purchase products from inventory that were placed on the EU market prior to July 22, 2017 until supplies are depleted. Tektronix is committed to helping you with your solution needs. Please contact your local sales representative for further assistance or to determine if alternative product(s) are available. Tektronix will continue service to the end of worldwide support life.
Features and benefits
- 3 GHz Bandwidth
- 1.5 pF Input Capacitance
- 1 kΩ Input Resistance
- 22 VRMS Max. Input Voltage
- Activates 20X Readout in TEKPROBE™ Interface Instruments
- Compact Probe Tip Compatible with a Wide Range of Tektronix Accessories and Adapters
Applications
- High-speed device characterization
- Propagation delays for ECL, CMOS and other logic circuitry and devices
- Circuit board impedance testing (TDR)
- High-speed sampling systems
P6158 DC to 3 GHz
The P6158 is a 3 GHz, 20X, low-capacitance probe. The P6158 is ideal for high-speed applications because of its ability to extend high-frequency response to 3 GHz. The BNC connector incorporates encoding to correct scale factors for 20X attenuation in oscilloscopes with TEKPROBE® power supply interface. To facilitate SMD probing, the P6158 comes standard with SureFoot® adapters. Additionally, the probe comes standard with an array of short ground leads that insert minimal inductance into the signal path of the measured waveform. The compact probe head/tip assembly is compatible with the full line of 3.5 mm probe accessories. Designed for the TDS500/600/700/5000/6000/7000 Series oscilloscopes, the P6158 probe may also be used with 50 Ω 11000 Series plug-ins and the 11800 Series SD2X Sampling/TDR plug-ins with BNC to SMA Adapters.
Recommended instruments
- TDS500/600/700/7000 Series
- 11000 Series
- 11800 SD2X Sampling/TDR plug-ins
- TDS820/TDS8000/CSA8000/11801C/CSA803C
P6158 Attenuation vs. frequency.

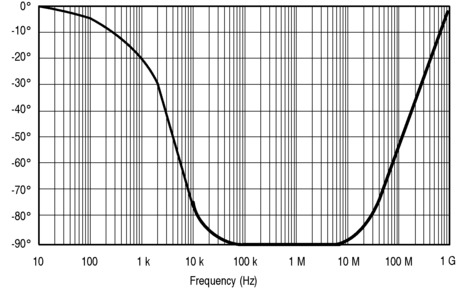

P6158 Input impedance and phase.

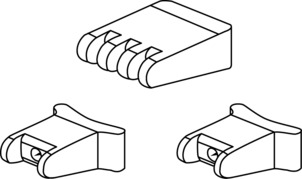

SF200A Series SureFoot® adapters.
Compact probe tip circuit board test points.
Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
Electrical Characteristics
- Bandwidth (Probe only)
- DC to 3 GHz, -3 dB
- Rise time
- >100 ps
- Attenuation
- x20 (-26 dB)
- Attenuation accuracy
- ±3%
- Input capacitance
- 1.5 pF
- Input resistance
- 1 kΩ
- Output termination
- Terminate into 50 Ω
- Signal delay
- 5 ns
Physical charactersitics
- Prob tip/head style
- 3.5 mm/Compact
- Output cable length
- 1.2 m.
Environmental charactersitics
- Operating temperature
- -15 °C to +55 °C (+5 °F to +131 °F)
- High operating:
- 55 °C @ 95 to 97% RH
- Low operating:
- 30 °C @ 95 to 97% RH
Ordering Information
Models
- P6158
- 3 GHz Low Capacitance Probe
Standard accessories
- 020-2232-00
- P6158 probe tip accessory kit
- 204-1049-00
- Attenuator tip cover; 2 ea. 50 mil, 25 mil (0.65 mm), and 0.5 mm SureFoot adapters
- 195-4240-00
- 2 in. ground lead
- 343-1003-01
- ground collar
- 016-1077-00
- 2 ea. ground tip contact, 5 lengths w/cover shell
- 016-0633-00
- 2 ea. compact probe tip circuit board test points; 2 ea. marker set, various colors
- 071-0123-00
- Instruction manual
Recommended replacement accessories
- SF201A
- SureFoot Adapter, Orange, 50 mil (12 ea.)
- SF202A
- SureFoot Adapter, Blue, 0.65 mm/25 mil (12 ea.)
- SF203
- SureFoot Adapter, Red, 0.50 mm/20 mil (12 ea.)
- 131-5031-00
- Compact Probe Tip Circuit Board Test Points (25 ea.)
60W-12026-3
Tektronix is registered to ISO 9001 and ISO 14001 by SRI Quality System Registrar.
