Resolving ‘Mileage Anxiety’ with 800V EV Powertrain Design

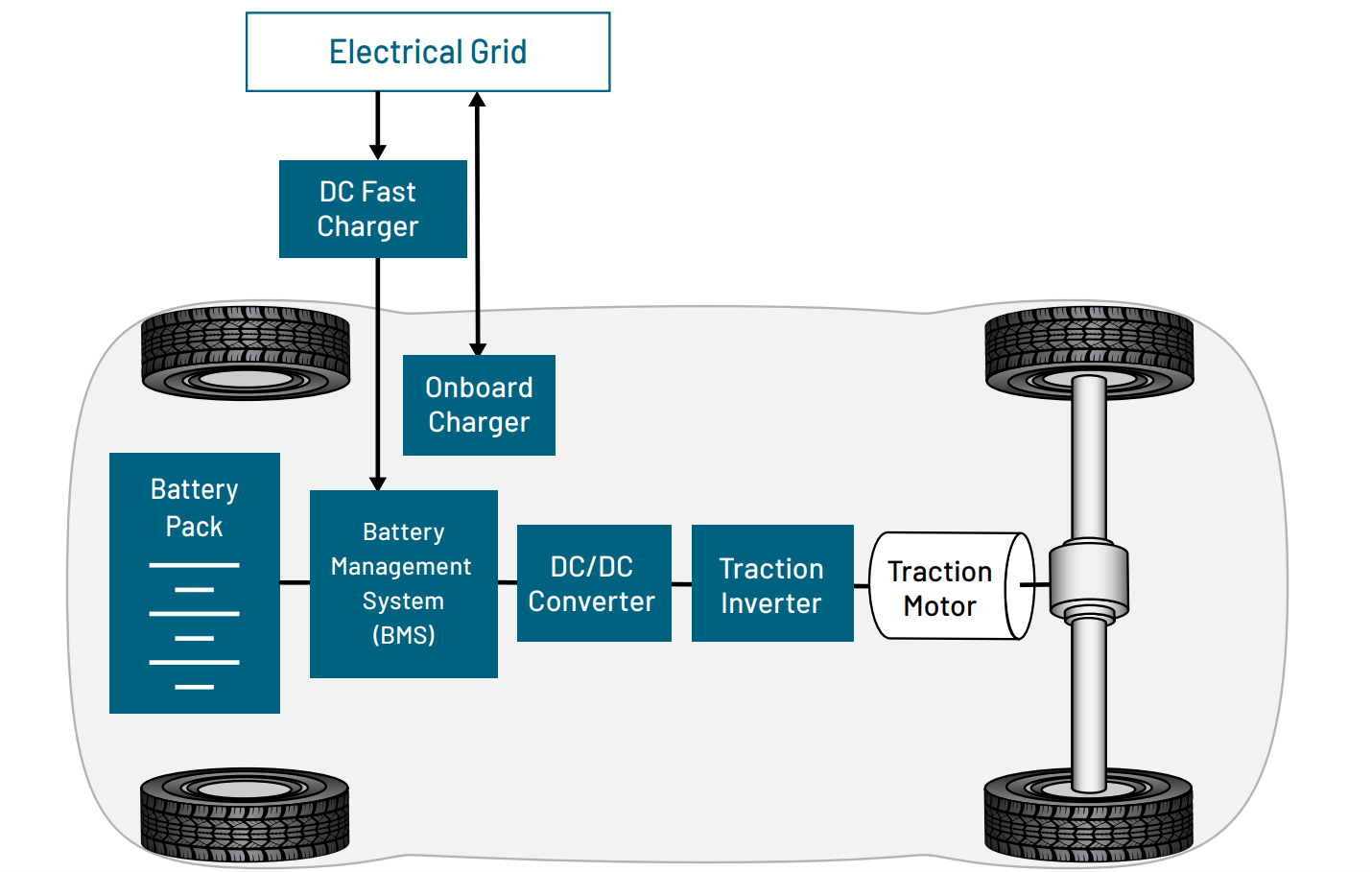

The rise in the adoption of electric vehicles (EVs) is leading to new test challenges to optimize the designs, reduce costs, and make the vehicles more efficient. The various power converters and traction inverters form the heart of the EV powertrain subsystem and are one of the critical blocks that need to be tested to achieve the highest efficiency. Wide bandgap technology like SiC/GaN are positively supporting these efforts, but at the same time have their own test challenges that need to be addressed.

The introduction of the 800V powertrain architecture marks a significant leap forward. Let’s take a look at the design and test challenges associated with 800V powertrain architecture for Electric Vehicles.

Unlocking Potential with 800V Systems

The 800V powertrain architecture refers to the electrical system in an EV (usually electric trucks and construction vehicles) that operates at a nominal voltage of 800 volts. This is a significant increase from the more common 400V powertrain architecture used in battery electric vehicles (BEVs) today. These require recharging times of 40 to 120 minutes on a public DC fast charger (DCFC). These timeframes are constrained by the practical cable size needed for transporting the required current to the battery pack. 800V BEVs are a promising alternative, to reach ultrahigh charge rates of 350 or 400 kilowatts.

The transition to 800-volt architecture-based BEVs offers a solution to mileage, or “range anxiety.” Doubling the voltage while maintaining the same current results in doubling the energy input to the vehicle. With the ability to recharge your vehicle 50 percent faster (in other words 50 percent reduction in charging times), this advancement significantly diminishes concerns about depleting the battery during extended journeys.



800V system production share growth

Bar chart of 800V system production share growth from 2020-2030. Source: Yole market research



Increasing Range of BEV

As a result, these vehicles exhibit the potential to charge from 5 percent to 80 percent state of charge, which equates to roughly 200 miles of range, in under 23 minutes. This stands in stark contrast to the 40 to 120 minutes typically associated with 400V battery powertrain systems available today.

Moreover, the elevated voltage allows the same power to be delivered with lower current, enabling the utilization of smaller diameter cables and connectors within the powertrain. leading to a lighter electric vehicle, and ultimately longer driving range for a comparable battery pack.

Other benefits of transitioning from 400 to 800 volts include improvement in overall efficiency and easier thermal management across the powertrain subsystem.

According to market research agency Yole, they are anticipating that in 2023, the automotive industry will begin to embrace 800V systems as a mainstream solution. This shift is driven by the numerous advantages mentioned earlier, particularly in premium vehicle segments, with automakers like Audi, Porsche, Hyundai, and Kia leading the way in early commercialization. While only a small handful of public DCFC stations can currently take full advantage of the 800V architecture today, that number is increasing daily, and we are probably not that far away from the majority of public DCFC stations being 150 kW or higher within the next 5 years.

Temperature Benefits of Wide Bandgap Devices

Regarding hardware approaches, the emphasis is on employing wide bandgap (WBG) semiconductors like SiC and GaN switches. This choice is due to their rapid switching capabilities and elevated temperature tolerance. These components function effectively at elevated temperatures, resulting in improved efficiency and reduced Total Harmonic Distortion (THD). The extended operational temperature range of wide-bandgap devices can also simplify inverter design and minimize the necessity for thermal management systems. In our collaboration with standardization organizations such as JEDEC and IEC, we concentrate on standards related to switching analysis and diode reverse recovery measurements, which are pivotal for characterizing the performance of wide-bandgap devices.

Oscilloscopes Play a Crucial Validation Role

Oscilloscopes play a crucial role in validating and diagnosing issues with EV traction motors and inverter designs. They empower designers to meet ambitious efficiency targets. However, it's essential to recognize that an oscilloscope alone may not be sufficient for all these measurements.

Probing solutions and analysis software play key roles.  Optically isolated voltage probes help designers make measurements on high-voltage gate drive

Tektronix offers a wide bandgap double pulse testing (DPT), or double pulse test, solution on 4 Series B MSO, 5 Series B MSO and 6 Series B MSO oscilloscopes – that help engineers achieve accurate, repeatable measurements on state-of-the art power converter designs.

Specially tailored software, such as Tektronix's IMDA (Inverter Motor Drive Analysis) offering, complements these capabilities by enabling three-phase measurements for PWM and mechanical data, enhancing the overall utility of the solution.

To measure the appropriate magnitudes and frequencies at crucial junctures, dedicated current and voltage probes are indispensable. The 5 and 6 Series MSO oscilloscopes serve as an excellent solution for engineers engaged in EV powertrain designs, offering a high-channel count, inverter analysis software, and versatile probing options.

Engineer using the Tektronix 5 Series B Mixed Signal Oscilloscope to performing electric vehicle power train testing.

Tektronix engineer performing electric vehicle power train testing with a 5 Series B Oscilloscope.

Bidirectional Power Supplies’ role in realizing and accelerating the 800V future

Bidirectional power supplies are becoming increasingly important in accelerating the 800V automotive future, and for good reason. These supplies offer the capability to source and sink power, enabling some supplies, like those of EA Elektro-Automatik, to simulate the battery pack of a vehicle or the DC output of EVSE. Battery simulation is particularly useful for developing and testing supply equipment that integrates with electrical grids such as Vehicle-to-Grid (V2G), Vehicle-to-Home (V2H), or Vehicle-to-Load (V2L) systems. These systems need to take energy from a vehicle's battery back and turn it into reliable AC power, so testing across the range of a battery pack is essential.

 EA Elektro-Automatik bidirectional power supplies offer extreme flexibility in designing and testing for the 800V automotive future.

EA Elektro-Automatik bidirectional power supplies offer extreme flexibility in designing and testing for the 800V automotive future.

EA bidirectional supplies also have industry leading power density, enabling them to operate in existing labs and spaces as they are transitioning to 800V architecture. Their plug-and-play paralleling capability makes it possible to easily expand existing systems as power needs grow at a facility with minimal disruption or downtime. Their autoranging capability enables a single supply to meet a wider range of voltage and current loads, while delivering or absorbing the maximum amount of power. When sinking power, either through battery simulation or supply testing, sunk energy is recovered at >96% efficiency, offsetting site power consumption and reducing cooling and HVAC requirements.

Learn more about EV battery testing.
