PSPL5589 2.8 GHz High Current Bias Tee Datasheet
PSPL5589 Datasheet
Die Produkte dieses Datenblatts gehören nicht mehr zum Angebot von Tektronix.
Tektronix Encore nach aufgearbeiteten Testgeräten durchsuchen.
Garantie- und Supportstatus dieser Produkte überprüfen.
PSPL5589 Datasheet
The PSPL5589 High Current Bias Tee is intended for frequency domain, high current applications. Unlike most high current bias tees that typically are specified for only an octave band, this bias tee can typically cover a decade. The DC input is a solder terminal feed-thru capacitor.
Key performance specifications
- 0.3 GHz to 2.8 GHz
- 100 V, 7 A
Typical performance

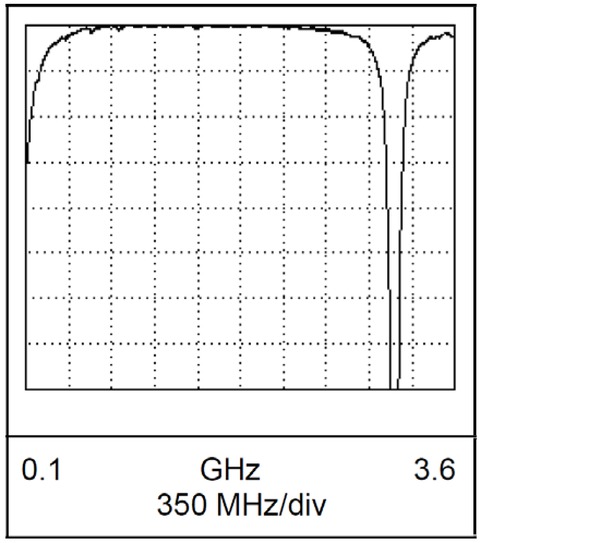

Insertion Loss, S21. 0.5 dB/div, top line is the 0 dB reference.

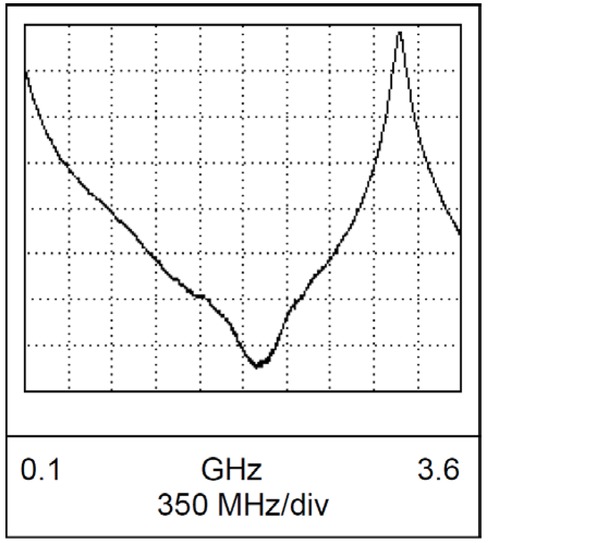

Return Loss, S11. 5 dB/div, top line is the 0 dB reference.
Specifications
| Parameter | Symbol | Units | Minimum | Typical | Maximum | Comments |
|---|---|---|---|---|---|---|
| Impedance | Z | ohms | 50 | |||
| Frequency range | f | GHz | 0.3 to 2.8 0.45 to 2.6 | IL 10 dB IL 15 dB | ||
| Insertion loss | S21 | dB | 0.05 | At 1.5 GHz | ||
| Input (AC), Return loss | S11 | dB | >25 | Mid band, AC port | ||
| DC voltage | V | V | 100 | |||
| DC current | I | A | 7 | |||
| Capacitance (bypass) | C | nF | 22 | |||
| Capacitance | C | nF | 1 | |||
| Inductance | L | nH | 51 | |||
| Resistance | R | ohms | 0.015 | |||
| RF power | P | W | 100 | Average power | ||
| Isolation | S13 | dB | >50 | |||
| DC path bandwidth | fc,DC | kHz | 275 | |||
| Temperature | T | °C | -55 | +125 | Storage and operating | |
| RF connectors | SMA jacks (f) | |||||
| DC connector | Solder pin | |||||
| Warranty | One year | |||||

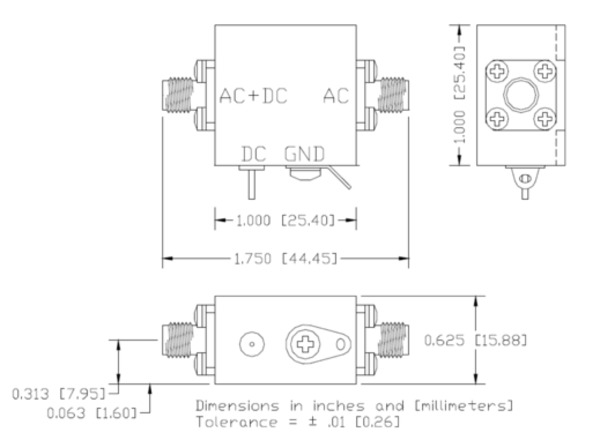

- Mechanical dimensions
Ordering information
Models
- PSPL5589
- BIAS TEE, 0.3-2.86 GHz, 100 V, 7 A
