Application Software Bundles for the 4, 5 and 6 Series MSO Oscilloscopes


Application bundles are a great alternative to purchasing individual options, especially if you plan to address diverse applications with your oscilloscope. Compared to individual options, these specially designed bundles:

  • Offer better value with more functions at a much lower cost than equivalent individual options
  • Make it cost-effective to purchase capabilities to cover future needs or needs across engineering teams
  • Include the most frequently combined options for key applications and industries
  • Provide flexibility to adjust year-to-year with lower cost 1-year subscriptions

Three Levels of Application Bundles

Starter Bundle

These bundles add capabilities that almost all engineers need for embedded systems design.
4, 5 or 6 Series MSOs equipped with a Starter Bundle (for example, 4-STARTER-PER) will be able to decode and trigger on I2 C, SPI, RS232/422/485/UART bus activity as well as power measurements and analysis. Includes an integrated arbitrary/function generator with 13 predefined functions and arbitrary waveforms. This is equivalent to adding -AFG, -SRCOMP, -SREMBD and -PWR options.

Pro Bundles

Specially designed to empower engineers in particular applications and industries.See pages 4 through 9 for details on specific bundles
Any Pro Bundle includes the capabilities enabled with the Starter Bundle + Extended record length to help you take better advantage of advanced analysis capabilities.
Serial Decode (4, 5, 6 Series) Power (4, 5, 6 Series) Signal Integrity (5, 6 Series) Standards Compliance (5, 6 Series) Automotive (4, 5, 6 Series) Aerospace (4, 5, 6 Series)
A comprehensive kit of serial protocol support for embedded systems. Eliminates the need to decode by hand. Automates a wide range of power measurements – from the AC line to point of load. Essential tools for engineers analyzing jitter and signal integrity of highspeed clocks and data lines. Comprehensive test automation with full instrument control and reporting for testing to the leading serial standards. For ECU designers – decoding for automotive protocols, and automated compliance testing for key communications standards. Serial bus decoding for key aerospace protocols and mask testing for testing unique signals.

Ultimate Bundle

Everything listed above for the most capabilities and highest savings.
All of the capabilities of the Starter Bundle + All capabilties of ALL Pro Bundles.
Spectrum View RF vs. time waveforms + Extended Spectrum View capture bandwidth. Video triggering.
Maximum available record length for the 5 and 6 Series MSOs.

LICENSE CHOICES TO FIT YOUR NEEDS

1-year time-based License This low-cost alternative lets you use the software for 1 year. Software updates and support are included. When the license expires a new license may be purchased.
Perpetual License Use the software indefinitely. The license does not expire and includes updates/support for the first 12-months.
Maintenance License Maintenance licences may be added to a perpetual license and extends the period of support of an original perpetual license for 12 months.

Pro Bundle | SERIAL DECODE

A comprehensive kit of serial protocol support for embedded systems. These options automate bus decoding, eliminating the chore of hand decoding. Search capability makes it easy to zero in on specific bus activity.

Automated serial decoding provides system-level visibilty without hand decoding.
Automated serial decoding provides system-level visibilty without hand decoding.
Included Description 4 Series MSO 5 Series MSO 6 Series MSO
Starter Bundle Embedded serial decode/trigger and integrated AFG (See page 3 for details.)
4-RL-1 Extend record length to 62.5 million sample points per channel
5-RL-125M Extend record length to 125 million sample points per channel
6-RL-2 Extend record length to 250 million sample points per channel
PWR Advanced power measurements and analysis (includes PSRR, control loop analysis & impedance measurement)
RFNFC NFC serial decoding and analysis
SR8B10B 8B10B serial decoding and analysis
SRAERO Aerospace serial bus triggering and analysis (MIL-STD-1553, ARNIC 429)
SRAUDIO Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
SRAUTO Automotive serial triggering and analysis (CAN, CAN FD, CAN XL, LIN, FlexRay)
SRAUTOEN1 100BASE-T1 protocol decode and analysis
SRAUTOSEN SENT serial decoding and analysis
SRCPHY MIPI C-PHY X.X (CSI-2/DSI-2) serial decoding and analysis
SRCXPI CXPI serial decoding and analysis
SRDHPY MIPI D-PHY 1.2 (CSI/DSI) decoding and analysis
SRENET Ethernet serial triggering and analysis (10BASE-T, 100BASE-T)
SRESPI eSPI serial decoding and analysis
SRETHERCAT EtherCAT serial decoding and analysis
SREUSB2 eUSB 2.0 serial decoding and analysis
SRI3C I3C serial decoding and analysis
SRMANCH Manchester serial decoding and analysis
SRMDIO MDIO serial decoding and analysis
SRNRZ NRZ serial decoding and analysis
SRONEWIRE 1-Wire serial decoding and analysis
SRPM Power Management serial triggering and analysis (SPMI)
SRPSI5 PSI5 serial decoding and analysis
SRSDLC SDLC Serial decoding and analysis
SRSMBUS SMBus serial decoding and analysis
SRSPACEWIRE Spacewire serial decoding and analysis
SRSVID SVID analysis
SRUSB2 USB 2.0 serial triggering and analysis (LS, FS, HS)
SRUSB3 USB 3.0 serial decode and analysis (USB 3.0)
1 YR Licenses 4-PRO-SERIAL-1Y 5-PRO-SERIAL-1Y 6-PRO-SERIAL-1Y
Perpetual Licences 4-PRO-SERIAL-PER 5-PRO-SERIAL-PER 6-PRO-SERIAL-PER

Pro Bundle | POWER

Automates a wide range of power measurements - from the AC line to point of load. Also includes decoding for popular power management buses.

Automate common measurements such as true power, apparent power, reactive power, power factor and many more.
Automate common measurements such as true power, apparent power, reactive power, power factor and many more.
5 and 6 Series MSOs support advanced 3-phase motor drive analysis.
5 and 6 Series MSOs support advanced 3-phase motor drive analysis.
Included Description 4 Series MSO 5 Series MSO 6 Series MSO
Starter Bundle Embedded serial decode/trigger and integrated AFG (See page 3 for details.)
4-RL-1 Extend record length to 62.5 million sample points per channel
5-RL-125M Extend record length to 125 million sample points per channel
6-RL-2 Extend record length to 250 million sample points per channel
3PHASE 3-Phase power analysis
DPM Digital power management and analysis
IMDA 3-Phase inverters, motors and drives analysis
IMDADQ0 DQ0 measurements for IMDA
IMDA-MECH Mechanical measurements for IMDA
PWR Advanced power measurements and analysis (includes PSRR, control loop analysis & impedence measurement)
SRPM SPMI serial bus triggering and analysis
SRSVID SVID serial bus analysis
WBG-DPT Wide bandgap SiC/GaN double pulse test measurements
1 YR Licenses 4-PRO-POWER-1Y 5-PRO-POWER-1Y 6-PRO-POWER-1Y
Perpetual Licences 4-PRO-POWER-PER 5-PRO-POWER-PER 6-PRO-POWER-PER

Pro Bundle | SIGNAL INTEGRITY

Essential tools for engineers validating and troubleshooting high-speed clocks and data lines. Quickly measure and deconstruct jitter. Automatically evaluate signal shapes and measurement limits with mask and limit testing.

Get a fast overview of jitter with the jitter summary measurement.
Get a fast overview of jitter with the jitter summary measurement.
Mask and limit tests automate pass / fail signal testing.
Mask and limit tests automate pass / fail signal testing.
Included Description 5 Series MSO 6 Series MSO
Starter Bundle Embedded serial decode/trigger and integrated AFG (See page 3 for details.)
5-RL-125M Extend record length to 125 million sample points per channel
6-RL-2 Extend record length to 250 million sample points per channel
DBDDR3 DDR3/LPDDR3 analysis and debug solution
DBLVDS Automated LVDS test solution*
DJA Advanced jitter analysis
MTM Mask and limit testing
PAM3 PAM3 signal analysis*
PWR Advanced power measurements and analysis (includes PSRR, control loop analysis & impedance measurement)
TDR Time domain reflectometry (TDR) measurements and analysis
UDFLT User-defined filter creation tool
1 YR Licenses 5-PRO-SIGNAL-1Y 6-PRO-SIGNAL-1Y
Perpetual Licences 5-PRO-SIGNAL-PER 6-PRO-SIGNAL-PER
*Requires optional solid-state drive with Windows operating system (5-WIN / 6-WIN)

Pro Bundle | STANDARDS COMPLIANCE

Includes all currently available compliance options for your Windows® -equipped 5 or 6 Series MSO. All standards use the TekExpress engine for flexible configuration, full instrument control, informative prompts and comprehensive reporting.

Run all tests specified in the standard, or selected tests. Automatic report generation gives you a jump on documentation.
Run all tests specified in the standard, or selected tests. Automatic report generation gives you a jump on documentation.
Included Description 5 Series MSO 6 Series MSO
Starter Bundle Embedded serial decode/trigger and integrated AFG (See page 3 for details.)
5-RL-125M Extend record length to 125 million sample points per channel
6-RL-2 Extend record length to 250 million sample points per channel
CMCPHY20 MIPI C-PHY 2.0 TX compliance testing (requires Opt. DJA)*
CMDPHY21 MIPI D-PHY 2.1 conformance testing (requires Opt. DJA)*
CMENET Ethernet (10/100/1000BASE-T) compliance testing*
CMENETML Multilane Ethernet option for CMENET (10/100/1000BASE-T)*
CMINDUEN10 Industrial Ethernet (10BASE-T1L Long reach) automated compliance testing*
CMUSB2 USB2 automated compliance testing*
CMDDR3 DDR3 automated compliance testing*
CMDHPY D-PHY-Tx 1.2 automated compliance testing*
CMNBASET NBASE-T automated compliance testing*
CMXGBT XGbT automated compliance testing*
DBDDR3 DDR3/LPDDR3 analysis and debug*
DJA Advanced jitter analysis
PWR Advanced power measurements and analysis (includes PSRR, control loop analysis & impedance measurement)
1 YR Licenses 5-PRO-COMPL-1Y 6-PRO-COMPL-1Y
Perpetual Licences 5-PRO-COMPL-PER 6-PRO-COMPL-PER
*Requires optional solid-state drive with Windows operating system (5-WIN / 6-WIN)

Pro Bundle | AUTOMOTIVE

Especially for ECU designers, this bundle provides outstanding system visibility for validations and troubleshooting. It includes support for important automotive protocols, and serial standards compliance testing and debugging.

Automated decoding and triggering speeds debug.
Automated decoding and triggering speeds debug.
Unique signal separation for Automotive Ethernet on 5 & 6 Series MSOs.
Unique signal separation for Automotive Ethernet on 5 & 6 Series MSOs.
Included Description 4 Series MSO 5 Series MSO 6 Series MSO
Starter Bundle Embedded serial decode/trigger and integrated AFG (See page 3 for details.)
4-RL-1 Extend record length to 62.5 million sample points per channel
5-RL-125M Extend record length to 125 million sample points per channel
6-RL-2 Extend record length to 250 million sample points per channel
AUTOEN-SS Signal separation for 100/1000BASE-T1 signals*

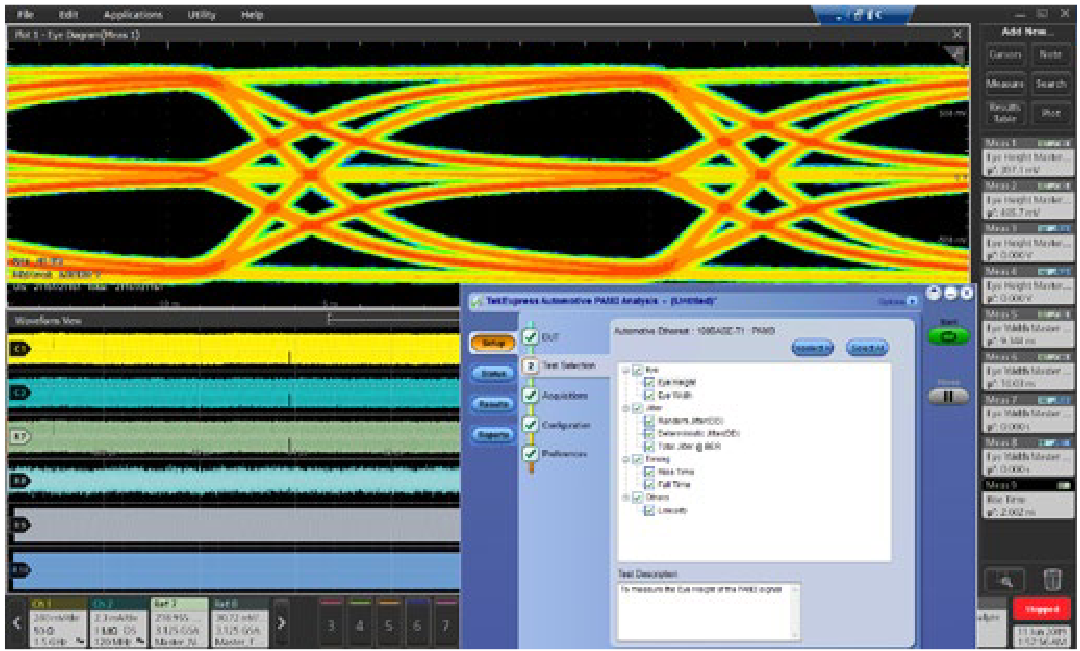

CMAUTOEN Automotive Ethernet (100/1000BASE-T1) automated compliance testing*
CMAUTOEN10 Automotive Ethernet (10BASE-T1S Short Reach ) automated compliance testing*
CMAUTOEN10G Multi-Gigabit Ethernet (2.5G/5GBASE-T1) automated compliance testing*
CMDPHY D-PHY-Tx 1.2 automated compliance testing*
CMDPHY21 MIPI D-PHY 2.1 conformance testing
DJA Advanced jitter analysis
IMDA 3-phase inverters, motors and drives analysis
IMDA-DQO DQ0 measurements for IMDA
IMDA-MECH Mechanical measurements for IMDA
PAM3 PAM3 signal analysis*
PWR Advanced power measurements and analysis (includes PSRR, control loop analysis & impedance measurement)
SRAUTO Automotive serial decoding, triggering and analysis (CAN, CAN FD, CAN XL, LIN, FlexRay)
SRAUTOEN1 100BASE-T1 protocol decode and analysis
SRAUTOSEN SENT serial decoding and analysis
SRCXPI CXPI serial decoding and analysis
SRI3C I3C serial decoding and analysis
SRPSI5 PSI5 serial decoding and analysis
WBG-DPT Wide bandgap SiC/GaN double pulse test measurements
1 YR Licenses 4-PRO-AUTO-1Y 5-PRO-AUTO-1Y 6-PRO-AUTO-1Y
Perpetual Licences 4-PRO-AUTO-PER 5-PRO-AUTO-PER 6-PRO-AUTO-PER
*Requires optional solid-state drive with Windows operating system (5-WIN / 6-WIN)

Pro Bundle | AEROSPACE

Includes serial bus decoding for protocols used in the aerospace industry, as well as support for generic encoding schemes such as NRZ and Manchester. Mask and limit testing make it easy to automate testing of unique signals.

Gain fast visibility into aerospace systems.
Gain fast visibility into aerospace systems.
Included Description 4 Series MSO 5 Series MSO 6 Series MSO
Starter Bundle Embedded serial decode/trigger and integrated AFG (See page 3 for details.)
4-RL-1 Extend record length to 62.5 million sample points per channel
5-RL-125M Extend record length to 125 million sample points per channel
6-RL-2 Extend record length to 250 million sample points per channel
DJA Advanced jitter analysis
PWR Advanced power measurements and analysis (includes PSRR, control loop analysis & impedance measurement)
MTM Mask and limit testing
SRMANCH Manchester serial decoding and analysis
SRAERO Aerospace serial bus triggering and analysis (MIL-STD-1553, ARINC 429)
SRNRZ NRZ serial decoding and analysis
SRSPACEWIRE SpaceWire serial bus decoding and analysis
1 YR Licenses 4-PRO-MILGOV-1Y 5-PRO-MILGOV-1Y 6-PRO-MILGOV-1Y
Perpetual Licences 4-PRO-MILGOV-PER 5-PRO-MILGOV-PER 6-PRO-MILGOV-PER

Ultimate Bundle

The Ultimate Bundle offers the most capabilities and the highest savings in a single package.

ulltimate bundle

It includes:

  • All the capabilities of the Starter Bundle, including embedded serial decode/trigger and integrated AFG
  • All the capabilities of ALL Pro Bundles
  • Increased record length on the 5 and 6 Series MSOs, – 500 Mpoints on the 5 Series MSO or 1 Gpoints on the 6 Series MSO.
  • Wideband, synchronized spectrum analysis
    • Spectrum View RF vs. time waveforms and triggering
    • Expanded spectrum capture bandwidth
  • Video triggering
Included Description 4 Series MSO 5 Series MSO 6 Series MSO
Starter Bundle 4, 5 or 6 Series MSOs equipped with a Starter Bundle will be able to decode and trigger on I2C, SPI, RS232/422/485/UART bus activity. An integrated arbitrary/function generator with 13 predefined functions and arbitrary waveforms are included.
ALL Pro Bundles Serial Decode
Power
Signal Integrity
Standards Compliance
Automotive
Aerospace
These Addional Features Spectrum View RF vs Time waveforms and triggering
Extended Spectrum View capture bandwidth
Video triggering
Extend record length to 500 Mpoints per channel
Extend record length to 1 Gpoints per channel
1 YR Licenses 4-ULTIMATE-1Y 5-ULTIMATE-1Y 6-ULTIMATE-1Y
Perpetual Licences 4-ULTIMATE-PER 5-ULTIMATE-PER 6-ULTIMATE-PER

For more information, pricing, and to determine which Application Bundle is right for your needs please contact your local Tektronix account manager.

Find more valuable resources at TEK.COM


Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

3/2024 48W-73761-8
