Tektronix Logic Analyzers

TLA7Dx/Ex Digital Storage Oscilloscope Modules

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

TLA7Dx/Ex Digital Storage Oscilloscope Modules

Features & Benefits

  • 2/4 Channel Digitizing Oscilloscope Modules with 15 Kb Memory Depth
  • Up to 1 GHz Bandwidth Provides High-fidelity Signal Quality Measurements of Digital Signals
  • Up to 5 GS/s Sample Rate Provides High Resolution Analog Views of Digital Signals
  • Advanced Digital Oscilloscope Triggering Helps Find Elusive Analog Anomalies in Digital Signals

Applications

  • Digital Hardware Verification and Debug
  • Monitor & Measure Digital Hardware Performance

Breakthrough Solutions for Real-time Digital Systems Analysis

The TLA700 Series offers a range of digitizing oscilloscope modules that provide the acquisition capabilities of the world's best digitizing oscilloscopes, tightly integrated with the TLA700 logic analyzers. The 2 and 4 channel digitizing oscilloscope modules available in the TLA700 Series offer sample rates of up to 5 GS/s and bandwidths of up to 1 GHz, with 15 Kb memory depth per channel at all times.

The digitizing oscilloscope modules offer precise time correlation and flexible cross-triggering with other installed modules. This enables you to see the quality of critical signals time-correlated with the digital signals represented by the logic analyzer modules.

These modules offer the triggering you expect from a Tektronix digital oscilloscope: Pulse Width, Runt, Glitch, Slew Rate, Logic Pattern, Setup-and-Hold Violation, Edge and Timeout.

Characteristics

General

Number of Channels per Module -

TLA7E2: 4 channels.

TLA7D1: 2 channels.

Sample Rate -

TLA7E2: 5 GS/s on all channels.

TLA7D1: 2.5 GS/s on all channels.

Bandwidth (at probe tips) -

TLA7E2:

100 mV to 10 V range: 1 GHz.

50 mV to 99.8 mV range: 900 MHz.

20 mV to 49.8 mV range: 600 MHz.

TLA7D1:

500 MHz on all channels in all ranges.

Memory Depth - 15,000 samples per channel in all modes.

Number of Mainframe Slots Required -  2.

Vertical System

Input Sensitivity Range - 10 mV to 100 V full scale.

Vertical Resolution - 8-Bit (256 levels).

DC Gain Accuracy - ±1.5% of full scale range.

Analog Bandwidth Selections - 20 MHz, 250 MHz, and Full.

Input Coupling - AC, DC or GND.

Input Impedance Selections - 1 MΩ in parallel with 10 pF, or 50 Ω.

AC Coupled Lower Frequency Limit - ≤10 Hz when AC 1 MΩ coupled, ≤200 kHz when AC 50 Ω coupled.

Maximum Input Voltage at Probe Connector - 300 VRMS, but no greater than ±420 Vp (1 MΩ or ground input coupling).

Probe Input Characteristics

Probe Input Interface - TEKPROBE™ probe interface.

Input Loading - Less than 1 pF in parallel with 1 MΩ with either P6243 or P6245.

Usable Input Voltage Range at Probe Tip - P6243 Probe: ±8 V. P6245 Probe: ±18 V.

Acquisition System

Sample Rate Range - 200 ps to 200 ms in 1, 2.5, 5 sequence.

Timebase Accuracy - ±100 ppm over any interval ≥1 ms.

Record Length Range - 512 to 15,000 samples per channel in all modes.

Acquisition Modes - Single-shot, repetitive.

Trigger System

Trigger Modes - Normal, auto.

Trigger Position - Anywhere in the acquired record (pre-fill can be set anywhere from 0% to 100%).

Trigger Types - Edge, pulse width, timeout, glitch, runt, slew rate, logic pattern, setup-and-hold violation.

Trigger Actions - Trigger, trigger all, set signal, arm, immediate, wait for system trigger.

Edge Trigger - Conventional level driven trigger, positive or negative slope, on any channel or external trigger input. Coupling Selections: DC, AC, noise reject, HF reject, LF reject.

A000_1104-N

Edge trigger.

Pulse Width Trigger - Triggers on width of positive or negative pulse, either within or not within selectable time limits; settable from 2 ns to 1 s.

A000_1105-N

Pulse Width trigger.

Timeout Trigger - Triggers when a pulse fails to complete when specified; settable from 2 ns to 1 s.

A000_1106-N

Timeout trigger.

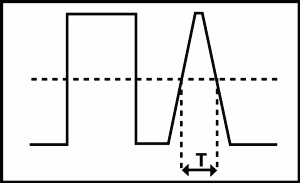

Glitch Trigger - Triggers on (or rejects) glitches of positive, negative, or either polarity; settable from 2 ns to 1 s. Minimum glitch width: 2.0 ns, with 200 ps resolution (2 ns to 10 ns settings).

A000_1107-N

Glitch trigger.

Runt Pulse Trigger - Triggers on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again; settable from 2 ns to 1 s.

A000_1108-N

Runt Pulse trigger.

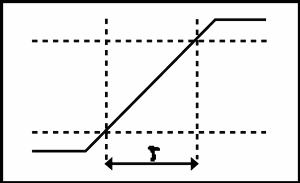

Slew Rate Trigger - Triggers on pulse edge rates that are either faster or slower than a set rate, edges can be rising, falling, or either; settable from 2 ns to 1 s.

A000_1109-N

Slew Rate trigger.

Logic Pattern Trigger - Triggers when a logical combination (AND, OR) of all the input channels (Hi, Lo, Don't Care) stays true or false for a specified period of time; settable from 2 ns to 1 s.

A000_1110-N

Logic Pattern trigger.

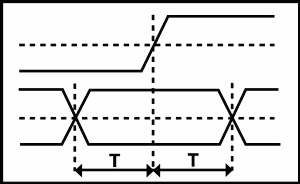

Setup-and-hold Trigger - Triggers on violations of both setup time and hold time between clock and data which are on separate input channels; setup time settable from -100 ns to +100 ns in 200 ps increments; hold time settable from -1 ns to +102 ns; minimum settable window of setup time + hold time is 2 ns.

A000_1111-N

Setup-and-hold trigger.

Safety - CSA C22.2 No. 1010.1, EN61010-1, IEC61010-1, UL 3111-1.

Physical

Physical Characteristics

Dimensions

mm

in.

Weight

kg

lb.

Height

262

10.3

Width

61

2.4

Depth

381

15

Net

2.7

5.8

Shipping

5.8

12.8

P6243 Probe Cable Length - 1.3 m (51 in.).

P6245 Probe Cable Length - 1.3 m (51 in.).

Ordering Information

Digitizing Oscilloscope Modules

Includes: Probes, certificate of calibration, and one-year warranty (return to Tektronix), and user manual.

TLA7D1 - 2-Channel DSO module, 500 MHz bandwidth, 2.5 GS/s sample rate, 15 K depth (includes two P6243 1.0 GHz active FET probes, probe calibration adapter and manual).

TLA7E2 - 4-Channel DSO module, 1 GHz bandwidth, 5 GS/s sample rate, 15 K depth (includes four P6245 1.5 GHz active FET probes, probe calibration adapter and manual).

TLA700 Series DSO Module Upgrades

You can install a TLA7Dx/Ex digitizing oscilloscope module into an existing TLA714/715/720/721/7XM mainframe. Please refer to the TLA Family Upgrade Guide for further details.

DSO Module Accessories
A000_1112-N

P6243 - 1.0 GHz Active FET Probe and accessories, length 1.5 m.

P6245 - 1.5 GHz Active FET Probe and accessories, length 1.5 m.

P6243/P6245 Probe Accessories

Part Number

Description

003-1383-00

Compensation box and cover removal tool

003-1433-00

Adjustment tool

016-1315-00

2 each - 5 colors of cable markers

131-5638-10

10 each - solderable probe tips

131-5777-00

100 mil square pin ground adapter

196-3410-00

Ground lead set includes:

N/A

2 each - 1 in., 3 in., 6 in. ground leads w/ square pin receptacle;

N/A

2 each - Y lead adapters

196-3439-00

1 in. ground lead

206-0364-00

SMT KlipChip, 1 each

214-4227-00

Right angle square pin adapter

SF501

SureFoot® probe tip adapter, pkg. of 12, yellow, 50 mil pitch

SF502

SureFoot probe tip adapter, pkg. of 12, blue, 25 mil/0.65 mm pitch

SF503

SureFoot probe tip adapter, pkg. of 12, red, 0.5 mm pitch

SMG50

SMT KlipChip grabber tip, 20 each

SMK4

Micro KlipChip adapter, 4 each

070-9408-00

P6243 Instruction Manual

070-8995-01

P6245 Instruction Manual

TLA Family Service Option Availability



TLA6XX

TLA715/721

TLA7XM

TLA7Axx

TLA7NX/PX/QX

TLA7PG2

TLA7DX/EX

Opt. IN



X

X

X

X

X

X

Opt. R3

X

X

X

X

X

X

X

Opt. R5

X

X

X

X

X

X

X

Opt. S1



X

X









Opt. S3



X

X









Opt. C3

X

X



X

X



X

Opt. C5

X

X



X

X



X

Opt. D1

X

X



X

X



X

Opt. D3

X

X



X

X



X

Opt. D5

X

X



X

X



X

Service

Opt. C3 - Calibration Service 3 Years

Opt. C5 - Calibration Service 5 Years

Opt. D1 - Calibration Data Report

Opt. D3 - Calibration Data Report 3 Years (with Option C3)

Opt. D5 - Calibration Data Report 5 Years (with Option C5)

Opt. R3 - Repair Service 3 Years

Opt. R5 - Repair Service 5 Years

Opt. IN - Product Installation Service
