Passive 10X Voltage Probe

TPP0100, TPP0101 Datasheet

More Information

Read Online:

TPP0100 TPP0101 Passive 10X Voltage Probe EN US 51W 25690 4
TPP0100, TPP0101 Datasheet

The TPP0100 and TPP0101 probes are 100 MHz, 10X passive voltage probes with 10 MΩ input resistance.

Key features

  • 10X Attenuation
  • 100 MHz Bandwidth
  • 1.3 m Length
  • UL61010-031; 2007, CAN/CSA C22.2 No. 61010-031-07, IEC61010-031; IEC 61010-031/A1:2008
  • Applications:
    • Relative low-frequency measurements
    • Low-frequency computer and telecom measurements
    • Power supplies
    • Low-frequency amplifiers

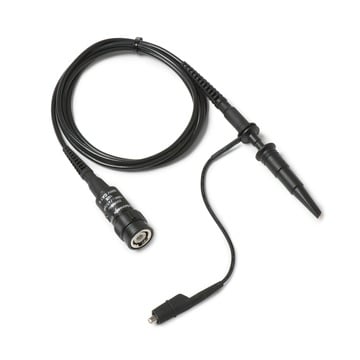

TPP0100, TPP0101 Passive Voltage probes

The TPP0100 and TPP0101 probes are for use on BNC oscilloscopes with 1 MΩ/13 pF (TPP0100) and 1 MΩ/20 pF (TPP0101) inputs.

For a complete list of compatible oscilloscopes, refer to the Tektronix Oscilloscope Probe & Accessory Selector Tool at http://www.tek.com/probes.

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Electrical characteristics

Bandwidth
DC to 100 MHz
Rise time
<3.5 ns (typical)
Compensation range
TPP0100
8 pF to 18 pF
TPP0101
15 pF to 25 pF
Input resistance
10 MΩ ±1.5%
Input capacitance
<12 pF (typical)
Propagation delay
~6.1 ns
Maximum input voltage
300 VRMS CAT II

Physical characteristics

Probe cable length
1.3 m (4.2 ft)

EMC, environment, and safety

Temperature range
Operating

-10 °C to +55 °C (14 °F to 131 °F)

Non-operating

-51 °C to +71 °C (-60 °F to 160 °F)

Humidity
Operating and non-operating
5% to 95% relative humidity (%RH) up to 30 °C (86 °F), 5% to 65% RH above +30 °C (86 °F) up to +55 °C (131 °F)
Altitude
Operating
<3 km (9,842 ft)
Non-operating
<12.2 km (40,026 ft)

Ordering information

Models

TPP0100
For use with BNC oscilloscopes with 1 MΩ, 13 pF inputs
TPP0101
For use with BNC oscilloscopes with 1 MΩ, 20 pF inputs

Probe packages

TPP0101-PK10
10-pack of TPP0101 probes
TPP0101-PK50
50-pack of TPP0101 probes

Standard accessories

003-1433-xx
Adjustment tool
013-0362-xx
Retractable hook tip
016-0633-xx
Color bands, 5 pairs
016-2028-xx
Long ground spring, 2 each
196-3521-xx
6 in. alligator ground lead

Warranty

One-year warranty covering all parts and labor.

Recommended accessories

013-0363-xx
Micro hook tip
013-0366-xx
Universal IC cap
013-0367-xx
BNC-to-probe tip adapter, unterminated
016-2016-xx
PCB-to-probe tip adapter, 10-pack
016-2034-xx
Short ground spring, 2 each
131-8831-xx
Compact probe-tip chassis mount
196-3198-xx
6 in. clip-on ground lead with 0.025 in. pin receptacle
196-3512-xx
12 in. alligator ground
206-0569-xx
MicroCKT test tip
