Passive 10X Voltage Probe

TPP0200, TPP0201 Datasheet

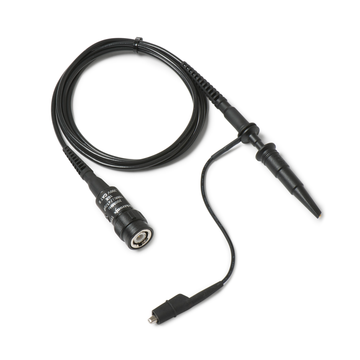

The TPP0200 and TPP0201 probes are 200 MHz, 10X passive voltage probes with 10 MΩ input resistance.

Key features

10X Attenuation
200 MHz Bandwidth
1.3 m Length
UL61010-031; 2007, CAN/CSA C22.2 No. 61010-031-07, IEC61010-031; IEC 61010-031/A1:2008
Applications:
- Relative low-frequency measurements
- Low-frequency computer and telecom measurements
- Power supplies
- Low-frequency amplifiers

TPP0200, TPP0201 Passive Voltage probes

The TPP0200 and TPP0201 probes are for use on BNC oscilloscopes with 1 MΩ/13 pF (TPP0200) and 1 MΩ/20 pF (TPP0201) inputs.

For a complete list of compatible oscilloscopes, refer to the Tektronix Oscilloscope Probe & Accessory Selector Tool at http://www.tek.com/probes.

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Electrical characteristics

Bandwidth: DC to 200 MHz

Rise time: <2.3 ns (typical)

Compensation range

TPP0200: 8 pF to 18 pF
TPP0201: 15 pF to 25 pF

Input resistance: 10 MΩ ±1.5%

Input capacitance: <12 pF (typical)

Propagation delay: ~6.1 ns

Maximum input voltage: 300 V_RMS CAT II

Physical characteristics

Probe cable length: 1.3 m (4.2 ft)

EMC, environment, and safety

Temperature range

Operating: -10 °C to +55 °C (14 °F to 131 °F)
Non-operating: -51 °C to +71 °C (-60 °F to 160 °F)

Humidity

Operating and non-operating: 5% to 95% relative humidity (%RH) up to 30 °C (86 °F), 5% to 65% RH above +30 °C (86 °F) up to +55 °C (131 °F)

Altitude

Operating: <3 km (9,842 ft)
Non-operating: <12.2 km (40,026 ft)

Ordering information

TPP0200: For use with BNC oscilloscopes with 1 MΩ, 13 pF inputs
TPP0201: For use with BNC oscilloscopes with 1 MΩ, 20 pF inputs

Probe packages

TPP0201-PK10: 10-pack of TPP0201 probes
TPP0201-PK50: 50-pack of TPP0201 probes

Standard accessories

003-1433-xx: Adjustment tool
013-0362-xx: Retractable hook tip
016-0633-xx: Color bands, 5 pairs
016-2028-xx: Long ground spring, 2 each
196-3521-xx: 6 in. alligator ground lead

Warranty

One-year warranty covering all parts and labor.

Recommended accessories

196-3556-xx: Electrical Y-lead
013-0363-xx: Micro hook tip
013-0366-xx: Universal IC cap
013-0367-xx: BNC-to-probe tip adapter, unterminated
016-2016-xx: PCB-to-probe tip adapter, 10-pack
016-2034-xx: Short ground spring, 2 each
131-8831-xx: Compact probe-tip chassis mount
196-3198-xx: 6 in. clip-on ground lead with 0.025 in. pin receptacle
196-3512-xx: 12 in. alligator ground
206-0569-xx: MicroCKT test tip
