PSPL5935 Low-Pass Filter Datasheet
PSPL5935 Datasheet
The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.
![](/-/media/datasheets/pspl5935datasheet5371211sjpg.jpg?h=96&iar=0&w=180)
PSPL5935 Datasheet
The PSPL5935 Low-Pass Filters are designed for OEM use in high speed digital networks and telecom systems. The devices use a proprietary, absorptive filter design that has attenuation and group delay frequency responses similar to those of the 4th order Bessel-Thomson filter. Traditional Bessel-Thomson designs filter by reflecting stop-band frequency signals and thus can cause increased bit error rates and eye diagram closure due to multiple reflections. By contrast, the PSPL5935 filters by absorption. They have excellent impedance matches and very good return losses, both within and above the filter pass band. This filter is bi-directional, so either port may be used as the input.
Key performance specifications
- Gaussian insertion loss profile
- Flat group delay
- Z-matched
- No reflection
- Rise time values of 12.6 to 33 ps
- -3 dB frequencies from 10 to 28 GHz
- 25 dBm RF power
Typical performance, option 10GHZ
![PSPL5935-Datasheet--537121-9-N.jpg PSPL5935-Datasheet--537121-9-N](/-/media/sites/default/files/datasheets/pspl5935/pspl5935-datasheet--537121-9-n.jpg)
Typical performance, option 12P5GHZ
![PSPL5935-Datasheet--537121-10-N.jpg PSPL5935-Datasheet--537121-10-N](/-/media/sites/default/files/datasheets/pspl5935/pspl5935-datasheet--537121-10-n.jpg)
Typical performance, option 15GHZ
![PSPL5935-Datasheet--537121-11-N.jpg PSPL5935-Datasheet--537121-11-N](/-/media/sites/default/files/datasheets/pspl5935/pspl5935-datasheet--537121-11-n.jpg)
Typical performance, option 17P5GHZ
![PSPL5935-Datasheet--537121-12-N.jpg PSPL5935-Datasheet--537121-12-N](/-/media/sites/default/files/datasheets/pspl5935/pspl5935-datasheet--537121-12-n.jpg)
Typical performance, option 20GHZ
![PSPL5935-Datasheet--537121-13-N.jpg PSPL5935-Datasheet--537121-13-N](/-/media/sites/default/files/datasheets/pspl5935/pspl5935-datasheet--537121-13-n.jpg)
Typical performance, option 22P5GHZ
![PSPL5935-Datasheet--537121-14-N.jpg PSPL5935-Datasheet--537121-14-N](/-/media/sites/default/files/datasheets/pspl5935/pspl5935-datasheet--537121-14-n.jpg)
Typical performance, option 25GHZ
![PSPL5935-Datasheet--537121-15-N.jpg PSPL5935-Datasheet--537121-15-N](/-/media/sites/default/files/datasheets/pspl5935/pspl5935-datasheet--537121-15-n.jpg)
Typical performance, option 28GHZ
![PSPL5935-Datasheet--537121-16-N.jpg PSPL5935-Datasheet--537121-16-N](/-/media/sites/default/files/datasheets/pspl5935/pspl5935-datasheet--537121-16-n.jpg)
Typical performance, option 20PS
![PSPL5935-Datasheet--537121-17-N.jpg PSPL5935-Datasheet--537121-17-N](/-/media/sites/default/files/datasheets/pspl5935/pspl5935-datasheet--537121-17-n.jpg)
Specifications
All specifications apply to all models unless noted otherwise.
Parameter 1 |
Opt. 10GHZ |
Opt. 12P5GHZ |
Opt. 15GHZ |
Opt. 17P5GHZ |
Opt. 20GHZ |
Opt. 22P5GHZ |
Opt. 25GHZ |
Opt. 28GHZ |
Opt. 20PS |
||
---|---|---|---|---|---|---|---|---|---|---|---|
Bandwidth | -3 dB with respect to S21 at 100 MHz | Minimum | 9.7 GHz | 12.1 GHz | 14.5 GHz | 16.9 GHz | 19.4 GHz | 21.5 GHz | 24.2 GHz | 27.2 GHz | 16.8 GHz |
Typical | 10.0 GHz | 12.5 GHz | 15.0 GHz | 17.5 GHz | 20.0 GHz | 22.5 GHz | 25.0 GHz | 28.0 GHz | 17.2 GHz | ||
Maximum | 10.3 GHz | 12.9 GHz | 15.5 GHz | 18.0 GHz | 20.6 GHz | 23.2 GHz | 25.8 GHz | 28.8 GHz | 17.6 GHz | ||
Rise time | 10% to 90% | 33 ps | 27 ps | 23 ps | 19 ps | 17 ps | 16 ps | 14 ps | 12.6 ps | 20 ps | |
Group Delay | 100 MHz to 40 GHz |
158 ps | 155 ps | 153 ps | 151 ps | 149 ps | 149 ps | 148 ps | 160 ps | 159 ps | |
Return Loss | see plots | -12 dB 0 – 25 GHz |
-12 dB 0 – 30 GHz |
-12 dB 0 - 30 GHz |
-12 dB 0 – 30 GHz |
-10 dB 0 – 40 GHz |
-12 dB 0 – 30 GHz |
-10 dB 0 – 30 GHz |
-15 dB 0 - 15 GHz |
-17 dB 0 – 20 GHz |
|
-10 dB 30 – 35 GHz |
-10 dB 30 – 40 GHz |
-10 dB 30 – 40 GHz |
-8 dB 30 – 40 GHz |
-9 dB 15 - 40 GHz |
-15 dB 20 – 40 GHz |
||||||
Max Power, CW | 25 dBm | ||||||||||
Storage Temperature | Case | -25 °C, minimum +90 °C, maximum |
|||||||||
Impedance | 50 Ω | ||||||||||
Warranty | One year |
1 All parameters listed are typical unless max/min guaranteed limits are provided.

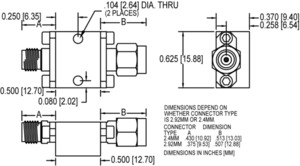

Ordering information
Models
- PSPL5935
- Low-Pass Filter
Options
- PSPL5935 240JP
- 2.4 mm connectors, jack (f) & plug (m)
- PSPL5935 292JP
- 2.92 mm connectors, jack (f) & plug (m)
- PSPL5935 10GHZ
- 10 GHz 3 dB frequency
- PSPL5935 12P5GHZ
- 12.5 GHz 3 dB frequency
- PSPL5935 15GHZ
- 15 GHz 3 dB frequency
- PSPL5935 17P5GHZ
- 17.5 GHz 3 dB frequency
- PSPL5935 20GHZ
- 20 GHz 3 dB frequency
- PSPL5935 22P5GHZ
- 22.5 GHz 3 dB frequency
- PSPL5935 25GHZ
- 25 GHz 3 dB frequency
- PSPL5935 28GHZ
- 28 GHz 3 dB frequency
- PSPL5935 20PS
- 20 ps Rise time
