TIVM1, TIVM1L, TIVM05, TIVM05L, TIVM02, TIVM02L Datasheet

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

More Information

Read Online:

TIVM 51W607782
TIVM1, TIVM1L, TIVM05, TIVM05L, TIVM02, TIVM02L Datasheet

The Tektronix TIVM Series IsoVu® Measurement System offers a galvanically isolated measurement solution for accurately resolving high bandwidth, differential signals up to ±50 Vpk in the presence of large common mode voltages with the best in class common mode rejection performance across its bandwidth.

Features and benefits

  • Bandwidths from DC to 1 GHz
  • 1 Million to 1 (120 dB) Common Mode Rejection up to 100 MHz
  • 10,000 to 1 (80 dB) Common Mode Rejection at 1 GHz
  • 60 kV peak Common Mode Voltage
  • Up to ±50 V Differential (DC + pk AC)
  • Output Clamping
  • Safety Certified

Applications

  • Half/Full Bridge designs using GaN, SiC, IGBTs
  • Floating Measurements
  • Power Converter Design
  • Power Device Evaluation
  • Switching Power Supply Design
  • Inverter Design
  • Motor Drive Design
  • Electronic Ballast Design
  • EMI
  • ESD
  • Current shunt measurements
  • Remote probing capability

Product Description

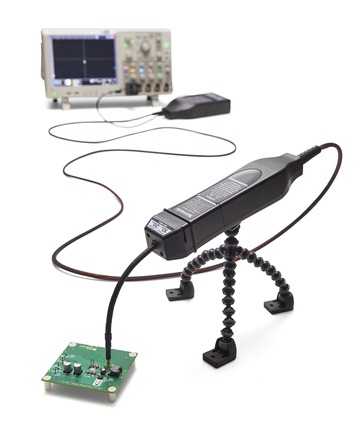

The TIVM Series (IsoVu) products can be used on most Tektronix oscilloscopes with the TekVPI interface and on MSO/DPO70K series oscilloscopes with the TCA-VPI50 adapter. IsoVu utilizes an electro-optic sensor that converts the electrical signal from the sensor tip cables to an optical signal, which electrically isolates the device-under-test from the oscilloscope. IsoVu incorporates four separate lasers, an optical sensor, five optical fibers, and sophisticated feedback and control techniques. The sensor head, which connects to the test point, has complete electrical isolation and is powered over one of the optical fibers (No batteries required). IsoVu is an ideal solution for users making the following measurements:

  • Differential measurements in the following conditions:
    • Complete galvanic isolation is required
    • High common mode voltage
    • High frequency common mode interference
    • High frequency measurements
  • Measurements in high EMI environments
  • EMI compliance testing
  • ESD testing

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Overview
Characteristic TIVM1/TIVM1L TIVM05/TIVM05L TIVM02/TIVM02L
Bandwidth/Rise time (Typical) 1 GHz / ≤ 350 ps 500 MHz / ≤ 700 ps 200 MHz / ≤ 1.8 ns
Fiber cable length TIVM1: 3 m (9.8 ft) TIVM05: 3 m (9.8 ft) TIVM02: 3 m (9.8 ft)
TIVM1L: 10 m (32.8 ft) TIVM05L: 10 m (32.8 ft) TIVM02L: 10 m (32.8 ft)
Attenuation
Five sensor tip cables with the following attenuation options:
Sensor tip cable 1X Range on the controller 2X Range on the controller
IVTIP1X, 1X Sensor tip cable1X (÷1) 2X (÷2)
IVTIP5X, 5X Sensor tip cable5X (÷5) 10X (÷10)
IVTIP10X, 10X Sensor tip cable 10X (÷10) 20X (÷20)
IVTIP25X, 25X Sensor tip cable 25X (÷25) 50X (÷50)
IVTIP50X, 50X Sensor tip cable 50X (÷50) 100X (÷100)
Common mode voltage
60 kV peak
Common mode rejection ratio (Typical)
Sensor tip cable/adapter DC 100 MHz 200 MHz 500 MHz 1 GHz
IVTIP1X, 1X Sensor tip cable > 120 dB 120 dB 110 dB 100 dB 90 dB
IVTIP5X, 5X Sensor tip cable > 120 dB 120 dB 110 dB 100 dB 90 dB
IVTIP10X, 10X Sensor tip cable > 120 dB 120 dB 110 dB 100 dB 90 dB
IVTIP25X, 25X Sensor tip cable > 120 dB 110 dB 100 dB 100 dB 90 dB
IVTIP50X, 50X Sensor tip cable > 120 dB 100 dB 90 dB 90 dB 80 dB
MMCX-to 0.1 in (2.54 mm) square pin adapter with sensor tip cable. > 120 dB 70 dB 60 dB 40 dB 30 dB
MMCX-to 0.062 in (1.57 mm) square pin adapter with sensor tip cable. > 120 dB 70 dB 60 dB 40 dB 30 dB
Differential input voltage (Typical)
IVTIP1X
±1 V (DC + Peak AC)
IVTIP5X
±5 V (DC + Peak AC)
IVTIP10X
±10 V (DC + Peak AC)
IVTIP25X
±25 V (DC + Peak AC)
IVTIP50X
±50 V (DC + Peak AC)
Maximum non-destructive voltage (Typical)
IVTIP1X
4.3 Vpk, 3 VRMS
IVTIP5X
21.5 Vpk, 12 VRMS
IVTIP10X
43 Vpk, 16 VRMS
IVTIP25X
107.5 Vpk, 25 VRMS
IVTIP50X
200 Vpk, 35 VRMS
Single-ended input impedance
Sensor tip cable Resistance Capacitance
IVTIP1X 50 Ω N.A.
IVTIP5X 250 Ω < 1 pF
IVTIP10X 500 Ω < 1 pF
IVTIP25X 1.25 kΩ < 1 pF
IVTIP50X 2.5 kΩ < 1 pF
Common mode input impedance (Typical)
Input resistance
Galvanically isolated through the fiber optic connection
Input capacitance
< 2 pF. The capacitance between the sensor head and a reference plane. The sensor head is placed six inches (15.25 cm) above the reference plane.
Input offset range (Typical)
IVTIP1X
±2 V
IVTIP5X
±10 V
IVTIP10X
±20 V
IVTIP25X
±50 V
IVTIP50X
±100 V
DC Gain accuracy
±3%
Propagation delay
3 meter fiber cable
35 ns ±5 ns
10 meter fiber cable
68 ns ±7 ns
Laser certification

CLASS I LASER PRODUCT

This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

Ordering information

Models

TIVM1
Tektronix IsoVu 1 GHz Medium Voltage with 3 m cable
TIVM1L
Tektronix IsoVu 1 GHz Medium Voltage with 10 m cable
TIVM05
Tektronix IsoVu 500 MHz Medium Voltage with 3 m cable
TIVM05L
Tektronix IsoVu 500 MHz Medium Voltage with 10 m cable
TIVM02
Tektronix IsoVu 200 MHz Medium Voltage with 3 m cable
TIVM02L
Tektronix IsoVu 200 MHz Medium Voltage with 10 m cable

TIVM series

Standard accessories

016-2108-xx
IsoVu product carrying case, soft case
016-2110-xx
IsoVu accessories carrying case, soft case
003-1946-xx
Solder aid for 0.062-inch (1.57 mm) pitch square pins (0.016 - 0.018-inch (0.4 - 0.46 mm) square pin installation tool)
IVTIP5X
5X Sensor tip cable
IVTIP25X
25X Sensor tip cable
003-1947-xx
5/16-inch SMA wrench/driver tool
131-9717-xx
Probe tip adapter (blue), MMCX to 0.1-inch (2.54 mm) square pin (0.025-inch (0.635 mm) square pins)
131-9677-xx
Probe tip adapter (white), MMCX to 0.062-inch (1.57 mm) square pin (0.016 - 0.018-inch (0.4 - 0.46 mm) square pins)
020-3169-xx
DUT Interface pin kit with (qty. 20) 0.018-inch (0.46 mm) round solder-in pins
352-1171-xx
Flexible tripod with quick release
344-0693-xx
Flexible tripod feet, 3 each
352-1170-xx
Probe tip tripod support with living hinge, 2 each
071-3495-xx
User manual (English)
Certificate of traceable calibration

Translated manuals can be downloaded as pdf files on your local Tektronix Web site.

Recommended accessories

IVTIP1X
1X Sensor tip cable
IVTIP10X
10X Sensor tip cable
IVTIP50X
50X Sensor tip cable

Supported oscilloscopes

The measurement system can be used with the following Tektronix oscilloscopes. For oscilloscopes not included in this list, contact your local Tektronix representative.

  • MDO3000 series
  • MSO/DPO4000B series
  • MDO4000B/C series
  • MSO/DPO5000B series
  • DPO7000C series

In addition to the above oscilloscopes, the measurement system can also be used with the following oscilloscopes with a TCA-VPI50 adapter.

  • MSO/DPO70000C series
  • MSO/DPO70000DX series
  • DPO70000SX series

Options

Service options

Opt. C3
Calibration Service 3 Years
Opt. C5
Calibration Service 5 Years
Opt. D1
Calibration Data Report
Opt. D3
Calibration Data Report 3 Years (with Opt. C3)
Opt. D5
Calibration Data Report 5 Years (with Opt. C5)
Opt. G3
Complete Care 3 Years (includes loaner, scheduled calibration, and more)
Opt. R3
Repair Service 3 Years (including warranty)
Opt. R5
Repair Service 5 Years (including warranty)

Probes and accessories are not covered by the oscilloscope warranty and Service Offerings. Refer to the datasheet of each probe and accessory model for its unique warranty and calibration terms.
