High-voltage Differential Probes

TMDP0200 - THDP0200 - THDP0100 - P5200A - P5202A - P5205A - P5210A

TMDP0200 - THDP0200 - THDP0100 - P5200A - P5202A - P5205A - P5210A

Tektronix offers a broad portfolio of high-voltage probing solutions that enable users to safely and accurately make floating measurements.

Key performance specifications

  • Bandwidths up to 200 MHz
  • Up to 6000 V differential (DC + pk AC)
  • Up to 2300 V common (RMS)

Key features

  • Overrange Indicator
  • Safety Certified
  • Switchable Attenuation
  • Switchable bandwidth limit

Applications

  • Floating measurements
  • Switching power supply design
  • Motor drive design
  • Electronic ballast design
  • CRT display design
  • Power converter design and service
  • Power device evaluation

Connectivity

  • BNC interface (P5200A probes)
  • TekVPI® interface (TMDP and THDP Series probes)
  • TekProbe® interface (P5202A, P5205A, and P5210A Series probes)

Safe high-voltage probe solutions

The THDP0100 and P5210A have the largest differential dynamic range capability from Tektronix, allowing users to safely measure up to ±6000 V. The THDP0100 supports bandwidths up to 100 MHz and slew rates up to 2500 V/ns at 1/1000 gain. These probes are supplied with two sizes of hook tips and have an overrange visual and audible indicator which warns the user when they are exceeding the linear range of the probe.

The THDP0200 and P5205A are active differential probes that are capable of safely measuring differential voltages up to ±1500 V. The probes are effective in making measurements in IGBT circuits such as motor drives and power converters. The THDP0200 supports bandwidths up to 200 MHz and slew rates up to 275 V/ns at 1/250 gain.

The TMDP0200 and P5202A are designed for medium-voltage applications with differential requirements up to ±750 V. These probes have lower attenuation ranges and offer better signal-to-noise ratio.

The P5200A can be used with any oscilloscope and enables users to safely make measurements of floating circuits with their oscilloscope grounded. The P5200A Active Differential Probe converts floating signals to low-voltage ground-referenced signals that can be displayed safely and easily on any ground-referenced oscilloscope.

For safe operation, do not use the P5200A High-voltage Differential Probe with oscilloscopes that have floating inputs (isolated inputs), such as the Tektronix TPS2000 and THS3000 Series oscilloscopes. The P5200A High-voltage Differential Probe requires an oscilloscope or other measurement instrument with grounded inputs.

Connectivity options

The TMDP and THDP Series probes are equipped with the TekVPI® interface which allows smart communication between the oscilloscope and probe. Pushing the probe menu button will launch the probe control menu on the oscilloscope display providing access to all relevant probe settings and controls. These probes are designed to operate on TekVPI® oscilloscopes without requiring the TPA-BNC adapter.

The P52xxA Series probes are equipped with the Tektronix TekProbe® interface which communicates scale information to the oscilloscope. Direct connections can be made to oscilloscopes configured with the TekProbe® interface or to any oscilloscope when used with the 1103 TekProbe® Power Supply.

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Model Overview

Probes with the TekVPI® interface
TMDP0200 THDP0200 THDP0100
Attenuation 25X / 250X 50X / 500X 100X / 1000X
Differential Voltage (Typical)250X: ±750 V 500X: ±1500 V 1000X: ±6000 V
25X: ±75 V 50X: ±150 V 100X: ±600 V
Common Mode Voltage (Typical)±750 V±1500 V ±6000 V
Maximum Input Voltage-to-Earth (Typical)450 V CAT I1000 V CAT II2300 V CAT I
300 V CAT III600 V CAT III 1000 V CAT III
Bandwidth (Typical)200 MHz 200 MHz 100 MHz
Rise Time <2 ns <2 ns <3.6 ns
Slew Rate (Typical)<275 V/ns at 1/250 gain <650 V/ns at 1/500 gain <2500 V/ns at 1/1000 gain
Input Impedance at the Probe Tip (Typical)5 MΩ || <2 pF 10 MΩ || <2 pF 40 MΩ || <2.5 pF
Typical CMRR (Typical)DC: > 80 dBDC: > 80 dBDC: > 80 dB
100 kHz: > 60 dB100 kHz: > 60 dB100 kHz: > 60 dB
3.2 MHz: > 30 dB3.2 MHz: > 30 dB3.2 MHz: > 30 dB
100 MHz: > 26 dB100 MHz: > 26 dB100 MHz: > 26 dB
Cable Length (Typical) 1.5 m 1.5 m 1.5 m
DC Gain Accuracy±2%±2%±2%
Probes with the BNC and TekProbe® interface
P5200A P5202A P5205A P5210A
Attenuation50X / 500X 20X / 200X 50X / 500X 100X / 1000X
Differential Voltage (Typical)500X: ±1300 V200X: ±640 V500X: ±1300 V1000X: ±5600 V
50X: ±130 V20X: ±64 V50X: ±130 V100X: ±560 V
Common Mode Voltage (Typical)±1300 V ±640 V ±1300 V ±5600 V
Maximum Input Voltage-to-Earth (Typical)1000 V CAT II 450 V CAT l

1000 V CAT II

2300 V CAT l
300 V CAT ll 1000 V CAT III
Bandwidth (Typical)50 MHz 100 MHz 100 MHz 50 MHz
Differential Input Impedance (Typical)10 MΩ || 2 pF 5 MΩ || 2 pF 10 MΩ || 2 pF 40 MΩ || 2.5 pF
Input Impedance between each Input and Ground (Typical)5 MΩ || 4 pF 2.5 MΩ || 4 pF 5 MΩ || 4 pF 20 MΩ || 5 pF
Typical CMRR (Typical)DC: >80 dBDC: >80 dB
100 kHz: >60 dB100 kHz: >60 dB
3.2 MHz: >30 dB3.2 MHz: >40 dB
50 MHz: >26 dB50 MHz: >30 dB
Cable length (Typical)1.5 m
DC Gain Accuracy±2%±2%±2%±2%

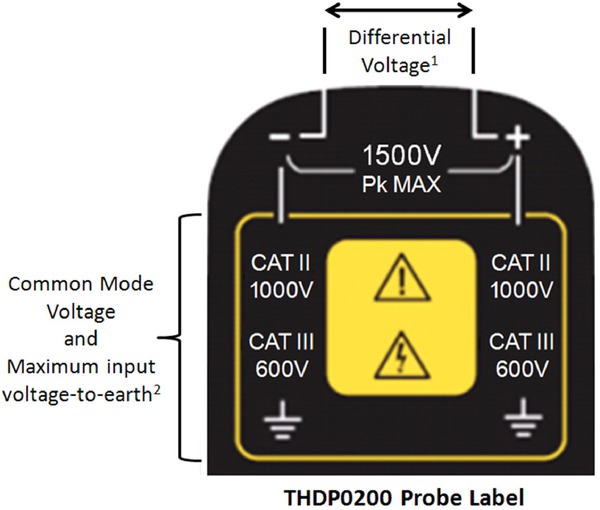

THDP0200 probe label

TMDP P5200Datasheet 51W1119515

1. The differential voltages the maximum measurable range between the (+) and (-) input leads of the probe. Beyond these limits, the output could be clipped.

2. The maximum common mode voltage and maximum input voltage-to-earth (RMS) are the maximum voltages that each input lead (+/-) can be from ground.

Ordering information

Use the following information to choose accessories and options for your probes.

Standard accessories

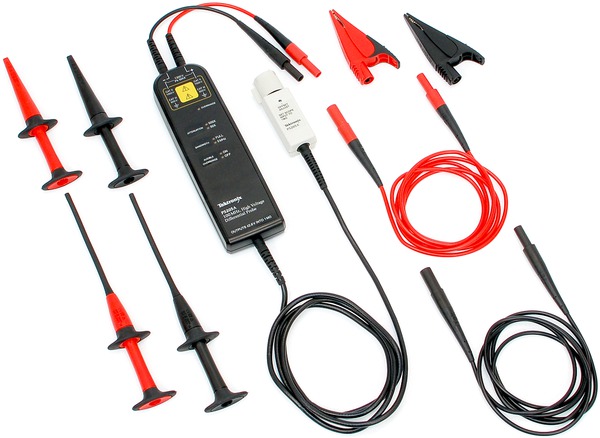

P5200A, P5202A, and P5205A

Description Quantity included Reorder part number
Hook clips 1 set of red and black hook clips AC280-FL
Pincer clips 1 set of red and black pincer clips AC283-FL
Alligator clips 1 set of red and black alligator clips AC285-FL
Extension cables 1 set of red and black extension cables 196-3523-00

TMDP0200 and THDP0200

Description Quantity included Reorder part number
Hook clips 2 AC280-FL
Pincer clips 2 AC283-FL
Alligator clips 2 AC285-FL
Extension cables 2 196-3523-00
Test leads 2 TP175 (must be ordered through Fluke).
Probe holder 1 TPH1000

THDP0100 and P5210A

Description Quantity included Reorder kit part number
Probe tips 2 020-3070-00
Large hook clips 2
Small hook clips 2

Probe and accessory derating table

Common mode, relative to ground, when used with P52xxA Series probes

Accessory Description TMDP0200 / P5202ATHDP0200 / P5200A / P5205ATHDP0100 / P5210A
450 V CAT I 1000 V CAT II 2300 V CAT I
300 V CAT II600 V CAT III 1000 V CAT III
196-3523-00 2x Extender Leads (1.5 m) Standard Standard Standard
2300 V CAT I 450 V CAT I 1000 V CAT II2300 V CAT I
1000 V CAT III 300 V CAT II600 V CAT III1000 V CAT III
AC280-FL 2x Hook Clips Standard Standard Optional
1000 V CAT III 450 V CAT I 1000 V CAT II 1000 V CAT I
600 V CAT IV300 V CAT II600 V CAT III1000 V CAT III
AC283-FL 2x Pincer ClipsStandard Standard Optional
1000 V CAT III 450 V CAT I 1000 V CAT II 1000 V CAT I
600 V CAT IV300 V CAT II 600 V CAT III1000 V CAT III
AC285-FL 2x Alligator Clips Standard Standard Optional
To prevent damage to the insulation on the AC285-FL alligator clips, do not use in high A/m magnetic fields at high frequencies, which can cause induction heating of the jaws. 1000 V CAT III 450 V CAT I 1000 V CAT II 1000 V CAT I
600 V CAT IV 300 V CAT II600 V CAT III 1000 V CAT III
020-3070-00 Hook Clip Kit Optional Optional Standard
2300 V CAT I 450 V CAT I 1000 V CAT II 2300 V CAT I
1000 V CAT II300 V CAT II 600 V CAT II 1000 V CAT II
TP1752x Test Leads Standard (TMDP0200) Standard (THDP0200) Optional
1000 V CAT III 550 V CAT I1000 V CAT II 2300 V CAT I
600 V CAT IV 300 V CAT III 600 V CAT III1000 V CAT III

Options

Power plug options (P5200A only)

Opt. A0
North America power plug (115 V, 60 Hz)
Opt. A1
Universal Euro power plug (220 V, 50 Hz)
Opt. A2
United Kingdom power plug (240 V, 50 Hz)
Opt. A3
Australia power plug (240 V, 50 Hz)
Opt. A4
North America power plug (240 V, 50 Hz)
Opt. A5
Switzerland power plug (220 V, 50 Hz)
Opt. A6
Japan power plug (100 V, 50/60 Hz)
Opt. A10
China power plug (50 Hz)
Opt. A11
India power plug (50 Hz)
Opt. A12
Brazil power plug (60 Hz)
Opt. A99
No power cord

Service options

Opt. C3
Calibration Service 3 Years
Opt. C5
Calibration Service 5 Years
Opt. D1
Calibration Data Report
Opt. D3
Calibration Data Report 3 Years (with Opt. C3)
Opt. D5
Calibration Data Report 5 Years (with Opt. C5)
Opt. R3
Repair Service 3 Years (including warranty)
Opt. R5
Repair Service 5 Years (including warranty)
Opt. SILV200
Standard warranty extended to 5 years

Probes and accessories are not covered by the oscilloscope warranty and Service Offerings. Refer to the datasheet of each probe and accessory model for its unique warranty and calibration terms.

TMDP P5200Datasheet 51W1119515
The P52xxA Series probes provide high-voltage differential measurement solutions for any oscilloscope.
