PSPL5587 2 GHz High Current Bias Tee Datasheet
PSPL5587 Datasheet
The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.
![](/-/media/datasheets/pspl5587datasheet0033841sjpg.jpg?h=158&iar=0&w=180)
PSPL5587 Datasheet
The PSPL5587 High Current Bias Tee is intended for frequency domain, high current applications. Unlike most high current bias tees that typically are specified for only an octave band, this bias tee can typically cover a decade. The DC input is a solder terminal feed-thru capacitor.
Key performance specifications
- 0.2 GHz to 2 GHz
- 100 V, 6 A
Typical performance
![PSPL5587-Datasheet-003384-9-N.jpg PSPL5587-Datasheet-003384-9-N](/-/media/sites/default/files/datasheets/pspl5587/pspl5587-datasheet-003384-9-n.jpg)
Insertion Loss, S21. 0.5 dB/div, top line is the 0 dB reference.
![PSPL5587-Datasheet-003384-10-N.jpg PSPL5587-Datasheet-003384-10-N](/-/media/sites/default/files/datasheets/pspl5587/pspl5587-datasheet-003384-10-n.jpg)
Return Loss, S11. 5 dB/div, top line is the 0 dB reference.
Specifications

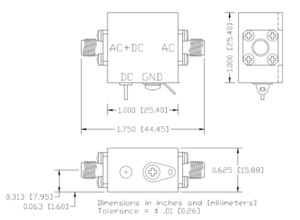

Parameter | Symbol | Units | Minimum | Typical | Maximum | Comments |
---|---|---|---|---|---|---|
Impedance | Z | ohms | 50 | |||
Frequency range | f | GHz | 0.2 to 2 0.3 to 1.8 | IL 10 dB IL 15 dB | ||
Insertion loss | S21 | dB | 0.05 | At 1 GHz | ||
Input (AC), Return loss | S11 | dB | >30 | Mid band, AC port | ||
DC voltage | V | V | 100 | |||
DC current | I | A | 6 | |||
Capacitance (bypass) | C | nF | 22 | |||
Capacitance | C | nF | 1 | |||
Inductance | L | nH | 88 | |||
Resistance | R | ohms | 0.2 | |||
RF power | P | W | 100 | Average power | ||
Isolation | S13 | dB | >50 | |||
DC path bandwidth | fc,DC | kHz | 275 | |||
Temperature | T | Deg C | -55 | +125 | Storage and operating | |
RF connectors | SMA jacks (f) | |||||
DC connector | Solder pin | |||||
Warranty | One year |
Ordering information
Models
- PSPL5587
- BIAS TEE, 0.2-2 GHz, 100 V, 6 A
