PSPL5840B 13.5 GHz Ultra-Broadband Amplifier Datasheet
PSPL5840B Datasheet
The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.
PSPL5840B Datasheet
This Ultra-Broadband Amplifier is an excellent choice for either pulse or RF applications. It offers a very attractive price/performance ratio. It is AC-coupled and extremely broadband, covering 5 ½ decades from 80 kHz to 13.5 GHz. It has a clean transient response and smooth gain vs. frequency response. This is a stable 50 Ω amplifier, and several can be connected in cascade for higher gains.
Key performance specifications
- 21 dB gain
- 80 kHz to 13.5 GHz bandwidth
- +12 dBm output
- Single 12 V power supply

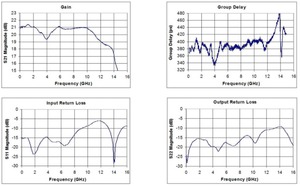

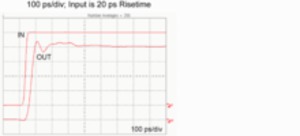

Typical performance
Specifications
| Parameter | Symbol | Units | Minimum 1 | Typical | Maximum | Comments |
|---|---|---|---|---|---|---|
| Impedance | Z | Ohms | 50 | |||
| Upper 3 dB freq. | fc,h | GHz | 11.5 | 13.5 | ||
| Lower 3 dB freq. | fc,I | kHz | 80 | |||
| Small signal gain | S21 | dB | 20 | 21 | Meas. at 100 MHz | |
| Return Loss, Input Output |
S11 S22 |
dB | >16 28 |
Meas. at 100 MHz | ||
| Isolation | S12 | dB | 38 | Meas. at 100 MHz | ||
| Rise Time Fall Time |
tr tf |
ps | 32 32 |
34 34 |
10-90%, 20 ps input | |
| Overshoot | % | 7 | 8.5 | 20 ps rise time input | ||
| Gain Flatness | dB | +/- 0.5 | f | |||
| Eff. Input RMS Noise Voltage | μV rms | 101 | ||||
| Noise Figure | dB | 5.8 | 8 | Meas. at 100 MHz | ||
| TDR Refl. Input Output |
% | +/- 1 -9 |
||||
| Max Power Out (-1 dB gain comp) |
dBm | +12 +14 +11 |
100 MHz 5 GHz 10 GHz |
|||
| Max RF In (cw) or peak pulse |
dBm mV |
0 315 |
Damage Threshold | |||
| Supply Voltage | VDC | V | 11.5 | 12.5 | ||
| Supply Current | IDC | mA | 106 | |||
| Temperature | TCASE Tstor |
Deg C | -25 -25 |
+75 +90 |
Operating (case) Storage |
|
| Temp Coeff - Gain | dB/Deg C | -0.007 | ||||
| Temp Coeff - BW | %/Deg C | -0.1 | ||||
| Polarity | Non-Inverting | |||||
| Coupling | AC, input and output | |||||
| RF Connectors | SMA jacks (f) | |||||
| DC Connector | Solder pin | |||||
| Warranty | One Year | |||||
1 Guaranteed at +12 V and 23 C when max/min limits are given.
Mechanical dimensions

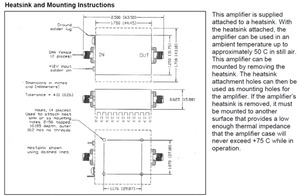

Ordering information
Models
- PSPL5840B
- AMPLIFIER, 13.5 GHz, 21 dB GAIN
