15 GHz Bias Tee
PSPL5547 Datasheet
The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.
![PSPL5547-Datasheet](/-/media/datasheets/pspl5547datasheetenus1sjpg.jpg?h=189&iar=0&w=180)
The PSPL5547 is a broadband, coaxial bias insertion tee and DC blocking capacitor. It was designed to have a very low cutoff frequency of only 5 kHz. It passes fast rise pulses with a minimum of waveform distortion. Its rise time is 23 ps. The frequency response is very flat, and the -3 dB bandwidth extends from 5 kHz to 15 GHz. The PSPL5547 is supplied with a 1 mH choke and terminal strip for connection to the DC bias.
Key performance specifications
- 5 kHz to 15 GHz
- 23 ps rise time
- 50 V, 500 mA
Typical performance

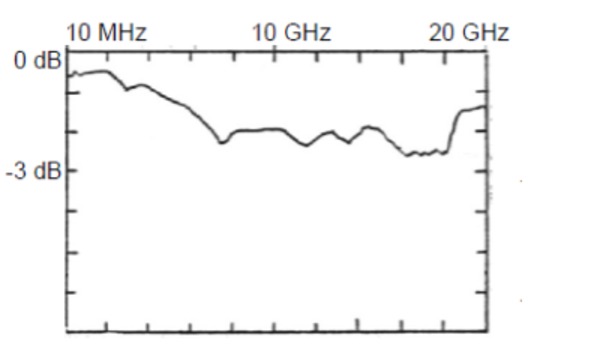

1 dB/div log plot to 20 GHz Insertion Loss
1 db/div log plot to 20 GHz Insertion Loss

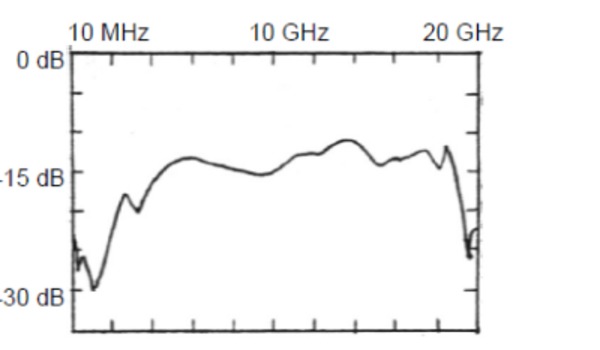

5 db/div log plot to 20 GHz Return Loss

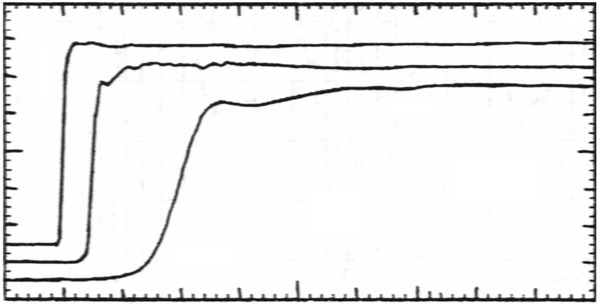

Top to bottom: 500 ps/div, 100 ps/div, and 20 ps/div. Response to 15 ps rise time input step

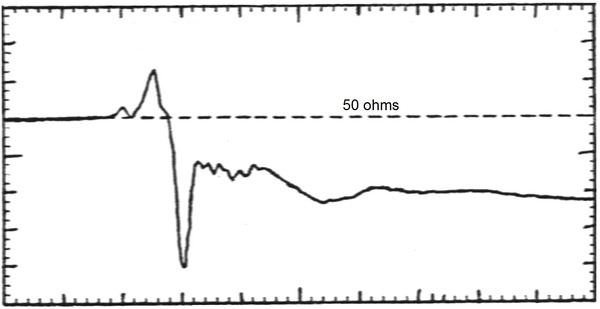

2.5% rho/div and 200 ps/div. 35 ps TDR of AC port
Specifications
Parameter | Symbol | Units | Minimum | Typical | Maximum | Comments |
---|---|---|---|---|---|---|
Impedance | Z | ohms | 50 | |||
Upper 3 dB frequency | fc,h | GHz | 10 | >15 | ||
Lower 3 dB frequency | fc,l | kHz | 5 | 12 kHz w/o inductor | ||
Rise time | tr | ps | 23 | 35 | 10 – 90% | |
Insertion loss | S21 | dB | 0.5 | |||
Input (AC) Return Loss | S11 | dB | 23 | f = 100 MHz | ||
Refl. Coefficient (35 ps TDR) | Γ | % | -5 | t > 200 ps | ||
DC voltage | V | V | 50 | |||
DC current | I | mA | 500 | |||
Capacitance | C | μF | 0.44 | - 50%, + 80% | ||
Inductance | L | mH | 1.34 | ±30% 1 | ||
Resistance | R | ohms | 1.5 | |||
RF power | P | W | 2 | Average power | ||
Isolation | S13 | dB | 30 | |||
DC path bandwidth | fc,DC | kHz | 6 | |||
RF Connectors | SMA jacks (f) | |||||
DC Connector | Solder pin | |||||
Warranty | One Year |

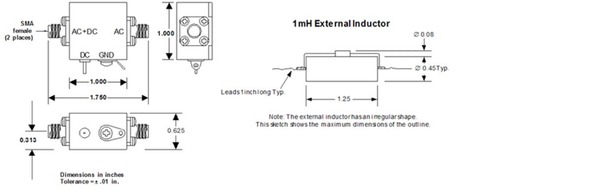

- Mechanical dimensions

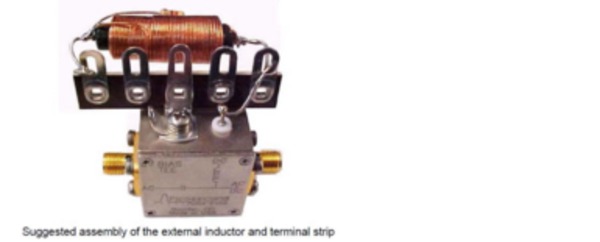

1A 1 mH choke is supplied with the bias tee. It is to be wired in series directly to the DC in solder terminal on the coax module. This is a high impedance point. Avoid using long wire, especially coax, for this connection. Do not locate the choke close to ground. Excessive stray capacitance will cause a resonance that will appear as a dip in the insertion loss between 1 and 10 MHz
Ordering information
Models
- PSPL5547
- BIAS TEE, 15 GHz, 50 V
