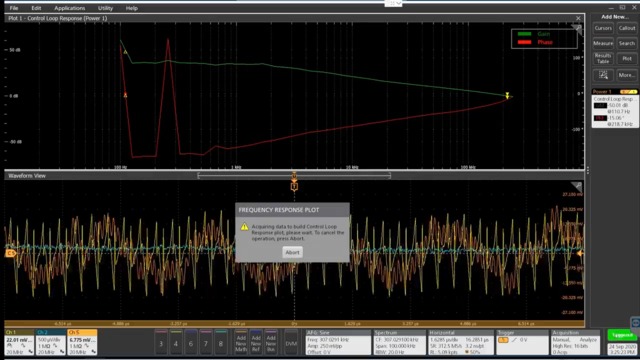

Example of how to determine the EMI filter stability and the Middlebrook Criterion.
The Middlebrook Criterion is a method for determining if the input filter of a switching mode power supply will cause instability or degrade performance parameters of a voltage programmed dc-to-dc converter switching-mode power supply.
Source:
- Arbitrary/Function Generator (built into 6 Series MSO)
- Bench power supply
- Picotest J2121A High Power Line Injector
Measure:
Load:
- DC Load on the output of the DUT
Videos recorded by:
Tony Ambrose, Application Engineer, Tektronix
Steve Sandler, Founder, and CEO of PICOTEST.com
