TSP™: A Test Instrument Command Set and Programming Language
Keithley TSP-enabled instruments:
- Execute user-written scripts independent of PC-to-instrument communication.
- Improve readability and usability by bridging the gap between existing instrument command sets and common programming languages, like C# and Python
- Reduce overhead in terms of time spent communicating with a PC
- Focus the PC on analysis and data tasks
Create Test Instrument-centric ATE Systems
Remove the need for multiple controlling PCs and complex synchronization code. Control other instruments in the system from a single instrument by using TSP-Link™ to communicate with other TSP-enabled instruments and TSP-Net™ to control any instrument on a local network. The resulting automated test system will be smarter, denser, and more adaptable to ever-changing test requirements.
Benefits of TSP

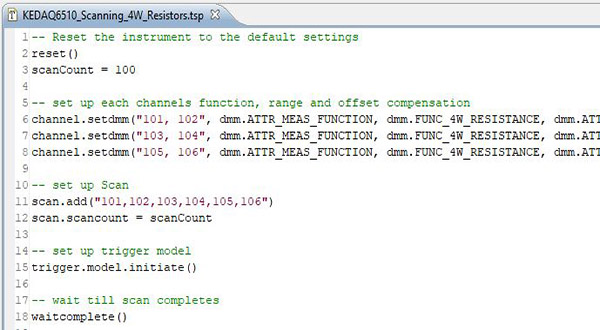

Embedded Script Execution
Transform your instrument into a measurement solution through scripting.
- Leverage high-level code with instrument control commands.
- Achieve automation with a TSP script that executes at the instrument level.
- Execute script calls from a PC – or not.
TSP can initiate tests with a single call from the PC or run the test on the instrument automatically without the PC.
Intuitive Command Set
Decrease development time with an intuitive, readable command set.
Other instrument control command sets use abbreviated language to denote functions and settings. This strategy often creates development and maintenance challenges. TSP combines the benefits of high-level, human readable code with lightweight processing power to make writing and maintaining code simpler.
Scalable Test Systems
Expand your test system without expanding complexity.
Achieve parallel testing by applying TSP-Link technology:
- Expand to as many as 32 instruments in a network.
- Combine and manage tests across TSP-enabled instruments.
- Control any LAN-enabled instrument from your TSP-enabled instrument using the TSP-Net interface.
Synchronized Test System Control
Keep your system running smoothly without communication overhead.
TSP-Link offers a high-speed trigger synchronization and communication bus to simultaneously and independently synchronize main and subordinate instruments at under 500 ns. Ensure the best performance by combining with a flexible, programmable trigger model for speed and using digital I/O ports to control external digital circuitry.
Ознакомиться с Серией 5 B
Ознакомиться с Серией 5 B
- Производительность настоящего и будущего
- Интуитивно понятные элементы управления
- Возможность проникнуть в самую суть измерений и анализа
- Многоканальный анализ спектра
TSP Toolkit Scripting Tool
TSP Toolkit is an open source scripting tool available as a Visual Studio Code (VS Code) extension. It can be used to develop TSP test scripts alongside your other favorite VS Code extensions, such as those for Python, C# and many more. TSP Toolkit includes all the functionality and instrument support of Test Script Builder (TSB) plus many quality-of-life features including syntax highlighting, auto-completion with in-line command help, and a modern user interface.
Test Automation from the Front Panel
Keithley Touch Test Invent® (TTI) products offer a large touchscreen panel that provides opportunities to automate a particular application by customizing the GUI. The display API for these instruments lists TSP commands you can use to create a unique instrument GUI focused only on the settings you need for your test. Combine the GUI with the test automation power of TSP to run full test routines and data analysis from the front panel. Get immediate visual feedback on your test results on the instrument from the graph, table, or a user-created view.
