Wide Bandgap Double Pulse Reference Solution

Accelerate validation around SiC and GaN power devices and systems with this full suite of instruments, software, probes and services.

Increase your system performance and lower your time-to-market with:
  • On-scope analysis conforming to JEDEC and IEC standards
  • 1 GHz of bandwidth for easy analysis of fast-switching signals
  • Arbitrary Function Generator with built-in software for double pulse testing waveforms
  • High-side and Low-side probes offering common mode noise rejection and precise measurements
  • High-power power supplies for driving test circuits at realistic voltages and currents



Request Sales Contact

Tab Container

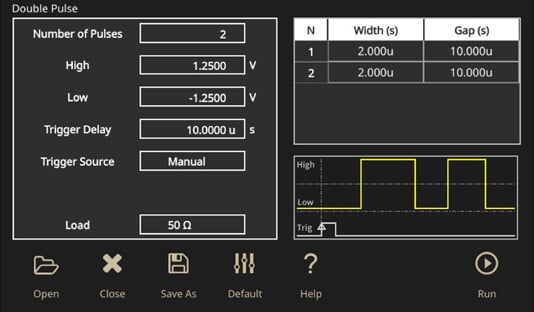

A screenshot from a Tektronix AFG31000 displaying the optional Double Pulse software

Automate Double Pulse Test

The Wide Bandgap Double Pulse Test application (Opt. WBG-DPT) on the 5 Series B MSO offers precise double-pulse measurements that make testing easier. The application offers automated switching, timing, and diode reverse recovery measurements per JEDEC and IEC standards. Detailed configuration options enable analyzing real world waveforms and testing beyond standards specifications.

Dramatically simplify double pulse testing by including the AFG31250 Function Generator with built-in Double-Pulse Test software. This time-saving software ensures the proper pulse parameters with simple menu-driven operation.

A schematic diagram of a setup for double pulse testing showing an oscilloscope, probes, AFG, and power supply with test points

SOLN-WBG

Wide Bandgap Double Pulse Reference Solution

Simplifying the complexities of Wide Bandgap analysis, this solution enables teams to quickly set up and measure critical WBG-DPT parameters. This solution includes calibration and service coverage for 3 years.

Instrument/Probe/Option Quantity Description
MSO58B (5-BW-1000) 1 8-channel 5 Series B MSO oscilloscope with 1 GHz bandwidth including C3 and T3
5-WBG-DPT 1 Software for standards-compliant double-pulse testing
5-PWR 1 Software for advanced power measurements
THDP0200  1 200 MHz, +/-750 V, high voltage differential probe
TCP0030A  1 120 MHz, 30 Arms, spilt-core AC/DC current probe
Optional: AFG31252 1 Arbitrary Waveform Generator with 2 channels and Double-Pulse Test software
Optional: 2230-30-3 1 Programmable gate drive power supply, 195 W, 3 A, 30 V
Optional: High Voltage Supply: 2260B-800-2 or EA-PSI 10000 Series or 2657A 1 2260B-800-2 Programmable DC 720 W Power Supply, 800 V, 2.88A OR EA-PSI 10000 Series up to 30 kW at 2000 V, 1000 A OR 2657A 3 kV 120 mA Source Measure Unit High Power SourceMeter®
SOLN-TKSCOPE-AUTO-3Y 1 TekScope PC Software for off-line analysis, including IMDA Analysis and comprehensive serial bus support
PCB-SOLN-STR-TDRIVE 1 TekDrive Data Storage Subscription, Individual Tier, Annual user license
Services 1 Scope includes 3 year total protection plan, T3, with accidental damage coverage, Probes include 3 year extended warranty coverage, R3, and scope + probes are covered with 3 year calibration plans, C3
