PSPL5543 100 V Bias Tee Datasheet
PSPL5543 Datasheet
Tektronix больше не продаёт продукты из этого технического описания.
Посмотреть бывшее в употреблении оборудование для тестирования Tektronix Encore.
Просмотреть информацию о технической поддержке и гарантии для этих продуктов.
![](/-/media/datasheets/pspl5543datasheet2139091sjpg.jpg?h=166&iar=0&w=180)
PSPL5543 Datasheet
The PSPL5543 is an ultra-broadband, 500 mA current, coaxial bias insertion tee and 100 V DC blocking capacitor that passes high bandwidth pulses with very low waveform distortion. Its rise time is only 7 ps and its frequency response is flat over many decades from 20 kHz to beyond 50 GHz.
Key performance specifications
- 25 kHz to >50 GHz
- 7 ps rise time
- 100 V, 500 mA
Typical performance
The following figures show the linear sweep from 40 MHz to 65 GHz. The AC connector is input (port 1) and the AC + DC connector is output (port 2).

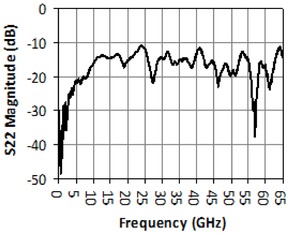

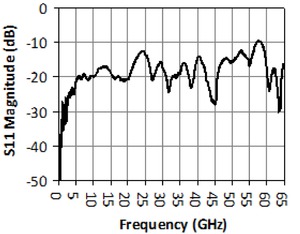

The following figure shows the S21 insertion loss.
Specifications

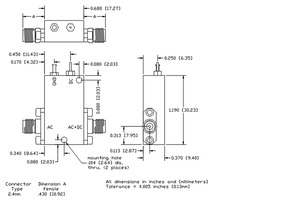

Parameter | Symbol | Units | Minimum 1 | Typical | Maximum 1 | Comments |
---|---|---|---|---|---|---|
Impedance | Z | ohms | 50 | |||
Upper 3 dB frequency | fc,h | GHz | 50 | |||
Lower 3 dB frequency | fc,l | kHz | 20 | |||
Rise time | tr | ps | 7 | 10 – 90% | ||
Insertion loss (see S21 plot) | S21 | dB | See plot | 3 | 2.4 mm f | |
Input (AC), Return Loss | S11 | dB | 10 | See plot | 2.4 mm f | |
Output (AC+DC), Return Loss | S22 | dB | 8 | See plot | 2.4 mm f | |
DC voltage | V | V | 100 | |||
DC current | I | mA | 500 | |||
Capacitance | C | μF | 0.2 | |||
Inductance | L | mH | 0.5 | |||
Resistance | R | ohms | 1.5 | |||
RF power | P | W | 5 | Average power | ||
Isolation | S13 | dB | > 30 | f > 100 MHz | ||
DC path bandwidth | fc,DC | kHz | 22 | |||
RF Connectors | 2.4 mm jacks (f) | |||||
DC Connector | Solder pin | |||||
Warranty | One year |
1Maximum and minimum values are based on manufacturing test limits at 25 °C.
Ordering information
Models
- PSPL5543
- BIAS TEE, 100 V, 500 mA
Options
- PSPL5543 240JJ
- 2.4 mm connectors on AC and AC + DC ports, solder pin on DC port
