PSPL5542 Ultra-Broadband Bias Tee Datasheet
PSPL5542 Datasheet
Tektronix больше не продаёт продукты из этого технического описания.
Посмотреть бывшее в употреблении оборудование для тестирования Tektronix Encore.
Просмотреть информацию о технической поддержке и гарантии для этих продуктов.
The PSPL5542 is an ultra-broadband, coaxial bias insertion tee and DC blocking capacitor that passes ultra-fast pulses with very low waveform distortion. Its rise time is only 7 ps, and its frequency response is flat over many decades from 10 kHz to beyond 50 GHz. It is available with either 2.92 mm (40 GHz) or 2.4 mm (50 GHz) connectors. Its small package makes this bias tee ideal for 40 Gbit data systems as well as broadband RF and microwave applications.
Key performance specifications
- 10 kHz to > 50 GHz

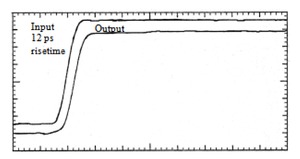

- 7 ps rise time
- 16 V, 100 mA
- Available with 2.92 mm or 2.4 mm connectors
Typical performance

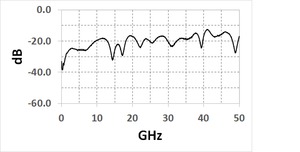

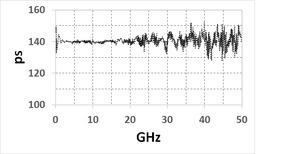

The following figures show the linear sweep from 0.04 to 50 GHz; the AC connector is the Input (port 1) and the AC + DC connector is the output (port 2).

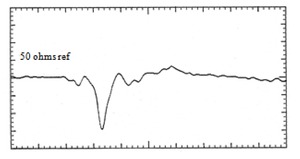

2% rho/div, 100 ps/div; 25 ps TDR of AC input port

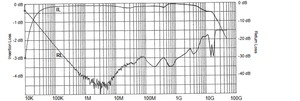

Log sweep from 10 kHz to 50 GHz. Insertion loss scale is 0.5 dB/div. Return loss is 5 dB/div.
Specifications
Parameter | Symbol | Units | Minimum | Typical | Maximum | Comments |
---|---|---|---|---|---|---|
Impedance | Z | ohms | 50 | |||
Upper 3 dB frequency | fc,h | GHz | 40 50 |
2.92 mm option 2.4 mm option |
||
Lower 3 dB frequency | fc,l | kHz | 10 | |||
Rise time | tr | ps | 7 | 10 – 90% | ||
Insertion loss (See S21 plot) | S21 | dB | 2 at 40 GHz 2 at 50 GHz |
2.92 mm option 2.4 mm option |
||
Return loss (See S11 plot) | S11 | dB | See plot for limits | |||
DC voltage | V | V | 16 | |||
DC current | I | mA | 100 | DC port | ||
Capacitance | C | μF | 0.22 | |||
Inductance | L | mH | 1.5 | DC port | ||
Resistance | R | ohms | 5.6 | DC port | ||
RF power | P | W | 5 | Avg. f | ||
Isolation | S13 | dB | 50 | f > 100 MHz AC port to DC port |
||
DC path bandwidth | 8 kHz | |||||
Delay | Td | ps | 140 | AC to AC+DC port | ||
Warranty | One year |
- Mechanical dimensions
Ordering information
Models
- PSPL5542
- BIAS TEE, 50 GHz, 16 V
Options
- PSPL5542 240JJ
- 2.4 mm jacks (f) on RF ports, solder pin on DC port
- PSPL5542 292JJ
- 2.92 mm jacks (f) on RF ports, solder pin on DC port
- PSPL5542 292SMB
- 2.92 mm plug (m) on AC port, jack (f) on AC+DC port, SMB on DC port
