EMC Near-Field Probes

Conduct EMC Pre-compliance Testing with the TekBox TBPS01 EMC Near-Field Probe Kit

Set of magnetic field and electric field probes
Frequency range up to 6 GHz
Insulated with rubber coating
Ideal for radiated emissions EMC testing

Conduct EMC Pre-compliance Testing with the TekBox TBPS01 EMC Near-Field Probe Kit

The TekBox TBPS01 includes a set of magnetic field and electric field probes for radiated emissions EMC pre-compliance measurements. The EMC probes are used in the near field of sources of electromagnetic radiation and serve to locate and identify potential sources of interference within the building blocks of electronic assemblies. The EMC probes act similar to wide bandwidth antennas, picking up radiated emissions from components, PCB traces, housing openings or gaps, and from any other parts that could be emitting RF. When used, these EMC probes are typically connected to a spectrum analyzer.

Key features

Slim design allows you to access tightly spaced components
Shielded loops help you avoid picking up common mode noise; not sensitive to the human hand
Frequency range up to 6 GHz
Insulated with rubber coating

Applications

Radiated EMC measurement
RF immunity testing
Contactless (load free) relative measurement of RF signal chains
Contactless (load free) relative measurement of oscillators, modulators, etc.

Specifications

Near field probes

Frequency range

1 MHz –1 GHz

Dimensions

Probe	Length	Loop	Tip
H20 H-Field (magnetic)	170 mm	20 mm	N.A.
H10 H-Field (magnetic)	170 mm	10 mm	N.A.
H5 E-Field (electric)	170 mm	5 mm	N.A.
E5 E-Field (electric)	170 mm	N.A.	5 mm

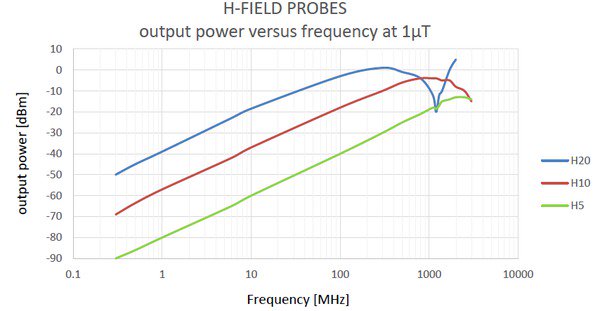

Frequency response (magnetic field probes)

Frequency response (electric field probes)

Ordering information for EMC probes

EMC near-field probes and related accessories

Item	Description
EMI-NF-PROBE	EMC probe set consisting of H20, H10, H5, E5, 75 cm SMB to SMA cable, measurement plots
EMI-NF-AMP	20 dB wideband amplifier with cable

Service

All service is provided by TekBox Digital Solutions. Visit https://www.tekbox.net/ for product information and service.
