Arbitrary Waveform Generator
AWG615
Tektronix больше не продаёт продукты из этого технического описания.
Посмотреть бывшее в употреблении оборудование для тестирования Tektronix Encore.
Просмотреть информацию о технической поддержке и гарантии для этих продуктов.
![](/-/media/datasheets/a0002467sjpg.jpg?h=101&iar=0&w=200)
AWG615
Features & Benefits
- 2.7 GS/s Sample Rate Simulates Real-world Signals Up To 1.35 GHz
- 2 Markers With 2.1 psRMS (@ 2.7 GS/s, Typical) Jitter Deliver stable Timing to the Device-under-test (DUT)
- 32.4M (32,400,000) or 64.8M (64,800,000) Point Record Length Provide Longer Data Streams
- Analog Bandwidth to 2 GHz (Option 02, Calculated Based on Rise Time) Provides the Highest Signal Fidelity of All High-speed AWGs
- Direct External clock input allows Jittered and non-jittered signals for high-speed data stream timing margin test up to 2.7 Gb/s
- Synchronous operation mode supports two AWG615 outputs (2: analog, 4: marker) synchronization for high data rate wireless and data communication test and optical write channel strategy signal test.
- Waveform Quick Editor with 400 fs Edge Timing Resolution Delivers Output Edge Control with Near Real-time Precision
- Allows two-signal mix function digitally to support disk drive noise performance test and Pre/De-emphasis serial data communication test
- Real-time Sequencing Creates Infinite Waveform Loops, Jumps, Patterns and Conditional Branches
Applications
- Disk Drive Read/Write Design and Test
- Communications Design and Test
- Arbitrary IF and IQ Base-band Signals
- Standard Waveforms for Communications
- Pulse Generation
- High-speed, Low-jitter Data and Clock Source
- Mixed Signal Design and Test
- Real-world Simulations
- Corruption and Enhancement of Ideal Waveforms
- Timing and Amplitude Signal Impairments
- Waveforms Imported from MathCad, MATLAB, Excel and Others
The AWG615 Arbitrary Waveform Generator Delivers World-class Signal Fidelity at 2.7 GS/s to Solve Ever-increasing Measurement Challenges
The AWG615 Arbitrary Waveform Generator Delivers World-class Signal Fidelity at 2.7 GS/s to Solve Ever-increasing Measurement Challenges. New two box synchronous operation function supports 2ch 2.7 GS/s solution.
The AWG615 combines world-class signal fidelity with high-speed mixed signal simulation, a powerful sequencing capability and graphical user interface with flexible waveform editor, to solve the toughest measurement challenges in the disk drive, communications and semiconductor design/test industries.
The built-in signal applications enable you to easily create standard waveforms for disk drive read channels, communications up to 2.7 Gb/s. Also included is AXW100 ArbExpress waveform creation and editing software. This software allows for easy waveform import from oscilloscopes or basic, advanced, and math waveform creation and edit capabilities.
![A000_2465-N.jpg A000_2465-N](/-/media/sites/default/files/media/image/a000_2465-n.jpg)
Waveform Mixing Function.

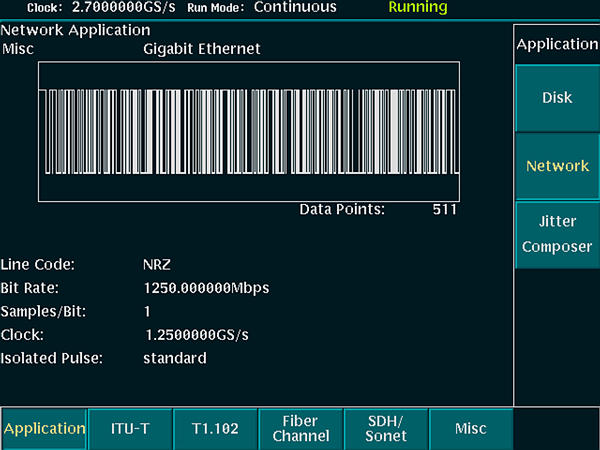

![A000_2522-N.jpg A000_2522-N](/-/media/sites/default/files/media/image/a000_2522-n.jpg)
Gigabit Ethernet Application Menu.
Characteristics
Arbitrary Waveforms
Waveform Length - 960 to 32,400,000 points (or 64,800,000 points, option 01) in multiples of four.
Sequence Length - 1 to 8,000 steps.
Sequence Repeat Counter - 1 to 65,536 or infinite.
Run Modes
Gated mode, Event Jump, and Software Jump are disabled in the synchronous operation
Continuous - Waveform is iteratively output. If a sequence is defined, the sequence order and repeat functions are applied.
Triggered - Waveform is output only once when an external, internal, GPIB, LAN, or manual trigger is received.
Gated - Waveform begins output when gate is true and resets to beginning when false.
Enhanced - Waveform is output as defined by the sequence.
Extended Operation
Function Generator
Waveform Shape - Sine, Triangle, Square, Ramp, Pulse, or DC.
Frequency - 1.000 Hz to 270.0 MHz.
Amplitude -
Range: 0.020 Vp-p to 2 Vp-p into 50 Ω
Resolution: 1 mV.
Offset -
Range: -0.500 V to +0.500 V into 50 Ω
Resolution: 1 mV.
DC Level - DC waveform only.
Range: -0.500 V to +0.500 V into 50 Ω
Resolution: 1 mV.
Polarity - Normal, Invert.
Duty Cycle -
Range: 0.1% to 99.9%, Pulse waveform only.
Resolution:
1.000 Hz to 4.000 MHz: 0.1% step.
4.001 MHz to 20.00 MHz: 0.5% step.
20.01 MHz to 40.00 MHz: 1% step.
40.01 MHz to 80.00 MHz: 2% step.
80.01 MHz to 100.0 MHz: 2.5% step.
100.1 MHz to 160.00 MHz: 4% step.
160.1 MHz to 200.0 MHz: 5% step.
200.1 MHz to 270.0 MHz: 10% step.
Marker Out -
Marker1 Pulse Width:
Hi Lo: 20% / 80% of Period.
Marker2 Pulse Width:
Hi/Lo: 50% / 50% of Period, except 100.1 MHz to 160.0 MHz.
Hi/Lo: 52% / 48% of Period, at 100.1 MHz to 160.0 MHz.
Marker Level:
Hi Level: 1V into 50 Ω
Lo Level: 0V into 50 Ω
Waveform mixing operation - Supports two-signals mixed output digitally.
Synchronous operation - Supports synchronization of two AWG615 boxes allowing two synchronized signal outputs.
NOTE: This operation is executed by Sync master and Sync slave operation combination.
Sync master operation - Set one AWG615 as a master box
Sync slave operation - Set another AWG615 as a slave box
Clock Generator
Sampling Frequency - 50.000000 kS/s to 2.7000000 GS/s.
Resolution - 8 digits.
Internal Clock - Accuracy: ±1 ppm.
Phase Noise - (VCO out)
At 2.7 GS/s, 10 kHz offset: -58 dBc/Hz.
At 2.7 GS/s, 100 kHz offset: -93 dBc/Hz.
Internal Trigger Generator
Internal Trigger Rate -
Range: 1.0 μs to 10.0 s.
Resolution: 3 digits, 0.1 µs minimum.
Accuracy: ±0.1%.
Main Output
Output Signal - Complementary; CH1 and channel inverse.
Digital to Analog Converter -
Resolution: 8-bits.
Differential Non-linearity: ±1/2-LSB.
Integral Non-linearity: ±1-LSB.
Output Connector - Front Panel SMA.
Normal Out*1
Amplitude - Into 50 Ω.
Amplitude Range: 20 mV to 2.0 V peak to peak.
Resolution: 1 mV.
DC Accuracy: ±(2.0% of Amplitude + 2 mV) at offset = 0 V.
Offset - Into 50 Ω.
Range of Signal Center: ±0.500V (Rails of -1.5V, +1.5V).
Resolution: 1 mV.
Accuracy: ±1.5% of offset ±10 mV at 20 mV amplitude.
Pulse response - (-1 and 1 waveform data, 0 V offset, through filter at 1 Vp-p, clock 1 GS/s) using 20 GHz BW oscilloscope.
Rise time: (10 to 90%): ≤480 ps.
Fall time: (10 to 90%): ≤480 ps.
Aberrations: ±10% (at 1.0 Vp-p amplitude).
Flatness: ±5% (after 20 ns from rise/fall edge).
Sine Wave Characteristics - (2.7 GS/s clock, 32 waveform points, 84.375 MHz signal frequency, 1.0 V amplitude, 0 V offset, through filter)
Harmonics: ≤-40 dBc, DC to 1000 MHz.
Noise: ≤-50 dBc, DC to 1000 MHz.
Phase noise: ≤-85 dBc/Hz at 10 kHz offset.
Filter*1
Type - 20, 50, 100, 200 MHz Bessel low-pass.
Rise Time (10% to 90%) - 20 MHz, 17 ns; 50 MHz, 7.0 ns; 100 MHz, 3.7 ns; 200 MHz, 2.0 ns.
Group Delay - 20 MHz, 18 ns; 50 MHz, 8 ns; 100 MHz, 4.7 ns; 200 MHz, 3 ns.
Direct D/A Out*1
Amplitude - 20 mVp-p to 1.0 Vp-p into 50 Ω.
Resolution - 1 mV.
DC Accuracy - ±(2% of Amplitude + 2 mV).
Offset - no function.
DC Offset Accuracy - 0 V ±10 mV at 20 mV amplitude (waveform data = 0).
Pulse Response (-1 and 1 waveform data, at 0.5 Vp-p) -
Rise Time (10% to 90%): ≤280 ps.
Fall Time (10% to 90%): ≤280 ps.
Output Impedance - 50 Ω.
*1 Option 02 eliminates the ability to switch between normal and direct D/A out, as well as filter and offset control.
Extended Bandwidth Output (Option 02)
Amplitude - 500 mVp-p to 1.0 Vp-p into 50 Ω
Resolution - 1 mV.
DC Accuracy - ±(2.0% of amplitude + 2 mV).
Offset - No function.
DC Offset Accuracy - 0 V ±10 mV at 500 mV Amplitude (waveform data = 0).
Pulse Response - (-1 and 1 waveform data, at 1.0 Vp-p).
Rise Time - (10% to 90%): ≤175 ps.
Fall Time - (10% to 90%): ≤175 ps.
Output Impedance - 50 Ω.
Auxiliary Outputs
Marker
Number - 2 (complementary).
Level -
High level: -1.00 V to 2.45 V into 50 Ω to GND.
Low level: -2.00 V to 2.40 V into 50 Ω to GND.
Amplitude: 0.05 Vp-p to 1.25 Vp-p max. into 50 Ω to GND.
Resolution - 0.05 V.
DC Accuracy - Within ±0.1 V ±5% of setting into 50 Ω.
Maximum Output current: ±80mA.
Rise/Fall Time (20% to 80%) - <130 ps into 50 Ω to GND (1.0 Vp-p, Hi +1.0 V, Lo 0 V).
Period Jitter (Typical) - by1010 clock pattern
At 2.7 GS/s 2.1 ps rms, 15 ps peak to peak.
At 1.35 GS/s 2.1 ps rms, 15 ps peak to peak.
At 0.675 GS/s 2.0 ps rms, 14 ps peak to peak.
Cycle-to-Cycle Jitter (Typical) - by1010 clock pattern.
At 2.7 GS/s 3.6 ps rms, 26 ps peak to peak.
At 1.35 GS/s 3.6 ps rms, 26 ps peak to peak.
At 0.675 GS/s 3.3 ps rms, 23 ps peak to peak.
Marker Skew - < 20 ps (typical).
Delay (between analog output and marker output) -
(Marker Level: 1 Vp-p (Hi + 1V/Lo 0V), Analog Output: At 1 Vp-p)
Normal Output: 2.4 ns (Offset 0 V, Filter = "Through.")
Direct Output: -1 ns.
Connector - Front-panel SMA.
VCO Out
Amplitude - CML, AC coupling, 0.4 Vp-p into 50 Ω to GND.
Impedance: 50 Ω, AC coupling.
Connector - Rear-panel SMA.
10 MHz Reference Clock Out
Amplitude - 1.2 Vp-p into 50 Ω. Max 2.5 Vp-p open.
Impedance - 50Ω, AC coupling.
Connector - Rear-panel BNC.
C Out 1 and 2
For 2 boxes synchronous usage
Connector: SMA, Rear
Output signal style: Complementary
T Out 1 and 2
For 2 boxes synchronous usage
Connector: SMA, Rear
Output signal style: Complementary
Auxiliary Inputs
Trigger In
Trigger Mode - Minimum Pulse Width: 10 ns, 0.2 V amplitude.
Impedance - 1 kΩ or 50 Ω.
Polarity - POS or NEG.
Connector - Rear-panel BNC.
Input Voltage Range -
1 kΩ: ±10 V.
50 Ω: ±5 V.
Threshold -
Level: -5.0 V to 5.0 V.
Resolution: 0.1 V.
Trigger Mode - Minimum Pulse Width: 10 ns, 0.2 V amplitude.
Trigger Hold-off -
One box operation: ≤109.5 clocks + 500 ns.
Two boxes synchronous operation: ≤109.5 clocks + 700 ns.
Delay to Analog Out: 275.5 clocks + 17 ns (Normal Output, Filter "Through").
Gate Mode - (for one box operation)
Minimum Pulse Width (0.2 V amplitude): 1152 clocks + 10 ns.
Gate Hold Off: ≤1920 clocks + 20 ns.
Delay to Analog Out: 1355 to 1563.5 clocks + 9 ns (Normal Output, Filter "Through").
Event Input - (for one box operation)
Number of Events: 7-bits.
Input Signals: 7 event bits, strobe.
Threshold: TTL level.
Maximum Input: 0 V to +5 V (DC + peak AC).
Impedance 1 kΩ, pull-up to +3.3 V.
Connector: Rear-panel 9-Pin D-sub.
Enhanced Mode -
Minimum Pulse Width: 320 clocks + 10 ns.
Event Hold Off: ≤ 896 clocks + 20 ns.
Delay to Analog Out (Jump timing: Async, Output Norm, Filter Through):
Strobe: ON, 1691.5 clocks + 10 ns.
Strobe: OFF, 1947.5 clocks + 6 ns.
Event Input to Strobe Input:
Setup Time: 192 clocks + 10 ns.
Hold Time: 192 clocks + 10 ns.
External Clock IN
Input Voltage Range - 0.4 Vp-p to 2.0 Vp-p,
Impedance - 50 Ω, AC coupled.
Frequency Range - 125 MHz to 2.7 GHz
Note: need >10mV/ns signal slew rate
Connector - Rear-panel SMA.
Reference 10 MHz Clock IN
Input Voltage Range - 0.2 Vp-p to 3.0 Vp-p, ±10 V maximum.
Impedance - 50 Ω, AC coupled.
Frequency Range - 10 MHz ±0.1 MHz.
Connector - Rear-panel BNC.
C IN
For 2 boxes synchronous usage.
Connector: SMA, Rear.
Input signal style: Complementary.
T IN
For 2 boxes synchronous usage.
Connector: SMA, Rear.
Input signal style: Complementary.
General Characteristics
Display - Color TFT LCD.
Display Area - Horizontal: 13.06 cm (5.14 in.), Vertical: 9.70 cm (3.81 in.)
Resolution - 640x480
Data Storage
Internal Hard Disk - ≥20.0 GB.
Flash Disk - 256 MB (Option 10).
Floppy Disk - 3.5 inch, 1.44 MB.
Environment
Temperature -
Operating: 10 °C to +40 °C.
Nonoperating: -20 °C to +60 °C.
Humidity -
Operating: 20% to 80%.
Nonoperating: 5% to 90%.
Altitude (Hard Disk Restriction) -
Operating: Up to 3,000 m (10,000 ft).
Nonoperating: up to 12,000 m (40,000 ft).
Random Vibration -
Operating: 2.65 m/s2rms (0.27 Grms, 5 Hz to 500 Hz, 10 minutes.
Nonoperating: 22.36 m/s2rms (2.28 Grms, 5 Hz to 500 Hz, 10 minutes.
Shock - Nonoperating: 294 m/s2 (30 G), half-sine, 11 ms duration (three times each axis, in each direction, 18 total).
EMC Compliance - EC Council Directive 89/336/EEC (EC-92), AS/NZS2064-1/ 2.
Safety - UL 61010B-1, CSA C22.2 No. 1010.1, EN61010-1 second edition.
Power Supply
Rating - 100 to 240 VAC.
Range - 90 to 250 VAC.
Maximum Power and Current - 240 VA and 5 A.
Frequency - 48 to 63 Hz.
Physical Characteristics
Dimensions |
mm |
in. |
---|---|---|
Weight |
kg |
lb. |
Height |
193 |
7.6 |
Width |
434 |
17.1 |
Depth |
508 |
20 |
Without package |
14.1 |
31.1 |
With package |
24.5 |
54 |
Interfaces - GPIB, Ethernet: 10/100Base-T, RJ-45.
PC Keyboard - 6-Pin mini-DIN, rear.
Ordering Information
AWG615
2.7 GS/s, 8-bit, 32 M point, single-channel arbitrary waveform generator.
Includes: User manual, Programmer's manual, Floppy disk: sample waveform library (063-3779-00), performance verification (063-3780-00), Sample Program (062-A258-50), AXW100 ArbExpress Software Utility CD (063-3763-00 ), Certificate of Calibration, power cable. 50 Ω SMA Terminator 2ea (015-1022-01).
Please specify power plug when ordering.
Options
Opt. 01 - 64 M points waveform memory.
Opt. 02 - Extends analog bandwidth to 2 GHz (calculated based on rise time).
Opt. 10 - Flash disk and standby switch (alternative for standard hard disk drive).
Note: Option 10 is for ATE and system usage needing 7x24 hour operation. Also adds capability to power on/off by rear panel main switch.
Opt. 1R - Rack mount kit.
Service
Opt. C3 - Calibration service 3 years.
Opt. C5 - Calibration service 5years.
Opt. D1 - Calibration data report.
Opt. D3 - Calibration data report 3 years (with option C3).
Opt. D5 - Calibration data report 5 years (with option C5).
Opt. R3 - Repair service 3 years.
Opt. R5 - Repair service 5years.
Recommended Accessories
Service Manual - 071-1516-xx.
Protective Cover - 200-3696-01.
Power Plug Options
Opt. A0 - North America Power
Opt. A1 - Universal EURO Power
Opt. A2 - United Kingdom Power
Opt. A3 - Australia Power
Opt. A5 - Switzerland Power
Opt. A6 - Japan Power
Opt. A10 - China Power
Opt. A99 - No Power Cord or AC Adapter
Language Option
Opt. L0 - English (User, Programmer)
Opt. L5 - Japanese (User, Programmer)
Warranty
One year parts and labor.
