Passive 10X Voltage Probe
TPP0051 Datasheet
TPP0101 is the recommended replacement for TPP0051. Learn more about TPP0101 here
Die Produkte dieses Datenblatts gehören nicht mehr zum Angebot von Tektronix.
Tektronix Encore nach aufgearbeiteten Testgeräten durchsuchen.
Garantie- und Supportstatus dieser Produkte überprüfen.
Weitere Informationen
- Passiver Tastkopf
- Weitere Tastköpfe und Zubehör Modelle entdecken
Online lesen:

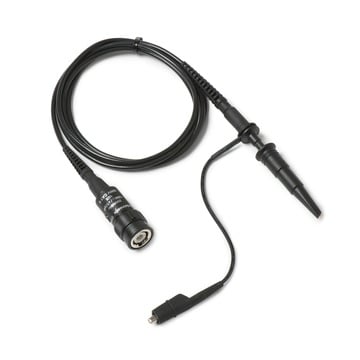

TPP0051 Passive Voltage Probe
The TPP0051 probe is for use on BNC oscilloscopes with 1 MΩ/20 pF inputs.
Key performance specifications
- 10X attenuation
- 50 MHz bandwidth
- 1.3 m length
- UL61010-031; 2007, CAN/CSA C22.2 No. 61010-031-07, IEC61010-031; IEC 61010-031/A1:2008
Applications
- Low-frequency measurements
- Low-frequency computer and telecom measurements
- Power supplies
- Low-frequency amplifiers
Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
Electrical characteristics
- Bandwidth
- DC to 50 MHz
- Rise time
- <7 ns (typical)
- Compensation range
- 15 pF to 25 pF
- Input resistance
- 10 MΩ ±1.5%
- Input capacitance
- <12 pF (typical)
- Propagation delay
- ~6.1 ns
- Maximum input voltage
- 300 VRMS CAT II
Physical characteristics
- Cable length
- 1.3 m (4.2 ft)
EMC, environment, and safety
- Temperature range
- Operating
- 10 °C to +55 °C (14 °F to 131 °F)
- Nonoperating
- -51 °C to +71 °C (-60 °F to 160 °F)
- Operating and nonoperating
- 5% to 95% relative humidity (%RH) up to 30 °C (86 °F), 5% to 65% RH above +30 °C (86 °F) up to +55 °C (131 °F)
- Altitude
- Operating
- <3.0 km (9,842 ft)
- Nonoperating
- <12.2 km (40,026 ft)
Ordering information
Models
- TPP0051
- For use with BNC oscilloscopes with 1 MΩ, 20 pF inputs
Standard accessories
- 003-1433-xx
- Adjustment tool
- 013-0362-xx
- Retractable hook tip
- 016-0633-xx
- Color bands, 5 pairs
- 016-2028-xx
- Long ground spring, 2 each
- 196-3521-xx
- 6 in. alligator ground lead
Warranty
Recommended accessories
- 013-0363-xx
- Micro hook tip
- 013-0366-xx
- Universal IC cap
- 013-0367-xx
- BNC-to-probe tip adapter, unterminated
- 016-2016-xx
- PCB-to-probe tip adapter, 10-pack
- 016-2034-xx
- Short ground spring, 2 each
- 020-3045-xx
- Wire, 32 AWG spool
- 131-8831-xx
- Compact probe-tip chassis mount
- 196-3198-xx
- 6 in. clip-on ground lead with 0.025 in. pin receptacle
- 196-3512-xx
- 12 in. alligator ground
- 206-0569-xx
- MicroCKT test tip
Tektronix is ISO 14001:2015 and ISO 9001:2015 certified by DEKRA. 51W-30155-2
