PSPL5510V 60 GHz Attenuator
PSPL5510V Datasheet
このデータ・シートの製品は、テクトロニクスでは販売終了となっています。
Tektronix Encoreプレミアム再生品を見るbr/>
上記製品のサポートと保証のステータスをチェックする
![](/-/media/datasheets/pspl5510vdatasheet5165831sjpg.jpg?h=121&iar=0&w=180)
The PSPL5510V Attenuators address a need that has been totally ignored by other microwave component manufacturers who specify their products in the frequency domain, but ignore the time domain responses. For time domain measurements, it is important to also know the transient response of attenuators used in a test set-up. These 1.85 mm attenuators have 5 ps rise times and are recommended for measuring pulses with rise times of 13 ps or slower. For frequency domain measurements, the useful frequency range is DC to 60 GHz. The 1.85 mm connector is compatible with 2.4 mm connectors.
Key performance specifications
- 1.85 mm connectors
- DC to 60 GHz
- 5 ps Rise time

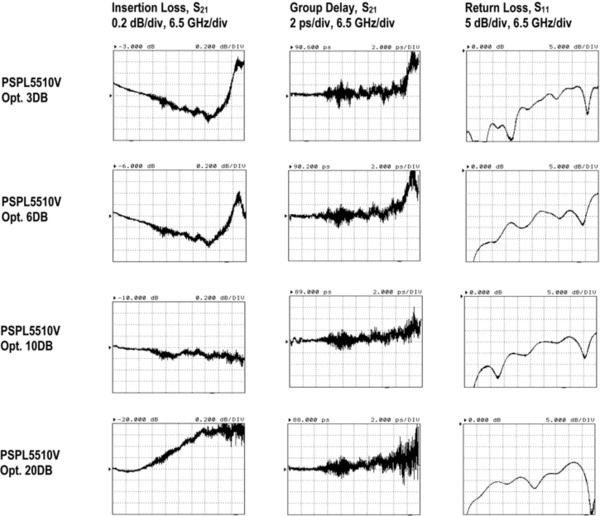

Typical performance
![PSPL5510V-Datasheet-516583-9-N.jpg PSPL5510V-Datasheet-516583-9-N](/-/media/sites/default/files/datasheets/pspl5510v/pspl5510v-datasheet-516583-9-n.jpg)
![PSPL5510V-Datasheet-516583-10-N.jpg PSPL5510V-Datasheet-516583-10-N](/-/media/sites/default/files/datasheets/pspl5510v/pspl5510v-datasheet-516583-10-n.jpg)
Specifications
Parameter 1 | Value |
---|---|
Values available | 3, 6, 10, and 20 dB |
Frequency range | DC to 60 GHz |
Connectors | 1.85 mm jack (f) & plug (m) |
Rise time (10% to 90%) | 5 ps, when tested with 10 ps rise time pulse |
Impedance - DC | 50 Ω, |
Delay | 90 ps (see typical performance plots) |
DC Attenuation accuracy | ±0.5 dB maximum limits guaranteed |
Return loss – DC
VSWR – DC |
> 30 dB typical, 23 dB minimum
> 1.06 typical, 1.15 maximum |
Attenuation Flatness
(see Typical performance plots) |
|
Return Loss – AC
(see Typical performance plots) |
> 20 dB, f > 15 dB, f > 12 dB, f |
Max. Power Input | 2 W average at 25 °C, derated linearly to 1 W at 85 °C, 50 W peak for |
Temperature Range | -55 to +85 °C operating, –55 to +125 °C storage, 0.001 dB/dB/ °C temp. coefficient. |

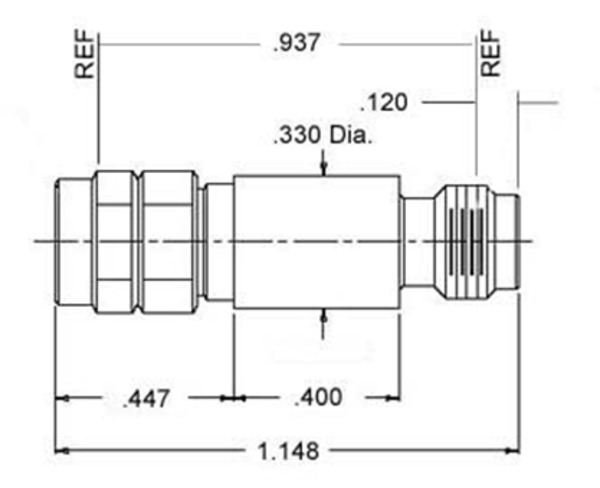

Dimensions | 28.8 mm length, 8 mm diameter |
Weight | 8 gm |
Material | Stainless steel |
Serial Number | Yes |
Warranty | One Year |
1 All parameters listed are typical unless maximum or minimum guaranteed limits are provided.
Ordering information
Models
- PSPL5510V
- Attenuator, 60 GHz
Options
- Opt. 3DB
- 3 db attenuation
- OPT 6DB
- 6 db attenuation
- Opt. 10DB
- 10 db attenuation
- Opt. 20DB
- 20 db attenuation
