PSPL5370 Ultra-Broadband Pick-off Tee
PSPL5370 Datasheet
The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.
PSPL5370 Datasheet
The PSPL5370 Pick-off Tee is an ultra-broadband resistive coupler, which provides a scaled (5x or 10x) replica of signals passing through the tee. The device exhibits excellent through-line insertion loss and pick-off ratio stability for frequencies from DC to >25 GHz. The PSPL5370 features good impedance match across a wide range of frequencies, with return loss typically >15 dB from 0-25 GHz.
Key performance specifications
- Low insertion loss
- DC to >25 GHz
- 5x and 10x pick-offs
- ≤14 ps rise time

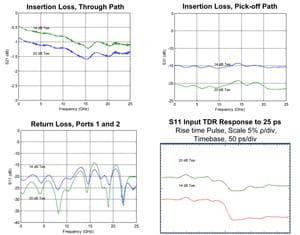

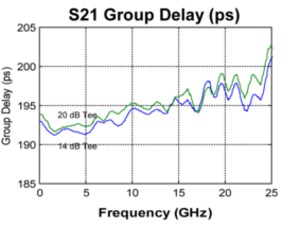

Typical performance
Specifications
| Parameter 1 | PSPL5370 Opt. 14DB | PSPL5370 Opt. 20DB |
|---|---|---|
| Pick-off Insertion Loss (S31) | 14.8 dB, nominal DC
15 ±1 dB, 0-25 GHz, guaranteed |
20.4 dB, nominal DC
20.5 ± 2.0 dB, 0–25 GHz, guaranteed |
| Through-line Insertion Loss (S21) | 0.8 dB, nominal DC
0.8 (+0.2,-1.0) dB, 0-25 GHz, guaranteed |
0.4 dB, nominal DC
0.4 (+0.2,-1.2) dB, 0–25 GHz, guaranteed |
| Rise time (10% - 90%) | 12 ps | 14 ps |
| Return Loss (S11) | >20 dB, DC
≥15 dB, 0-10 GHz, guaranteed ≥12.5 dB, 10-25 GHz, guaranteed |
>24 dB, DC
≥20 dB, 0-10 GHz, guaranteed ≥13 dB, 10-25 GHz, guaranteed |
| Pick-off Resistor | 200 Ω ± 2%, guaranteed | 450 Ω ± 2%, guaranteed |
| Through-line Group Delay Tolerance (S21) | ± 7.5 ps guaranteed up to 25 GHz (750 MHz aperture) | |
| In/Out Impedance @ DC (port 1 or port 2) | 41.7 Ω, nominal | 45.5 Ω, nominal |
| Temperature Range | -55 to +90 °C Operating | |
| Max Input Power, (Port 1 or 2, Avg) | 2 W | 4 W |
| Connectors | SMA jacks (f) | SMA jacks (f) |
| Warranty | One Year | |

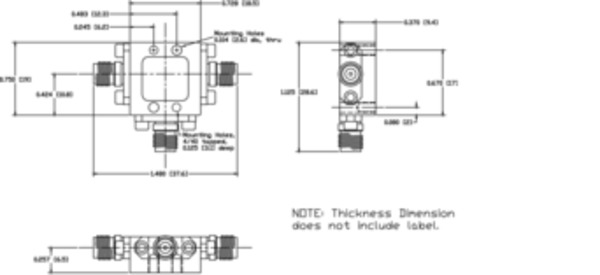

- Mechanical dimensions
1 All parameters listed are typical unless max/min guaranteed limits are provided. The DC specs are valid only when used with 50 Ω source and terminations.
Ordering information
Models
- PSPL5370
- Pick-off Tee
Options
- Opt. 14DB
- 14 dB Pick-off
- Opt. 20DB
- 20 dB Pick-off
