Keithley KickStart Software
Drive innovation through faster test & measurement with KickStart Software. KickStart simplifies what you need to know about the instrument so that in just minutes you can take the instrument out of the box and get real data on your device. By plotting data immediately and offering quick statistical summaries of the data in the reading table, KickStart allows you to gather insights faster and make the decisions you need to move on to the next stage of device development. KickStart enables you to focus your time on interpreting the test results so that your team can meet its innovation goals.
Beyond Keithley arbitrary function generators, power supplies, data acquisition instruments, digital multimeters (DMMs) and source measure units (SMUs), KickStart can also be used as oscilloscope software to control Tektronix bench oscilloscopes.

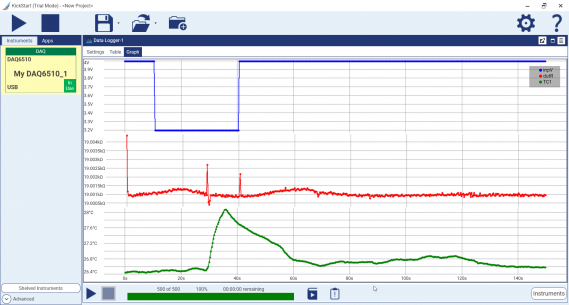

Simple tools for visualizing data quickly
Highlights
- Large viewing area for data
- Access information about multiple tests in one window
- Highlight data of interest using markers
- Compare data from multiple test runs in a single plot
- Ability to load in arbitrary and basic waveforms from file data
Fast and easy test replication and sharing of results
Highlights
- Configure tests using simulated instruments and swap in real instruments when available
- Save test configuration in KickStart project and export along with data for test documentation
- Auto export data in .csv and .xlsx formats
- Auto export graphs in picture format
- Capture, save, and export AFG waveform settings
Supported instruments
| Instrument Type | Model | KickStart Suite Apps |
|---|---|---|
| Arbitrary Function Generators | AFG31000 Series | AFG |
| SMU Instruments | 2400 Series, 2600 Series, 2650 Series, 6430 | I-V Characterizer |
| Oscilloscopes |
TBS1000 Series, TBS2000 Series, 2 Series MSO, 3 Series MDO, 4 Series MSO, 5 Series MSO, 5 Series B MSO, 5 Series MSO Low Profile, 6 Series B MSO, MDO3000 Series, MDO4000 Series, MSO3000 Series, MSO4000 Series, DPO3000 Series, DPO4000 Series, TDS1000 Series, TDS2000 Series, and TDS200 Series |
Scope |
| Data Acquisition Units | DAQ6510, DMM6500, 2700, 2701, 2750, 3706A | Data Logger |
| DMMs | DMM6500, DMM7510, DAQ6510, 2700, 2701, 2750, 2000, 2010, 2110 | DMM |
| Power Supplies | 2280S-32-6, 2280S-60-3, 2281S-20-6, 2220 Series, 2230 Series, 2231A-30-3, 2260B Series, 2200 Series, and 2306-LAN | Power Supply |
| Sensitive | 6517B, 6514, 6485, 6487, 6517A | DMM |
| Instrument Type | Model | KickStart Specialty Apps |
|---|---|---|
| Sensitive | 6517B, 6517A | High Resistivity App |
| SMU Instruments | 2400 Series, 2600 Series | Battery Simulator App |
| Power Supplies | 2281S-20-6 | Battery Simulator App |
| Battery | 2380 Series | Battery Simulator App |
KickStart Purchasing Options
Select Items to see total below.
- Suite Apps
- KickStart Suite Apps Bundle
- AFG
- I-V Characterizer
- Scope
- Data Logger
- DMM
- Power Supply
- Speciality Apps
- Battery Simulator
- High Resistivity
- I-V Tracer Software
- Maintenance
KickStart Suite Apps Bundle
Software Included
- AFG App
- I-V Characterizer App
- Scope App
- Data Logger App
- DMM App
- Power Supply App
Description
Save money by bundling all the KickStart core software options. Easily complete all your device characterization and datalogging tasks, save tests, and share data for easy collaboration.
Subscription
KICKSTARTFL-SUITE-AN- Pay Annually
- Updates Included with active subscription
Perpetual
KICKSTARTFL-SUITE- Own the Software
- 1 year of updates included
- Purchase additional updates after 1st year of usage
AFG
Description
The KickStart AFG App gives users a simple method to control the AFG by sourcing and previewing waveforms remotely. Use the AFG App in conjunction with other KickStart apps, such as the Scope App, to capture signal data. Change settings in real time with our responsive interface along with accessing a variety of source functions, including pulse, noise, arbitrary, exponential rise, and many more
Subscription
KICKSTARTFL-AFG-AN- Pay Annually
- Updates Included with active subscription
Perpetual
KICKSTARTFL-AFG- Own the Software
- 1 year of updates included
- Purchase additional updates after 1st year of usage
I-V Characterizer
Description
Use the I-V Characterizer App to perform current vs. voltage (I-V) test on a variety of materials, two-terminal and multi-terminal semiconductor devices, solar cells, and much more. You can configure each SMU for a variety of bias and sweep sourcing operations, including linear, log, list, and dual sweeps.
Configure and control up to four instruments for DC or Pulsed I-V test in either the same app, same project, or a combination of the two while performing current versus voltage (I-V) testing on a variety of materials and devices
Subscription
KICKSTARTFL-IVC-AN- Pay Annually
- Updates Included with active subscription
Perpetual
KICKSTARTFL-IVC- Own the Software
- 1 year of updates included
- Purchase additional updates after 1st year of usage
Scope
Description
The Scope app supports data retrieval from Analog Channels, Reference Channels and Math Channels. The app will either capture present data (without waiting for a trigger) or will arm the scope to wait for a trigger, stop the capture to gather data once scope has been triggered and re-arm scope to wait for next trigger after data is captured.
Enable data capture and datalogging of waveforms, measurements, and screenshots with threee modes of operation while also capturing present data or arm to wait for a trigger, capture data, and re-arm for next trigger
Subscription
KICKSTARTFL-SCOPE-AN- Pay Annually
- Updates Included with active subscription
Perpetual
KICKSTARTFL-SCOPE- Own the Software
- 1 year of updates included
- Purchase additional updates after 1st year of usage
Data Logger
Description
Use the KickStart Data Logger App to set up and control your multi-channel data acquisition instrument. This app is designed to help you configure all your channels very quickly and even validate your connections during test configuration. It allows you to set up multiple channels with the same configuration but give each channel a meaningful label so that you can quickly scan your results and grab the information you need. Configure pass/fail limits for each channel in order to set alarm conditions and obtain quick visual verification of test results.Quickly configure multi-channel data acquisition instruments, stream millions of readings directly to PC disk media for safe data archival, and automatically export data in ready-to-use formats for reports and additional analysis.
Subscription
KICKSTARTFL-DL-AN- Pay Annually
- Updates Included with active subscription
Perpetual
KICKSTARTFL-DL- Own the Software
- 1 year of updates included
- Purchase additional updates after 1st year of usage
DMM
Description
This app affords you a simple way to log data using your Keithley DMM or sensitive measurement instrument.
Run independent or simultaneous tests that log measurements from one or more DMMs and get a quick summary of data using statistics built into the data table
Subscription
KICKSTARTFL-DMM-AN- Pay Annually
- Updates Included with active subscription
Perpetual
KICKSTARTFL-DMM- Own the Software
- 1 year of updates included
- Purchase additional updates after 1st year of usage
Power Supply
Description
This app simplifies supplying power to your device or system. Export / save statistics with the data while having easy access to control voltage bias and current limit while viewing data from primary measurement instrument in main viewing area. Configure list sweeps to automate tests of up to 99 points on the power supply. Control channels individually on multi-channel power supplies.
Subscription
KICKSTARTFL-PS-AN- Pay Annually
- Updates Included with active subscription
Perpetual
KICKSTARTFL-PS- Own the Software
- 1 year of updates included
- Purchase additional updates after 1st year of usage
Battery Simulator
Description
We provide a simple method to create, manage, and simulate battery models along with the ability to cycle test batteries. Designed for use with Keithley instruments to simulate battery models, battery model generation, and battery charge/discharge cycle testing.
Subscription
KICKSTARTFL-BAT-AN- Pay Annually
- Updates Included with active subscription
Perpetual
KICKSTARTFL-BAT- Own the Software
- 1 year of updates included
- Purchase additional updates after 1st year of usage
High Resistivity
Description
Measure resistance up to 1018Ω at up to 1000V, quickly and reliably determine resistivity of material using tests that conform to ASTM D257 standard. For the most accurate resistivity measurements use alternating polarity measurement technique to eliminate inherent background currents.
Subscription
KICKSTARTFL-HRMA2-AN- Pay Annually
- Updates Included with active subscription
Perpetual
KICKSTARTFL-HRMA2- Own the Software
- 1 year of updates included
- Purchase additional updates after 1st year of usage
I-V Tracer Software
Description
Leverage the unique touchscreen interface of the 2400 Series Source Measure Unit (SMU) instrument to recreate the familiar user experience of a curve tracer for two-terminal devices. This gives a dedicated user interface for tracing the characteristics of devices through both current and voltage. With a range of compatible instruments, the I-V Tracer app can utilize the full capabilities of each source measure unit.
Permanent License
One-time purchase, node-locked, updates included.
Maintenance
Description
Perpetual License Only
All perpetual-licensed software comes with 1 year of updates. Maintenance plans add 1 year of updates to existing Perpetual License for one year increments after 1st year of software purchase.
Selected Items
Total
Account Required In order to continue with your transaction, you would need to have a Tektronix account. Thank you.
AFG App
Highlights
- Responsive interface allows users to change settings in real time
- Source and preview waveforms remotely
- Ability to Control both channels of multi-channel AFGs independently
- Access to a variety of source functions, including pulse, noise, arbitrary, exponential rise, and many more
I-V Characterizer App
Highlights
- Configure and control up to four Series 2400 Graphical, Series 2600B, 2651A, and 2657A SMU instruments for DC or Pulsed I-V test in either the same app, same project, or a combination of the two.
- Enables quick pulse test setup and analysis for the new Model 2601B-Pulse 10us Pulser/SMU for outputting pulses as short as 10us at 10A and 10V.
- Perform current versus voltage (I-V) testing on a variety of materials and devices
- Use up to four SourceMeter® SMU instruments in each test
Scope App
Highlights
- Three modes of operation enable data capture and datalogging of waveforms, measurements, and screenshots
- Supports data retrieval from analog channels of supported Tektronix scopes, as well as from reference and math channels
- Capture present data or arm to wait for a trigger, capture data, and re-arm for next trigger
Data Logger App
Highlights
- Quickly configure multi-channel data acquisition instruments
- Stream millions of readings directly to PC disk media for safe data archival
- Automatically export data in ready-to-use formats for reports and additional analysis - even while the test is running
DMM App (Digital Multimeter App)
Highlights
- Run independent or simultaneous tests that log measurements from one or more DMMs
- Get a quick summary of data using statistics built into the data table
Power Supply App
Highlights
- Easy access to control voltage bias and current limit while viewing data from primary measurement instrument in main viewing area
- Configure list sweep to automate tests, such as monitoring power consumption or stability of load current
- Export / save statistics with the data
Battery Simulator App
The KickStart Battery Simulator App gives users a simple method to create, manage, and simulate battery models along with the ability to cycle test batteries. This optional specialty application for KickStart software is designed for use with Keithley’s 2281S Power Supply/Battery Simulator for simulating battery models, the Keithley 2380 DC Electronic Load for battery model generation, and the Keithley 2400 Graphical Series and 2600A/B Series SMUs (channel A only) for battery model generation, battery simulation, and battery charge/discharge cycle testing.
The Battery Simulator App includes:
- Ability to generate, edit, and simulate custom battery models
- Responsive user interface which allows changes to the simulated state of charge in real time
- Table and graph views to visualize data collection in real time
- Ability to browse multiple battery models saved to repository on local drive
- Ability to import and export models to and from KickStart software
- Dynamic and static battery models
- Dynamic battery model updates values in real time
- Visual representation of battery VOC, Vt, SOC, ESR, current, and capacity
- One-box stimulator, model generator, and cycle testing solution using SMUs
- Ability to test batteries through multiple charge and discharge cycles with access to a myriad of test cutoff conditions
The KickStart Battery Simulator Application requires a license: either the KICKSTARTFL-BAT floating perpetual license or the KICKSTARTFL-BAT-AN 1-year subscription. A floating license allows selected users to manage transfer of an individual license to different PCs.
High Resistivity App
The optional high resistivity application (HRMA) for KickStart is designed for use with Keithley’s 6517B Electrometer/ High Resistance Meter. The 6517B along with the 8009 Resistivity Test Fixture is a laboratory standard for volume and surface resistivity measurements on insulating materials. Together, they can be used to measure resistance up to 1018 Ω at up to 1000V.
The KickStart High Resistance Measurement Option makes it easier for you to:
- Quickly and reliably determine resistivity of material using tests that conform to ASTM D257 standard
- Perform a Step Response test to identify electrification time appropriate to the material’s time constant
- Observe resistivity dependence on temperature and relative humidity of environment using optional probes 6517-TP and 6517-RH
- Use alternating polarity measurement technique to eliminate inherent background currents for the most accurate resistivity measurements.
The KickStart High Resistivity Application requires a license: either the KICKSTARTFL-HRMA2 floating perpetual license or the KICKSTARTFL-HRMA2-AN 1-year time-based license. A floating license allows selected users to manage transfer of individual license to different PCs.
KickStart High Resistivity Application
Measuring the Electrical Resistivity of Insulating Materials
I-V Tracer App
Keithley I-V Tracer Software leverages the unique touchscreen interface of the 2400 Series Graphical SourceMeter® Source Measure Unit (SMU) instruments to recreate the familiar user experience of a curve tracer for two-terminal devices. Adding the I-V Tracer to your SourceMeter instrument gives you a dedicated user interface for tracing the characteristics of your devices through both current and voltage. With a range of compatible instruments, I-V Tracer can utilize the full capabilities of each source measure unit, including the dual high-speed digitizers of the 2461 to perform tracing with AC polarity and pulsed DC, in addition to standard DC polarity.
